Welding Machine

DC Inverting arc welder
 Back




Welding Machine

Our range of tools are built to last of the highest quality and at competitive price.

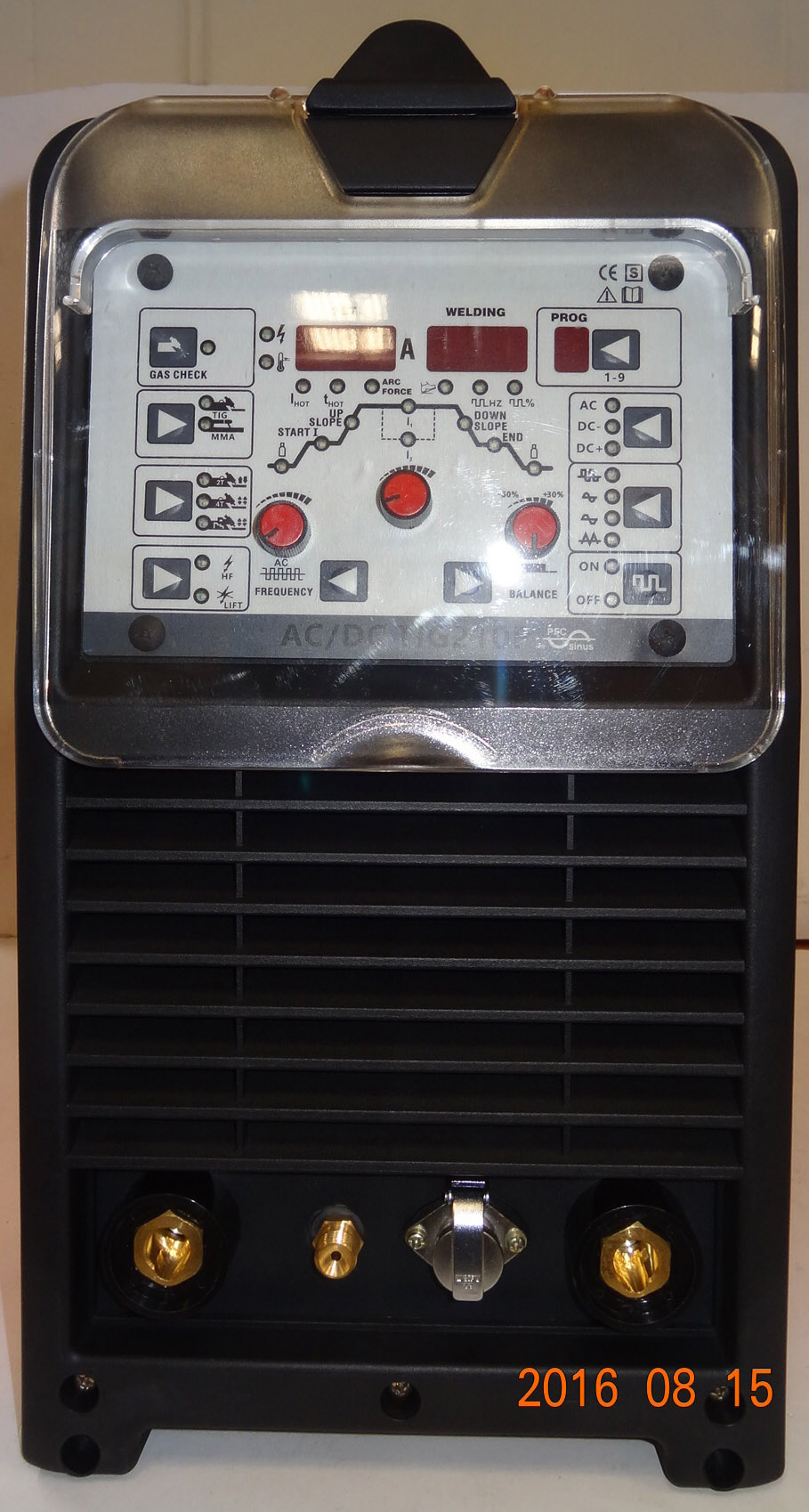

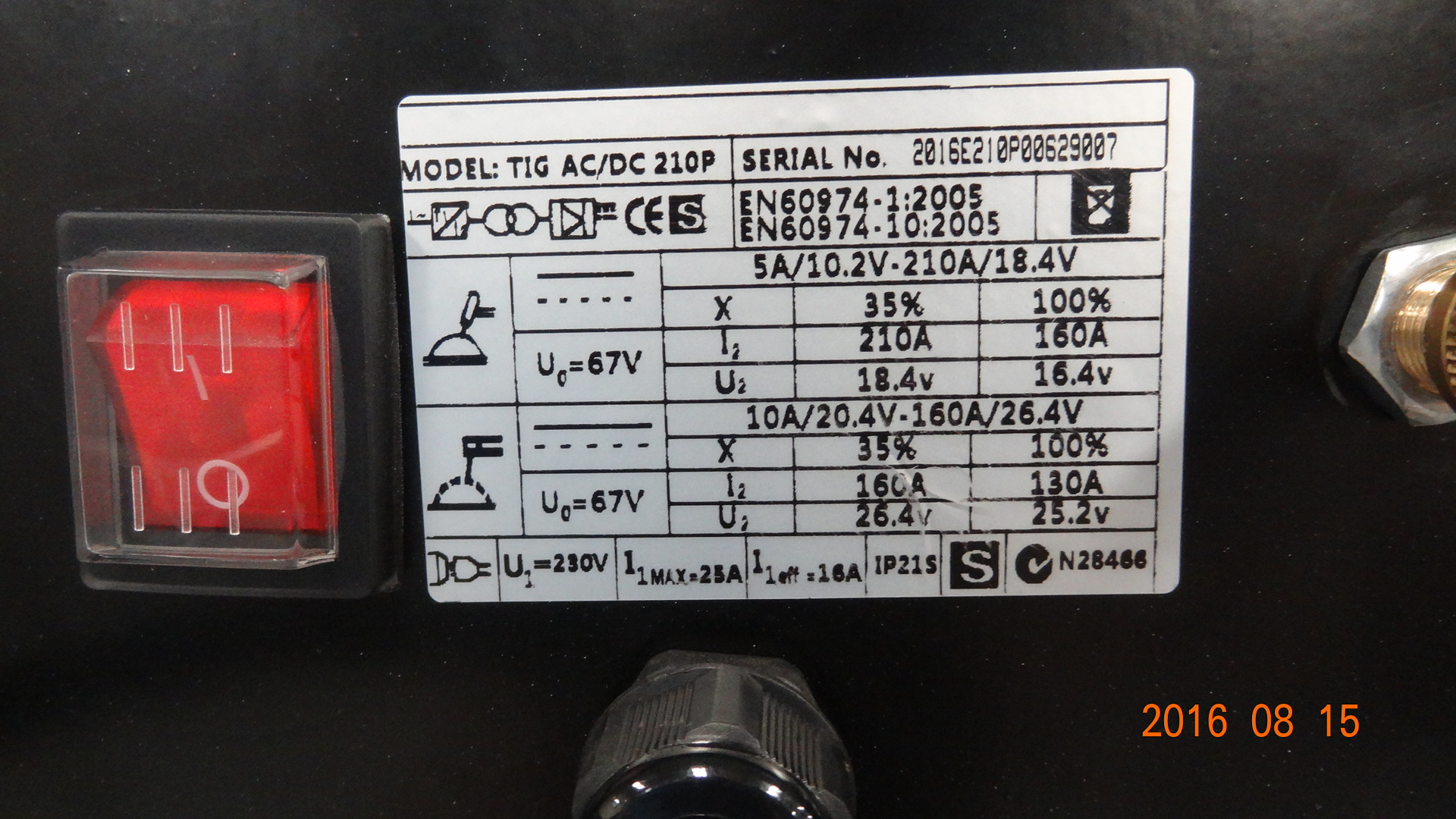

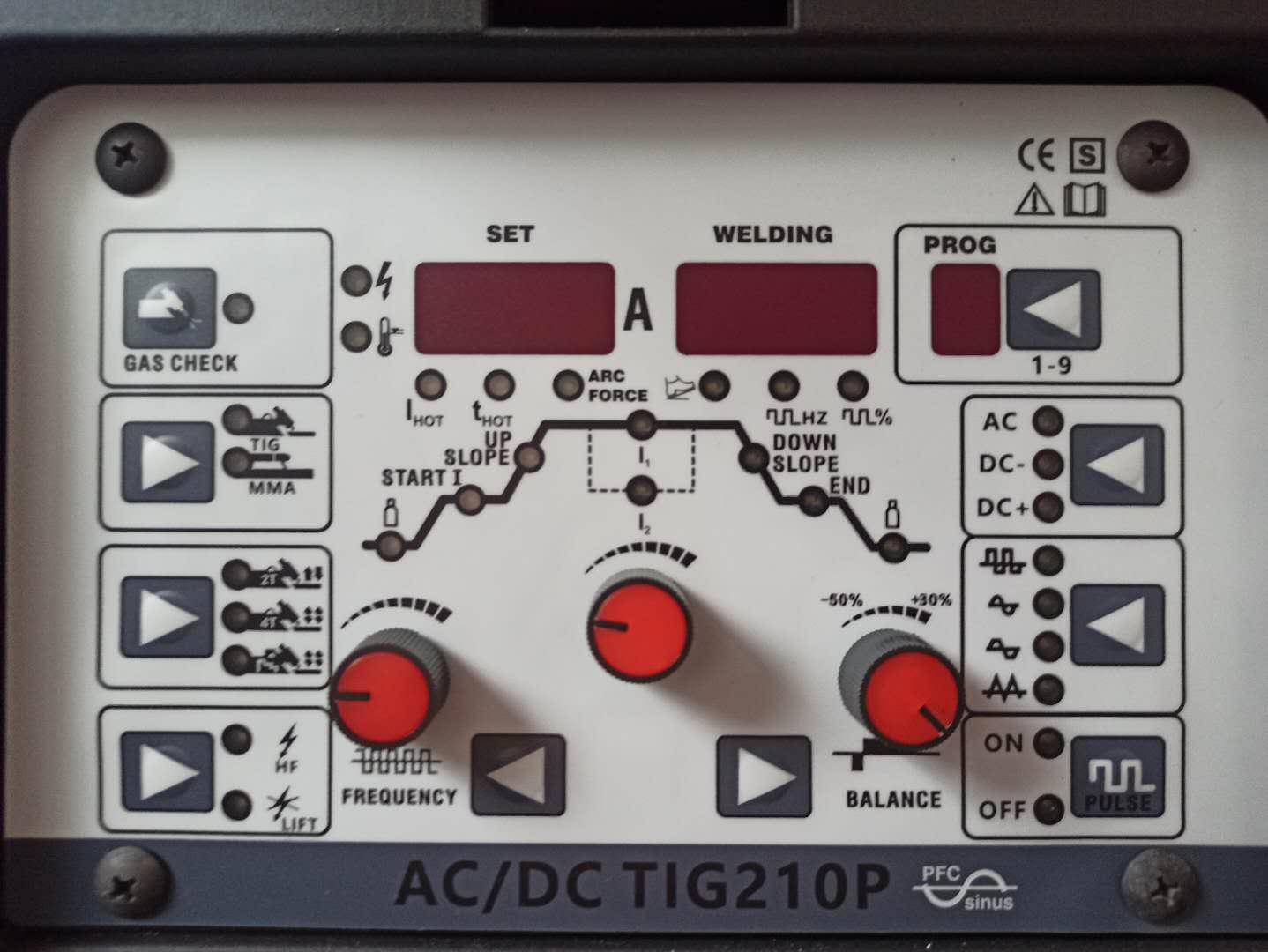

CPU IGBT Tig ac/dc/stick/pulse Welder



CPU210A AC/DC/Tig/Arc pulse (IGBT) welder







Introductions

210P AC/DC/Tig/Arc/Pulse with CPU Micro-processor and memory function.
2016 Lately design

*European design, IGBT technology, CPU Micro-processor, Pre-deposit 8 welding task program, Voltage reduction device open circuit voltage is 5V for your safety)*

210P AC/DC/Tig/Arc/ Pulse is a multi function machine. Its biggest characteristics is that it can not only weld color metal with the direct current (DC) function such as stainless steel, metal alloy steel, carbon steel, copper and others, but also weld aluminum and aluminum metal alloy with the alternating current (AC) function



Specification:

Power supply voltage: AC230v 50/60Hz
Power supply capacity: 5.7KW
the rated output of current: 210A

The regulation range of output current: 20-210A

No-load voltage: 67V
Efficiency (%): 85
Rated duty cycle 40 degree 10 mins
(%): 35% 210A


MMA HOT START: 0%-100%

MMA HOT START TIME: 0.5S-2S

MMA Arc force: 0%-100%

AC frequency (HZ):35-250.

Pulse frequency: DC=0.5HZ-500HZ AC=0.5HZ-10HZ

Pulse wideness: 20%-80%

Balance:-50 +30

Gas After start: no other operation ,20S Shut down automatic

Pre flow: 0S-10S

Post flow: 0S-25S

Arc start: 1%-100%

UP SLOP TIME: 0S-10S

Power factor: 0. 99
Insulation grade: B
Outer shell protection grade: IP23
HF arc striking and contact start
Electrode anti-sticking function
Weight (Kg): 22
Dimensions (mm): 500*230*470





PACKAGE INCLUDES
Unit
Tig leads 4m with torch.
Spare tips of torch and Ceramics .
Tungsten( diameter 2.4mm)
Arc leads 3m with torch..
Earthed lead 3m
Argon regulator.
Hose 3m and 2 clips.
Foot controller.



One-year back to base warranty (Auckland)

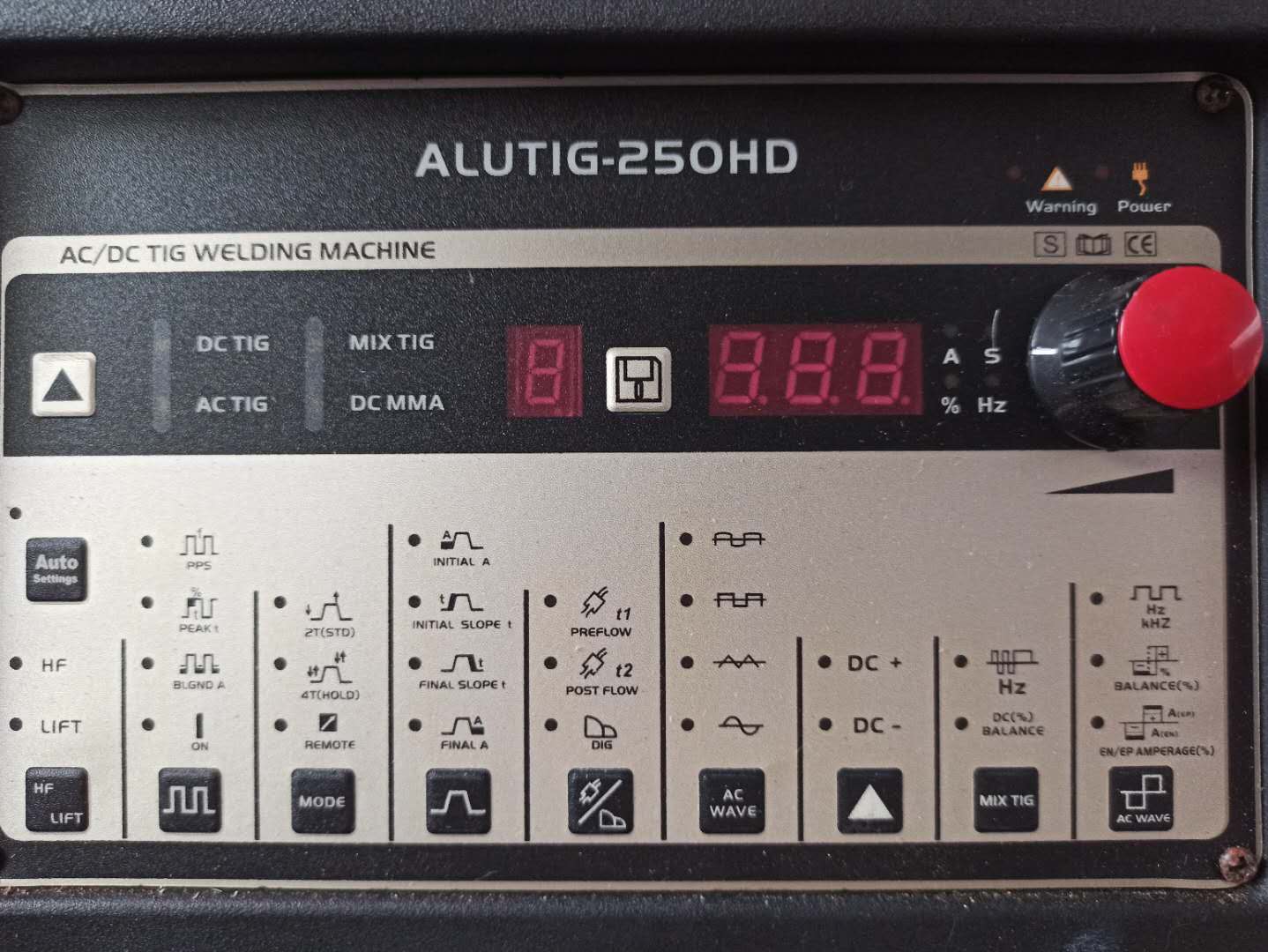

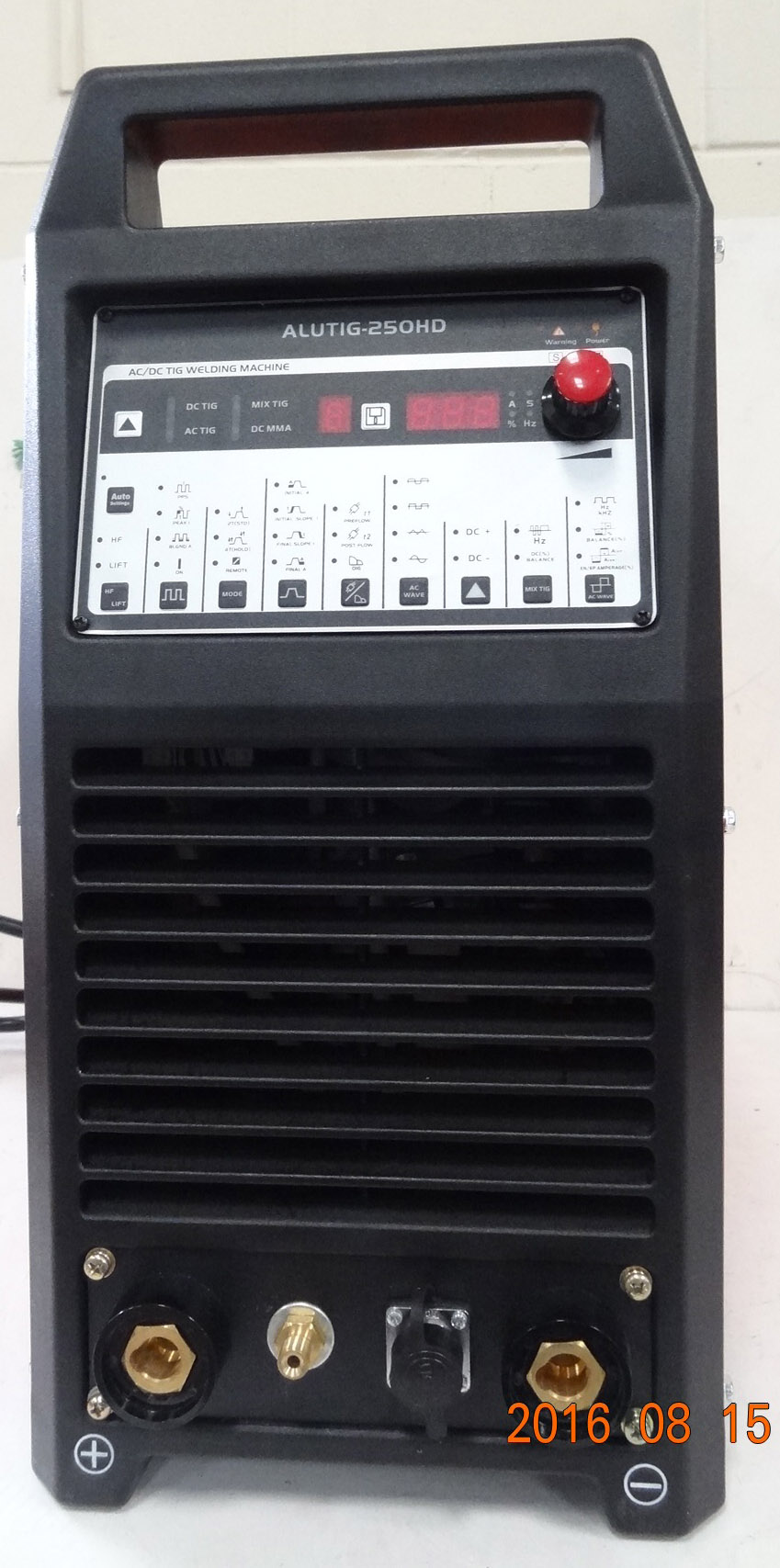

 ALUTIG 250HD with MIX tig function






ALUTIG250HD AC/DC/Tig/MIx TIg/Arc /Pulse with CPU Micro-processor and memory function.

It is with MIx tig Function.

*American design, IGBT technology, CPU Micro-processor, Pre-deposit 10 welding task program, Voltage reduction device(open circuit voltage is 10V for your safety)*

*There is dial button for welding current setting on the foot controller.*

ALUTIG250HD is a multi function machine. Its biggest characteristics is that it can not only weld color metal with the direct current (DC) function such as stainless steel, metal alloy steel, carbon steel, copper and others, but also weld aluminum and aluminum metal alloy with the alternating current (AC) function.

Specification:
Rated Input Voltage: 1PH ~ 230V \15%
Max. Load Power Capacity:TIG:7.81KVA
MMA: 8.75KVA
Rated Duty Cycle(40c) 60%: TIG:250A/20V
MMA:200A/28V
100%:TIG: 200A/18V
MMA: 160A/26.4V
Welding Current/Voltage Range:TIG: 5A/10.2V~250A/20V
MMA:20A/20.8V~200A/28V
Open Circuit Voltage:70V~80V
Power Factor:0.8
Efficiency:80%
TIG Pulse Peak Current:5A~250A
Pulse Frequency:0.2Hz~200Hz
Pulse Width (Ratio):1~100%
AC TIG AC Frequency Range:20Hz~250Hz
AC Clean Width (AC Balance):+40~-40
AC Clean Ratio (AC Bias) %:+30~-50
MIX TIG MIX Frequency: 0.1Hz~5Hz
DC Balance: (%):20-80
Arc-starting Current:5A~250A
Crater filling Current: 5A~250A
Current Up-slope Time: 0.1S~15S
Current Down-slop Time: 0.1S~15S
Pre-Gas Time: 0.1S~15S
Flow-Gas Time: 0.1S~15S
Spot Arc Time: 0.1S~10S
MMA Arc Force: 10A~200A
Hot Start Time: 0.1-3S
Hot Start Current: 10A-200A
Dimension (LxWxH): 540x240x480mm
Weight (KG): 23KG

PACKAGE INCLUDES
Unit
Tig leads 4m with torch.
Spare tips of torch and Ceramics .
Tungsten( diameter 2.4mm)
Arc leads 3m with torch..
Earthed lead 3m
Argon regulator.
Hose 3m and 2 clips.
Footcontroller.

We also sell:
*Water cooled Tig Torch
*Extra Long Hose
*Automatic Welding Helmet
*Welding rods

One-year back to base (Auckland) warranty ,GST invoice is provided

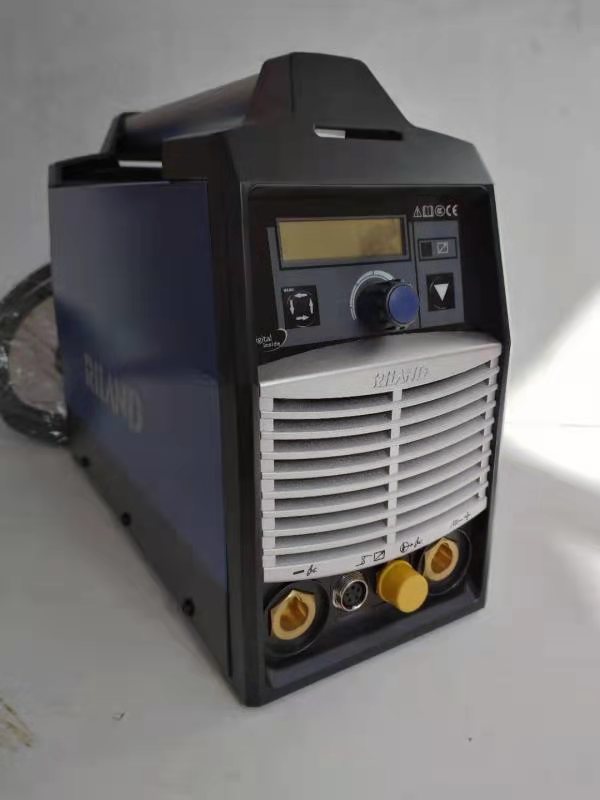

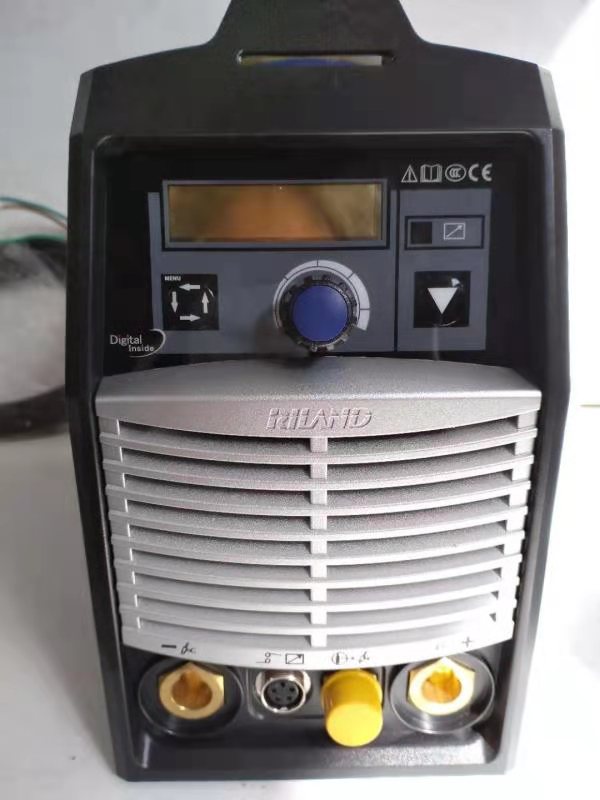

Rilon Tig200P AC/DC/Arc GDM 6.5kg







Introductions

Tig2O0P AC/DC/ARC GDM(HF start) is latest 2020. Digital design, easy operation. Best for professionals. Weight only 6.25kg, suitable for outdoor work and easy to move and carry.

Tig200P AC/DC/ARC is a multi function machine. Its biggest characteristics is that it can not only weld color metal ware the direct current (DC) function such as stainless steel, metal alloy steel, carbon steel, copper and others, but also weld aluminum and aluminum metal alloy ware with the alternating current (AC) function. It is an ideal renewal welder in such professing as building decorating, container manufacturing, installation of machinery and equipment, car maintenance and skateboard car, bicycle etc.

Specification:
Power supply voltage: AC230v 50/60Hz
The rated input of current (A) : 25.3(TIG/DC), 30(TIG/AC), 36.5(MMA).
Output of current (A) : 15-160(TIG/DC), 20-180(TIG/AC), 20-160(MMA).
The rated working voltage(V):16.4(TIG/DC), 17.2(TIG/AC), 26.4(MMA).
No-load voltage(V): Tig/MMA 58 ,19MMA:60.
Duty cycle(%): 25(TIG). 25(MMA).
Arcing way: HF.
Efficiency(%): 80.
Power factor:0.72
Insulation grade: F
Housing protection grade:IP21S
Welder weight (Kg):6.25
Dimensions (mm): 315x135x250 (0.01M3)

PACKAGE INCLUDES
Unit
The tig leads 4m with torch SR-26
Spare tips of torch and Ceramics .
Tungsten( diameter 1.6*150mm)
arc torch and lead 3m
earthed lead 3m
Hose.3m


One-year back to base (Auckland) factory warranty on parts and labor,
GST invoice is provided
