Welding Machine

 Our range of tools are built to last of the highest quality and at competitive price.

Argon, Twin flowmeter, Co2, Oxygen, Mini regulator

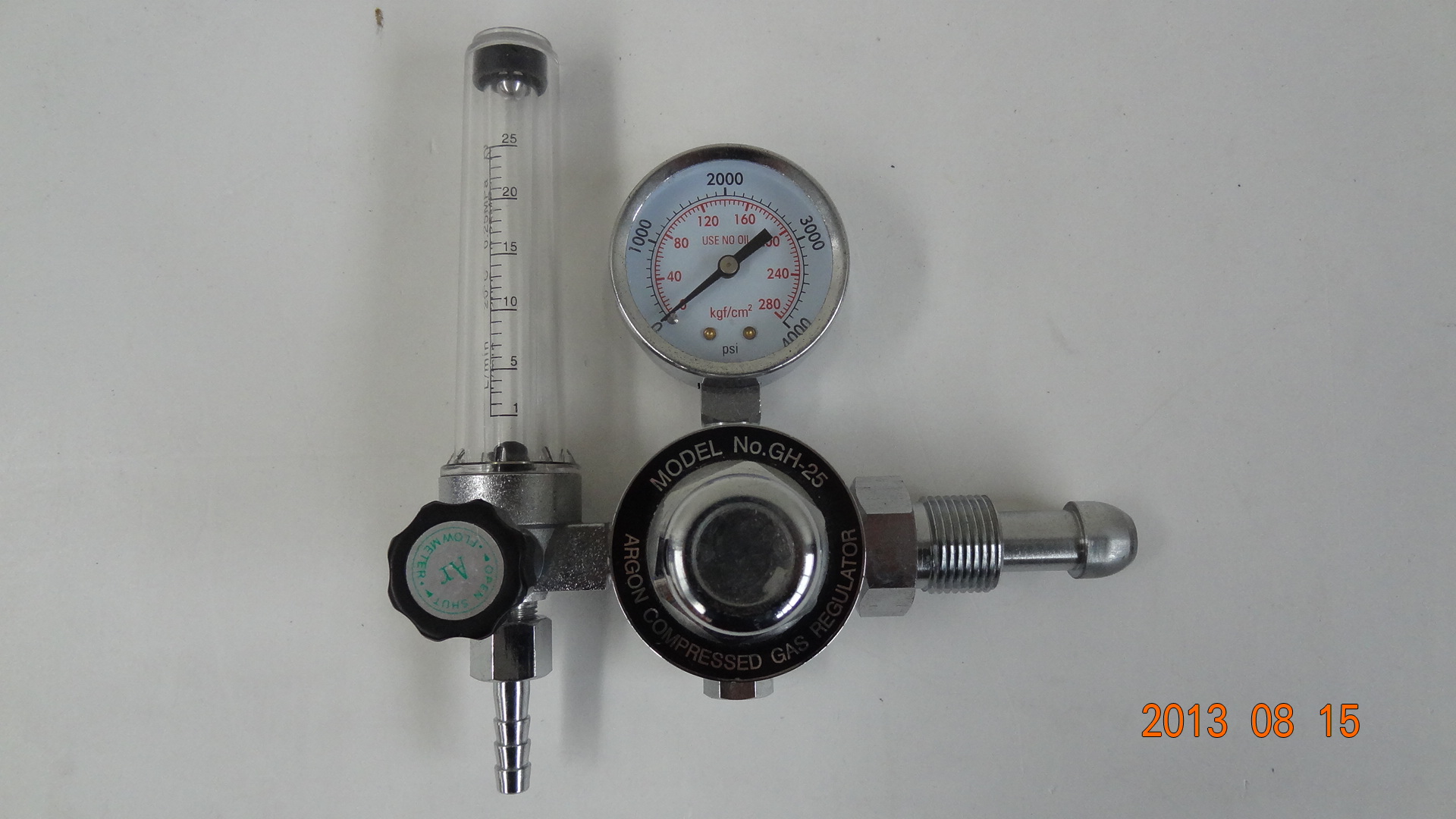

Argon regulator

Introductions

Model NO GH-25

Input Pressure: <14.7Mpa(150 kgf/cm2 ).
Input Thread: G5/8-14.
Output Thread: M12X1.
Output Pressure: 0.25 Mpa (2.5 kgf/cm2 ).
Output Flowing: 0-25 L/min.
Safety Value Working Pressure: 0.55-0.75Mpa (5.5-7.5 kgf/cm2).

Other accessories you can choose( extra cost):
* Hose and 2 clips.
*inlet fitting

Three months back to base (Auckland) factory warranty on parts and labor,
GST invoice is provided

-----------------------------------------------------------------------------------------------------

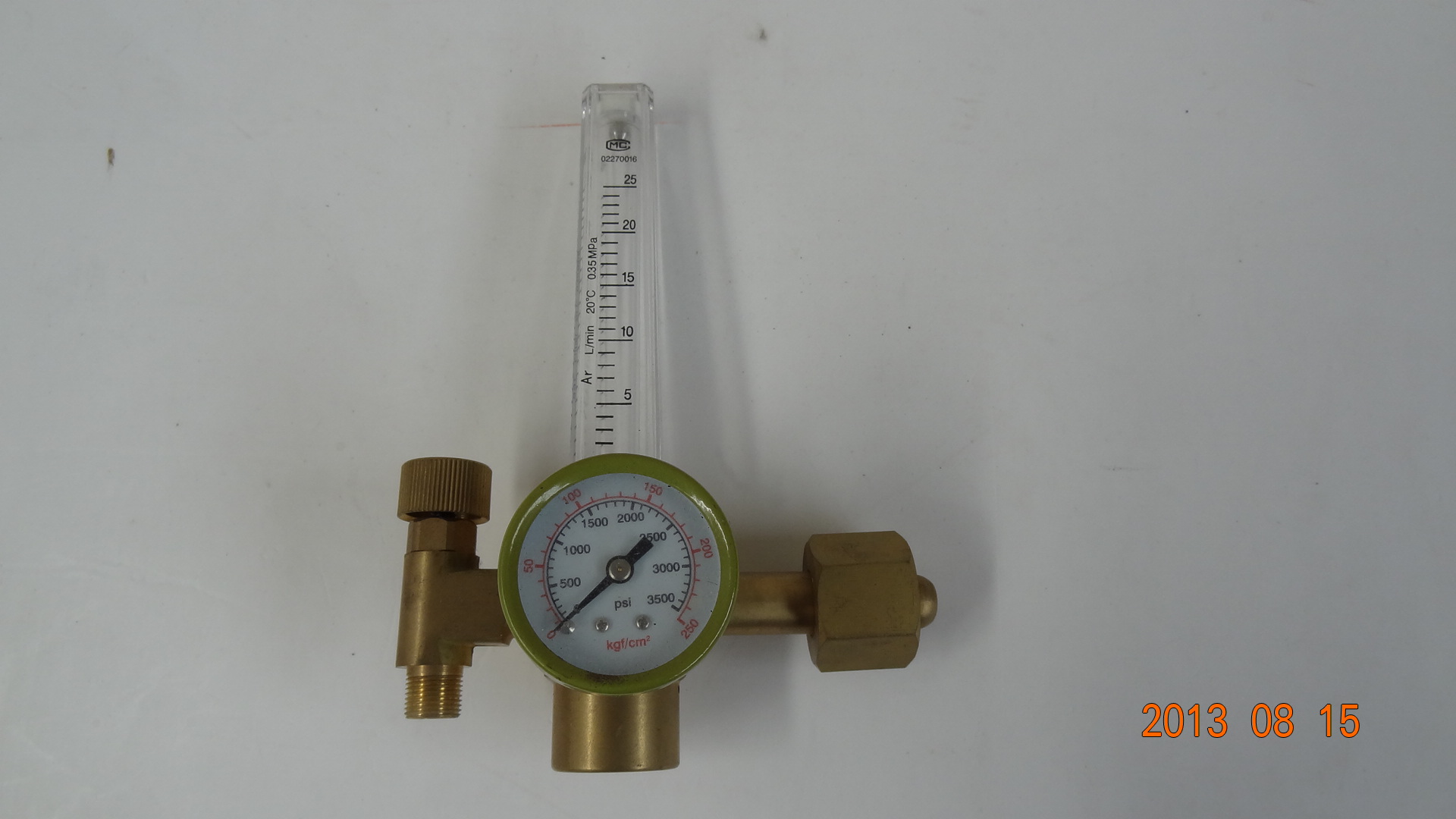

Argon regulator with brass body

Introductions

input Pressure: <14.7Mpa(150 kgf/cm2 ).
Input Thread: G5/8-14.
Output Thread: M12X1.
Output Pressure: 0.25 Mpa (2.5 kgf/cm2 ).
Output Flowing: 0-25 L/min.
Safety Value Working Pressure: 0.55-0.75Mpa (5.5-7.5 kgf/cm2).

Other accessories you can choose( extra cost):
* Hose and 2 clips.
*inlet fitting

Three months back to base (Auckland) factory warranty on parts and labor,
GST invoice is provided

-----------------------------------------------------------------------------------------------------

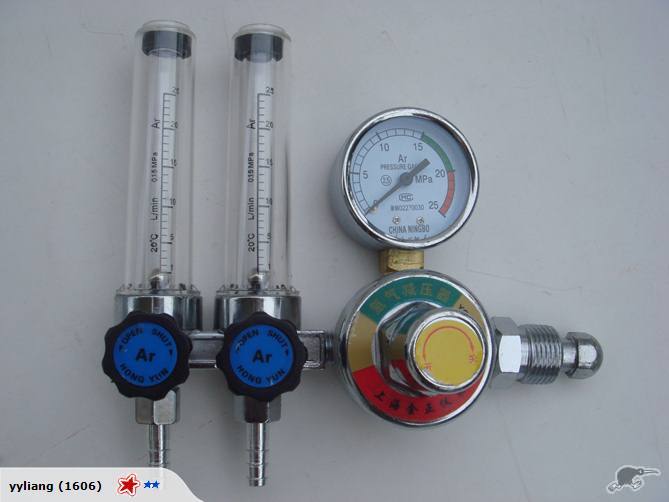

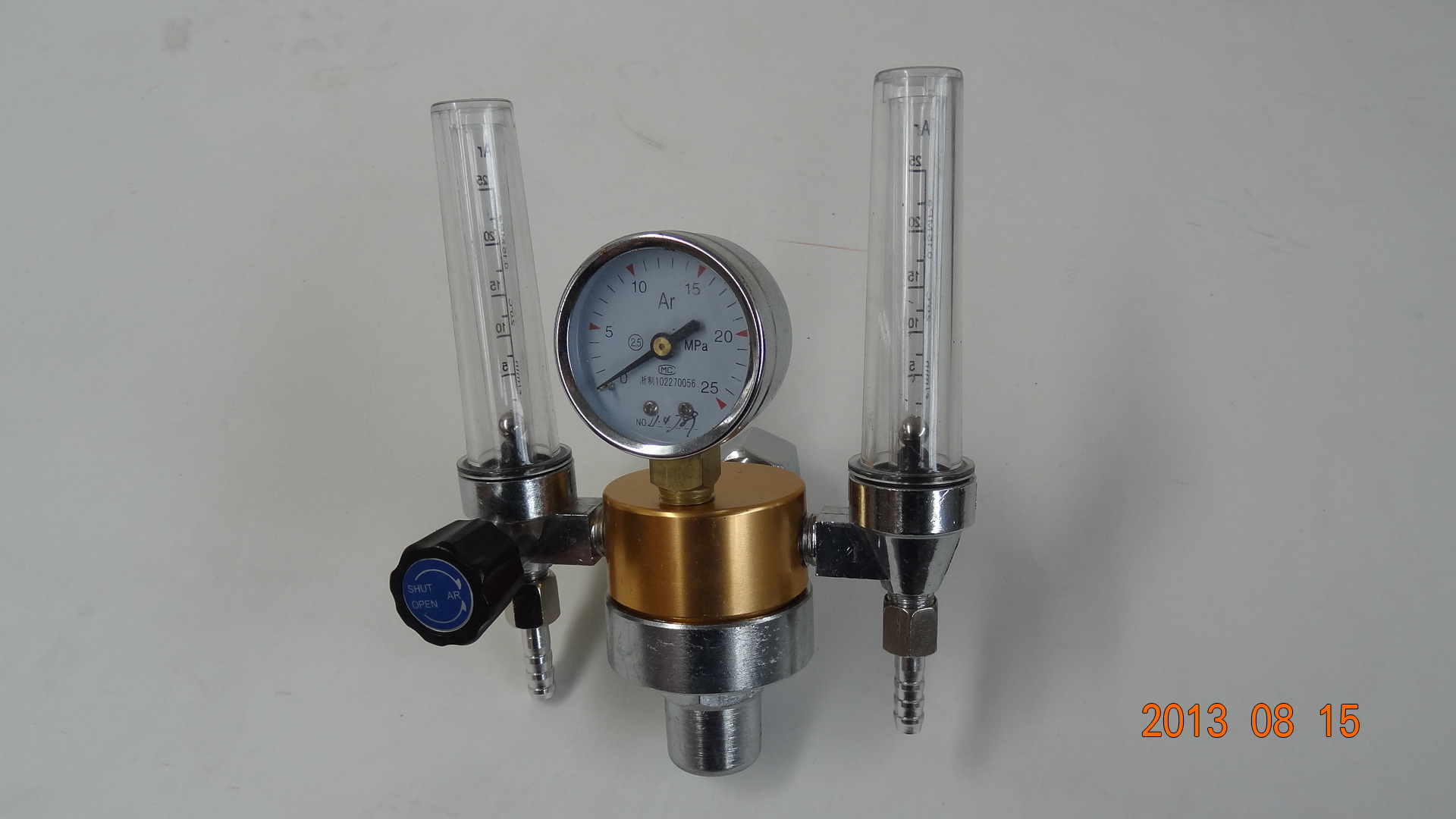

Argon regulator with twin flowmeter

Introductions

Brand new regulator Suitable for Tig or Mig welders

Argon regulator with twin flow meters.

We could supply male input fitting extra $10.00 also.

Input Pressure: 0-25Mpa(250 kgf/cm2 ).
Input Thread: M22*1.5  G5/8"-14
we have male and female fittings, you could choose it

Output Pressure: 0.25 Mpa (2.5 kgf/cm2 ).
Output Flowing: 0-25 L/min.
Safety Value Working Pressure: 0.55-0.75Mpa (5.5-7.5 kgf/cm2).

Other accessories you can choose (extra cost):
* Hose and 2 clips.

*inlet fitting

Three months back to base (Auckland) warranty
GST invoice is provided
　

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

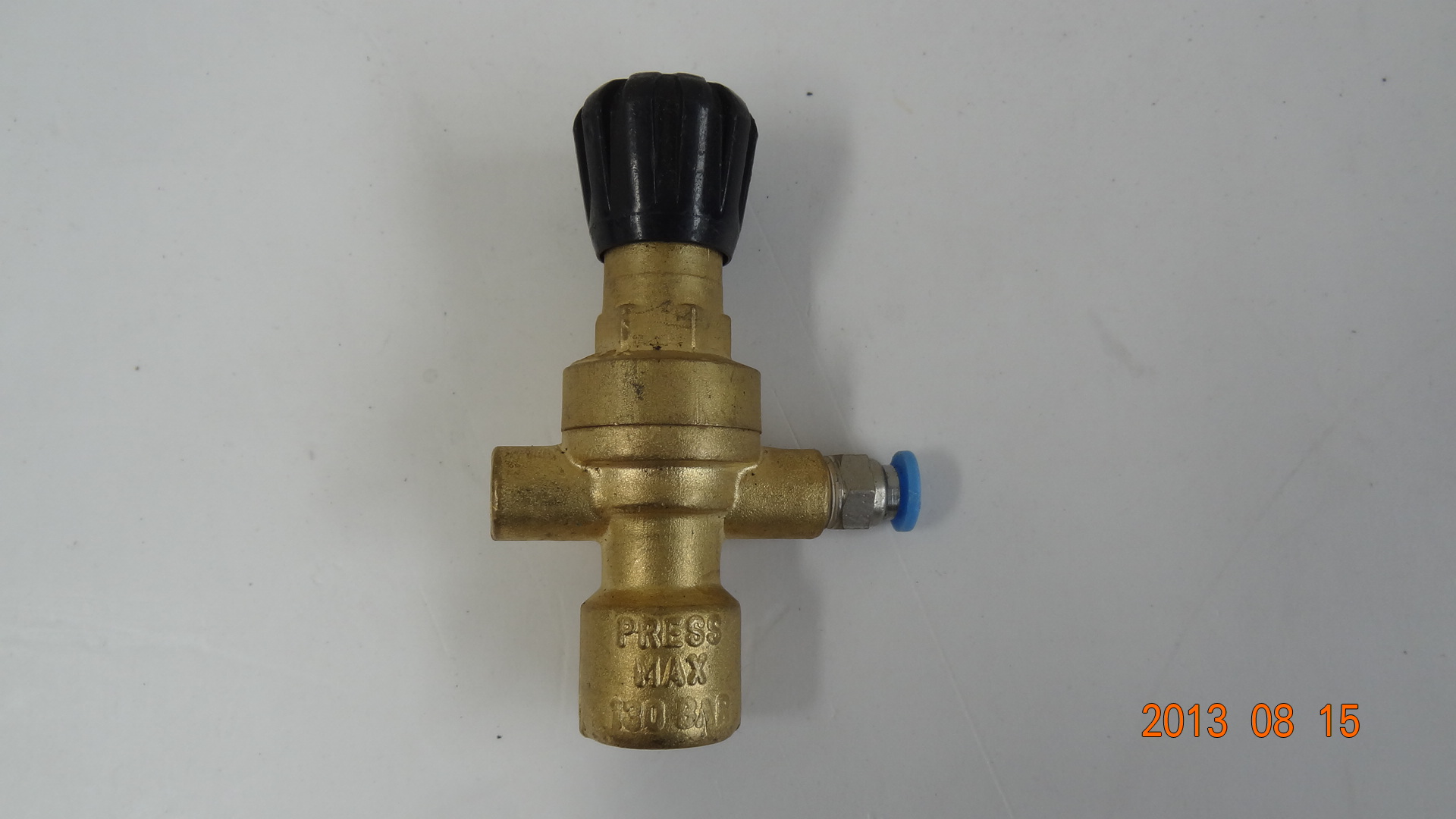

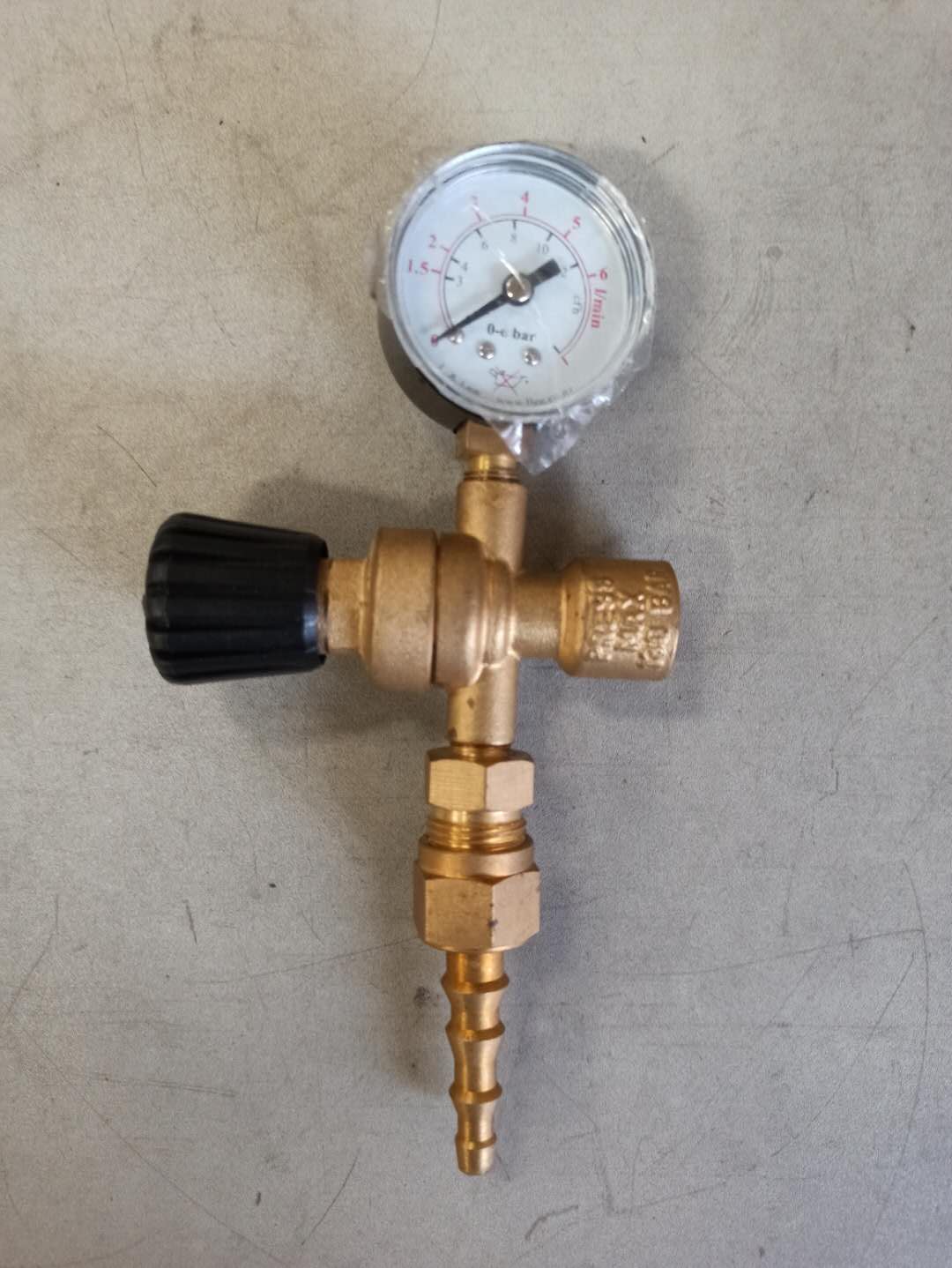

Mini Argon regulator for disposal bottle

Introductions:

Mini-regulator is for the disposable argon + CO2 bottles.
Safe Working Pressure: 130bar, outlet of regulator is a 3/16" push fit fitting or M8 fitting. inlet M10mm.
Also We have the MINI regulator  WITH FLOWMETER.

Our disposal bottle include pure argon ,pure Co2 and Mixer argon 86% and Co2 14%

Disposable bottles size : 60L/free volume. D70H30mm on a picture.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

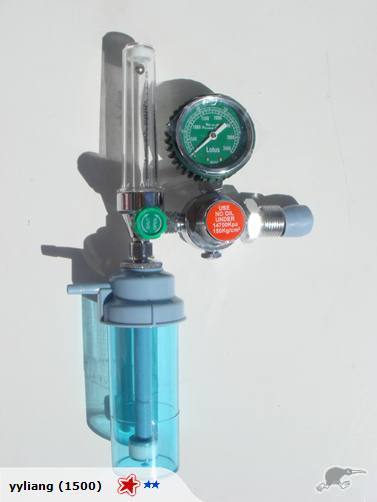

Medical Oxygen regulator with nose hose.

Introductions

Medical Oxygen regulator with nose hose.
Oxygen flow range:1-10L/min
pressure reducing range:2.0-3.0kg.
relief valve pressure range:3.5kg+-0.5Kg.

Input Pressure: 15Mpa(150 kgf/cm2 ).
Input Thread: G5/8

Three months back to base (Auckland) warranty
GST invoice is provided

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

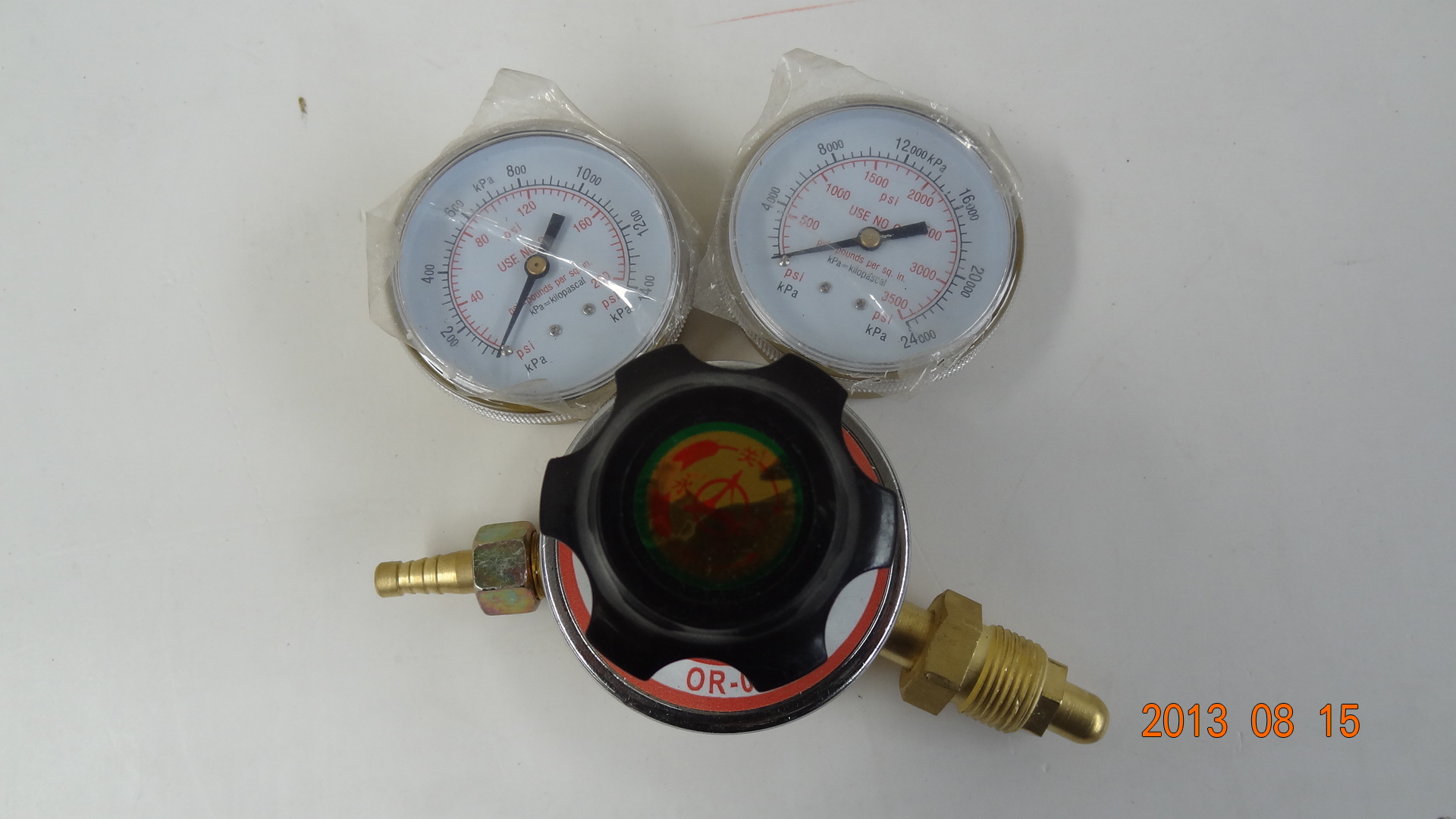

Oxygen and Argon regulator with two meter

Introductions

Oxygen regulator with two meter Model NO: OR-06.

it can do CO2 ,argon also.

Input range: 0-3500psi and 0-24000kpa.
output range: 0-200psi and 0-1400kpa.
Input Thread: G/5/8
we have male and female fittings, you could choose it input Pressure: 15Mpa(150 kgf/cm2 ).


Three months back to base (Auckland) warranty
GST invoice is provided

------------------------------------------------------------------------------

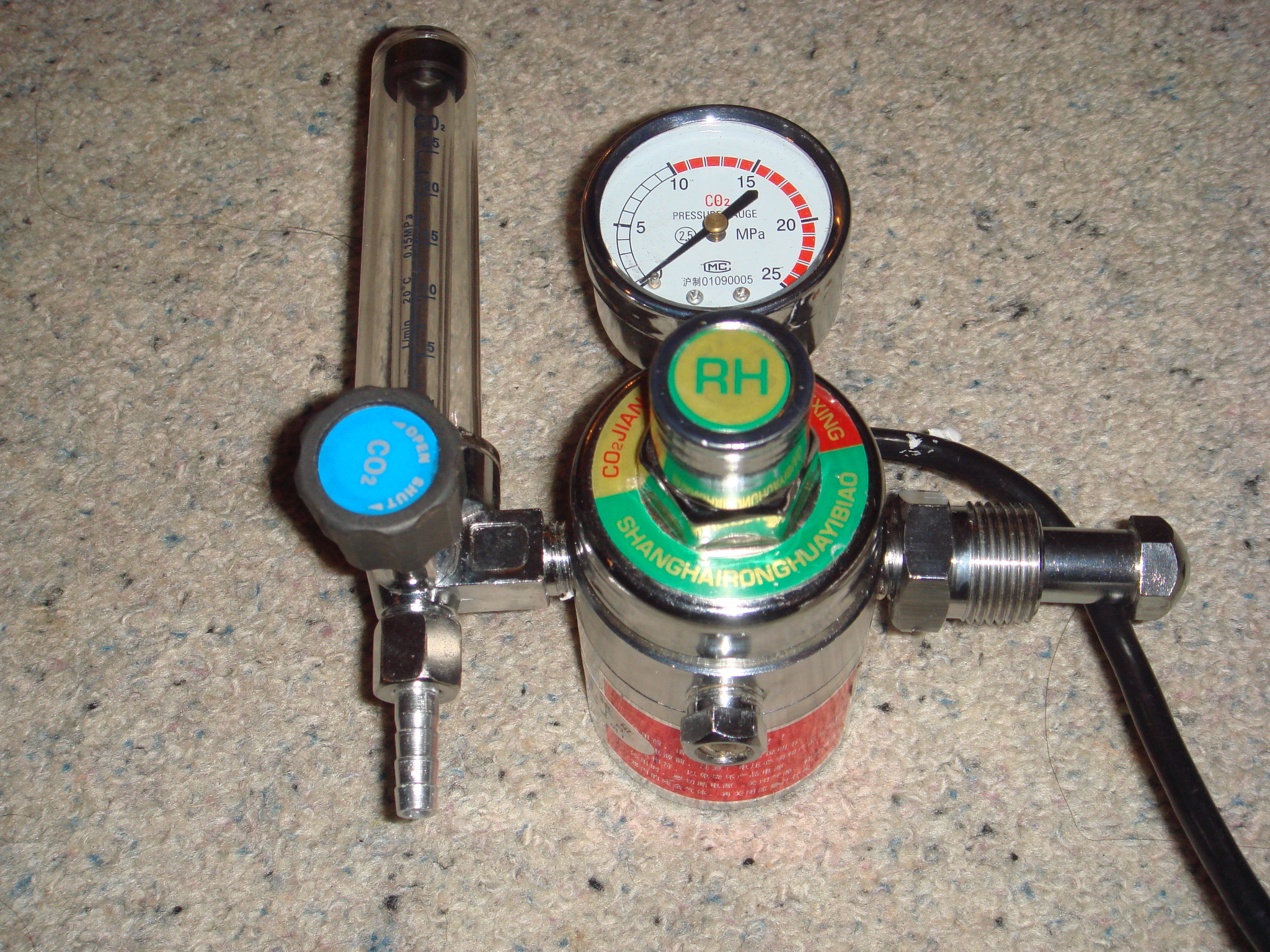

Co2 regulator with heater

Introductions

It comes with a female fitting (We could supply male fitting 1 pair fitting extra $15.00 ).
Heater voltage:AC36V or AC230V.

Heater plug :round 2 pin or power 3 pin

Input Pressure: 15Mpa(150 kgf/cm2 ).
Input Thread: G5/8
Output Pressure: 0.25 Mpa (2.5 kgf/cm2 ).
Output Flowing: 0-25 L/min.
Safety Value Working Pressure: 0.55-0.75Mpa (5.5-7.5 kgf/cm2).

Also we have male and female fittings, you could choose it

------------------------------------------------------------------------------

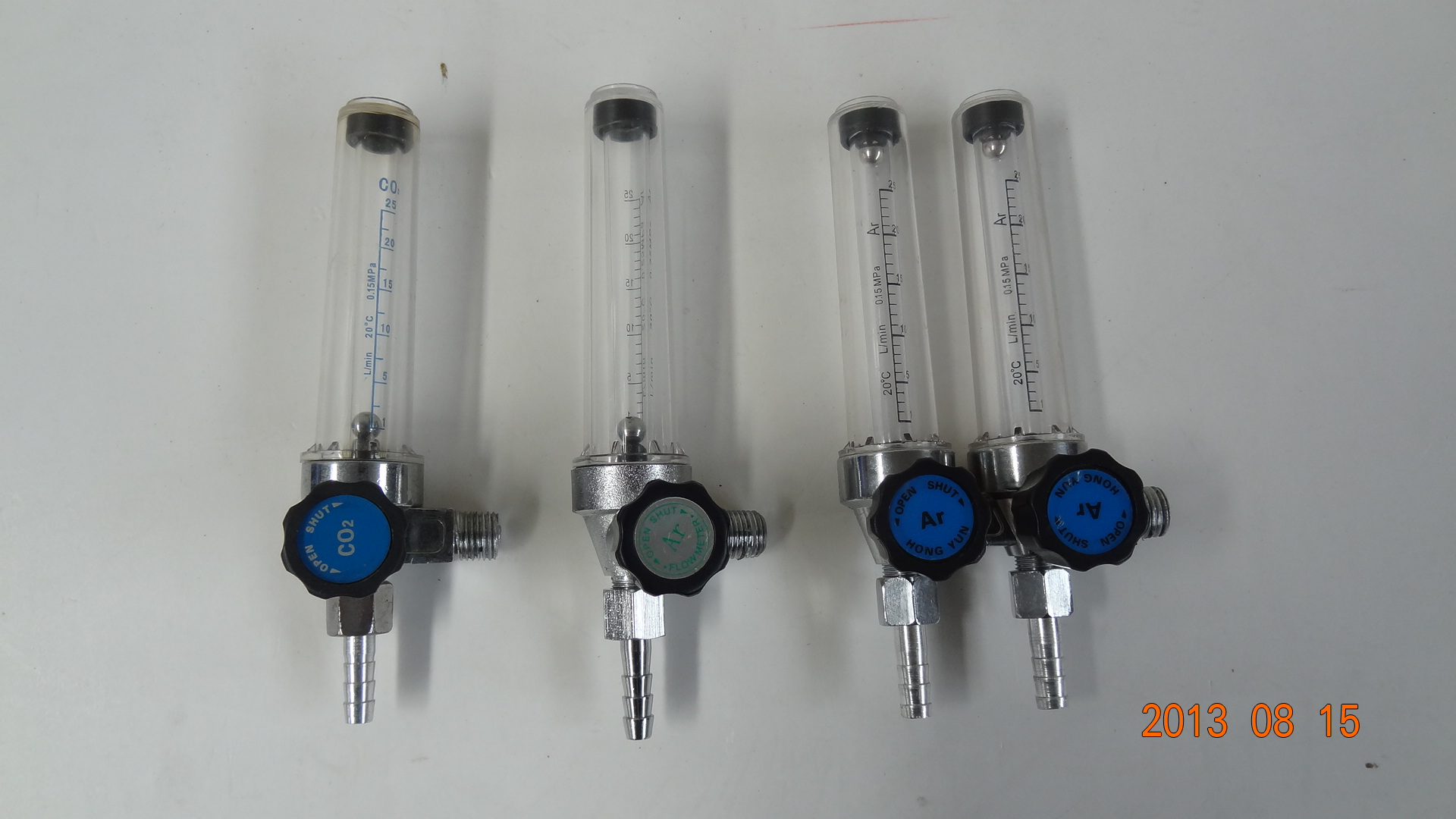

Flow meter

Introductions

It can do CO2,O2,Argon and so on.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

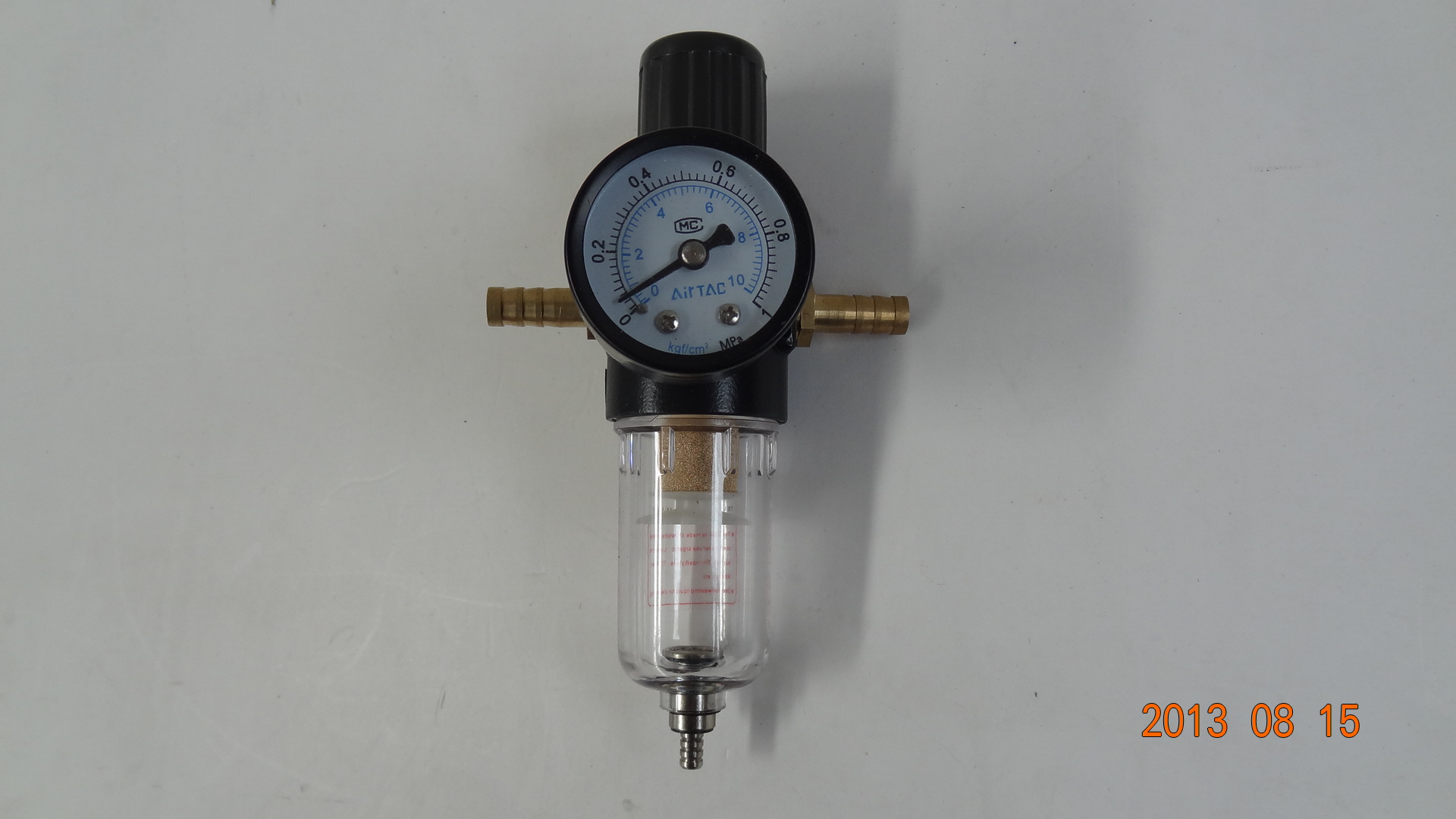

Compressor air regulator

Introductions

It is compressor air
Three months back to base (Auckland) warranty
GST invoice is provided

--------------------------------------------------------------------------------

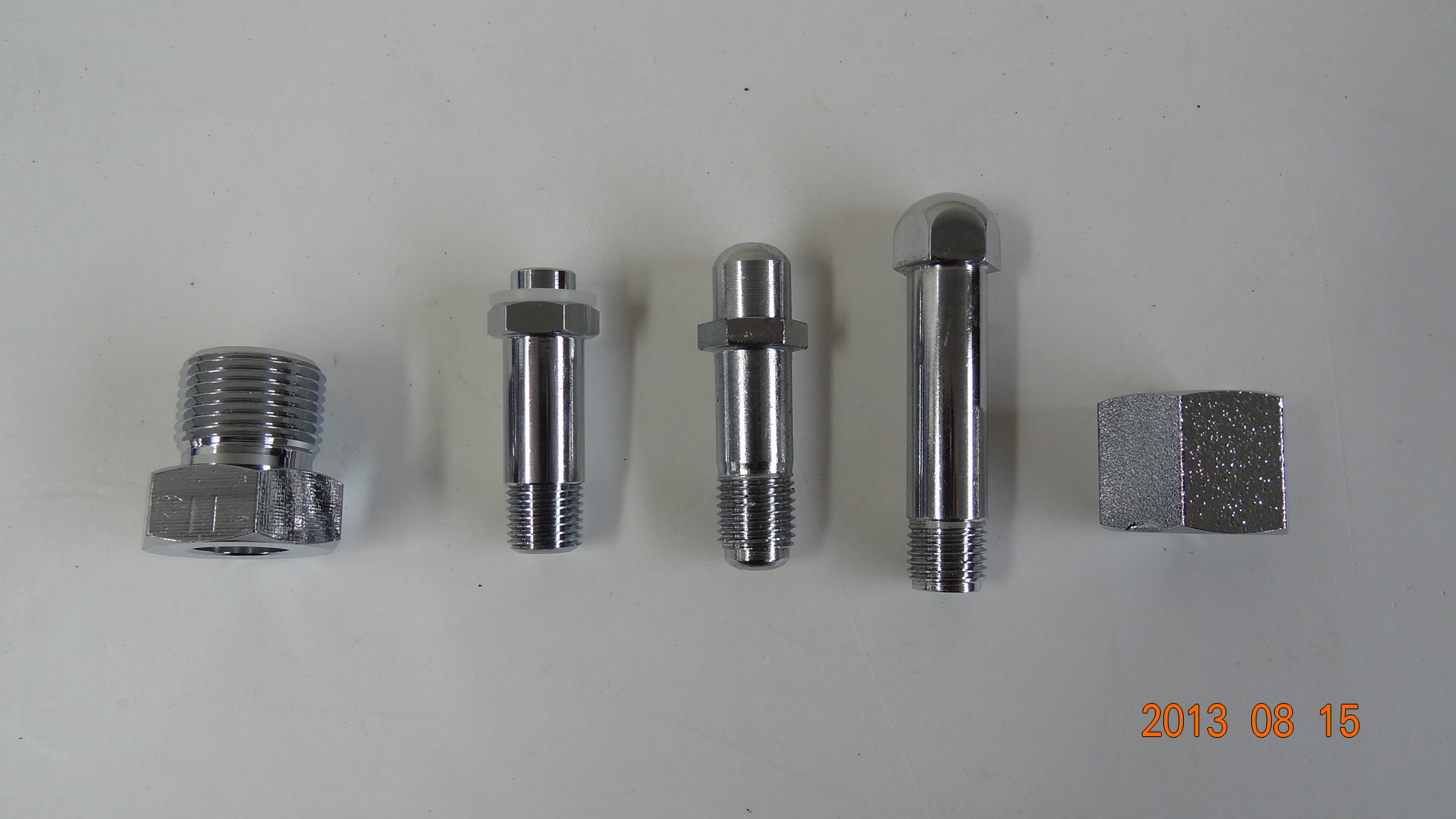

The connecting fitting for regulator

Introductions

We have all the fitting for the regulator against for different size bottle.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
