Welding Machine

DC Inverting arc welder
 Back




Welding Machine

Our range of tools are built to last of the highest quality and at competitive price.

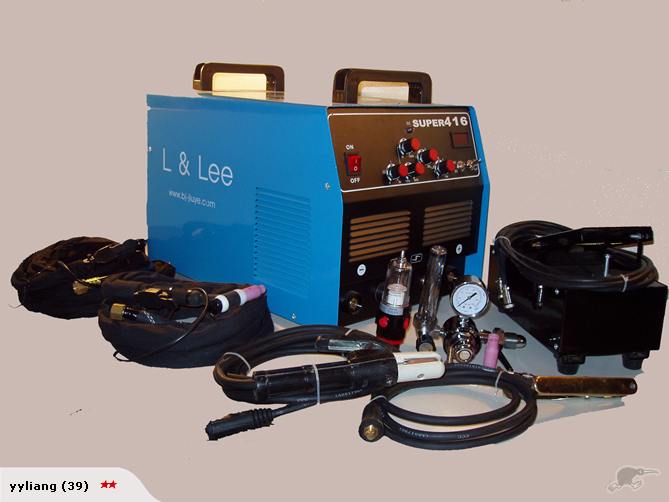

Inverting tig AC/DC/stick/cut 4 in 1 welder

160A Tig ac/dc/Stick/40Amp 4in1(Super-416) welder



Introductions

It use for weld non-rusty steel, alloy steel and carbon steel and other nonferrous metals with DC function, but also it can weld aluminum and alloy aluminum with AC function. For instance, for welding skateboard and bicycle made of aluminum. The total power exchange rate of the machine are over 85%, and they are energy-saving.

Specification:
Power voltage: AC230V 50/60Hz
Rated input current: 22A
Power capacitance:4.8KVA
Rated output current:160A
Range of output current: 20-160A (15-40A)
No-load voltage: 56V (220V)
Working voltage: 16V (100V)
Pre-flow (S):0-2
AC output frequency (Hz):60
Clean width (%):20-80
Slop-down time (S):0-5
Tail-gas time (S):2-10
Remote control: YES
ARC-leading: HF vibration
Efficiency (%):85
Rate duty cycle (%):60
Power factor:0.93
Insulation class: B
Protection class:IP21
Weight (kg):20
Size (mm):493*330*320
Max welding thickness (mm):10-14
Cut thickness (mm):1-12.

The tig leads 4.5 with torch
Cutter leads 4.5m with torch
Spare tips of torch and Ceramics .
Tungsten( diameter 1.6mm)
arc leads 4m
earthed leads 3m
Foot controller.
Argon regulator.
Air flow regulator.
Hose:0.5m
HF arc striking



One-year back to base warranty (Auckland)




-------------------------------------------------------------------------------------------------
