 Welding Machine

DC Inverting arc welder
 Back




Welding Machine

 Our range of tools are built to last of the highest quality and at competitive price.



Inverting Tig AC/DC and Stick Welder

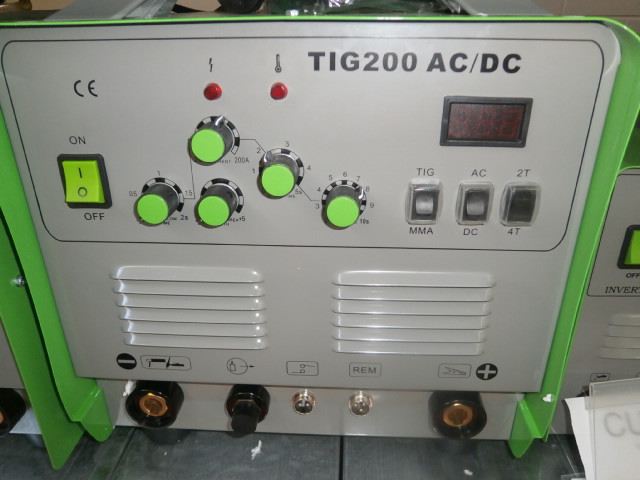

Tig200AC/DC/ARC welder





Introductions

Tig200ac/dc/arc is made by the latest inverter technology in 2008,it is upgraded from
the older inverting technology. it is more reliable and long-lasting.

Tig200 ac/dc/arc use for weld non-rusty steel, alloy steel and carbon steel and other nonferrous metals with DC function, but also it can weld aluminum and alloy aluminum with AC function. For instance, for welding skateboard and bicycle made of aluminum. The total power exchange rate of the machine are over 85%, and they are energy-saving.

Specification:
Power voltage:AC230v 50/60Hz
Rated input current:20A
Power capacitance:4.5KVA
Rated output current:200A
Range of output current:20-200A
No-load voltage:56V
Working voltage:18V
Pre-flow (S):0-2
AC output frequency Hz):60
Clean width (%):20-80
Slop-down time (S):0-5
Tail-gas time (S):2-10
Remote control: YES
ARC-leading: HF vibration
Efficiency (%):85
Rate duty cycle (%):60
Power factor:0.93
Insulation class: F
Protection class:IP23
HF arc striking
Weight (kg):25
Size (mm):493*330*320
Max welding thickness (mm):10

PACKAGE INCLUDES
Unit
The tig leads 4m with torch SR-26
Spare tips of torch and Ceramics .
Tungsten( diameter 1.6*150mm)
arc leads 3m
earthed lead 3m
Argon regulator.
Hose 3m and 2 clips.
*The thicker industrial spades type plug.

One-year back to base warranty (Auckland)


------------------------------------------------------------------------------------------

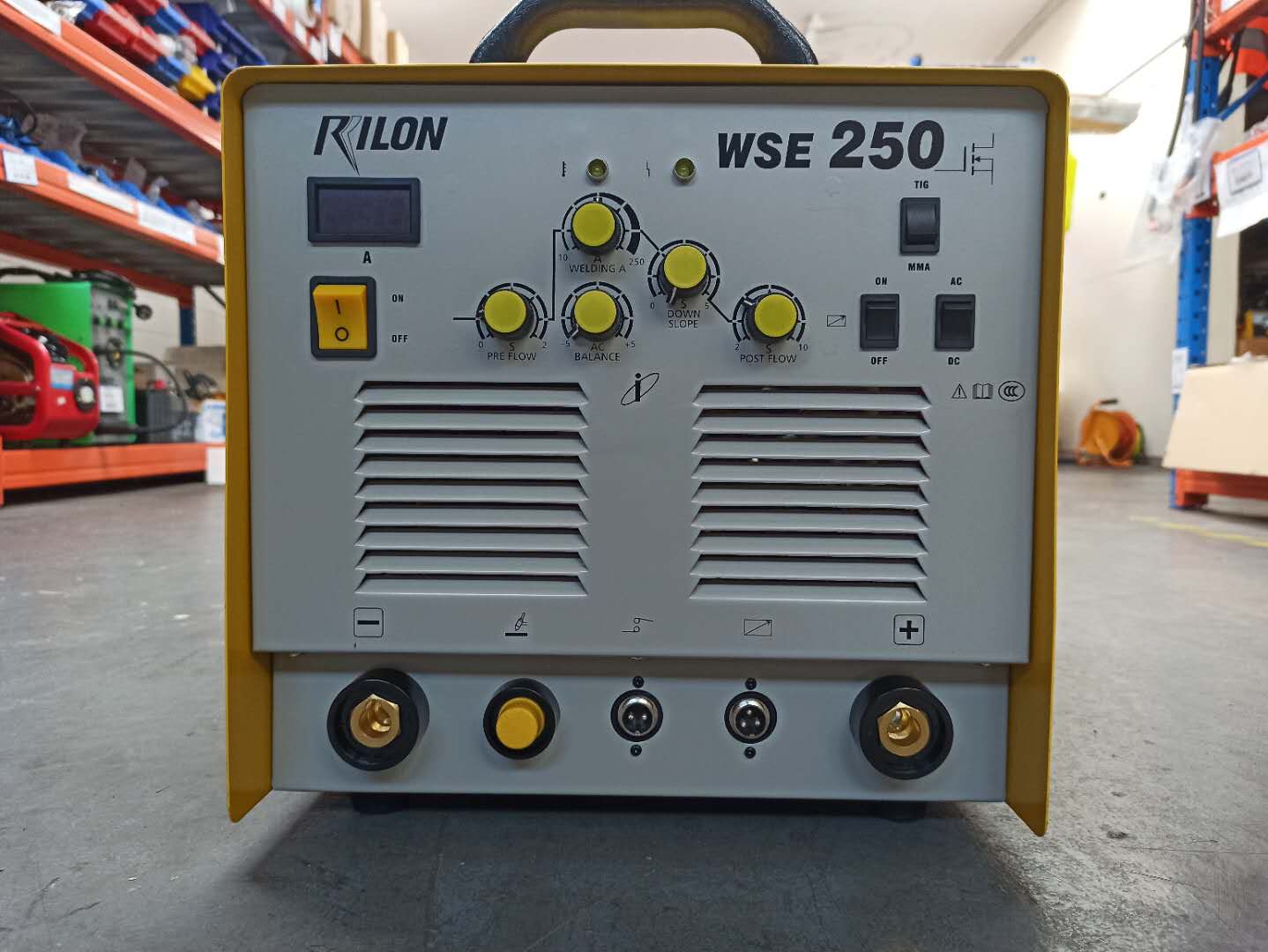

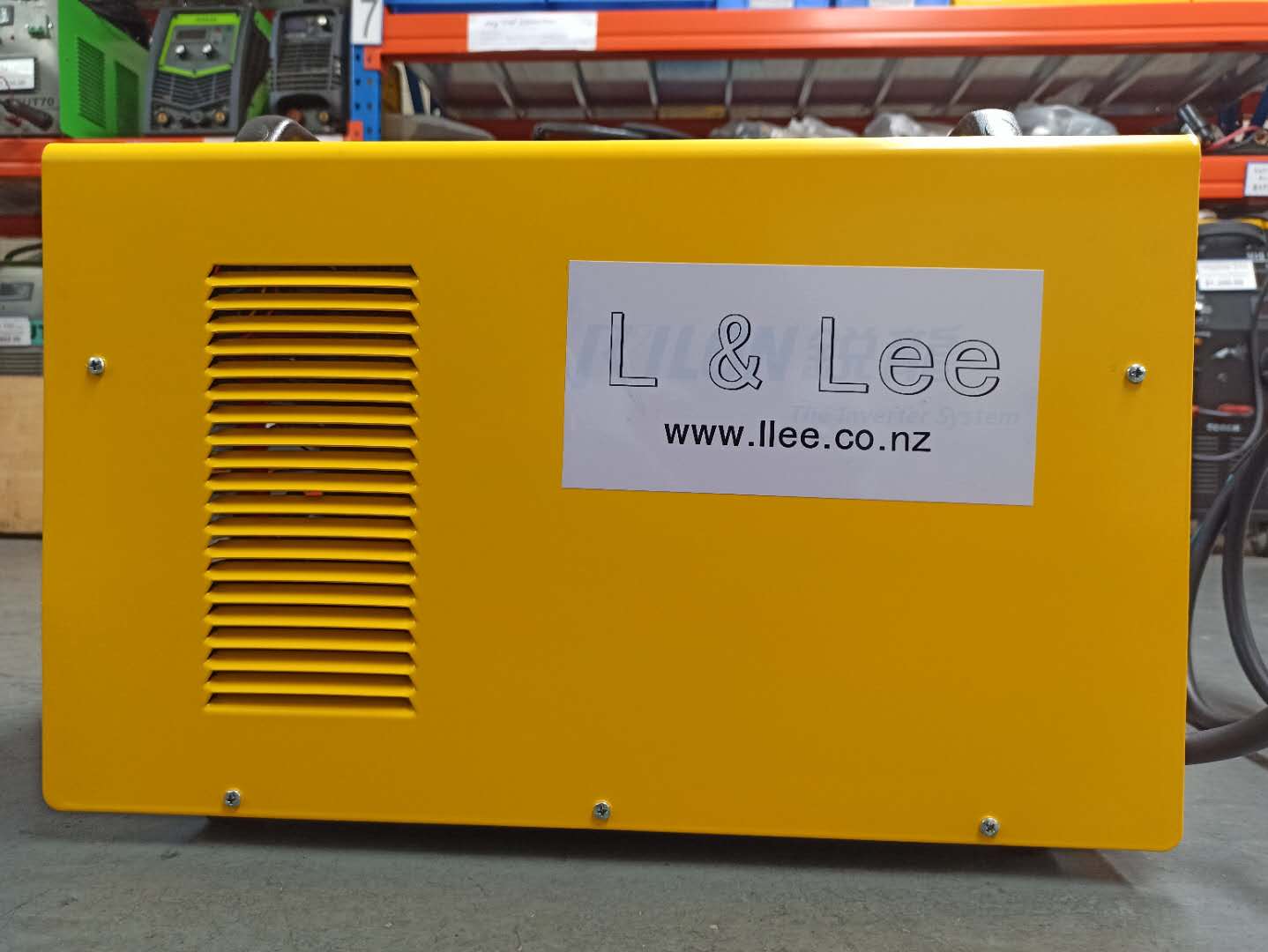

Rilon Tig250AC/DC/ARC welder (WSE250)





Introductions

Tig250 AC/DC/ARC (HF start) is made by the latest inverting technology,Rilon brand is NO1 in China. it is more reliable and long-lasting.

Tig250 AC/DC/ARC is a multi function machine. Its biggest characteristics is that it can not only weld color metal ware the direct current (DC) function such as stainless steel, metal alloy steel, carbon steel, copper and others, but also weld aluminum and aluminum metal alloy ware with the alternating current (AC) function. It is an ideal renewal welder in such professing as building decorating, container manufacturing, installation of machinery and equipment, car maintenance and skateboard car, bicycle etc.

Specification:
Power supply voltage: AC230v 50/60Hz
The rated input of current: 20A
Power supply capacity: 4.5KVA
The rated output of current: 250A
The regulation range of output current: 20-250A

No-load voltage: 56V
working voltage: 18V
Rated duty cycle (%): 60
Power factor:0. 93
Insulation grade: F
Outer shell protection grade:IP23
HF arc striking
Welder weight (Kg): 25
Dimensions (mm): 493*330*320
max welding thickness (mm) DC: 10

PACKAGE INCLUDES
Unit
The tig leads 4m with torch SR-26
Spare tips of torch and Ceramics .
Tungsten( diameter 1.6*150mm)
arc plug
earthed lead 3m
size: 780x440x430(0.15m3).

One-year back to base (Auckland) factory warranty on parts and labor,
GST invoice is provided
