Welding
Machine
Our range of tools are built to last of the highest quality and at
competitive price.
Inverting tig with pulse and stick
welder
Tig200P/dc/arc (TIG200P)/2in1 with pulse
welder
Introductions

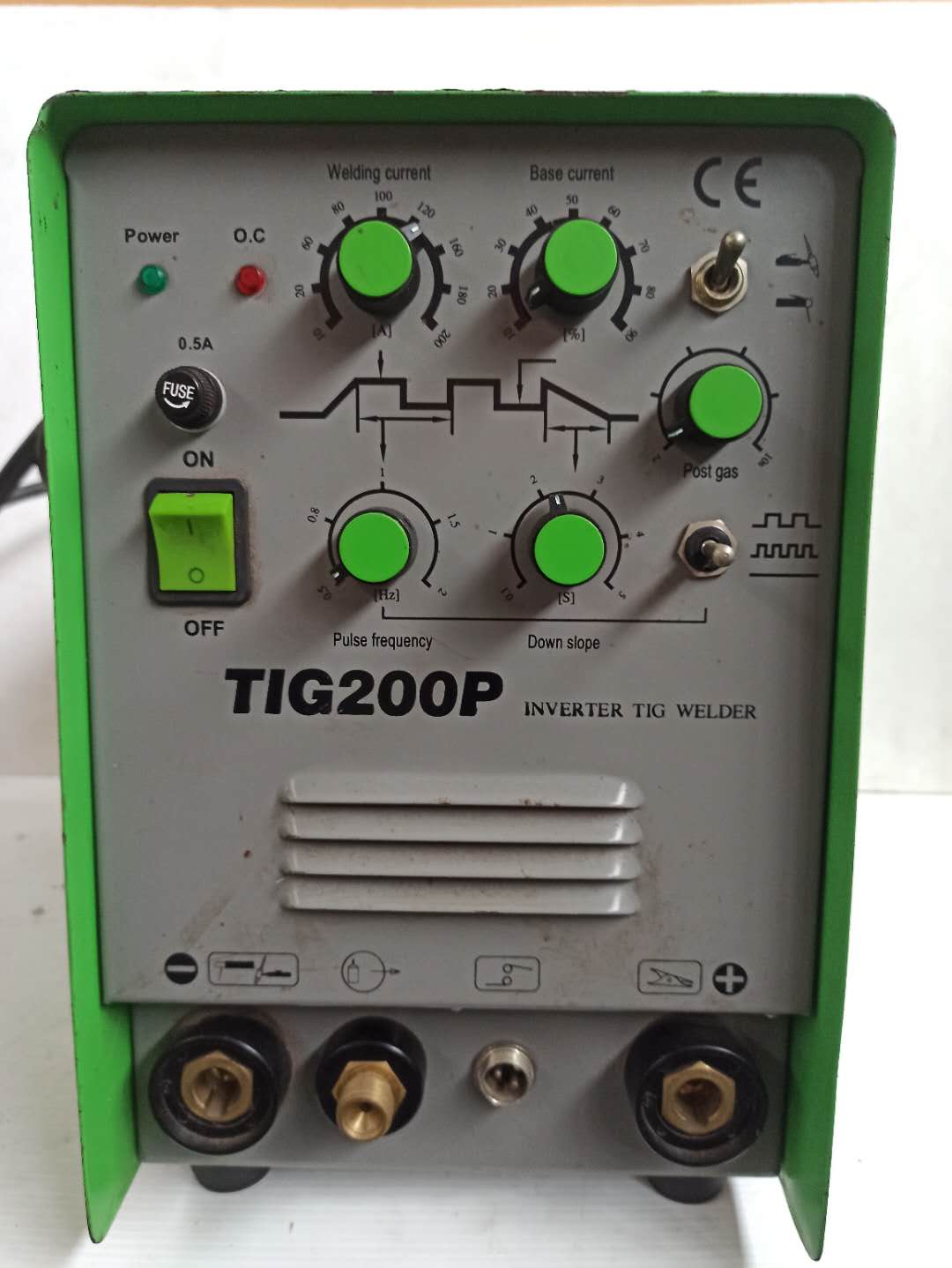

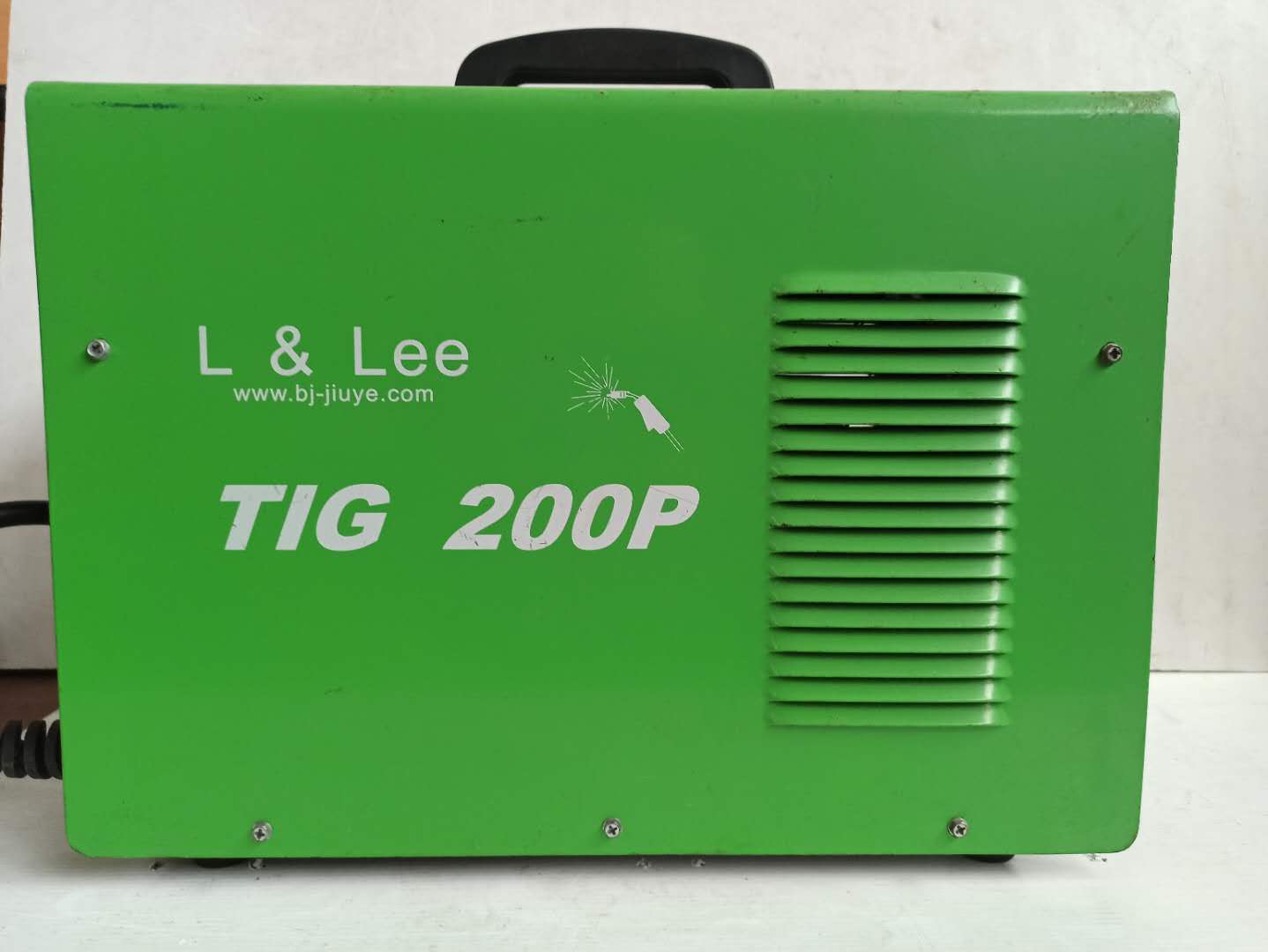

TIG-200P inverting Tig with pulse/Stick Welding
Machine
TIG-200P functions include DC Stick, DC TIG welding and pulsed
TIG welding. It doesn't weld aluminum. You could see our listing with
AC/DC, if you want a machine which can weld aluminum and its alloy.
It can be used for welding all kinds of carbon steel, alloy steel,
iron, stainless steel, copper, titanium and their alloys. Also can be
widely used in the machinery industry, chemical industry, shipbuilding
industry, vehicle industry, decoration industry, etc.
Specification:
Mode: TIG-200P Tig/MMA with pulse
Rated
input voltage (V): Single Phase 230V 50/60Hz
Rated input current (A):
20
Rated input capacity (KVA): 4.8
Rated output current (A):
10-200A,
NO load voltage:42V
Rated duty cycle (%): 60
Crest
current (A):8-200
Base current (A):8-200
Pulse frequency
(Hz):0.5-200
Pulse rate:0.1-0.9
Post flow time (s):1-10
HF arc
striking
dimensions (WDH mm):423X205X357
WeightKg:9
PACKAGE
INCLUDES
Unit
SR-26 Tig torch with 4m leads.
Spare tips of
torch and Ceramics .
Tungsten( diameter 1.6mm)
Arc leads 3m
Earthed lead 3m
Argon regulator
3m hose and 2 clips
One-year back
to base warranty (Auckland)
-------------------------------------------------------------------------------------------------
