Welding Machine

Our range of tools are built to last of the highest quality and at competitive price.

Inverting Tig AC/DC  with  pulse and Stick Welder

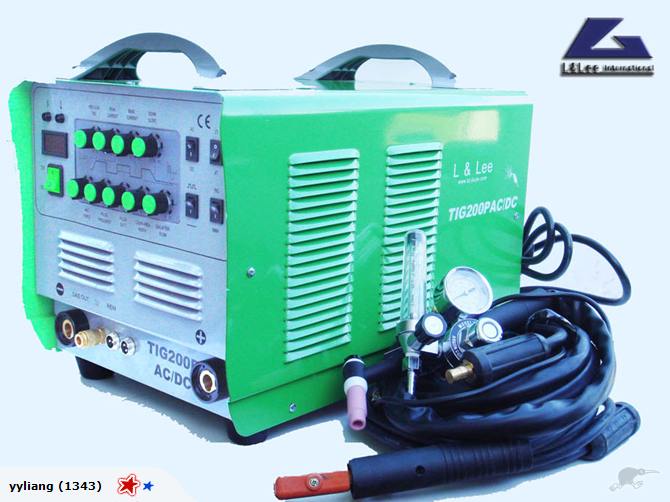

Tig200P AC/DC/ARC welder

Introductions

Tig200P AC/DC/ARC is made by the latest inverting technology in 2008,it is upgraded from the older inverter technology. it is more reliable and long-lasting.

Tig200P AC/DC/ARC is with pulse+2T/4T function +Stick welding+ tig AC/DC functions.

Tig200P AC/DC/ARC is a multi function machine. Its biggest characteristics is that it can not only weld color metal ware the direct current (DC) function such as stainless steel, metal alloy steel, carbon steel, copper and others, but also weld aluminum and aluminum metal alloy ware with the alternating current (AC) function. It is an ideal renewal welder in such professing as building decorating, container manufacturing, installation of machinery and equipment, car maintenance and skateboard car, bicycle etc.

Specification:
Power supply voltage: AC230v 50/60Hz
The rated input of current: 20A
Power supply capacity: 4.5KVA
The rated output of current: 200A
The regulation range of output current: 20-200A
No-load voltage: 56V
working voltage: 18V
Rated duty cycle (%): 60
Power factor:0. 93
Insulation grade: F
Outer shell protection grade:IP23
HF arc striking
Welder weight (Kg): 25
Dimensions (mm): 493*330*320
max welding thickness (mm) DC: 10

PACKAGE INCLUDES
Unit
The tig leads 4m with torch SR-26
Spare tips of torch and Ceramics .
Tungsten( diameter 1.6*150mm)
arc leads 3m
earthed lead 3m
Argon regulator.
Hose 3m and 2 clips.
Foot controller.
*The thicker industrial spades type plug

One-year back to base (Auckland) warranty ,

------------------------------------------------------------------------------------------

Rilon Tig250P II AC/DC/ARC welder

Indroductions:

Tig250PIIAC/DC/ARC (HF start) is made by the latest inverting technology,Rilon brand is famous in the world. it is more reliable and long-lasting ,it is better for industrial and professional.true invert welder latest 2020

Tig250PII AC/DC/ARC is a multi function machine. Its biggest characteristics is that it can not only weld color metal ware the direct current (DC) function such as stainless steel, metal alloy steel, carbon steel, copper and others, but also weld aluminum and aluminum metal alloy ware with the alternating current (AC) function. It is an ideal renewal welder in such professing as building decorating, container manufacturing, installation of machinery and equipment, car maintenance and skateboard car, bicycle etc.

Specification:
Power supply voltage: AC230v 50/60Hz
The rated input of current: 36A
The rated output voltage:Tig 18.4V MMA:26.4V
The regulation range of output current: Tig 10-210A MMA:10-160A
No-load voltage: Tig 68V ,MMA:60V
Power factor:0.73
Insulation grade: F
Outer shell protection grade:IP21
HF arc striking
Welder weight (Kg): 20
Dimensions (mm): 476x340x402
max welding thickness (mm) : 10

PACKAGE INCLUDES
Unit
The tig leads 4m with torch SR-26
Spare tips of torch and Ceramics .
Tungsten( diameter 1.6*150mm)
arc torch and lead 3m
earthed lead 3m
Hose.3m
size: 780x440x430(0.15m3).

One-year back to base (Auckland) factory warranty on parts and labour,
GST invoice is provided

------------------------------------------------------------------------------------------
　

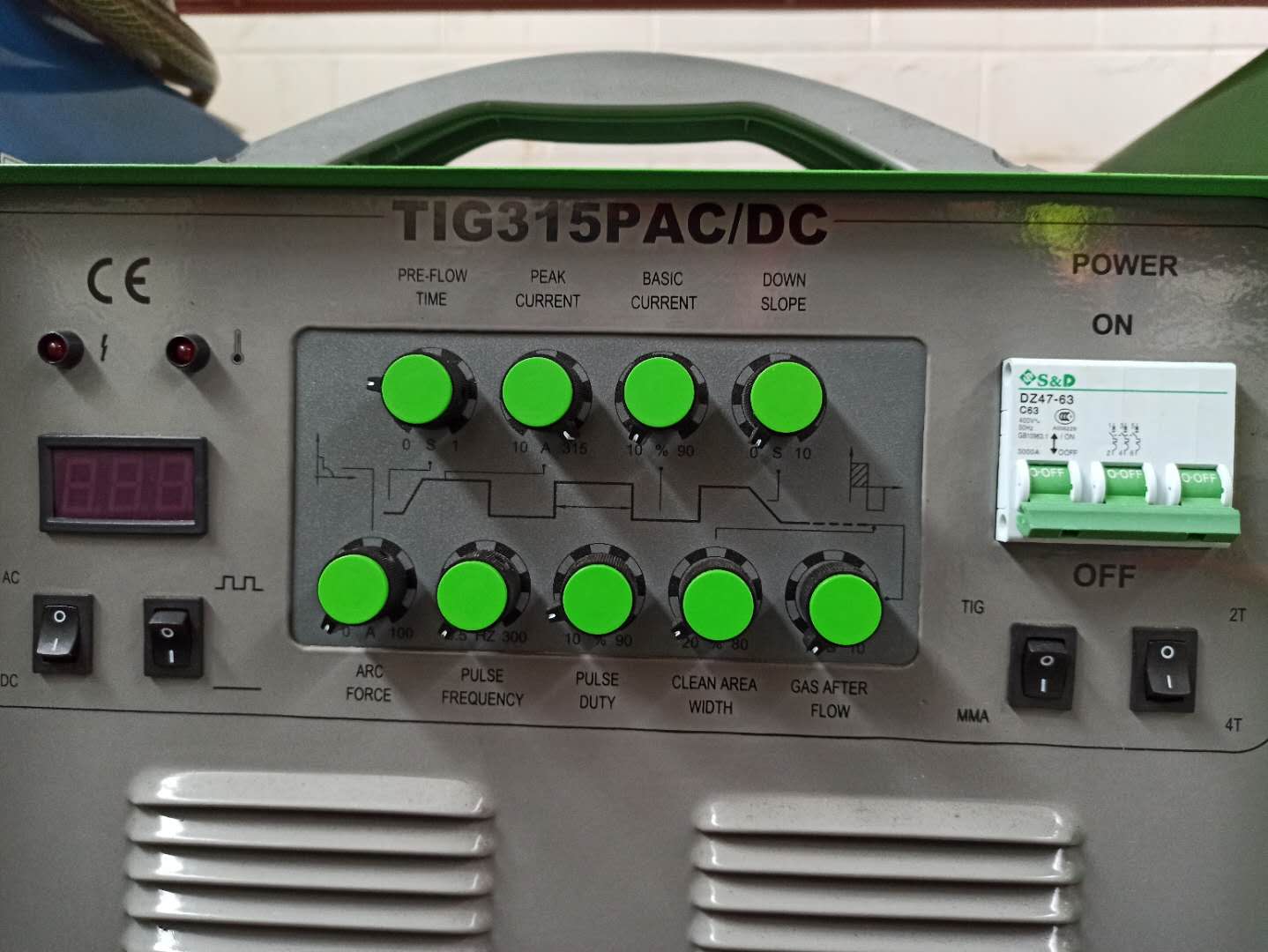

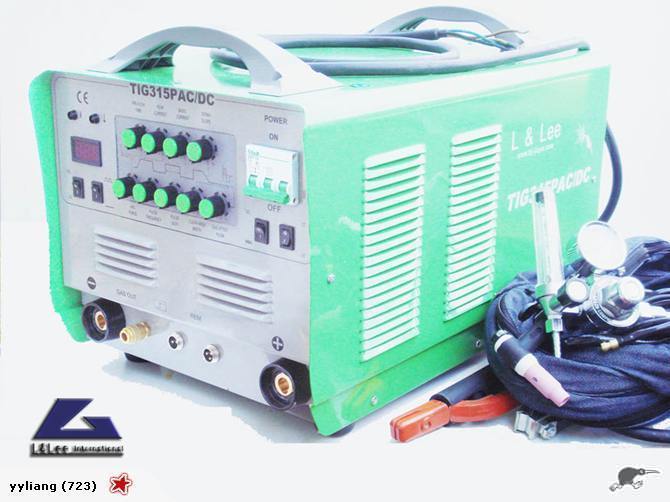

Tig315P AC/DC/ARC welder　

Introductions:

Tig315 Pulse AC/DC/Arc is made by the latest inverter technology in 2008,it is upgraded from the older inverting technology. it is more reliable and long-lasting and It is better for industrial.

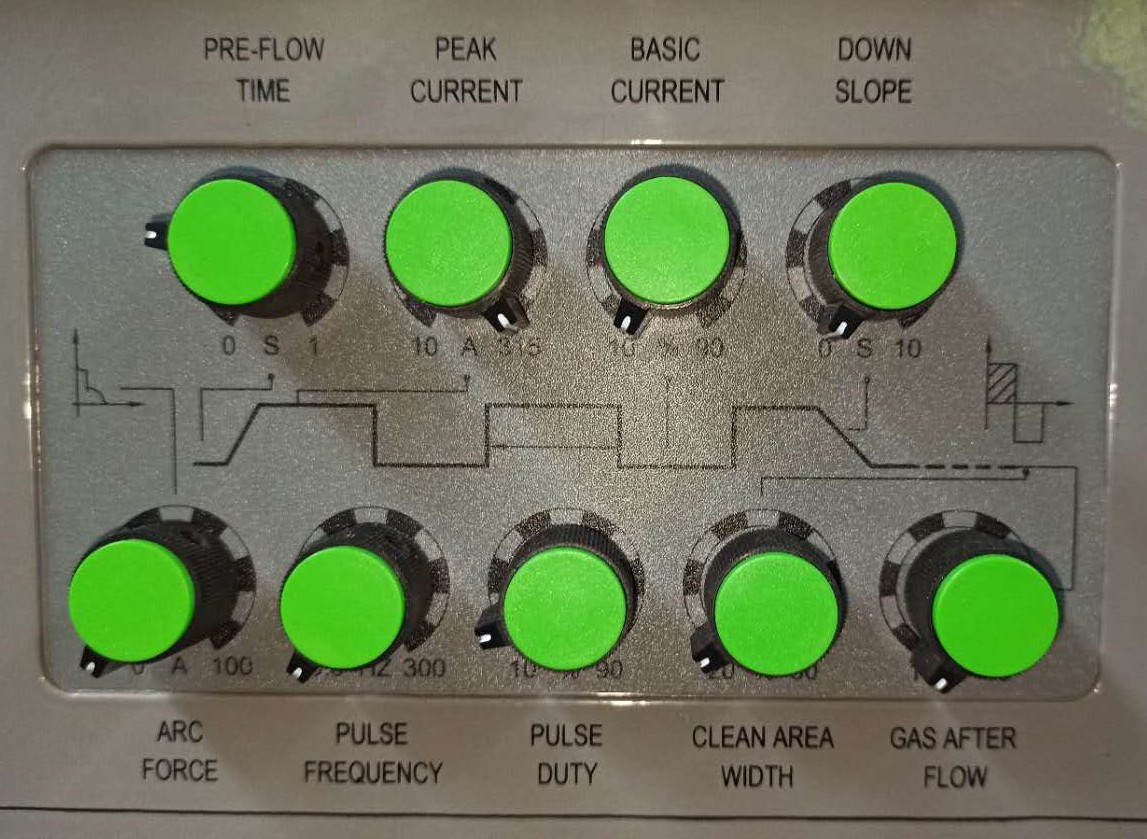

Tig315Pulse AC/DC/Arc is with pulse+2T/4T function +Stick welding+ tig AC/DC functions.

Tig315Pulse AC/DC/Arc is a multi function machine. Its biggest characteristics is that it can not only weld color metal ware the direct current (DC) function such as stainless steel, metal alloy steel, carbon steel, copper and others, but also weld aluminum and aluminum metal alloy ware with the alternating current (AC) function. It is an ideal renewal welder in such professing as building decorating, container manufacturing, installation of machinery and equipment, car maintenance and skateboard car, bicycle etc.

Specification:
Power supply voltage: AC380v 50/60Hz 3 phase
The rated input of current: 19A
Power supply capacity: 8.9KVA
The rated output of current: 315A
The regulation range of output current: 20-315A
No-load voltage: 45V
working voltage: 23V
Insulation grade: F
Outer shell protection grade:IP23
HF arc striking
Welder weight (Kg): 37
Dimensions (mm): 700*460*415
max welding thickness (mm) DC: 15

PACKAGE INCLUDES
Unit
The water cooled tig torch wp-18 with 4m leads.
Spare tips of torch and Ceramics .
Tungsten( diameter 2.4*150mm)
arc leads 3m
earthed lead 3m
Argon regulator.
Hose 3m and 2 clips.
Foot controller.

One-year back to base (Auckland) warranty

-------------------------------------------------------------------------------------------------
