Welding
Machine
Our range of tools are built to last of the highest quality and at
competitive price.

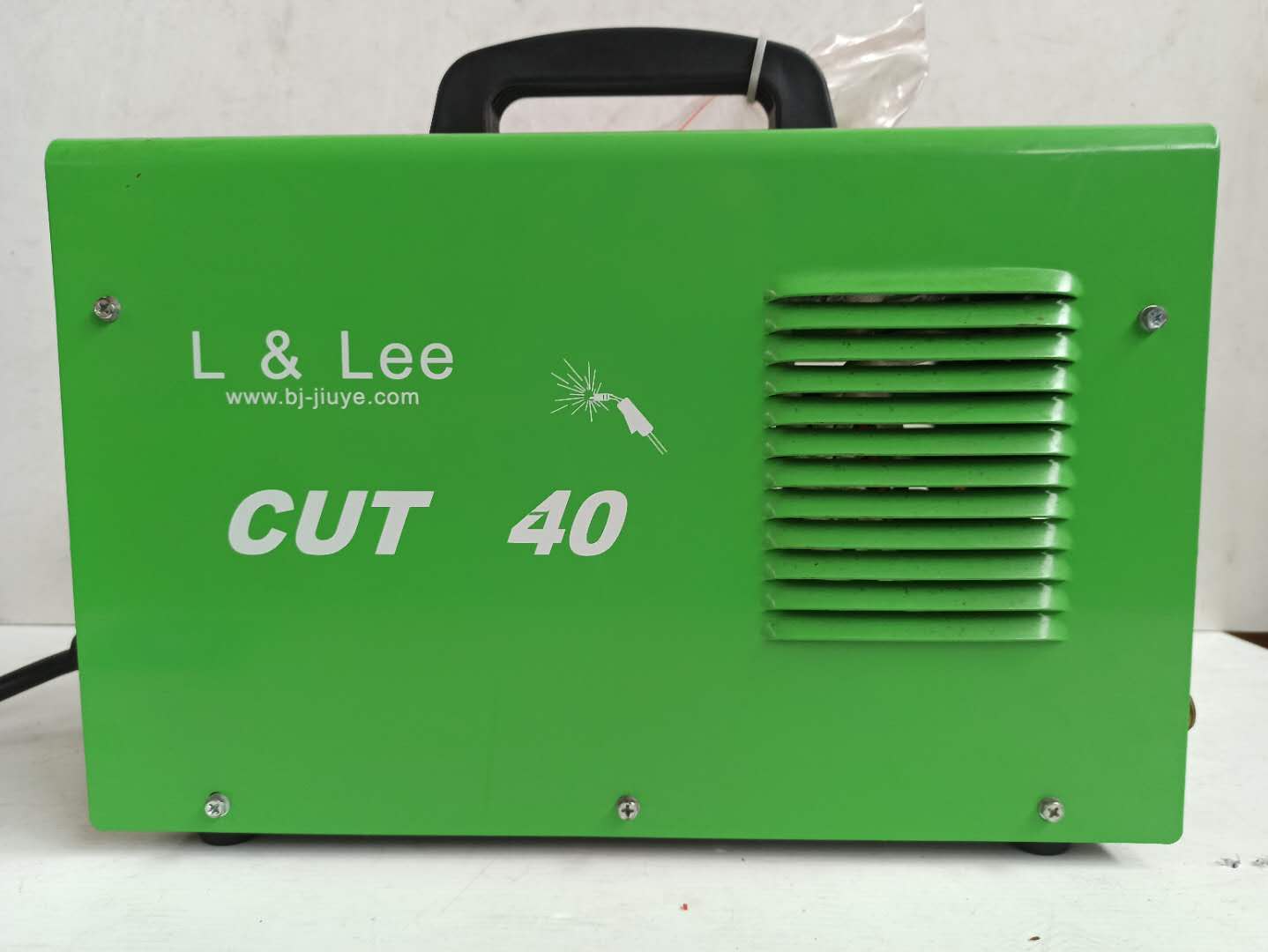

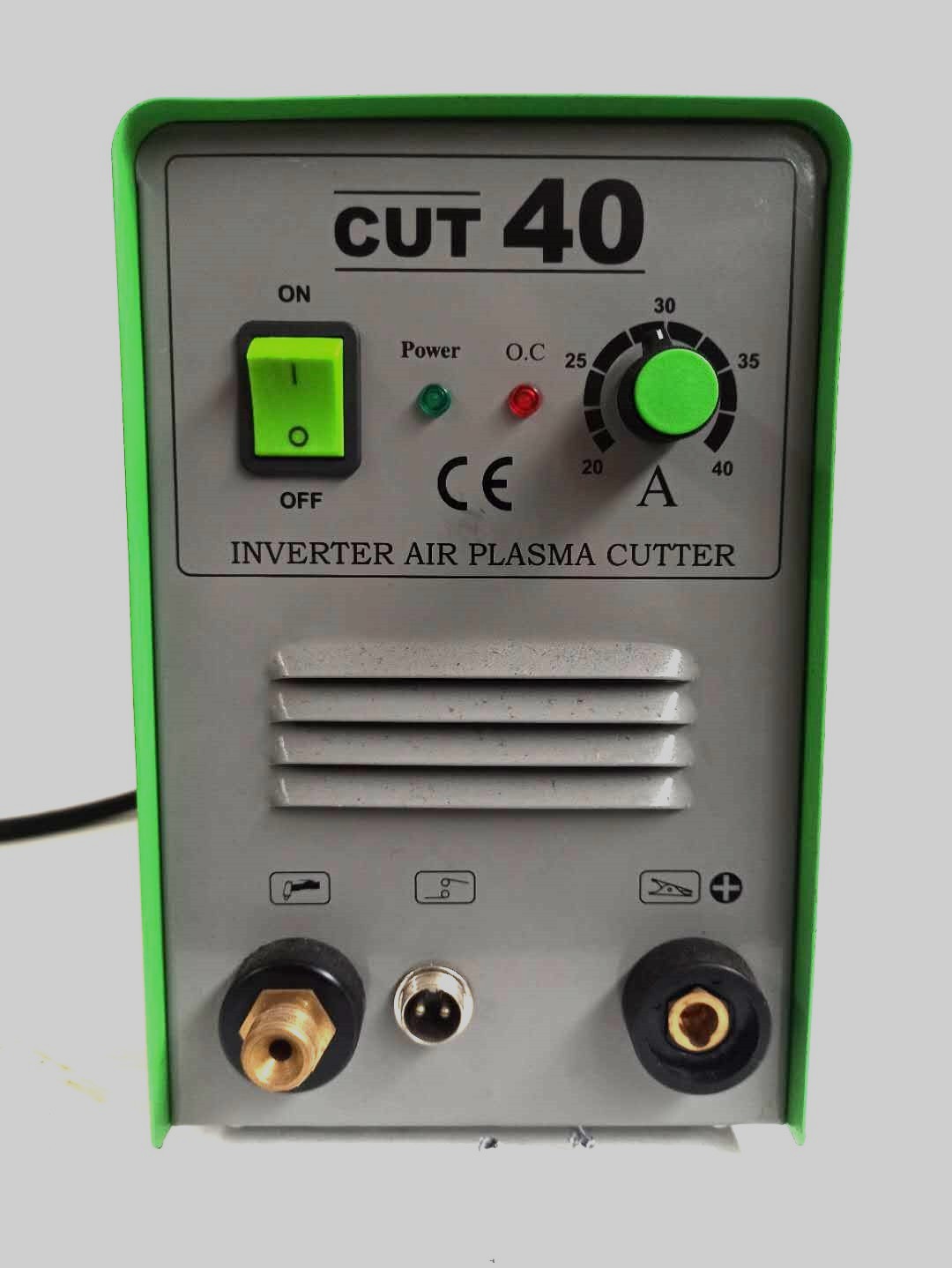

Inverting air plasma
cutter
CUT-40
Introductions
CUT40 are made by international most
advantaged invert technical .
*It is touch arc-leading, You must
start the arc from a clean area ,then you could cut dirty or painted
steel.
*Cutting machine can be used widely; it is suitable for
cutting stainless steel,alloy steel,mild steel,copper and other color
metal materials.
*You could see our IGBTcut40,cut50plus,cut70 and
CUT100(3phase),They have pilot arc-leading function, which enables them to
cut dirty or painted steel directly .
Specification:
Single
phase230V
RATE INPUT POWER (KVA): 4.8
NO -LOAD VOLTAGE (V): 230
RATE OUTPUT CURRENT (A): 20-40
RATE OUTPUT VOLTAGE (V): 96V
DUTY CYCLE (%): 60
CUT THICKNESS (MM): 10mm
Pressure for
air:4.5Kg/cm2.
HF arc striking
WEIGHT (KG): 8
DIMENSIONS
(MM): 380*178*295
PACKAGE INCLUDES
Unit
earthed leads 3m
torch with 4m leads.
Air flow regulator.
Hose 3m and 2 clips.
Size: 500x355x350mm.
One-year back
to base warranty (Auckland)
-------------------------------------------------------------------------------------------------

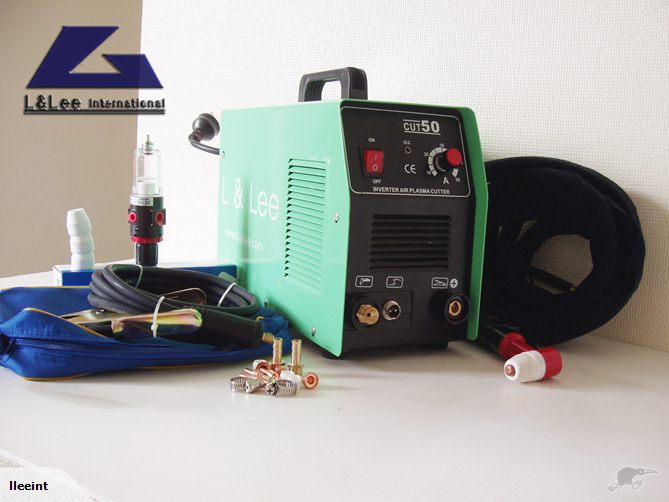

CUT-50
Introductions
CUT-50 are made by international most advantaged invert
technical .
Cutting machine can be used widely; it is suitable for
cutting stainless steel,alloy steel,mild steel,copper and other color
metal materials.
*You must start the arc from a clean area ,then
as the arc already started you can cut dirty or painted steel.
*You could see our CUT40 and CUT100(3phase),They have pilot to arc
function, which enables them to cut dirty or painted steel directly.
Specification:
Single phase230V
RATE INPUT POWER
(KVA): 5.5
NO -LOAD VOLTAGE (V): 250
RATE OUTPUT CURRENT (A): 50
RATE OUTPUT VOLTAGE (V): 110V
DUTY CYCLE (%): 30
CUT THICKNESS
(MM): 0-14/16mm.
Pressure for air: over 80L/min and 3-4Kg/cm2.
HF
arc striking
WEIGHT (KG): 11
DIMENSIONS (MM): 327*250*155
PACKAGE INCLUDES
unit
earthed leads 3m
Cutter leads
4.5m.with torch
Spare 3 tips of torch and 3 Ceramics .
Air flow
regulator.
Hose 0.5m and 2 clips.
One-year back
to base warranty (Auckland)
-------------------------------------------------------------------------------------------------

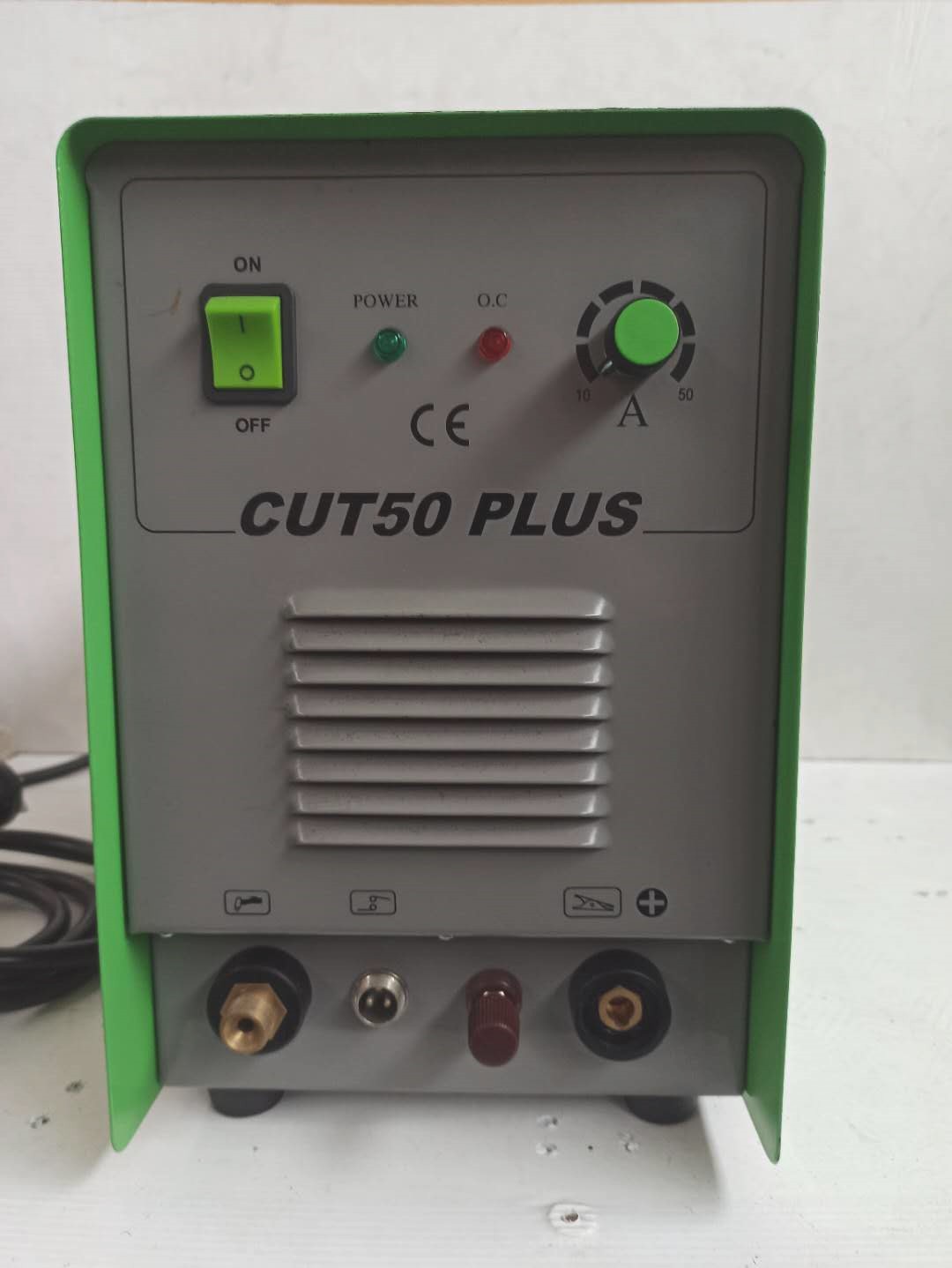

CUT50 PLUS
1phase with no touch arc-leading
Introductions
CUT50 PLUS are made by international most
advantaged invert technical .
*It is with pilot arc-leading ,you
could cut dirty or painted steel directly, no need clean the work piece..
*Cutting machine can be used widely; it is suitable for cutting
stainless steel,alloy steel,mild steel,copper and other color metal
materials.
*You could see our IGBTcut40,cut70 and
CUT100(3phase),They have pilot arc-leading function also, which enables
them to cut dirty or painted steel directly .
Specification:
Single phase230V
RATE INPUT POWER (KVA): 4.8
NO -LOAD VOLTAGE
(V): 230
RATE OUTPUT CURRENT (A): 50
RATE OUTPUT VOLTAGE (V): 96V
DUTY CYCLE (%): 60
Power factor:0.93
CUT THICKNESS (MM):
0-14/16mm.
Pressure for air: over 80L/min and 4.5Kg/cm2.
no touch
arc-leading
WEIGHT (KG): 8
DIMENSIONS (MM): 425*205*355
PACKAGE INCLUDES
unit
earthed leads 3m
80A torch with
tracking wheel and 5m leads
Spare 3 tips,3 electrode and 1 Ceramic .
Air flow regulator.
Hose 3m and 2 clips.
One-year back to base (Auckland) warranty ,GST invoice
is provided
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

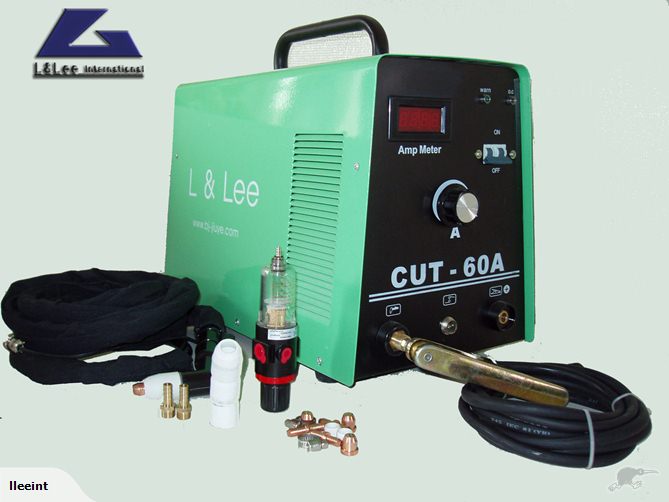

CUT-60 Plasma cutter
Single phase with LED display
Introductions
CUT-60 are made by international most
advantaged invert technical . Our cutting machine has characteristics as
following:
1. Stabilizing.
2. Reliability.
3. Lightness.
4. Save-energy and no noise.
5. High cutting speed.
6. Cutting
smoothly and no polish demands.
7. LED display Amp meter.
Cutting
machine can be used widely; it is suitable for cutting stainless
steel,alloy steel,mild steel,copper and other color metal
materials. Welcome to use products of our company and make suggestions ,we
will try our best to perfect our products and service.
You must
start the arc from a clean area ,then as the arc already started you can
cut dirty or painted steel.
*You could see our CUT40 and
CUT100(3phase),They have pilot to arc function, which enables them to cut
dirty or painted steel directly.
Specification:
Single
phase230V
RATE INPUT POWER (KVA): 7.9
NO -LOAD VOLTAGE (V):
270
RATE OUTPUT CURRENT (A): 10-60
RATE OUTPUT VOLTAGE (V):
20A/100V; 60A/100V
DUTY CYCLE (%): 60
CUT THICKNESS (MM):
0-20/25mm.
Pressure for air: over 100L/min and 3-4Kg/cm2.
HF arc
striking
WEIGHT (KG): 23
DIMENSIONS (MM): 550*280*550
PACKAGE INCLUDES
Unit
earthed leads 3m
Cutter leads
4.5m with torch
Spare tips of torch and Ceramics .
Air flow
regulator.
Hose 0.5m and 2 clips.
*No plug supply.
One-year back
to base warranty (Auckland)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

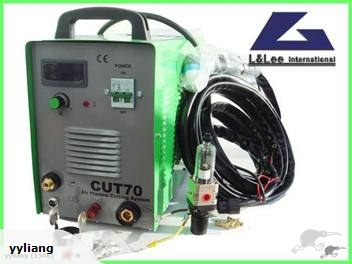

CUT-70 1phase with no touch arc-leading
Introductions
CUT70 are made by international most advantaged
invert technical .
*It is with pilot arc-leading ,you could cut
dirty or painted steel directly, no need clean the work piece..
*Cutting machine can be used widely; it is suitable for cutting
stainless steel,alloy steel,mild steel,copper and other color metal
materials.
*You could see our IGBTcut40,cut50+ and
CUT100(3phase),They have pilot arc-leading function also, which enables
them to cut dirty or painted steel directly .
Specification:
Single phase230V
RATE INPUT POWER (KVA): 9.5
NO -LOAD VOLTAGE
(V): 230
RATE OUTPUT CURRENT (A): 70
RATE OUTPUT VOLTAGE (V): 108V
DUTY CYCLE (%): 60
Power factor:0.93
Insulation class: F
Protection class:IP23
CUT THICKNESS (MM): 0-28mm.
Pressure for
air: 5Kg/cm2 and over 120L/min.
Arc-starting: Non touch arc-leading
WEIGHT (KG): 19
DIMENSIONS (MM): 480*205*357
PACKAGE
INCLUDES
unit
earthed leads 3m
80A torch with tracking wheel
and 5m leads
Spare 3 tips,3 electrode and 1 Ceramic .
Air flow
regulator.
Hose 3m and 2 clips.
One-year back to base
(Auckland) factory warranty.
----------------------------------------------------------------------------------------------

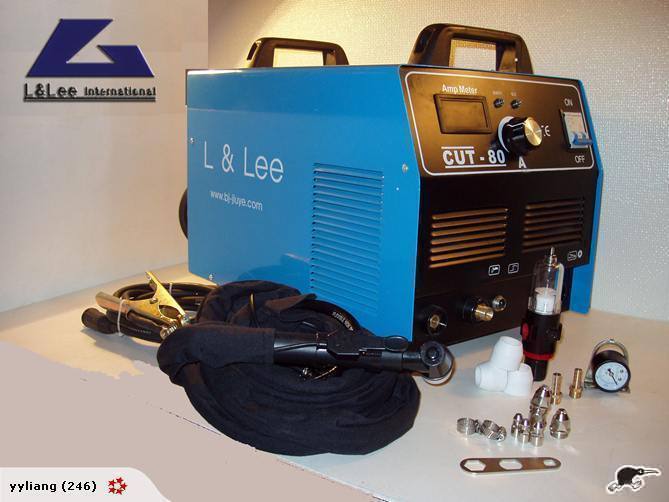

CUT-80 Plasma
cutter Single phase with LED display
Introductions
*The design of slope on the front, widen the
vision for the operator than the vertical one. It is designed according to
ergonomics.
CUT-80 are made by international most advantaged
invert technical .
Our cutting machine has characteristics as
following:
1. Stabilizing.
2. Reliability.
3. Lightness.
4. Save-energy and no noise.
5. High cutting speed.
6. Cutting
smoothly and no polish demands.
7.LED display Amp meter.
Cutting
machine can be used widely; it is suitable for cutting stainless steel,
alloy steel, mild steel, copper and other color metal materials. Welcome
to use products of our company and make suggestions ,we will try our best
to perfect our products and service.
*You must start the arc from
a clean area ,then as the arc already started you can cut dirty or painted
steel.
*You could see our CUT40 and CUT100(3phase),They have pilot
to arc function, which enables them to cut dirty or painted steel directly.
Specification:
single phase230V
RATE INPUT
POWER(KVA)8.2
NO -LOAD VOLTAGE(V)270
RATE OUTPUT CURRENT(A)80
RATE OUTPUT VOLTAGE(V)20A/100V;80A/108V
DUTY CYCLE (%)60
CUT
THICKNESS (MM): 0-30/35mm.
Pressure for air: over 120L/min and
3-4Kg/cm2.
HF arc striking
WEIGHT(KG)28
DIMENSIONS (MM) :560*360*480
PACKAGE INCLUDES
Unit
earthed leads 2m .
Cutter leads 4.5m with torch.
Spare tips of
torch and Ceramics .
Air flow regulator.
Hose 0.5m and 2 clips.
*No plug supply
One-year back to base (Auckland) factory
warranty on parts and labour,
----------------------------------------------------------------------------------------------

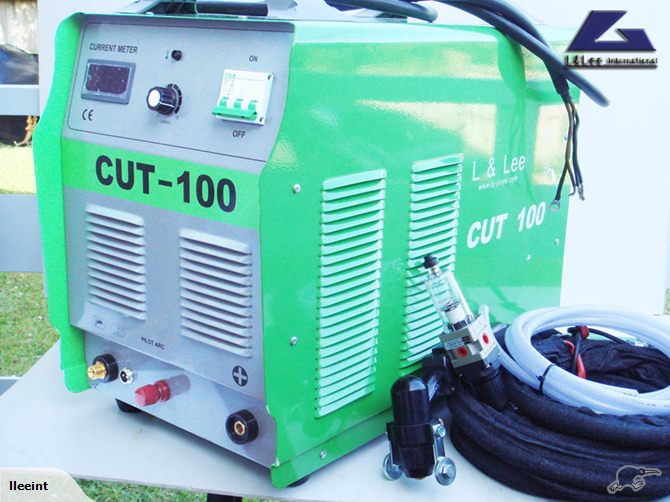

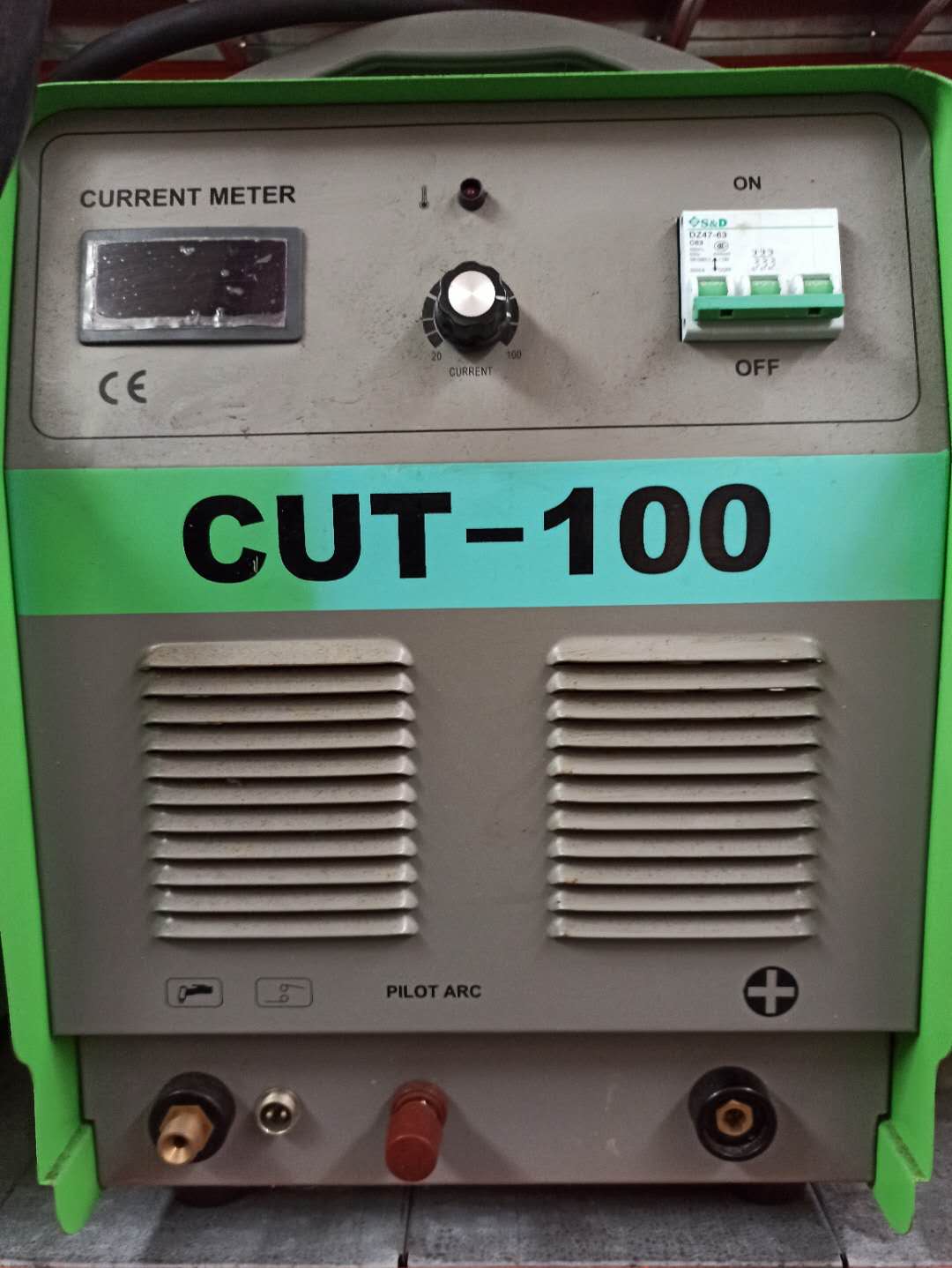

CUT-100
3phase with no touch arc-leading
Introductions
Cut-100 is made by the latest inverter
technology; it is upgraded from the older inverting technology.
It is
more reliable and long-lasting.
It has pilot arc-leading function.
It can cut the steel with paint or oil surface.
Our cutting
machine has characteristics as following:
1. stabilizing.
2.
Reliability.
3. Lightness.
4. Save-energy and no noise.
5.
High cutting speed.
6. Cutting smoothly and no polish demands.
7.
LED display Amp meter.
Cutting machine can be used widely; it is
suitable for cutting stainless steel, alloy steel, mild steel, copper and
other color metal materials. Welcome to use products of our company and
make suggestions, we will try our best to perfect our products and
service.
Specification:
three phase 380V
INPUT POWER
(KVA): 17
NO -LOAD VOLTAGE (V): 270
OUTPUT CURRENT (A):20-100
RATE OUTPUT VOLTAGE (V): 130
DUTY CYCLE (%): 60
Power factor
cos: 0.93
Efficiency (%): 85
Insulation class: F
Protection
class: IP23
Arc-starting: non-touch arc leading
Air pressure
(KG/cm2): 6
Air volume (M3/min): 0.36
CUT THICKNESS (MM): 0-35mm.
Pressure for air: over 120L/min and 3-5Kg/cm2.
WEIGHT (KG): 35
DIMENSIONS (MM): 475*330*370
PACKAGE INCLUDES
Unit
earthed leads 3m.
Cutter torch G-100 with 5m leads and tracking
wheel.
Air flow regulator.
Hose 3m and 2 clips.
Size:
700x440x540mm.
One-year back to base (Auckland) factory
warranty on parts and labor,
