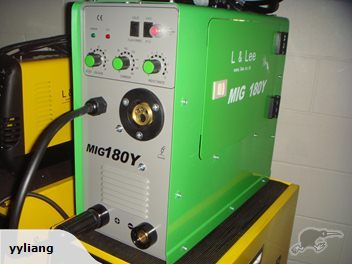

It's new style . Mig180Y(II) is made by the latest inverting technology .It is more reliable and long-lasting.
Mig180Y is with mig gas or gasless
It has burn back adjusting function also. It is very light and easy carrying.
It suit for welding medium thin plate 0.5-8mm.

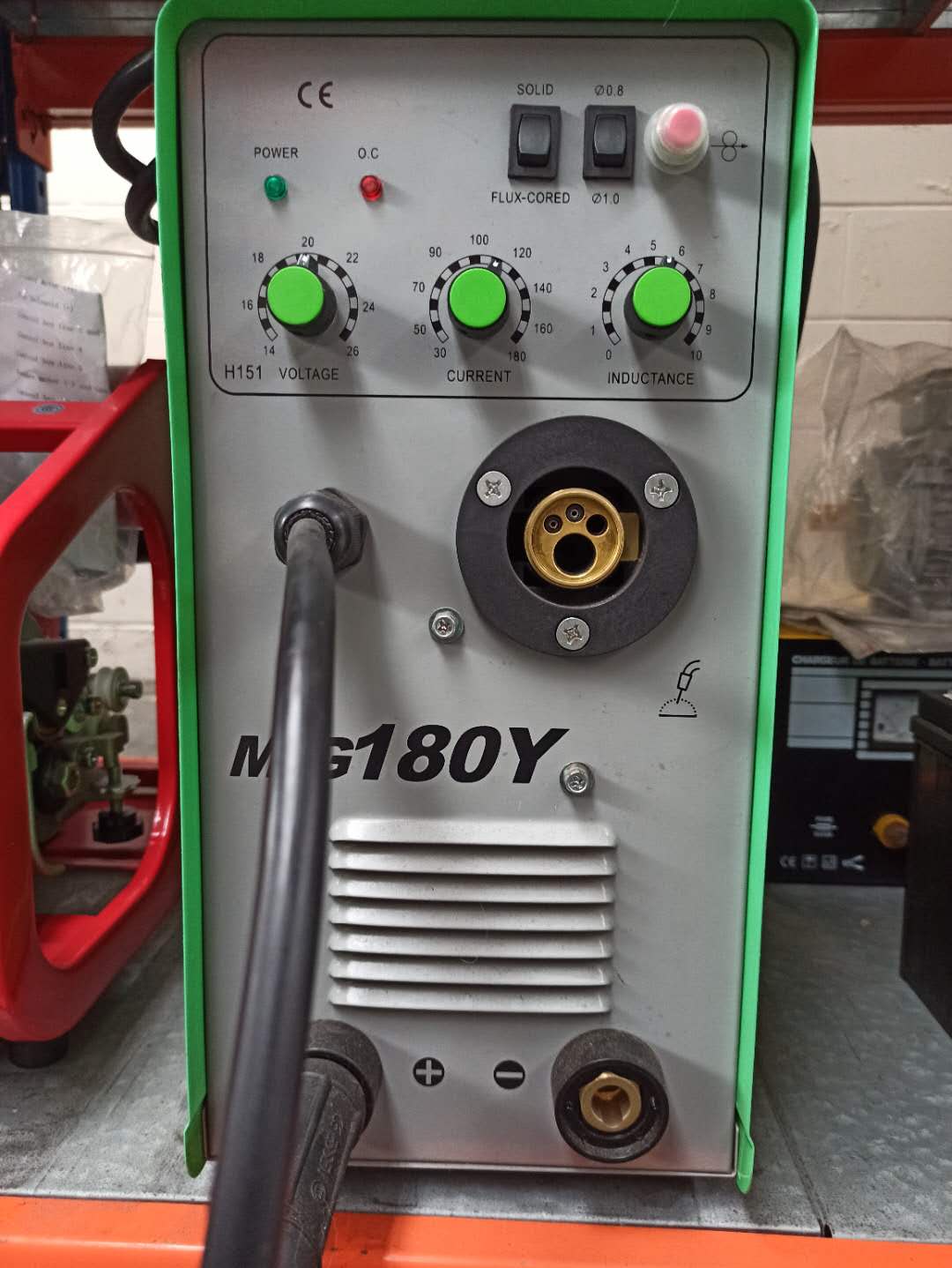

You could adjust the welding current,welding voltage and induction arc button separately according to metal thickness and rigidity (carbon content)
There are 2 switches for choice solid-fluxed wire and choice 0.8-1.0 wire also.
You could test feeder operation and set up wire into torch by feeder button on the panel.

Specifications:
Power voltage :AC230V ,1-phase 50/60HZ
Input current(A): 23.8
Power capacitance (KVA):4.2
Output current range (A): 30-180
Output voltage (VDC): 15-26
Duty cycle: 60%
Power factor: 0.93
Efficiency: 85%
after blow time: 1s.
Induction adjustment.
Type of wire feeder: embedded
Diameter of roller of wire (mm): 200
Filler Wire dimensions (mm): 0.6/0.8/1.0mm.
Take up to a 5kg roll of wire.
Feeder speed:2-15 m/min
Insulation Class: F
Protection Degree: IP21.
Weight: 14Kg
Dimensions: 480X197X466mm

PACKAGE INCLUDES
Unit
CO2 (heated)
binzel Mig torch with lead 3m.
Earthed lead 3m
Air hose 3m.
15Amp Plug.
Size: 755x315x520.

We also sell:
*Argon / Argon regulator.
Regulator WITH FLOWMETER.
*Extra Longer argon hose.
*AUTOMATIC WELDING HELMET
*welding gloves
*A full roll of wire 0.8mm (1KG) for gas.
*MIG Welding wire (Steel general purpose or stainless steel M-ER308L) 0.8 OR 1.0 5KG for gas.
*Mig welding flux cored wire (Steel general purpose) for gasless.

12 months back to base (Auckland) factory warranty on parts and labor,
GST invoice is provided

_________________________________________________

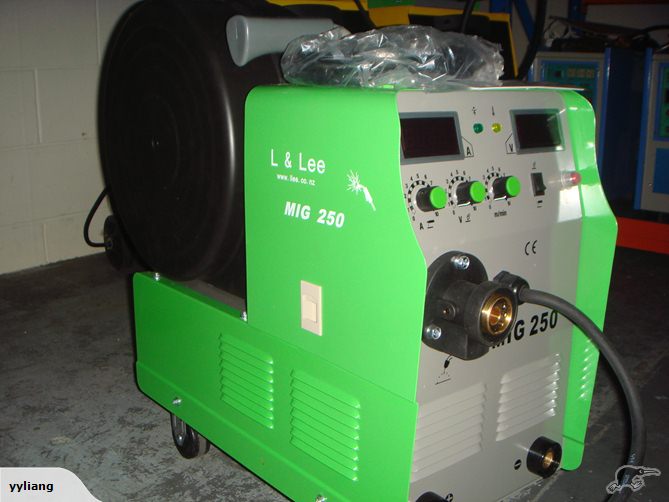

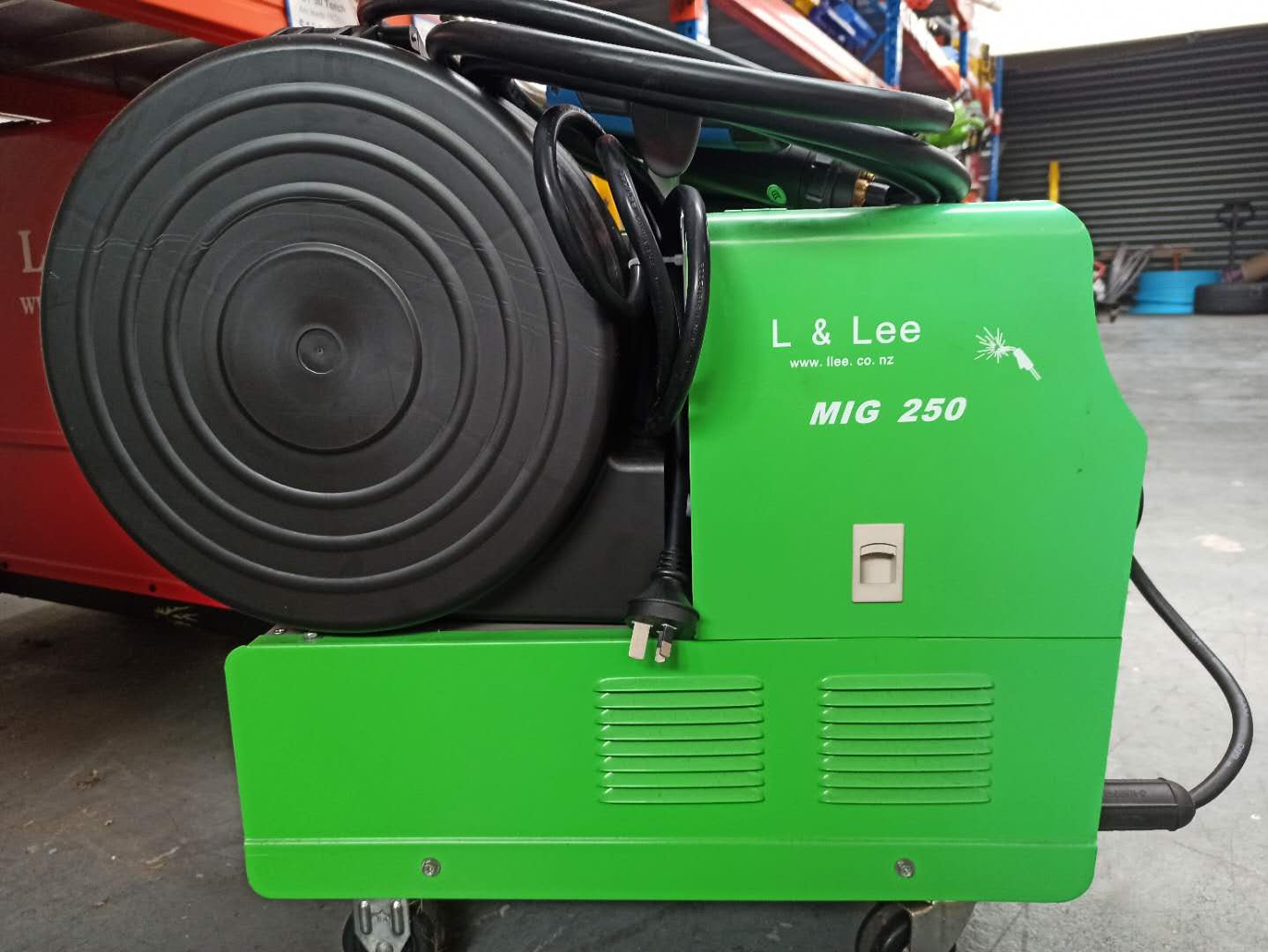

IGBT Inverted Mig250 welder Mig/Tig/Arc 3 in 1

Introductions

It's new style . Mig 250 is made by the latest IGBT inverting technology .It is more reliable and long-lasting.
Mig 250 is with mig gas or gasless and Arc, Tig functions
It has cable on a face and easily adjust function easily. It suit for welding medium thin plate 0.8-1.2mm.

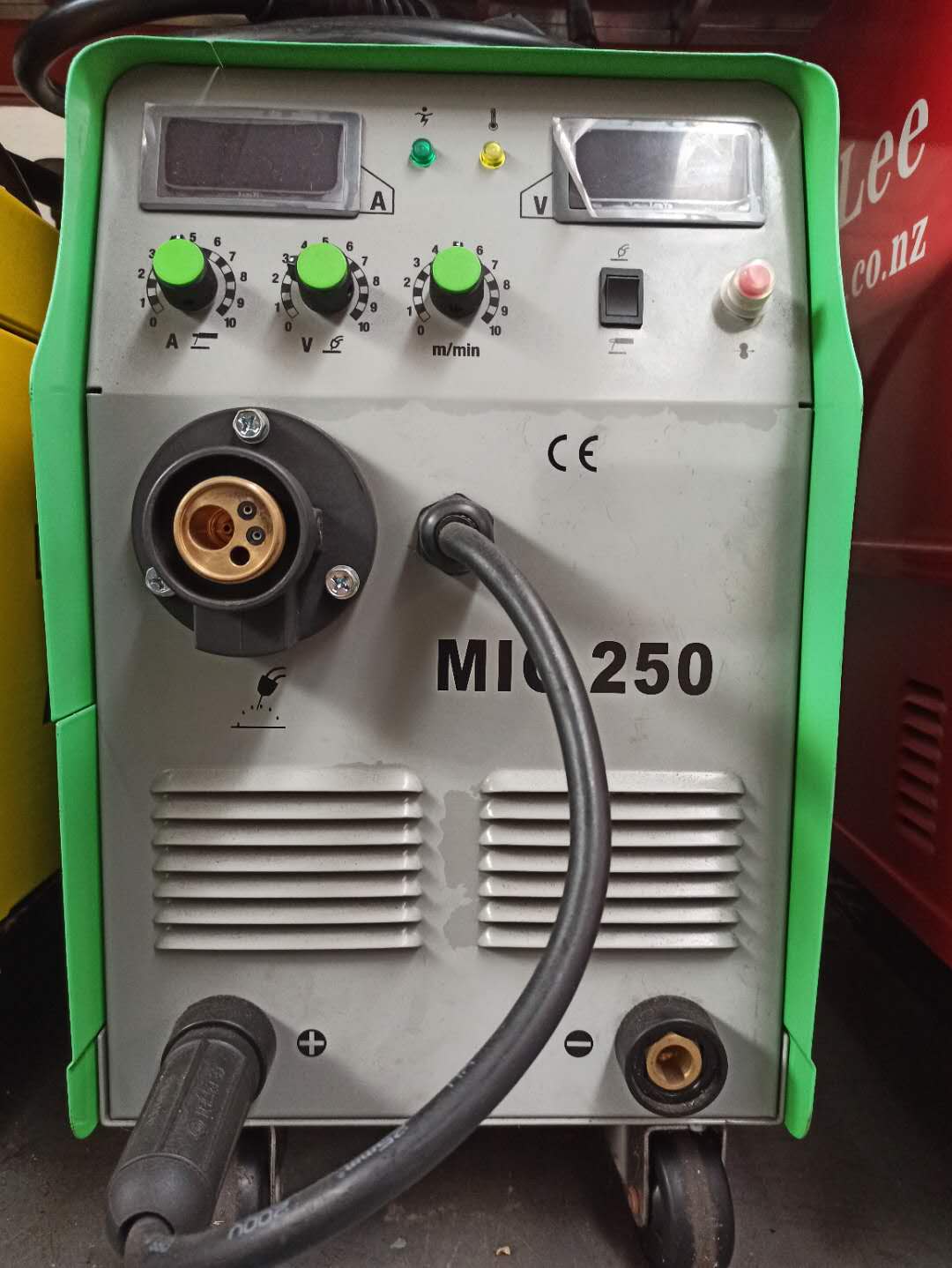

You could adjust the welding current, welding voltage and wire speed. display current and voltage. There are a wire feeder button, a work light and a over heat light on the panel. It is with induction button for control the welding quality for different carbon content steel.
You could test feeder operation and set up wire into torch by feeder button on the panel.

Specifications:
Power voltage :AC230V ,1-phase 50/60HZ
Input current (A): 38.1
Power capacitance (KVA): 9.2
Output current range (A): 50-250
Output voltage (VDC): 15-26
Duty cycle: 60%
Power factor: 0.3 85
Efficiency: 85%
after blow time:1s.

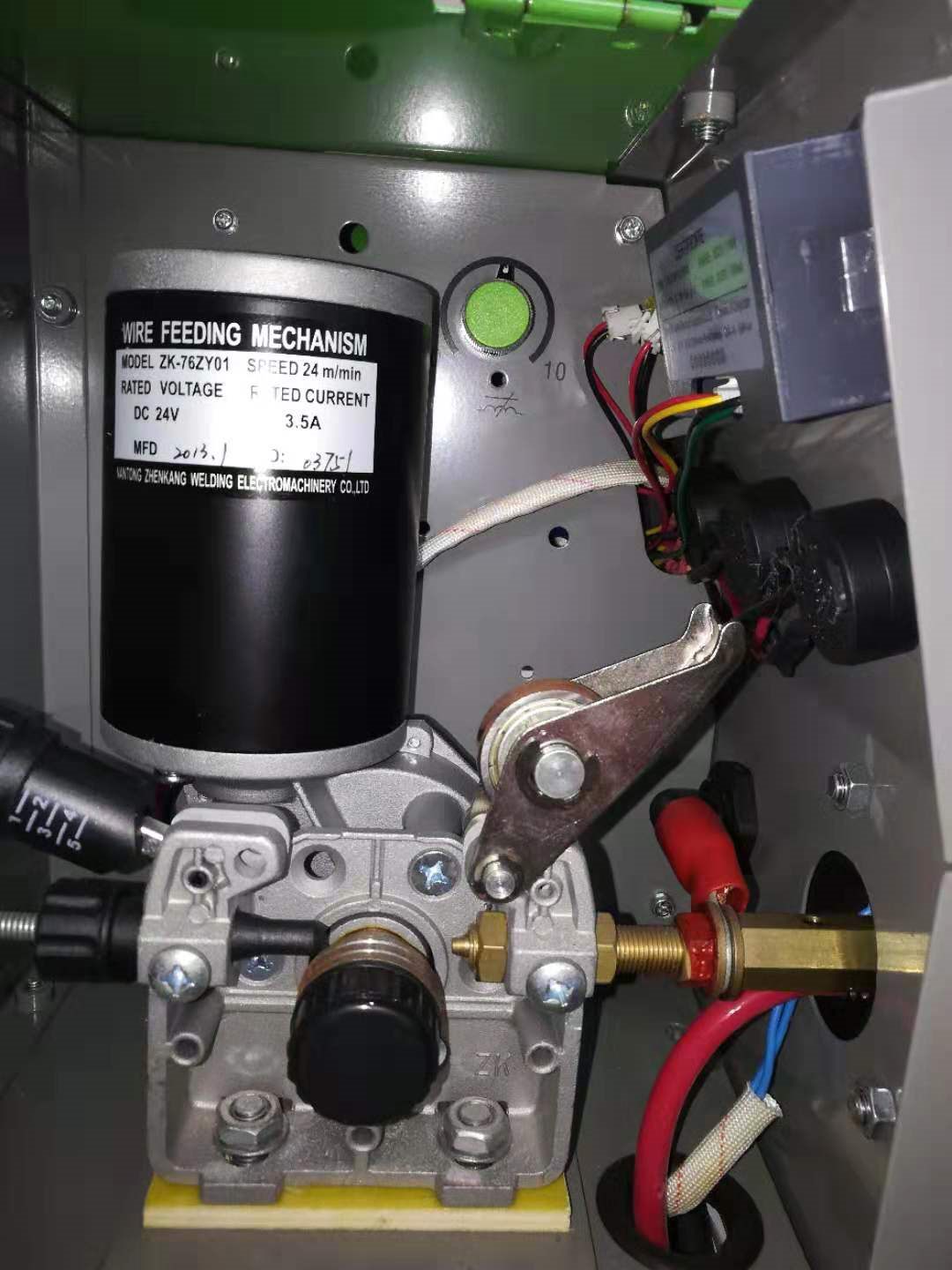

Type of wire feeder: embedded
Diameter of roller of wire (mm): 270
Filler Wire dimensions (mm): 0.8/1.0mm.
Take up to a 15kg roll of wire.
Feeder speed:2-15 m/min
Insulation Class: F
Protection Degree: IP21.
Weight: 26Kg
Dimensions: 530X270X440mm

PACKAGE INCLUDES
Unit
Arc torch with 3m leads
binzel Mig torch with lead 4m.
Earthed lead 3m
Air hose 3m.

15Amp Plug.

One-year warranty back to base (Auckland)
GST invoice is provided
　

------------------------------------------------------------------------------------
