 Welding Machine
¡¡
DC Inverting arc welder
 Back
¡¡



Welding Machine

Our range of tools are built to last of the highest quality and at competitive price.

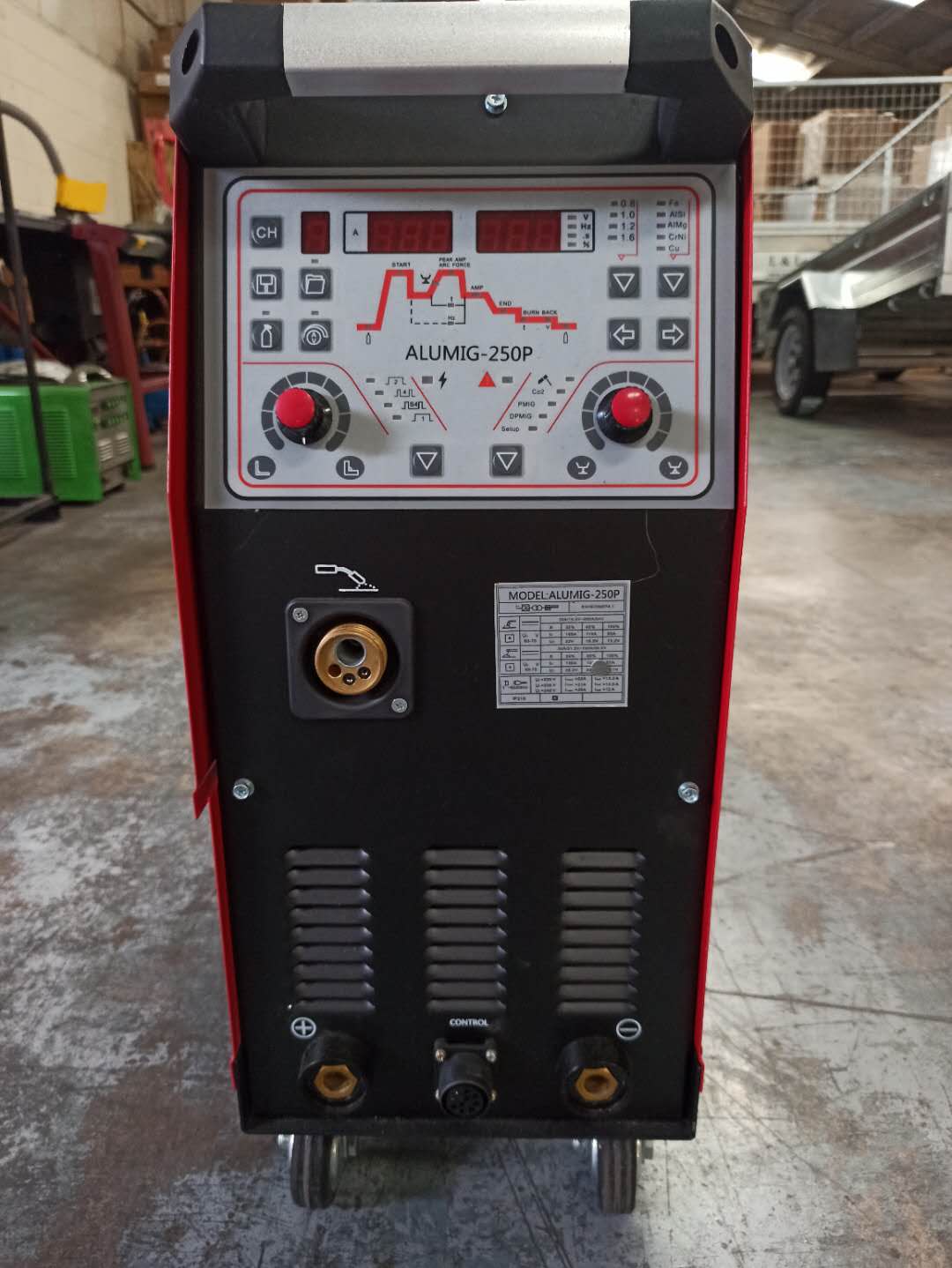

 ALUMIG250P IGBT Inverted Welder with 2 Pulses (3 in 1)











https://www.youtube.com/watch?v=NMA44duoR-g



It is better running with  our QTLB-24D Push-Pull gun with 8m leads professional.



Introductions

It's new style. Alumig250P is made by the latest IGBT inverting technology. It is more reliable and long-lasting. It could weld the aluminum professional and with pulse and double pulse function

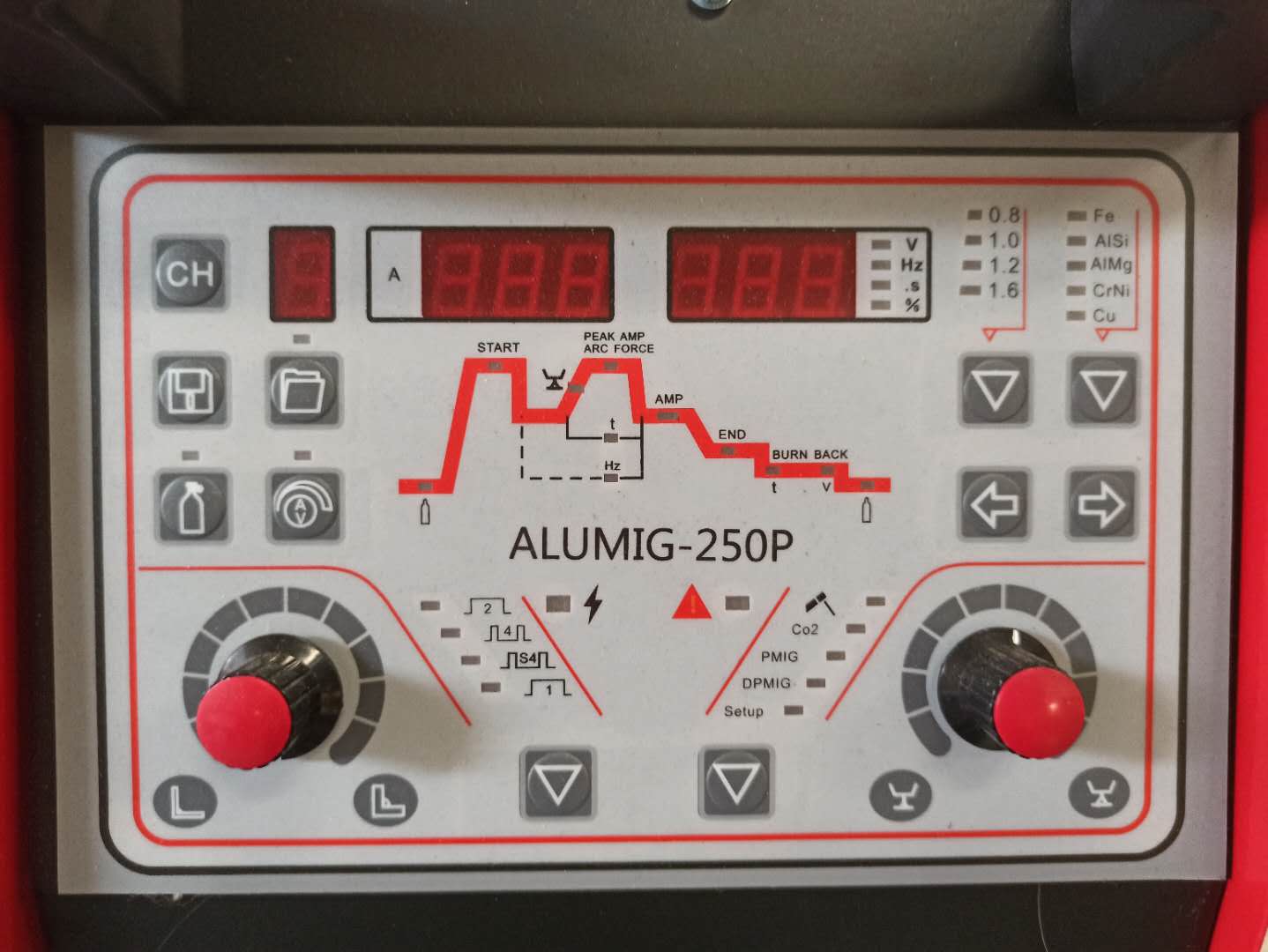

It has CPU controller with memory function ,choose mode and welding material easily

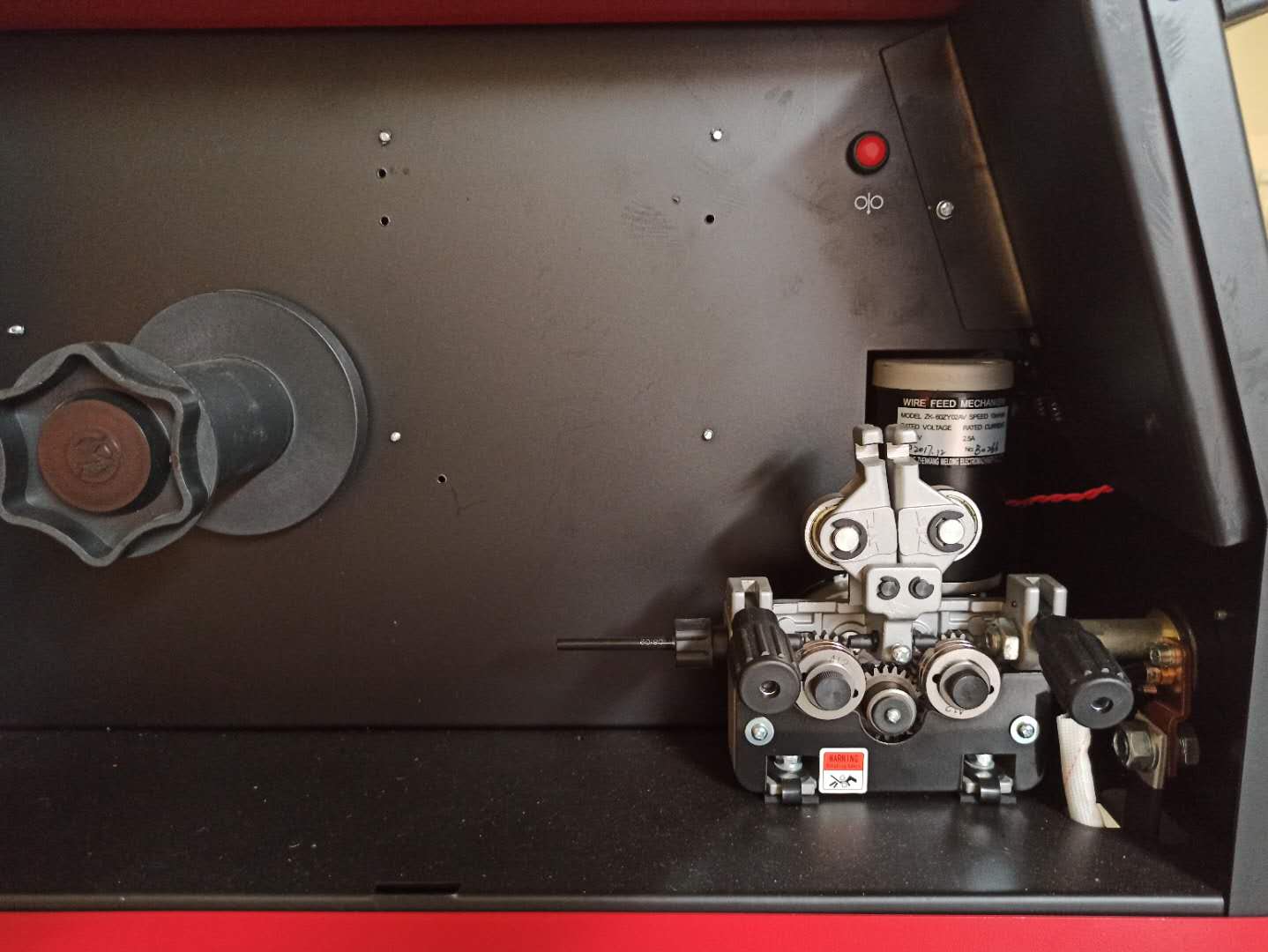

It comes with 4 rollers feeder and could work with push and pull gun.
Alumig250P is with mig gas or gasless and MMA welding functions. It can be used as a Tig with our special tig torch.
*-S4: HOT START FUNCTION in pulse mode.
Specifications:
 Rated Input Voltage:1PH ~ 230V ¡À15%
Max. Load Power Capacity: 9.4KVA
Rated Duty Cycle:60%:MIG: 250A/26.5V
                                        MMA: 250A/30V

Rated Duty Cycle:100%:MIG: 200A/24V
                                          MMA: 200A/28V
Welding Current/Voltage Range:

MIG;30A/15.5V-250A/26.5V
MMA:30A/21.2V~250A/30V
Open Circuit Voltage: MIG 70V,MMA:70V
Power Factor:0.73
Efficiency:80%
Pre-Gas Time:0-15S
Flow-Gas Time:0-15S
Wire-feed Mechanism:4 rollers
Wire-feed Speed Range:0-18m/min
Wire Spool Capacity:300mm (15kg)
Filler Wires Ø (mm) Fe, SS:0.6~1.2 mm
FLUX CORED:0.9~1.2 mm
Aluminum:0.8-1.2mm
Dimension: 770x250x650mm
Weight: 32Kg

PACKAGE INCLUDES
Unit
MIG 24KD binzel Mig torch with lead 3m.
Earthed lead 2m
Arc torch  2m



One-year  warranty back to base (Auckland)
GST invoice is provided



-------------------------------------------------------------------------------------







ProMIG-250SYN DPulse IGBT Inverted Welder  (3 in 1)















Guide of video:
https://youtu.be/nO5d_iCElHs



Upgrade from Alumig250HP,
2020 Latest.

It is better running with  our QTLB-24D Push-Pull gun with 8m leads professional.



Introductions


It is Synergy, Pulse and Double Pulse MIG,
It is easy to control doing aluminium and steel for beginner and professional welder.
You could not only enter the job code according to the synergy job list.but also set up individual parameter as your professional request.

It is good work with QSBF push pull gun 8m lead ,extra:$850.00

Specifications:
MMA:30A/21.2V~250A/30V
Open Circuit Voltage: MIG 70V,MMA:70V
Power Factor:0.73
Efficiency:80%
Pre-Gas Time:0-15S
Flow-Gas Time:0-15S
Wire-feed Mechanism:4 rollers
Wire-feed Speed Range:0-18m/min
Wire Spool Capacity:300mm (15kg)
Filler Wires Ø (mm) Fe, SS:0.6~1.2 mm
FLUX CORED:0.9~1.2 mm
Aluminum:0.8-1.2mm
Dimension: 770x250x650mm
Weight: 32Kg

PACKAGE INCLUDES
Unit
MIG 24KD binzel Mig torch with lead 3m.
Earthed lead 2m
Arc torch 2m



One-year  warranty back to base (Auckland)
GST invoice is provided



-------------------------------------------------------------------------------------------------

¡¡
