Welding
Machine
Our range of tools are built to last of the highest quality and at
competitive price.
Mig/Mag welder for industrial,steel
& aluminum
130Amp mig welder with gas/gasless
Introductions

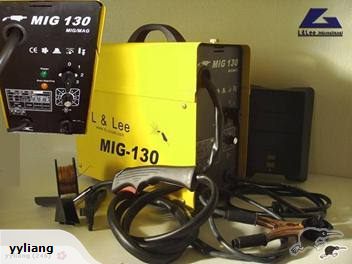

MIG-130 Brand new 130Amp mig welder with
gas and gasless
It can weld up to 4mm for steel and takes 0.6/0.8
size of wire.
It is good for car panel work and exhaust pipe + muffler.
But it doesn't weld aluminum. You could see our listing of MIG210 or
MIG250, if you want a machine which can weld aluminum and its alloy.
Specifications:
Power voltage :AC230V ,1-phase 50/60HZ
Duty cycle :115A/15%, 55A/60%, 45A/100%.
Current
range(10%):35-117A
No Load Voltage:21-32V
10 settings to adjust
the speed of the wire running.
4 Working Settings:
30A/15.5V,45A/16.2V, 55A/16.7V and 115A/19.7V.
Filler Wire dimensions:
0.6/0.8mm.
Take up to a 1kg roll of wire.
Insulation Class: H
Protection Degree:IP21S.
Weight:27Kg
Dimensions:
490X2220X450mm
PACKAGE INCLUDES
Unit
Mig leads with torch
1.8m .
earthed lead 1.8m
Welding face shield
Wire brush
mig-wire Roll with a small amount of wire for test
Spare wire
spool Kit.
Handle and screws.
Hose 3m for CO2 or Argon.
3 tips
(0.8mm/0.6mm/shield)
15Amp Plug.
One-year back
to base warranty (Auckland)
-------------------------------------------------------------------------------------------------

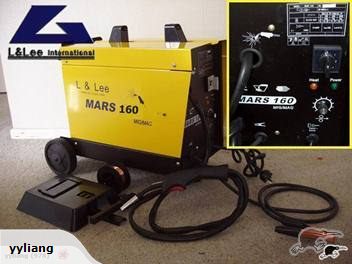

160Amp
mig welder with gas/gasless
Introductions

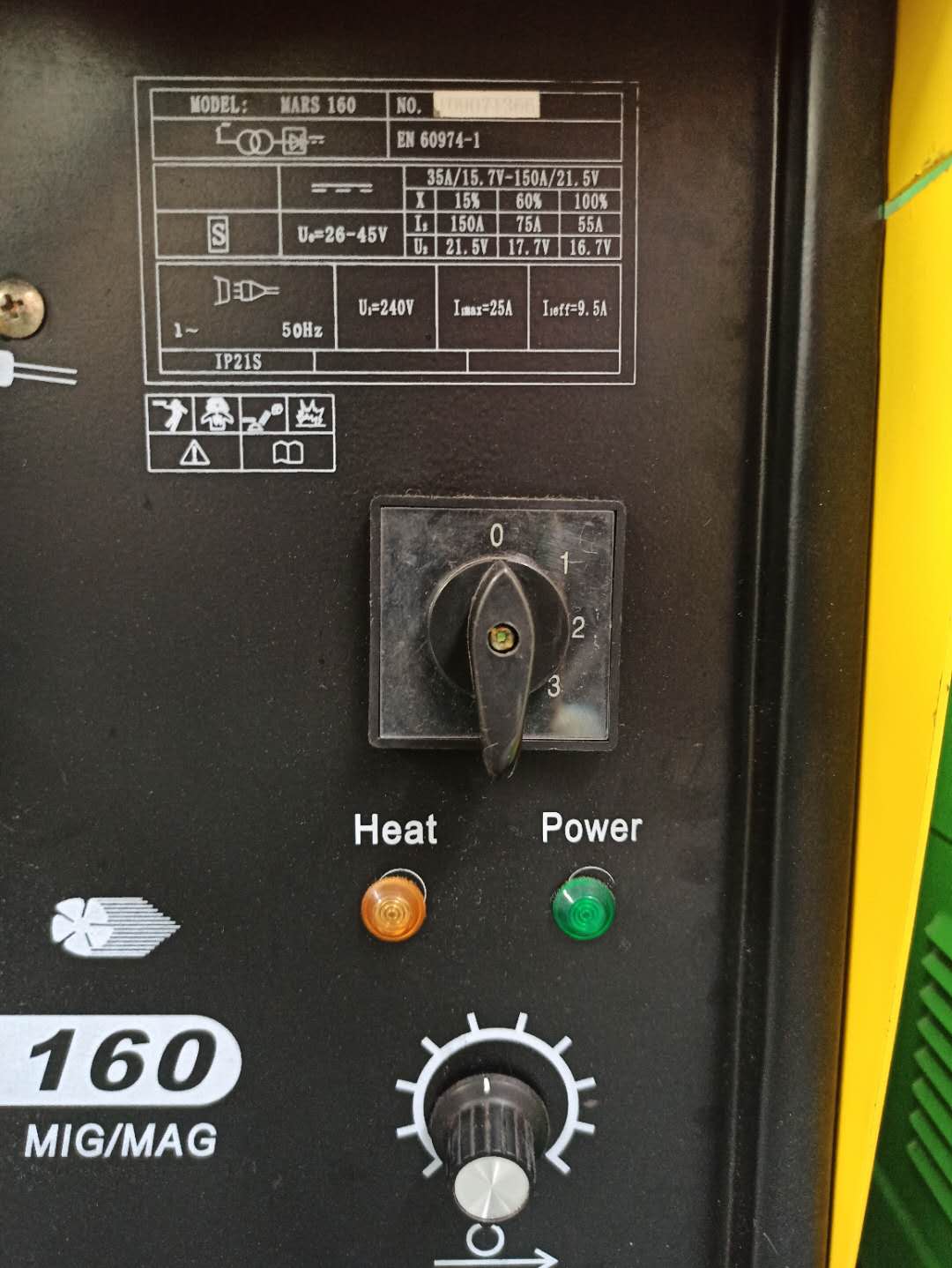

Mars-160
It can weld up to 6mm
for steel and takes 0.6/0.8/0.9/1.0 size of wire.
It doesn't weld
aluminum. You could see our listing of MIG210 or MIG250, if you want a
machine which can weld aluminum and its alloy.
Specifications:
Power voltage :AC230V ,1-phase 50/60HZ
Duty cycle: 150A/21.5V-15%,
75A/21.5V-60% and 55A/16.7V-100%.
Current range (10%):35-145A
No
Load Voltage:21-32V
10 settings to adjust the speed of the wire
running.
4 Working Voltages.
Filler Wire dimensions:
0.6/0.8/1.0mm.
Take up to a 5kg roll of wire.
Insulation Class: H
Protection Degree:IP21S.
Weight:30Kg
Dimensions:
690X390X500mm
PACKAGE INCLUDES
Unit
Mig leads with torch
1.8m .
earthed lead 1.8m
Wire Feeder Rollers 0.6,0.8,0.9,1.0mm
Welding
face shield
Wire brush
Mig-wire Roll with a small amount of wire
for test.
Air hose 2m .
3 tips (0.8mm/1.0mm/shield)
15Amp
Plug.
One-year back
to base warranty (Auckland)
-------------------------------------------------------------------------------------

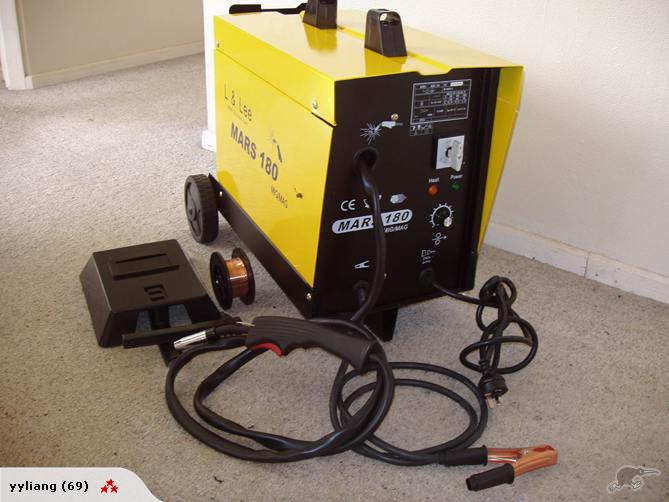

180Amp mig welder with gas/gasless
Introductions
Mars-180
180Amp mig welder with gas and
gasless
Brand new mig welder with gas and gasless
Specifications:
Power voltage :AC230V ,1-phase 50/60HZ
Duty cycle :15%
Current range :35-165A
No Load
Voltage:21-32V
Filler Wire dimensions: 0.6,0.8,0.9,1.0mm.
Insulation
Class: H
Protection Degree:IP21S.
Weight:32Kg
Dimensions:
690X390X500mm
PACKAGE INCLUDES
Unit
Mig leads with torch
1.8m .
earthed lead 1.8m
Welding face shield
Wire
brush
mig-wire Roll
Hose 3m.
One-year back to base
warranty
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
200Amp mig welder with gas/gasless
Introductions

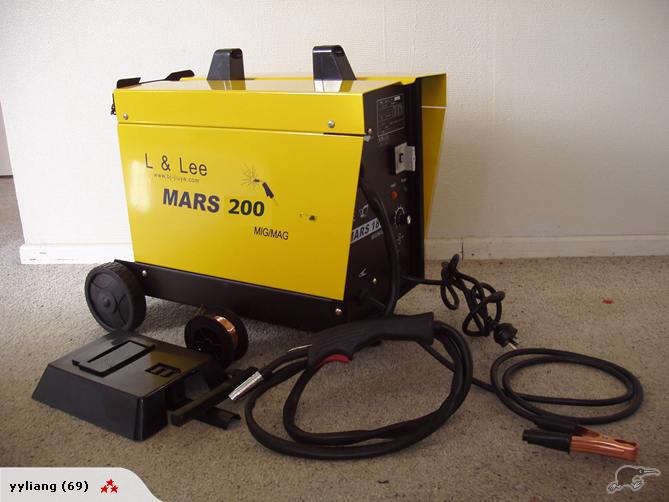

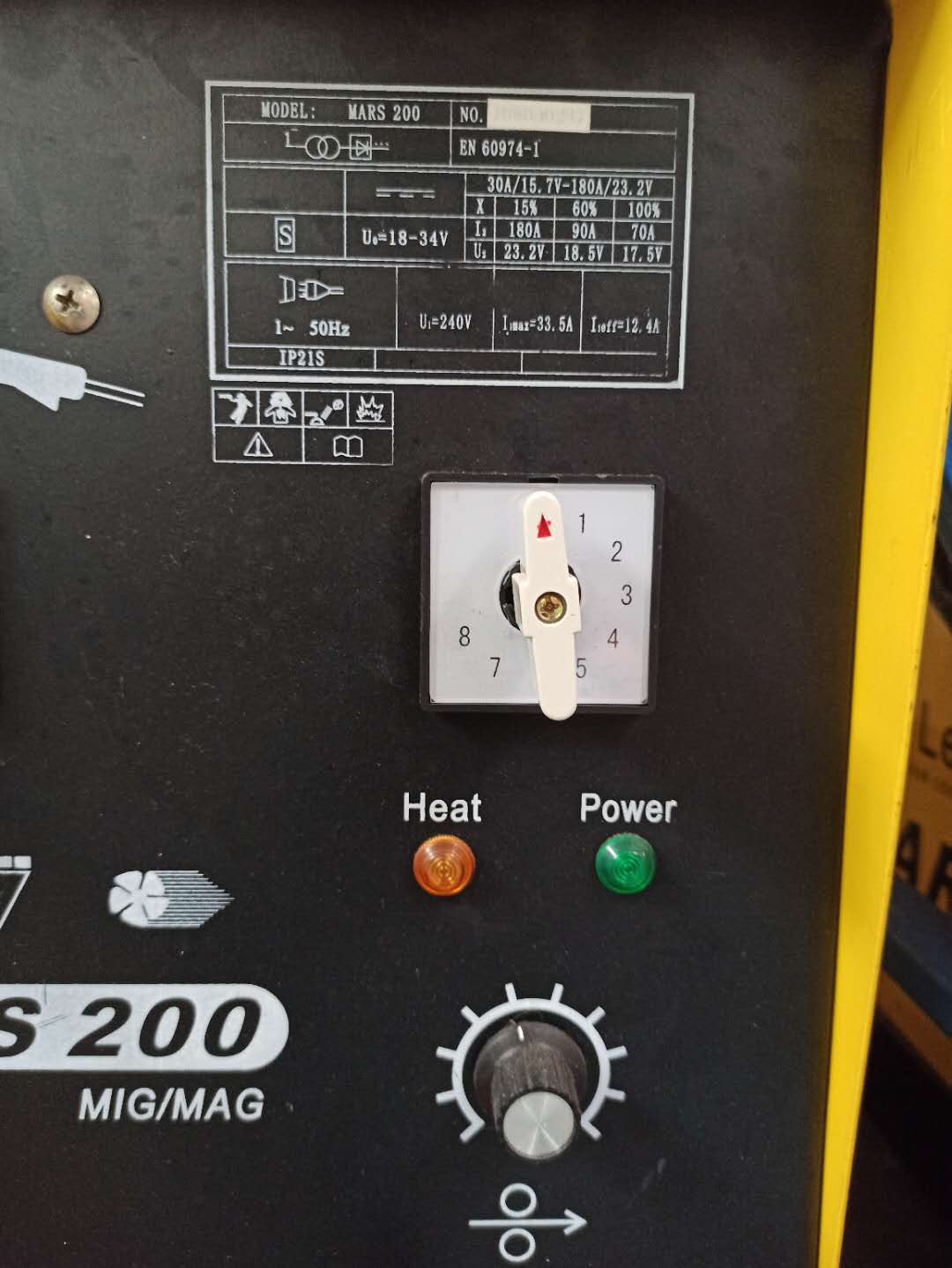

Mars-200
Brand new 200Amp mig welder with
gas and gasless
It can weld up to 10mm for steel and takes
0.6/0.8/0.9/1.0 size of wire.
It doesn't weld aluminum. You could see
our listing of MIG210 or MIG250, if you want a machine which can weld
aluminum and its alloy.
Specifications:
Power voltage
:AC230V ,1-phase 50/60HZ
Duty cycle:180A/23.2V-15%, 90A/18.5V-60% and
70A/17.5V-100%.
Current range (10%):35-180A
No Load Voltage:21-32V
10 settings to adjust the speed of the wire running.
8 Working
Voltages.
Filler Wire dimensions: 0.6/0.8/1.0mm.
Take up to a 5kg
roll of wire.
Insulation Class: H
Protection Degree:IP21S.
Weight:34Kg
Dimensions: 690X390X500mm
PACKAGE INCLUDES
Unit
Mig leads with torch 1.8m .
earthed lead 1.8m
Welding
face shield
Wire brush
Wire Feeder Rollers 0.8/1.0mm
mig-wire
Roll with a small amount of wire for test.
Air hose 3m .
3 tips
(0.8mm/1.0mm/shield)
15Amp Plug.
One-year back to base
warranty
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
200Amp II mig welder with gas/gasless
Introductions

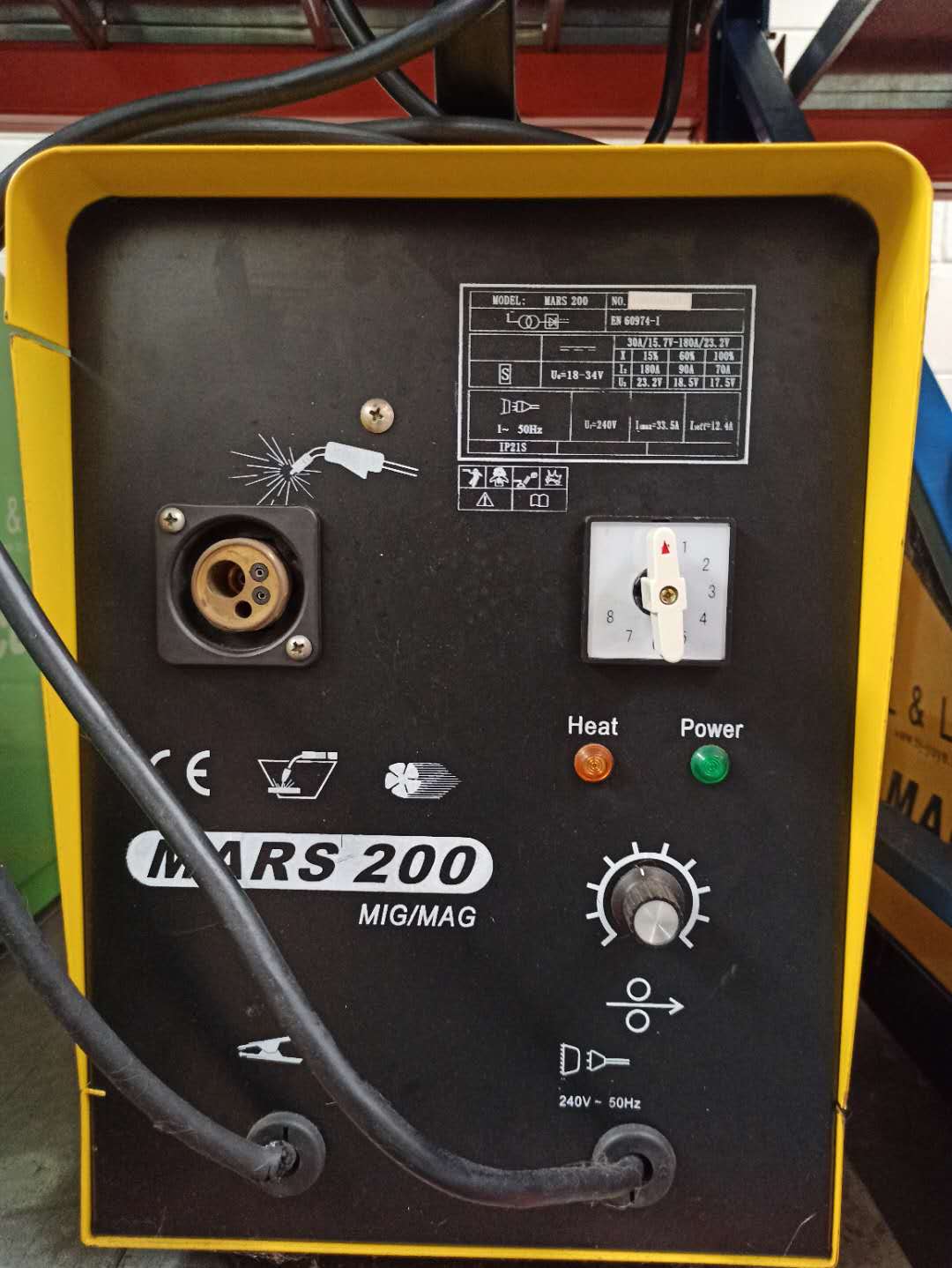

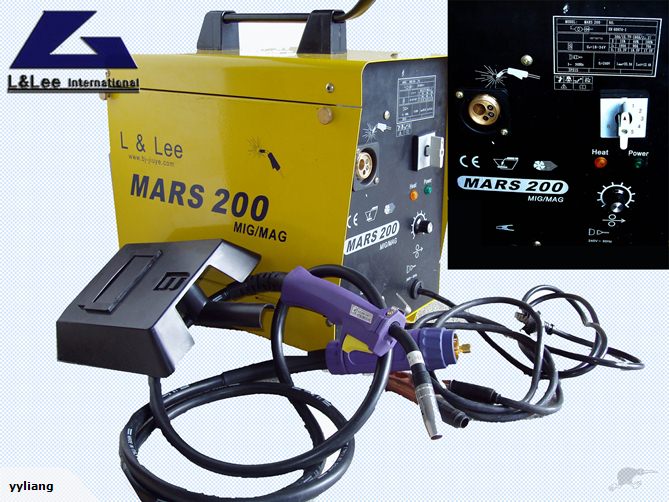

Mars-200II
Brand new 200II Amp mig
welder with gas and gasless, euro binzell style fitting.
It can
weld up to 10mm for steel and takes 0.6/0.8/0.9/1.0 size of wire.
It
doesn't weld aluminum. You could see our listing of MIG210 or MIG250, if
you want a machine which can weld aluminum and its alloy.
*The
difference between this and 130/160/180/200amp migs
The torch of
Mars 200II can be separated, also the lead is 3m all the other models are
come with 1.8m lead, are connected with the machines. The torch of Mars
200II is professional and with euro binzel style fitting. For the other
models the gas valve is in the hand piece.
Specifications:
Power voltage :AC230V ,1-phase 50/60HZ
Duty cycle:180A/23.2V-15%,
90A/18.5V-60% and 70A/17.5V-100%.
Current range (10%):35-180A
No
Load Voltage:21-32V
10 settings to adjust the speed of the wire
running.
8 Working Voltages.
Filler Wire dimensions:
0.6/0.8/1.0mm.
Take up to a 5kg roll of wire.
Insulation Class: H
Protection Degree:IP21S.
The torch with Euro style fitting .
Weight:34Kg
Dimensions: 690X390X500mm
PACKAGE INCLUDES
Unit
Mig leads with torch 3m (AK-15)
earthed lead 1.8m
Welding face shield
Wire brush
Wire Feeder Rollers 0.8/1.0mm
Mig-wire Roll with a small amount of wire for test.
Air hose 3m .
3 tips (0.8mm/1.0mm/shield)
15Amp Plug.
One-year back to
base (Auckland) factory warranty on parts and labour
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

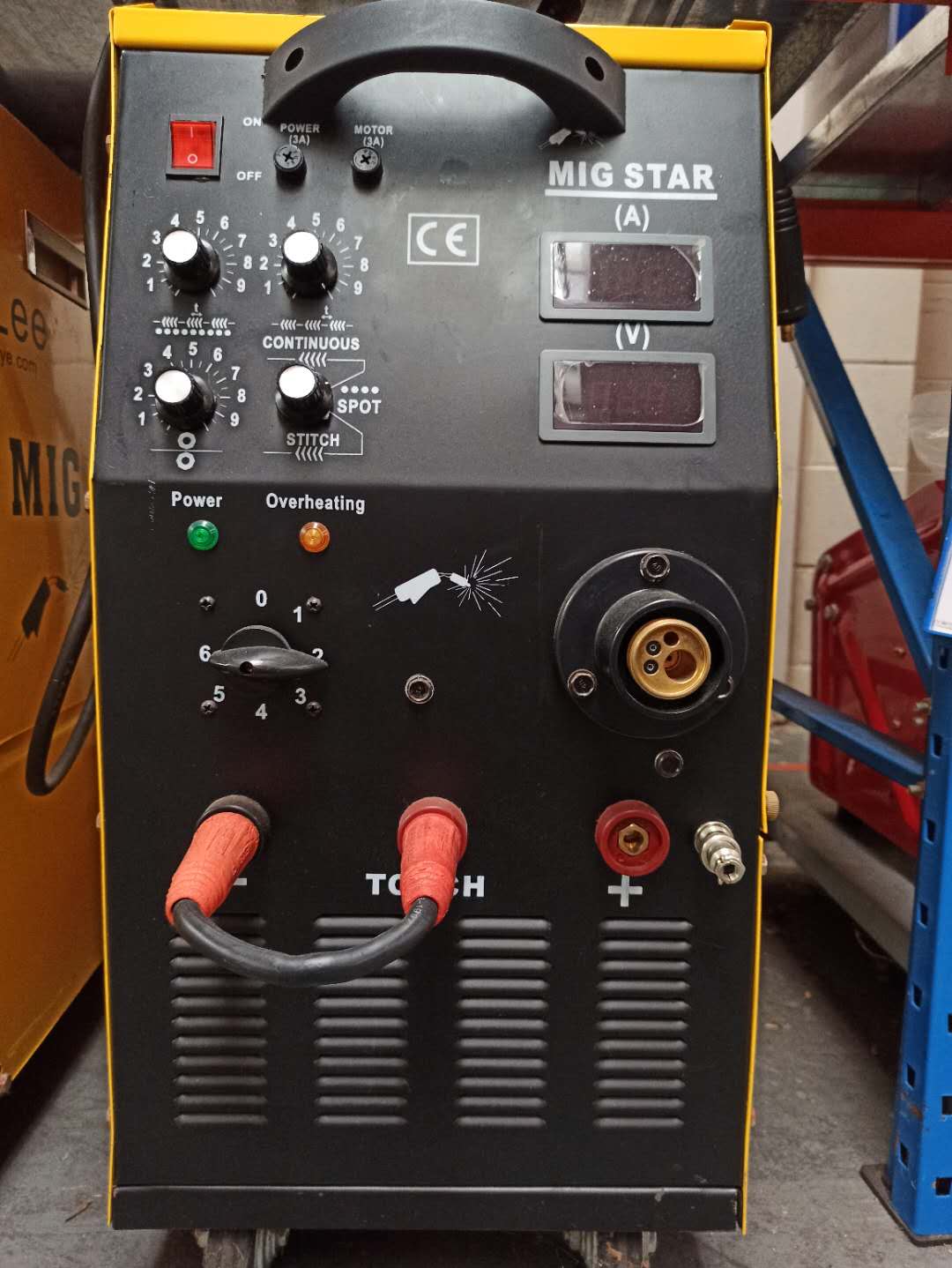

210Amp Migstar welder
industrial, steel & Aluminum
|
Introductions

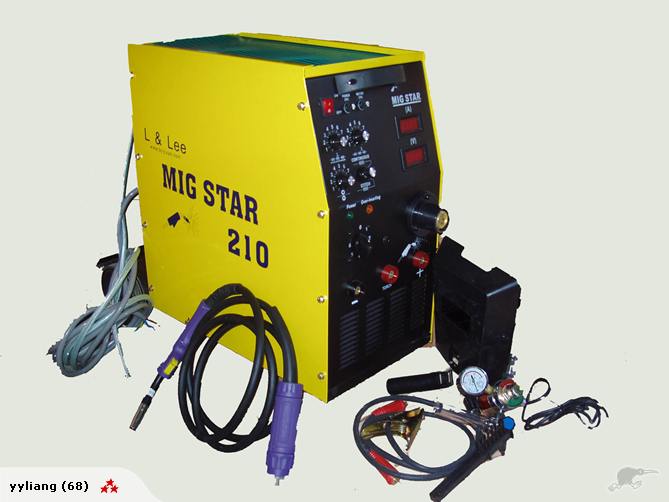

Mig Star-210Amp mig/mag welder with
single phase, steel & aluminum.
*The machine has three
modes gas/gasless/aluminum. It can be used for welding of carbon
steel, alloy, stainless steel and aluminum.
*It could works with
co2 or argon.
*It can weld up to 12mm for steel and 10mm for
aluminum.
*It takes 0.6/0.8/0.9/1.0 size of wire.

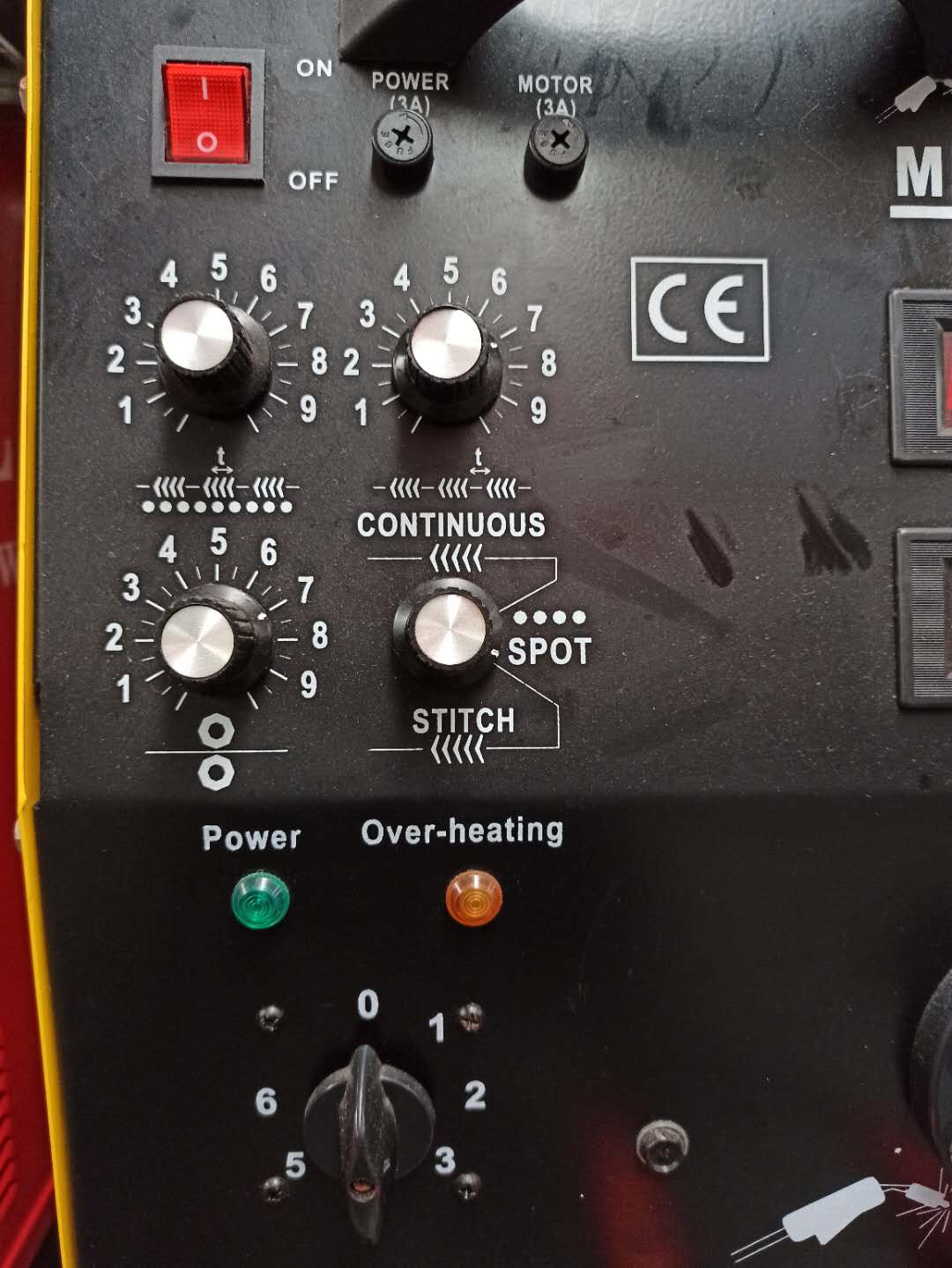

*It can
work with continues/spot/stitch welding functions.
*The time for
interval between and time for welding can be adjusted in spot and
stitch function. It has nine settings for each.
*There are nine
settings to adjust the speed of the feeder.
*There are six
voltage settings.
*Two fuse designed into the machine one for
motor (feeder), one for power.
*It has duo-display panel, for both
output current and voltage.
*It is a very professional and
commercial machine, you cannot find a machine like this type in this
price.
The heart of machine is transformer, the life is very
long, therefore it is more reliable.
Specifications:
Power voltage :AC230V ,1-phase 50/60HZ
Duty cycle
:210A/24.5V-20%,120A/20.0V-60%,90A/18.5V-100%.
Current range :50-210A
No Load Voltage:22-43V
Wire
feeding speed:1-17m/min.
Filler Wire dimensions: 0.8/1.0mm.
Take up to a 15kg roll of wire.
Insulation Class :H
Protection Degree:IP21S.
Weight:65Kg
Dimensions:
880X430X700mm(0.26m3)
PACKAGE INCLUDES
Unit with
built-in wire feeder
Mig leads with torch 3m (AK-15) .
earthed lead 1.8m,Hose 3m.
Welding face shield, Wire brush
3 tips(0.8mm/1.0mm/shield)
One-year back to base
(Auckland) factory warranty on parts and labor,
GST invoice is
provided
---------------------------------------------------------------------------------------------------------------------------------------------- |

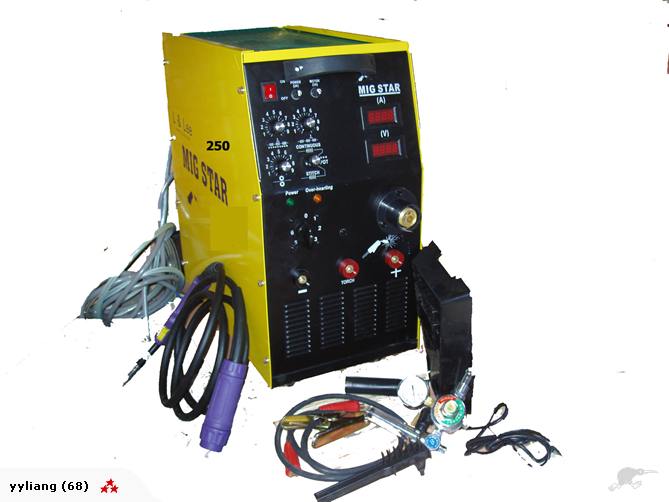

250Amp Migstar
welder industrial, steel $ Aluminum
Introductions
Mig Star-250Amp mig/mag welder with single
phase, steel & aluminum.
*The machine has three modes
gas/gasless/aluminum. It can be used for welding of carbon steel, alloy,
stainless steel and aluminum.
*It could works with co2 or argon.
*It can weld up to 15mm for steel and 12mm for aluminum.
*It takes
0.6/0.8/0.9/1.0 size of wire.
*It can work with continues/spot/stitch
welding functions.
*The time for interval between and time for welding
can be adjusted in spot and stitch function. It has nine settings for each.
*There are nine settings to adjust the speed of the feeder.
*There
are six voltage settings.
*Two fuse designed into the machine one for
motor (feeder), one for power.
*It has duo-display panel, for both
output current and voltage.
*It is a very professional and commercial
machine, you cannot find a machine like this type in this price.
The heart of machine is a transformer, the life is very long,
therefore it is more reliable.
Specifications:
Power voltage
:AC230V ,1-phase 50/60HZ
Duty
cycle:250A/25V20%.140A/22V60%,100A/20V100%.
Current range
:50-250A
No Load Voltage:22-47V
Wire feeding speed:1-17m/min.
Filler Wire dimensions: 0.8/1.0mm.
Take a 5kg or 15kg roll of
wire.
Insulation Class: H
Protection Degree:IP21S.
Weight:75Kg
Dimensions: 880X430X700mm(0.26m3)
PACKAGE INCLUDES
Unit
with built-in wire feeder
Mig leads with torch 3m (AK-15) .
earthed lead 1.8m
Welding face shield
Wire brush
Hose 3m.
3 tips(0.8mm/1.0mm/shield)
*no plug.
.One-year back to
base (Auckland) factory warranty on parts and labor,
GST invoice is
provided
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Extension

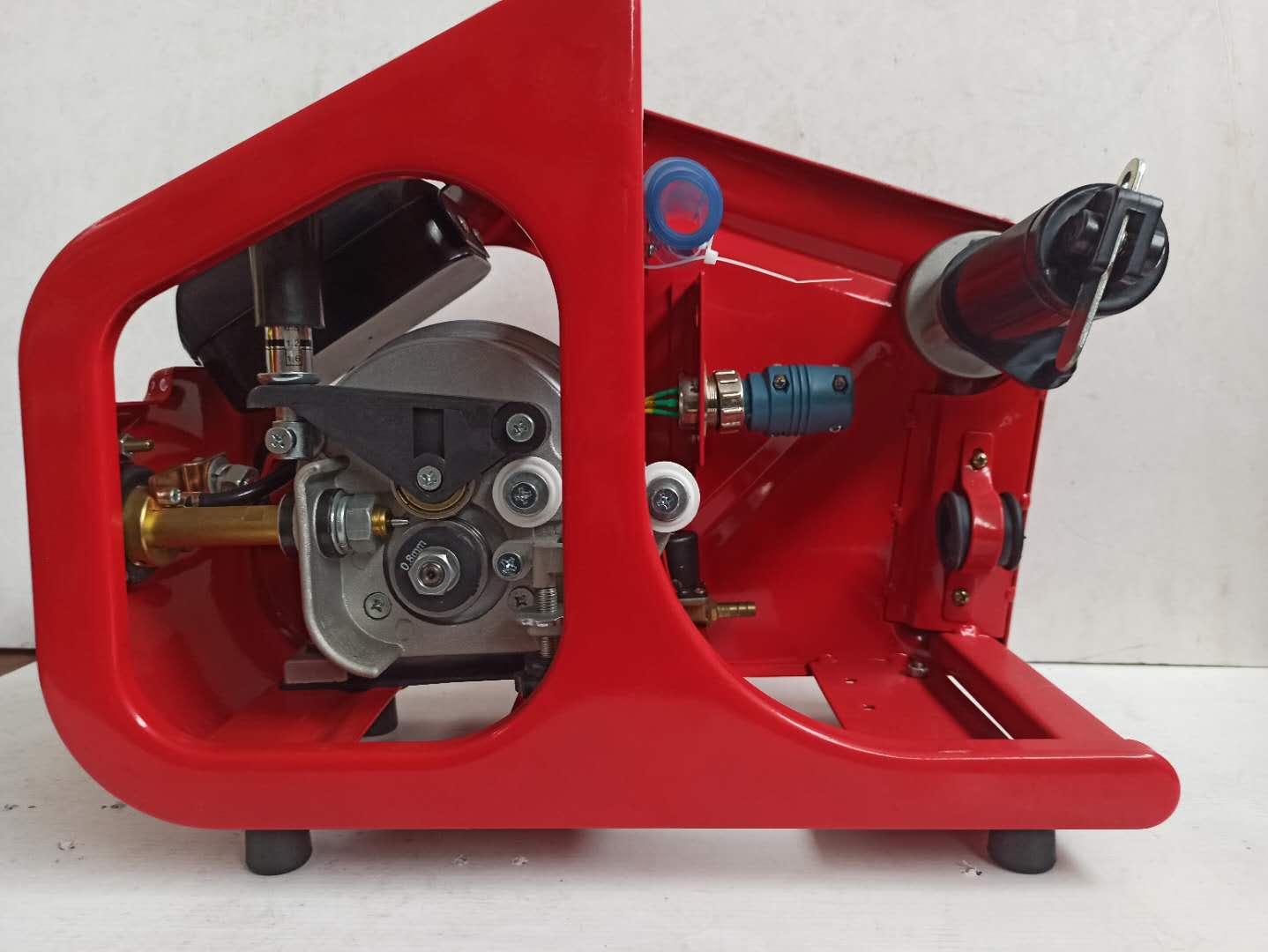

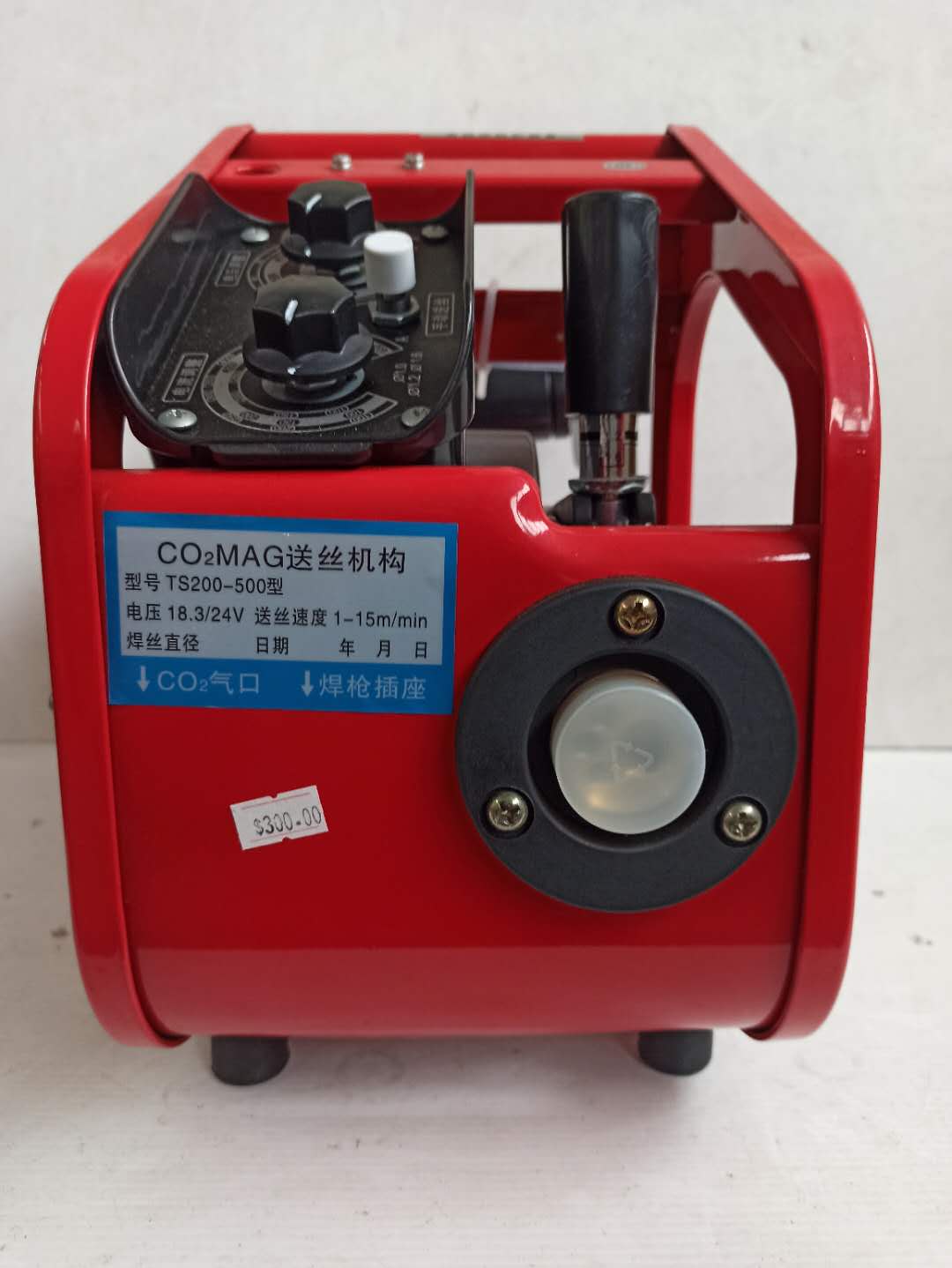

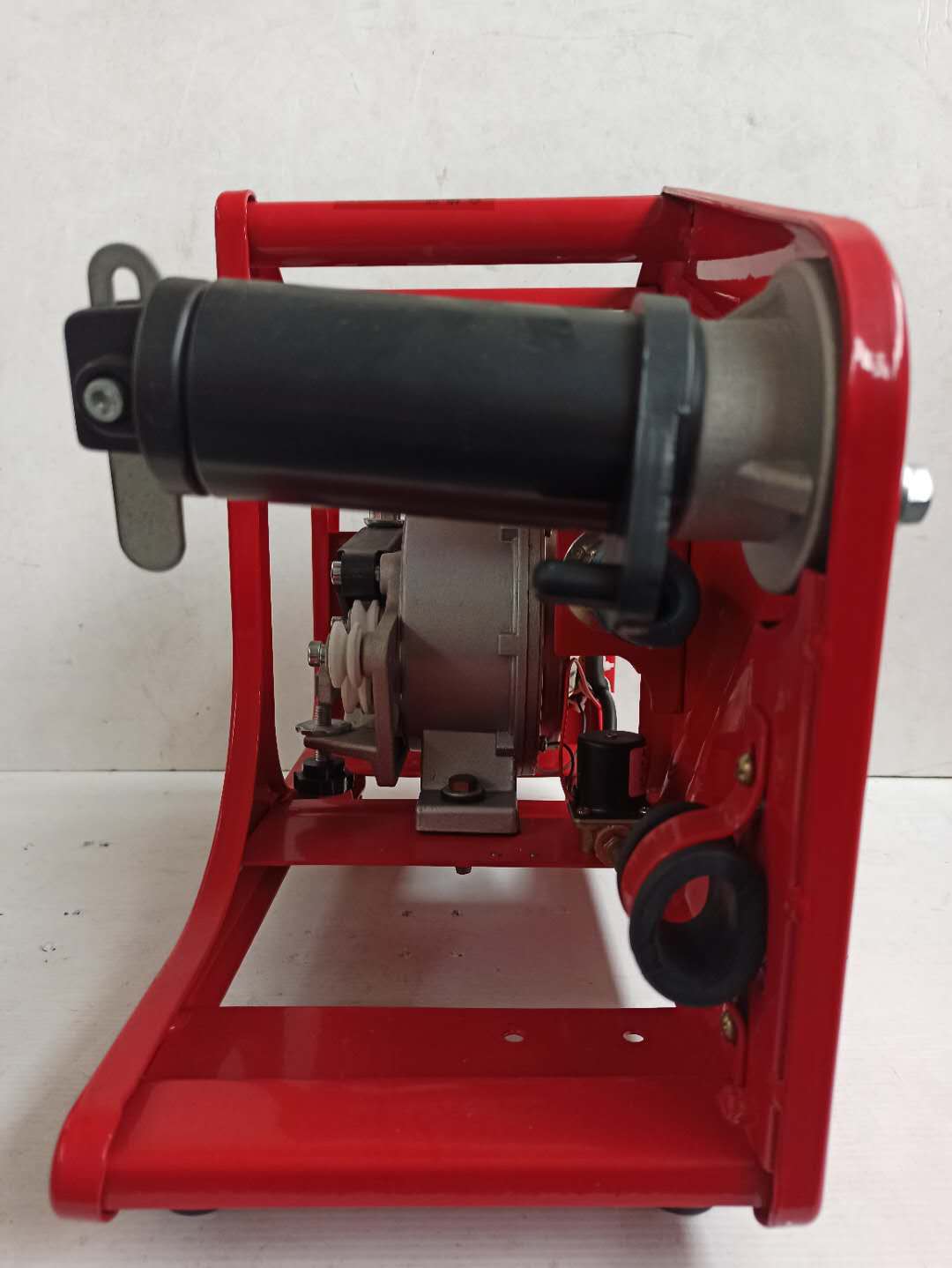

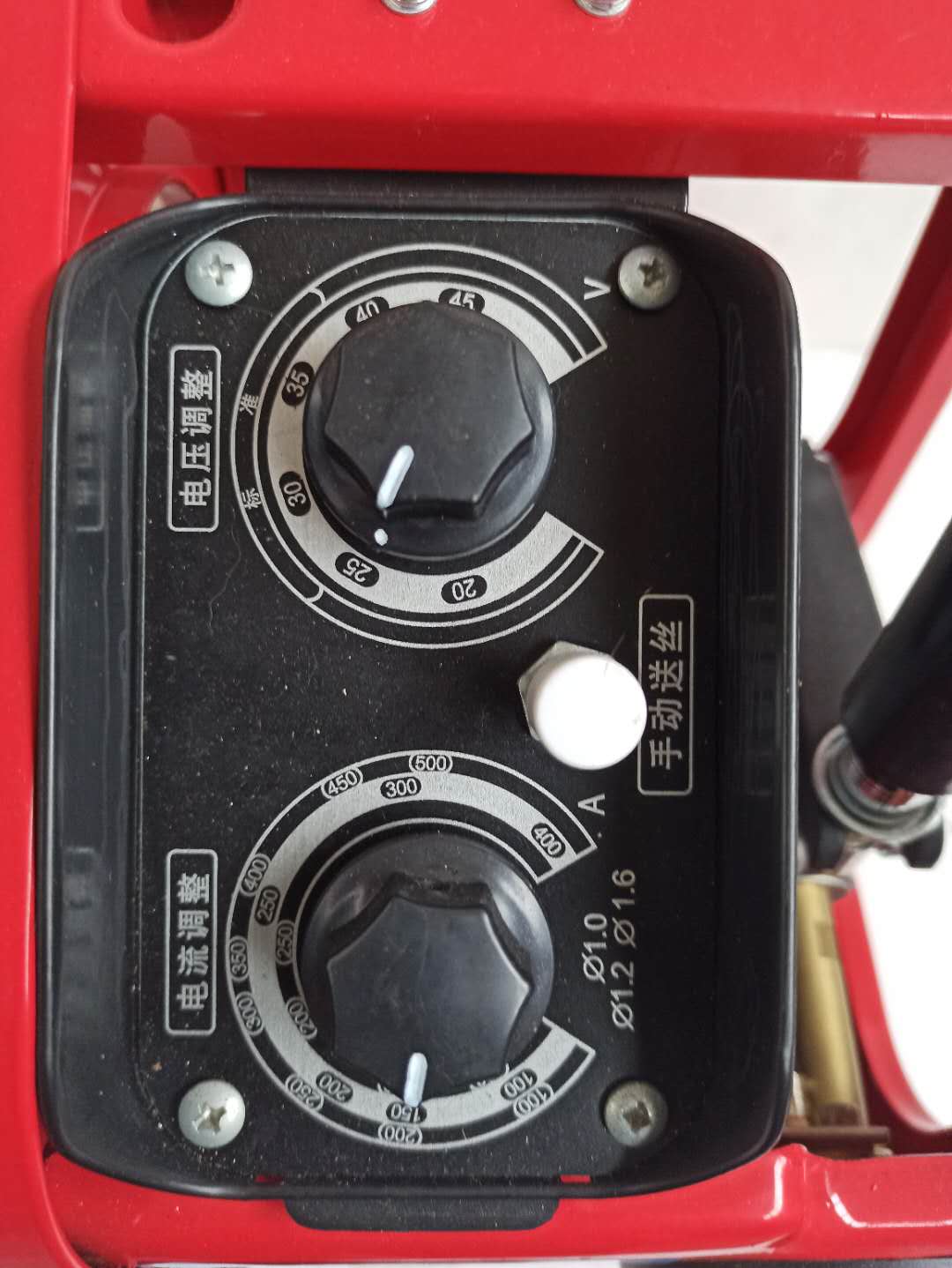

Co2 Mag/Mig Wire Feeder
Introductions
Type:TS200-500
Wire speed:1-15m/min 15kg spool
Voltage:18.3/24V
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
