Welding Machine

  Our range of tools are built to last of the highest quality and at competitive price.

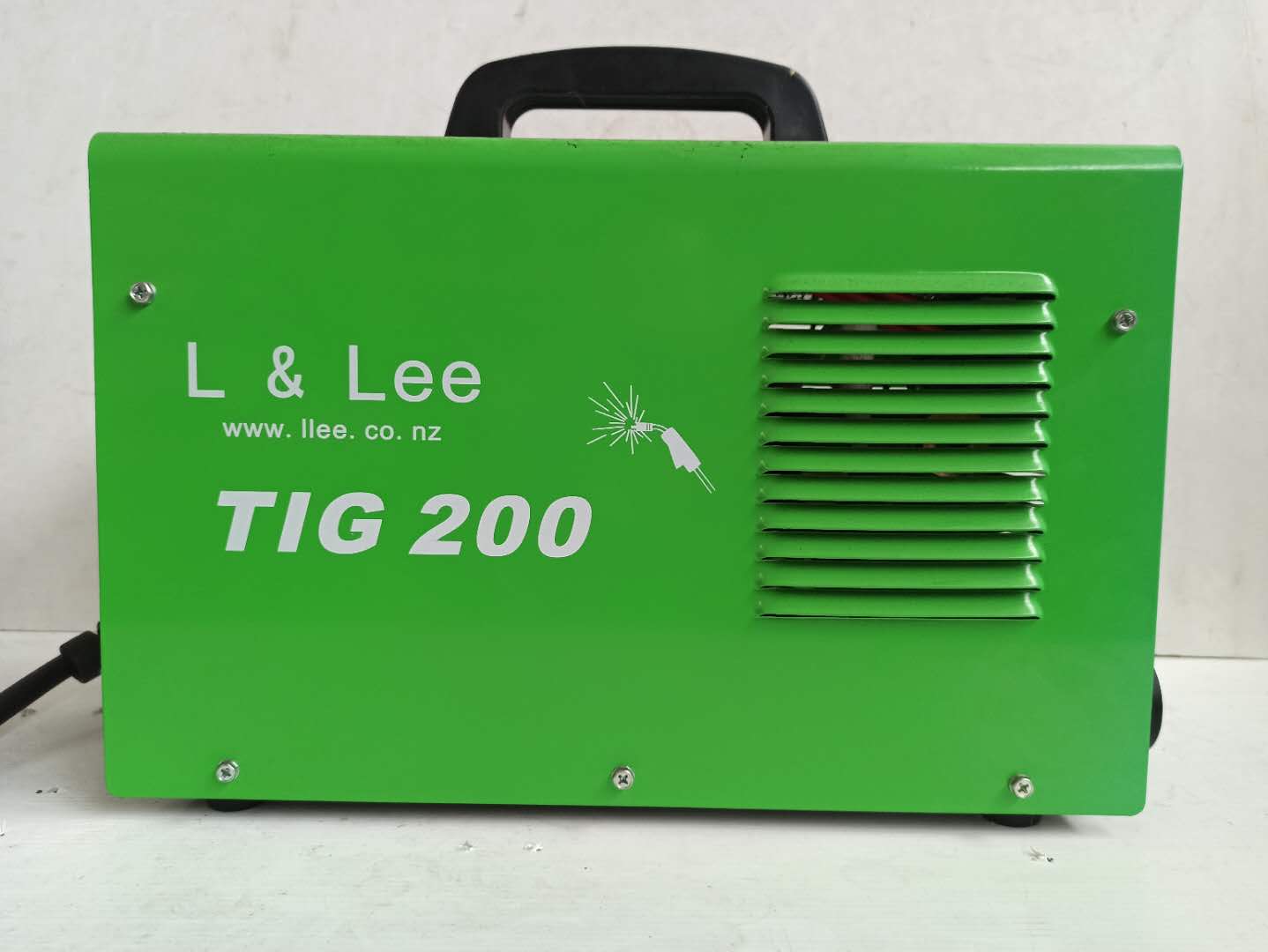

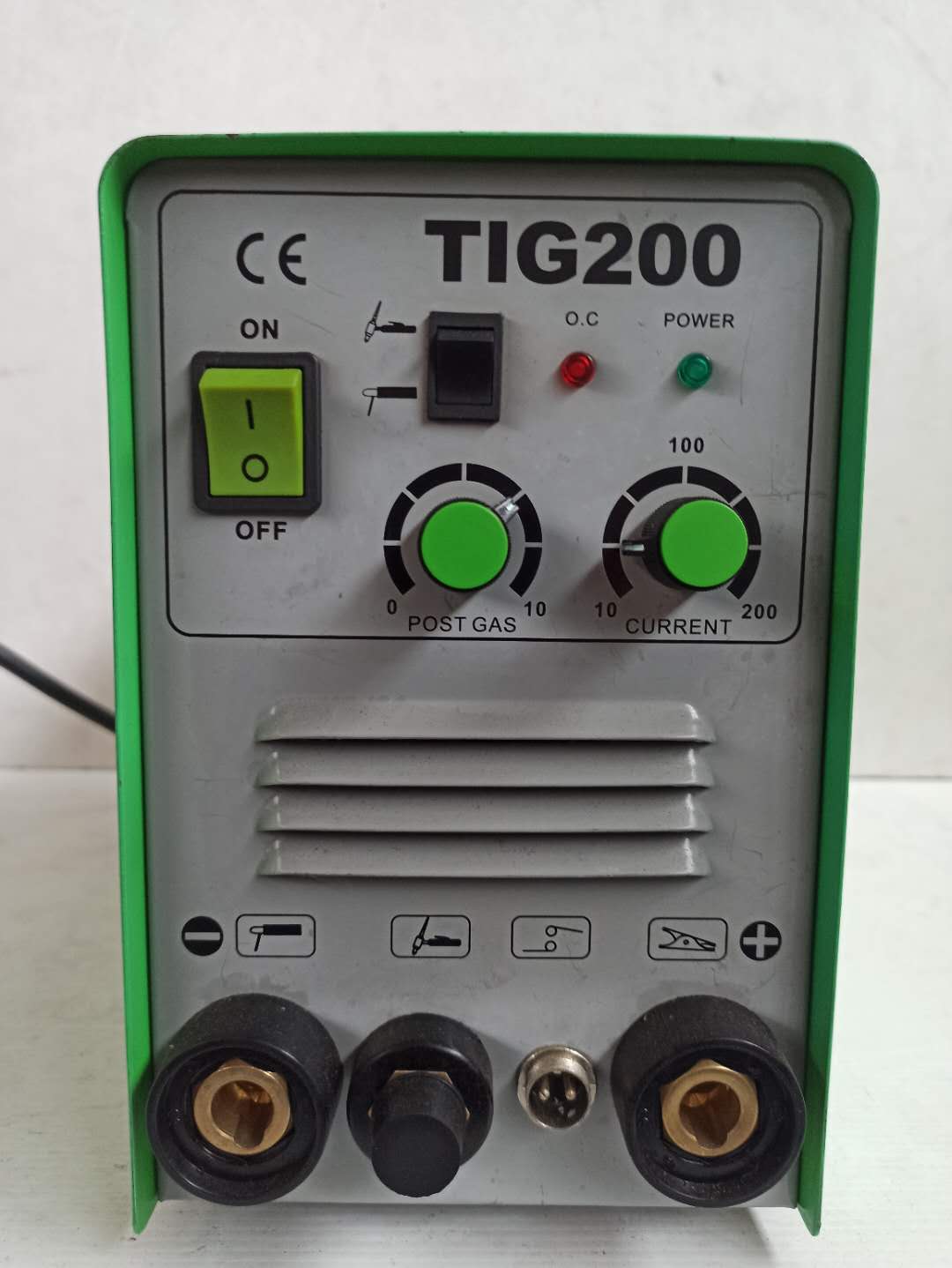

Inverting Tig and Stick Welder

Tig200 Tig/Stick welder

Introductions

This machine has the permanently current characteristic, welding current, the electric current is very steady. When pole is shorting, the electric current is reduced to zero automatically ,in order to reduce the tungsten pole burning degree decreased and the pollution of work piece

It doesn't weld aluminum. You could see our listing with AC/DC, if you want a machine which can weld aluminum and its alloy.

Specification:
power voltage (v): AC230V
Frequency (HZ): 50/60
input current (A): 21.
No-load voltage (V): MMA: 200 DC56V.
input-current adjustment: 10-200.
Rated voltage (V): 18.
Duty cycle (%): 60
No-load consumption): 60.
Arc-starting: HF.
Efficiency : 85%.
Power factor: 0.93.
Insulation class: F
Protection class: IP23.
Weight (kg): 9.
Size: (mm): 380x178x295


PACKAGE INCLUDES
Unit
The tig leads 4.5m with torch
Spare tips of torch and Ceramics .
Tungsten( diameter 2.0mm)
arc leads 4m
earthed lead 2m
Argon regulator.
Size: 500x355x350mm.

One-year back to base warranty (Auckland)
　

-------------------------------------------------------------------------------------------------
