Inverting tig/stick/cut 3 in 1 welder

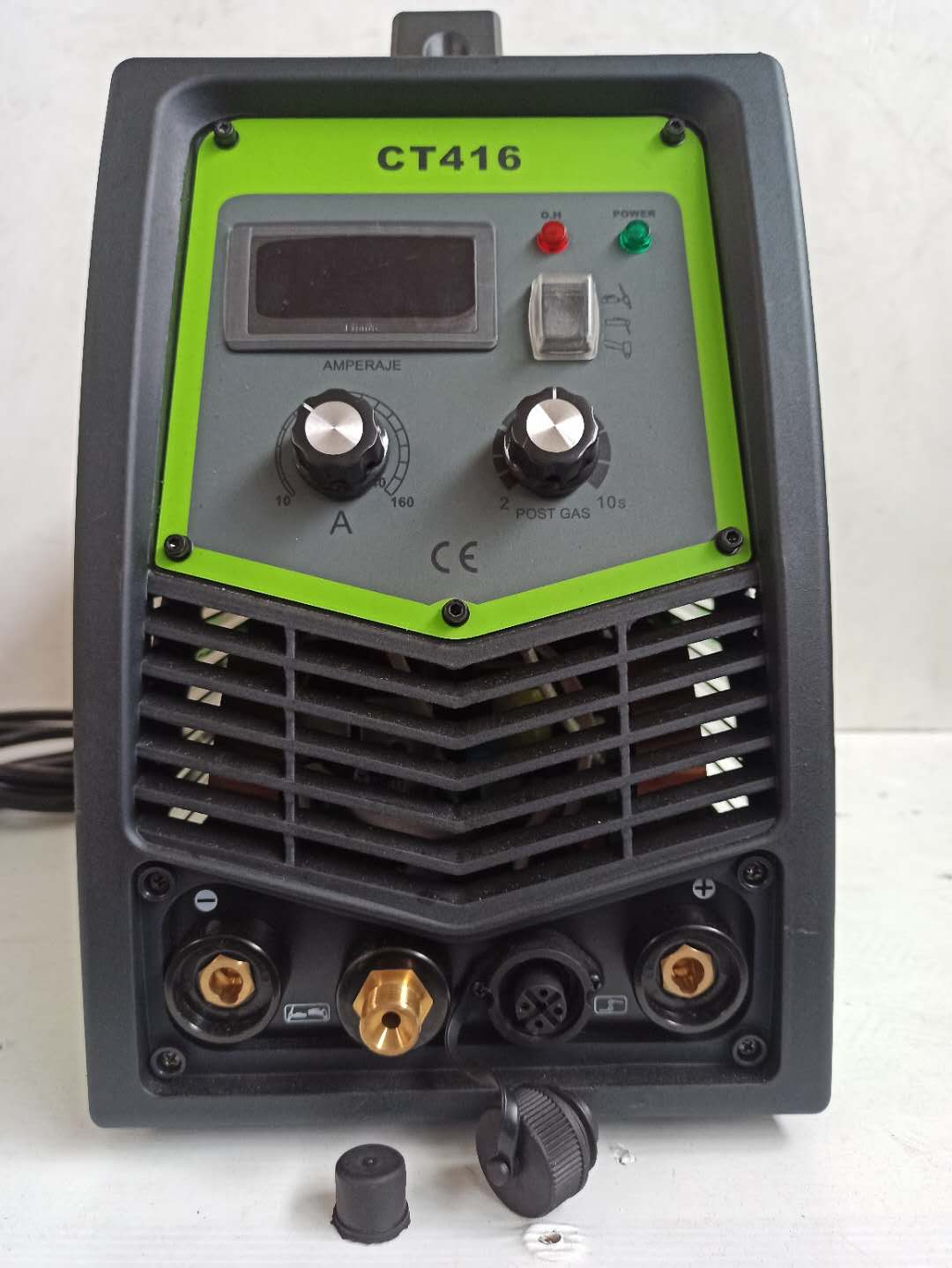

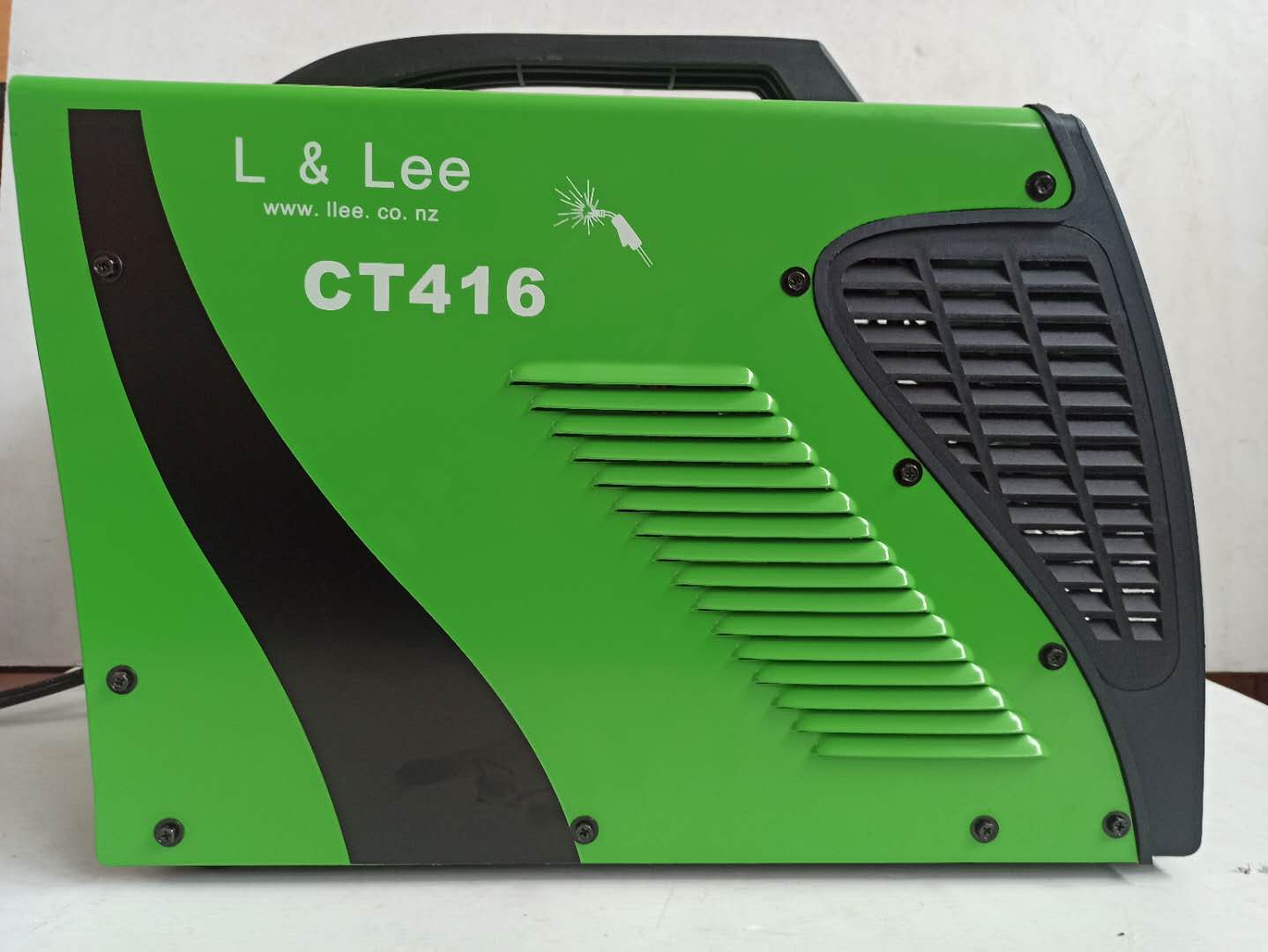

160A Tig/Stick/40Amp Plasma cutter 3in1(CT-416) welder





Introductions

CT-416 Tig/Stick/Cut 3 in1 Welding Machine new fashion and more safety.

CT416 are multi-functional welders made with advanced inverter technology, and they have three functions: TIG/MMA/CUT.
CT416 can be widely used in welding and cutting carbon steel, stainless steel, alloy steel, copper and other nonferrous metals. They are portable, efficient, energy-saving and stable, and the exchange cycle of the assembled machinery can be as high as 85%.


TYPE CT-416
Input voltage (V,Hz) AC230v 50/60
Input power capacitance (KVA) 3.8
Rate Output Curren (A):Tig:160A,MMA:150A,Cut:40A.
No-load loss (W) 40
Duty cycle(%) 50
Power factor 0.93
Efficiency (%) 85
Insulation class F
Protection class IP21
Cut thickness:1-12MM
Weight (Kg) 13.4
Size (mm) 440*218*355

PACKAGE INCLUDES
Unit
The tig leads 4m with torch and safety controller plug.
Cutter leads 4m.with torch
Tungsten( diameter 1.6mm)
arc leads 3m .
earthed leads 3m
Air flow regulator.
Argon regulator.



One-year back to base warranty (Auckland)




-------------------------------------------------------------------------------------------------
