   Trailer

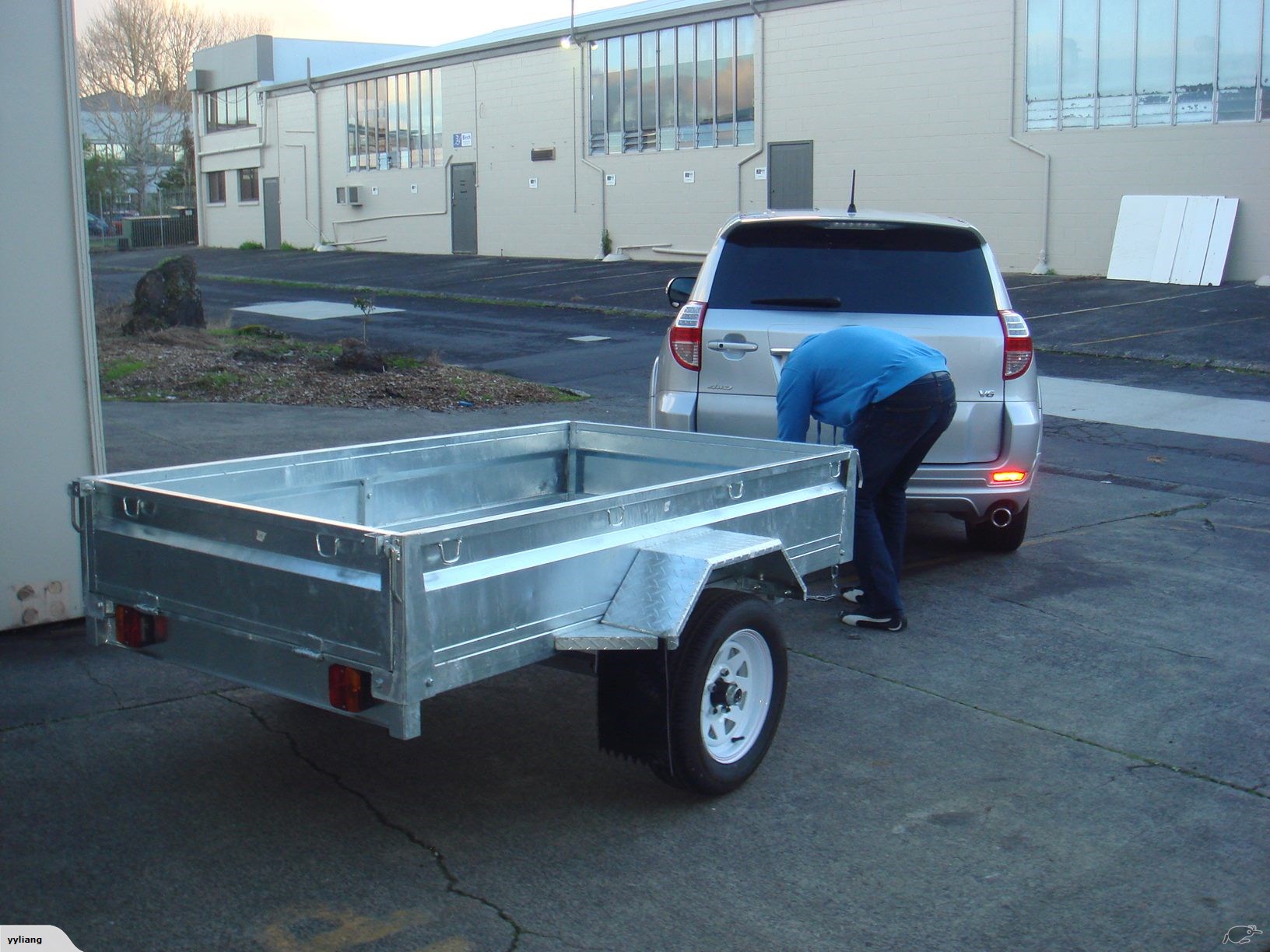

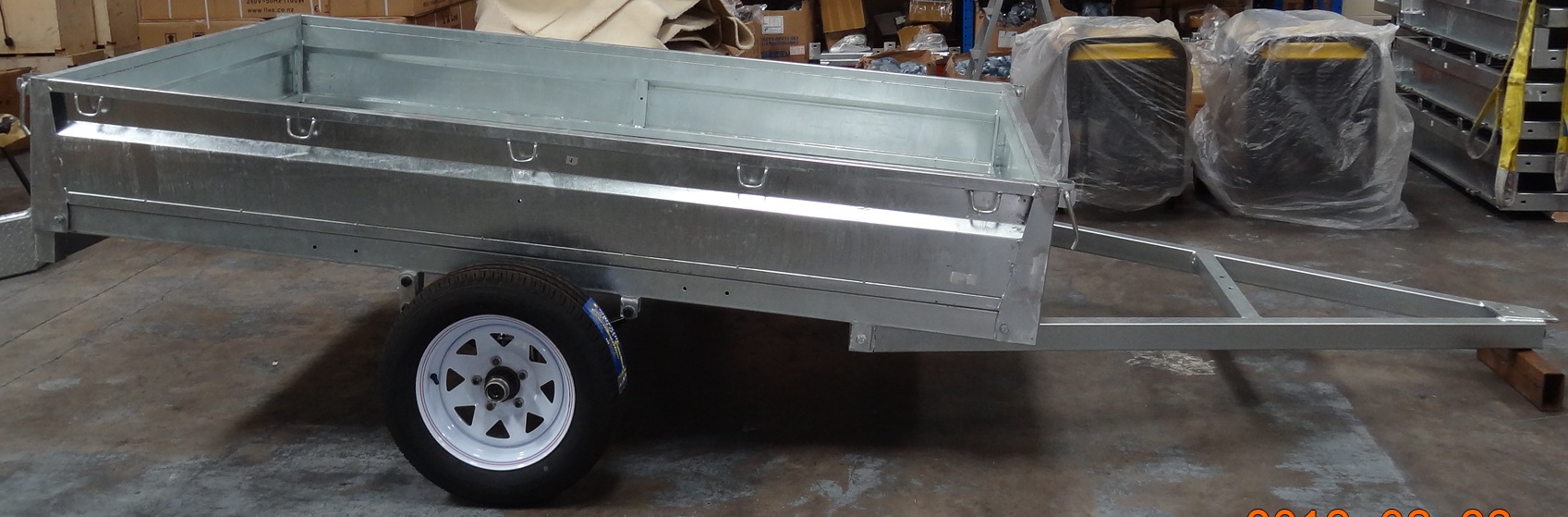

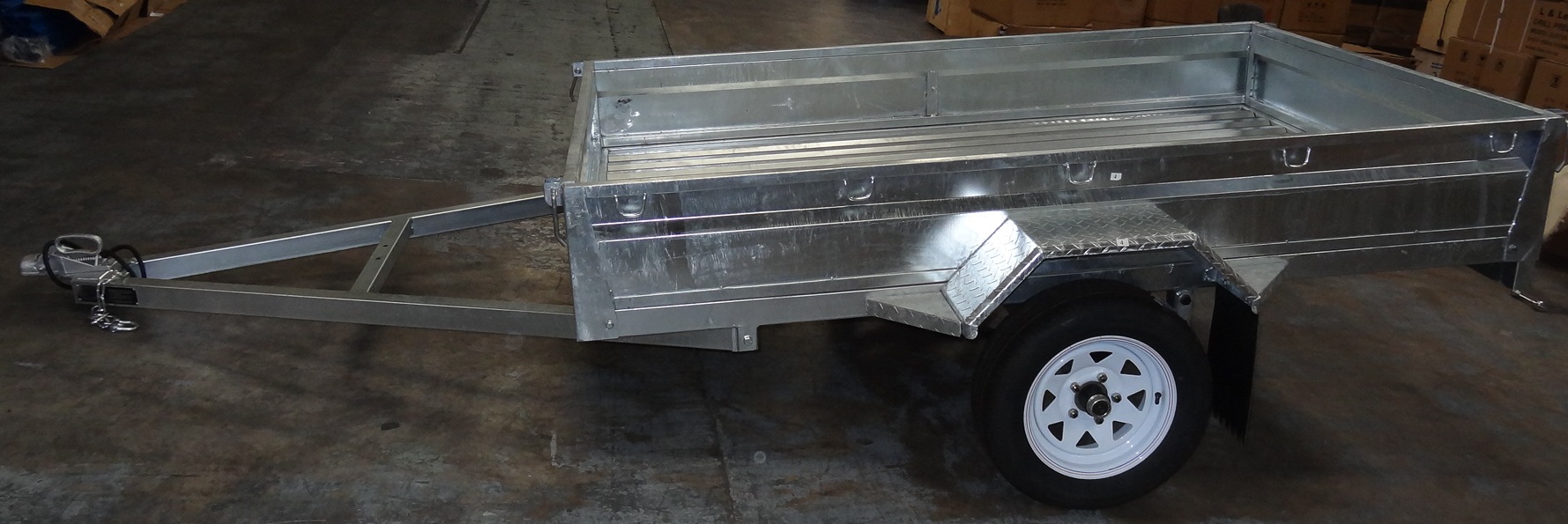

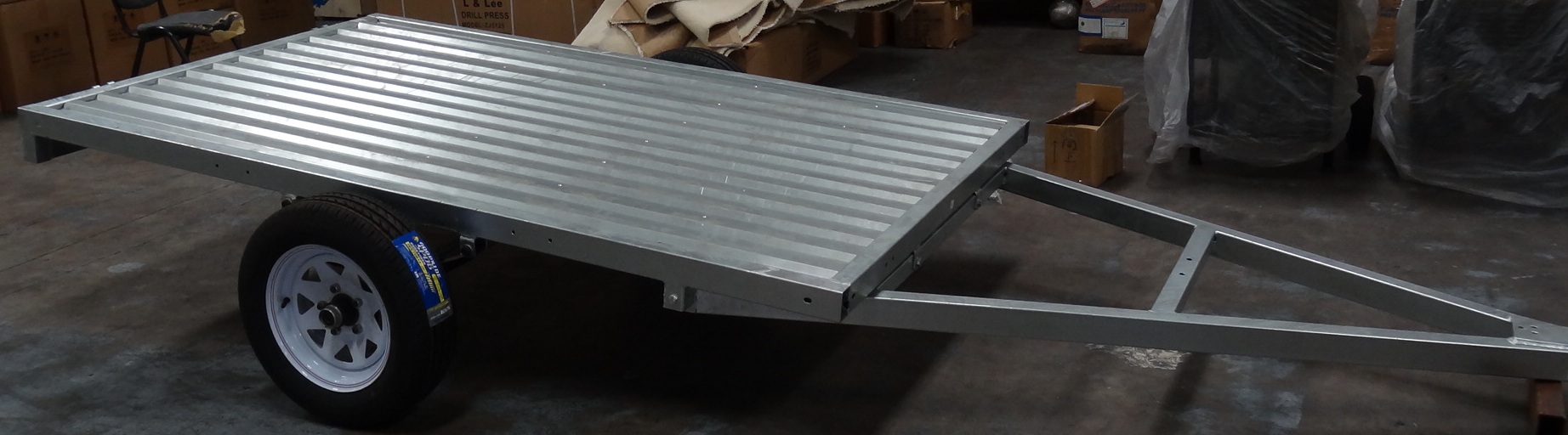

      Trailer 7*4 and 8*5

















Introductions:

Brand new HOT GALVANISED 8 x 5 and 7*4 Single Axle Trailers with 6 leafs spring and heavy duty steel. Extra for Cage also
LOAD CAPACITY: 750kg
GTM: 1000kg
Tare weight:235KG(8x5)/205KG(7x4)

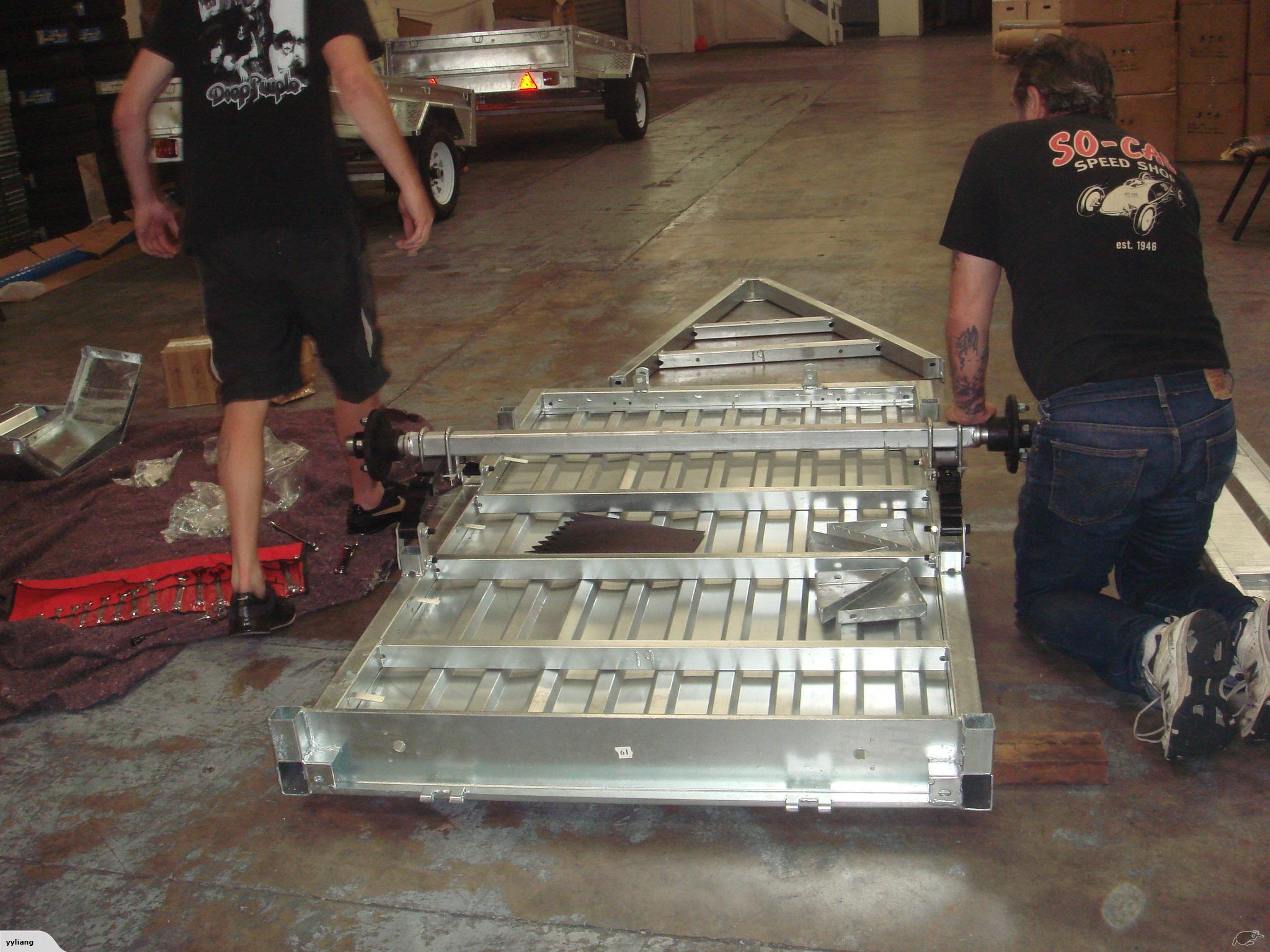

The price is not included assembly, if you want assembled trailer,+$150.00.
it will take 1 days to finish it.
if you want DIY ,we supply the assemble manual.
Requires WOF & Registration

FEATURES:
Galv Mud Flaps
Heavy Duty Draw Bar
NZ Standard 7 Pin Flat Style Plug
NZ Style Coupling and Safety Chain
Hot Dipped Galvanized Steel Construction

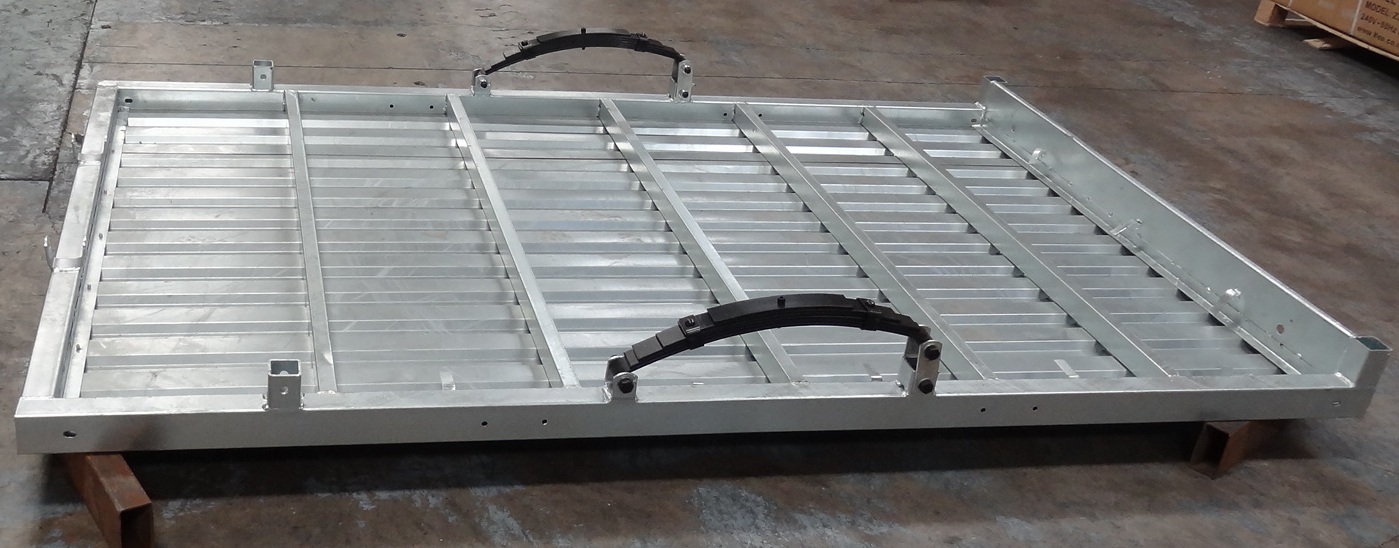

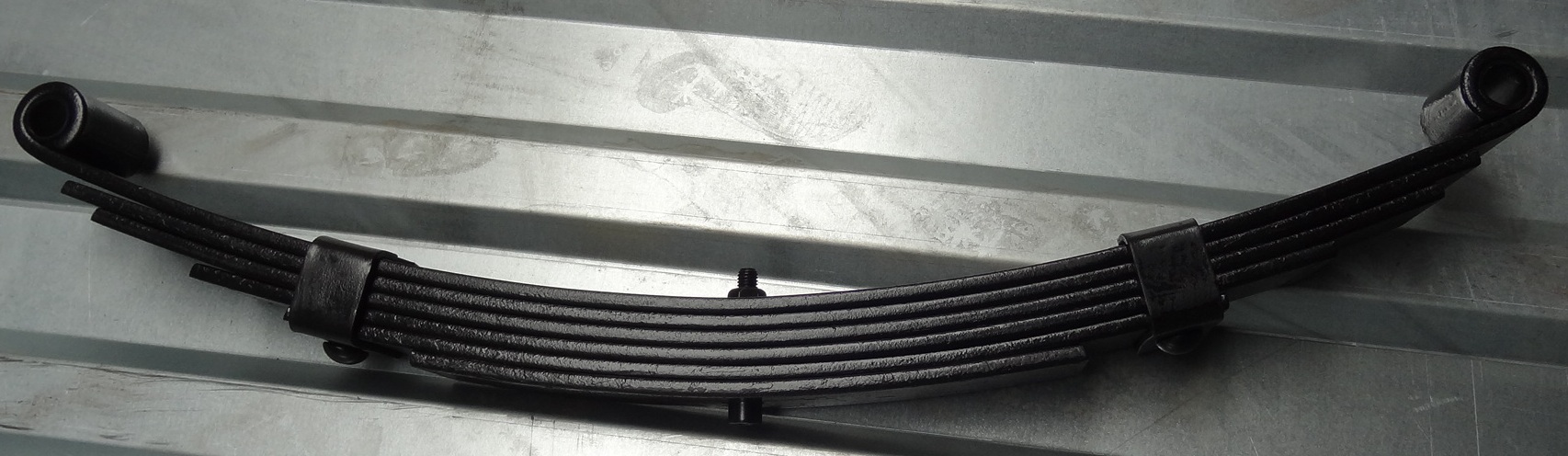

6 leafs spring

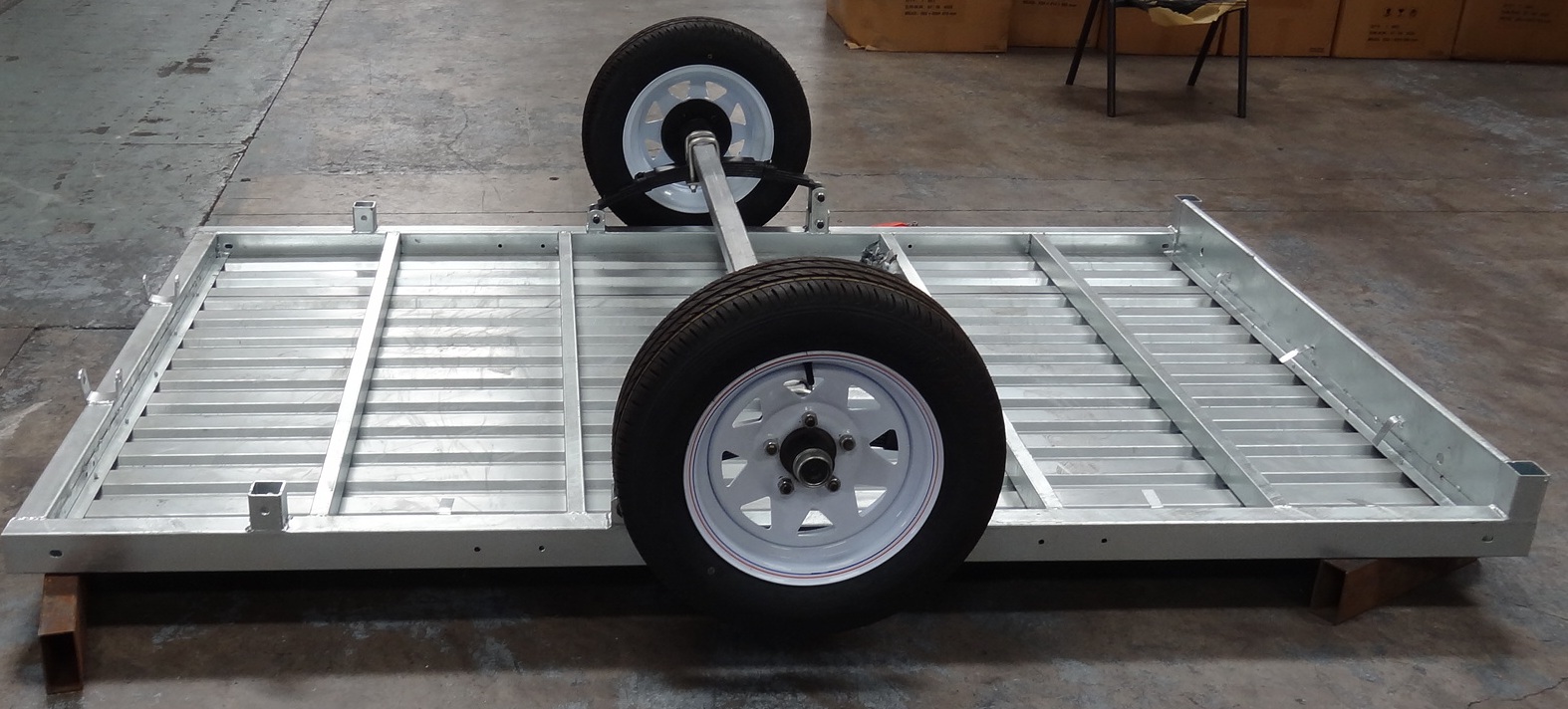

2x New 13" Rims with 165mm / 70mm Tyres 165/70R13
Spare Wheel Holding Position on Drawbar and fitting bolts.
Folding front and Rear Tailgate (Removable)

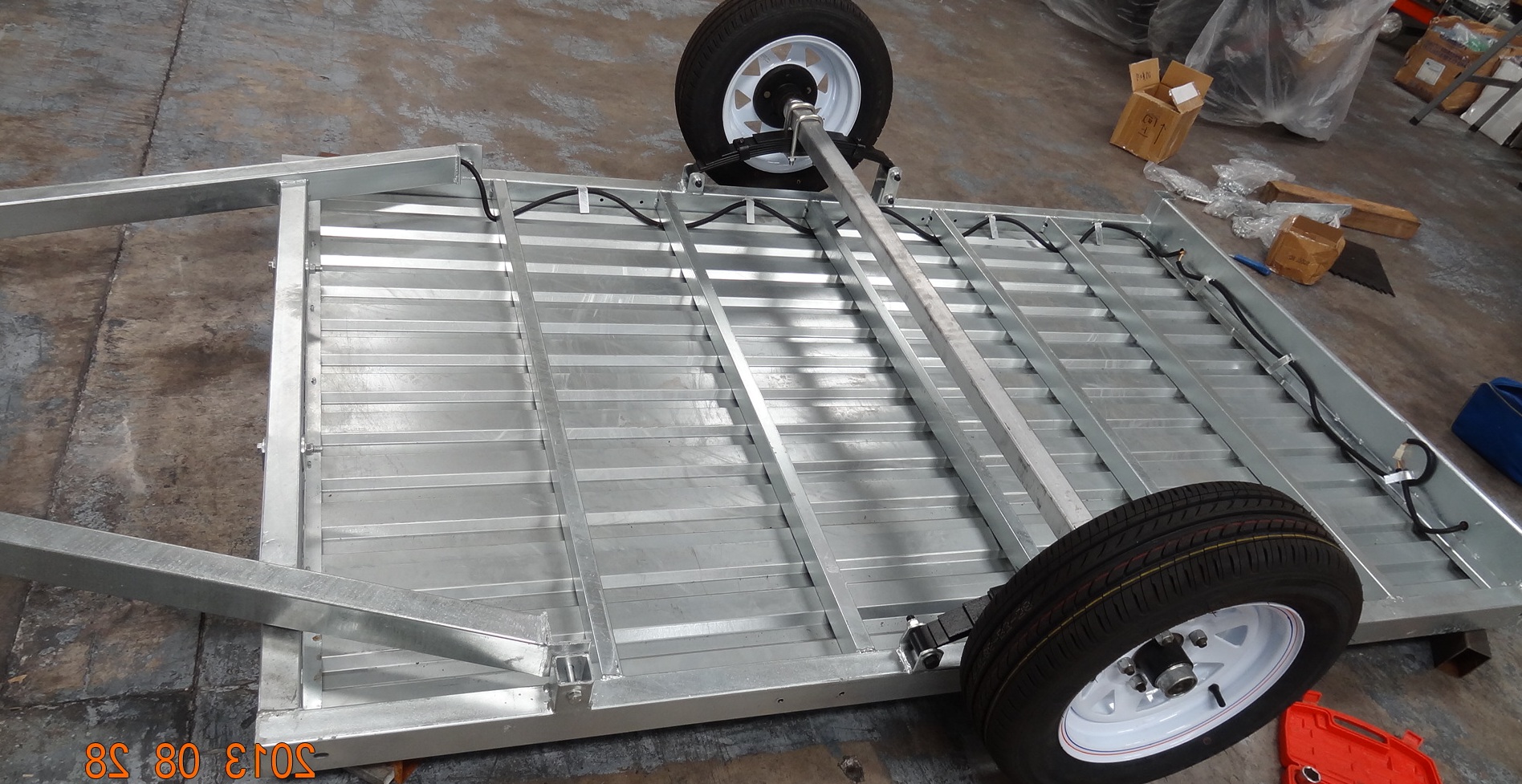

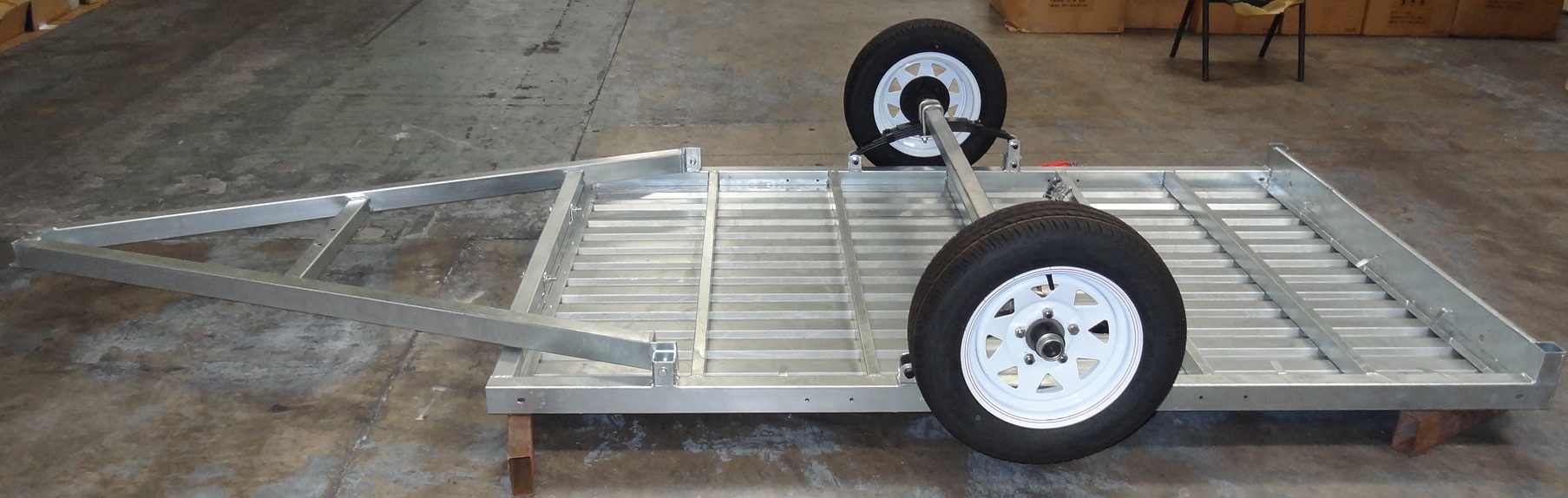

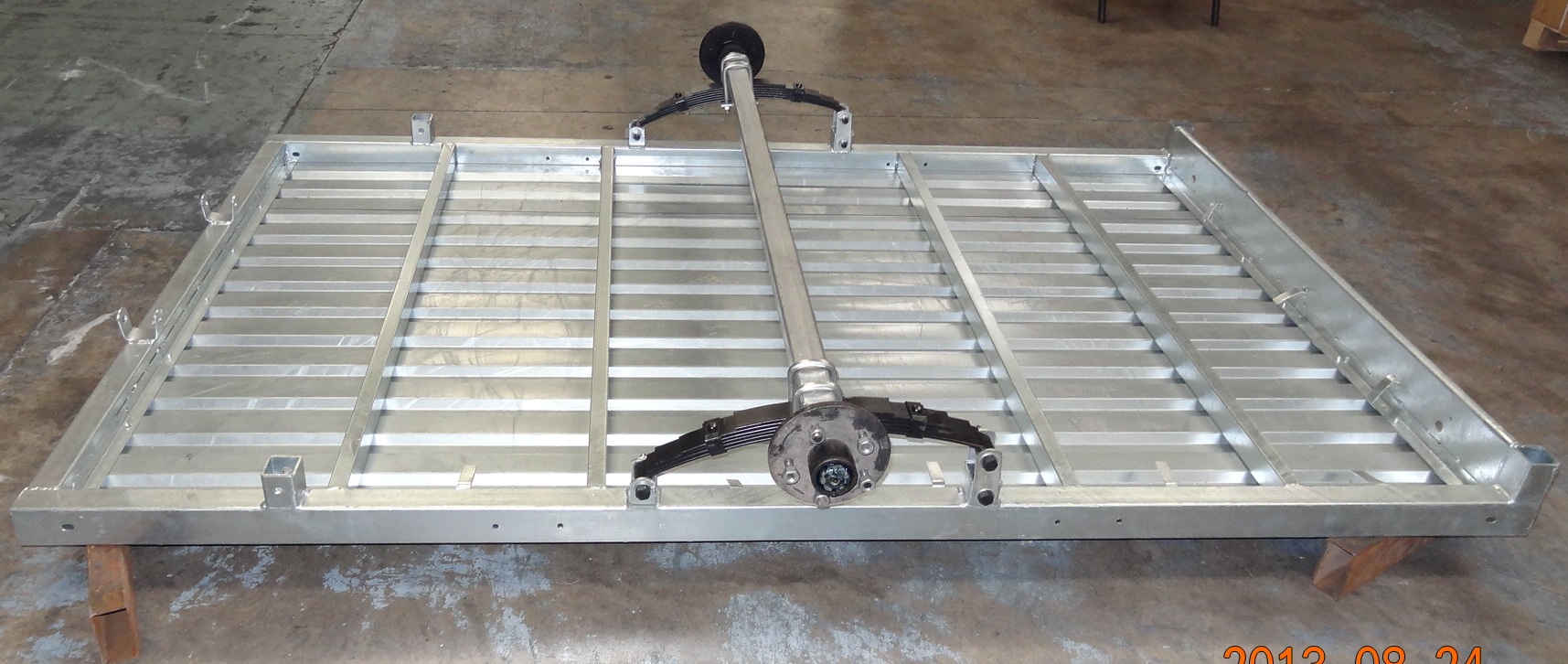

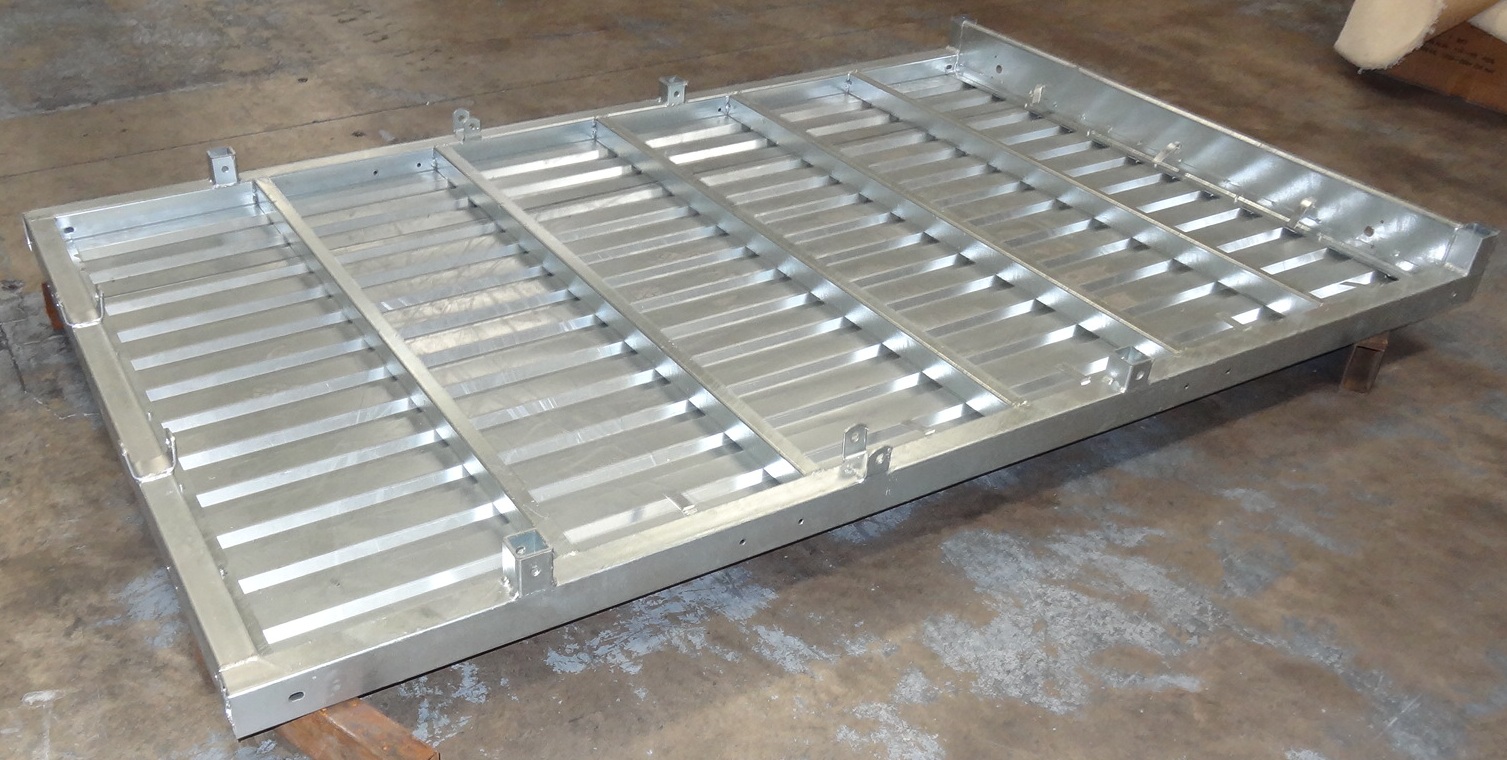

1.2mm Thick Galv Floor with 70mm x 50mm Box Section Supports

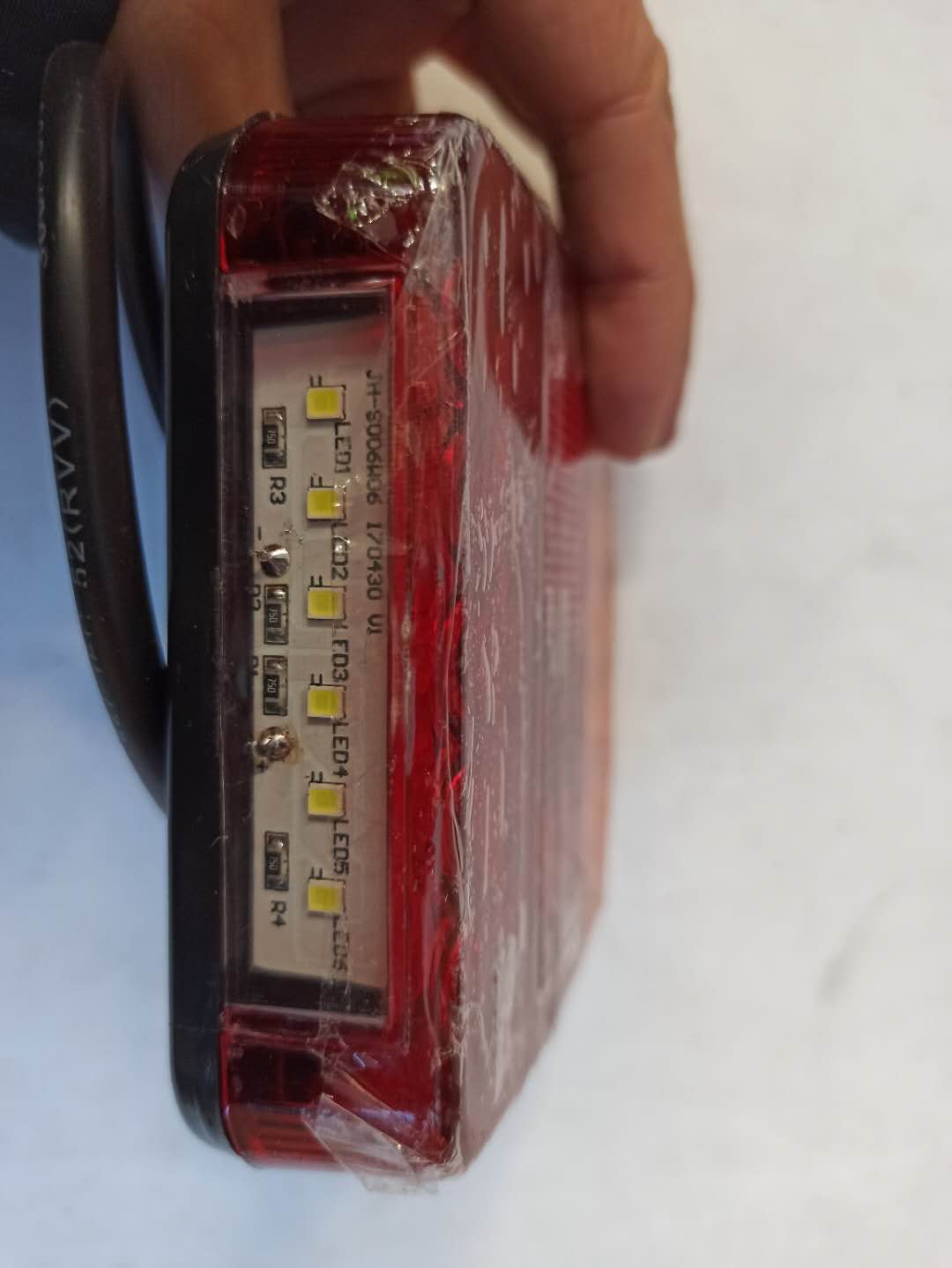

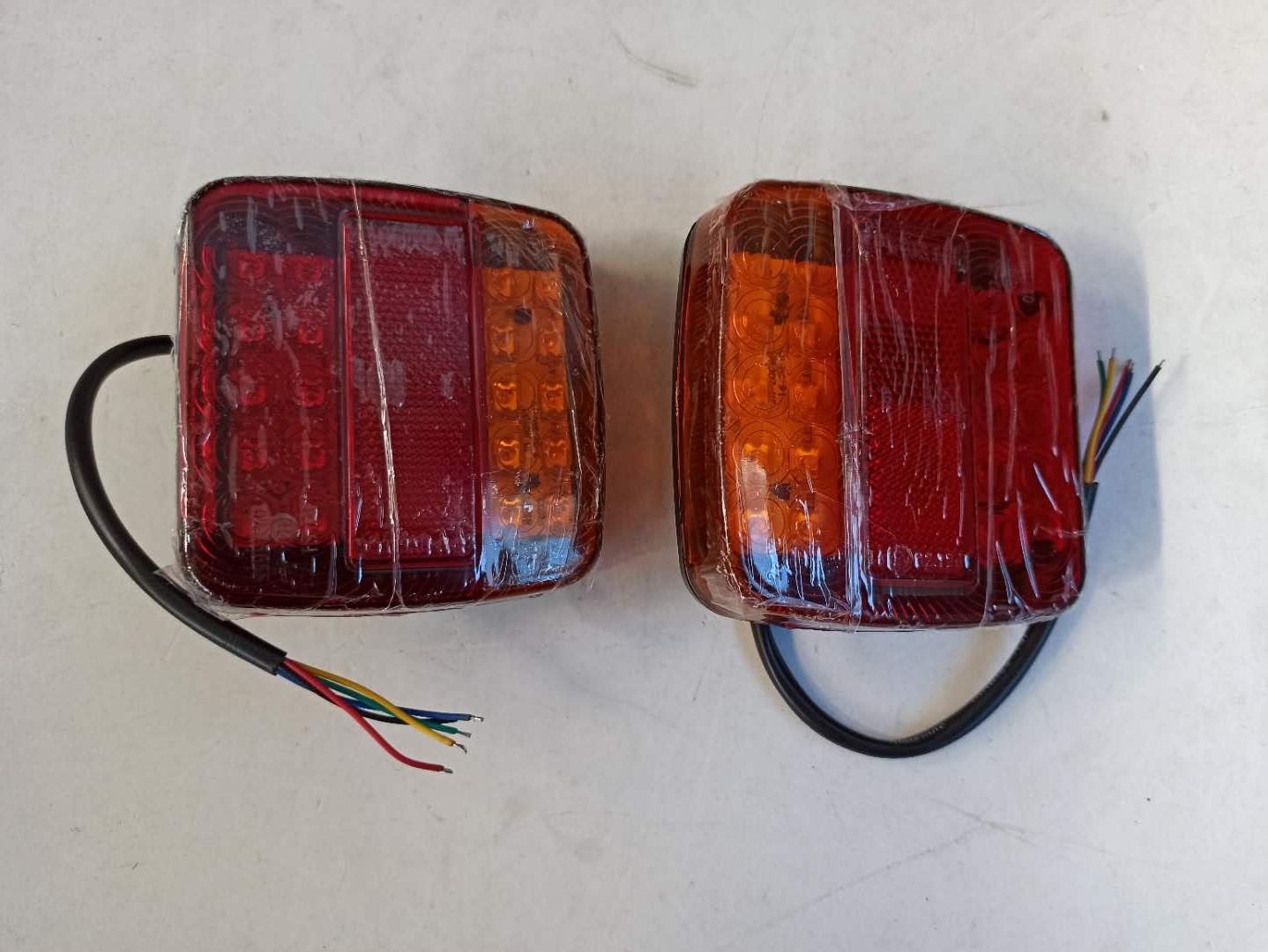

Includes All Wiring and Lights

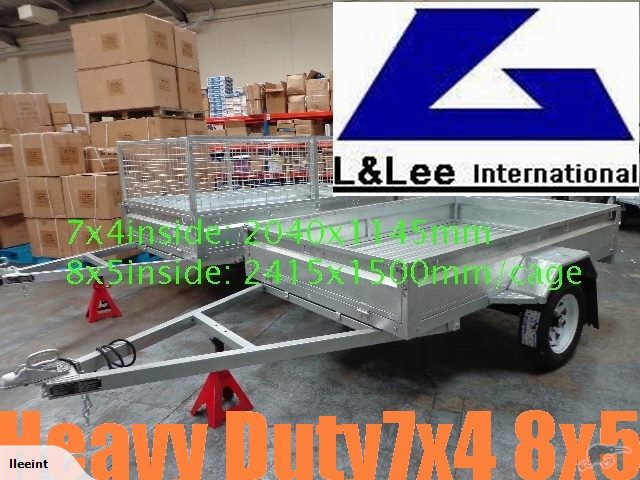

8x5 BASIC DIMENSIONS
Ground to Top of Tray (no cage): 500mm
Internal Tray: 2415mm long x 1500mm wide *300mm High
Draw Bar: 1500mm long (70mm x 50mm x 3mm Box Steel)
Internal tray : 2430x1500mm.
Overall Size: 4000x2000x830mm.

7x4 BASIC DIMENSIONS
Ground to Top of Tray (no cage): 500mm
Internal Tray: 2100mm long x 1200mm wide* 300 High
Draw Bar: 1200mm long (70mm x 50mm x 3mm Box Steel)
Box inside: 2040x1145mm
Overall Size: 3330x1650x810.

One-year factory warranty on parts and labour


-----------------------------------------------------------------------------------------------------------------
