Introductions:
Video guide
1.https://www.youtube.com/watch?v=AXFuivJ-Mxw
2.https://www.youtube.com/watch?v=q1-F-Hf0MnQ
(15kw/1P 240V Heating tests for D 73mm metal tube-auto
operation, time, Temperature. )
3.https://www.youtube.com/watch?v=_mRKmhPEQqw
(15kw /1P 240V Heating tests for D 73mm metal tube-manual
operation, time, Temperature. )
4.https://www.youtube.com/watch?v=QEyQ006FuTw
(15kw /1P 240V Heating tests for D 20mm metal bar-manual
operation, time, Temperature. )

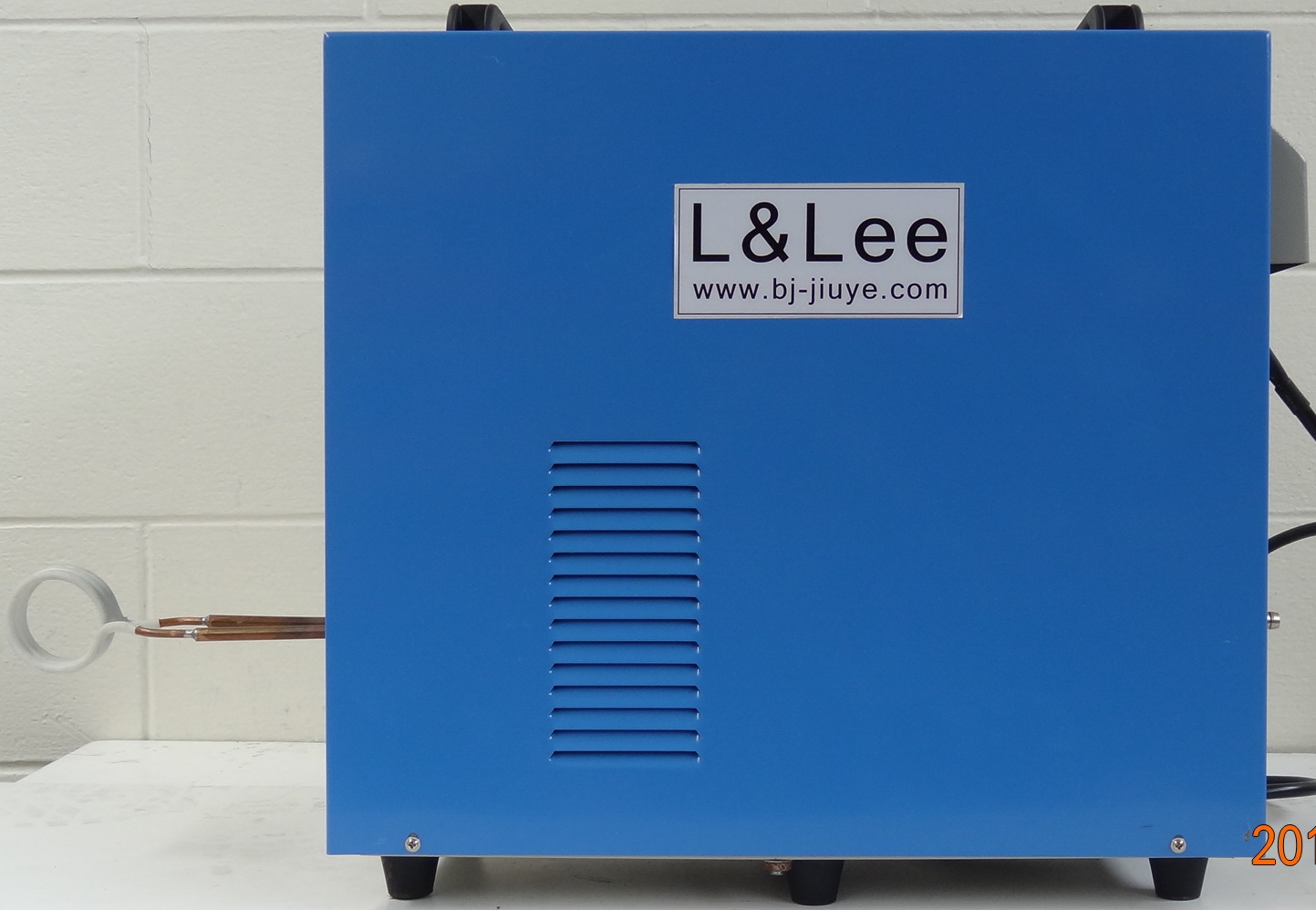

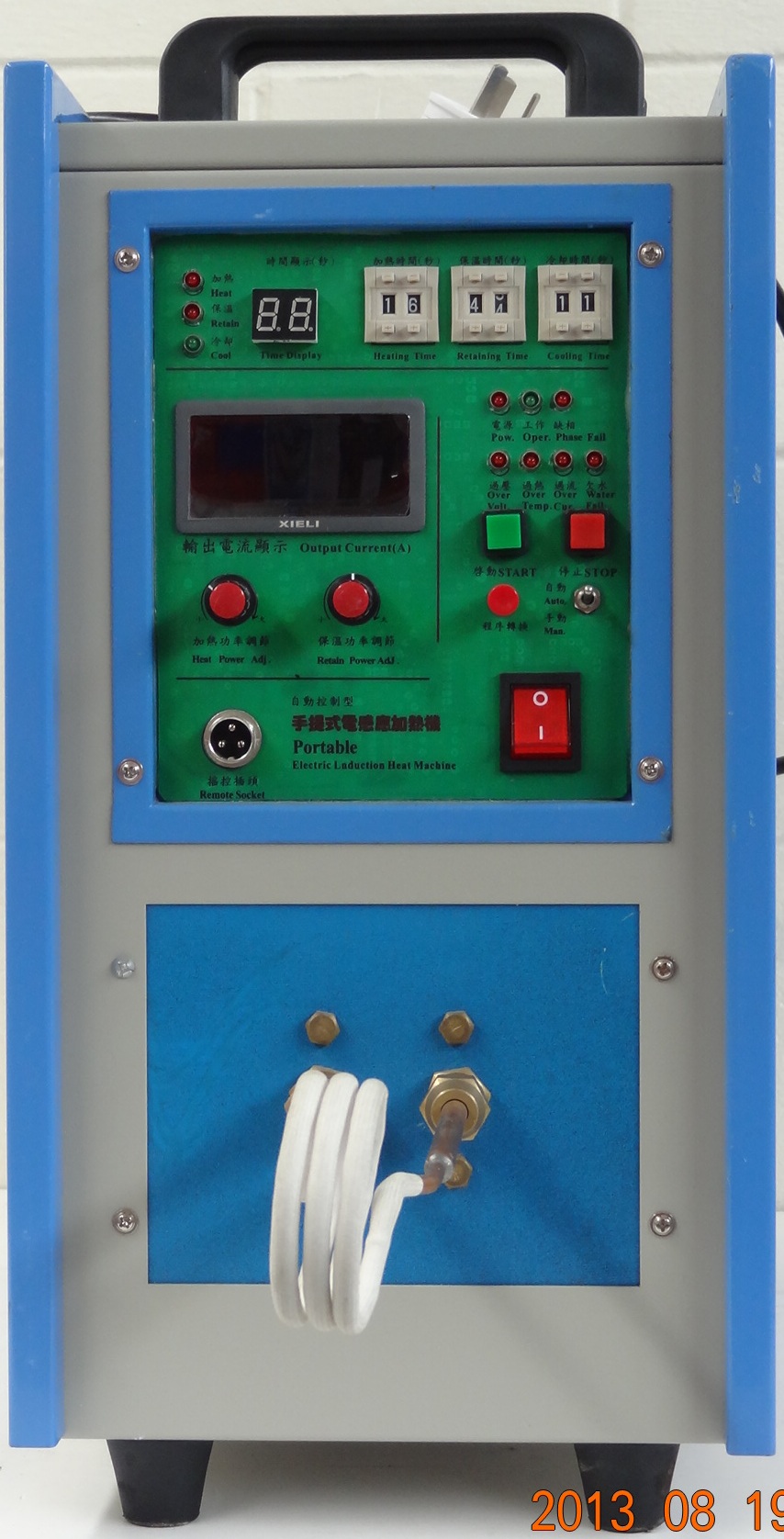

XJH15KW 1 phase transistor HF
induction heating machine is made by the latest inverter
technology , it is more reliable and long-lasting.
XJH15KW transistor HF induction heating machine is an
ideal machine for heating, welding & forging in hardware
work-piece.
It is light and small.
It can heat
all metal (diameter <40mm)more speedily, just 1-5 second.
Specification:
Power voltage:AC230v 50/60Hz
Output control mode: Unaltered current
Output
vibration frequency: 30-100KHZ
Temperature of cooling
water<40 degree C
Water flow>0.2Mpa
Max output
power: 15KVA
Stimulant heating current: 200-600A
Time
control function: auto control (1-99Sec) and manual control.
Protection: over heating/over time/less cooling water
flow/over cooling water Temperature.
Weight:25Kg
Dimensions (mm):490*240*460
PACKAGE INCLUDES
Unit
1
standard induction coil (diameter=30mm)
Foot controller.
We also sell:

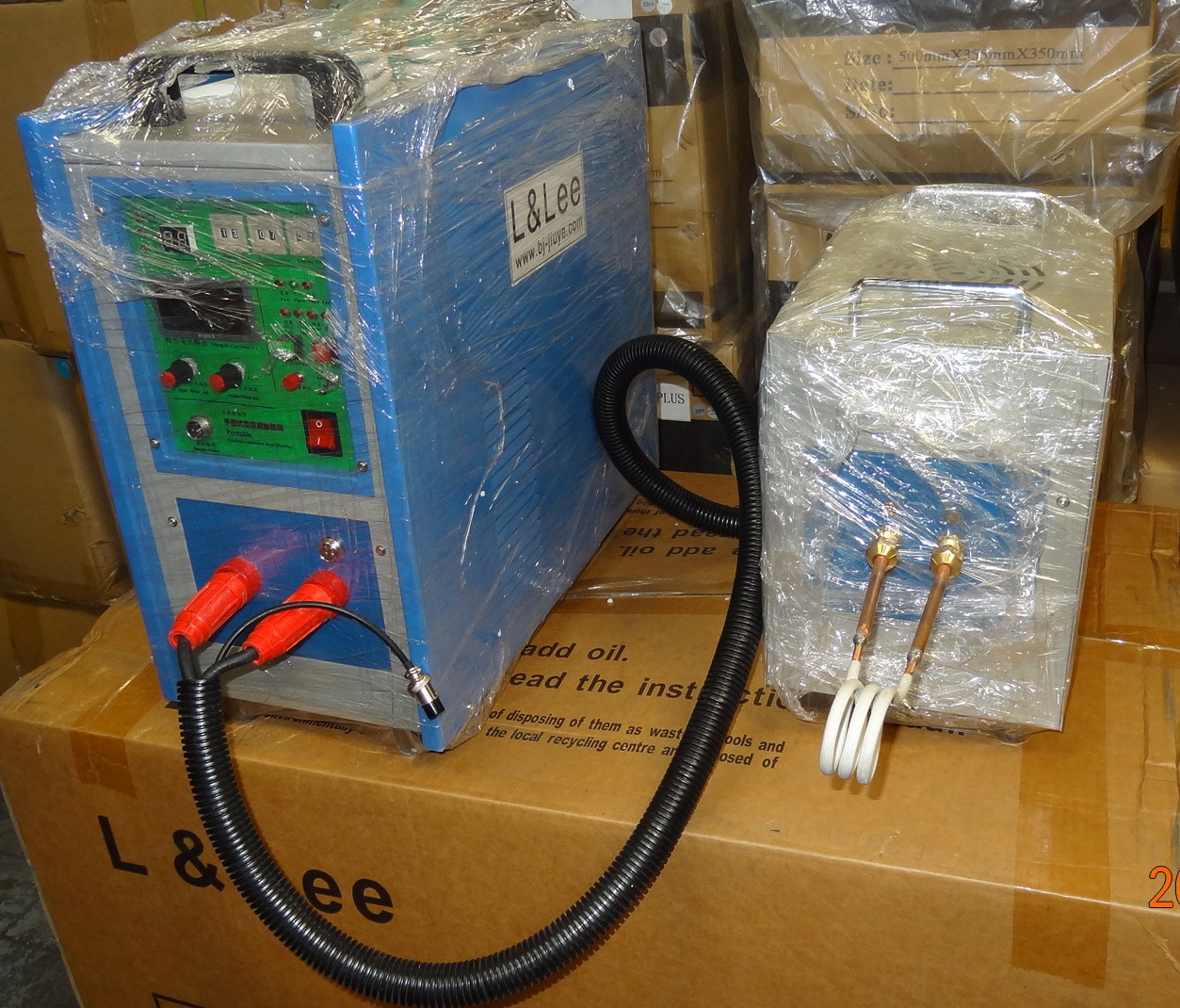

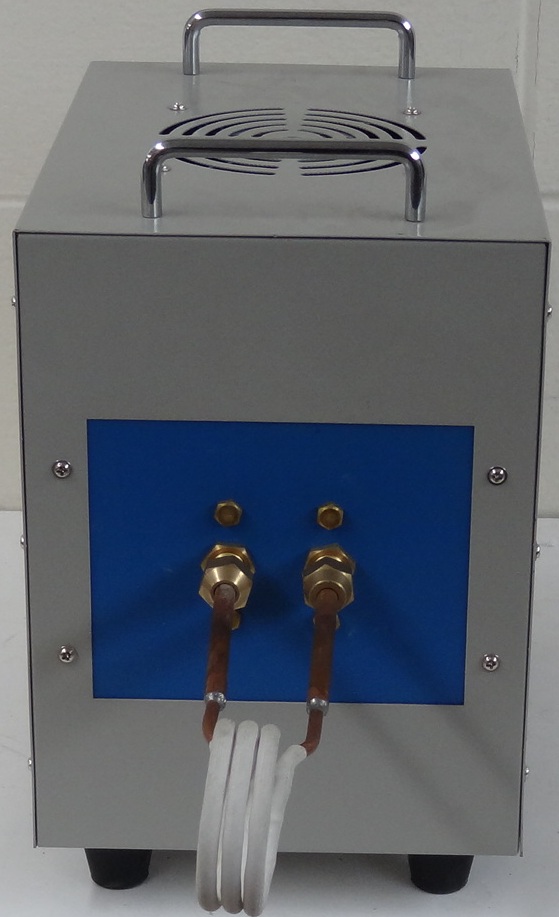

*XJH15KW 1 phase transistor HF
induction heating machine with transformer separated
*[IGBT]XJH25KW 3 phase transistor HF induction heating
machine
*Diameter 20-80mm induction coil.
*Water pump
for cooling water. *Water hose and fitting.
---------------------------------------------
High frequency
induction heating machine
25KW with 3 phase

Introductions:
Video guide
https://www.youtube.com/watch?v=rXed7s_WE_s
(25kw /3P 380V Heating tests for D73mm metal tube-manual
operation, time, Temperature. )

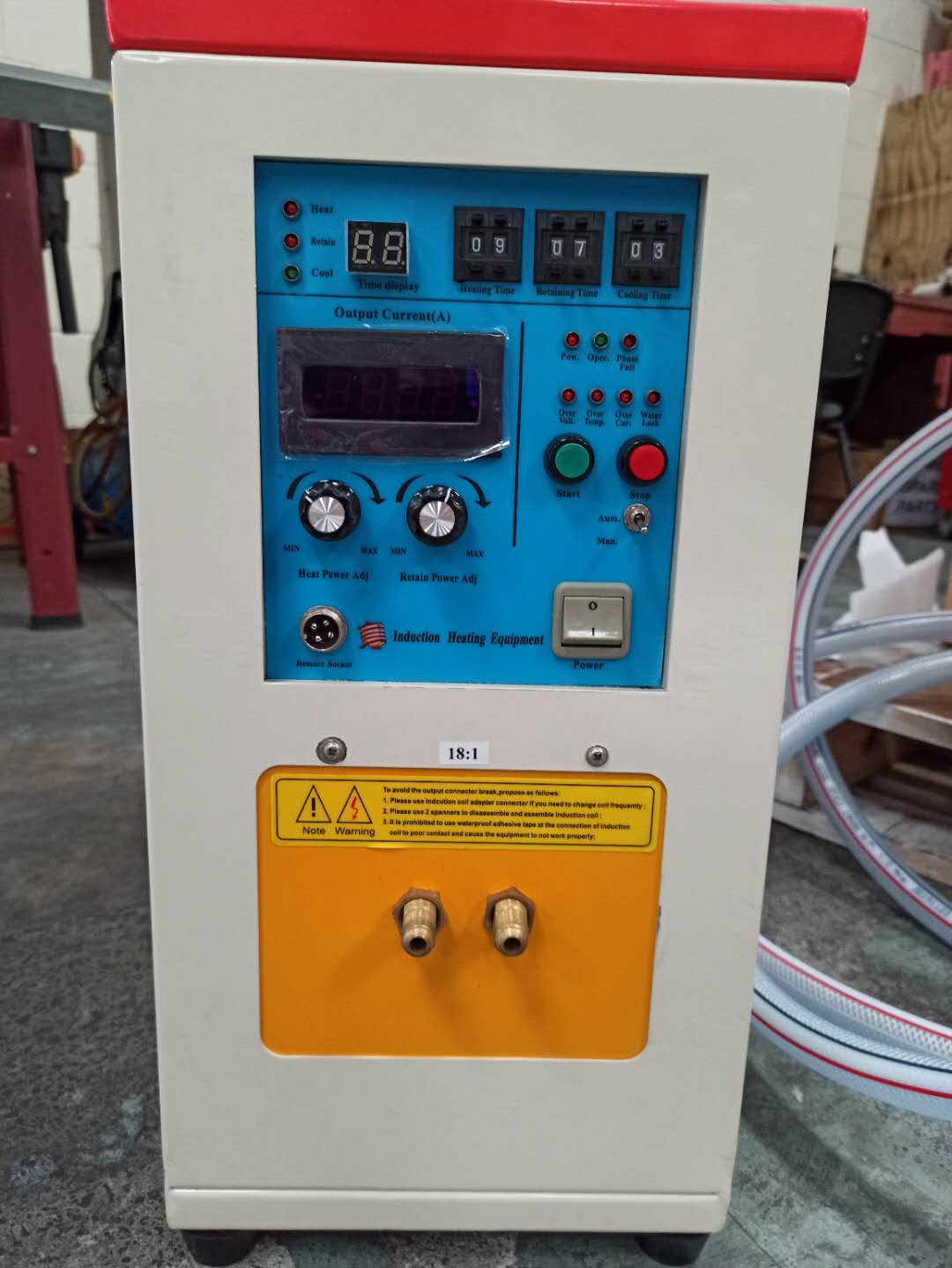

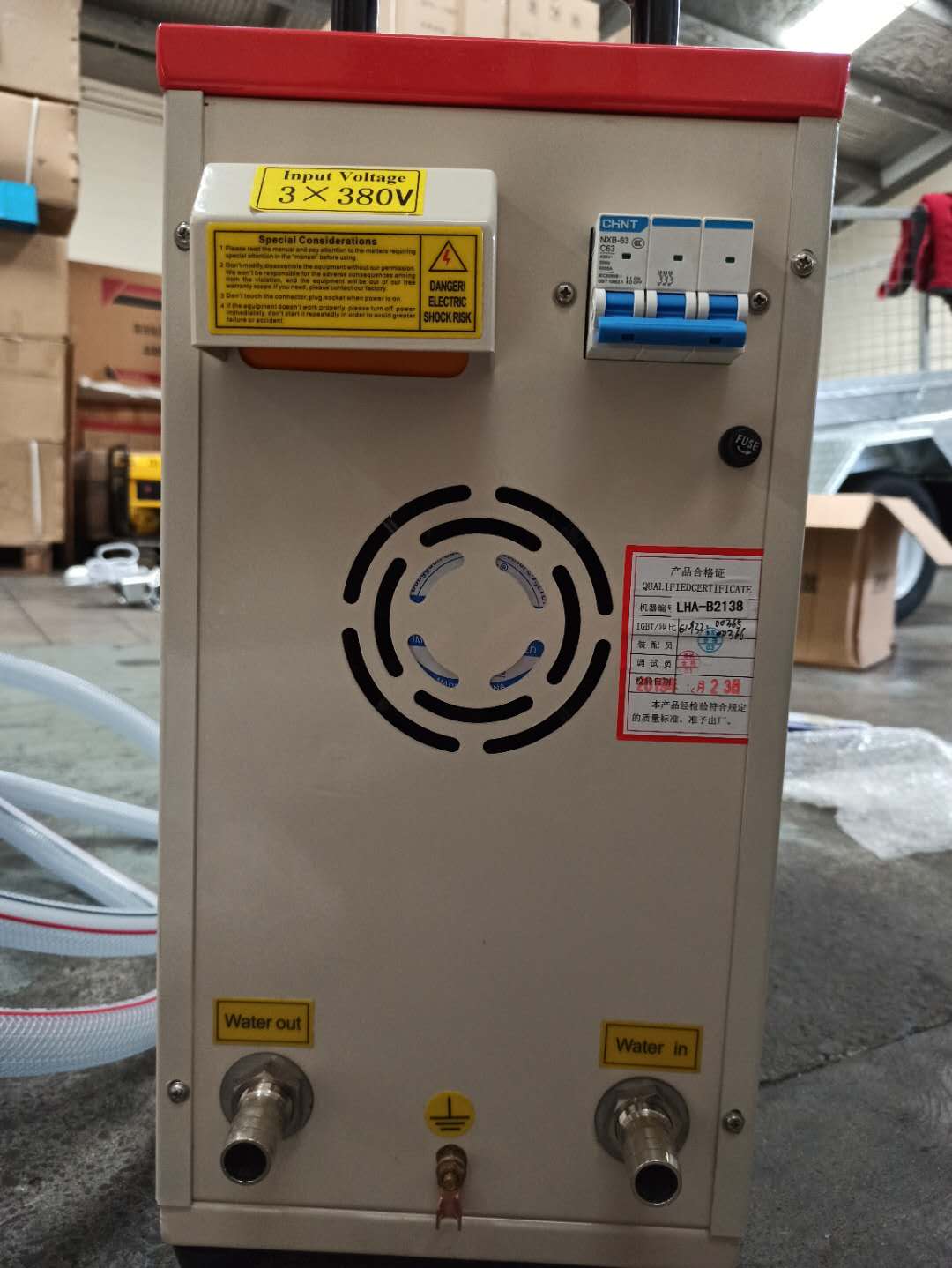

XJH25KW 3 phase transistor HF
induction heating machine is made by the latest inverter IGBT
technology , it is more reliable and long-lasting.
XJH25KW transistor HF induction heating machine is an
ideal machine for heating, welding & forging in hardware
work-piece.
It is light and small.
It can heat
all metal (diameter <50mm)more speedily, just 1-5 second.
Specification:
Power voltage:AC380v
Output
control mode: Unaltered current
Output vibration
frequency: 20-80KHZ
Temperature of cooling water<40
degree C
Water flow>0.2Mpa
Max output power: 25KVA
Stimulant heating current: 200-900A
Time control
function: auto control (1-99Sec) and manual control.
Protection: over heating/over time/less cooling water
flow/over cooling water Temperature.
Weight:29Kg
Dimensions (mm):550*240*460
PACKAGE INCLUDES
Unit
1 induction coils (diameter: 40mm)
Foot controller.
Water hose and fitting.
We also sell:
*XJH15KW 1 phase transistor HF induction heating machine
*Diameter 20-80mm induction coils. and different shape
coils
*Water pump for
cooling water.
*Water hose and fitting.
-----------------------------------------------------------------------------------------------------------------

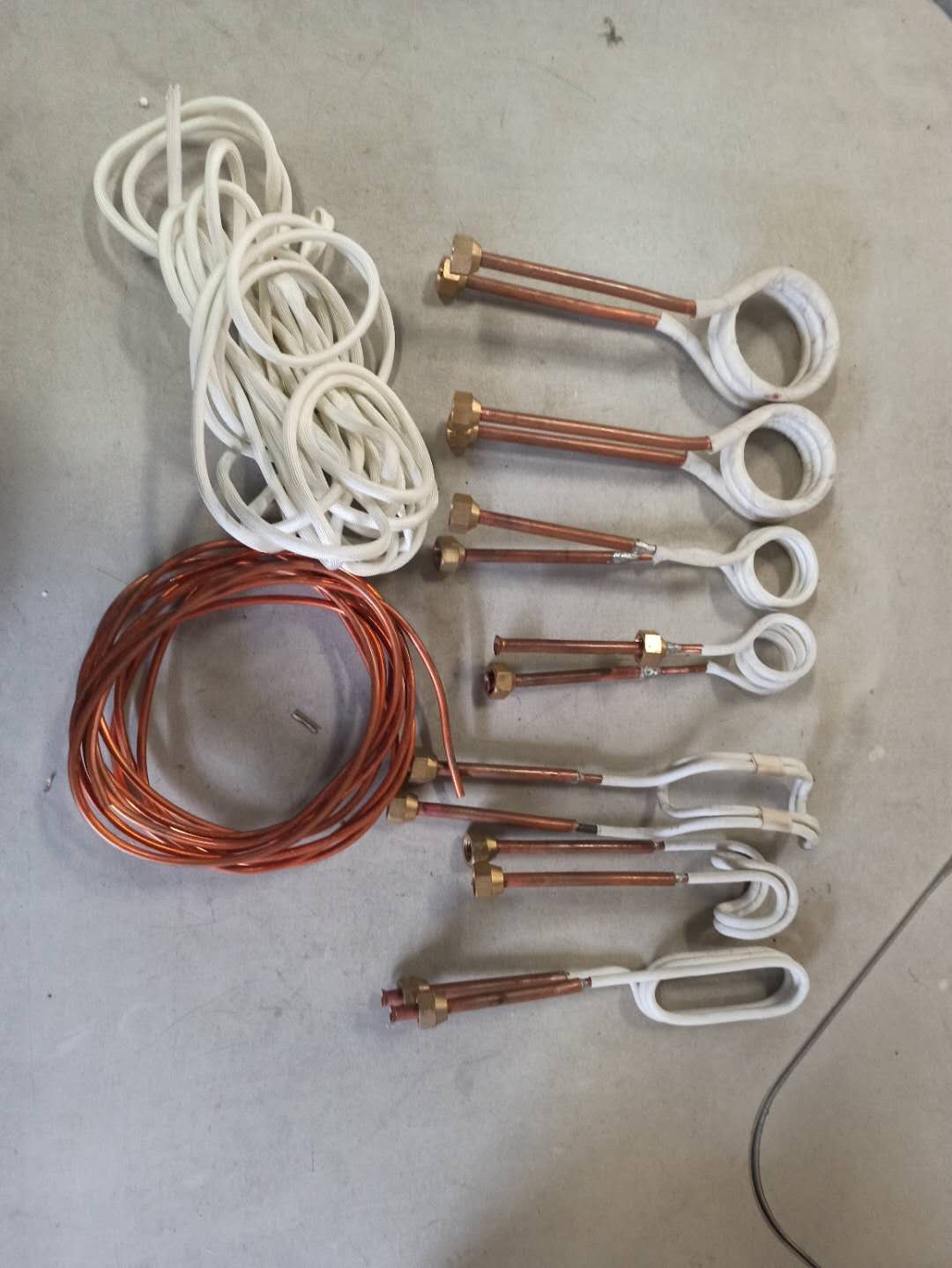

Coil
Introductions
We supply different kinds
of coil from D30,D40,D50,D60 to D80,also we make special shape
coils you need.
It is available for heat
resisting tube cloth.
-----------------------------------------------------------------------------------------------------------------
SOLDER POT HEATING
Introductions:
Enable to have temperature stetting freely within a rang of
approximately 200-480 0C.
Made of anticorrosive stainless steel.
Easily operated, good thermal results and melt at qiuck speed.
It's easy to repair this unit and replace the accessories
Temperature can be adjustment at will between 200-480 degrees
Celsius .
WXD-A100W POT:
Power: 100W.
Max Temp: 480 0C.
Melting Time: 3-7mm.
Max Solder Weight: 300g.
Internal bath Dimension: D38mm. (D38.mm.H30mm.V30ml).

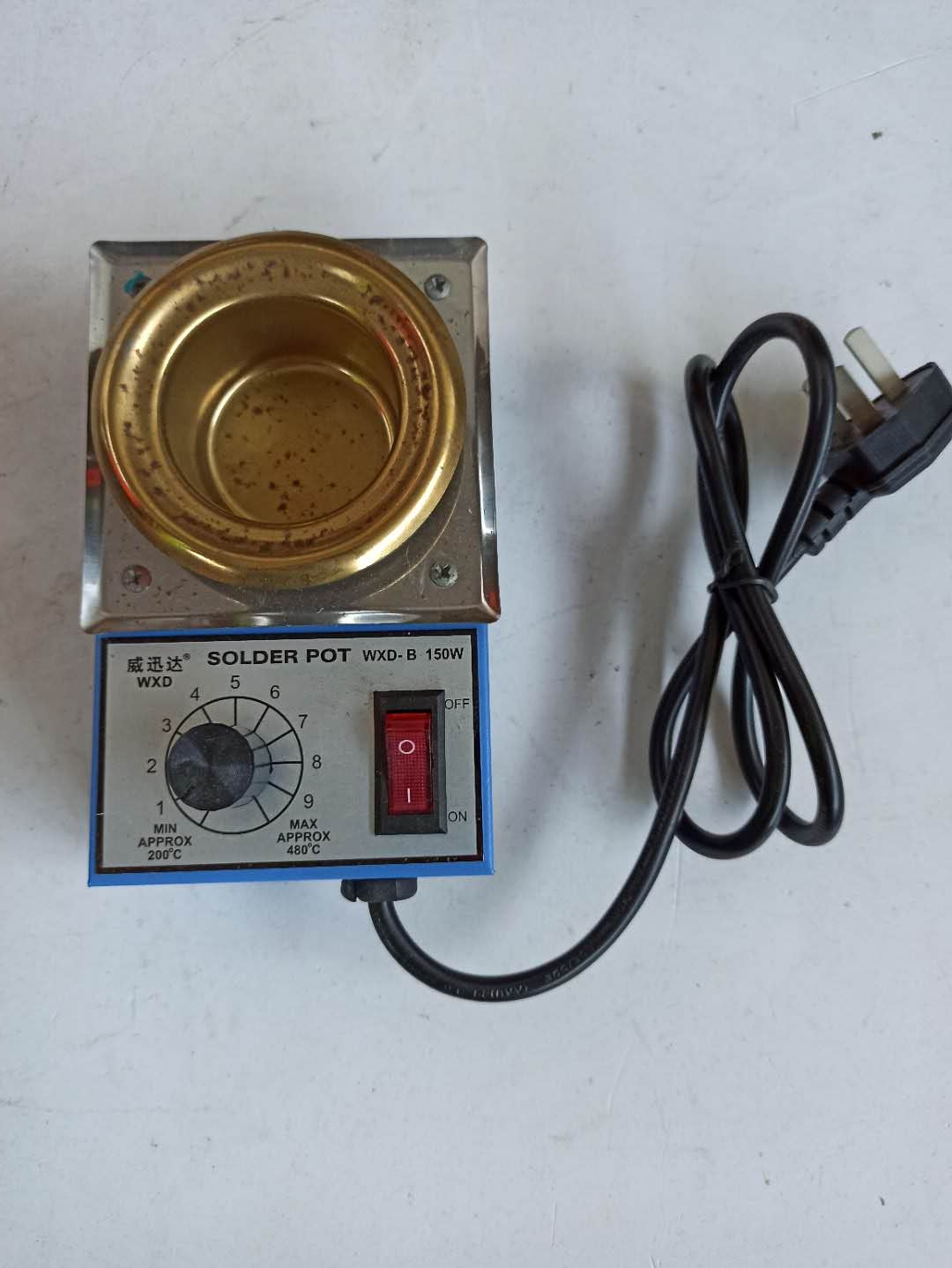

WXD-B150W POT:
Power: 150W.
Max Temp: 480 0C.
Melting Time: 3-7mm.
Max Solder Weight: 500g.
Internal bath Dimension: D50mm.(D50.mm. H31mm.V60ml)
Warning.
The Solder Pot should not work continuously under the state of
high temperature (above scale 6) , It's working period of time
should not over run 8 hours or it will cause damaged and even
accident.
-----------------------------------------------------------------------------------------------------------------

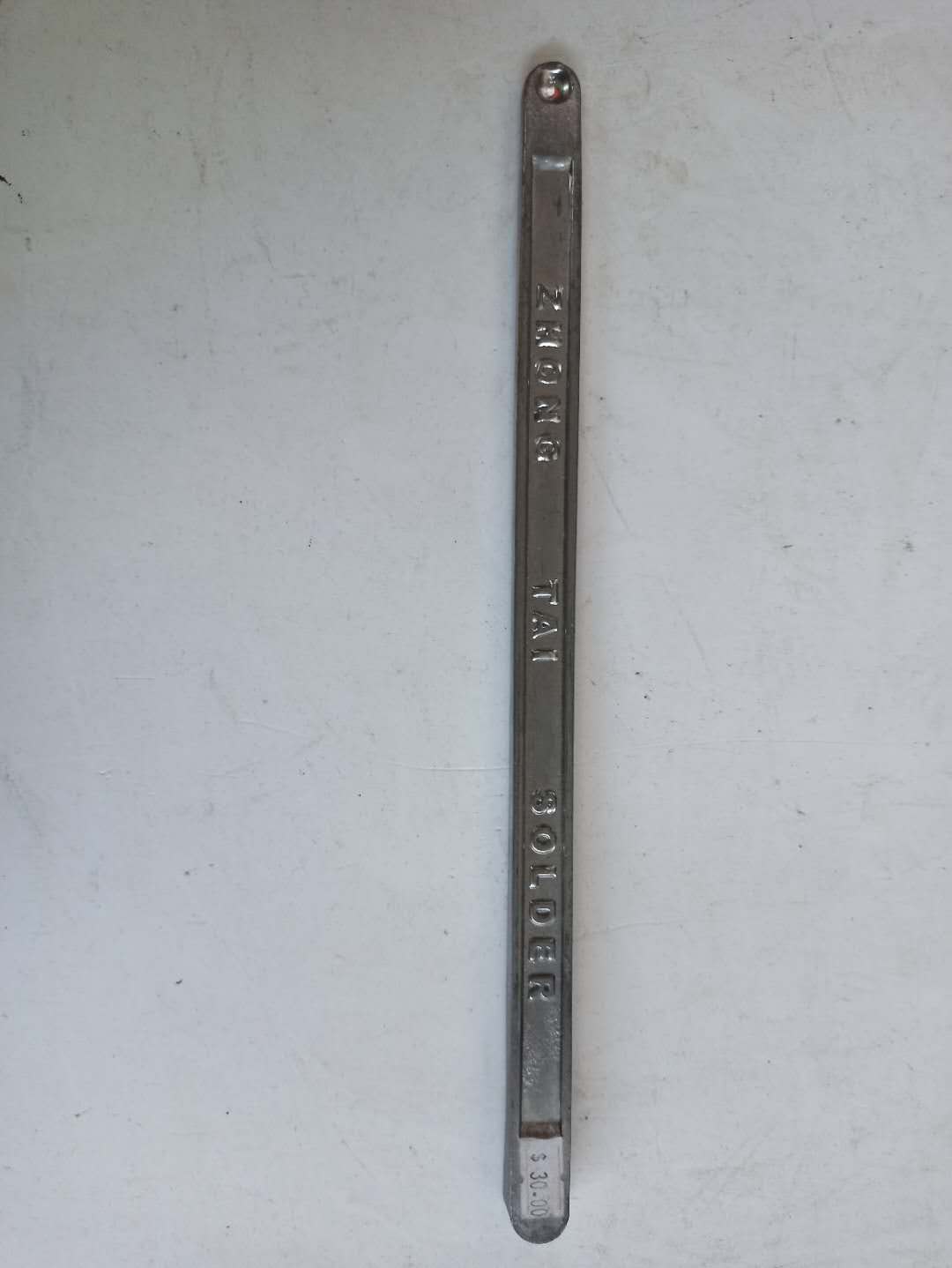

Also we sell solder bar
Introductions:
It is brand new
Content: 37% sn and
63% pb.
Weight :750G
-----------------------------------------------------------------------------------------------------------------
|
