Power tools






  Power tools

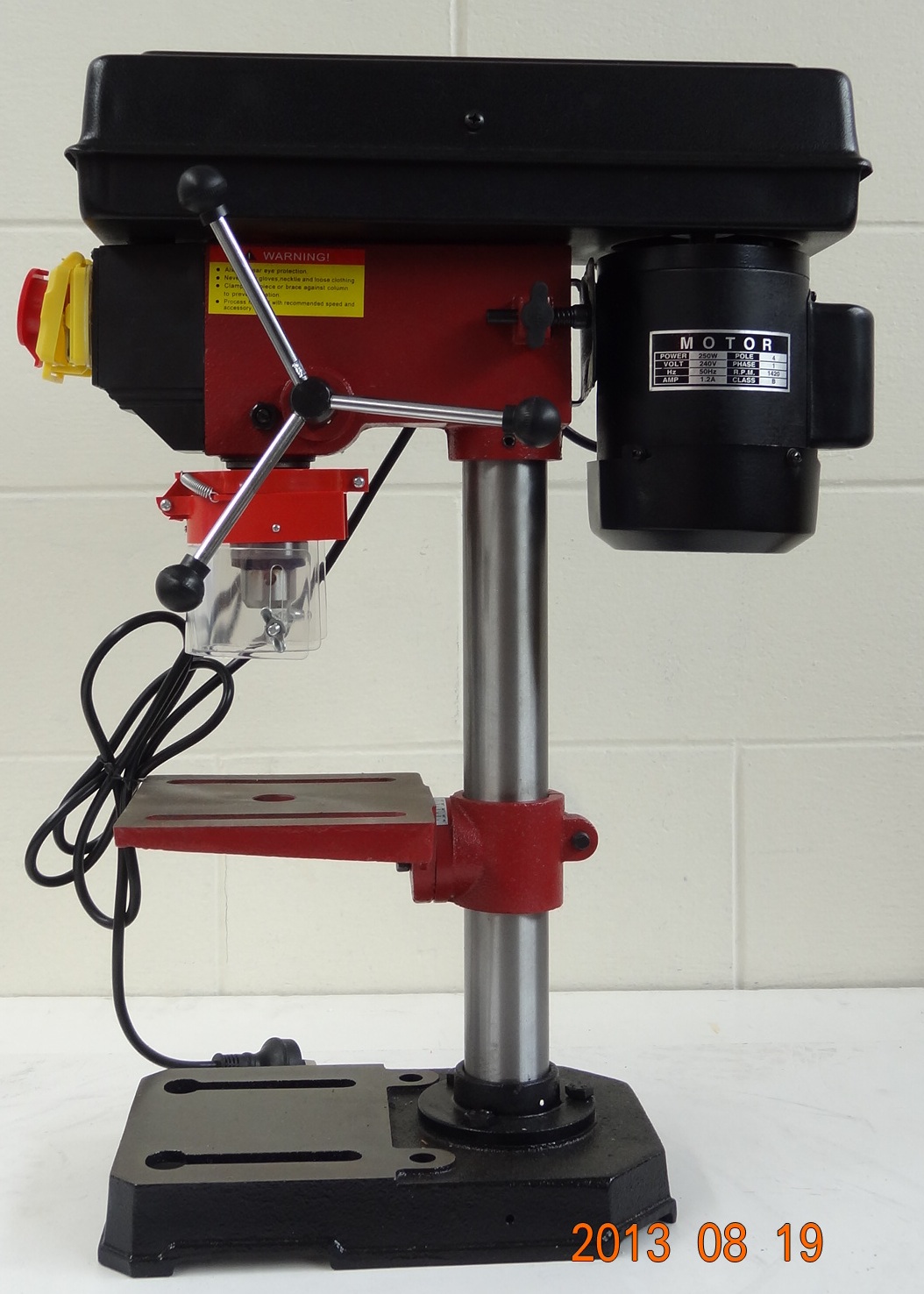

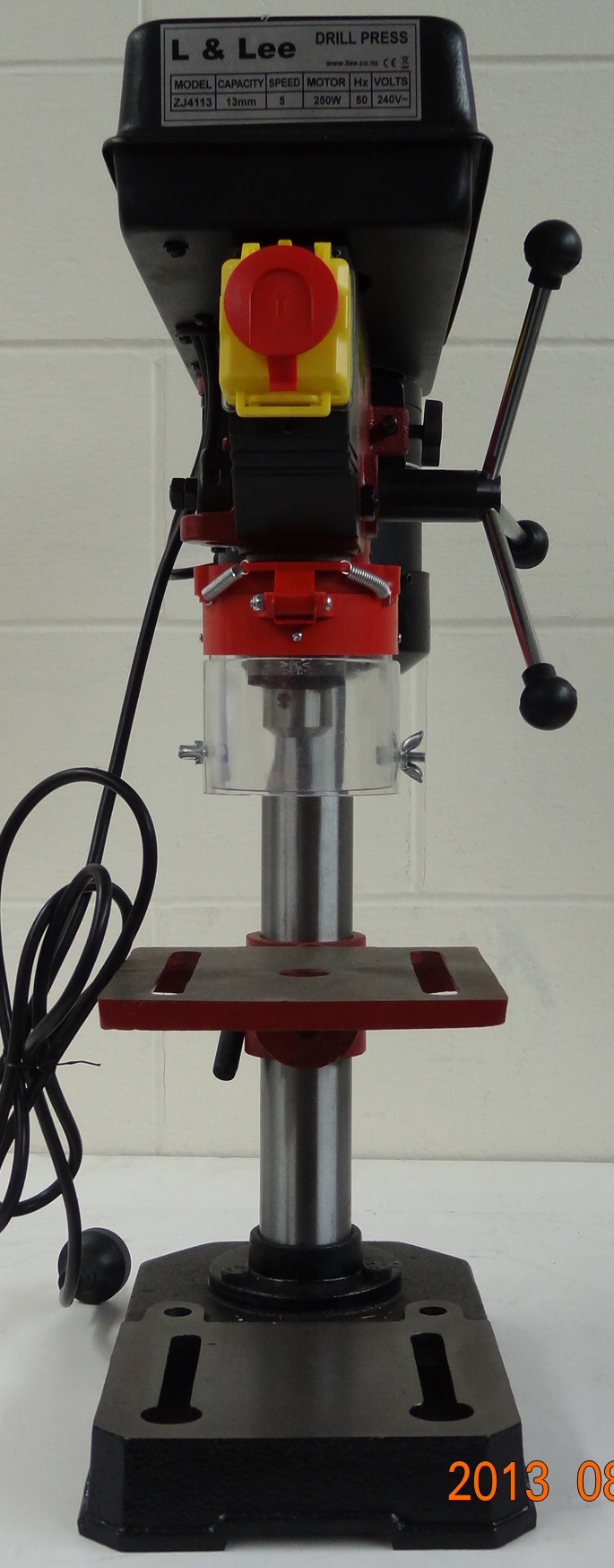

Drill press 13mm

ZJ4113





Introductions

Model: ZJ4113.
Capacity: 13mm.
Speed: 5.
Motor: 240V 50HZ. 250W.


Chuck: 13mm
Spindle Travel: 50mm
Spindle taper:B16.
Speed Change:5
Speed :620-2620r/min.
Swing:210mm.
Working Table:160mm*160mm
Base Size: 290X190mm.
Column: 46mm.
Total Height :590mm
Weight:17Kg
Packing Dimension:440 x350 x230mm

Three months back to base (Auckland) factory warranty on parts and labor, GST invoice is
provided

-----------------------------------------------------------------------------------------------------------------

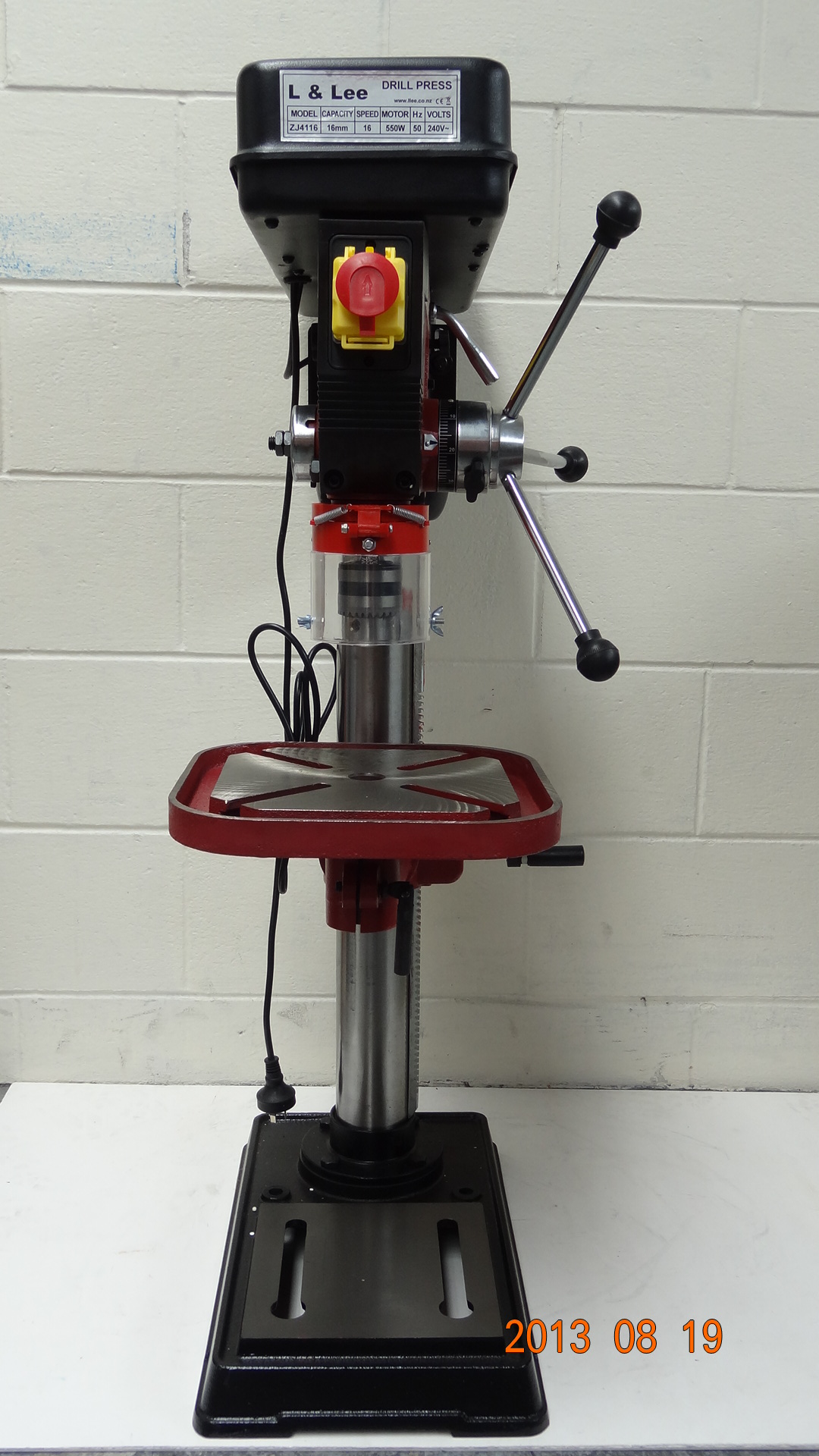

 Drill press with laser target 16mm

ZJ4116







Introductions:

Model: ZJ4116.
Capacity: 16mm.
Speed: 16.
Motor: 240V 50HZ. 550W.
Laser device for target

Chuck: 16mm
Spindle Travel: 82mm
Spindle taper:MT3.
Speed Change:16
Speed :220-2840/min.
Swing:360mm.
Working Table:290mm*290mm
Base Size: 460X280mm.
Column: 72mm.
Total Height :990mm
Weight:57Kg
Packing Dimension:820 x500 x290mm

Three months back to base (Auckland) factory warranty on parts and labor, GST invoice is provided


---------------------------------------------

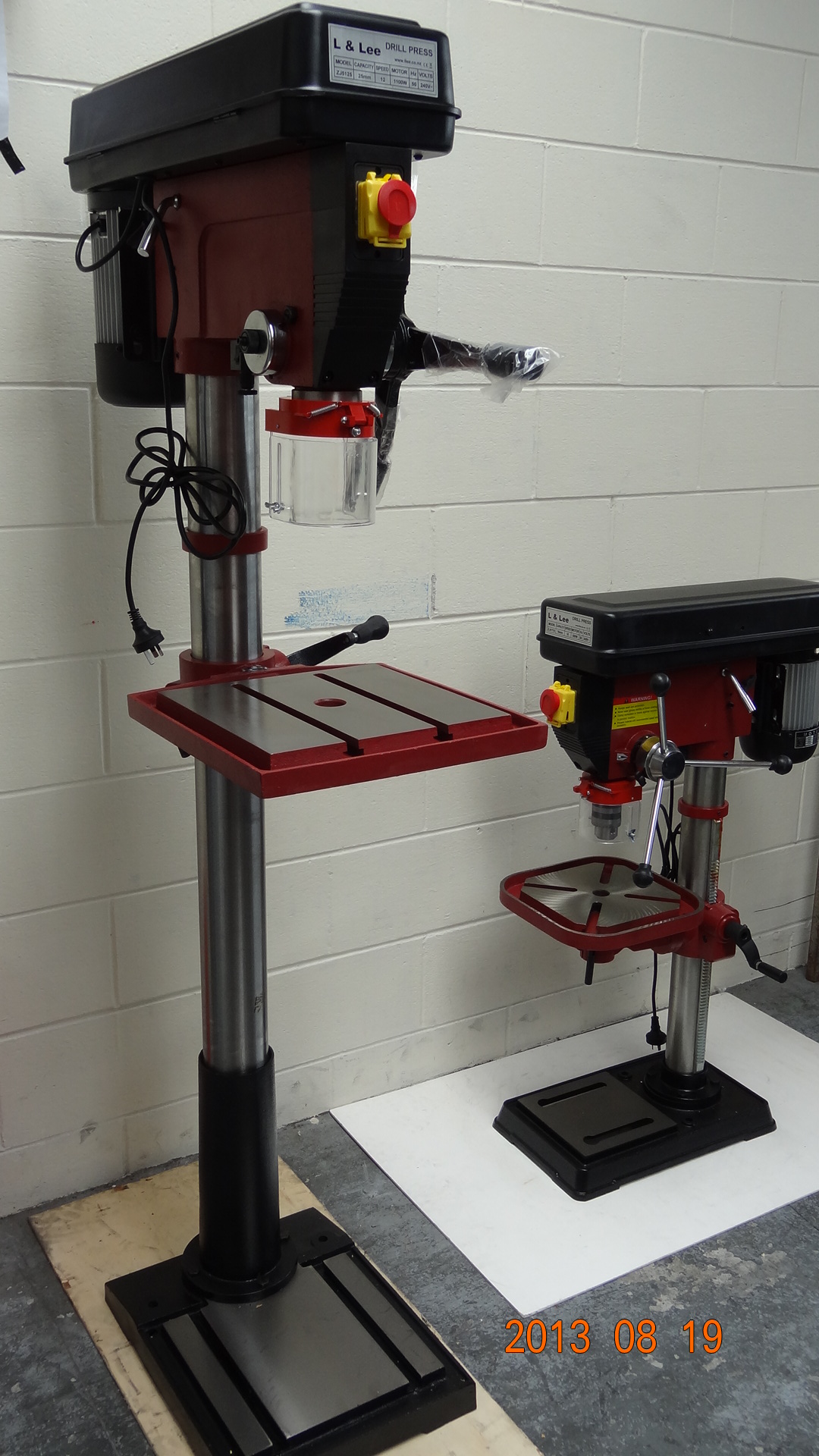

Drill press with laser target 25mm

ZJ5125



Introductions:

Model: ZJ5125.
Capacity: 25mm.
Motor: 240V 50HZ. 1100W.
Laser Device for target

Chuck: 25mm
Spindle Travel: 120mm
Spindle taper:MT3.
Speed Change:12
Speed :150-2450r/min.
Swing:452mm.
Working Table:350mm*350mm
Base Size: 470X360mm.
Column: 92mm.
Total Height :1700mm
Weight:110Kg
Packing Dimension:1430 x660 x330mm

BASIC DIMENSIONS:
L1430×W660×H330
net weight:110/100KG



6 months back to base (Auckland) warranty ,



SOLDER POT HEATING (BRAND NEW)



Enable to have temperature stetting freely within a rang of approximately 200-480 0C.
Made of anticorrosive stainless steel.
Easily operated, good thermal results and melt at qiuck speed.
It's easy to repair this unit and replace the accessories

Temperature can be adjustment at will between 200-480 degrees Celsius .

WXD-A100W POT:
Power: 100W.
Max Temp: 480 0C.
Melting Time: 3-7mm.
Max Solder Weight: 300g.
Internal bath Dimension: D38mm. (D38.mm.H30mm.V30ml).

WXD-B150W POT:
Power: 150W.
Max Temp: 480 0C.
Melting Time: 3-7mm.
Max Solder Weight: 500g.
Internal bath Dimension: D50mm.(D50.mm. H31mm.V60ml)

Warning.
The Solder Pot should not work continuously under the state of high temperature (above scale 6) , It's working period of time should not over run 8 hours or it will cause damaged and even accident.


Also we sell solder stick bar



-----------------------------------------------------------------------------------------------------------------
