A. Table saw | Model: TJQ12
Introductions
This TJQ12 table saw comes with a built-in dust collector, effectively reducing sawdust and keeping the working area clean. It features stable cutting performance, simple operation and high safety, making it an ideal electric tool for household woodworking and DIY projects.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Motor Power (W) | 2200W S3 20% |
| Table Size (mm) | 800 x 550 |
| Extended Table Size (mm) | 800 x 400 |
| Carriage Table (mm) | 240 x 230 |
| Saw Blade | 305 x 30x 3.2 - 36T |
| Cutting thickness | 90degree 82mm/ 45degree 58mm. |
| Blade angle | 90degree,-45degree |
| Blade Speed(r/min) | 2800 |
| Dust Colletor | Yes |
| Weight（kg) | 58 |
| Dimensions (mm) | 860 × 600 × 470 |
Package Includes
- Unit
- ⌀305 Saw
- Dust Colletor
B. [BD46] 4×6'' Belt & 6'' Disc Sander
Introductions
This 4×6'' belt and 6'' disc sander is a versatile woodworking machine. Suitable for sanding, shaping, deburring and finishing of wood and non-ferrous metals. The adjustable sanding belt allows horizontal and vertical operation, with a sturdy cast base for stable work. Ideal for hobbyists, DIY workshops and light commercial use.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Motor Power (W) | 375 |
| Belt Width (mm) | 100 |
| Belt Length (mm) | 915 |
| Table Angle | 0-60 degree |
| Disc Dia (mm) | 150 |
| Size of table (mm) | 190 x 150 |
| Belt Speed | 4.7m/s) |
| Disc Speed (r/min) | 1470 |
| Weight（kg) | 16 |
| Dimensions (mm) | 500 × 290 × 260 |
Package Includes
- Unit
- Belt sand paper
- Disk sand paper
Wood Planer
C. [MBY 8/2] 8" Jointer Planer-Thicknesser
![[MBY 8/2] 8](wood/mby8.jpg)
![[MBY 8/2] 8](wood/mby81.jpg)
![[MBY 8/2] 8](wood/mby82.jpg)
Introductions
[MBY 8/2] 8" Jointer Planer-Thicknesser Combination jointer and thicknesser, ideal for home workshops and small woodworking jobs. Equipped with precise depth adjustment system for flat surfacing and uniform thickness cutting. Solid stable frame ensures smooth operation. Perfect for DIY enthusiasts and light professional woodworking.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Motor Power (W) | 1250 |
| No of Blade | 2 |
| Cutterhead (r/min) | 8500 |
| Technical data-Planer | |
| Cutting Width (mm) | (Max)204 (8") |
| Cutting Depth (mm) | (Max)2 |
| Angle Fence (mm) | 520 x 102 |
| Fence Angle | 90 - 135 Degree | Dust Chute Diameter (mm) | 63 |
| Working Table (mm) | 737 x 210 |
| Technical data-Thicknesser | |
| Cutting Width (mm) | (Max)204 (8") |
| Cutting Thickness (mm) | (Max)6-210 |
| Cutting Depth(max) (mm) | 2 |
| Thicknessing Table (mm) | 285 x 204 |
| Weight（kg) | 32 |
| Dimensions (mm) | 830 × 460 × 550 |
Package Includes
- Unit
- Safty dust cover with safety pins
- Plastic safety push stick

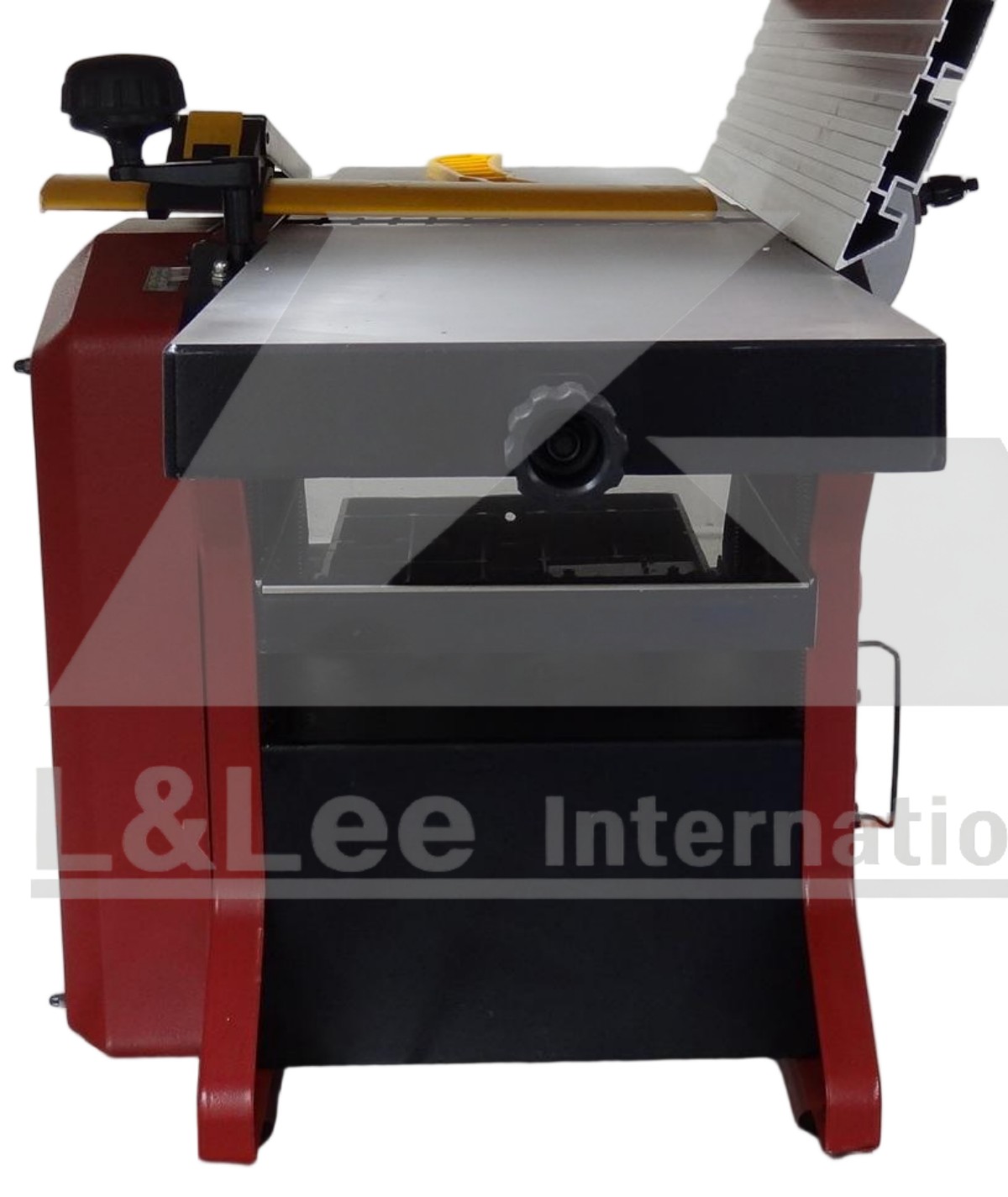

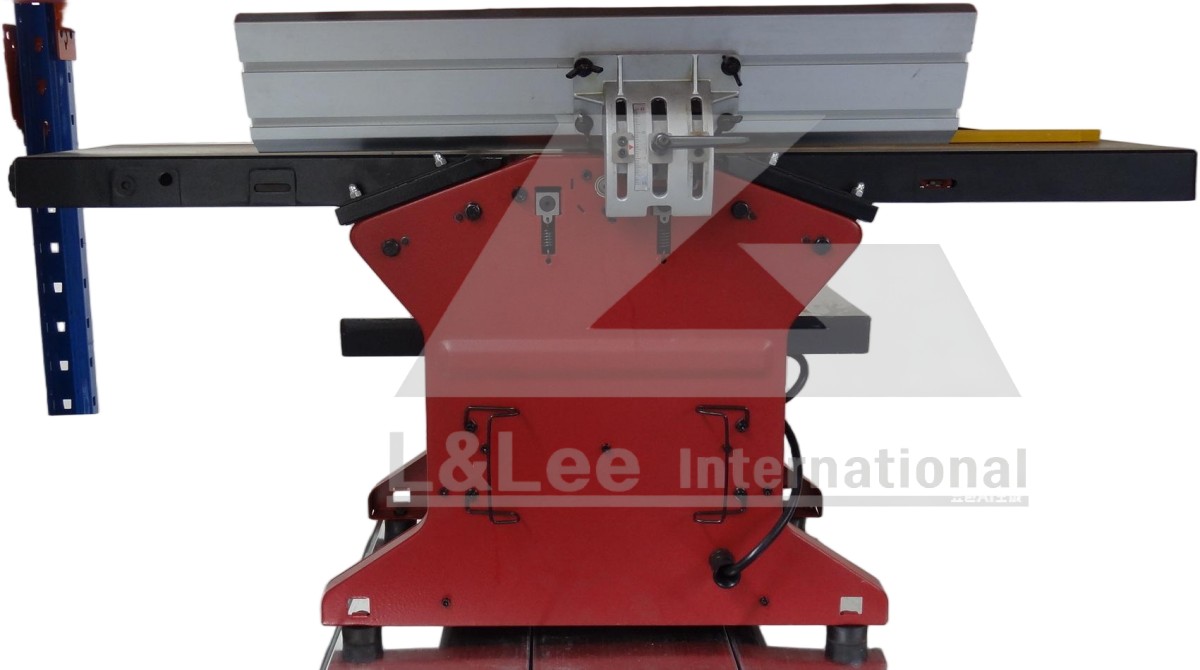

D. [MBY 10/2] 10" Jointer Planer-Thicknesser
![[MBY 10/2] 10](wood/mby10.jpg)
![[MBY 10/2] 10](wood/mby101.jpg)
![[MBY 10/2] 10](wood/mby102.jpg)
Introductions
This over-under combination machine integrates jointer and thicknesser functions. Designed for surfacing, edge jointing and thicknessing timber accurately. Precise depth adjustment delivers consistent machining results. Robust heavy-duty frame ensures stable operation.
Supplied with plastic safety push stick to keep hands clear of the cutter head. Suitable for serious DIY workshops and light commercial woodworking.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Motor Power (W) | 1500 |
| No of Blade | 2 |
| Cutterhead (r/min) | 8500 |
| Technical data-Planer | |
| Cutting Width (mm) | (Max)254 (10") |
| Cutting Depth (mm) | (Max)2.5 |
| Angle Fence (mm) | 610 x 120 |
| Fence Angle | 90 - 135 Degree | Dust Chute Diameter (mm) | 63 |
| Working Table (mm) | 1050 x 260 |
| Technical data-Thicknesser | |
| Cutting Width (mm) | (Max)254 (10") |
| Cutting Thickness (mm) | (Max)6-160 |
| Cutting Depth(max) (mm) | 2 |
| Thicknessing Table (mm) | 450 x 254 |
| Weight（kg) | 46 |
| Dimensions (mm) | 1150 × 540 × 550 |
Package Includes
- Unit
- Safty dust cover with safety pins
- Plastic safety push stick

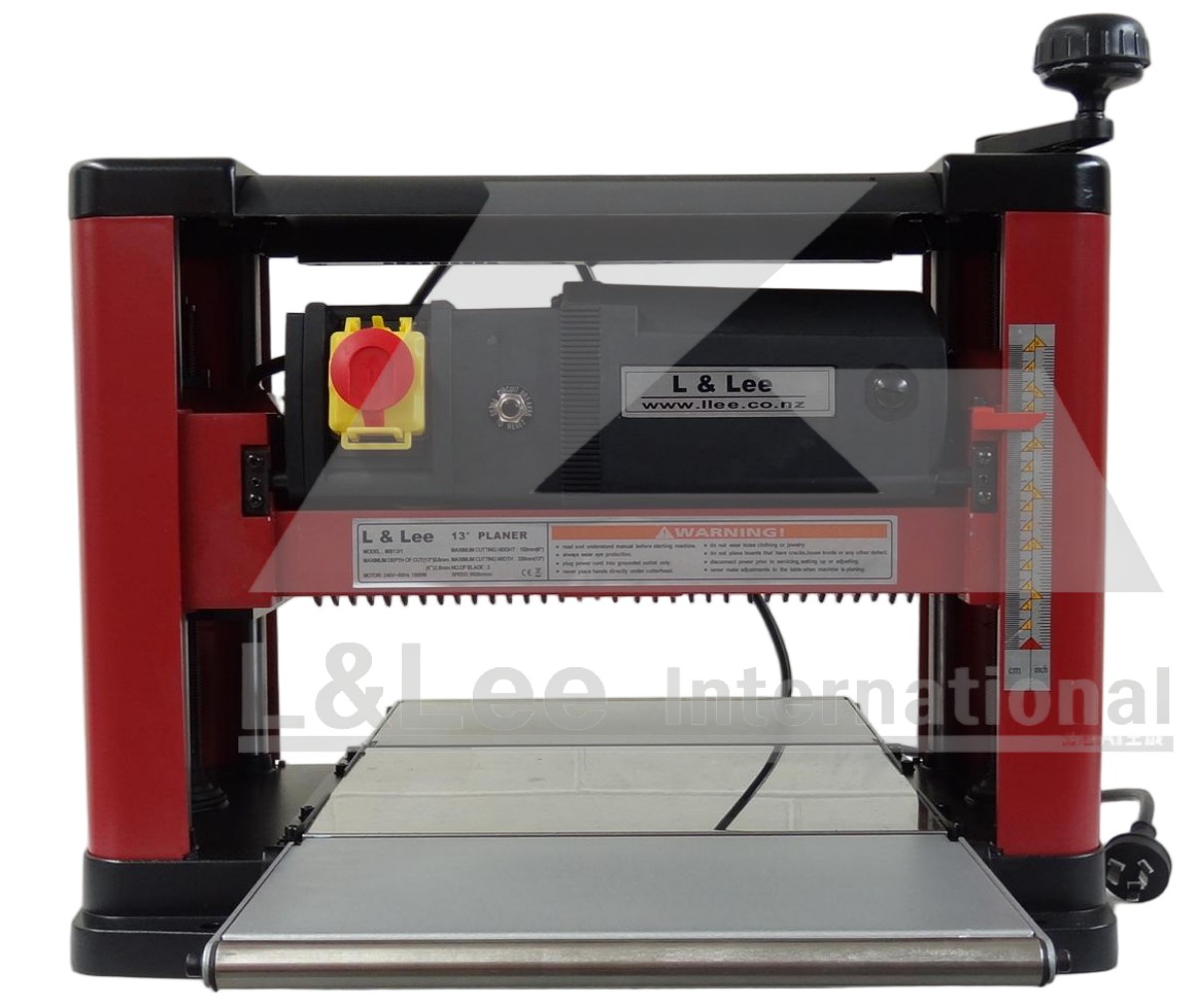

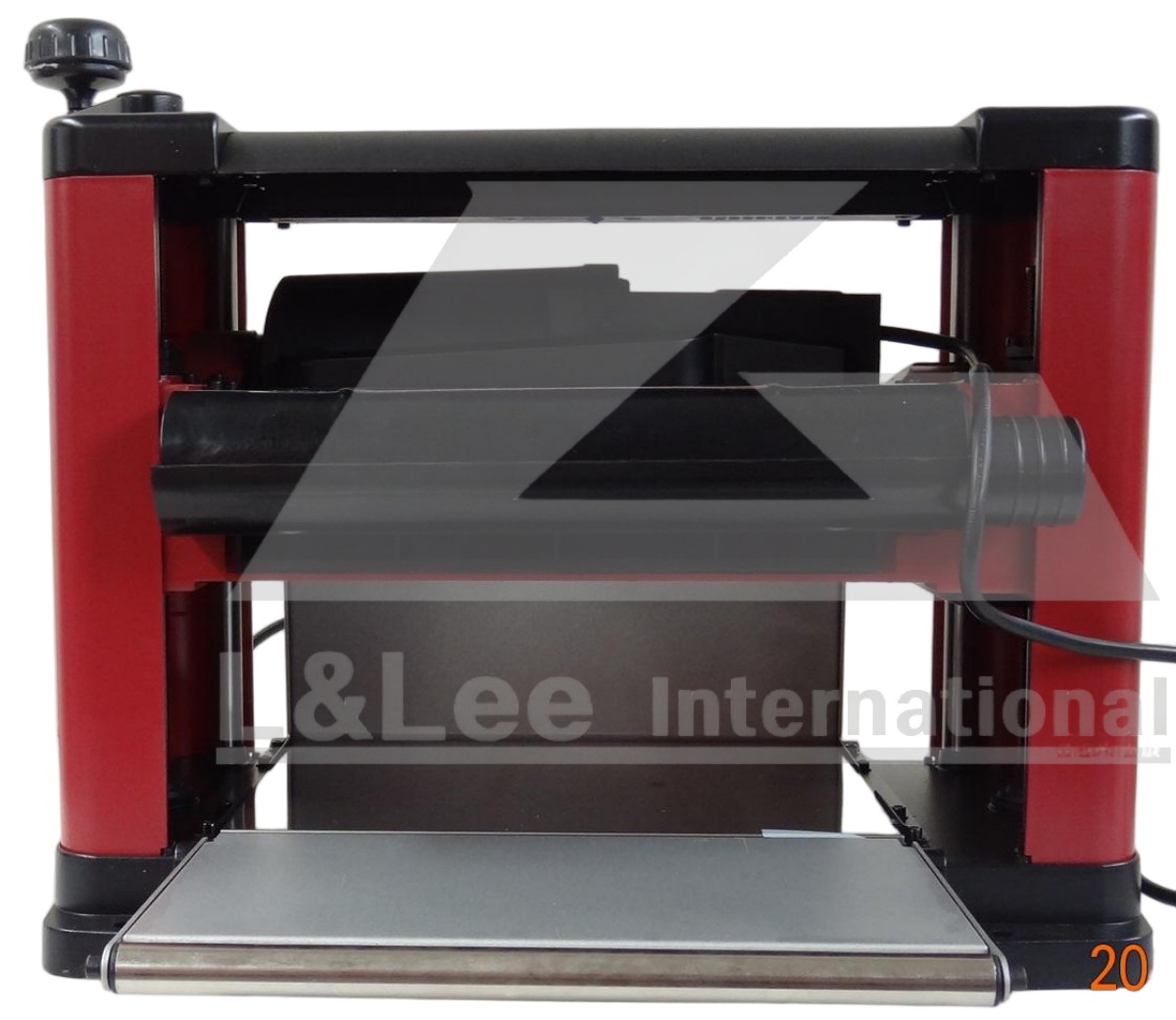

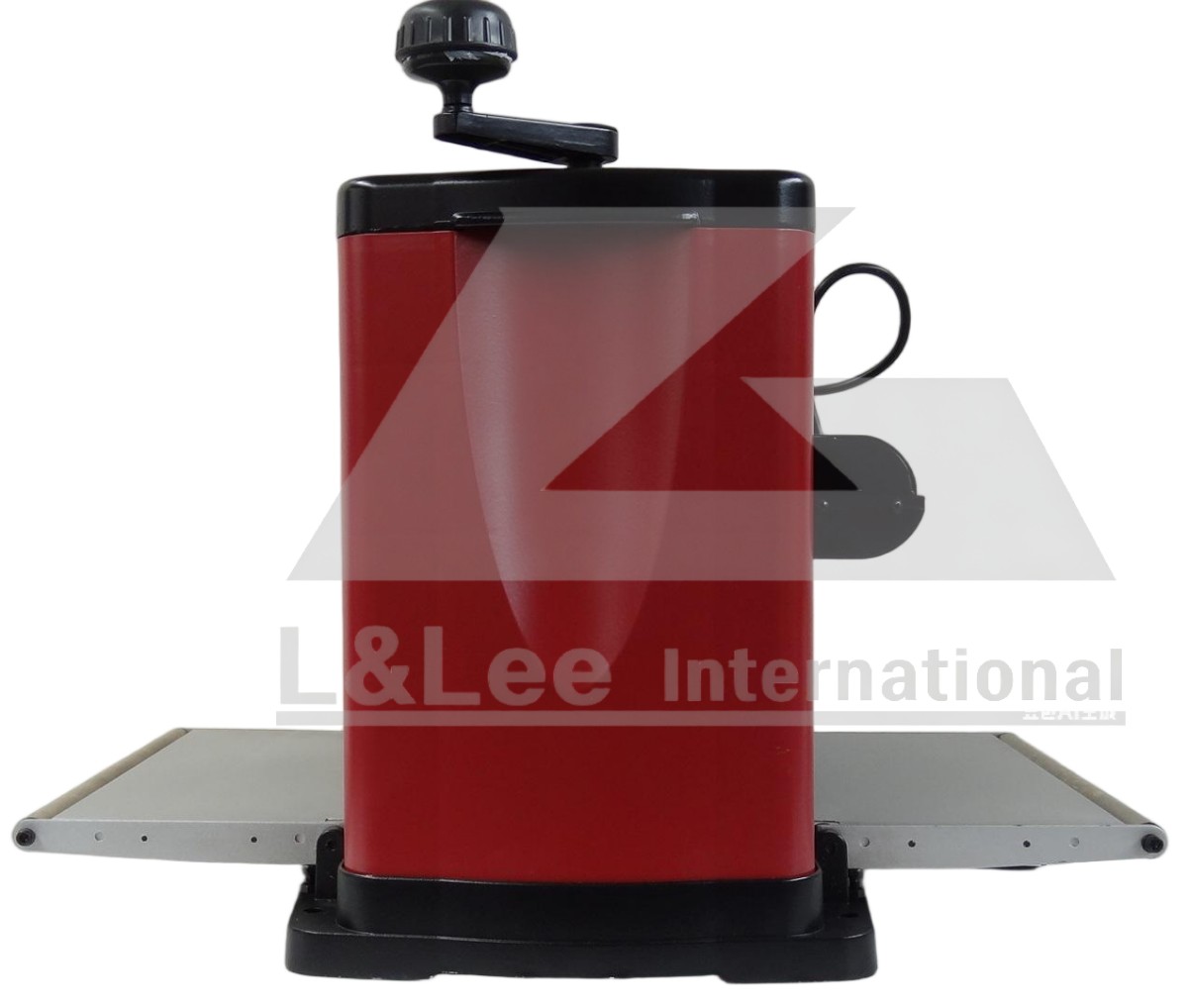

E. [MB13/1] 13" Planer Thicknesser
![[MB13/1] 13](wood/mb13.jpg)
![[MB13/1] 13](wood/mb131.jpg)
![[MB13/1] 13](wood/mb132.jpg)
Introductions
Heavy-duty thickness planer for accurate timber thicknessing. Smooth cutter head delivers clean finished surfaces. Continuous depth adjustment enables precise machining. Robust construction guarantees stable running.
Supplied with plastic safety push stick to avoid direct contact with the cutter head. Suitable for home workshops and small woodworking businesses.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Motor Power (W) | 1500 |
| No of Blade | 2 |
| Cutterhead (r/min) | 9500 |
| Cutting Width (mm) | (Max)330 (13") |
| Cutting Depth (mm) | (Max)13" 0.8,(5") 2.8 |
| Cutting Thickness (mm) | (Max)152 (6") |
| Working Table (mm) | 330 x 235 |
| Weight（kg) | 33 |
| Dimensions (mm) | 630 × 410 × 480 |
Package Includes
- Unit
- Plastic safety push stick
F. Spare Parts
Spare Parts List
| Part No. | Description | Unit | Compatible Model |
| 464 | Blade planer | pair | MBY8/2 planer |
| 465 | Blade planer | pair | MBY10/2 planer |
| 466 | Blade planer | pair | MB13/1 planer |
| 468 | Blade press bar | each | MBY8/2 planer |
| 469 | Blade press bar | each | MBY10/2 planer |
| 470 | Blade press bar | each | MB13/1 planer |
| 471 | rubber feeder shaft | each | MBY8/2 planer |
| 472 | rubber feeder shaft | each | MBY10/2 planer |
| 473 | rubber feeder shaft | each | MB13/1 planer |
| 474 | MBY8/2 motor pulley | each | MBY8/2 planer |
| 479 | Belt | each | MBY8/2 planer |
| 480 | Belt long | each | MBY10/2 planer |
| 481 | Belt short | each | MBY10/2 planer |
| 482 | Belt | each | MB13/1 planer |
| 483 | Belt long | each | TJQ12 table saw |
| 484 | Belt short | each | TJQ12 table saw |
| 486 | Carbon brush with socket | each | MB13/1 planer |
| 487 | Carbon brush with socket | each | MBY10/2 planer |
| 488 | Carbon brush with socket | each | MBY8/2 planer |
| 490 | Tool box | each | MBY8/2,MBY10/2,MB13/1 planer |
