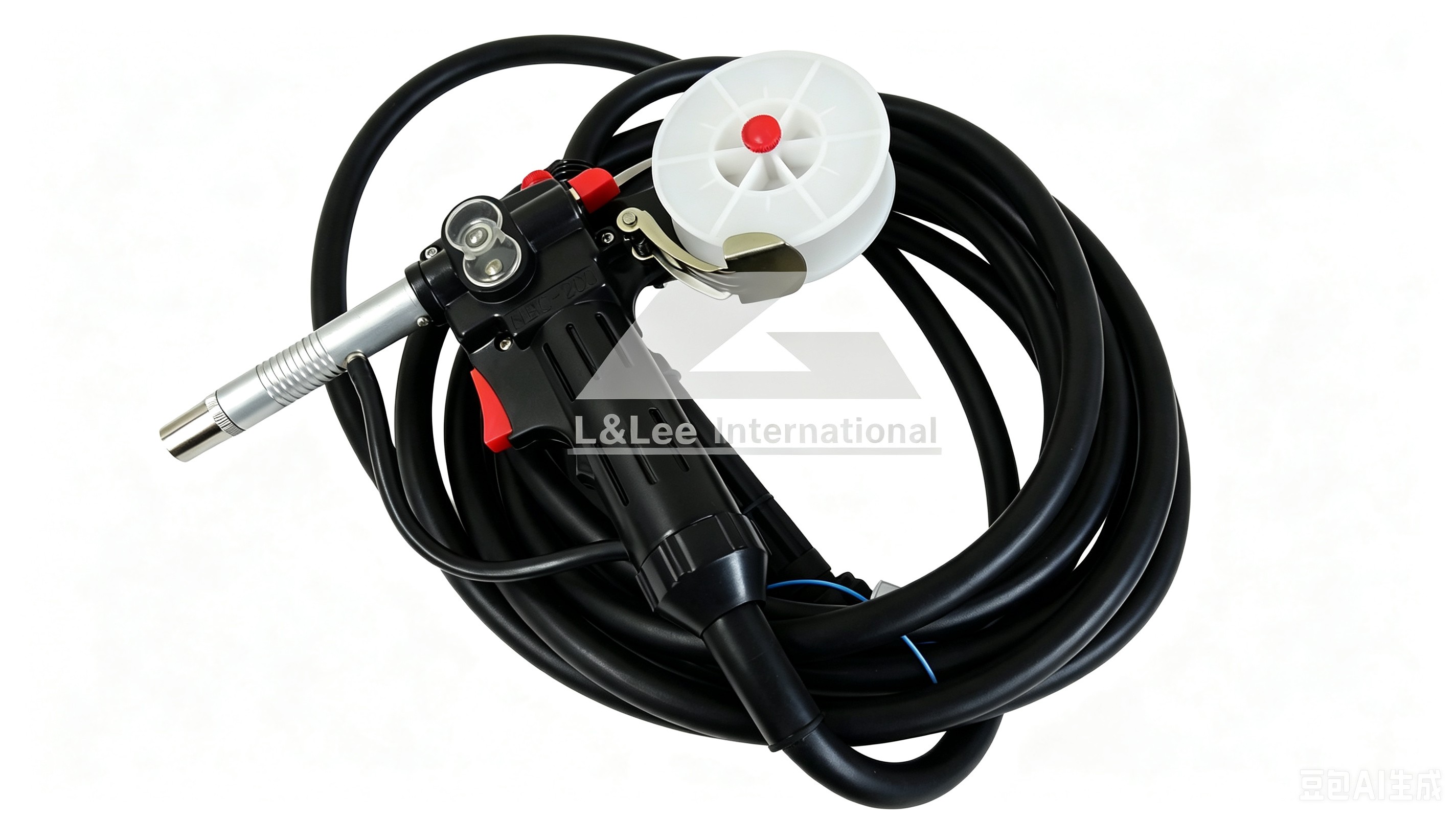

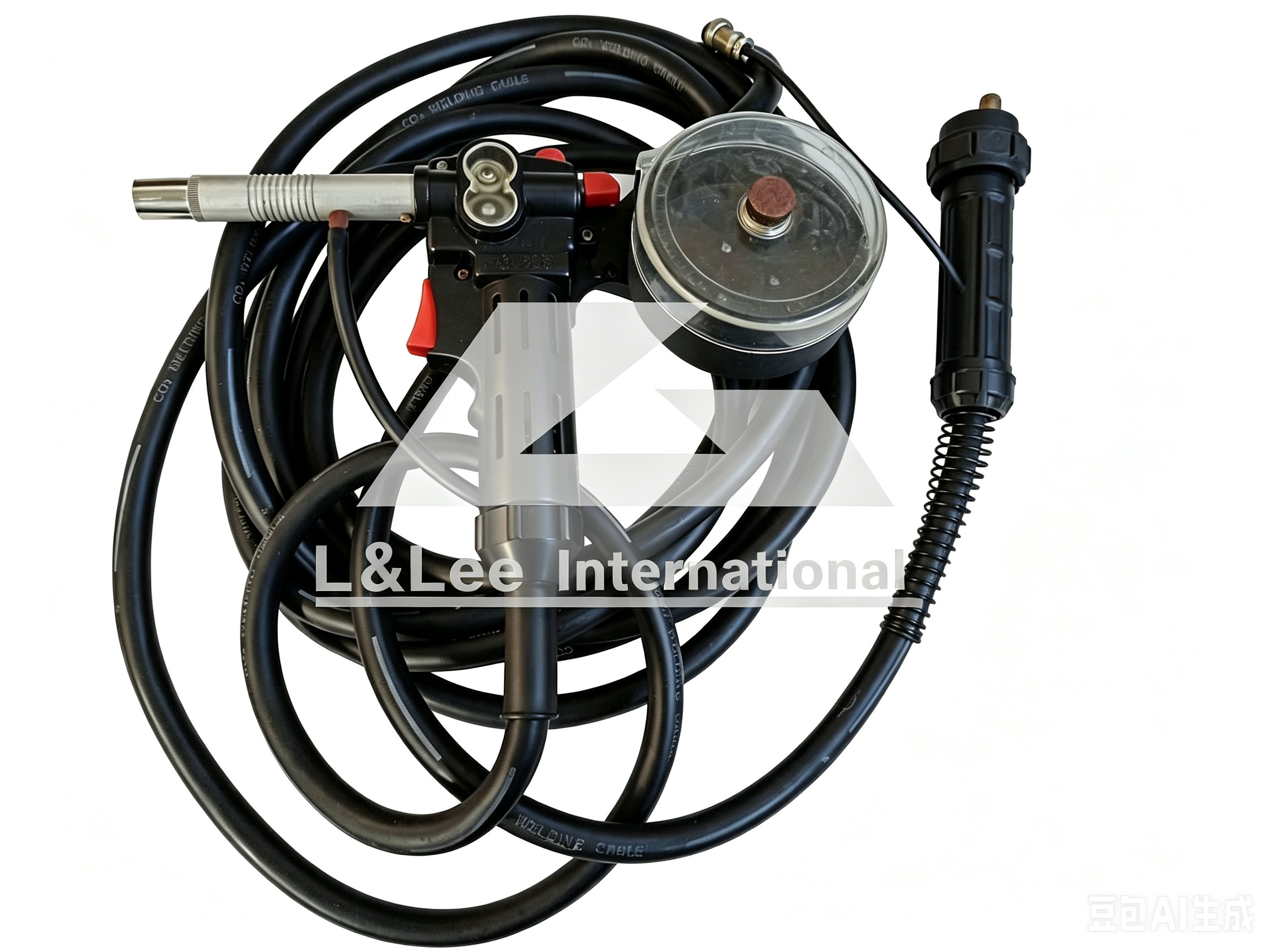

A. Spool Gun for Aluminium (8m–10m)
Introductions
Spool Gun designed for aluminium welding, supplied in 8m to 10m cable lengths. It ensures stable wire feeding and works well for special applications
Specifications
| Type | NBC200 |
| Working Current (A) | 200 |
| Filler Wire dimensions (MM) | 0.8,0.9,1.0 |
| Supports wire spools (KG) | 1KG steel or 1LB aluminium |
| Working Voltage (V) | DC24 |
| Length (M) | 8 and 10 |
| Lead Connector type | Binzel Style Connector |
| Ccontrol plug | Round 2-pin,Suitable for direct connection with MIG star210 and MIG star250 welders |
Package Includes
- Unit
Three-months back to base warranty (Auckland)

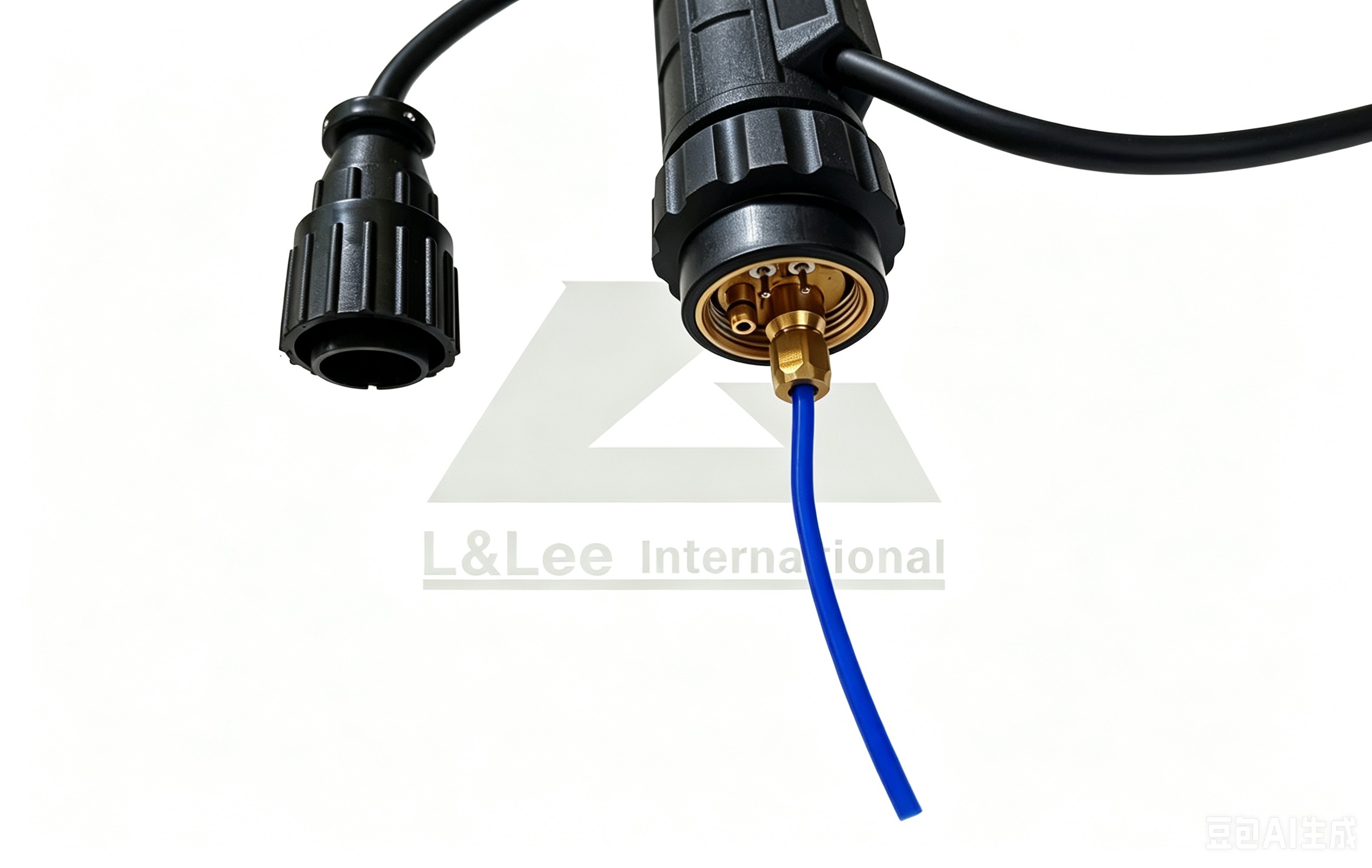

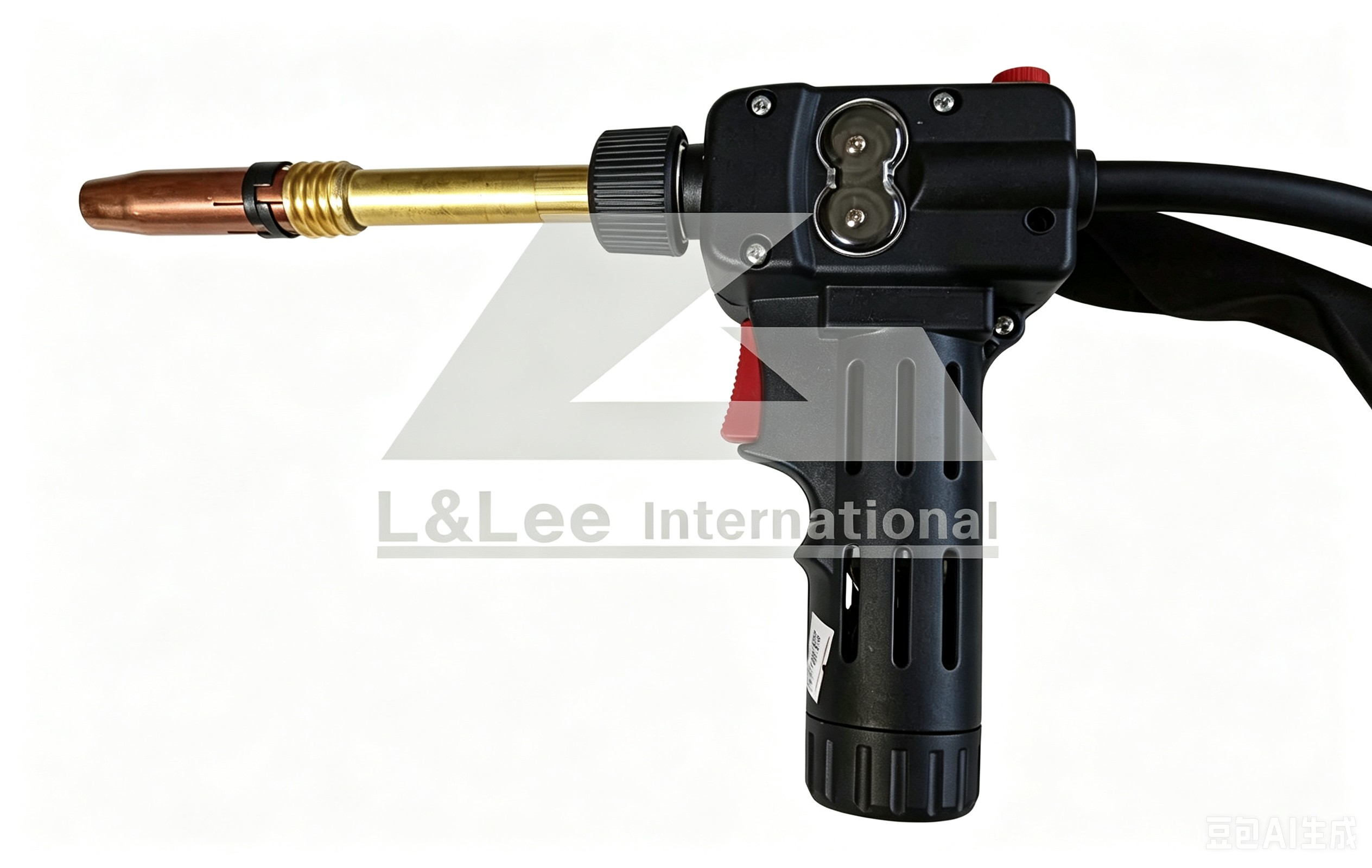

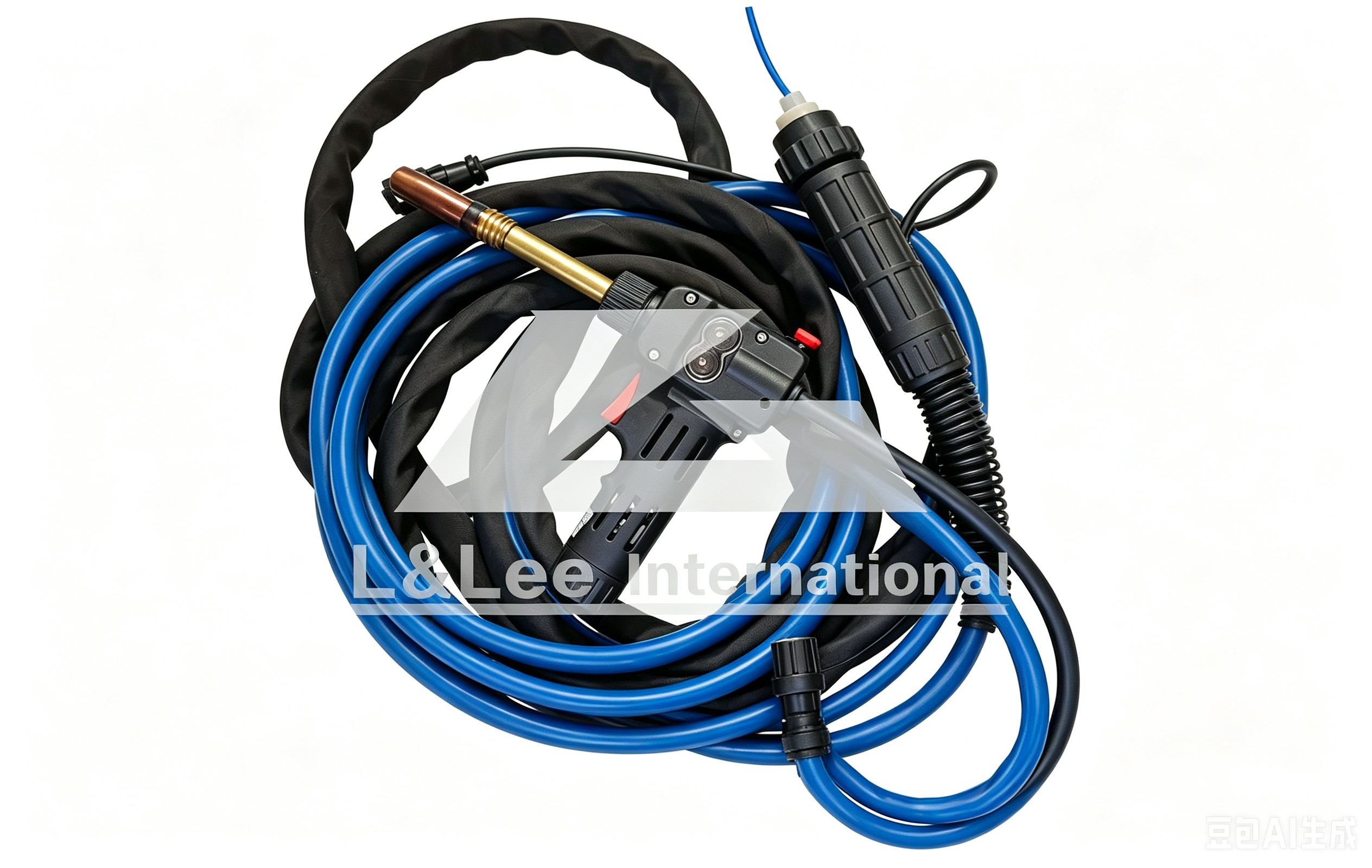

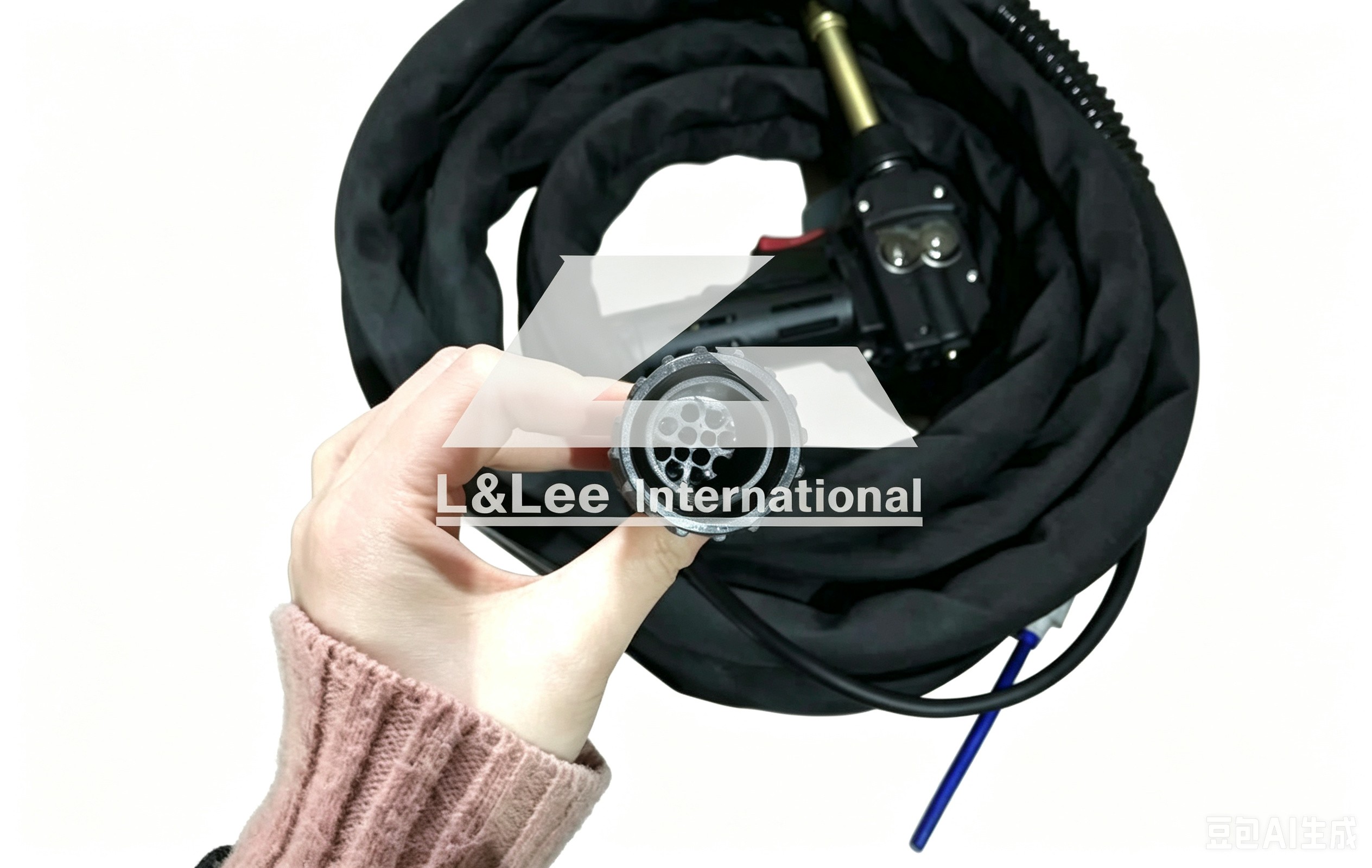

B. Push-Pull Gun for Aluminium 8m
Introductions
8m Push-Pull Gun for professional aluminium welding, offering stable wire feeding for heavy-duty applications such as shipbuilding.
Specifications
| Type | QTLB-24D |
| Rating Working Current (A) | 200A Co2,160A Mixed gas ,60% duty cycle |
| Filler Wire dimensions (MM) | 0.6,0.8,0.9,1.0,1.2 |
| Working Voltage (V) | DC24 |
| Length (M) | 8 |
| Lead Connector type | Binzel Style Connector |
| Control plug | Round 10-pin,Suitable for direct connection with ProMIG-250SYN and ALUMIG250P |
Package Includes
- Unit
Three-months back to base warranty (Auckland)
