A. ALUMIG250P IGBT Inverter Welder with 2 Pulses (3-in-1)
Introductions

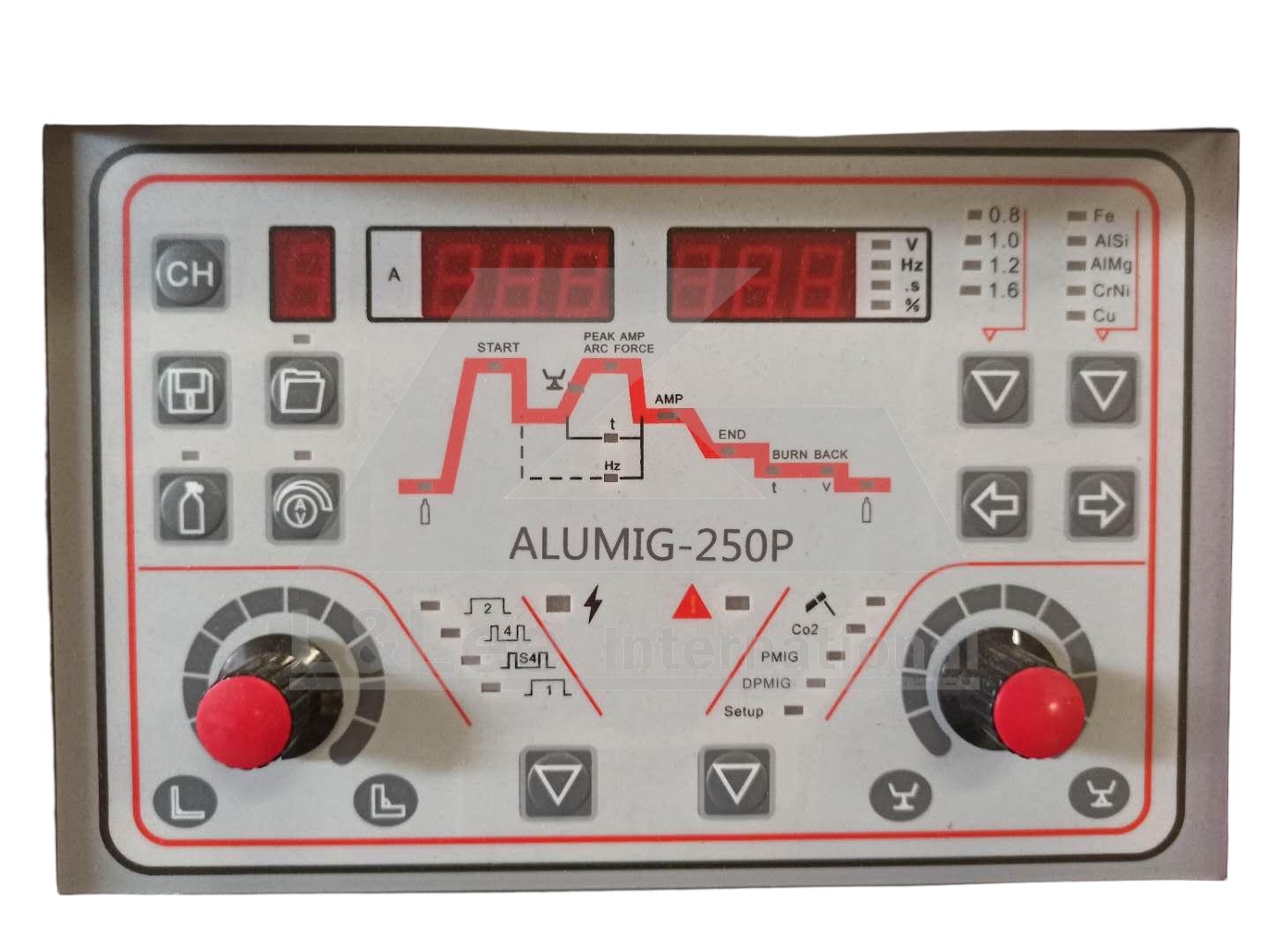

It adopts a new design. The Alumig250P utilizes the latest IGBT inverter technology for enhanced reliability and service life. Capable of professional aluminium welding, it features pulse and double pulse functions. Equipped with a CPU controller with memory function, it enables easy selection of welding modes and materials. It has a 4-roll wire feeder and supports operation with a push-pull torch. The Alumig250P supports MIG gas/gasless and MMA welding. It can function as a TIG welder when paired with our dedicated TIG torch.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Power capacitance (KVA) | 9.4 |
| Range of output current (A) | 30-250 |
| Output voltage (V) | MIG:15.5-26.5, MMA:21.2-30 |
| Open Circuit Voltage (V) | MIG:70, MMA:70 |

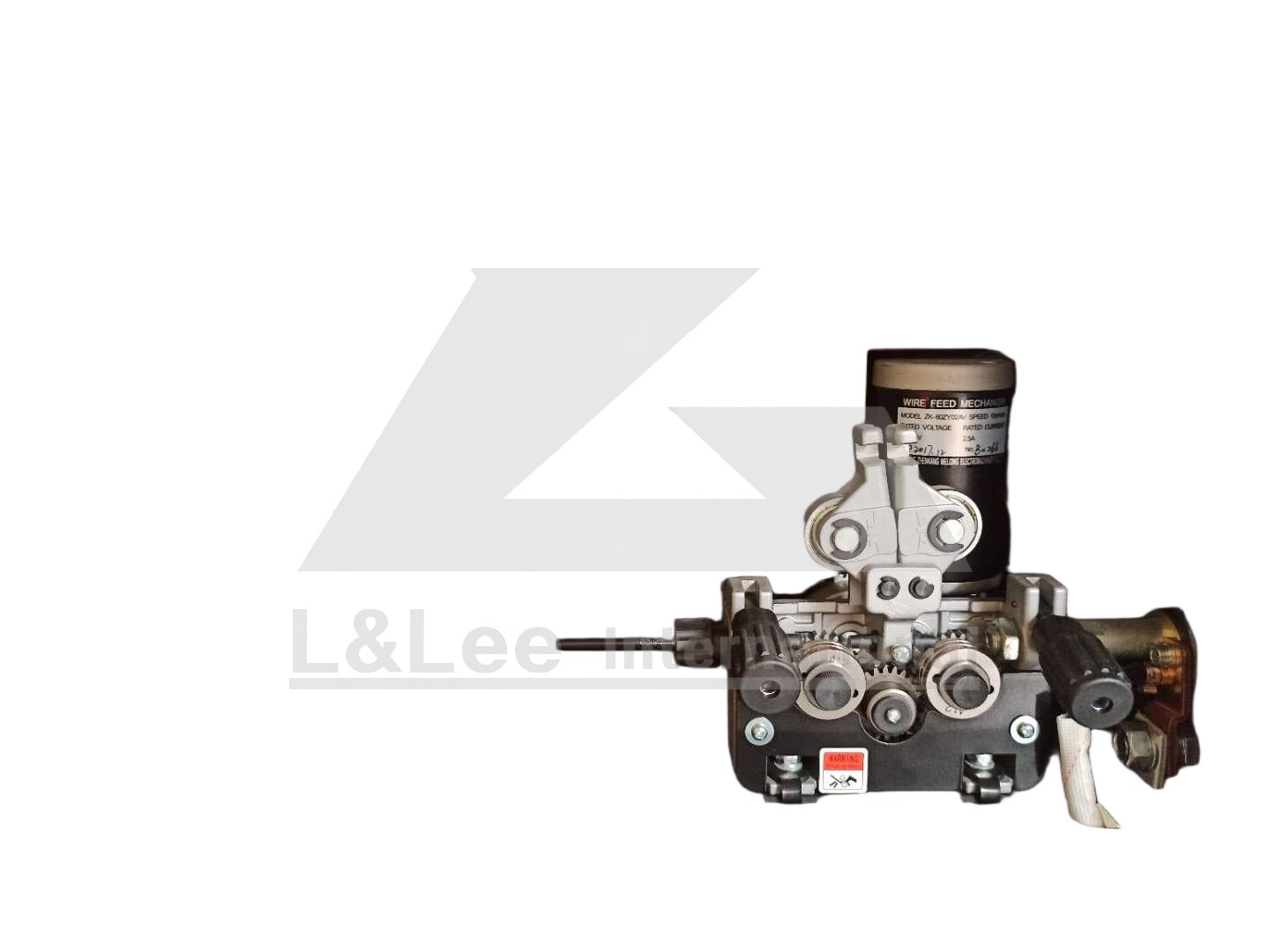

| Type of wire feeder | 4 rollers |
| Wire Feed Speed (M/MIN) | 0-18 |
| Filler Wire dimensions (MM) | 0.6/0.8/0.9/1.0/1.2 |
| Supports wire spools (KG) | 5 and 15 |
| Power factor | 0.73 |
| Pre-Gas Time (S) | 0-15 |
| Flow-Gas Time (S) | 0-15 |
| Duty Cycle | 60% MIG: 250A/26.5, MMA: 250A/30V |
| Duty Cycle | 100% MIG:200A/24V, MMA:200A/28V |
| Efficiency | 80% |
| Insulation class | F |
| Case Protection Level | IP21 |
| Weight（Kg) | 32 |
| Dimensions (MM) | 770 × 250 × 650 |
Package Includes
- Unit
- MIG 24KD Binzel Mig torch with lead 3m.
- Arc torch 2m
- Earthed leads 2m

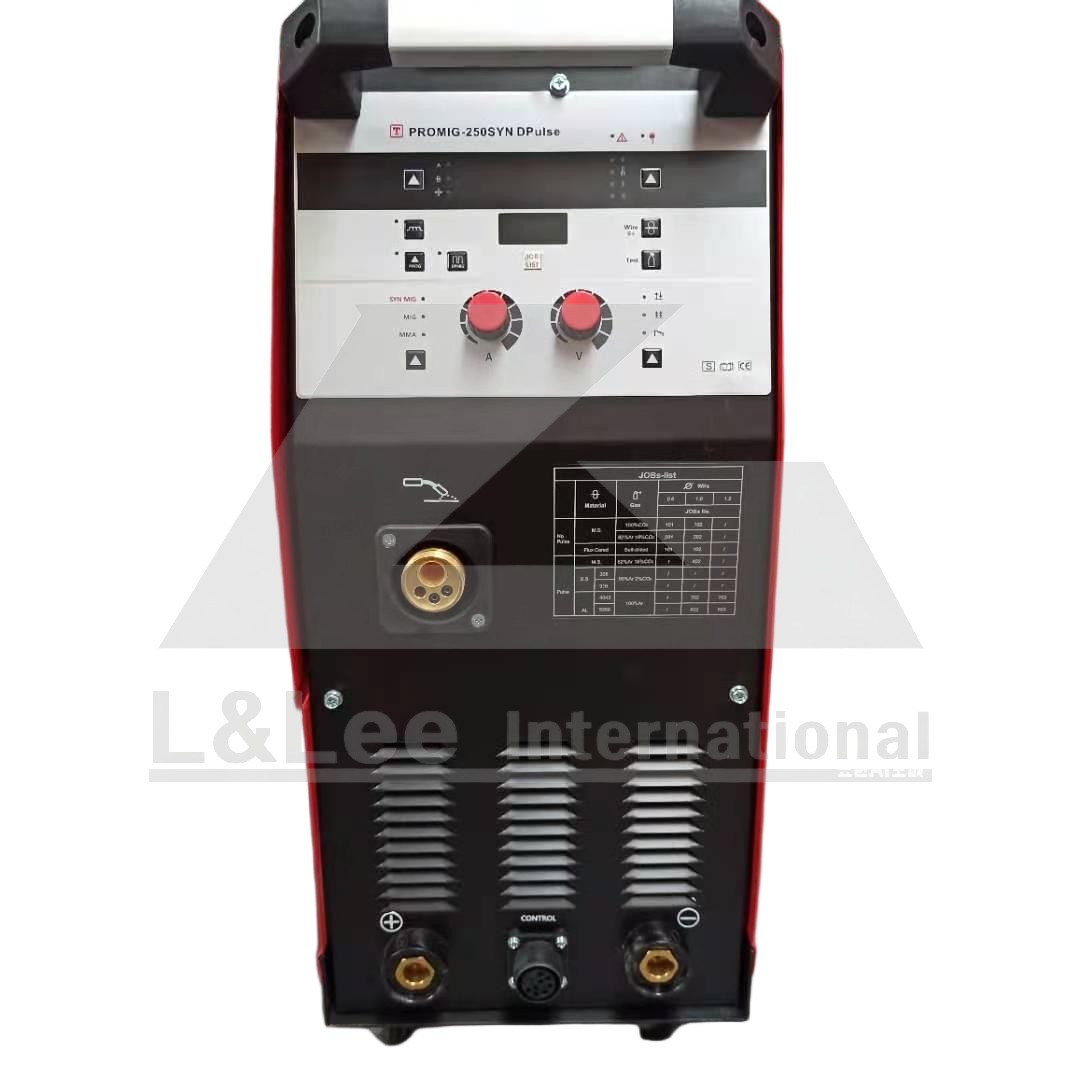

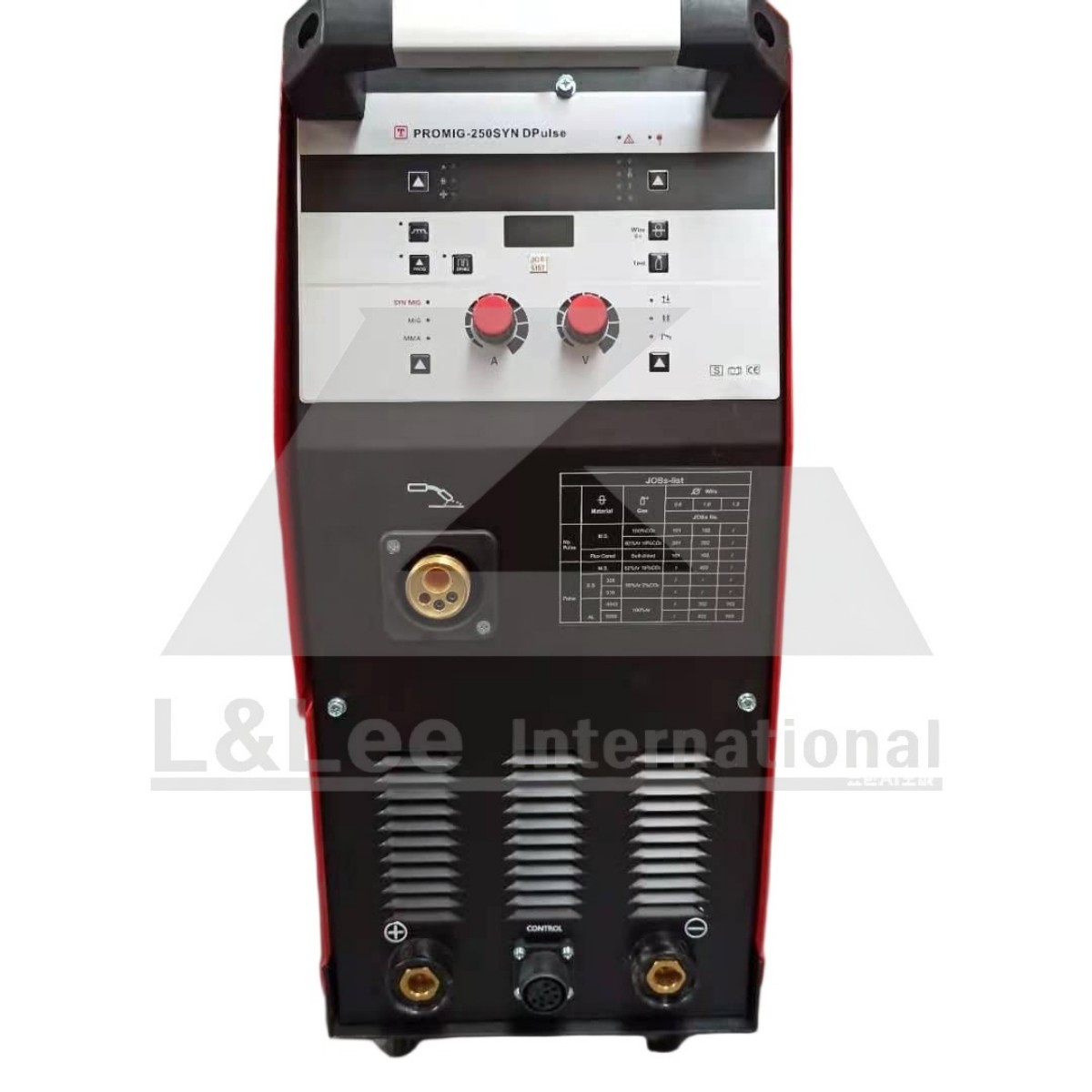

B. ProMIG-250SYN DPulse IGBT Inverter Welder (3-in-1)
Introductions
It supports Synergy, Pulse and Double Pulse MIG. Simple to operate for both beginners and professional welders when working with aluminium and steel.

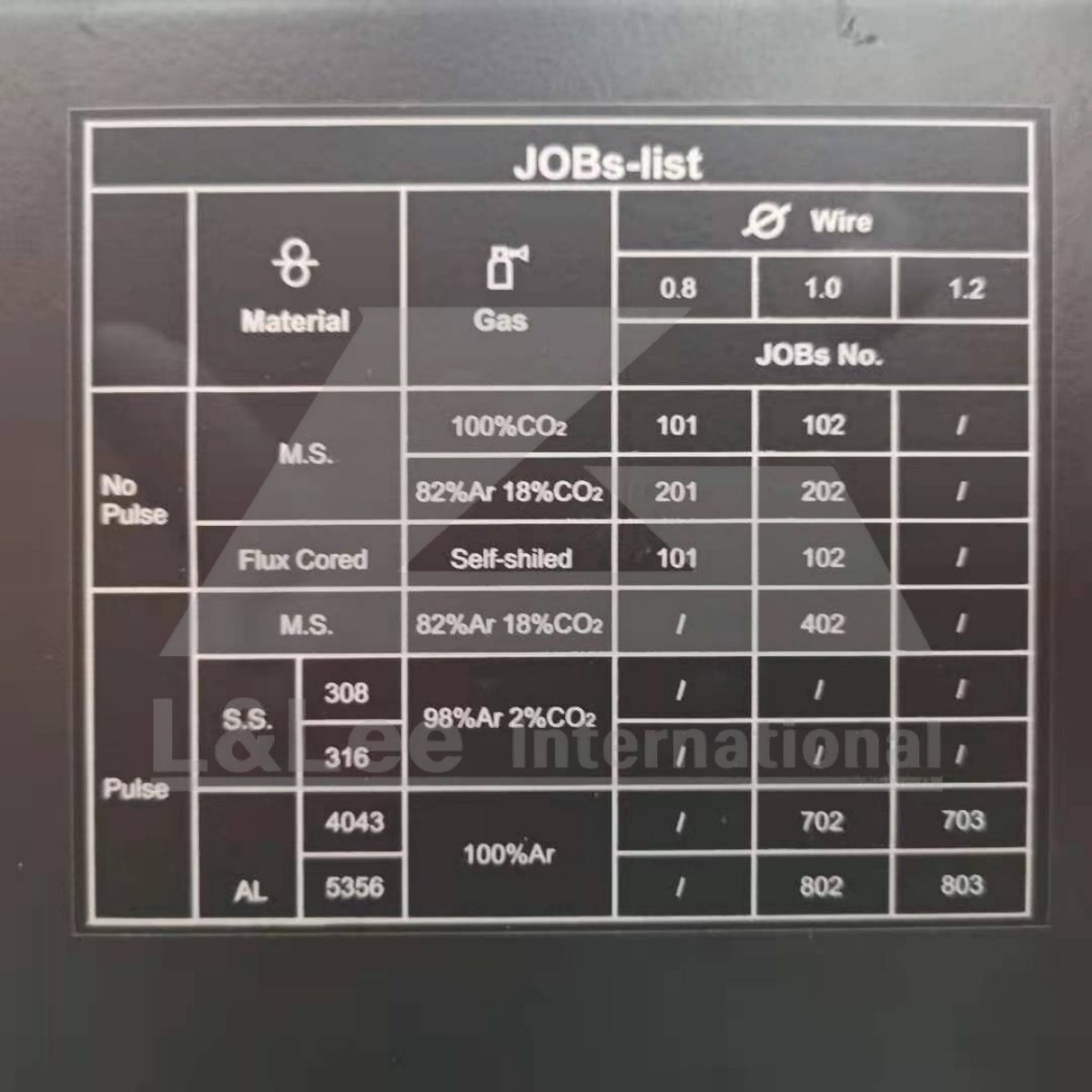

You can either input the job code from the synergy job list or set custom parameters to meet your professional requirements.
Works well with Our 8m Professional QTLB-24D Push-Pull Torch.
Guide of video: https://youtu.be/nO5d_iCElHs
Specifications
| Power Voltage | AC230V 50/60HZ |
| Power capacitance (KVA) | 9.4 |
| Range of output current (A) | 30-250 |
| Output voltage (V) | MIG:15.5-26.5, MMA:21.2-30 |
| Open Circuit Voltage (V) | MIG:70, MMA:70 |

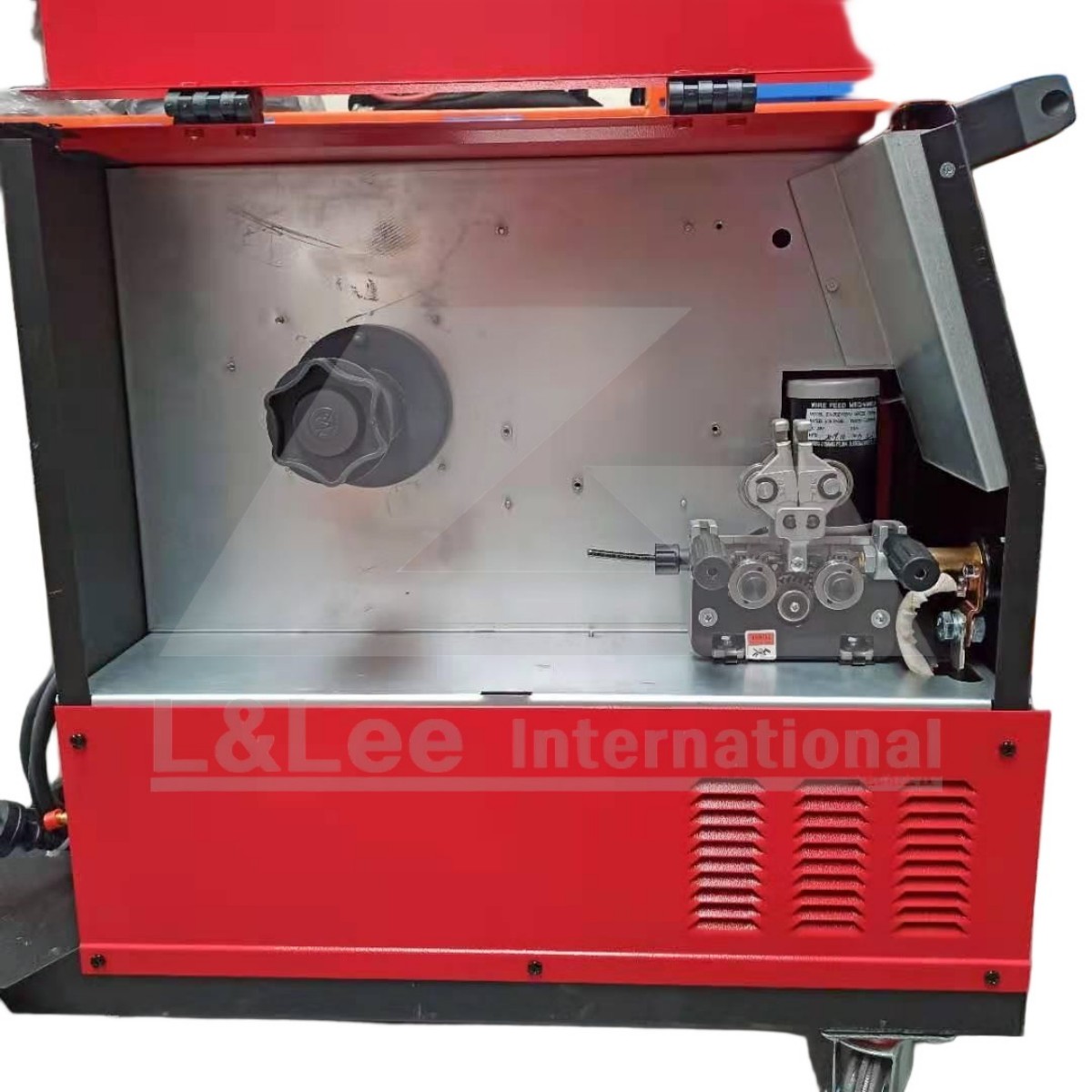

| Type of wire feeder | 4 rollers |
| Wire Feed Speed (M/MIN) | 0-18 |
| Filler Wire dimensions (MM) | 0.6/0.8/0.9/1.0/1.2 |
| Supports wire spools (KG) | 5 and 15 |
| Power factor | 0.73 |
| Pre-Gas Time (S) | 0-15 |
| Flow-Gas Time (S) | 0-15 |
| Duty Cycle | 60% MIG: 250A/26.5, MMA: 250A/30V |
| Duty Cycle | 100% MIG:200A/24V, MMA:200A/28V |
| Efficiency | 80% |
| Insulation class | F |
| Case Protection Level | IP21 |
| Weight（Kg) | 32 |
| Dimensions (MM) | 770 × 250 × 650 |
Package Includes
- Unit
- Binzel Mig torch with lead 3m.
- Arc torch with 3m leads
- Earthed leads 3m
