A. Inverter Mig180Y(II) MIG/MAG Welder (Steel)
Introductions
It features a new design. The Mig180Y(II) adopts the latest inverter technology for enhanced reliability and longer service life.

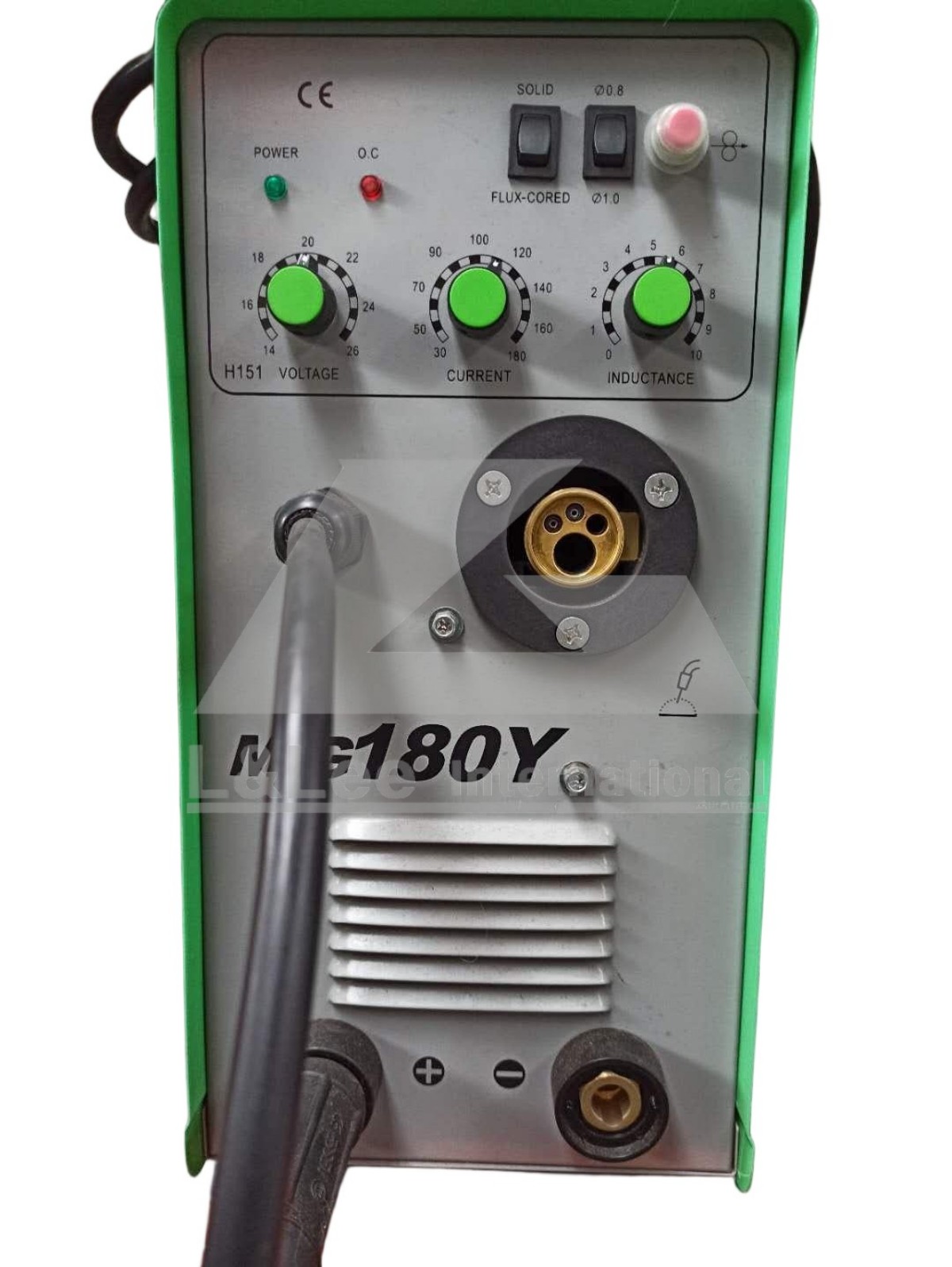

The Mig180Y(II supports both gas and gasless MIG welding. It is equipped with a burn-back adjustment function. Lightweight and highly portable. Suitable for welding medium-thin sheets ranging from 0.5 mm to 8 mm. Welding current, welding voltage and arc induction can be adjusted independently according to material thickness and hardness (carbon content). Two selector switches are available: one for solid/flux-cored wire and another for 0.8–1.0 mm wire selection.

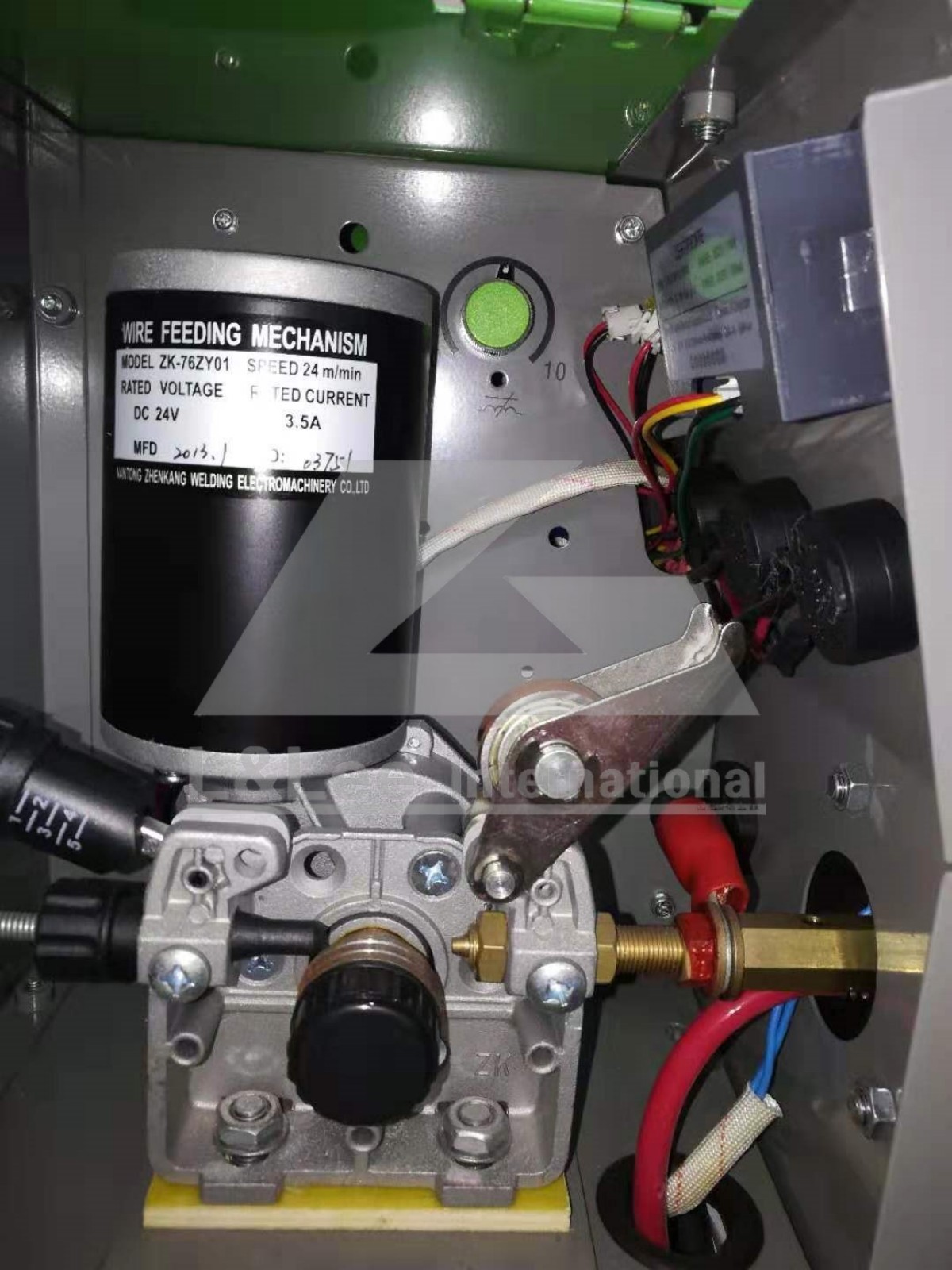

A panel-mounted wire feed button allows you to test feeder operation and thread wire through the torch conveniently.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input current (A) | 23.8 |
| Power capacitance (KVA) | 4.2 |
| Range of output current (A) | 30-180 |
| Output voltage (VDC) | 15-26 |
| Type of wire feeder | Embedded |
| Wire Feed Speed (M/MIN) | 2-15 |
| Filler Wire dimensions (MM) | 0.8/0.9/1.0 |
| Supports wire spools (KG) | 5 |
| Induction adjustment | Yes |
| Power factor | 0.93 |
| After blow time (S) | 1 |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Insulation class | F |
| Case Protection Level | IP21 |
| Weight（Kg) | 14 |
| Dimensions (MM) | 480 × 197 × 466 |
Package Includes
- Unit
- Binzel Mig torch with lead 3m.
- Earthed leads 3m

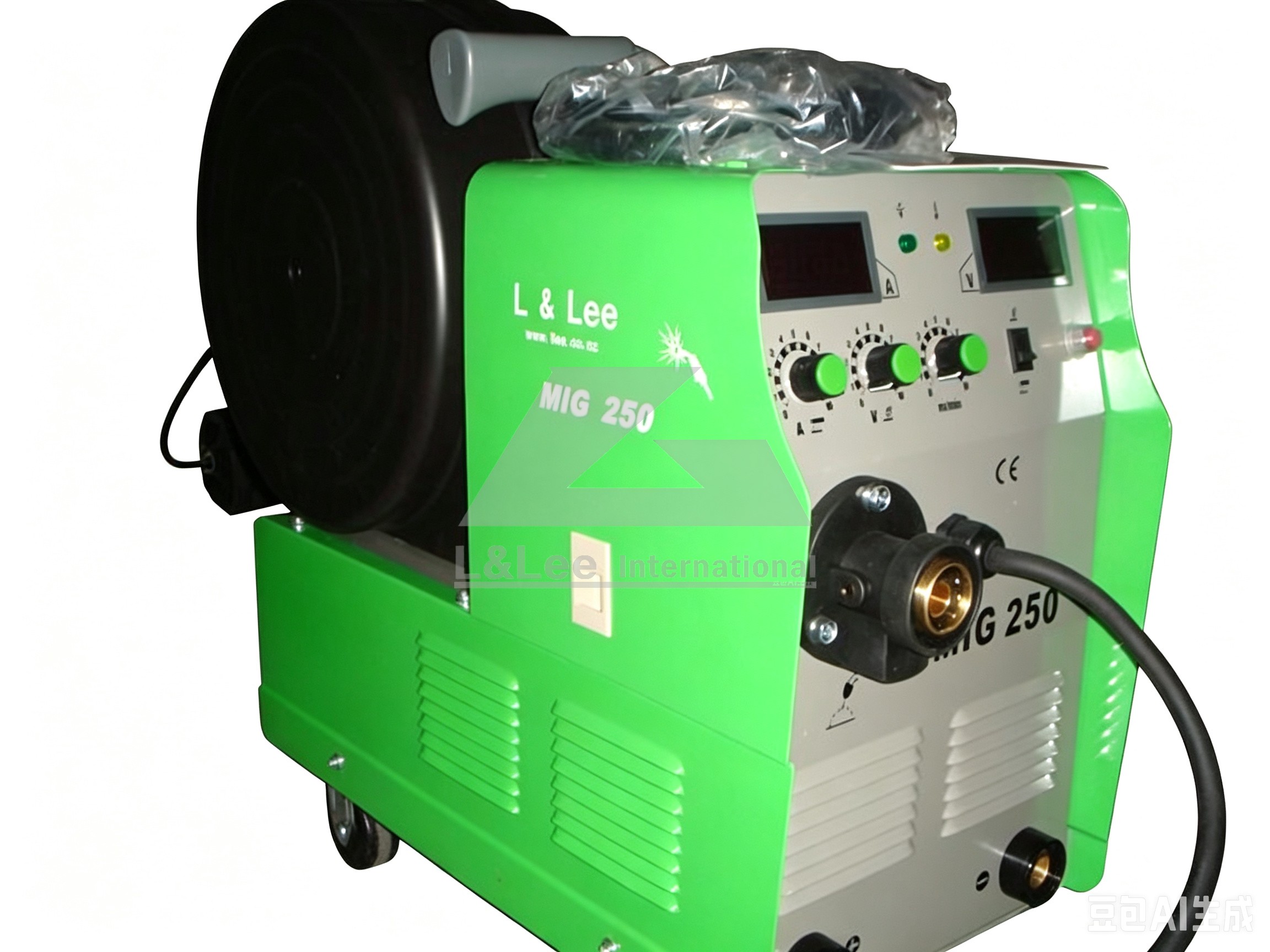

B. IGBT Inverter Mig250 MIG/MAG Welder (Steel) Mig/Tig/Arc (3-in-1)
Introductions

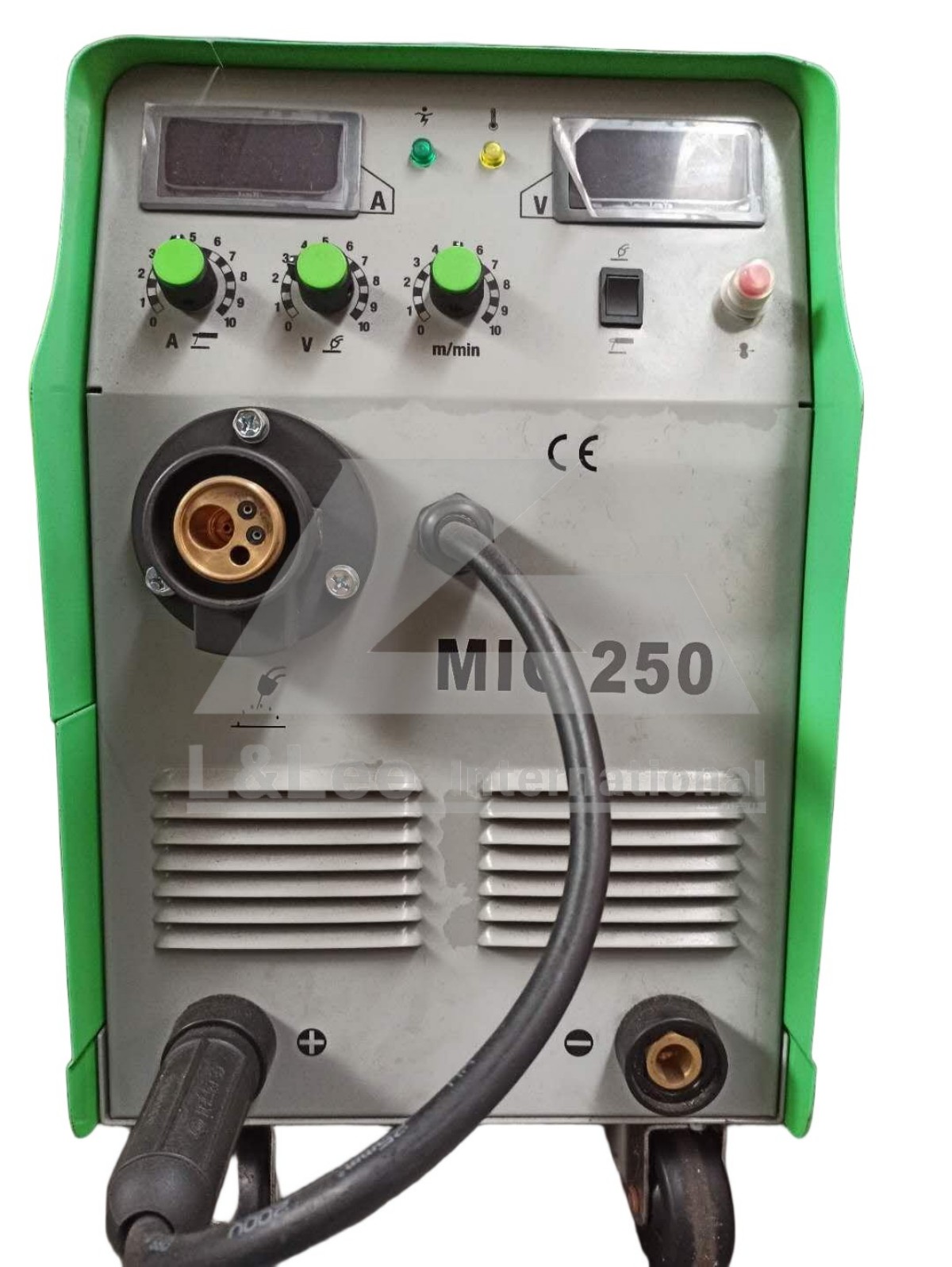

It boasts a new design. The IGBT Inverter Mig250 MIG/MAG Welder (Steel) Mig/Tig/Arc (3-in-1) adopts the latest IGBT inverter technology for improved reliability and longer service life. The Mig 250 supports gas MIG, gasless MIG, MMA Arc and TIG welding functions. Front-mounted cables enable simple and convenient adjustments. It is suitable for welding medium-thin sheets from 0.8 mm to 12 mm. Welding current, welding voltage and wire feed speed can be manually adjusted, with real-time current and voltage displayed. The control panel is fitted with a wire feed button, working light and overheat indicator light. An arc induction button is provided to optimise welding quality for steel with varying carbon content. Use the panel wire feed button to test feeder operation and thread welding wire through the torch. Key revisions explained
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input current (A) | 38.1 |
| Power capacitance (KVA) | 9.2 |
| Range of output current (A) | 50-250 |
| Output voltage (VDC) | 15-26 |
| Type of wire feeder | Embedded |
| Wire Feed Speed (M/MIN) | 2-15 |
| Filler Wire dimensions (MM) | 0.8/0.9/1.0 |
| Supports wire spools (KG) | 5 and 15 |
| Induction adjustment | Yes |
| Power factor | 0.93 |
| After blow time (S) | 1 |
| Duty Cycle | 60% |
| Efficiency | 85% |
| Insulation class | F |
| Case Protection Level | IP21 |
| Weight（Kg) | 26 |
| Dimensions (MM) | 530 × 270 × 440 |
Package Includes
- Unit
- Binzel Mig torch with lead 3m.
- Arc torch with 3m leads
- Earthed leads 3m
