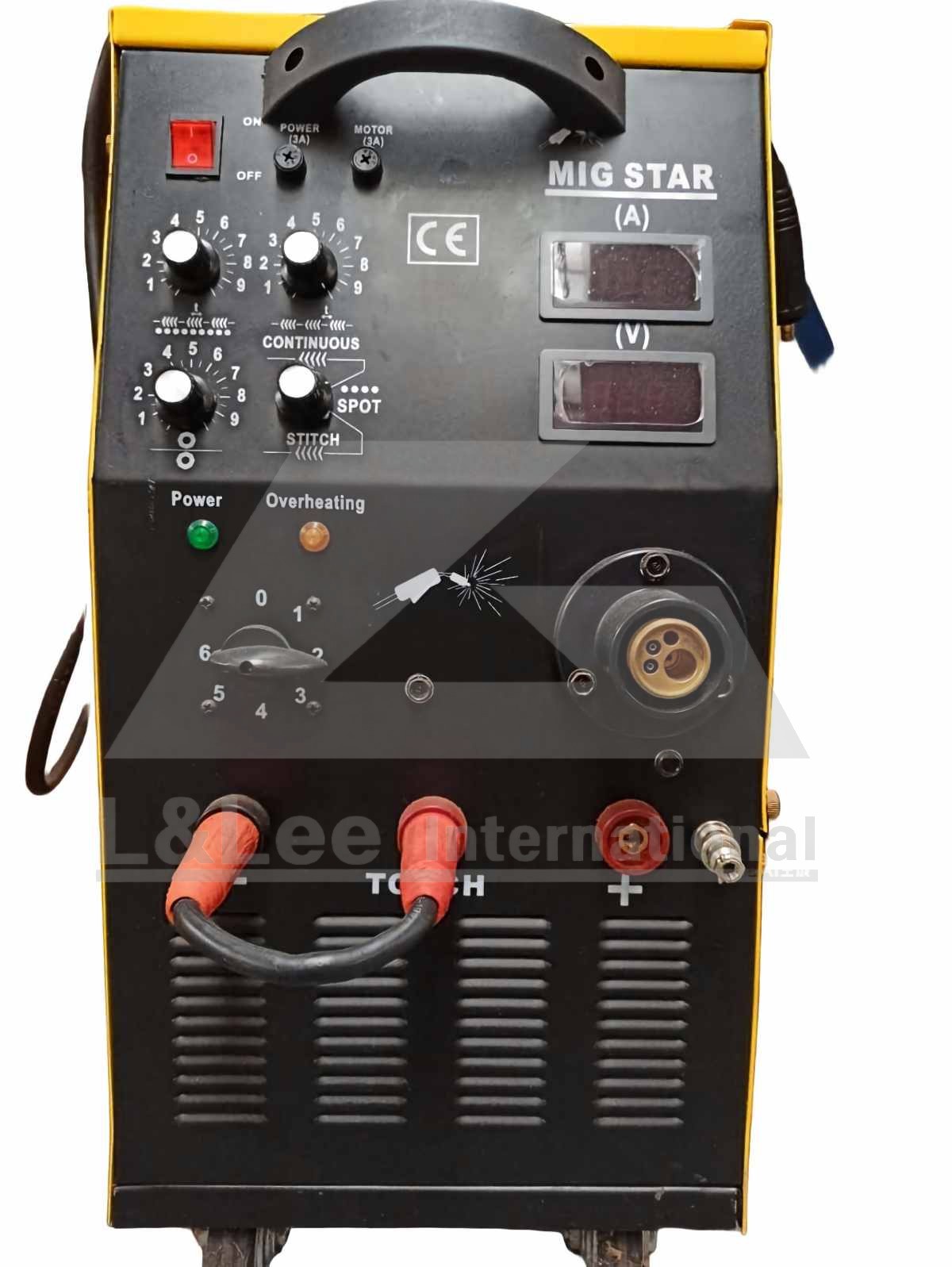

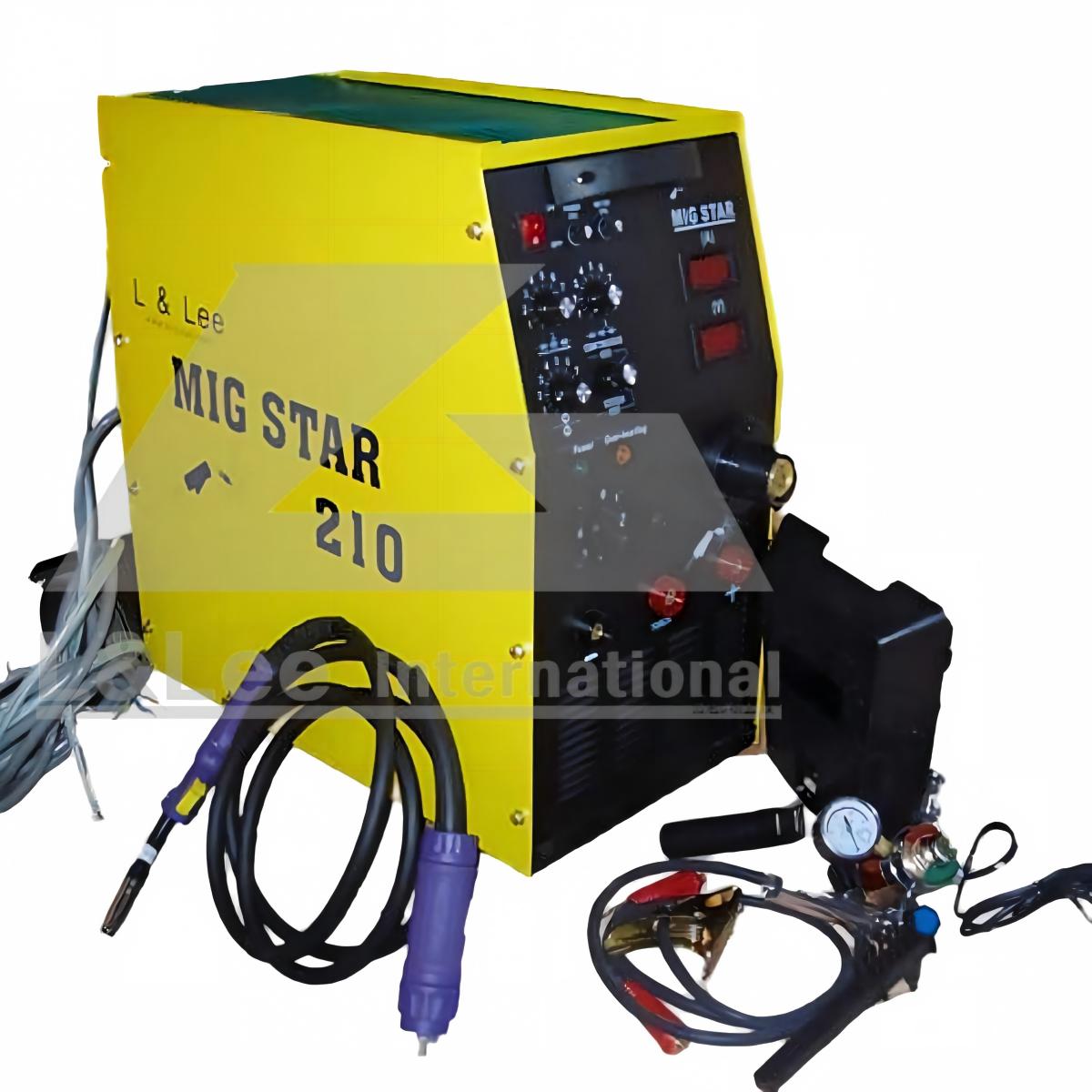

A. Mig Star210 Mig/Mag Transformer Industrial Welder ( Steel & Aluminum)
Introductions
Mig Star-210Amp MIG/MAG Single-Phase Welder for Steel & Aluminum.
*Three operating modes: Gas, Gasless and Aluminum welding.
*Suitable for welding carbon steel, alloy steel, stainless steel and aluminum.
*Compatible with CO₂ or argon shielding gas.
*Maximum welding thickness: 12 mm for steel, 10 mm for aluminum.
*Supports wire diameters: 0.6 / 0.8 / 0.9 / 1.0/ 1.2 mm.
*Features continuous, spot and stitch welding functions.
*Adjustable welding time and interval time for spot & stitch modes, with nine settings for each parameter.
*Nine adjustable wire feed speed levels.
*Six selectable voltage settings.
*Dual built-in fuses: one for the wire feeder motor, one for main power protection.
*Fitted with a dual-display panel showing output current and voltage.
*A professional commercial-grade welder offering hard-to-beat specifications at this price point.
At its core lies a transformer design delivering extended service life and outstanding reliability.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Range of output current (A) | 50-210 |
| No-load voltage (V) | 22-43 |
| Wire Feed Speed Step Adjustment (STEP) | 9 |
| Wire Feed Speed (M/MIN) | 1-17 |
| Working Settings (STEP) | 6 steps |
| Filler Wire dimensions (MM) | 0.8/0.9/1.0/1.2 |
| Supports wire spools (KG) | 5 and 15 |
| Duty Cycle | 210A/24.5V-20%,120A/20.0V-60%,90A/18.5V-100% |
| Insulation class | H |
| Case Protection Level | IP21S |
| Weight（Kg) | 65 |
| Dimensions (MM) | 880 × 430 × 700 |
Package Includes
- Unit
- Mig leads with torch 3m (AK-15)
- Earthed leads 1.8m
- Welding face shield
- Wire brush

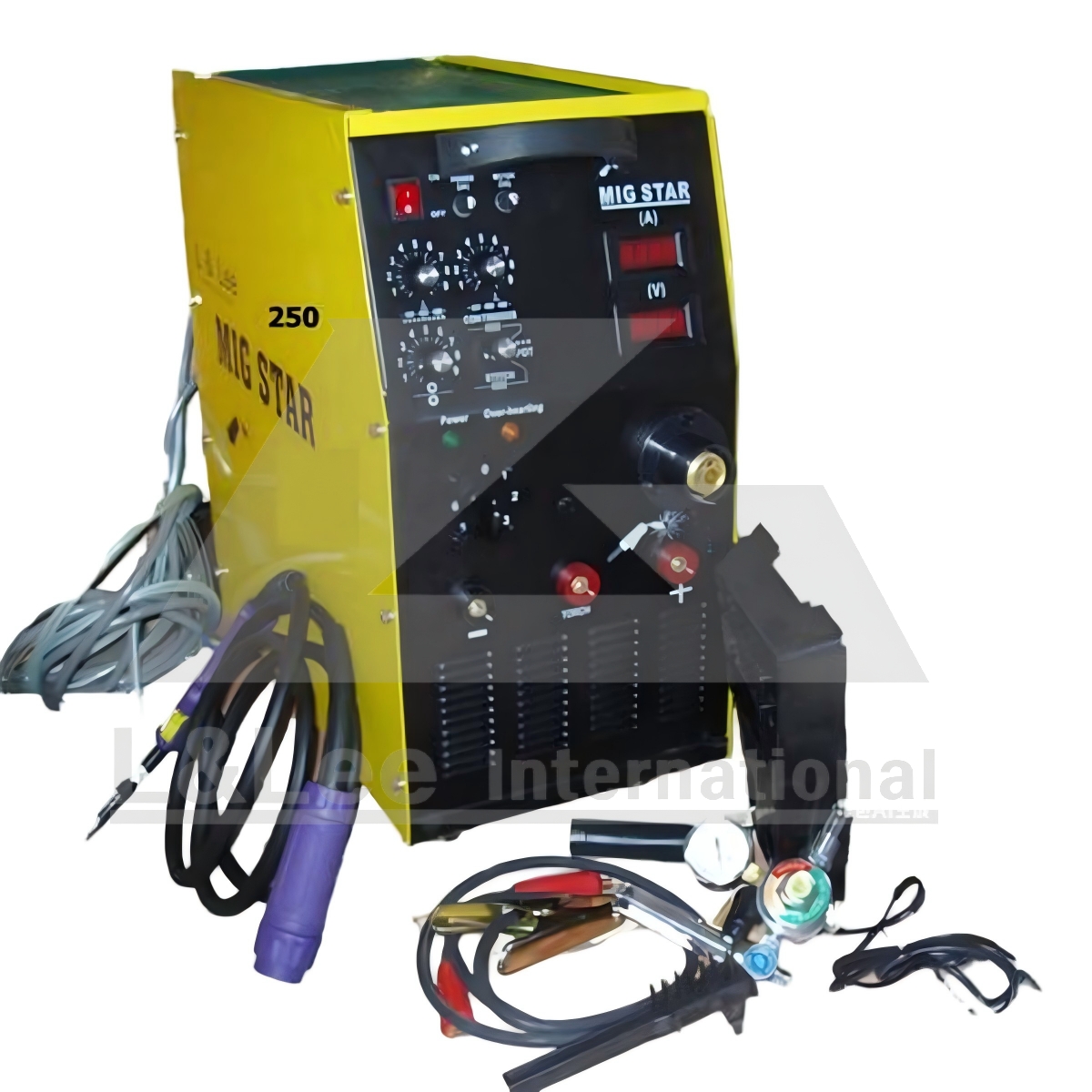

B. Mig Star250 Mig/Mag Transformer Industrial Welder ( Steel & Aluminum)
Introductions
Mig Star-250Amp MIG/MAG Single-Phase Welder for Steel & Aluminum.
*Three operating modes: Gas, Gasless and Aluminum welding.
*Suitable for welding carbon steel, alloy steel, stainless steel and aluminum.
*Compatible with CO₂ or argon shielding gas.
*Maximum welding thickness: 15 mm for steel, 12 mm for aluminum.
*Supports wire diameters: 0.6 / 0.8 / 0.9 / 1.0/ 1.2 mm.
*Features continuous, spot and stitch welding functions.
*Adjustable welding time and interval time for spot & stitch modes, with nine settings for each parameter.
*Nine adjustable wire feed speed levels.
*Six selectable voltage settings.
*Dual built-in fuses: one for the wire feeder motor, one for main power protection.
*Fitted with a dual-display panel showing output current and voltage.
*A professional commercial-grade welder offering hard-to-beat specifications at this price point.
At its core lies a transformer design delivering extended service life and outstanding reliability.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Range of output current (A) | 50-250 |
| No-load voltage (V) | 22-47 |
| Wire Feed Speed Step Adjustment (STEP) | 9 |
| Wire Feed Speed (M/MIN) | 1-17 |
| Working Settings (STEP) | 6 steps |
| Filler Wire dimensions (MM) | 0.8/0.9/1.0/1.2 |
| Supports wire spools (KG) | 5 and 15 |
| Duty Cycle | 250A/25V20%.140A/22V60%,100A/20V100% |
| Insulation class | H |
| Case Protection Level | IP21S |
| Weight（Kg) | 75 |
| Dimensions (MM) | 880 × 430 × 700 |
Package Includes
- Unit
- Mig leads with torch 3m (AK-15)
- Earthed leads 1.8m
- Welding face shield
- Wire brush
