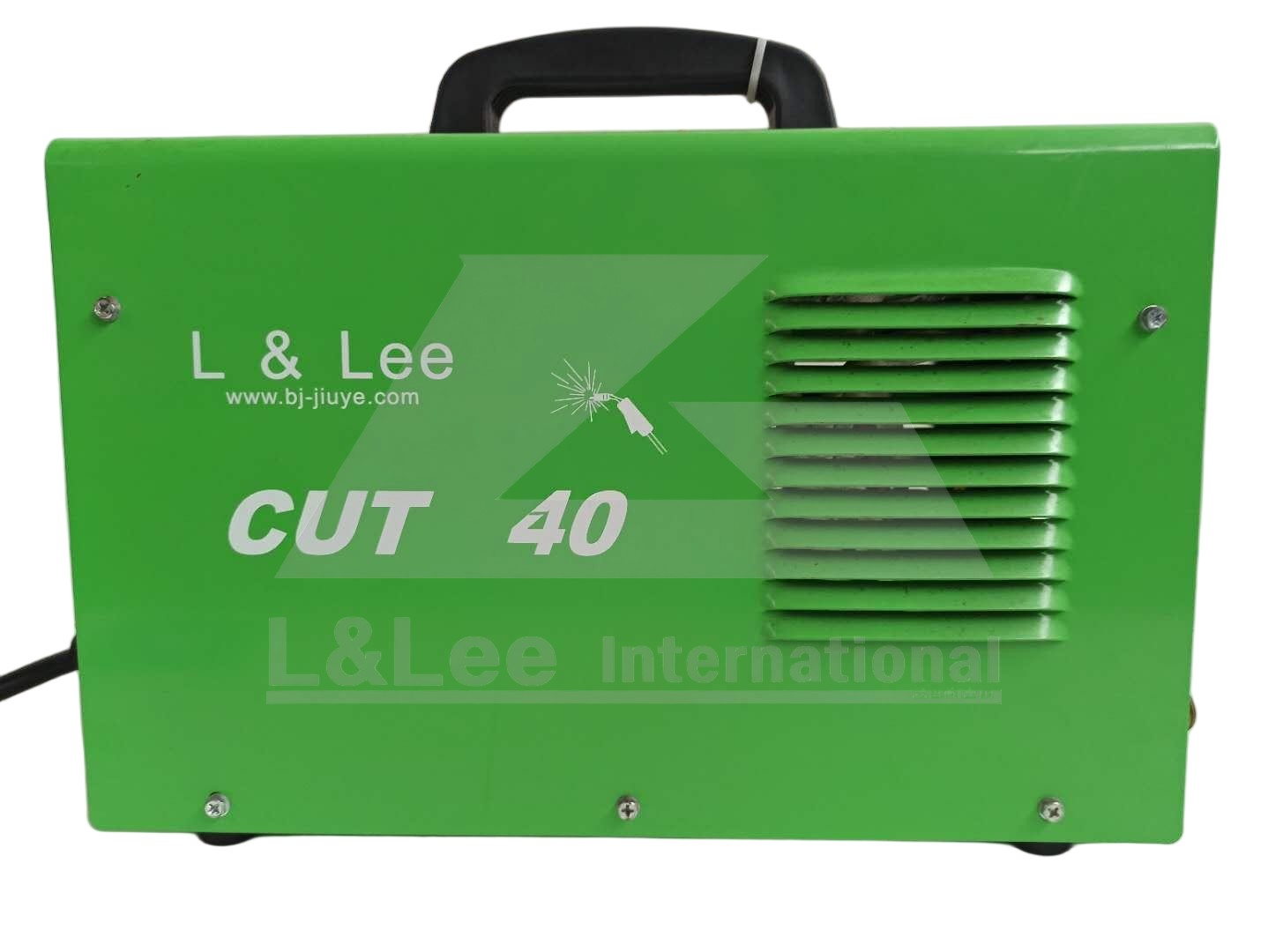

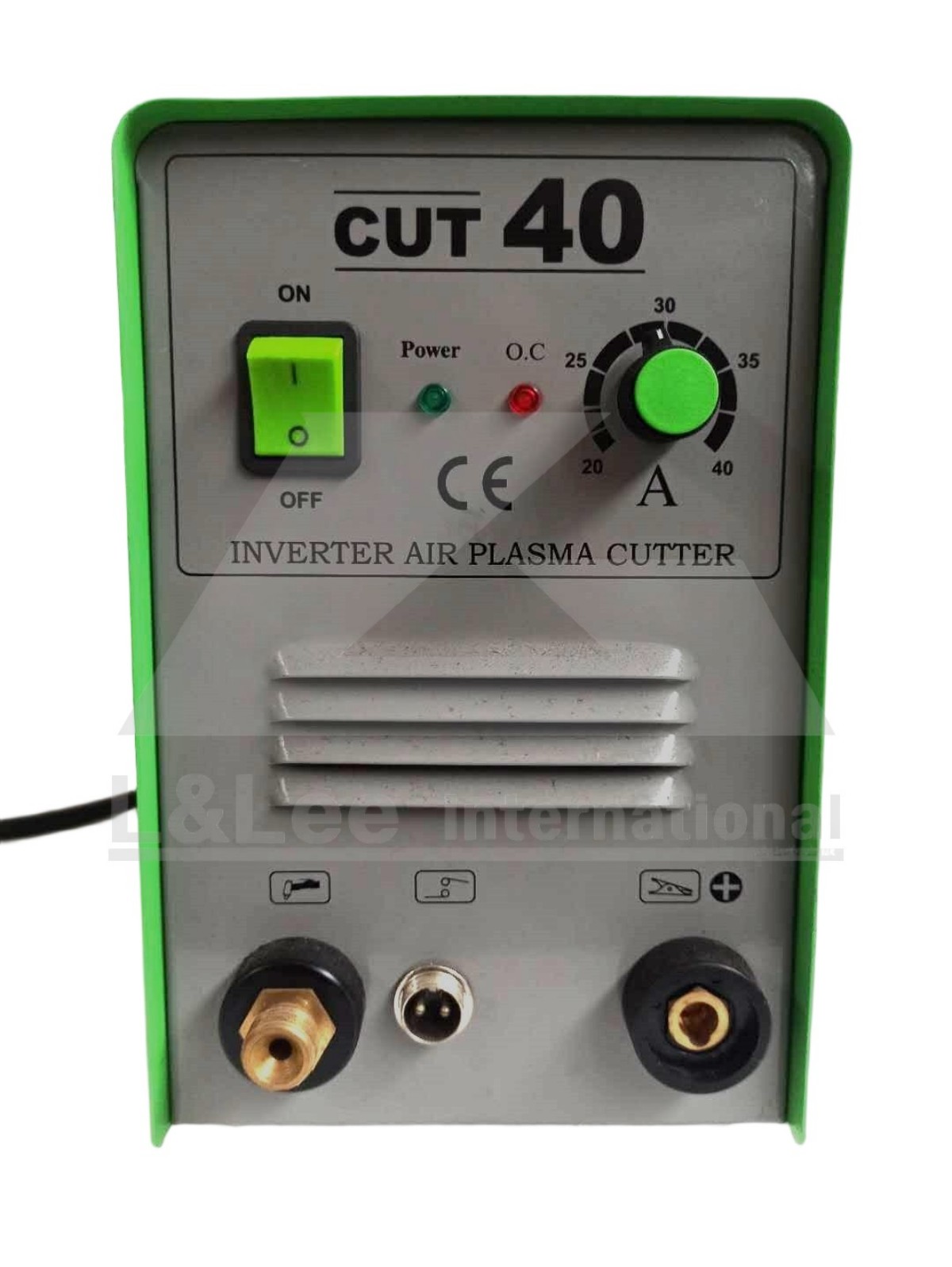

A. CUT-40 Plasma cutter
Introductions
The CUT40 plasma cutter is built with the world’s most advanced inverter technology and features high-frequency arc start. It adopts touch arc ignition: you need to strike the arc on a clean bare metal surface first before cutting rusty or painted steel. This cutter boasts broad application scope, perfect for cutting stainless steel, alloy steel, mild steel, copper and other non-ferrous metals.
We also offer the CUT50 PLUS,CUT70,CUT80 and 3‑phase CUT100 models equipped with pilot arc ignition, allowing direct cutting on rusty and painted steel without prior surface cleaning.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | 4.8 |
| Rated output current (A) | 20-40 |
| Rated output voltage (V) | 96 |
| No-load voltage (V) | 230 |
| Duty Cycle | 60% |
| Insulation class | F |
| Protection class | IP23 |
| ARC-leading | HF vibration |
| Cut thinkness (MM): | 10 |
| Pressure for air (Kg/cm2) | 2-4 |
| Weight（Kg) | 8 |
| Dimensions (MM) | 327 × 178 × 155 |
Package Includes
- Unit
- 40A torch with 4m leads
- Spare electroids of torch and Ceramics
- Air flow regulator
- Earthed leads 3m
B. CUT-50 Plasma cutter
Introductions
The CUT-50 plasma cutter adopts the world’s most advanced inverter technology. This cutting machine boasts a wide range of applications, ideal for cutting stainless steel, alloy steel, mild steel, copper and other non-ferrous metals.
Important Operation Tip: Always initiate the arc on a clean surface. Once the arc stabilizes, you may proceed to cut rusted or painted steel.
We also offer the CUT50 PLUS,CUT70 and 3‑phase CUT100 models equipped with pilot arc ignition, allowing direct cutting on rusty and painted steel without prior surface cleaning.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | 5.5 |
| Rated output current (A) | 50 |
| Rated output voltage (V) | 110 |
| No-load voltage (V) | 230 |
| Duty Cycle | 30% |
| Insulation class | F |
| Protection class | IP23 |
| ARC-leading | HF vibration |
| Cut thinkness (MM): | 0-14 |
| Pressure for air (Kg/cm2) | 2-4Kg/cm2 and over 80L/min |
| Weight（Kg) | 11 |
| Dimensions (MM) | 380 × 178 × 295 |
Package Includes
- Unit
- 50A torch with 4m leads
- Spare electroids of torch and Ceramics
- Air flow regulator
- Earthed leads 3m

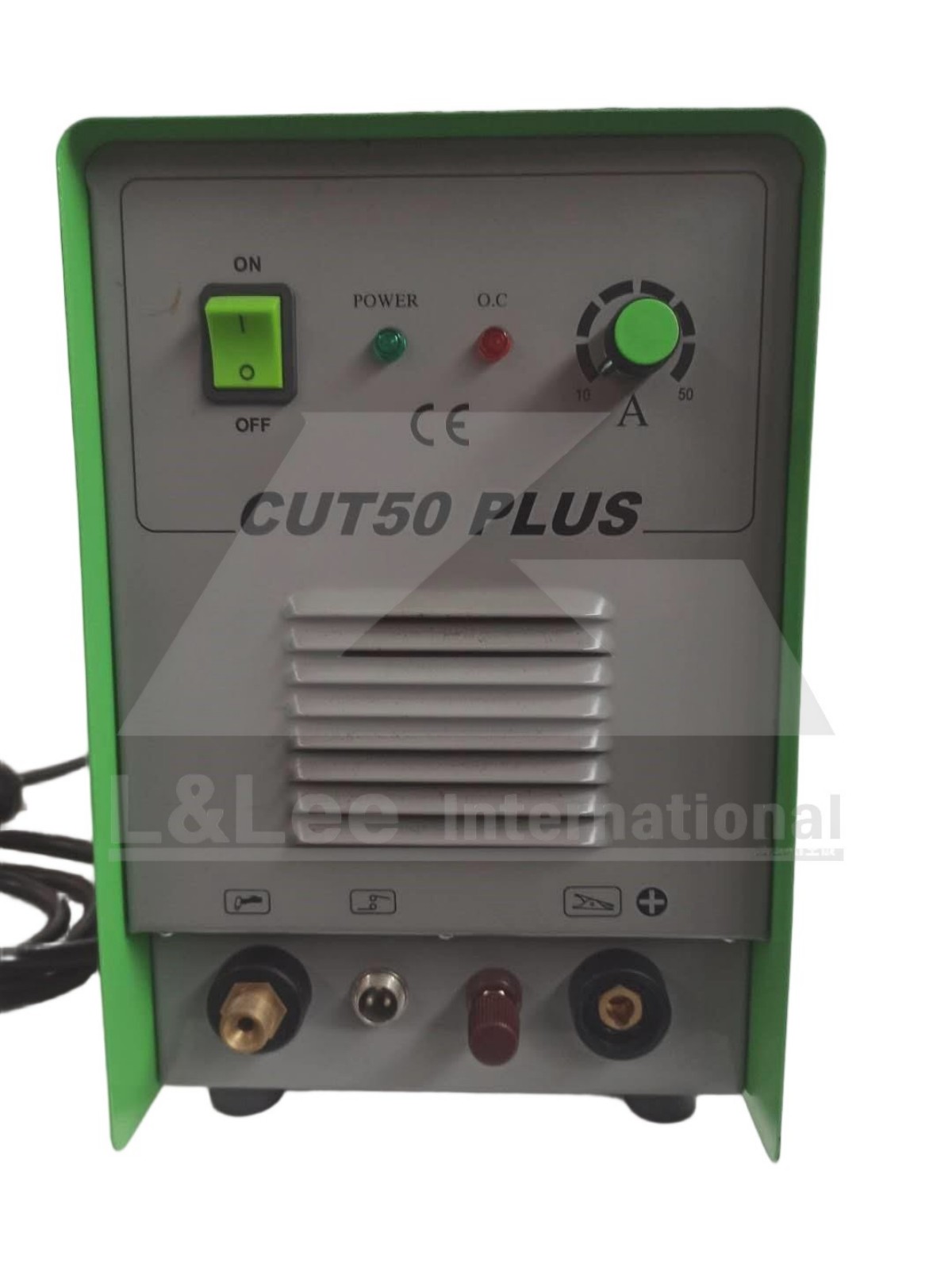

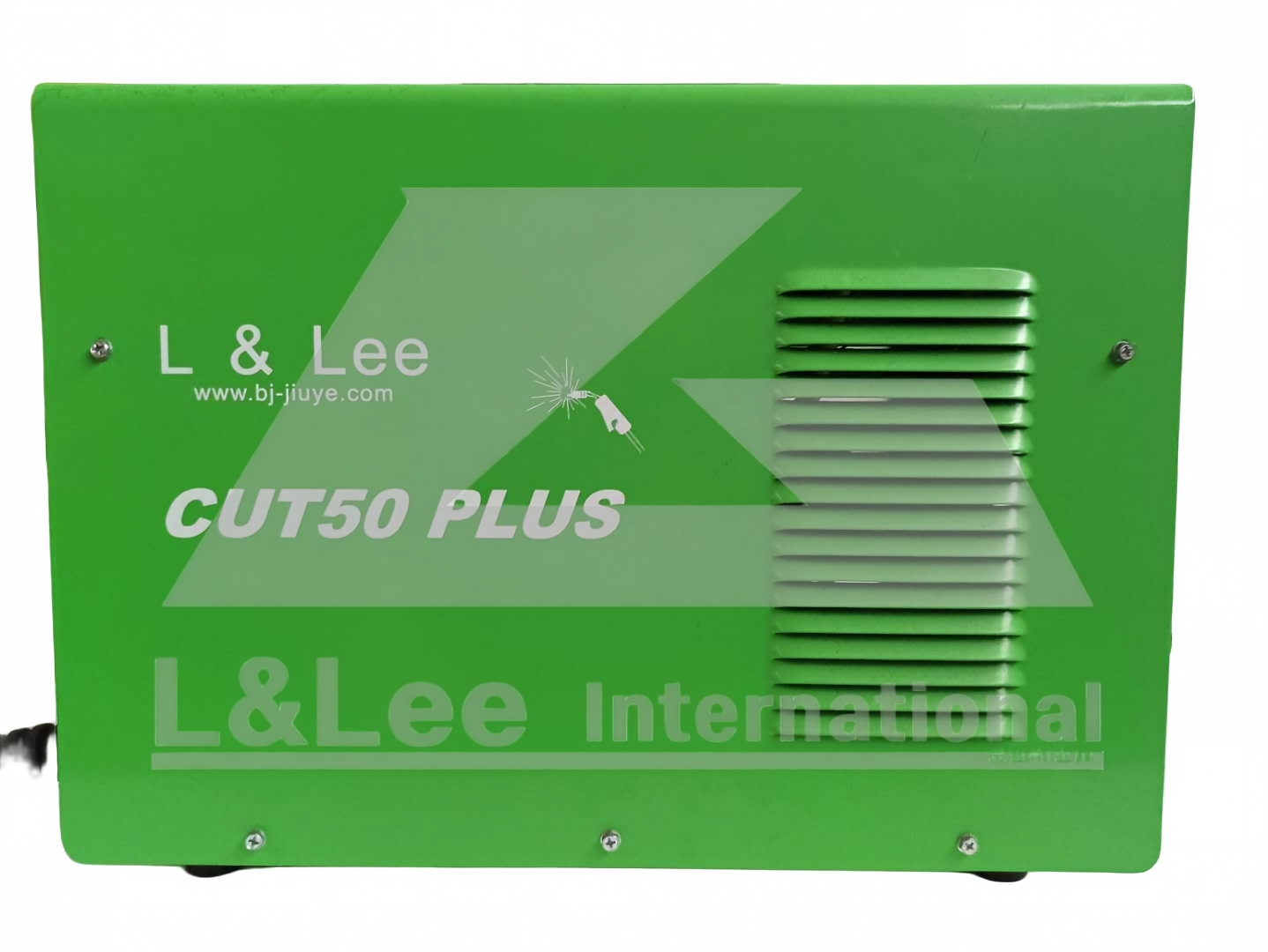

C. CUT50 PLUS Plasma cutter with Pilot Arc (Non-Touch Ignition)
Introductions
The CUT50 PLUS Plasma cutter utilizes the world’s most advanced inverter technology. Fitted with pilot arc ignition, this machine enables direct cutting on rusted or painted steel without prior cleaning of the workpiece. This cutter has broad application scope, suitable for cutting stainless steel, alloy steel, mild steel, copper and other non-ferrous metals.
We also offer the CUT70 and 3‑phase CUT100 models equipped with pilot arc ignition, allowing direct cutting on rusty and painted steel without prior surface cleaning.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | 5.8 |
| Rated output current (A) | 50 |
| Rated output voltage (V) | 96 |
| No-load voltage (V) | 230 |
| Duty Cycle | 60% |
| Insulation class | F |
| Protection class | IP23 |
| no touch arc-leading with HF vibration | Yes |
| Cut thinkness (MM): | 0-16 |
| Pressure for air (Kg/cm2) | 2-4Kg/cm2 and over 80L/min |
| Weight（Kg) | 16 |
| Dimensions (MM) | 425 × 205 × 355 |
Package Includes
- Unit
- 80A torch with tracking wheel and 5m leads
- Spare electroids of torch and Ceramics
- Air flow regulator
- Earthed leads 3m
D. CUT-60 Plasma cutter with LED display
Introductions
The CUT-60 Plasma cutter is manufactured with the world’s most advanced inverter technology. Our cutting machine offers the following advantages: stable performance, high reliability, lightweight design, energy-saving & low-noise operation, fast cutting speed, smooth cutting edges with no post-polishing required, and an LED digital ammeter display. This cutter has wide-ranging applications and is ideal for cutting stainless steel, alloy steel, mild steel, copper and other non-ferrous metals.
Important Operation Tip: Always initiate the arc on a clean surface. Once the arc stabilizes, you may proceed to cut rusted or painted steel.
We also offer the CUT50 PLUS,CUT70 and 3‑phase CUT100 models equipped with pilot arc ignition, allowing direct cutting on rusty and painted steel without prior surface cleaning.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | 7.9 |
| Rated output current (A) | 60 |
| Rated output voltage (V) | 100 |
| No-load voltage (V) | 270 |
| Duty Cycle | 60% |
| Insulation class | F |
| Protection class | IP23 |
| ARC-leading | HF vibration |
| Cut thinkness (MM): | 0-20 |
| Pressure for air (Kg/cm2) | 3-4Kg/cm2 and over 100L/min |
| Weight（Kg) | 23 |
| Dimensions (MM) | 550 × 280 × 550 |
Package Includes
- Unit
- 60A torch with 4.5m leads
- Spare electroids of torch and Ceramics
- Air flow regulator
- Earthed leads 3m

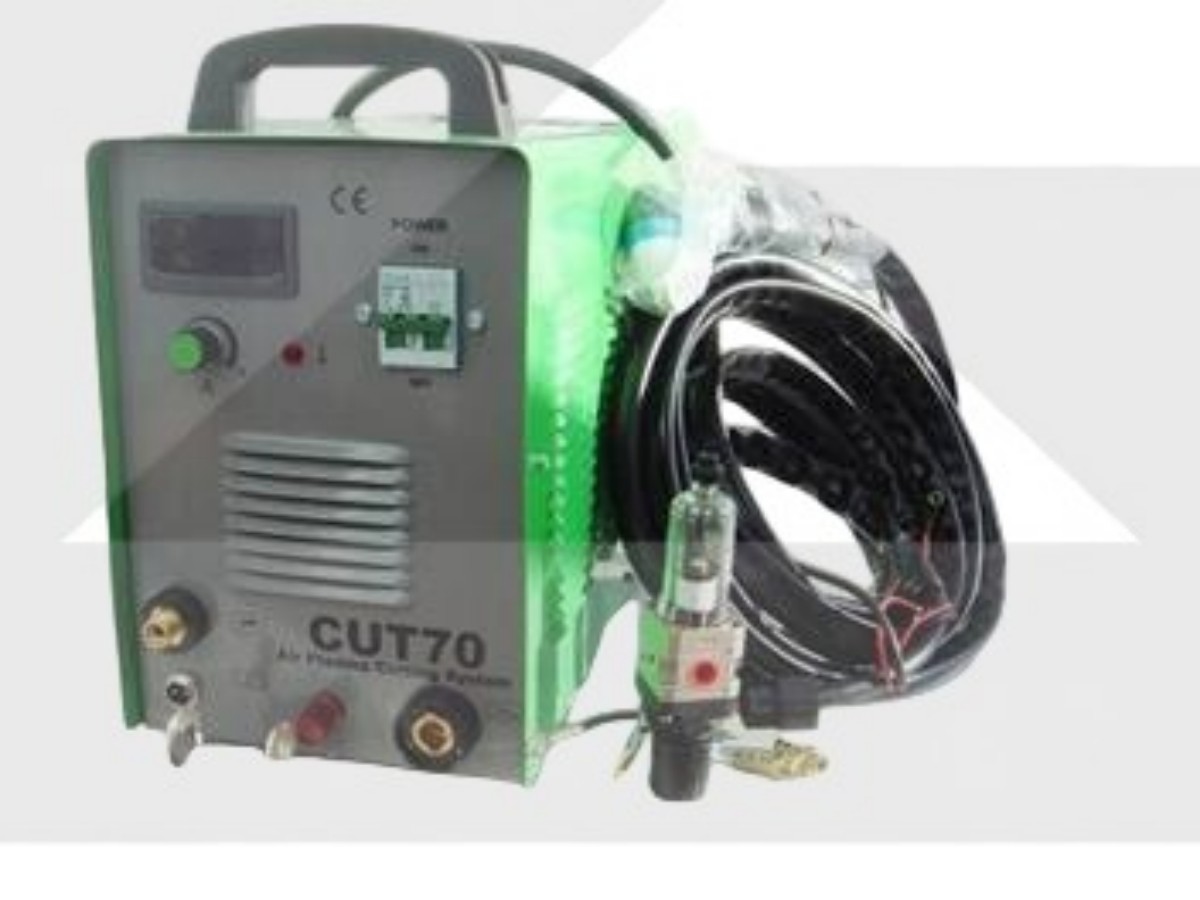

E. CUT70 Plasma cutter with Pilot Arc (Non-Touch Ignition)
Introductions
The CUT70 Plasma cutter adopts the world’s most advanced inverter technology. Equipped with pilot arc ignition, this machine allows you to cut rusted or painted steel directly without cleaning the workpiece beforehand. This cutter supports extensive applications, and it works great for cutting stainless steel, alloy steel, mild steel, copper and other non-ferrous metals.
We also offer the CUT50 PLUS,and 3‑phase CUT100 models equipped with pilot arc ignition, allowing direct cutting on rusty and painted steel without prior surface cleaning.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | 9.5 |
| Rated output current (A) | 70 |
| Rated output voltage (V) | 108 |
| No-load voltage (V) | 230 |
| Duty Cycle | 60% |
| Insulation class | F |
| Protection class | IP23 |
| no touch arc-leading with HF vibration | Yes |
| Cut thinkness (MM): | 0-28 |
| Pressure for air (Kg/cm2) | 3-4Kg/cm2 and over 120L/min |
| Weight（Kg) | 19 |
| Dimensions (MM) | 480 × 205 × 357 |
Package Includes
- Unit
- 80A torch with tracking wheel and 5m leads
- Spare electroids of torch and Ceramics
- Air flow regulator
- Earthed leads 3m
F. CUT-80 Plasma cutter with LED display
Introductions
The CUT-80 Plasma cutter is built with the world’s most advanced inverter technology. This cutting machine boasts the following core advantages: stable operation, high reliability, fast cutting speed, smooth cutting edges with no post-polishing required, and an LED digital ammeter display. This cutter covers a broad range of cutting applications and is suitable for stainless steel, alloy steel, mild steel, copper and other non-ferrous metals.
Operating Note: Always strike the arc on a clean surface first,Once the arc is established, you may cut rusted or painted steel.
We also offer the CUT50 PLUS,CUT70 and 3‑phase CUT100 models equipped with pilot arc ignition, allowing direct cutting on rusty and painted steel without prior surface cleaning.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | 8.2 |
| Rated output current (A) | 80 |
| Rated output voltage (V) | 108 |
| No-load voltage (V) | 270 |
| Duty Cycle | 60% |
| Insulation class | F |
| Protection class | IP23 |
| ARC-leading | HF vibration |
| Cut thinkness (MM): | 0-30 |
| Pressure for air (Kg/cm2) | 3-4Kg/cm2 and over 120L/min |
| Weight（Kg) | 28 |
| Dimensions (MM) | 475 × 330 × 470 |
Package Includes
- Unit
- 80A torch with tracking wheel and 5m leads
- Spare electroids of torch and Ceramics
- Air flow regulator
- Earthed leads 3m

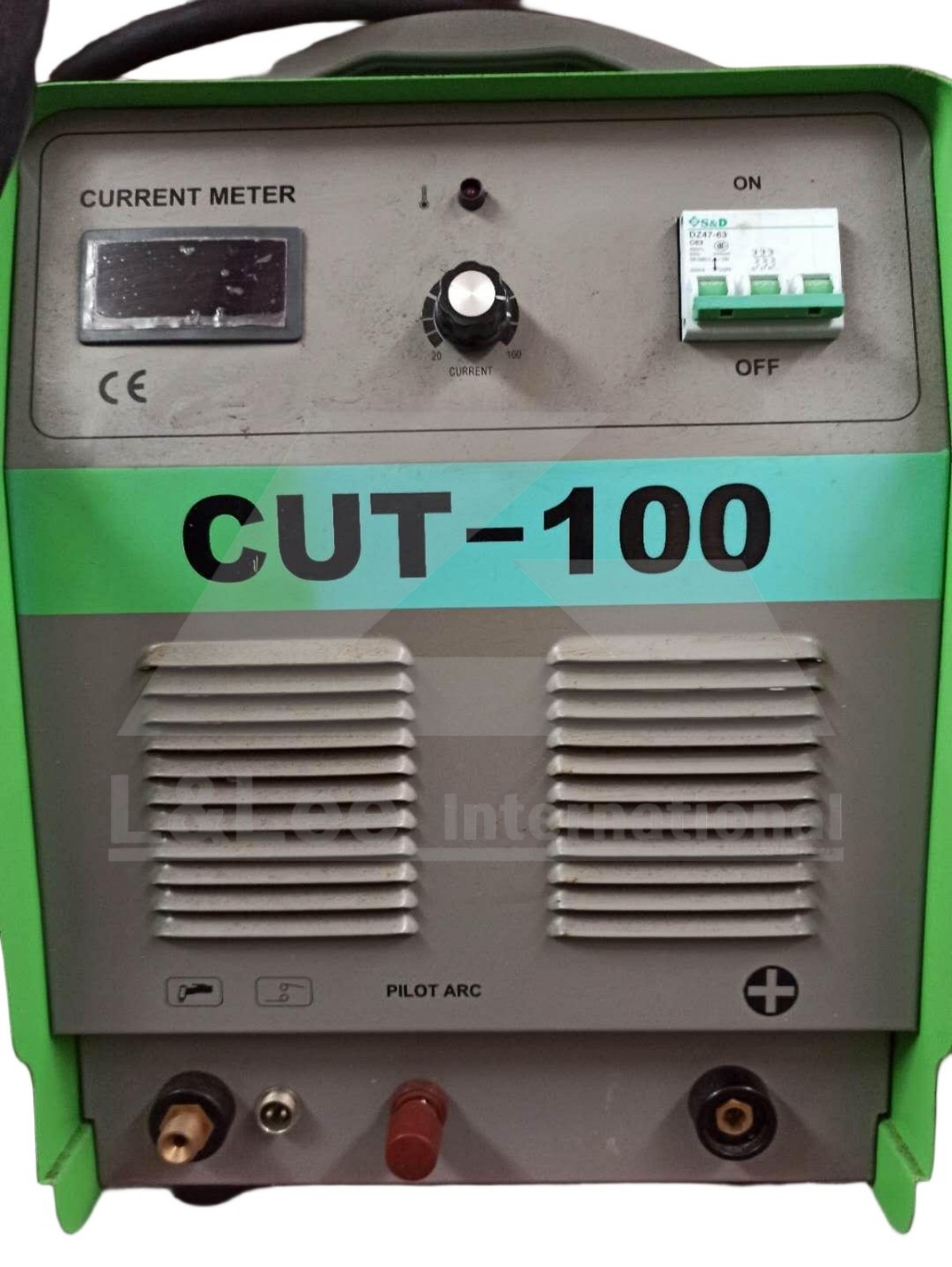

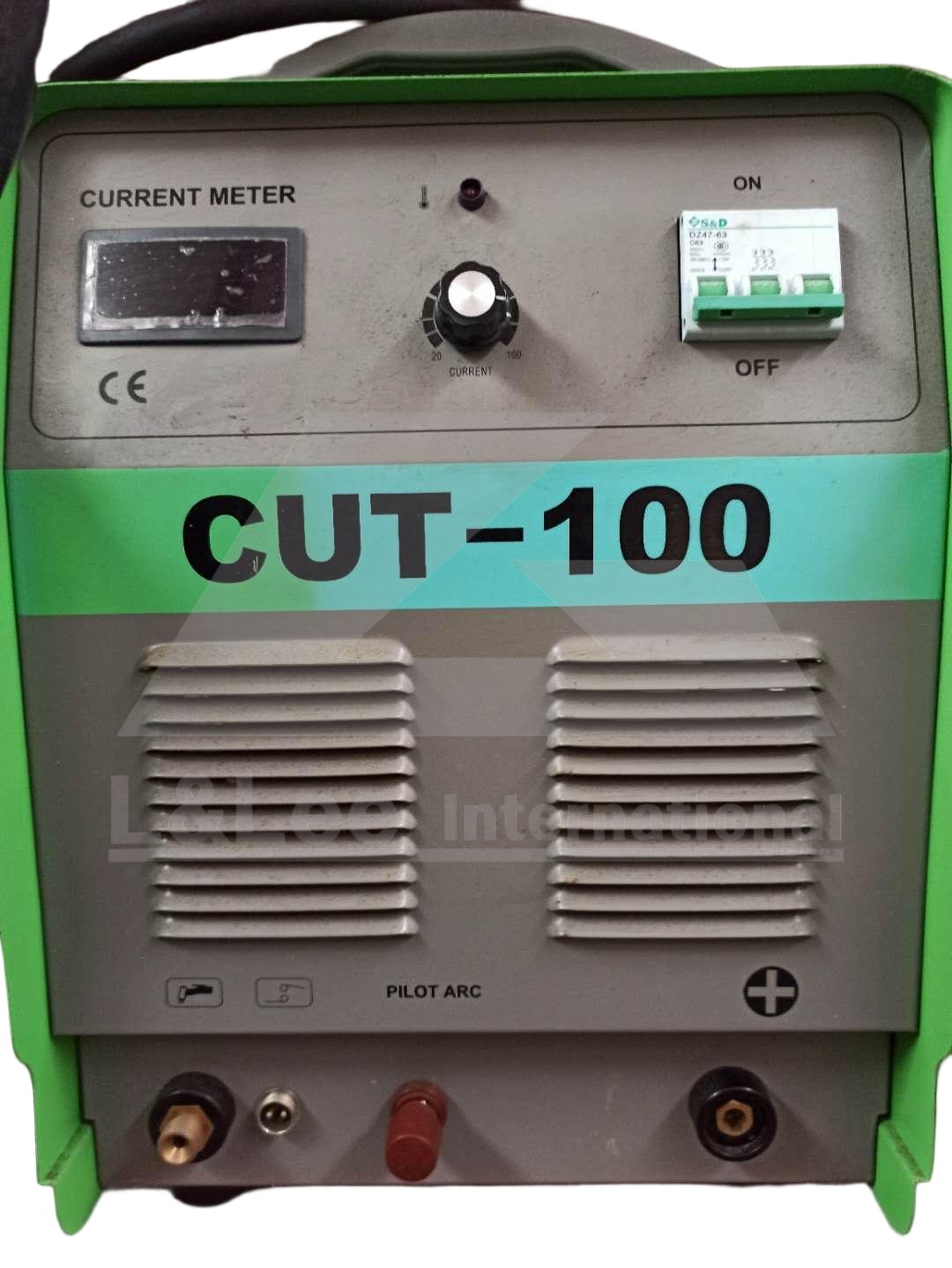

G. CUT-100 Plasma cutter three phase with Pilot Arc (Non-Touch Ignition)
Introductions
The CUT-100 Plasma cutter adopts the latest inverter technology, upgraded from previous-generation inverter systems. It delivers superior reliability and longer service life, and comes equipped with pilot arc ignition that enables direct cutting of painted or oily steel surfaces. This cutting machine features the following core advantages: stable operation, energy-saving & low-noise running, fast cutting speed, smooth cutting edges with no post-polishing required, and an LED digital ammeter display. This cutter supports extensive cutting applications and is suitable for stainless steel, alloy steel, mild steel, copper and other non-ferrous metals.
We also offer the CUT50 PLUS,CUT70 models equipped with pilot arc ignition, allowing direct cutting on rusty and painted steel without prior surface cleaning.
Specifications
| Power Voltage | Three Phase AC380V 50/60HZ |
| Input power capacitance (KVA) | 17 |
| Rated output current (A) | 100 |
| Rated output voltage (V) | 130 |
| No-load voltage (V) | 270 |
| Duty Cycle | 60% |
| Insulation class | F |
| Protection class | IP23 |
| no touch arc-leading with HF vibration | Yes |
| Cut thinkness (MM): | 0-30 |
| Pressure for air (Kg/cm2) | 6Kg/cm2 and Over 350L/min |
| Weight（Kg) | 35 |
| Dimensions (MM) | 560 × 360 × 480 |
Package Includes
- Unit
- 100A torch with tracking wheel and 5m leads
- Spare electroids of torch and Ceramics
- Air flow regulator
- Earthed leads 3m
