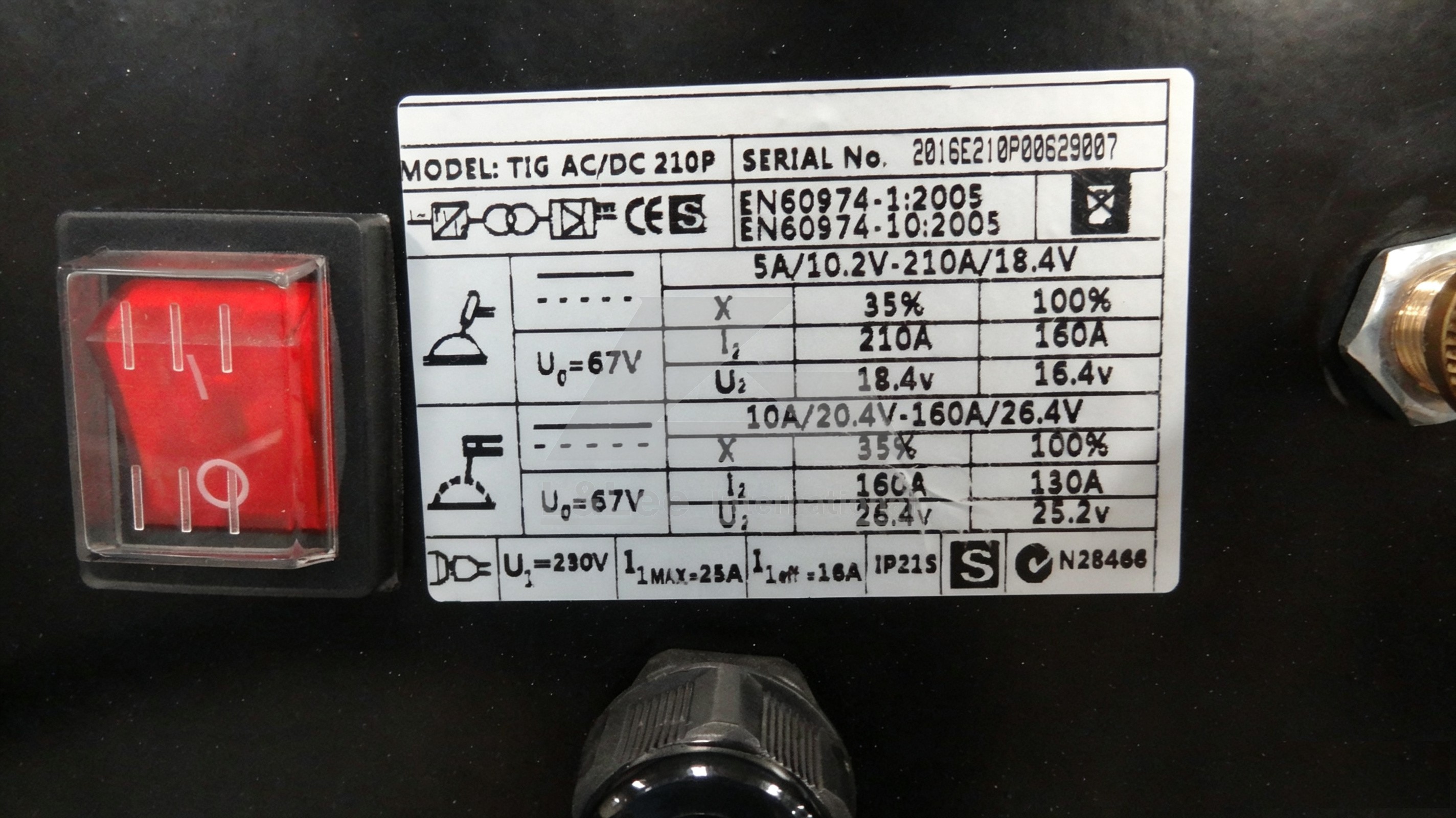

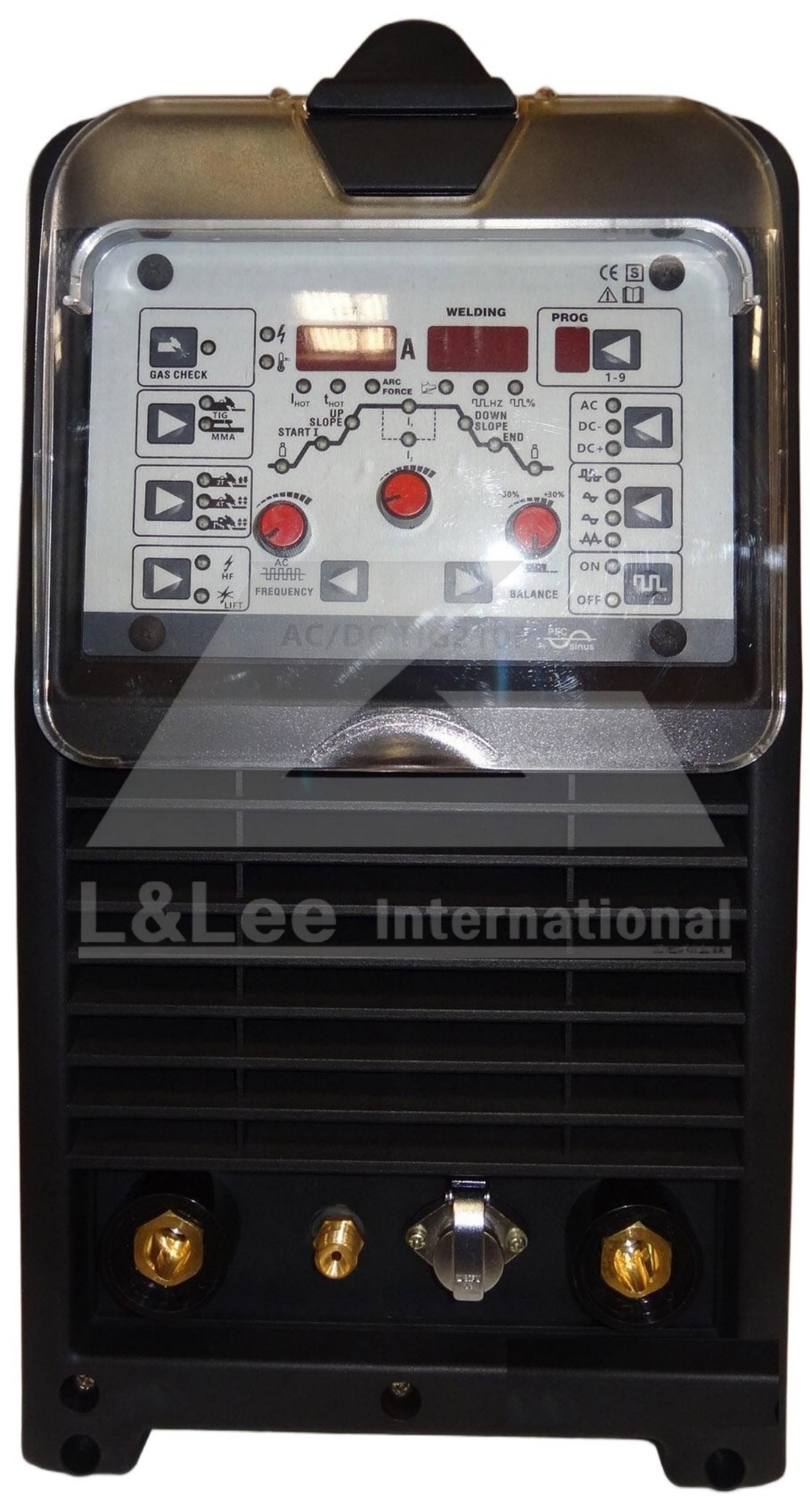

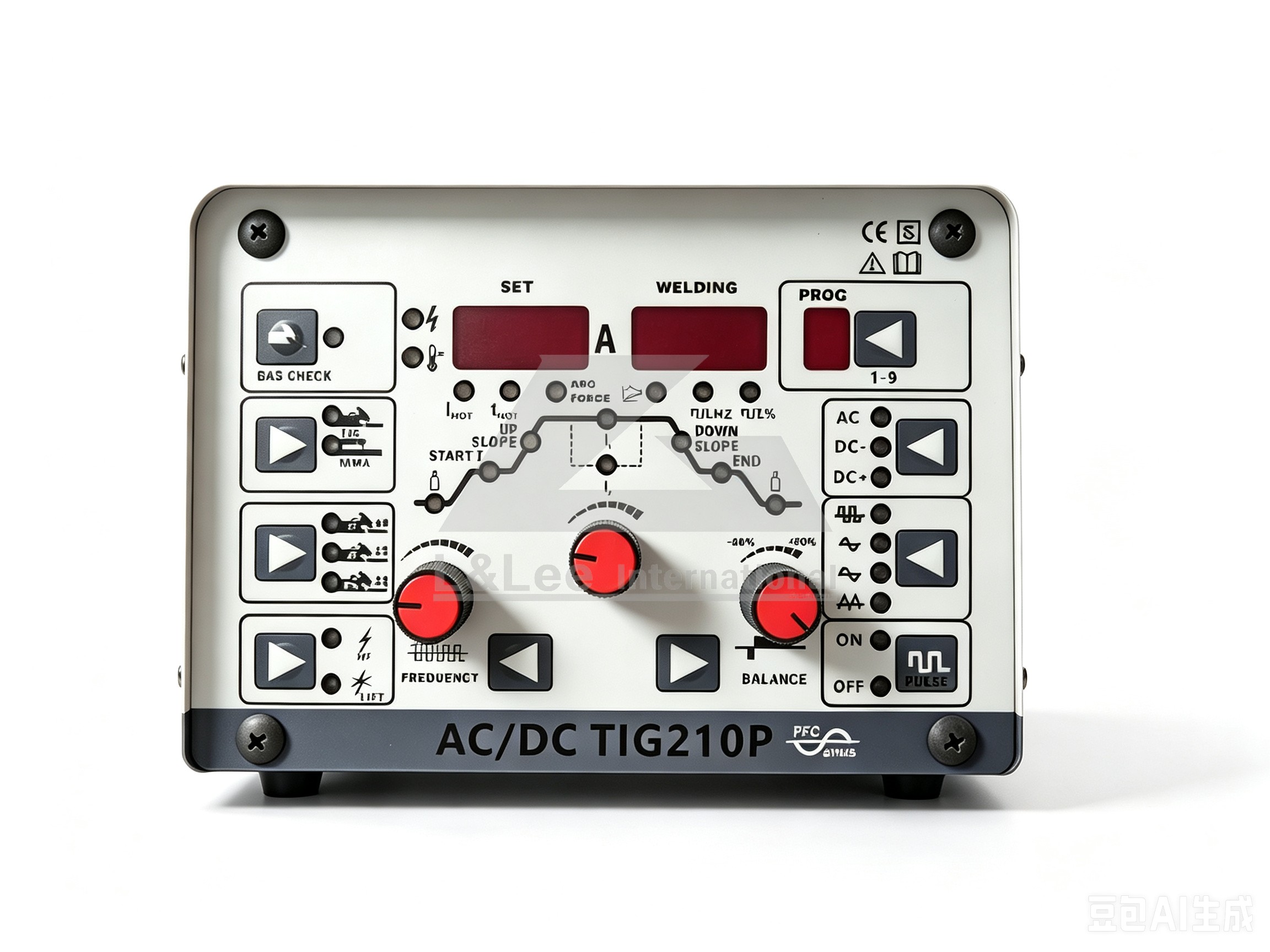

A. CPU210A AC/DC/Tig/Arc Pulse (IGBT) Welder
Introductions
210P AC/DC TIG/ARC Pulse Welder with CPU Microprocessor & Memory Function | Latest Design Adopts
European industrial design and advanced IGBT technology, equipped with CPU microprocessor control system. Pre-stored with 8 sets of welding parameter programs. Built-in voltage reduction device limits no-load open-circuit voltage to 5V, greatly improving operation safety.
The 210P multi-process welding machine supports both AC and DC welding modes. In DC mode, it is suitable for welding stainless steel, alloy steel, carbon steel, copper and other non-ferrous metals. The AC function enables reliable welding of aluminum and aluminum alloys.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | 5.7 |
| Rated output current (A) | 210 |
| Range of output current (A) | 20-210 |
| No-load voltage (V) | 67 |
| Efficiency (%) | 85 |
| MMA HOT START (%) | 0-100 |
| MMA HOT START TIME (S) | 0.5-2 |
| MMA Arc force (%) | 0-100 |
| AC frequency (HZ) | 35-250 |
| Pulse frequency (HZ) | DC=0.5-500 AC=0.5-10 |
| Pulse width (%) | 20-80 |
| Balance (%) | -50 +30 |
| Gas After start | Auto shutdown in 20 seconds if no operation is performed. |
| Pre flow (S) | 0-10 |
| Post flow (S) | 0-25 |
| Arc start (%) | 1-100 |
| Up slop time (S) | 0-10 |
| Remote control | Yes |
| ARC-leading | HF vibration and contact start |
| Electrode anti-sticking function | Yes |
| Duty Cycle | 35% 210A |
| Power factor | 0.99 |
| Insulation class | B |
| Case Protection Level | IP23 |
| Weight（Kg) | 22 |
| Dimensions (MM) | 500 × 230 × 470 |
Package Includes
- Unit
- Tig leads 4m with torch
- Spare tips of torch and Ceramics
- Tungsten( diameter 2.4mm X 150mm)
- Arc leads 3m
- Earthed leads 3m

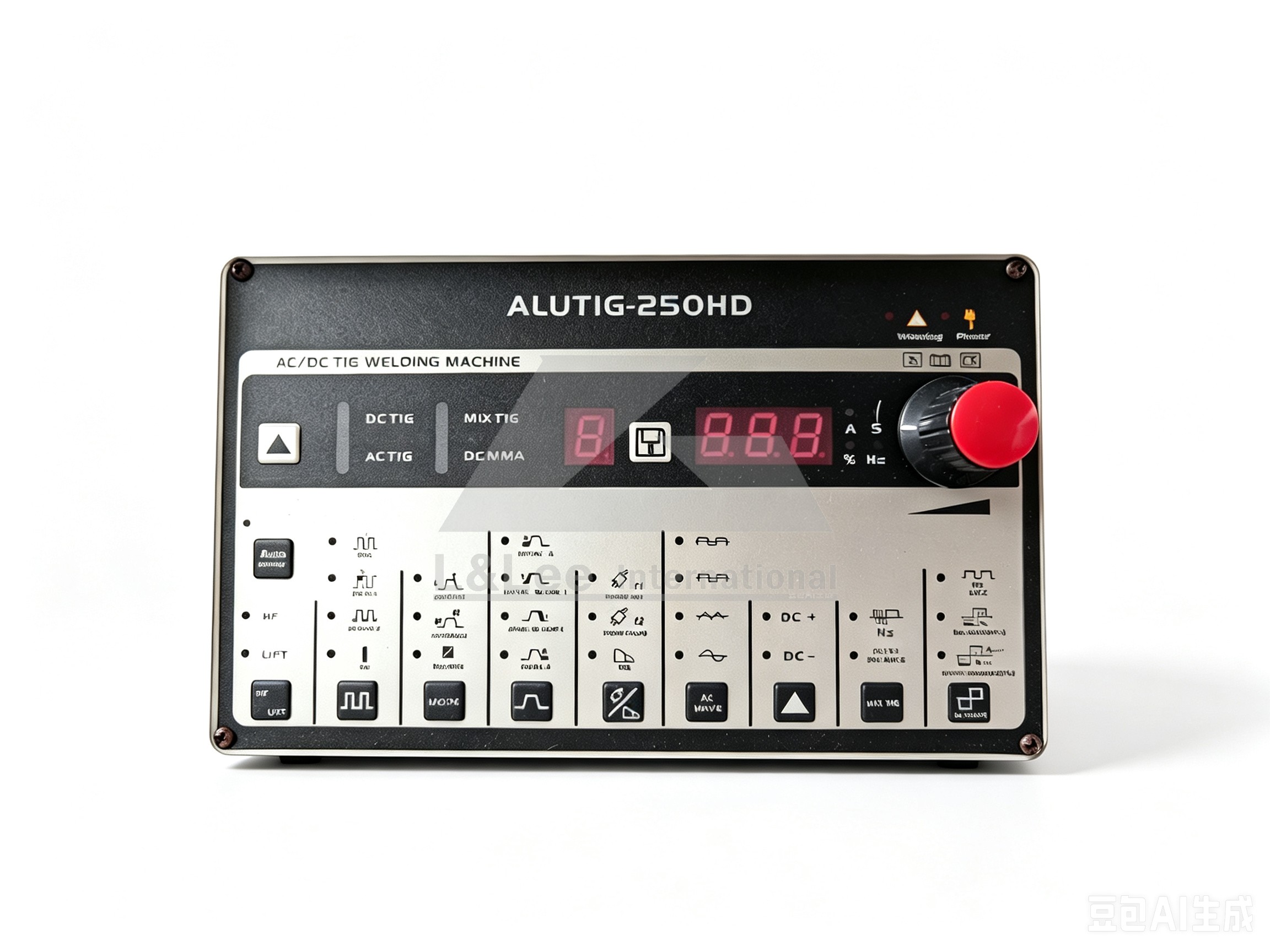

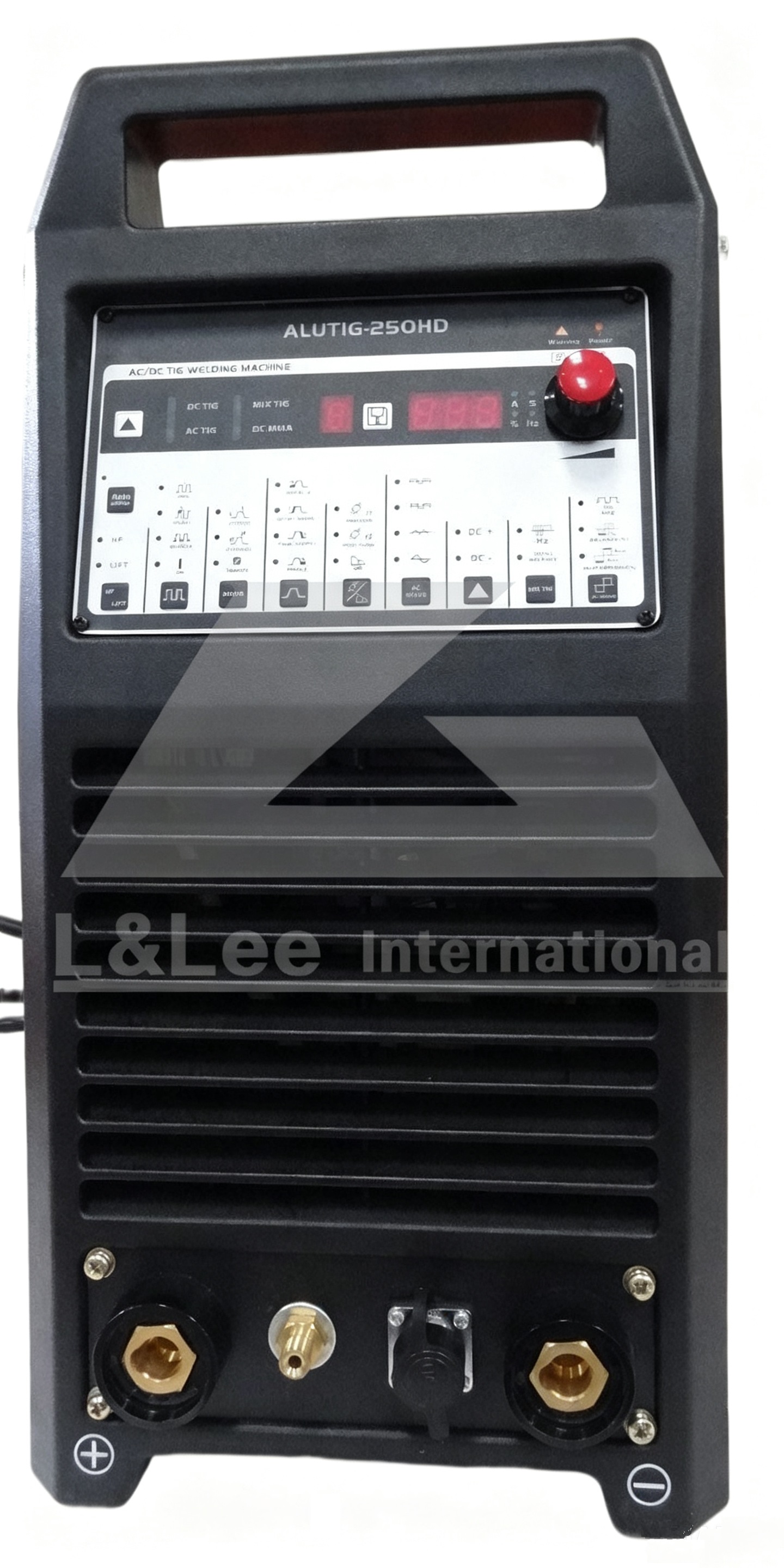

B. ALUTIG 250HD with MIX Tig function Welder
Introductions
Boasting American design and IGBT technology with CPU microprocessor control. It has 10 preset welding programs, plus a voltage reduction device limiting the open-circuit voltage to 10V to ensure user safety. A rotary knob for welding current adjustment is installed on the foot pedal controller.
The ALUTIG250HD is a multifunctional welder built with mixed TIG capability. It supports DC welding for stainless steel, alloy steel, carbon steel, copper and other non-ferrous metals, and AC welding specifically for aluminum and aluminum alloys.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | Tig:7.81, MMA:8.75 |
| TIG Pulse Peak Current (A) | 5~250 |
| Range of output current (A) | TIG: 5A/10.2V~250A/20V |
| Range of output current (A) | MMA:20A/20.8V~200A/28V |
| No-load voltage (V) | 70~80 |
| Efficiency (%) | 80 |
| MMA hot start current (A) | 10~200 |
| MMA hot start time (S) | 0.1~3 |
| MMA Arc force (A) | 10~200 |
| AC frequency (HZ) | 20~250 |
| AC clean width (AC Balance) | +40~ -40 |
| AC clean (AC Bias) (%) | +30~-50 |
| Tig mix frequency (HZ) | 0.1~5Hz |
| Pulse frequency (HZ) | DC=0.2~200, AC=0.5~10 |
| Pulse width (%) | 1~100 |
| DC Balance (%) | 20~80 |
| Arc-starting Current (A) | 5~250 |
| Crater filling Current (A) | 5~250 |
| Current up slop time (S) | 0.1~15 |
| Current down slop time (S) | 0.1~15 |
| Pre flow (S) | 0.1~15 |
| Post flow (S) | 0.1~15 |
| Spot Arc Time (S) | 0.1~10 |
| Remote control | Yes |
| ARC-leading | HF vibration and contact start |
| Electrode anti-sticking function | Yes |
| Duty cycle | 60% TIG:250A/20V and MMA:200A/28V. |
| Duty cycle | 100% TIG: 200A/18V and MMA:160A/26.4V. |
| Power factor | 0.8 |
| Insulation class | B |
| Case Protection Level | IP23 |
| Weight（Kg) | 23 |
| Dimensions (MM) | 540 × 240 × 480 |
Package Includes
- Unit
- Tig leads 4m with torch
- Spare tips of torch and Ceramics
- Tungsten( diameter 2.4mm)
- Arc leads 3m
- Earthed leads 3m

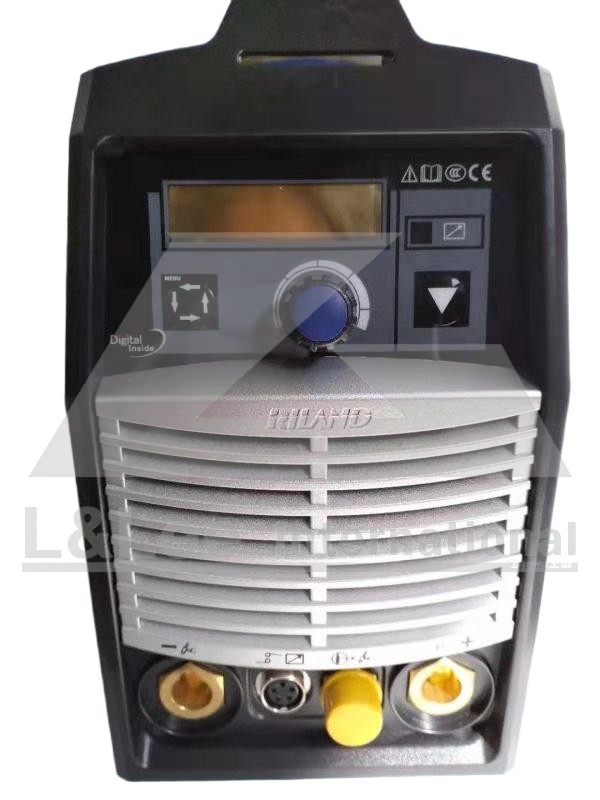

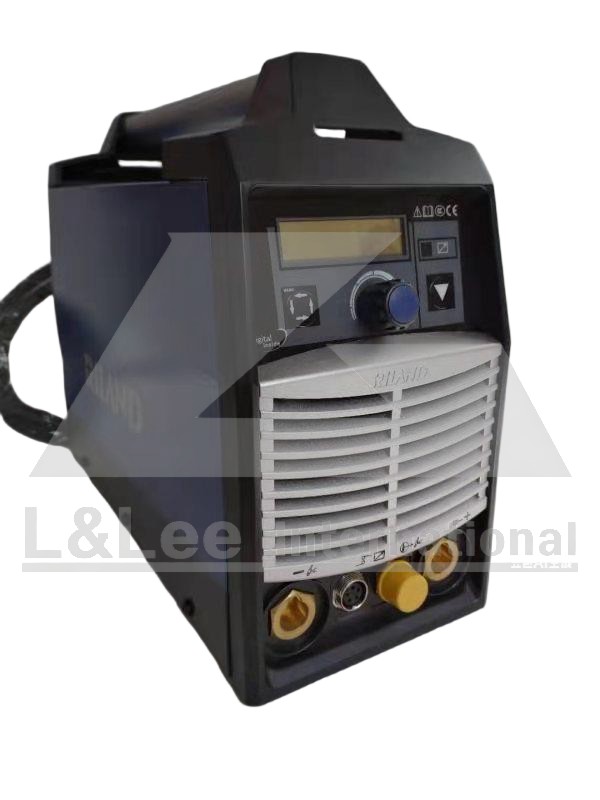

C. Rilon Tig200P AC/DC/Arc GDM 6.5kg Welder
Introductions
TIG200P AC/DC/ARC GDM (HF Start) is our newest model. It features digital control and user-friendly operation, perfectly suited for professional welders. Weighing only 6.25 kg, it is portable and convenient to transport for outdoor operations.
The TIG200P AC/DC/ARC is a multifunctional welding unit. Its core advantage lies in dual-mode welding capability: the DC mode works for stainless steel, alloy steel, carbon steel, copper and other non-aluminum metals, while the AC mode is dedicated to welding aluminum and aluminum alloys. It is an ideal upgraded welding machine for industries including architectural decoration, container fabrication, mechanical equipment installation, auto maintenance, as well as skateboard and bicycle production.
Specifications
| Power Voltage | AC230V 50/60HZ |
| The rated input of current（A) | 25.3(TIG/DC), 30(TIG/AC), 36.5(MMA) |
| Range of output current (A) | 15-160(TIG/DC), 20-180(TIG/AC), 20-160(MMA) |
| No-load voltage (V) | Tig/MMA 60 |
| The rated working voltage (V) | 16.4(TIG/DC), 17.2(TIG/AC), 26.4(MMA) |
| Efficiency(%) | 80 |
| ARC-leading | HF vibration |
| Duty cycle(%) | 25(TIG). 25(MMA) |
| Power factor | 0.72 |
| Insulation class | F |
| Case Protection Level | IP21S |
| High Frequency Arc Striking | Yes |
| Weight（Kg) | 6.25 |
| Dimensions (MM) | 315 × 135 × 250 |
Package Includes
- Unit
- The tig leads 4m with torch SR-26
- Spare tips of torch and Ceramics
- Tungsten( diameter 1.6mm X 150mm)
- Arc leads 3m
- Earthed leads 3m
