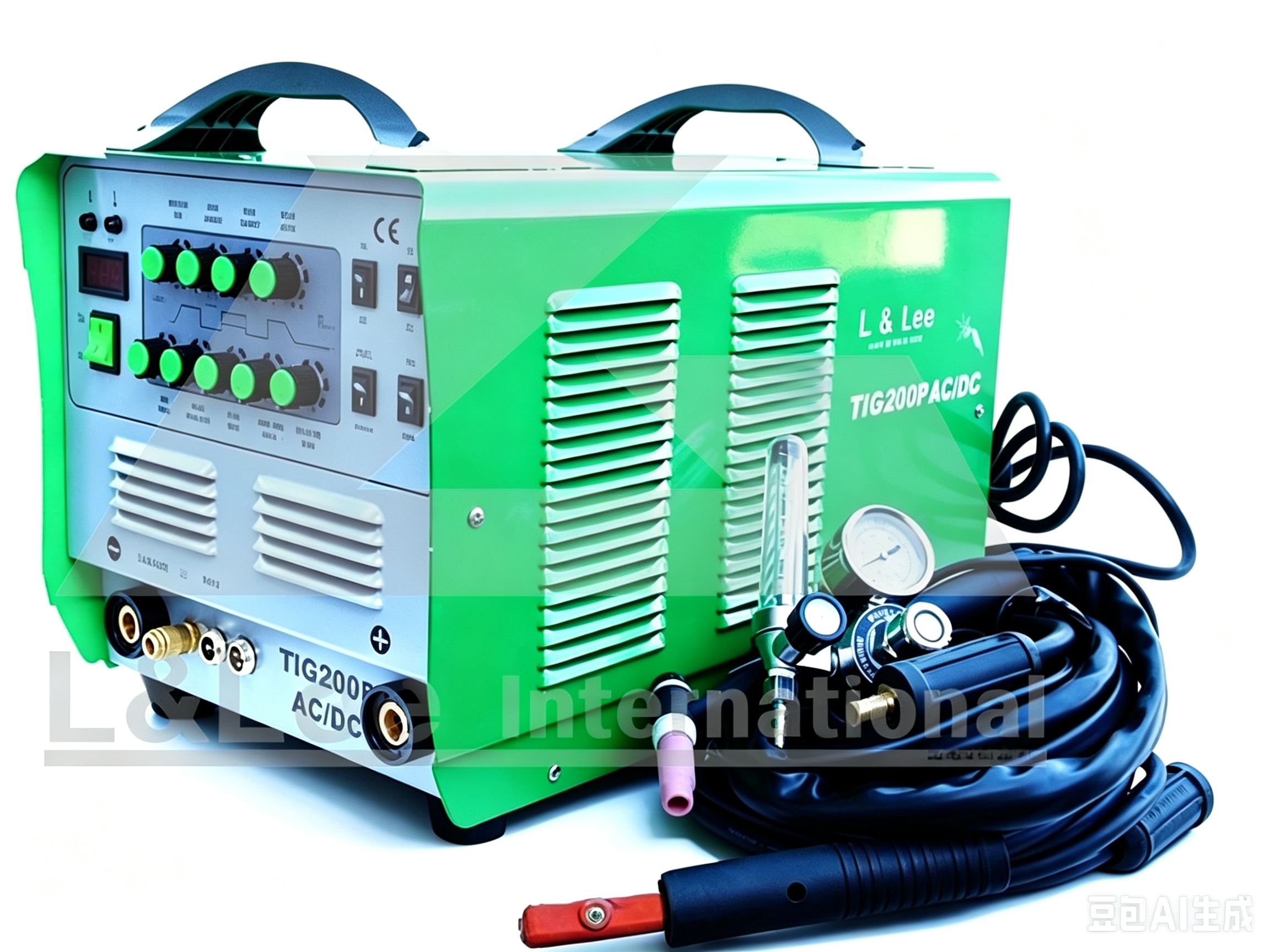

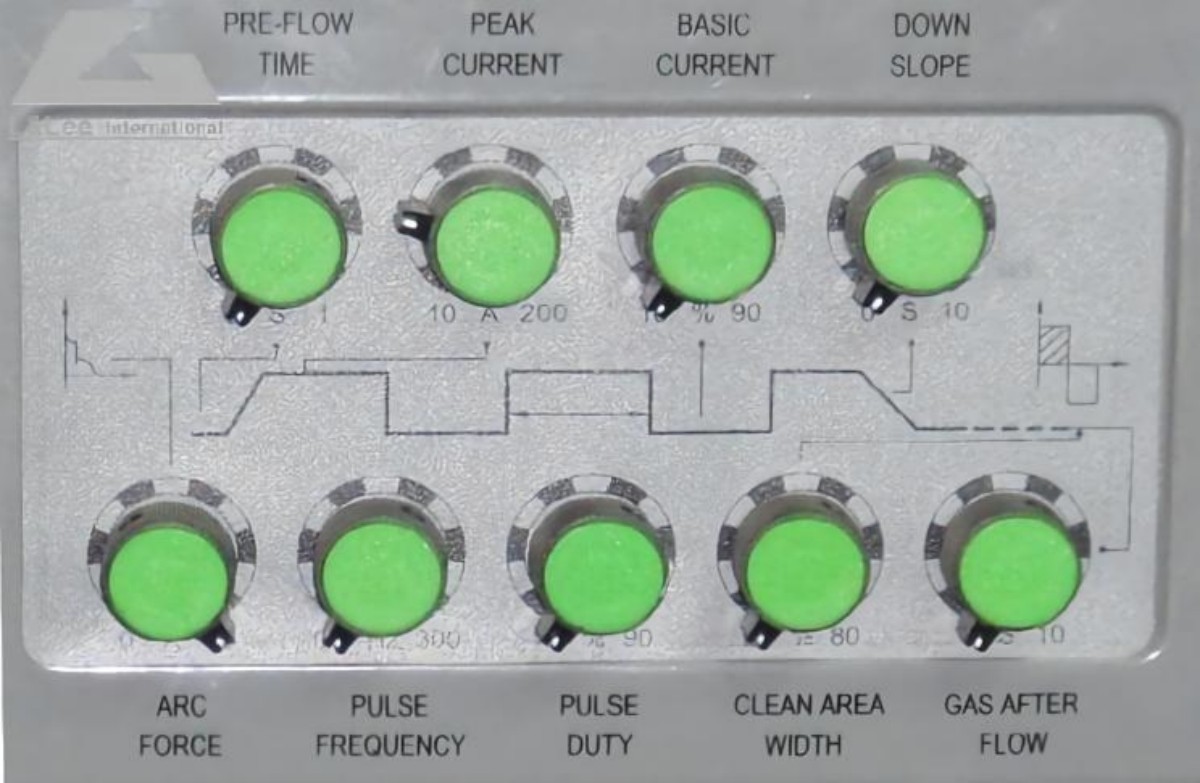

A. Tig200P AC/DC/ARC Welder
Introductions
Built on upgraded modern inverter technology, the TIG200P AC/DC/ARC delivers greater durability and stability. It combines pulse function, 2T/4T control, stick welding and AC/DC TIG welding. Welds stainless steel, carbon steel, copper via DC current, and aluminium alloys via AC current, perfectly suited for decoration, container making, machinery fitting, vehicle and bicycle maintenance.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | 4.5 |
| Rated output current (A) | 200 |
| Range of output current (A) | 20-200 |
| No-load voltage (V) | 56 |
| Working voltage (V) | 18 |
| Remote control | Yes |
| ARC-leading | HF vibration |
| Duty Cycle | 60% |
| Power factor | 0.93 |
| Max welding thickness (MM) DC | 10 |
| Insulation class | F |
| Case Protection Level | IP23 |
| High Frequency Arc Striking | Yes |
| Weight（Kg) | 25 |
| Dimensions (MM) | 493 × 330 × 320 |
Package Includes
- Unit
- The tig leads 4m with torch SR-26
- Spare tips of torch and Ceramics
- Tungsten( diameter 1.6mm X 150mm)
- Arc leads 3m
- Earthed leads 3m

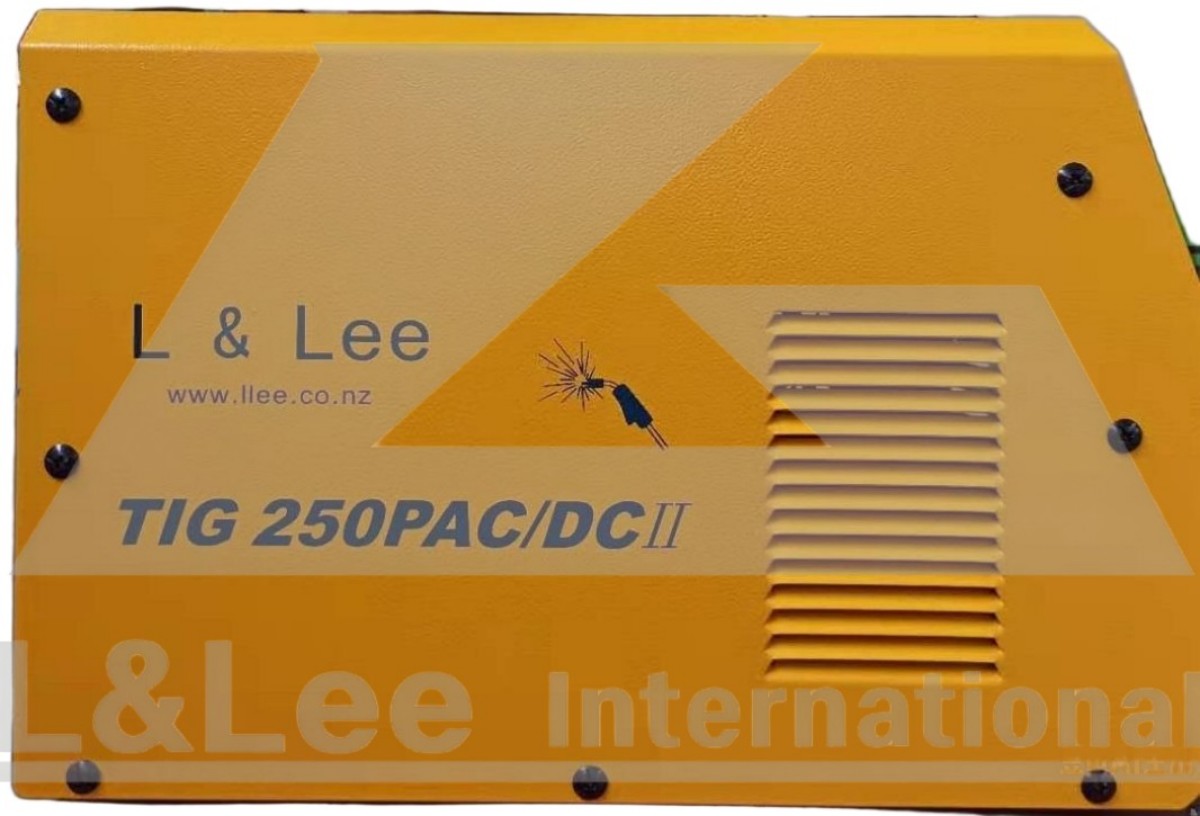

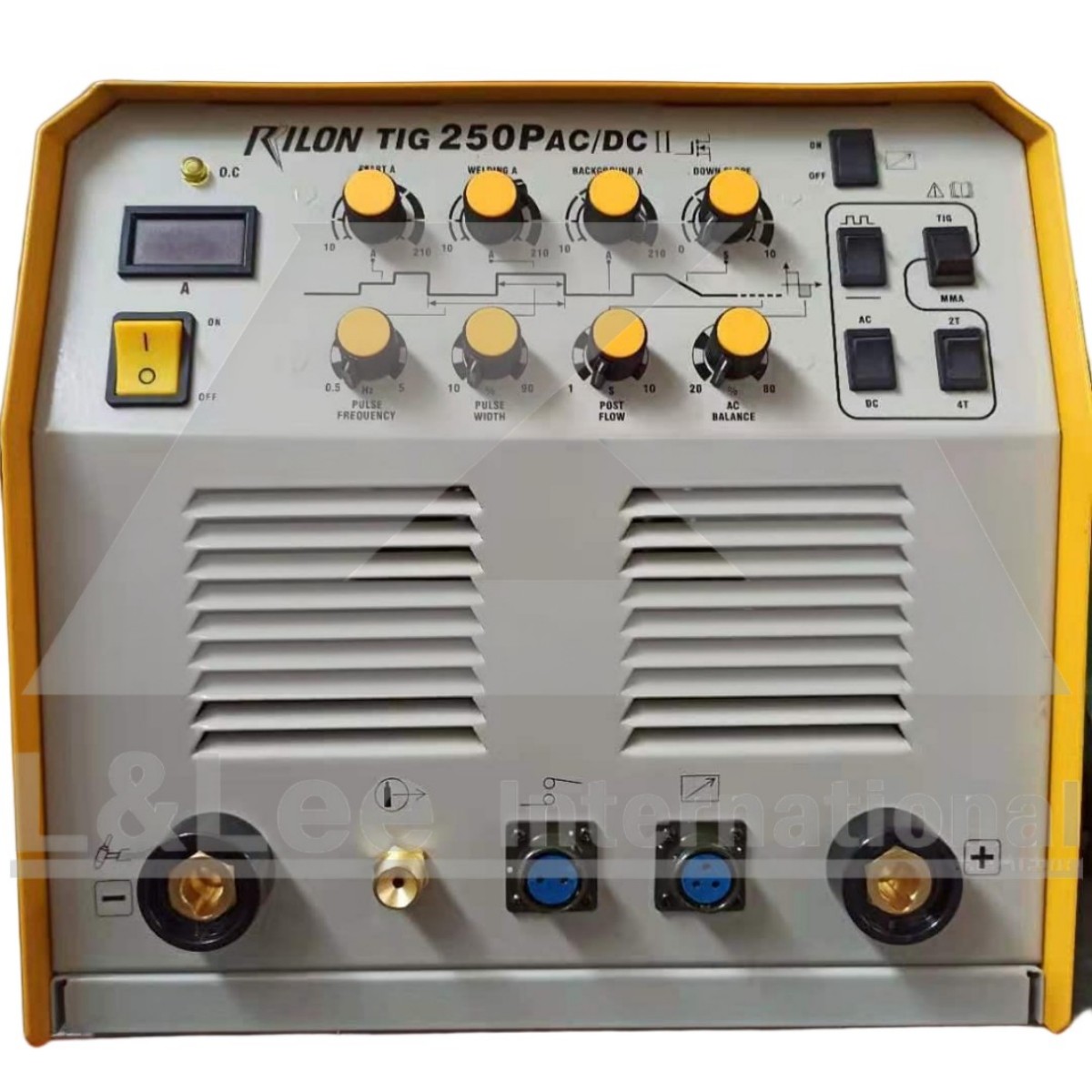

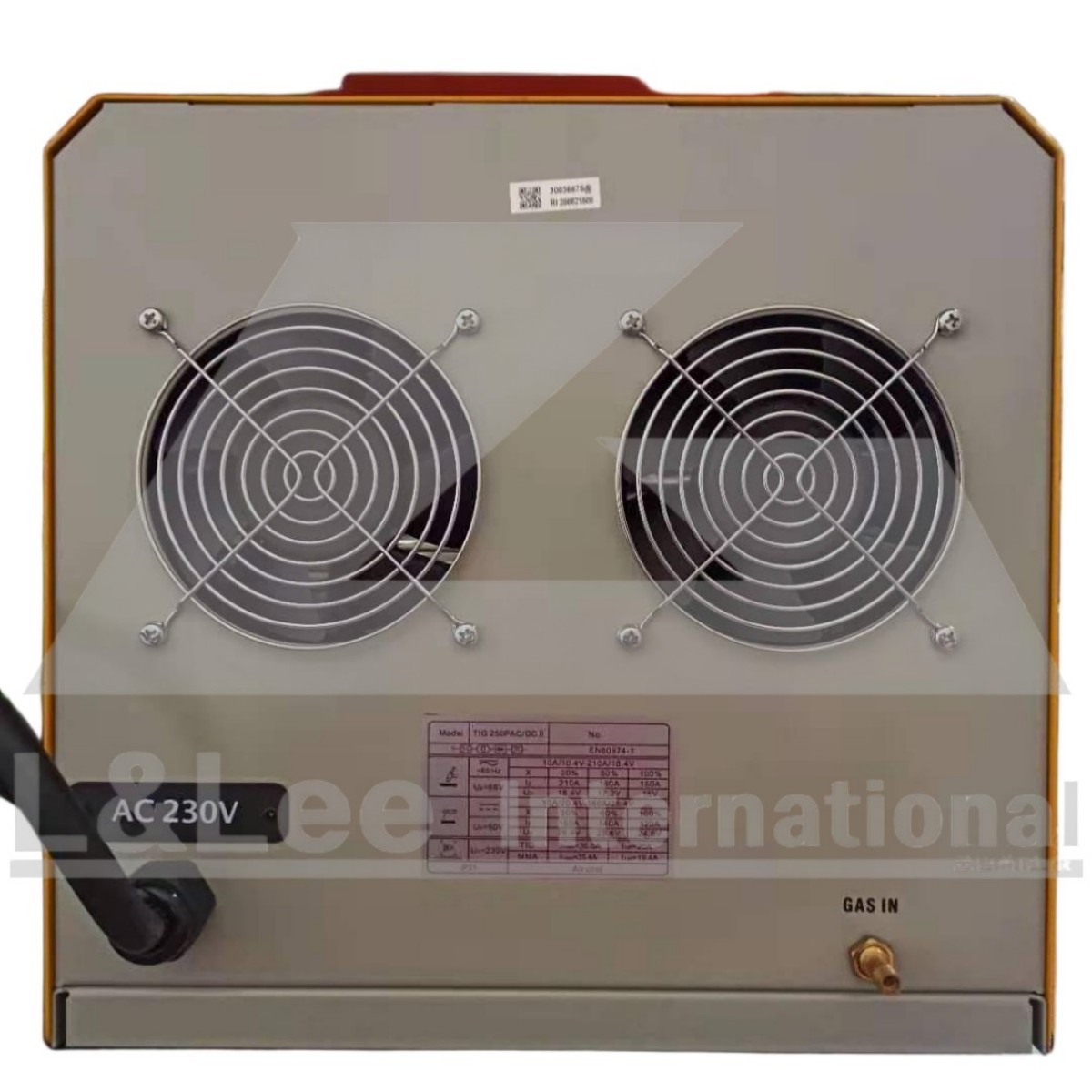

B. Rilon Tig250P II AC/DC/ARC Welder (WSE250)
Introductions
The TIG250PII AC/DC/ARC welder with high-frequency (HF) ignition applies the newest pure inverter technology. Produced by the globally well-known Rilon brand, it boasts high reliability and long service life, making it perfectly suited for industrial and professional welding work. This is a multifunctional welding machine. Its core strength is dual welding modes: the DC mode works for stainless steel, alloy steel, carbon steel, copper and other metals, while the AC mode is specially developed for aluminium and aluminium alloy welding. It serves as an ideal upgraded welding tool for construction decoration, container fabrication, mechanical equipment installation, auto repair, as well as skateboard and bicycle manufacturing and other relevant industries.
Specifications
| Power Voltage | AC230V 50/60HZ |
| The rated input of current（A) | 36 |
| The rated output voltage (V) | Tig 18.4 MMA:26.4 |
| Range of output current (A) | Tig:10-210, MMA:10-160 |
| No-load voltage (V) | Tig:68, MMA:60 |
| Remote control | Yes |
| ARC-leading | HF vibration |
| Power factor | 0.73 |
| Max welding thickness (MM) DC | 10 |
| Insulation class | F |
| Case Protection Level | IP21 |
| High Frequency Arc Striking | Yes |
| Weight（Kg) | 20 |
| Dimensions (MM) | 476 × 340 × 402 |
Package Includes
- Unit
- The tig leads 4m with torch SR-26
- Spare tips of torch and Ceramics
- Tungsten( diameter 1.6mm X 150mm)
- Arc leads 3m
- Earthed leads 3m

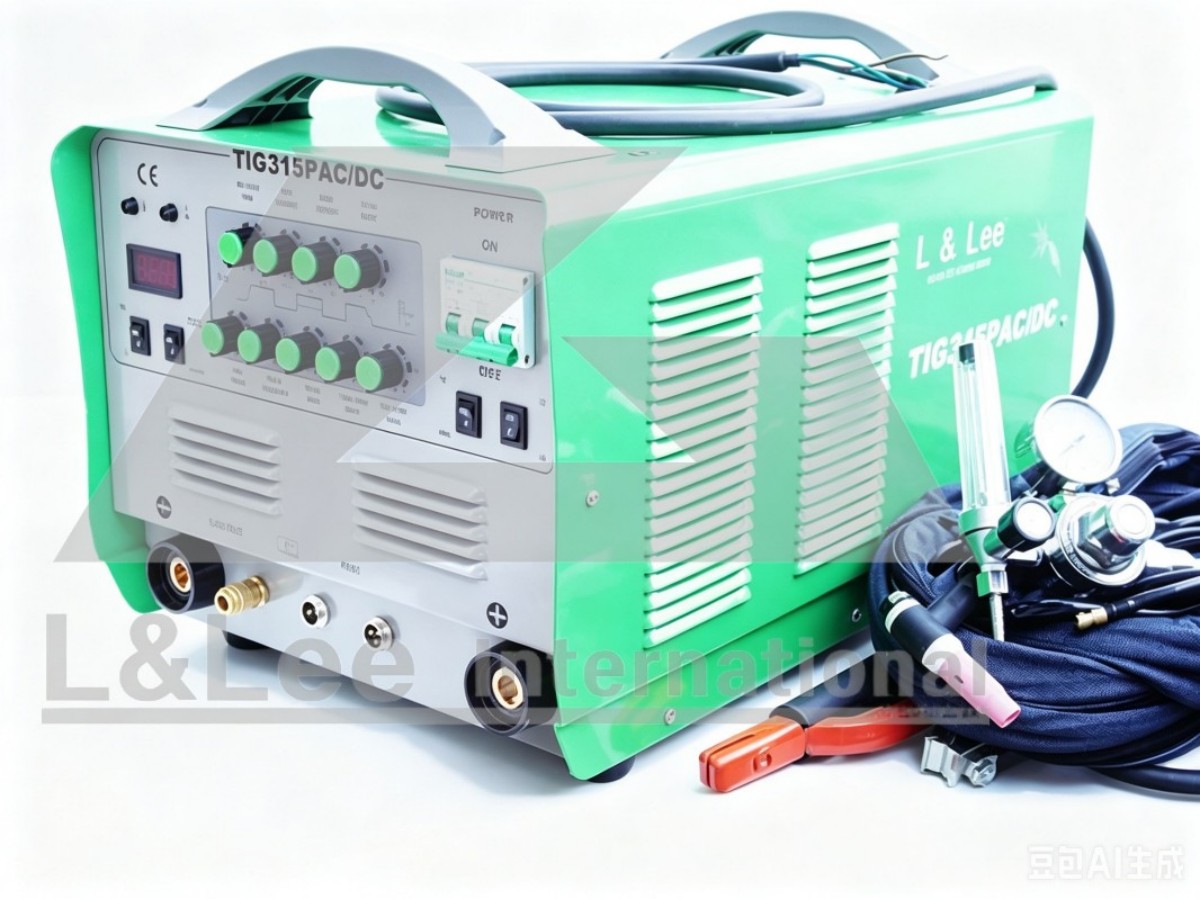

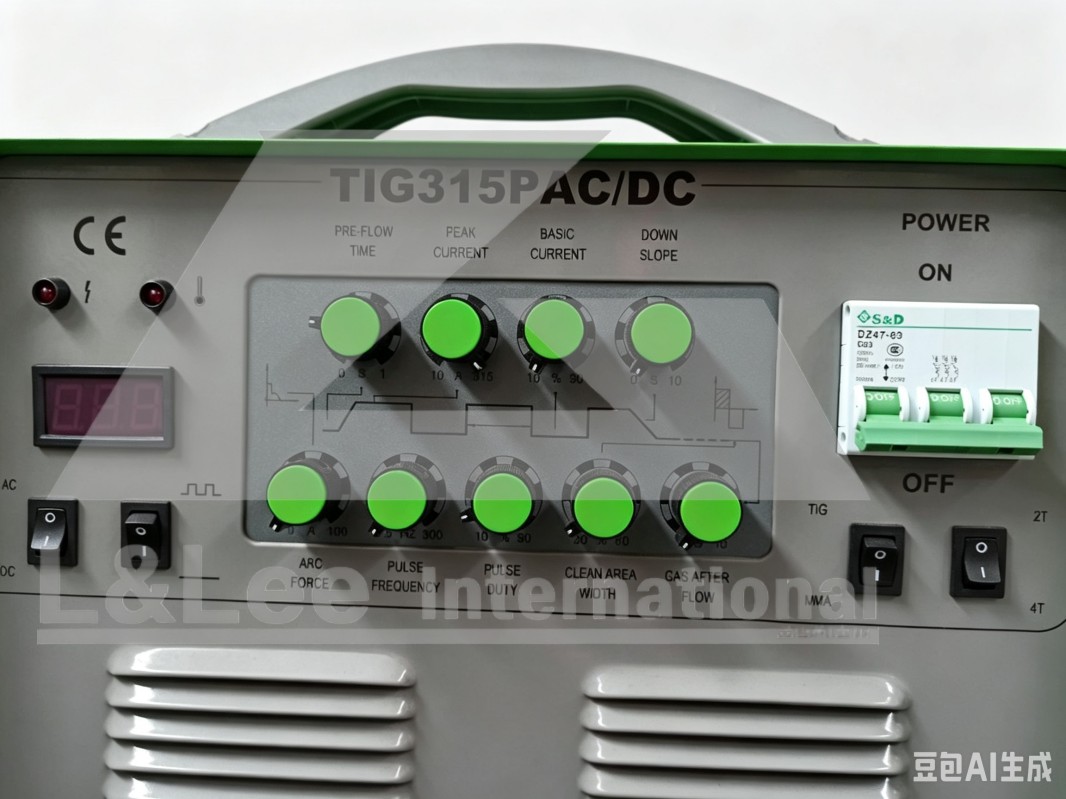

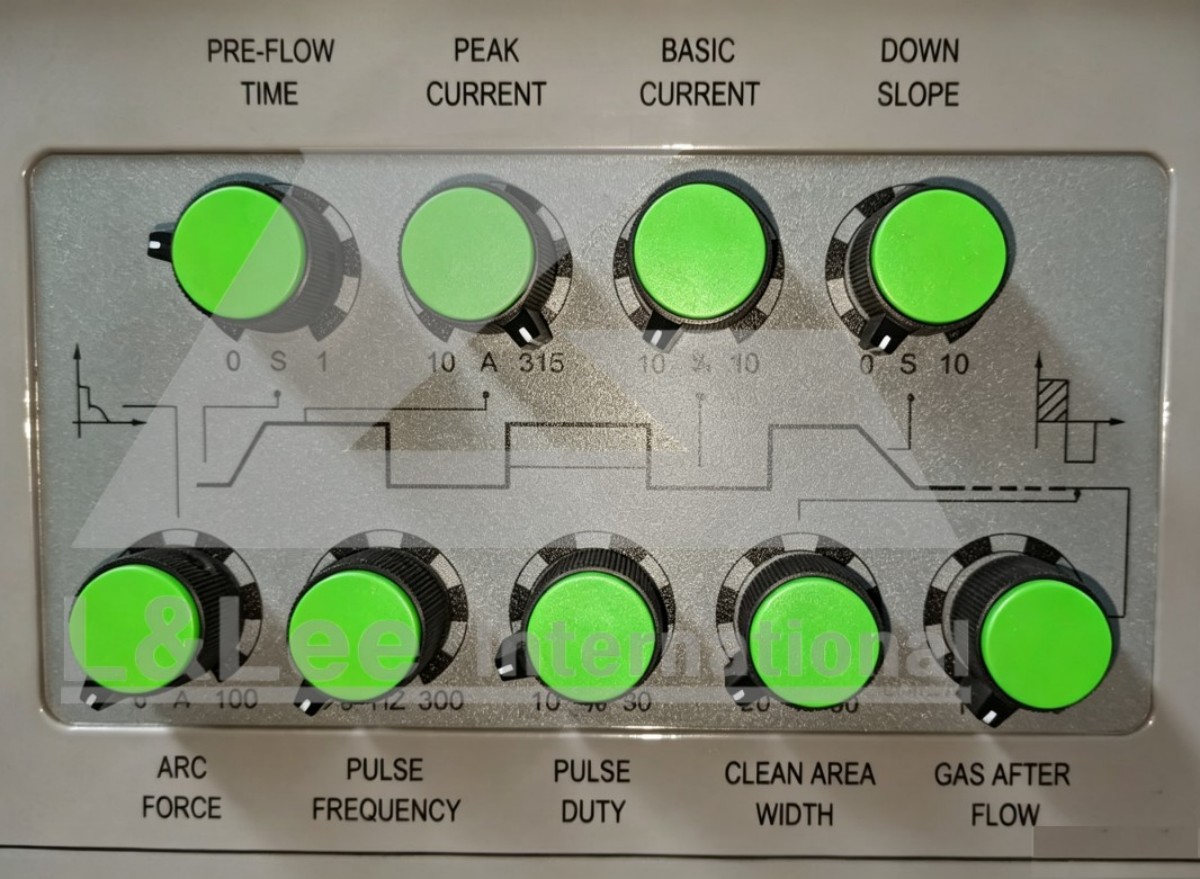

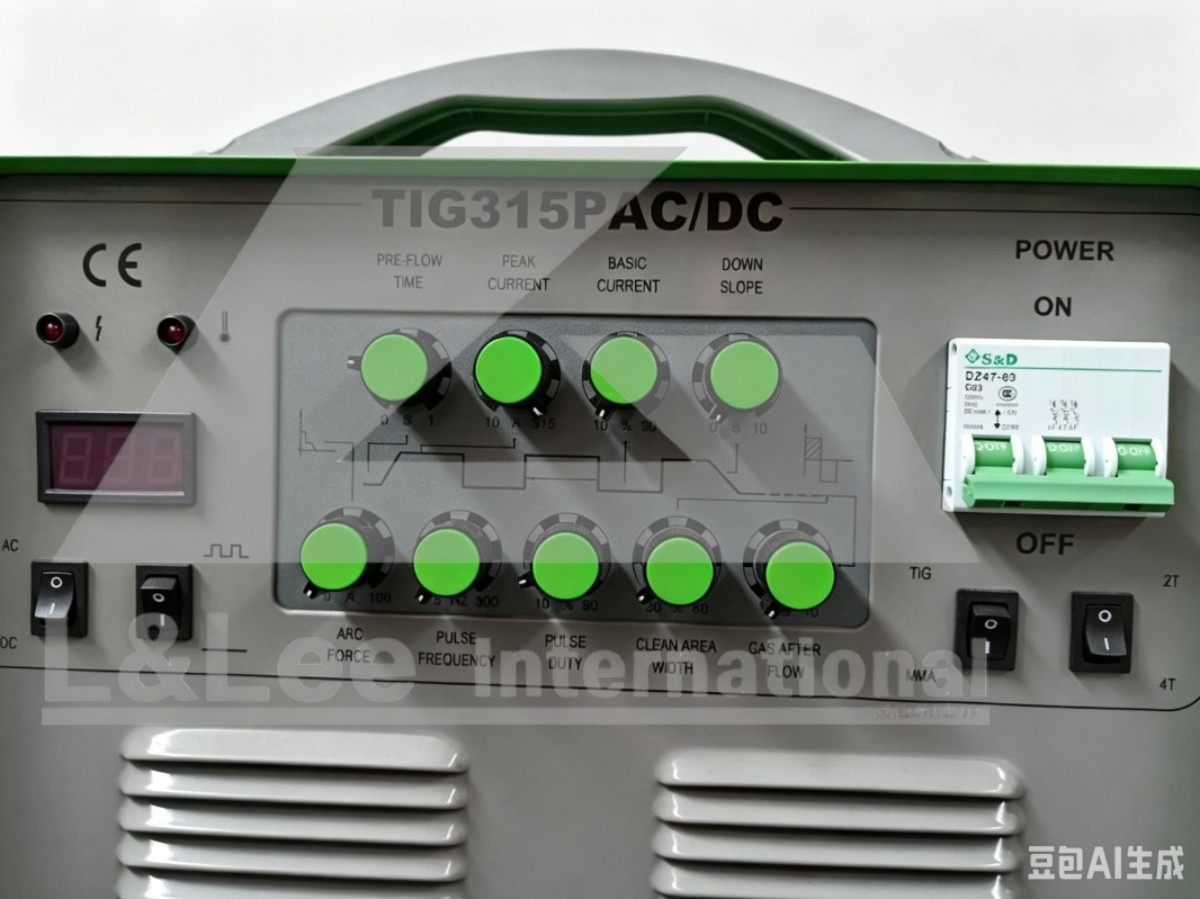

C. Tig315P AC/DC/ARC Welder
Introductions
This 380V TIG315 Pulse AC/DC/ARC welder uses upgraded inverter tech for sturdy industrial use with great reliability and durability. It supports pulse, 2T/4T, stick welding and AC/DC TIG. DC welds stainless steel, carbon steel, copper and alloys; AC is for aluminum & aluminum alloys, ideal for decoration, container, machinery, auto and bicycle fabrication.
Specifications
| Power Voltage | AC380V 50/60HZ 3 phase |
| The rated input of current（A) | 19 |
| Input power capacitance (KVA) | 8.9 |
| Rated output current (A) | 315 |
| Range of output current (A) | 20-315 |
| No-load voltage (V) | 45 |
| Working voltage (V) | 23 |
| Remote control | Yes |
| ARC-leading | HF vibration |
| Power factor | 0.93 |
| Max welding thickness (MM) DC | 15 |
| Insulation class | F |
| Case Protection Level | IP23 |
| High Frequency Arc Striking | Yes |
| Weight（Kg) | 37 |
| Dimensions (MM) | 700 × 460 × 415 |
Package Includes
- Unit
- The water cooled tig torch wp-18 with 4m leads
- Spare tips of torch and Ceramics
- Tungsten( diameter 2.4mm X 150mm)
- Arc leads 3m
- Earthed leads 3m
