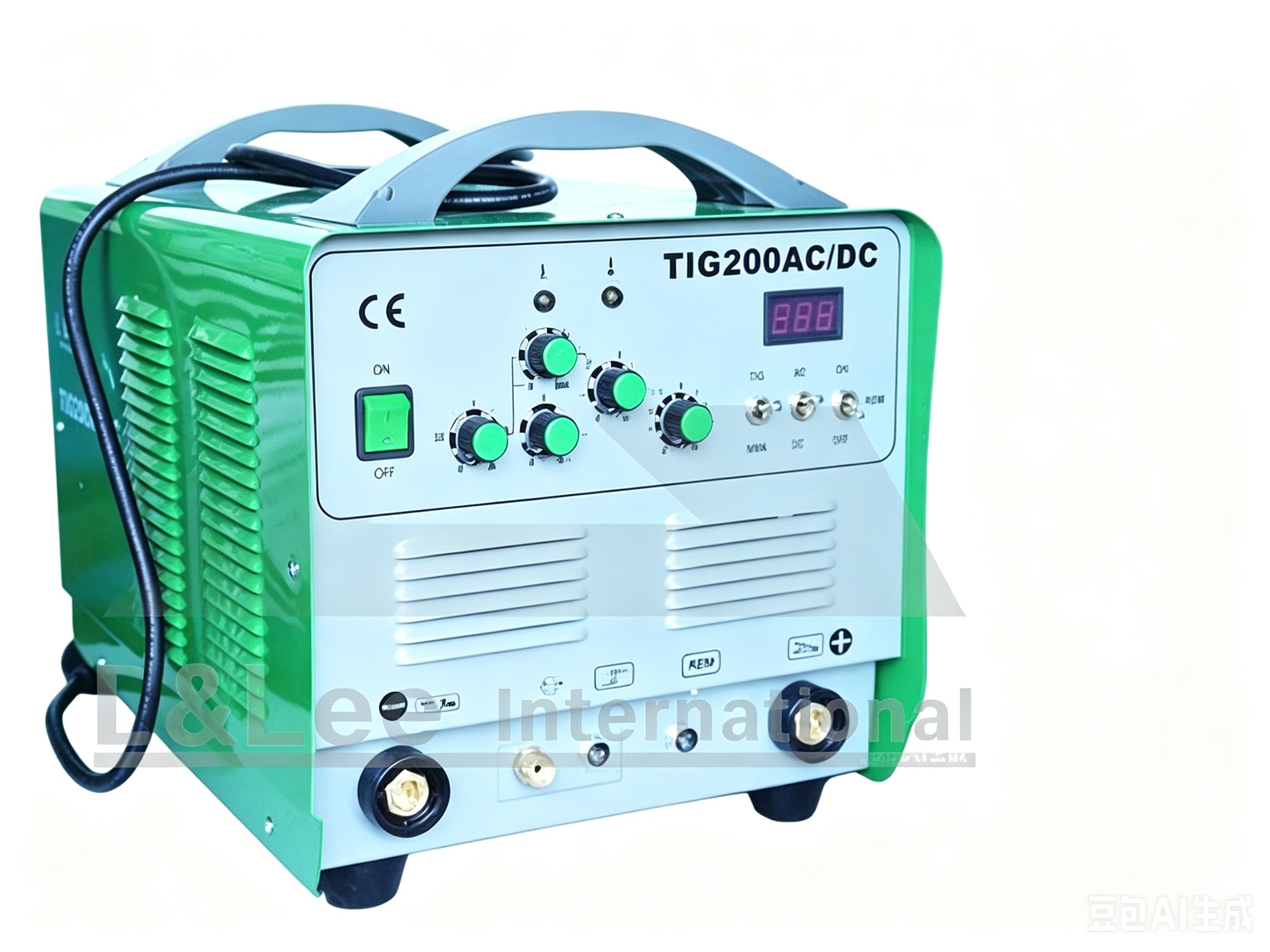

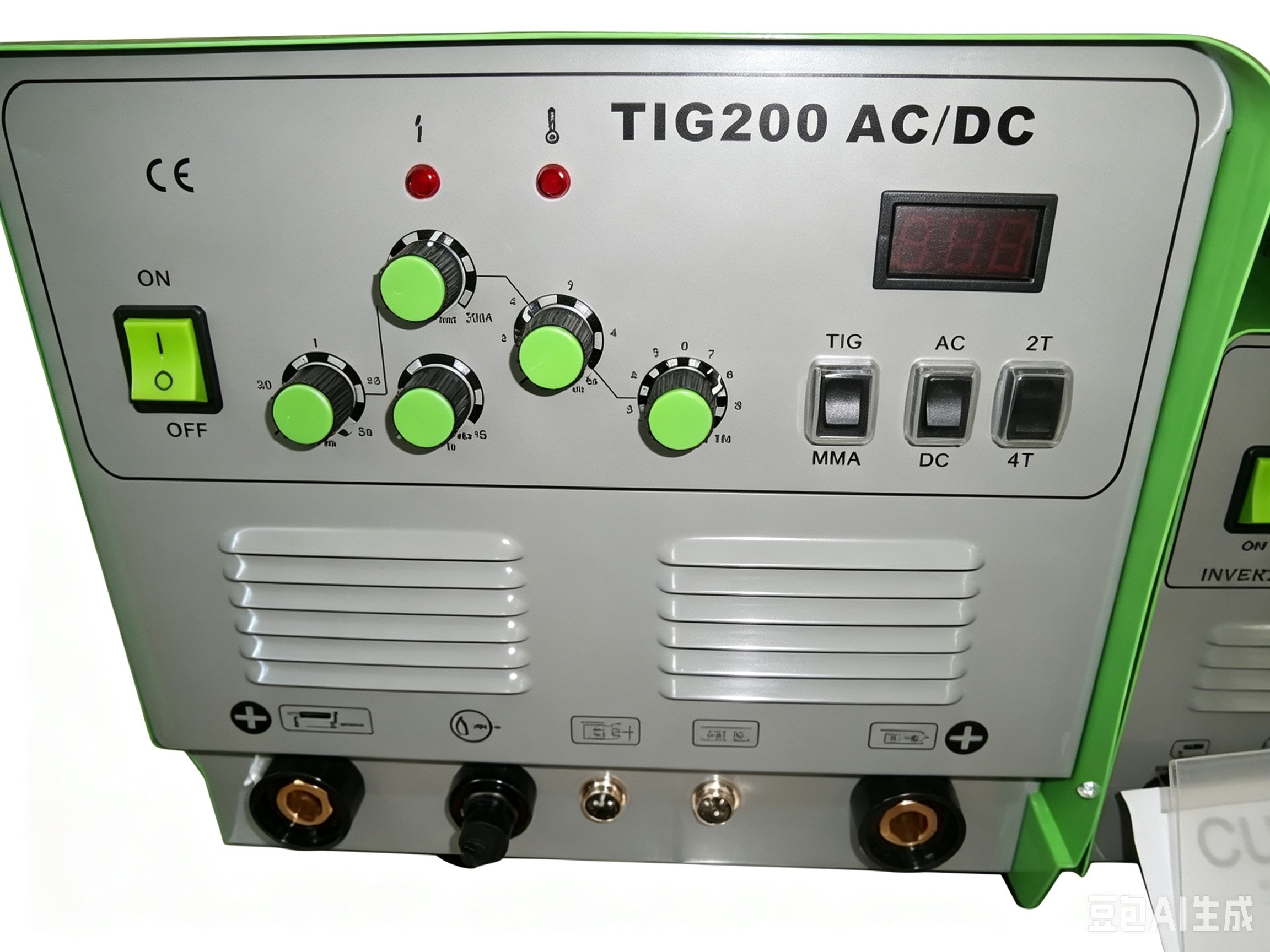

A. Tig200AC/DC/ARC Welder (2-in-1)
Introductions
The TIG200 AC/DC/ARC Welder adopts advanced inverter technology, upgraded from traditional inverter circuits to deliver better reliability and a longer service life. Its DC output welds stainless steel, alloy steel, carbon steel and other non-ferrous metals, while AC mode supports welding aluminum and aluminum alloys. It is perfectly suitable for fabricating aluminum skateboards and bicycle frames. With a power conversion efficiency exceeding 85%, this welder features excellent energy efficiency.
Specifications
| Power Voltage | AC230V 50/60HZ |
| Input power capacitance (KVA) | 4.5 |
| Rated output current (A) | 200 |
| Range of output current (A) | 20-200 |
| No-load voltage (V) | 56 |
| No-load loss (W) | 40 |
| Working voltage (V) | 18 |
| Pre-flow (S) | 0-2 |
| AC output frequency (Hz) | 60 |
| Clean width (%) | 20-80 |
| Slop-down time (S) | 0-5 |
| Tail-gas time (S) | 2-10 |
| Remote control | Yes |
| ARC-leading | HF vibration |
| Efficiency | 85% |
| Duty Cycle | 60% |
| Power factor | 0.93 |
| Max welding thickness (MM) DC | 10 |
| Insulation class | F |
| Case Protection Level | IP23 |
| High Frequency Arc Striking | Yes |
| Weight（Kg) | 25 |
| Dimensions (MM) | 493 × 330 × 320 |
Package Includes
- Unit
- The tig leads 4m with torch SR-26
- Spare tips of torch and Ceramics
- Tungsten( diameter 1.6mm X 150mm)
- Arc leads 3m
- Earthed leads 3m
B. Rilon Tig250AC/DC/ARC Welder (WSE250)
Introductions
The Rilon TIG250 AC/DC/ARC welder with high-frequency (HF) ignition adopts state-of-the-art inverter technology. As China’s top-ranked welding equipment brand, Rilon delivers superior reliability and extended service life. This TIG250 AC/DC/ARC unit is a multifunctional welding machine. Its core advantage lies in dual welding capabilities: the DC mode supports welding non-ferrous and ferrous materials including stainless steel, alloy steel, carbon steel and copper; the AC mode is specially designed for aluminium and aluminium alloy welding. It serves as an ideal upgraded welding solution for construction decoration, container fabrication, mechanical equipment installation, vehicle repair, as well as skateboard and bicycle manufacturing and related industries.
Specifications
| Power Voltage | AC230V 50/60HZ |
| The rated input of current（A) | 20 |
| Input power capacitance (KVA) | 4.5 |
| Rated output current (A) | 250 |
| Range of output current (A) | 20-250 |
| No-load voltage (V) | 56 |
| No-load loss (W) | 40 |
| Working voltage (V) | 18 |
| Pre-flow (S) | 0-2 |
| AC output frequency (Hz) | 60 |
| Clean width (%) | 20-80 |
| Slop-down time (S) | 0-5 |
| Tail-gas time (S) | 2-10 |
| Remote control | Yes |
| ARC-leading | HF vibration |
| Efficiency | 85% |
| Duty Cycle | 60% |
| Power factor | 0.93 |
| Max welding thickness (MM) DC | 10 |
| Insulation class | F |
| Case Protection Level | IP23 |
| High Frequency Arc Striking | Yes |
| Weight（Kg) | 25 |
| Dimensions (MM) | 493 × 330 × 320 |
Package Includes
- Unit
- The tig leads 4m with torch SR-26
- Spare tips of torch and Ceramics
- Tungsten( diameter 1.6mm X 150mm)
- Arc leads 3m
- Earthed leads 3m
