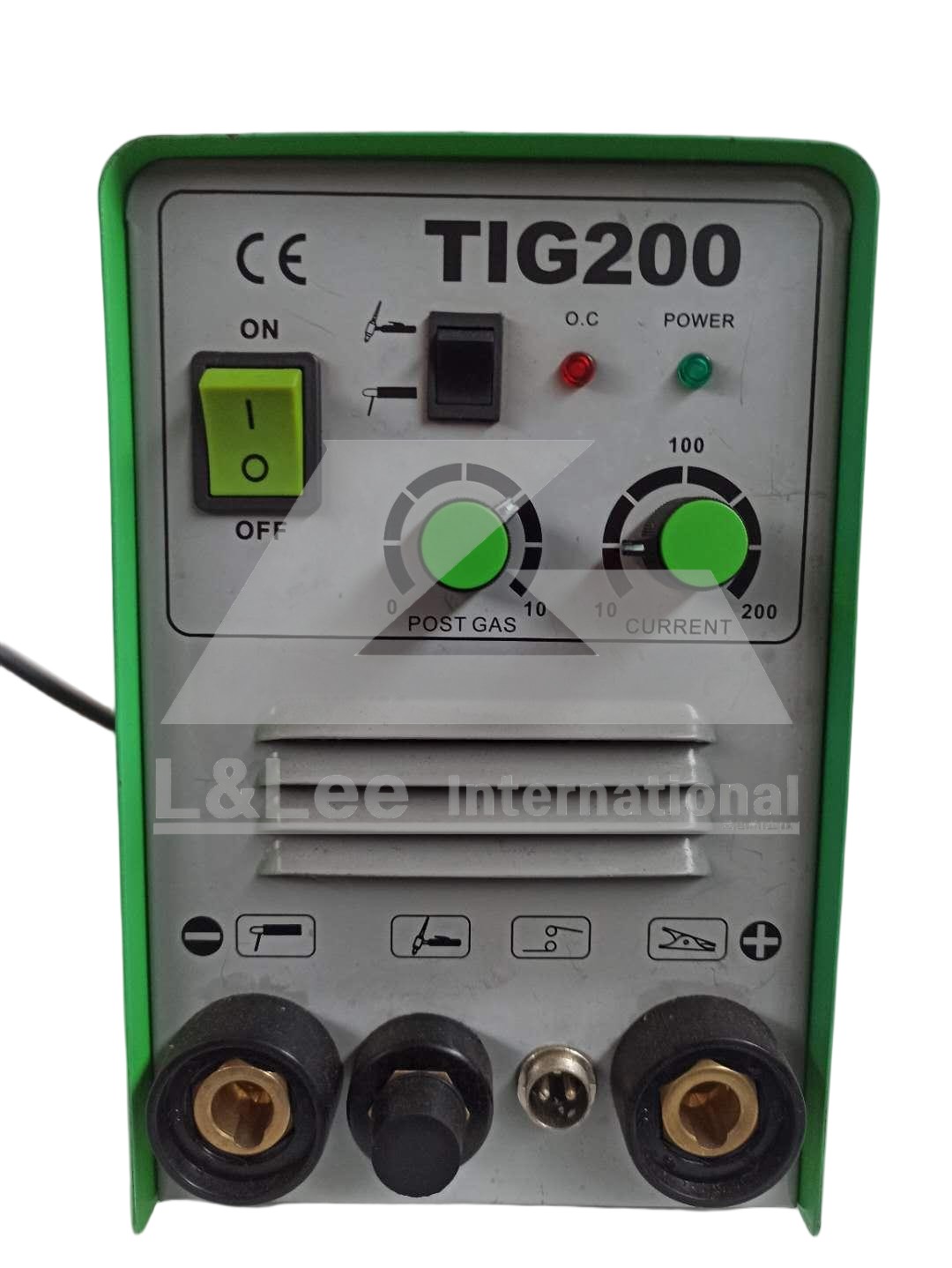

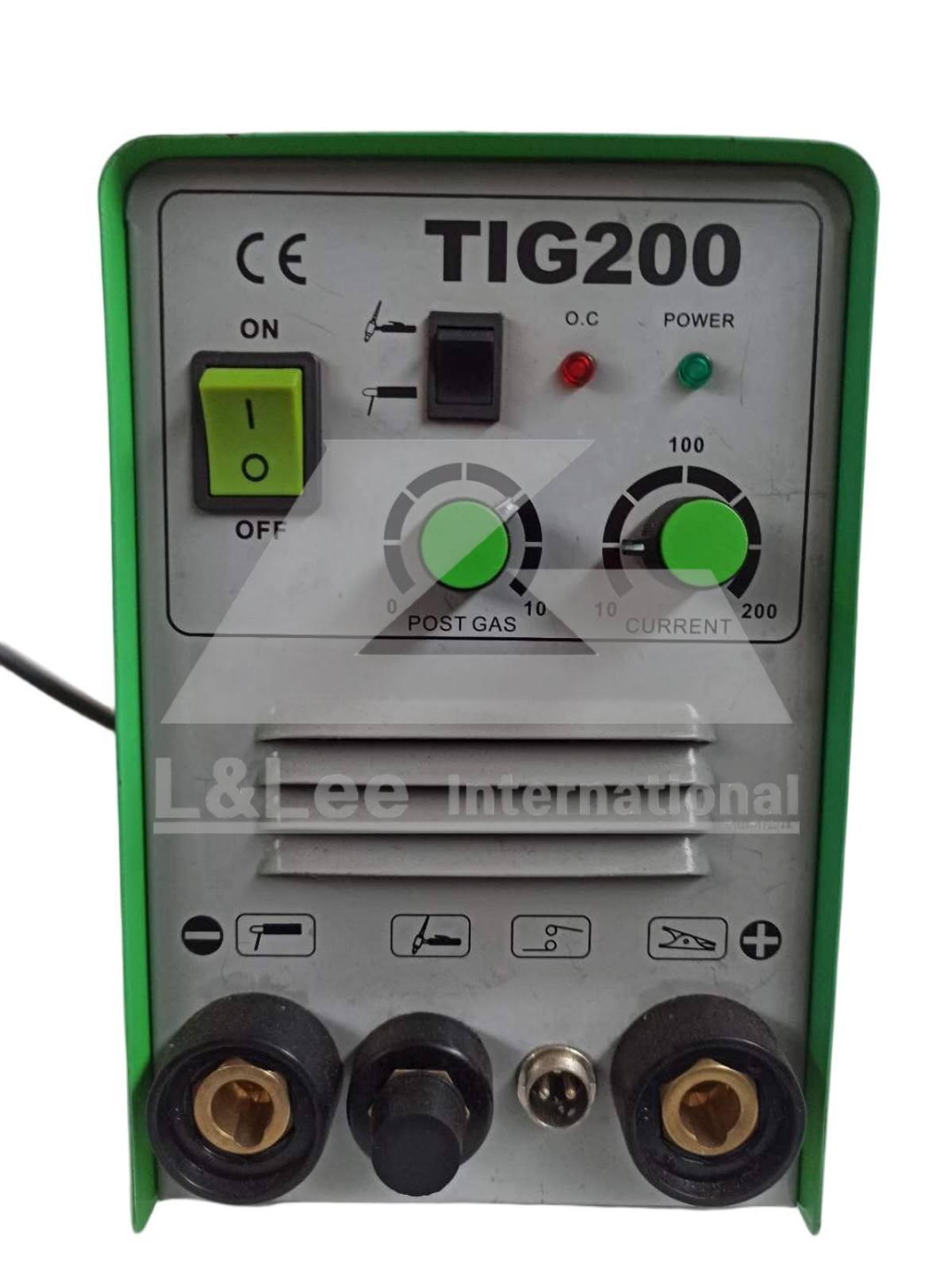

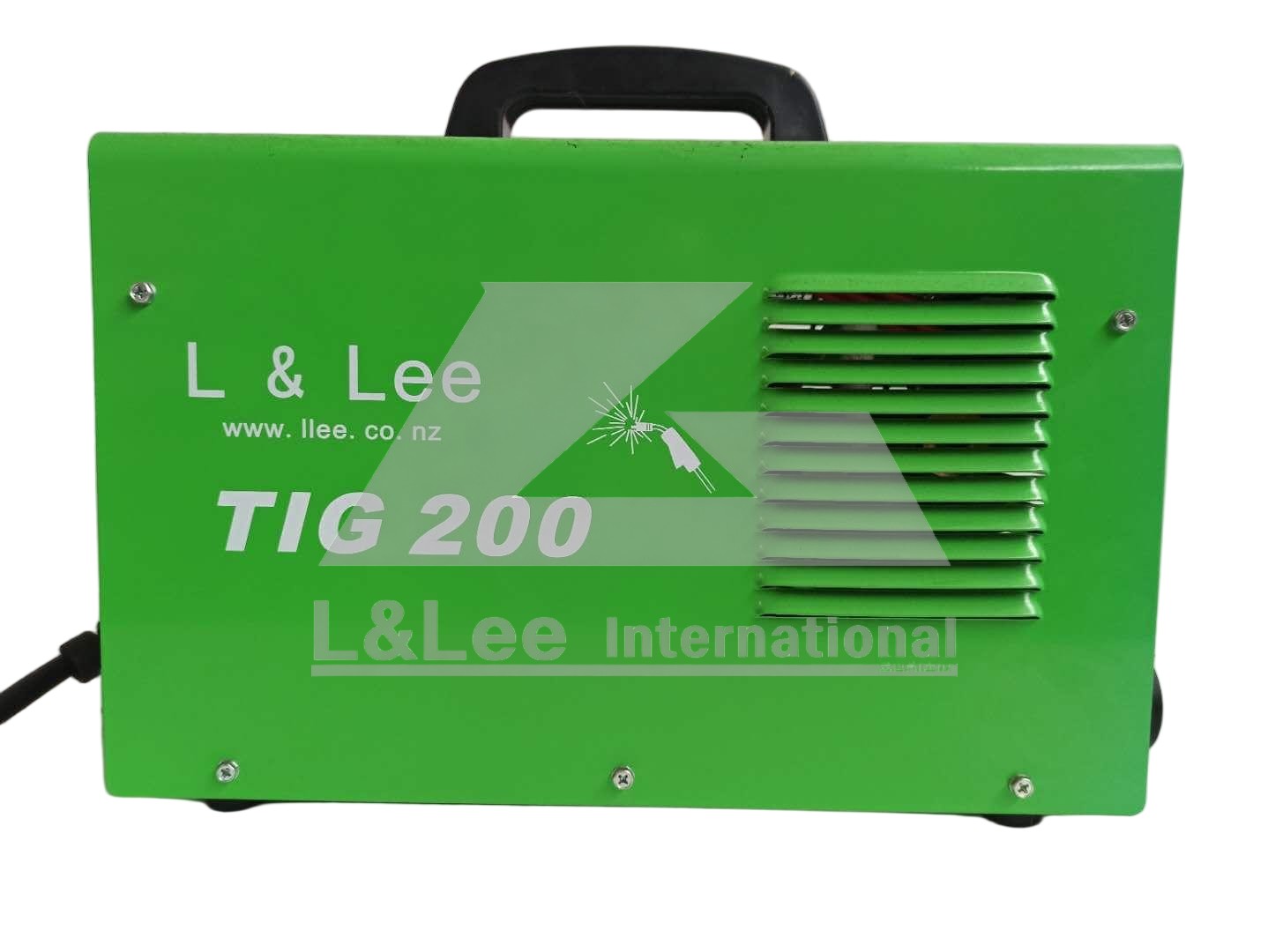

TIG200 TIG/Stick Welder
Introductions
This welder features constant current output with extremely stable welding current. In the event of electrode short-circuit, the current automatically cuts off, minimizing tungsten electrode erosion and workpiece contamination.
Note: This model cannot weld aluminum. If you need to weld aluminum and aluminum alloys, please check our AC/DC model listings instead.
Specifications
| Power Voltage | AC230V 50/60 Hz |
| Input Current (A) | 21 |
| No-load Voltage (V) | 56 |
| Output Current Adjustment (A) | 10 - 200 |
| Working Voltage (V) | 18 |
| Duty Cycle | 60% |
| No-load Consumption | 60 |
| HF Arc-starting | Yes |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Insulation Class | F |
| Protection Class | IP23 |
| Weight (Kg) | 9 |
| Dimensions (MM) | 380 × 178 × 295 |
Package Includes
- Unit
- TIG leads 4.5m with torch
- Spare tips of torch and ceramics
- Tungsten (diameter 2.0mm)
- Arc leads 4m
- Earthed lead 2m
One-year back to base warranty (Auckland)
