Water Filter Housings

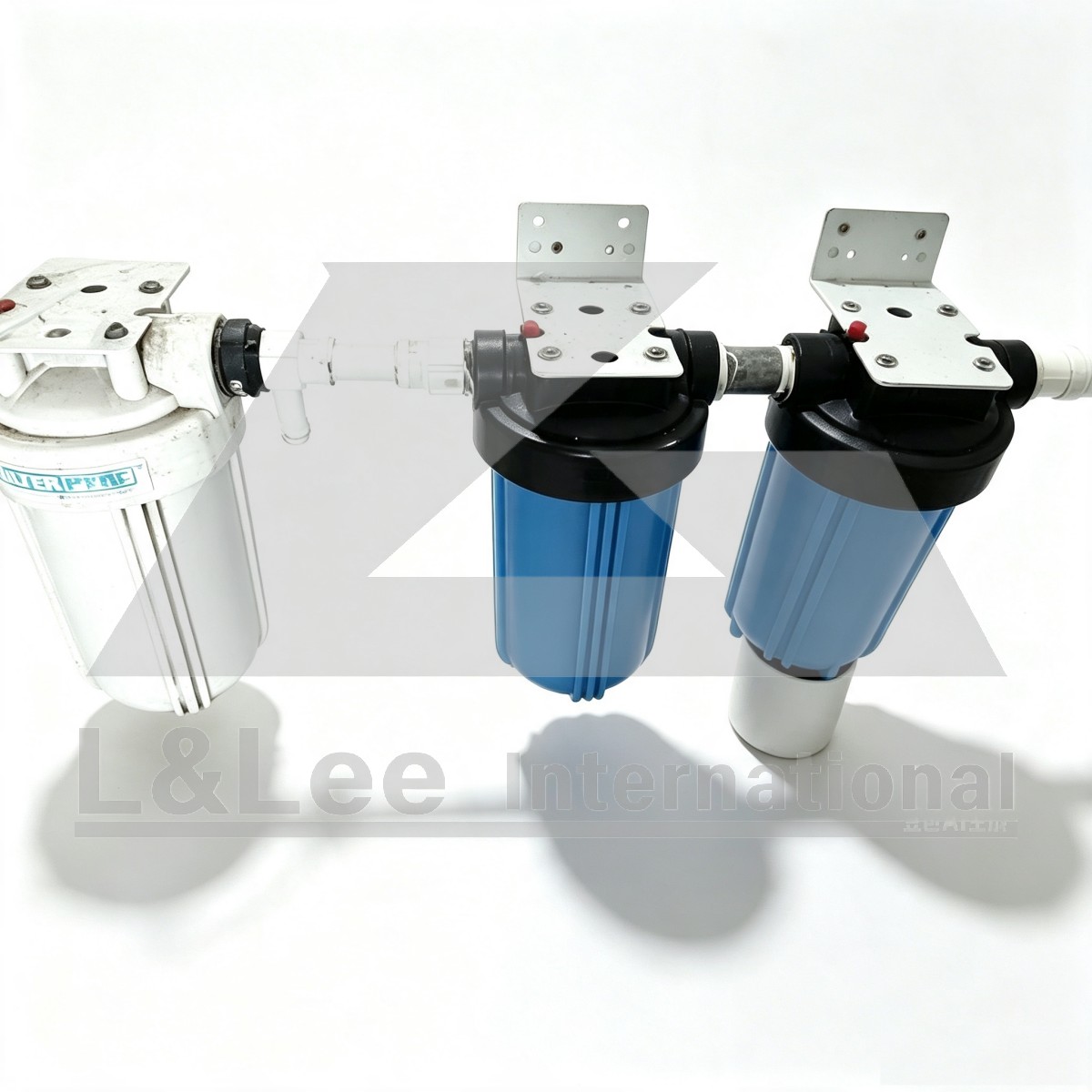

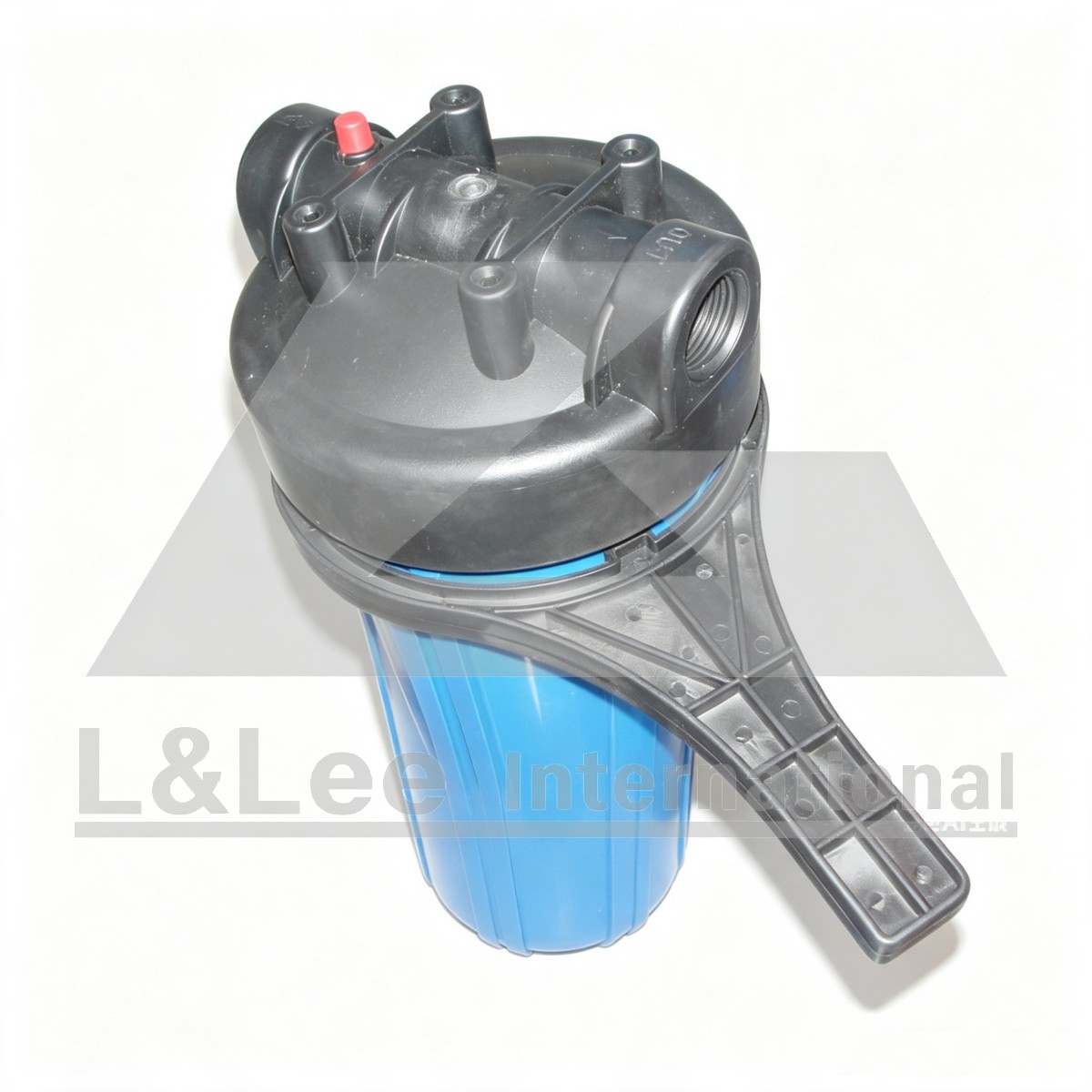

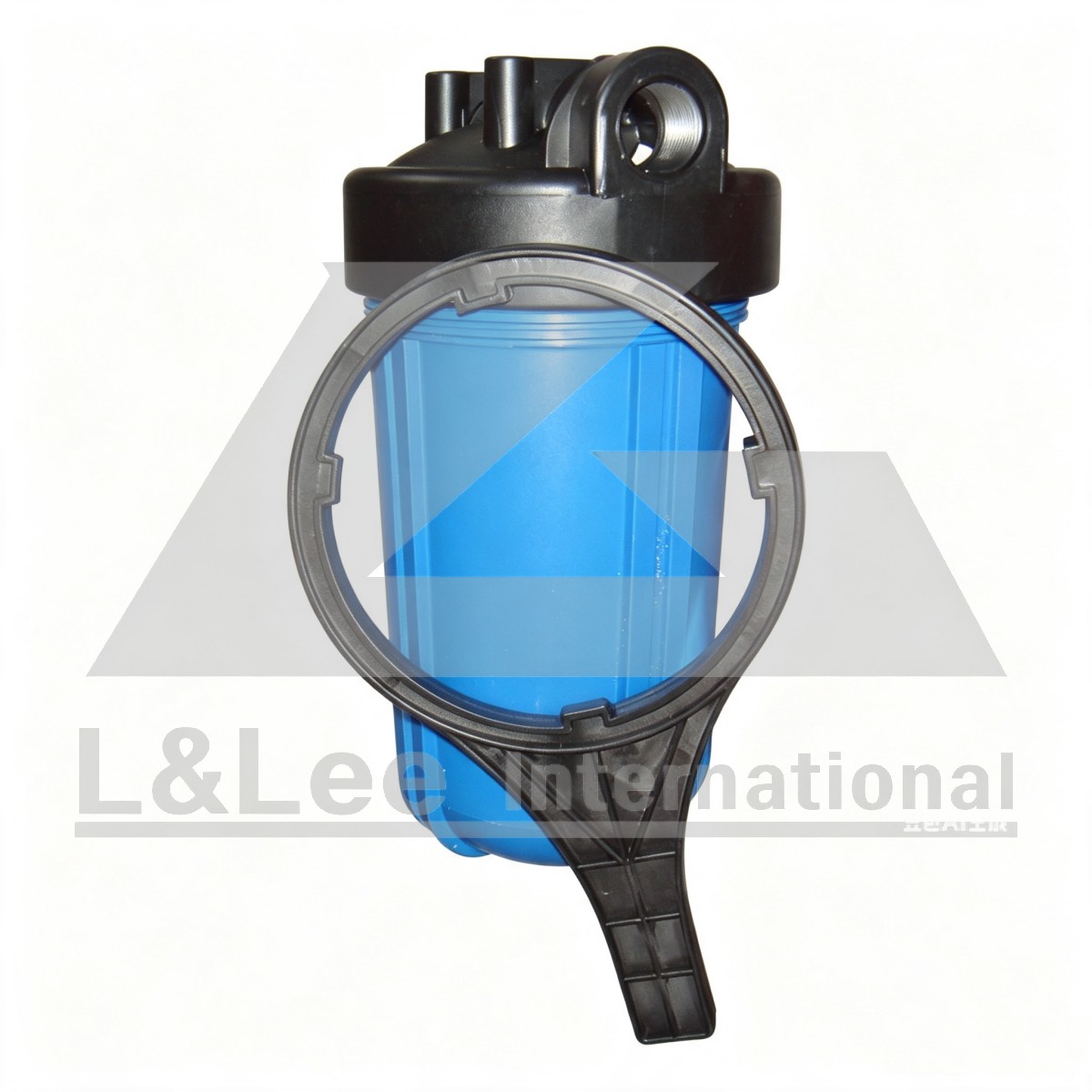

A. 10" Jumbo Filter Housing with 1" Inlet & Outlet
Introductions
Heavy‑duty 10‑inch jumbo filter housing with 1‑inch inlet and outlet. Suitable for bore, rainwater and tank water on farms and lifestyle blocks without mains water supply.
Specifications
| Housing Size | 10" Jumbo (4.5” × 10”) |
| Port Configuration | 1” NPT Inlet & Outlet |
| Optional Max Pressure | 90 PSI (6.2 bar) |
| Working Temperature | 5°C – 40°C |
| Compatible Cartridge | 10"×4.5" Jumbo Filter Cartridges |
| Application Scenarios | Farm, Lifestyle Block, Off-Grid Whole House Water System |
Package Includes
- 1 Piece
- 1 Spanner
Options
- 1μm Filter Cartridge
- 20μm Filter Cartridge
- GAC Filter Cartridge

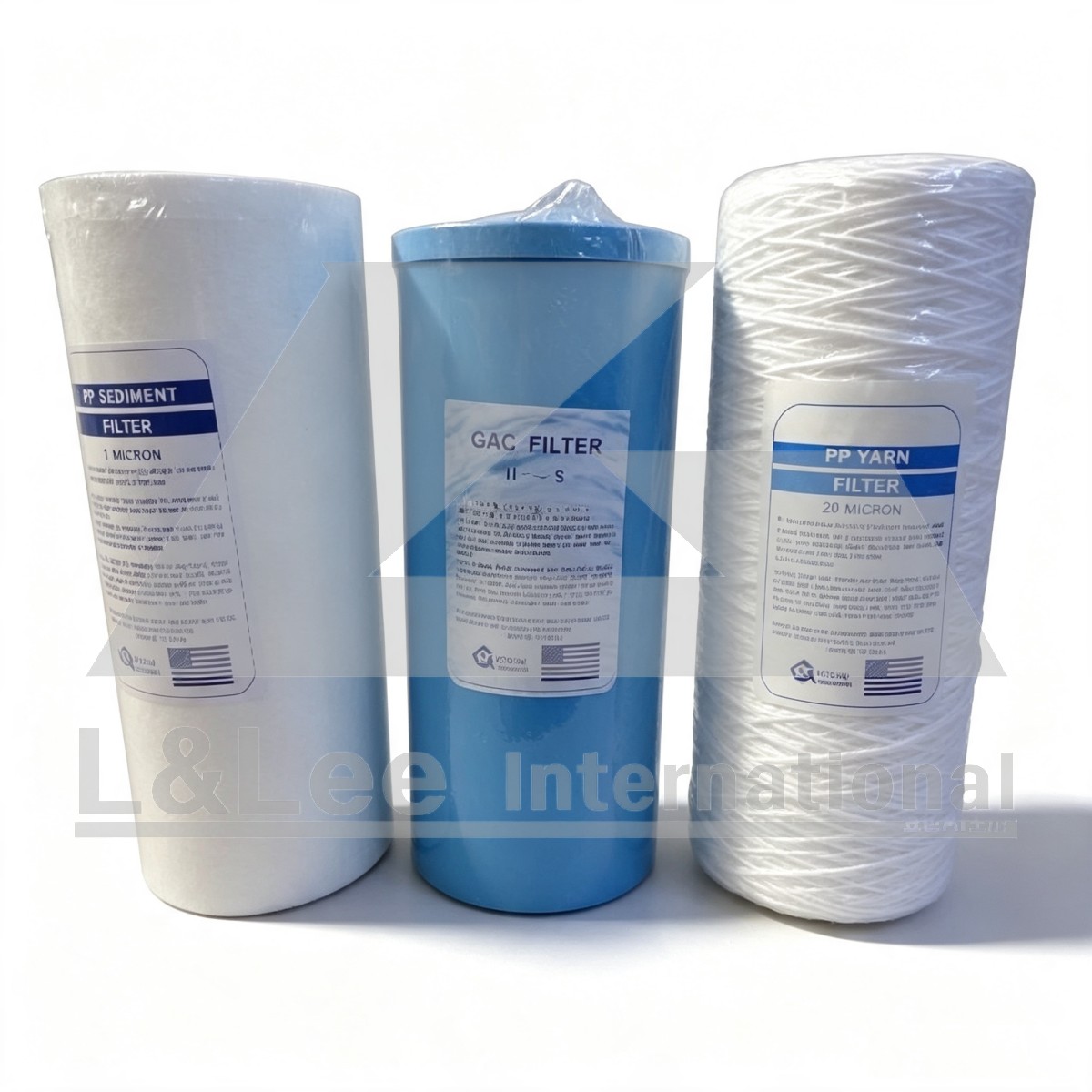

Filter Cartridges

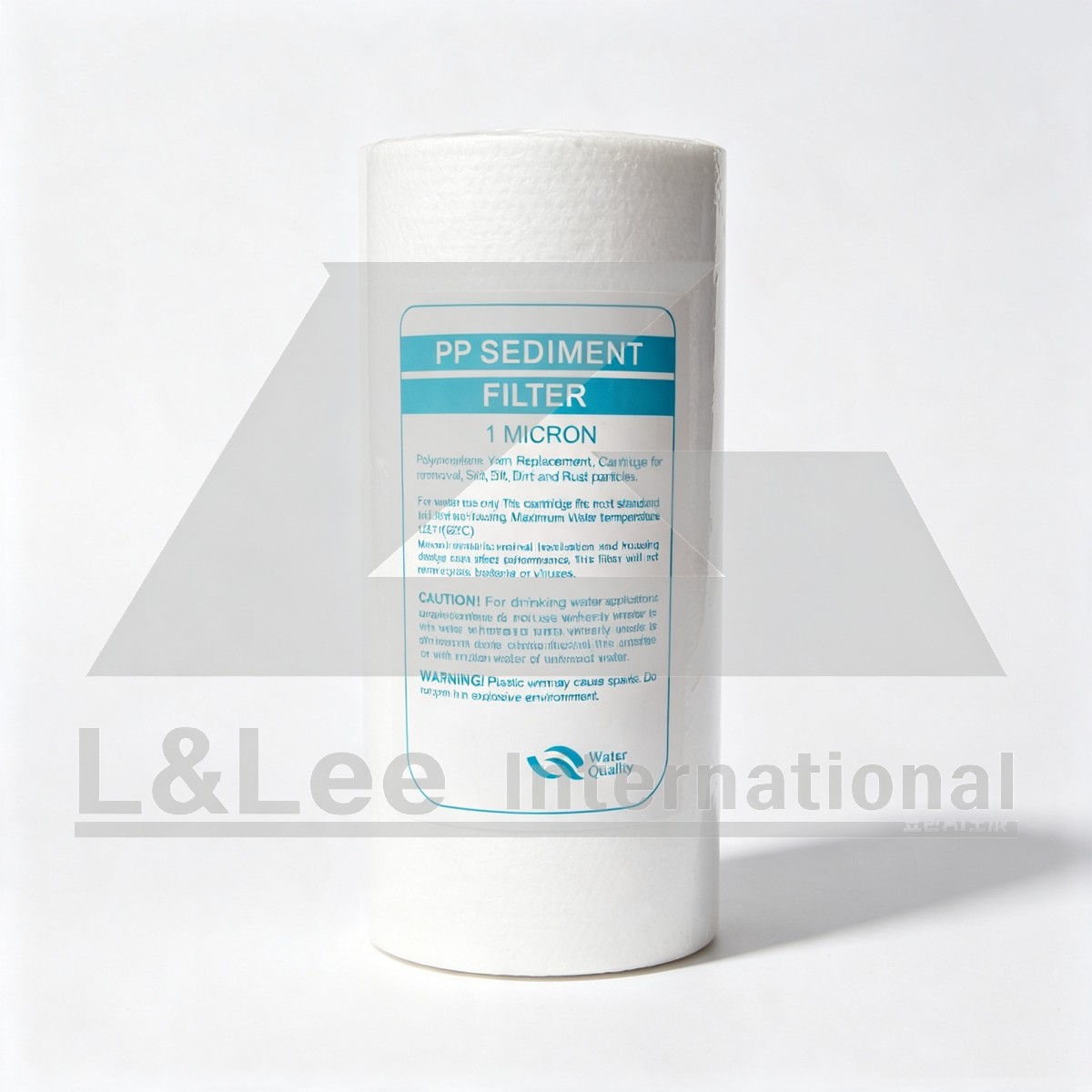

B. 1μm Filter Cartridge
Introductions
This 1 Micron Filter Cartridge provides fine particle filtration, effectively trapping sediment, rust, dirt and fine impurities from water flow. Built for reliable everyday use, it fits standard filter housings, ideal for whole‑house water systems, farm water supply and lifestyle block applications. Easy to replace for consistent water quality.
Specifications
| Product Name | 10" 1 Micron PP Sediment Filter Cartridge |
| Filtration Rating | 1 Micron |
| Material | Food‑grade Polypropylene |
| Size | 10" Jumbo, OD 108mm, ID 28mm |
| Flow Rate | 2.5 Ton / Hour |
| Operating Temperature | 5°C‑50°C |
| Service Life | 3‑6 months (depends on raw water quality) |
| Function | Remove sediment, rust, dirt and visible particles |
| Application | Municipal tap water, whole‑house, farm water filtration |
Package Includes
- 1 Unit
Options
- 10" Jumbo Filter Housing
- 20μm Filter Cartridge
- GAC Filter Cartridge

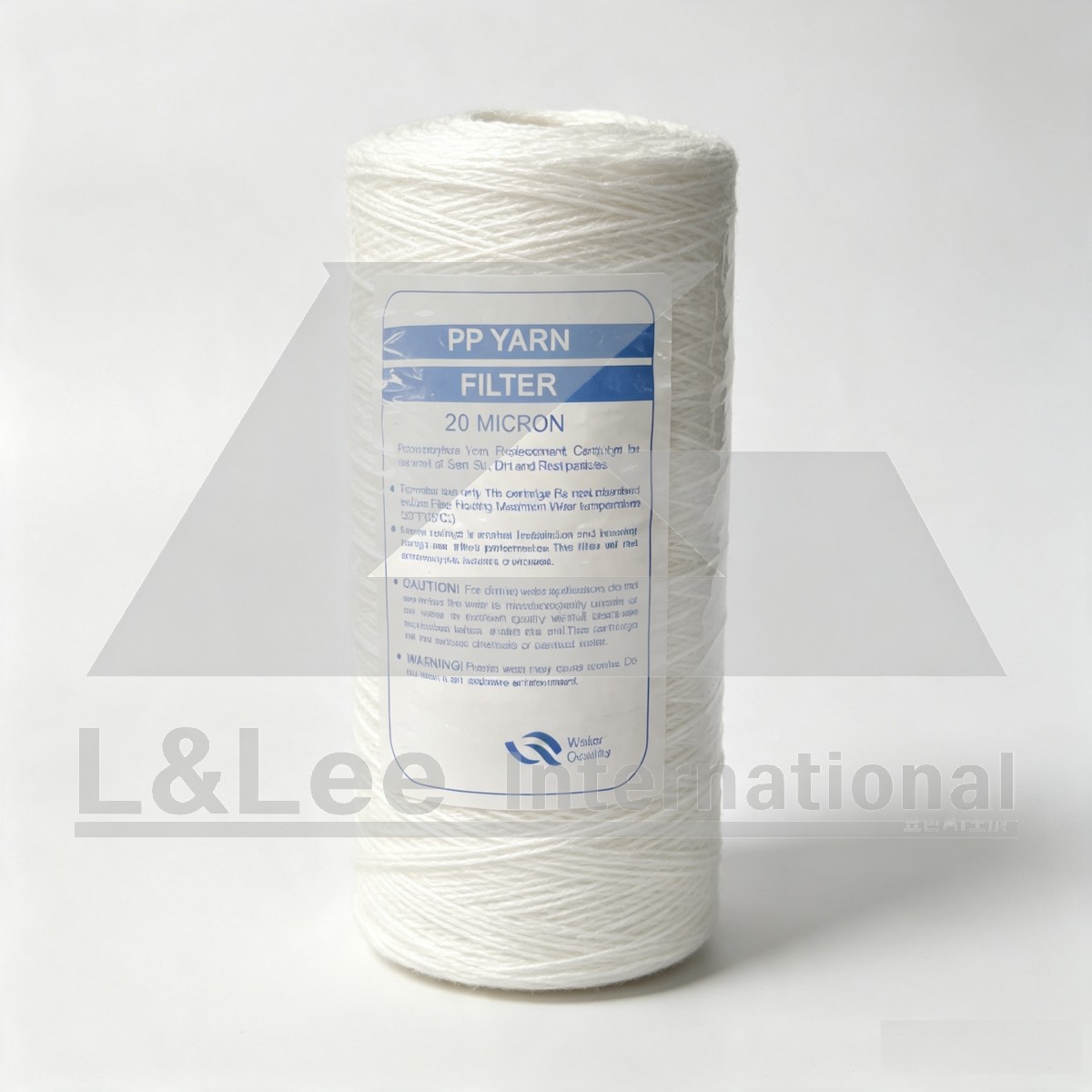

C. 20μm Filter Cartridge
Introductions
This 20 Micron Filter Cartridge is a coarse pre‑filtration element, designed to trap large‑size contaminants including sand, sediment, rust and debris from water supply. Featuring high flow capacity, it works as an ideal first‑stage filter for whole‑house, lifestyle‑block and farm water systems. Simple to install and quick to replace.
Specifications
| Product Name | 20 Micron String Wound Filter Cartridge |
| Filtration Rating | 20 Micron |
| Material | Cotton String Wound |
| Size | 10" Jumbo, OD 108mm, ID 28mm |
| Flow Rate | 2.5 Ton / Hour |
| Operating Temperature | 5°C‑50°C |
| Service Life | 3‑6 months (depends on raw water quality) |
| Function | Remove coarse sediment, sand, rust and large debris |
| Application | Pre‑filtration, municipal tap water, whole‑house & farm water system |
Package Includes
- 1 Piece
Options
- 10" Jumbo Filter Housing
- 1μm Filter Cartridge
- GAC Filter Cartridge

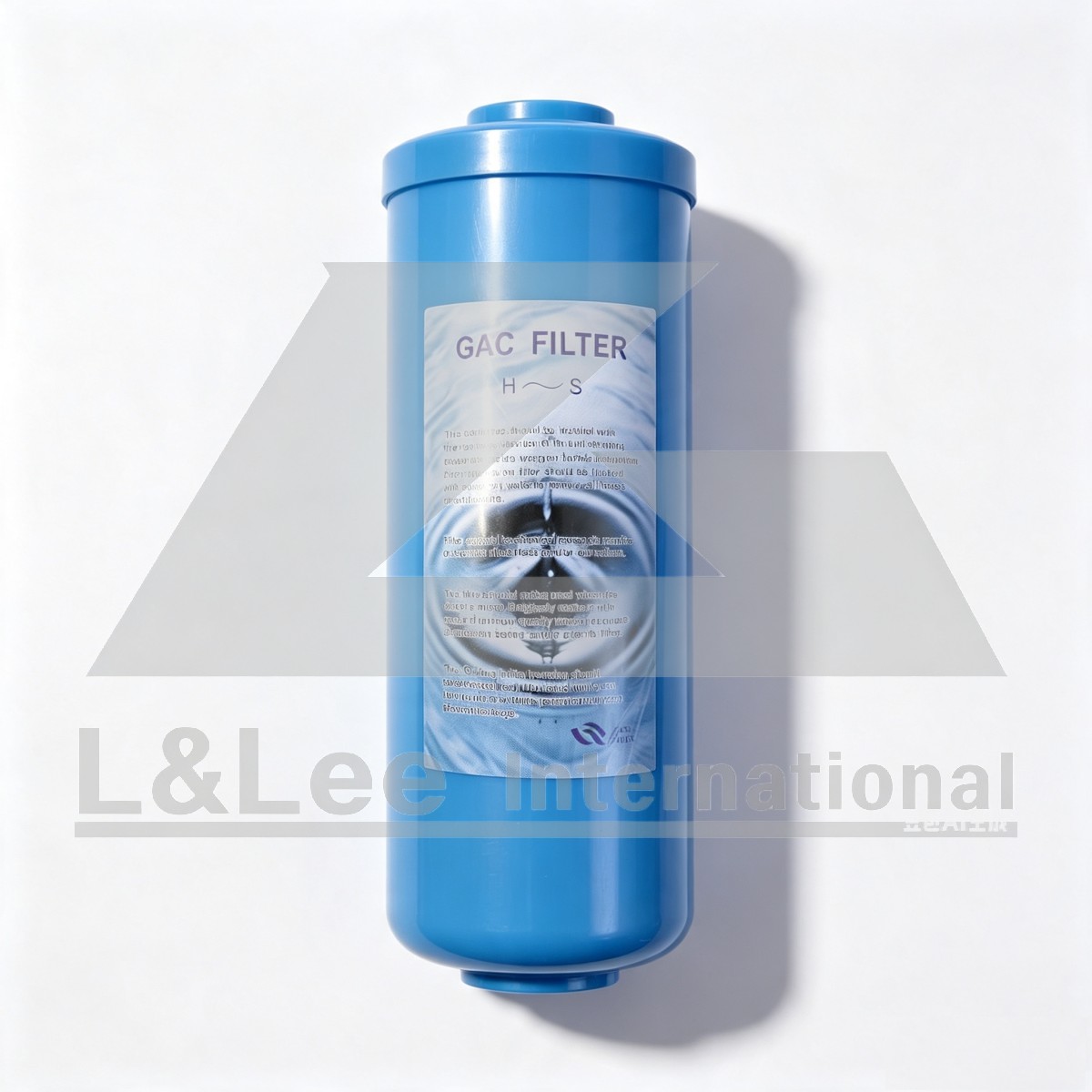

D. GAC Filter Cartridge
Introductions
GAC Filter Cartridge (Granular Activated Carbon). This brand‑new granular activated carbon filter cartridge delivers reliable water treatment performance. It efficiently removes chlorine, unpleasant tastes, odours and organic contaminants from water, greatly improving water quality and taste. Built with high‑quality granular carbon media, it features low flow resistance and high flow rate, suitable for residential, commercial and industrial water pre‑filtration systems, RO pre‑treatment and whole‑house water filter housings. Simple drop‑in replacement for standard filter housings.
Specifications
| Product Name | 10" GAC Filter Cartridge (Granular Activated Carbon) |
| Standard Size | 10 inch × 2.5 inch (Standard Universal Size) |
| Filter Media | High-quality granular activated carbon (coconut shell based) |
| Function | Removes chlorine, bad taste, odours and organic impurities |
| Application | Domestic water filtration, RO system pre-filter, household water purifier |
| Max Pressure | 100 PSI |
| Operating Temperature | 4°C – 52°C |
| Flow Rate | 3 – 5 GPM |
| Service Life | 3 – 6 months (depending on water quality) |
| Feature | Universal fit, easy replacement, high adsorption performance |
Package Includes
- 1 Piece
Options
- 10" Jumbo Filter Housing
- 1μm Filter Cartridge
- 20μm Filter Cartridge
System Accessories

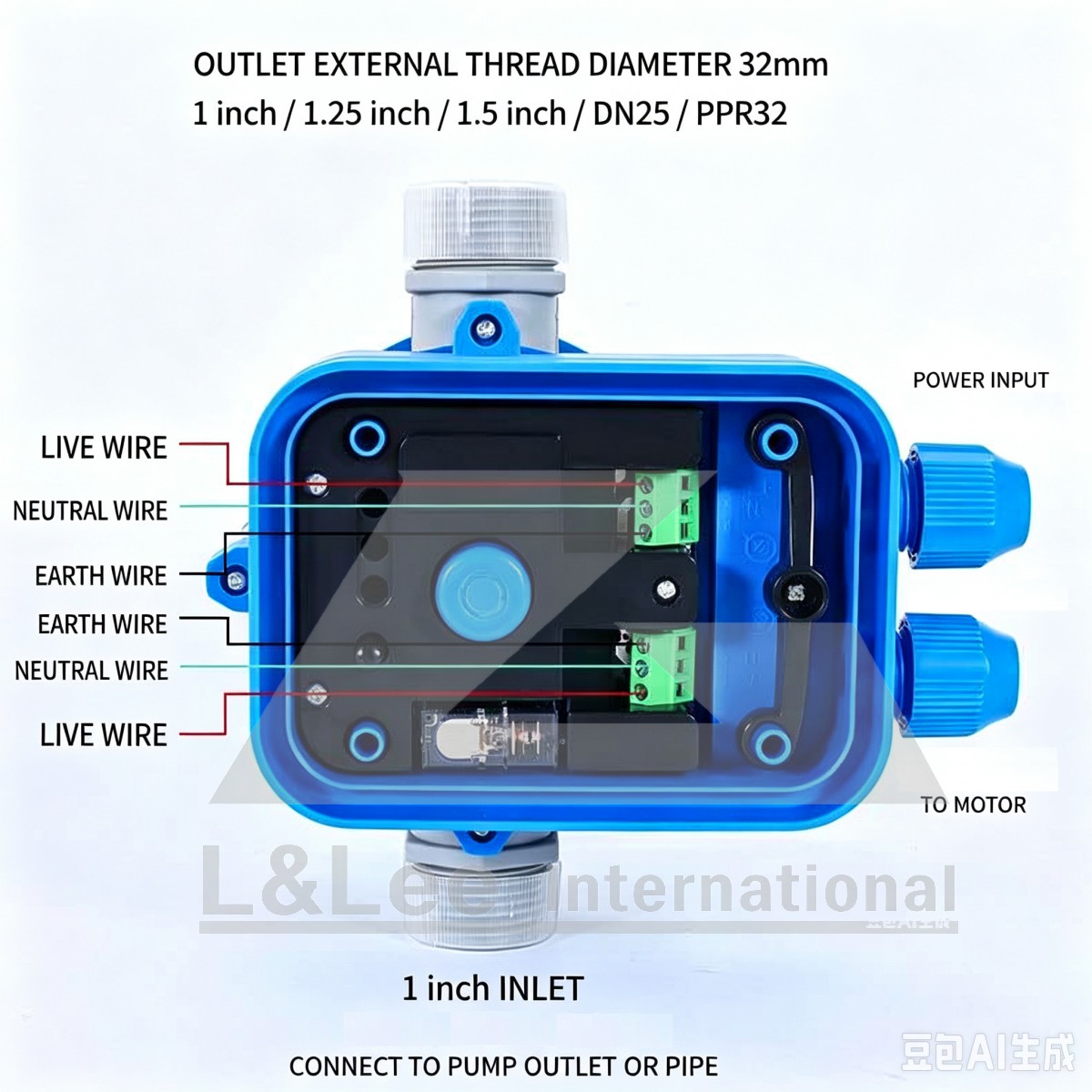

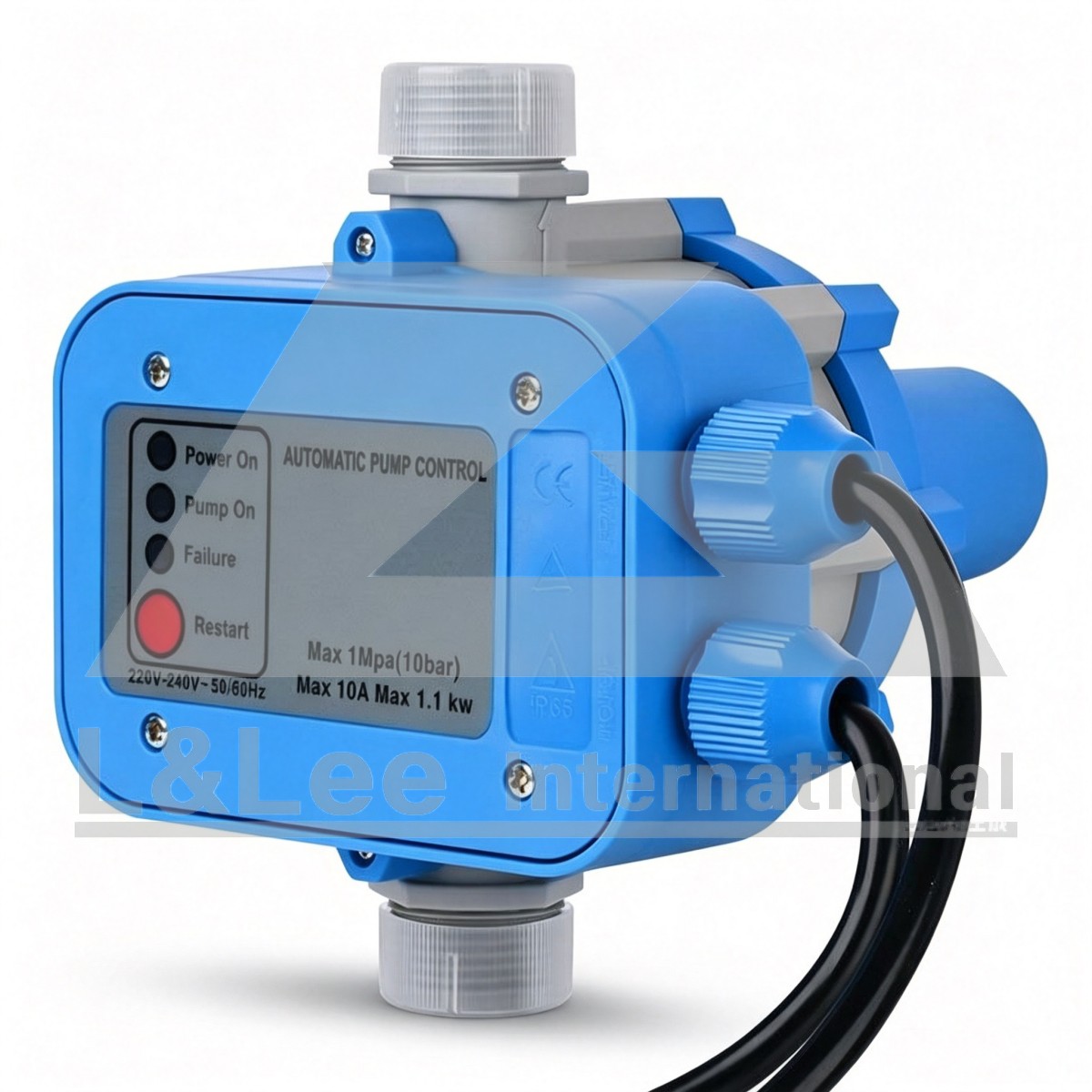

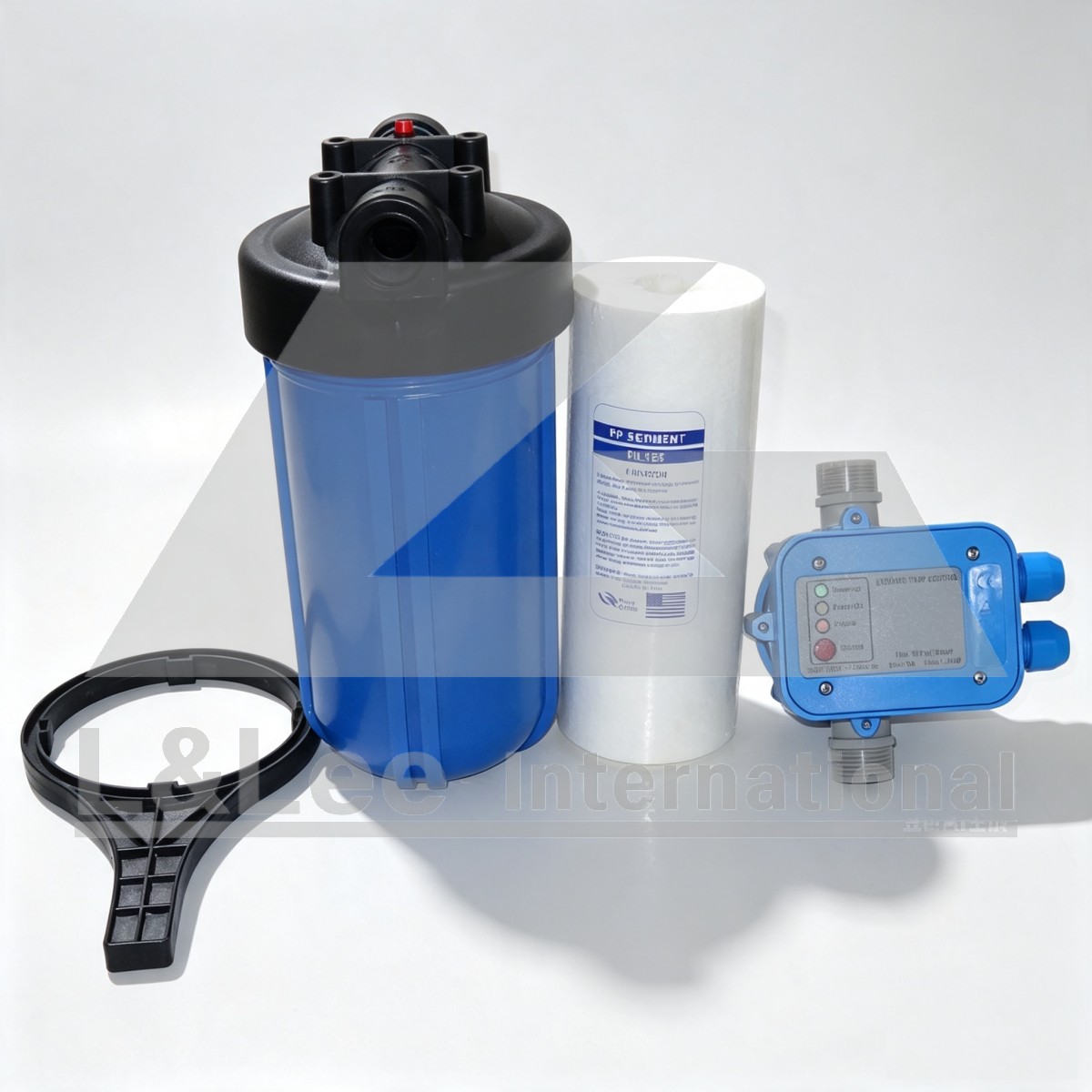

E. Automatic Water Pump Controller
Introductions
Brand new automatic water pump pressure controller. It automatically starts and stops the water pump according to water pressure and flow, maintaining stable water pressure for household and irrigation water supply.
Built‑in intelligent protection functions prevent pump damage from dry running, overload and overpressure. No manual switching required, effectively extending pump service life and saving power. Compact, easy to install and fully compatible with most domestic and garden petrol/electric water pump systems.
Specifications
| Product Name | Automatic Water Pump Controller |
| Rated Voltage | 220V‑240V / 50Hz (NZ Standard) |
| Max Power | 1.1 kW |
| Max Current | 10A |
| Connection Thread | 1‑inch (25 mm) |
| Contact Type | Normally‑closed contact, activates under low pressure |
| Switch‑on Pressure | 1.5 bar |
| Max Working Pressure | 10 Bar |
| Protection Grade | IP65 Waterproof & Dustproof |
| Core Function | Automatic pump start/stop by water pressure & flow detection |
| Safety Protection | Dry run protection, overload protection, overpressure protection |
| Material | High‑strength plastic housing + durable copper fittings |
| Application | Domestic water supply, garden irrigation, booster pump systems |
| Features | Fully automatic operation, stable water pressure, power‑saving, easy installation |
Package Includes
- 1 Unit
Options
- 10" Jumbo Filter Housing
- 1μm Filter Cartridge
- 20μm Filter Cartridge
- GAC Filter Cartridge
