Trailer

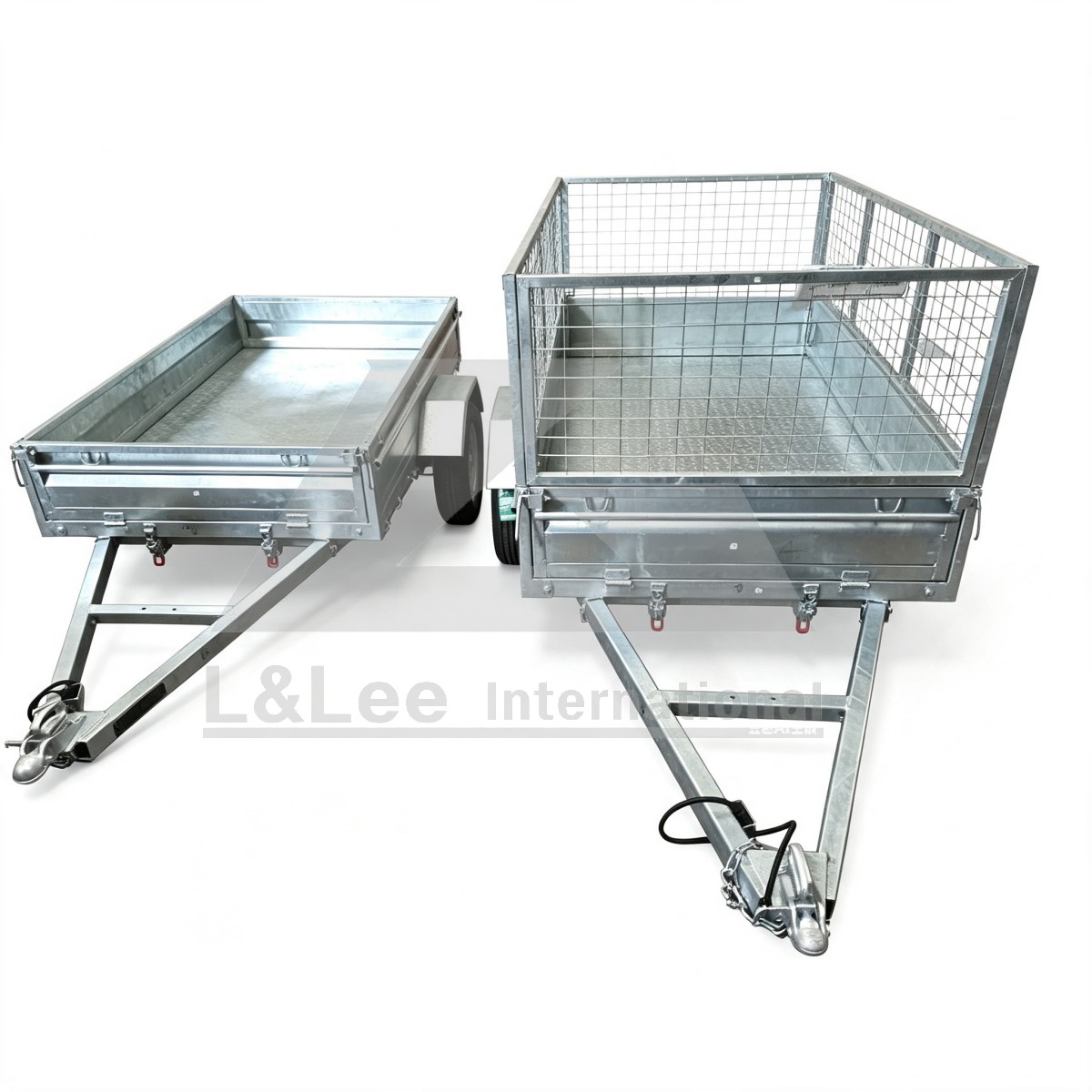

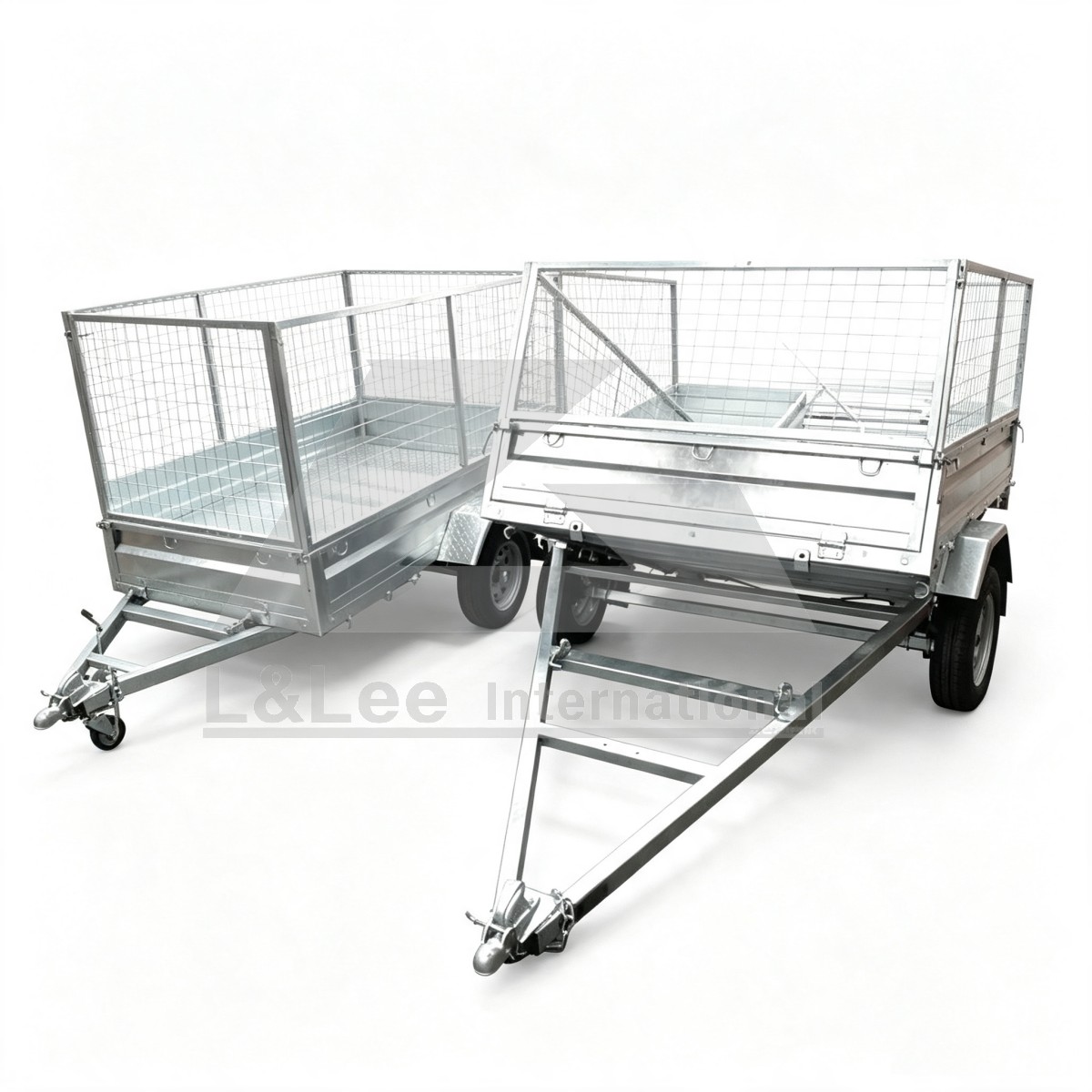

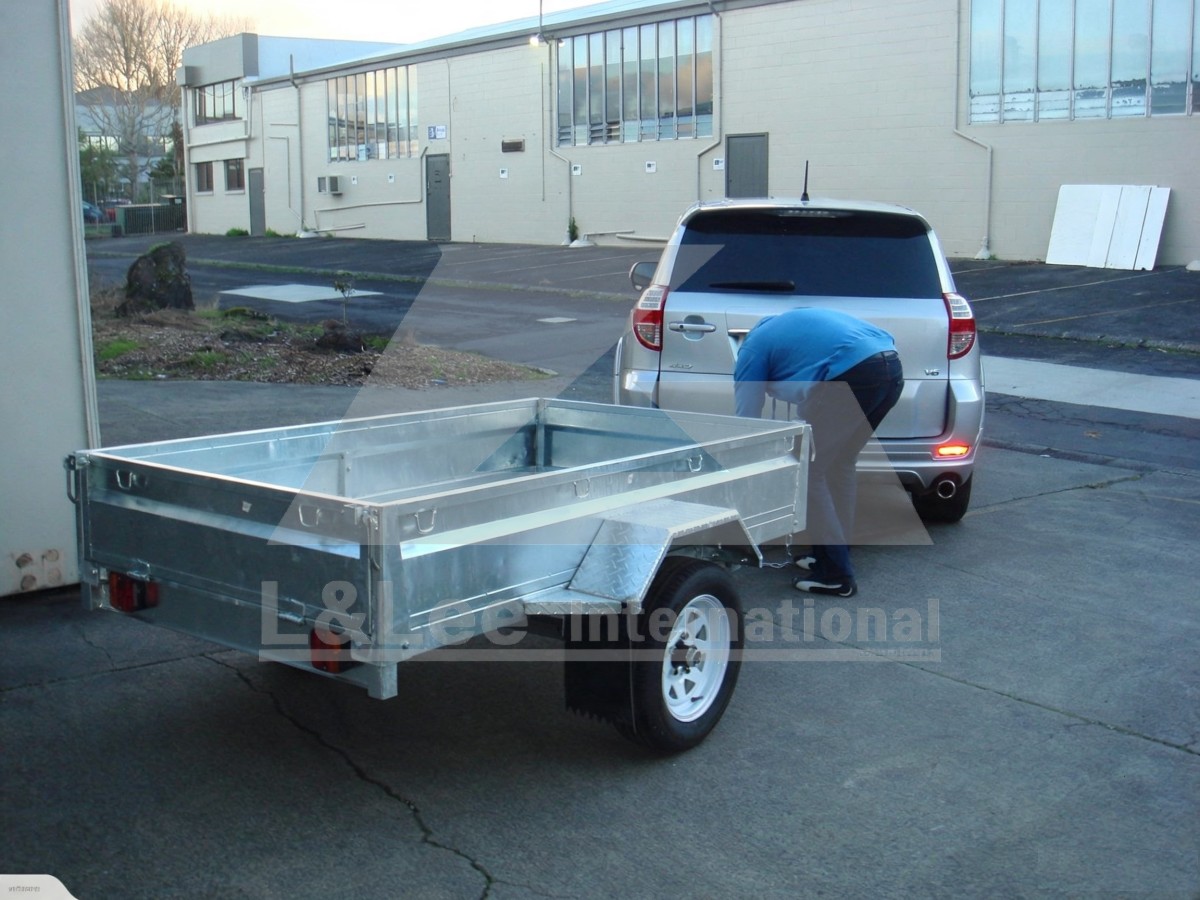

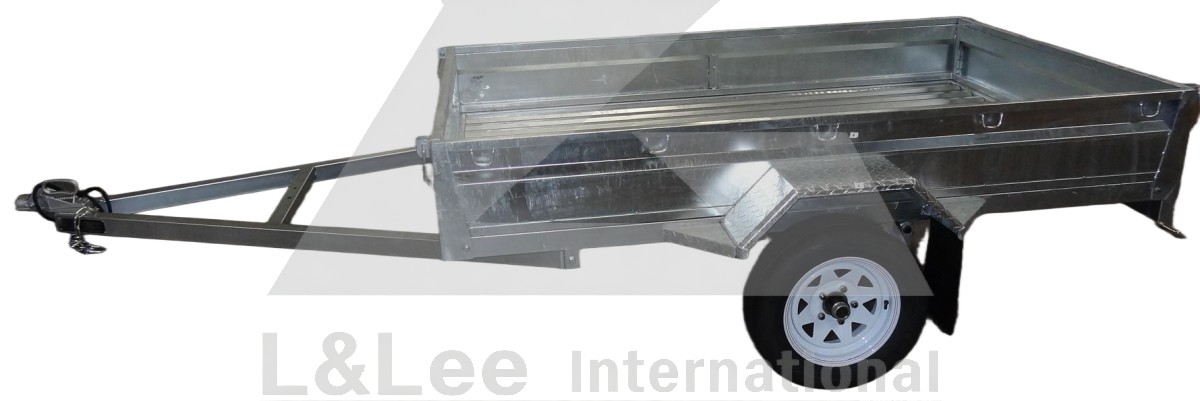

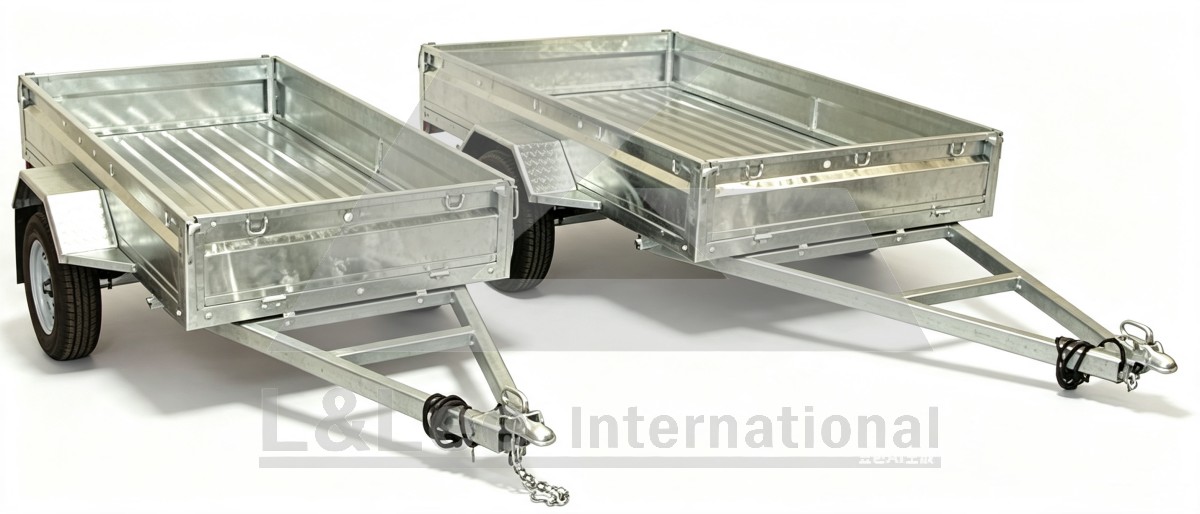

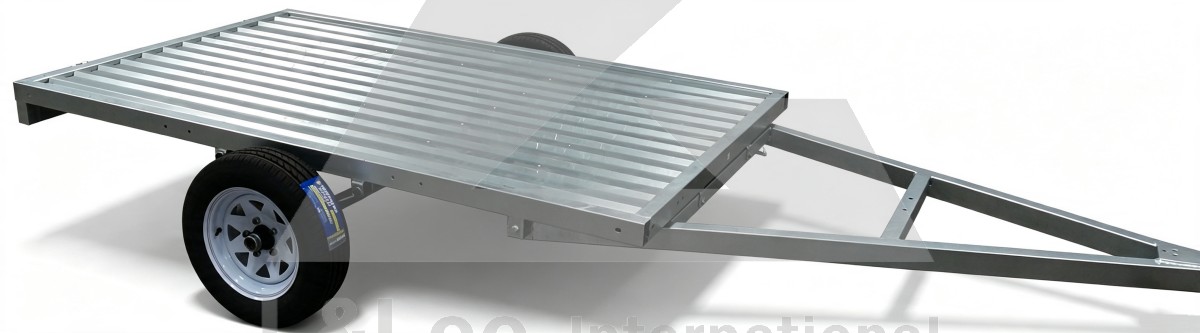

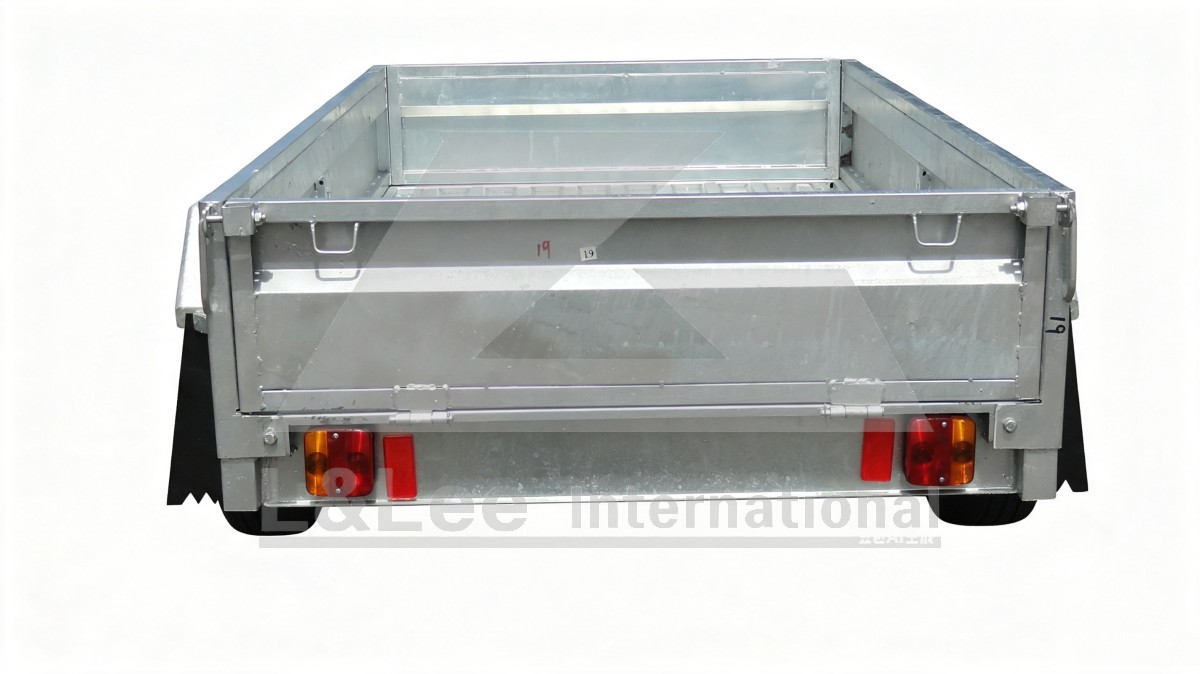

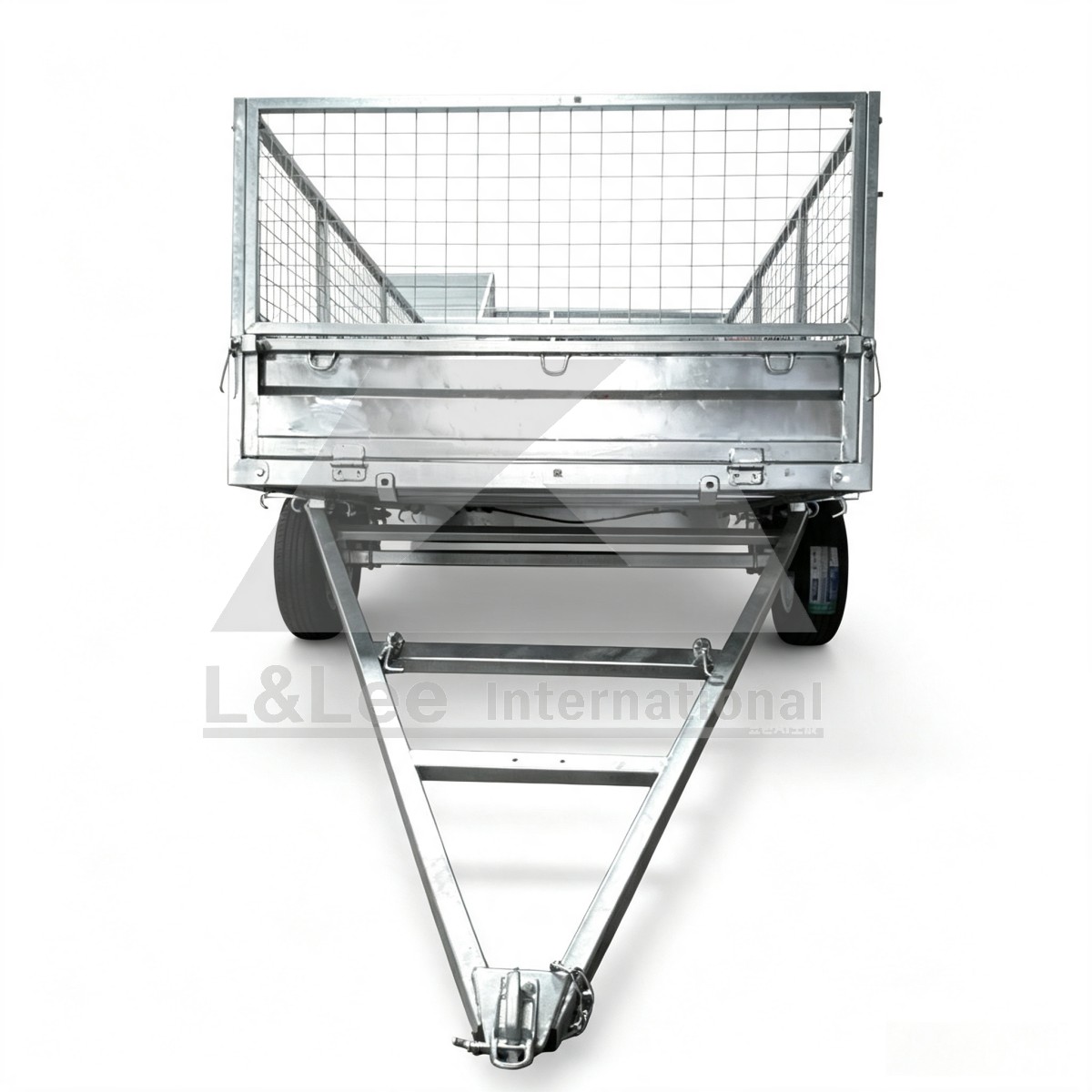

A. 7×4 & 8×5 Single Axle Trailer
Introductions
We supply standard 7x4 and 8x5 trailers, with optional 600mm and 900mm high cage sides to suit a wide range of working conditions. Robust build quality ensures long-lasting durability. Number plate registration and WOF services are available upon request.
Video: Assembled 7×4 & 8×5 Single Axle Trailer
Specifications
7×4 Single Axle Trailer
| Load Capacity | 750kg |
| GTM | 1000kg |
| Tare weight (7x4) | 205kg |
| Construction Floor | 2.5mm checker plate, 2.5mm thick galv checker floor with 70mm x 50mm box section supports |
| Mud Flaps | Galvanized Mud Flaps |
| Draw Bar | Heavy Duty Draw Bar, 1200mm long (70mm x 50mm x 3mm Box Steel) Spare Wheel Holding Position on Drawbar and fitting bolts |
| Plug | NZ Standard 7 Pin Flat Style Plug |
| Coupling & Chain | NZ Style Coupling and Safety Chain, 1 7/8" standard or optional 50mm |
| Material | Hot Dipped Galvanized Steel Construction |

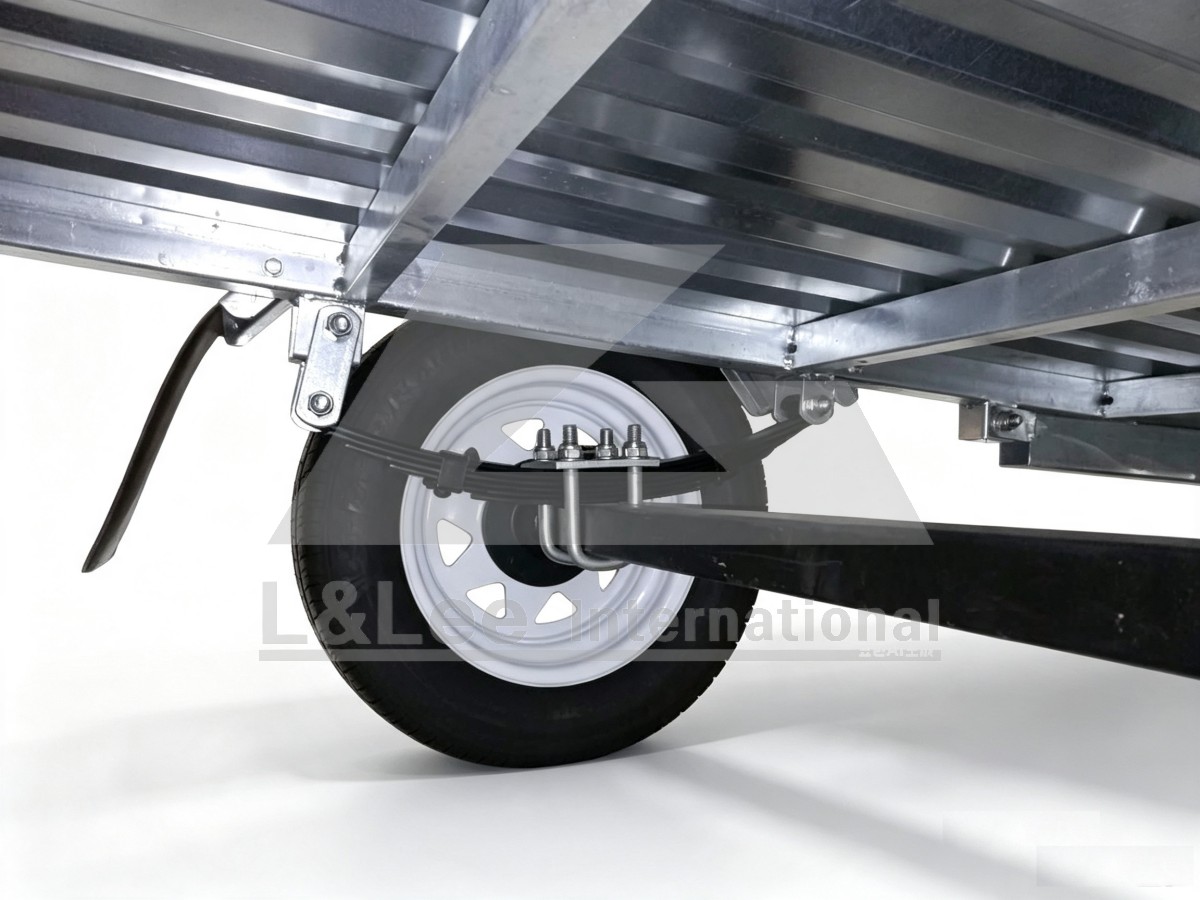

| Suspension | 6 leaf springs |
| Wheels & Tyres | 2x New 13" Rims with 165/70R13 Tyres (165/70R13) |

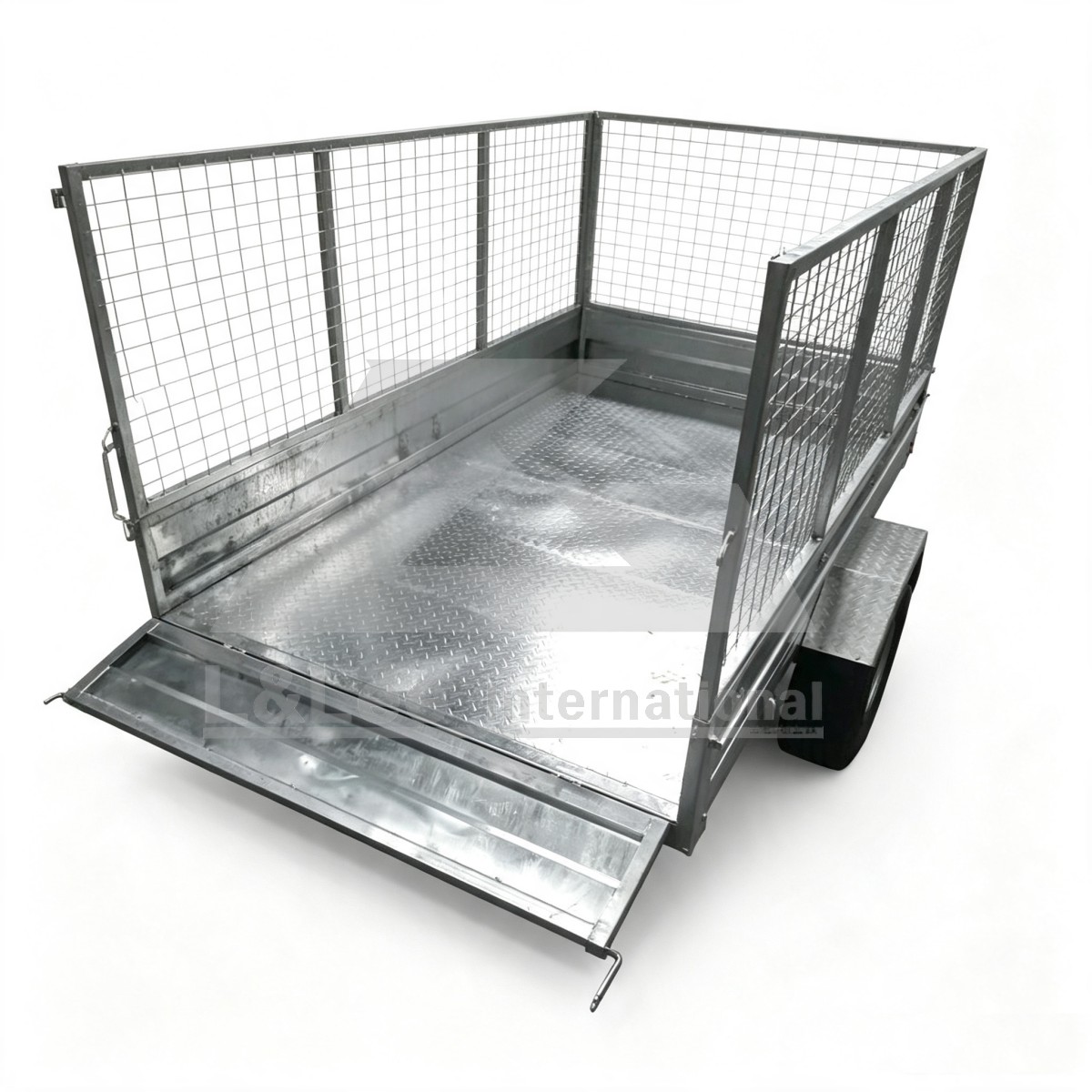

| Tailgate | Folding front and Rear Tailgate (Removable) |
| Lighting & Wiring | Includes All Wiring and Lights |
| Ground to Top of Tray (no cage) | 500mm |
| Internal Tray Size | 2040mm long x 1220mm wide x 300mm High |
| Cubic Capacity | 0.75m³; 2.24m³ with 600mm cage |
| Overall Size | 3330mm x 1650mm x 810mm |

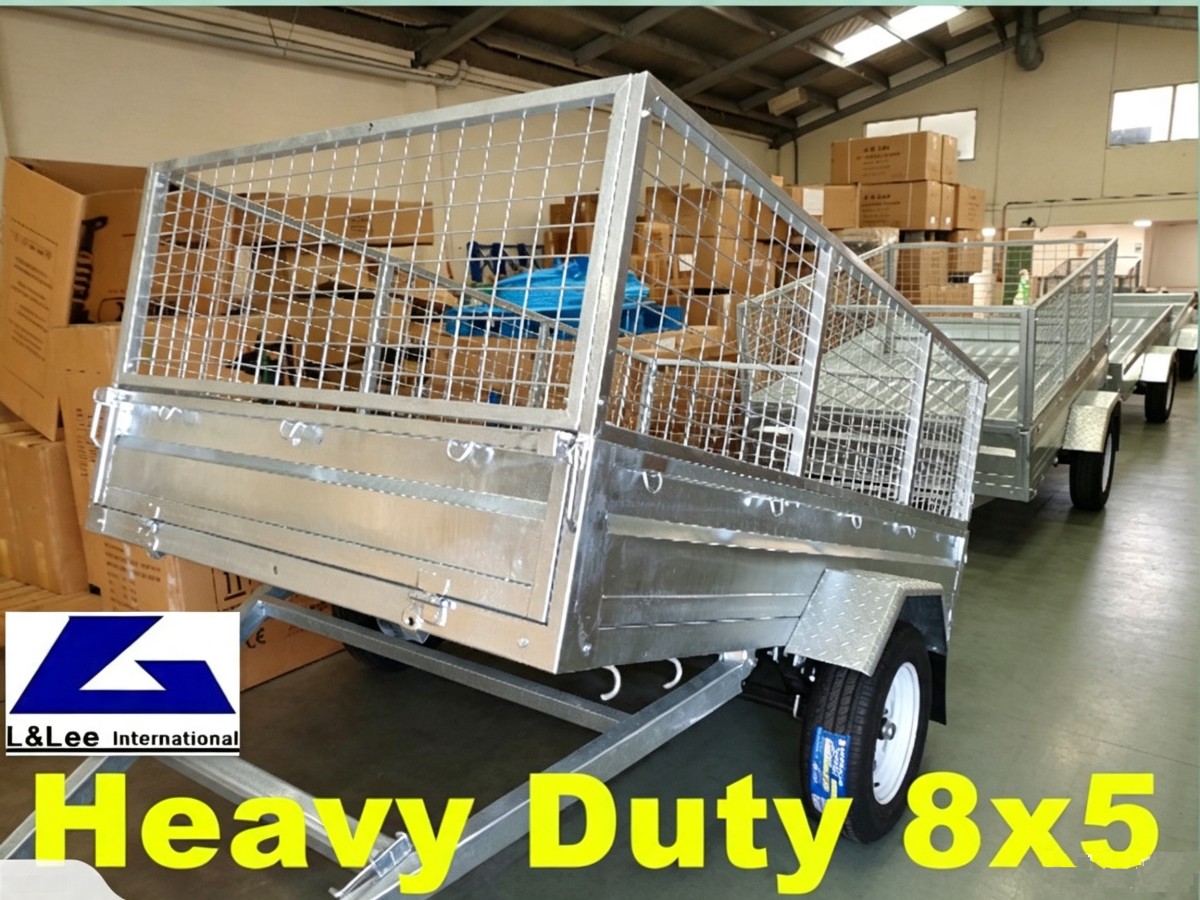

8×5 Single Axle Trailer
| Load Capacity | 750kg |
| GTM | 1000kg |
| Tare Weight | 235kg |
| Mud Flaps | Galvanized Mud Flaps |
| Draw Bar | Heavy Duty Draw Bar, 1200mm long (70mm x 50mm x 3mm Box Steel) Spare Wheel mounting position on drawbar with fitting bolts |
| Plug | NZ Standard 7 Pin Flat Style Plug |
| Coupling & Safety Chain | NZ Style Coupling and Safety Chain, 1 7/8" standard or optional 50mm |
| Body Material | Hot Dipped Galvanized Steel Construction |
| Suspension | 6 leaf springs |
| Wheels & Tyres | 2 x New 13" Rims with 165/70R13 Tyres |
| Tailgate | Folding front and Removable Rear Tailgate |
| Floor | 2.5mm Thick Galvanized Checker Plate Floor with 70mm x 50mm Box Section Supports |
| Lighting & Wiring | All Wiring and Lights Included |
| Ground to Top of Tray (no cage) | 500mm |
| 8x5 Internal Tray Size | 2415mm long × 1500mm wide × 300mm high |
| Cubic Capacity (8x5) | 1.09m³ (standard); 3.26m³ (with 600mm cage) |
Package Includes
- 1 Single Axle Trailer
Options

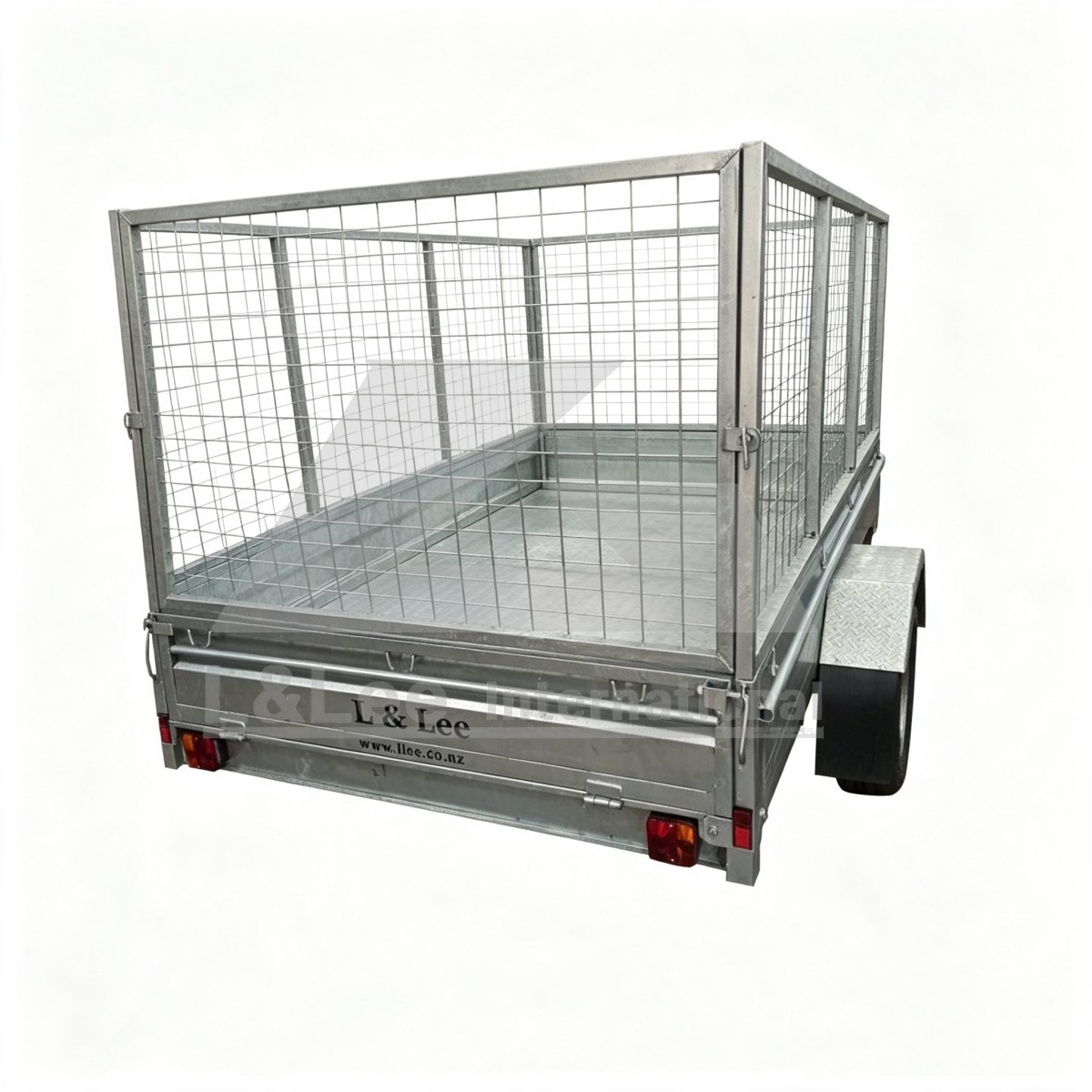

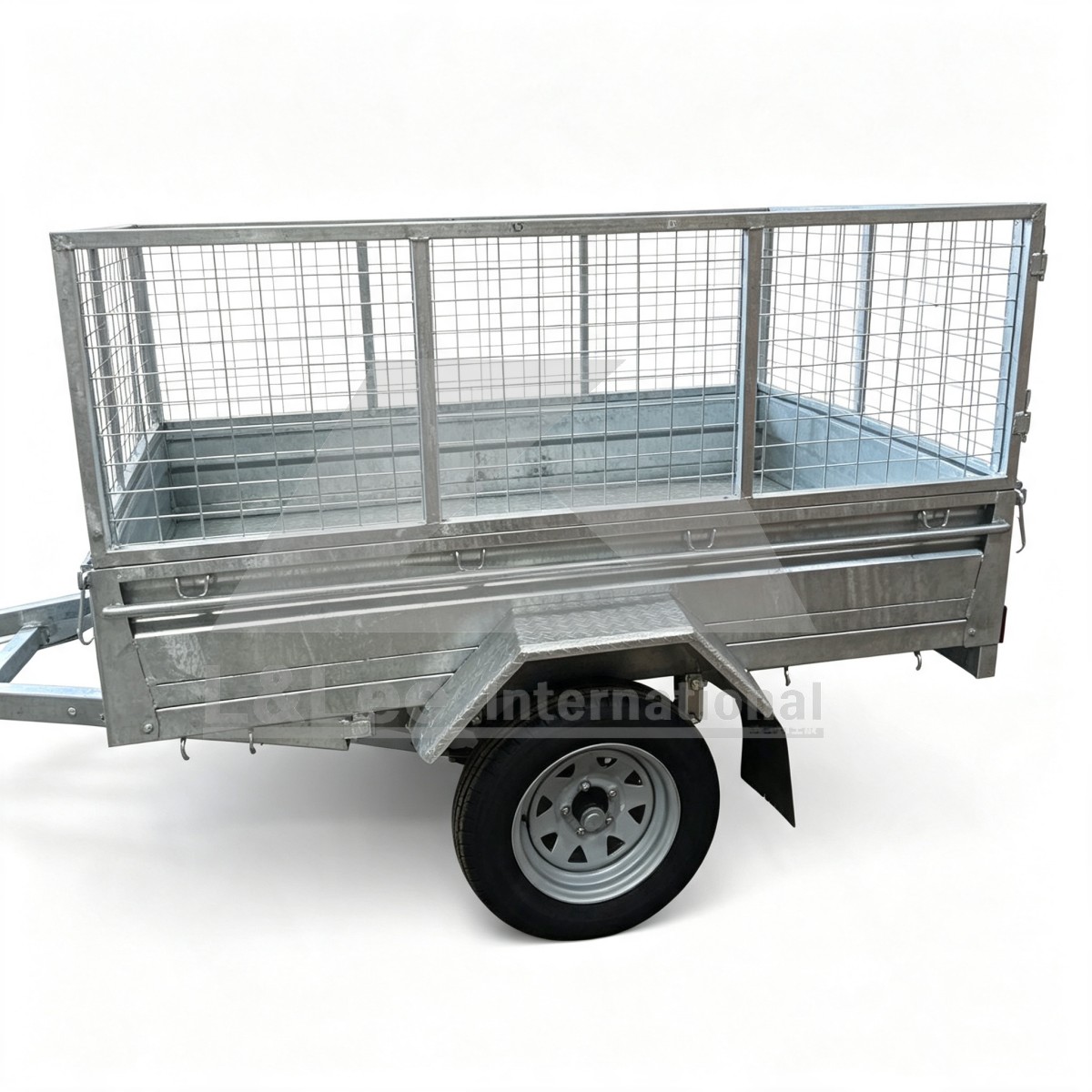

- 600mm High Cage
- 900mm High Cage
- Spare Wheel
- Jockey Wheel
- 50mm Coupling
- Number plate registration and WOF services
One-year back to base warranty (Auckland)
Trailer Parts
B. Trailer Parts
Introductions

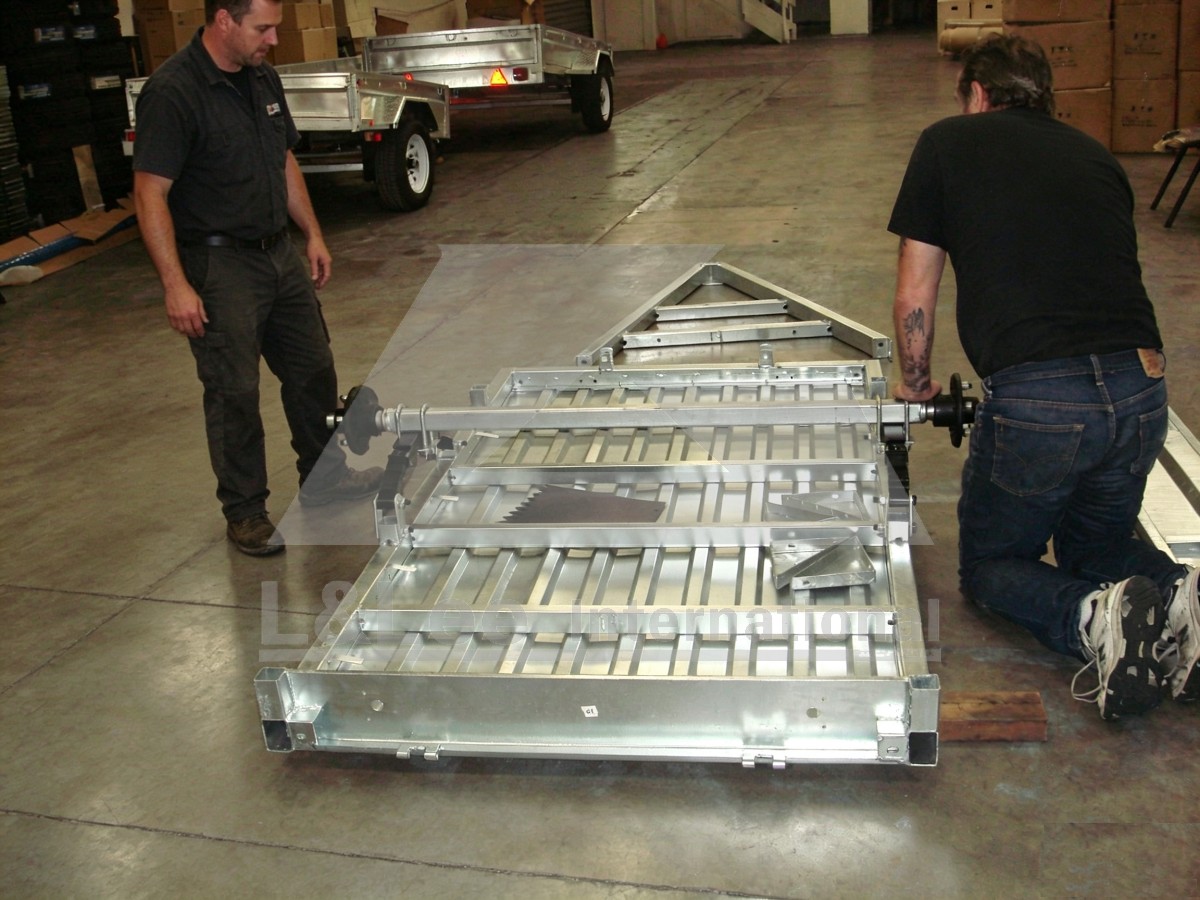

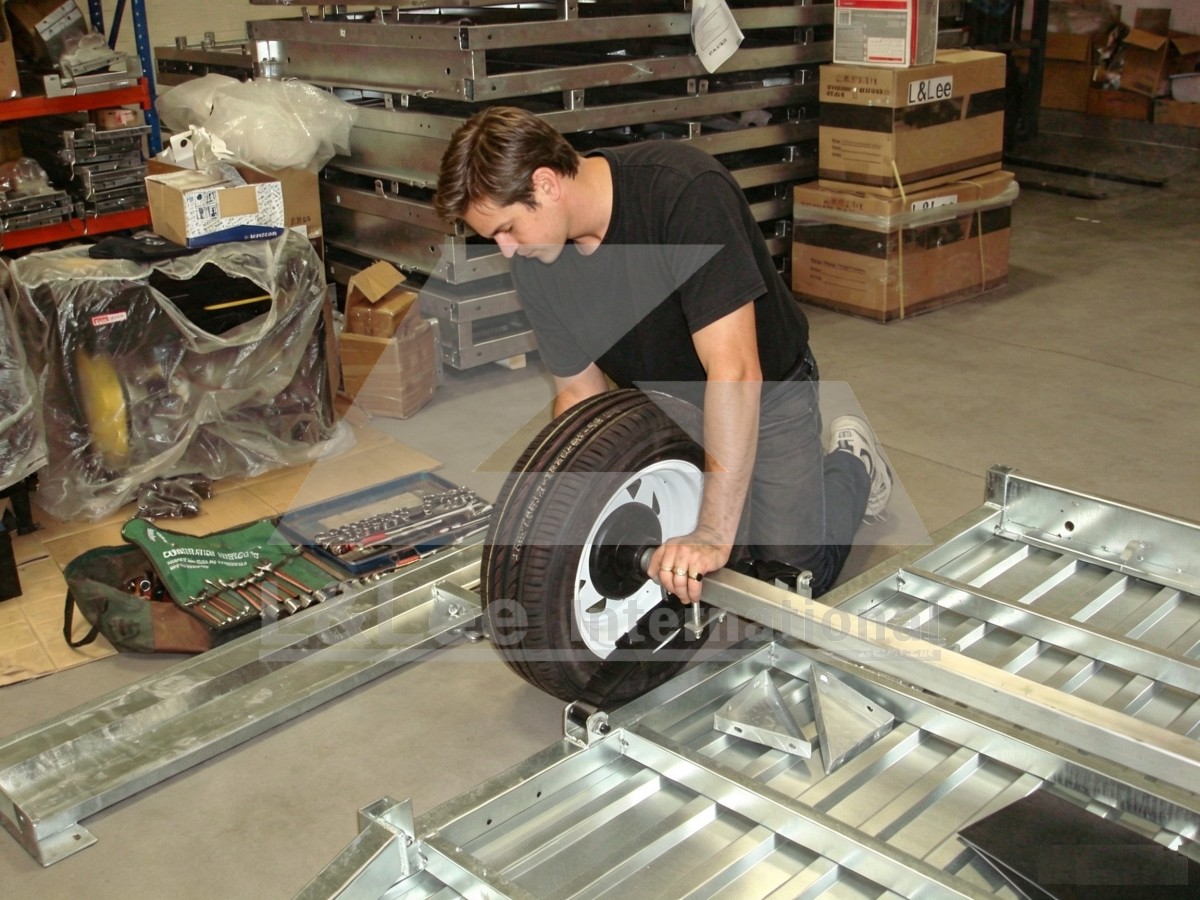

We supply a full range of trailer parts, enabling you to build your own fully customised DIY trailer tailored to your requirements.
Video: Assembled 7×4 & 8×5 Single Axle Trailer
Choose from our complete trailer parts range
- Axle

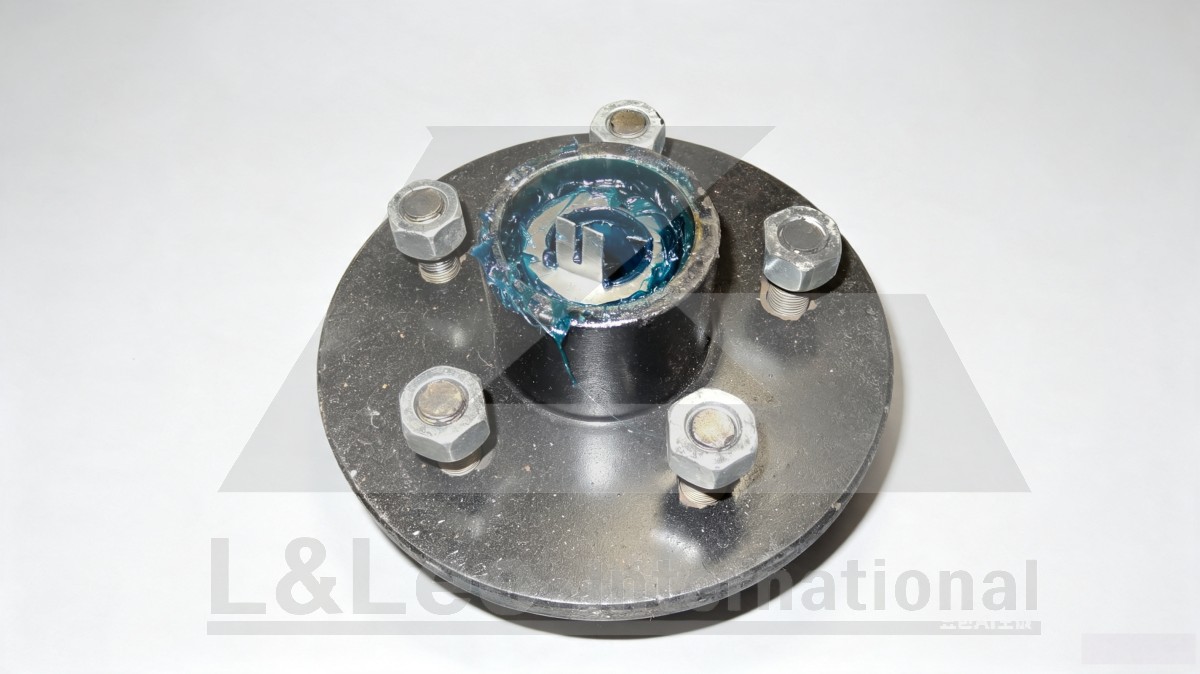

- Trailer Hub

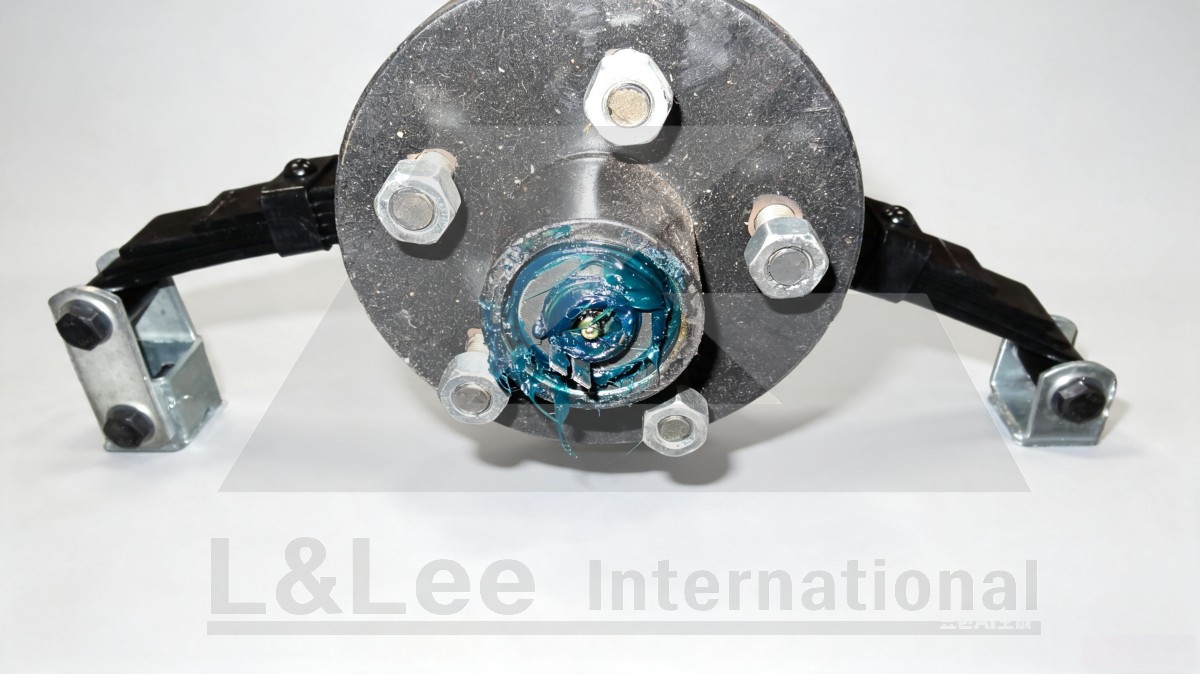

- Hub Assembly

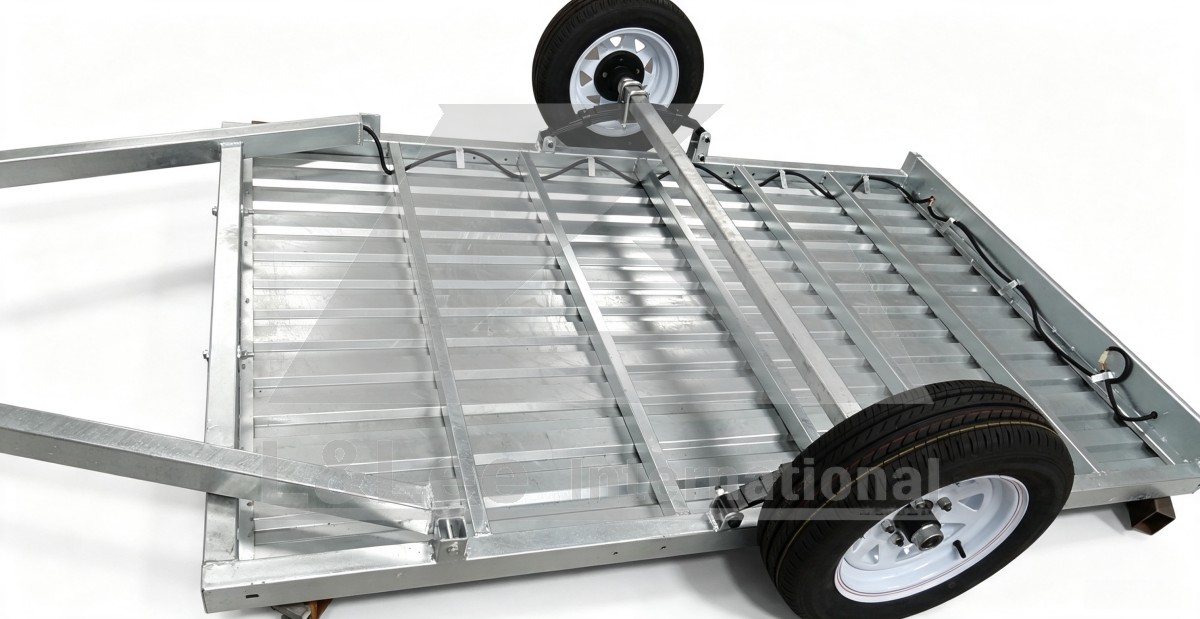

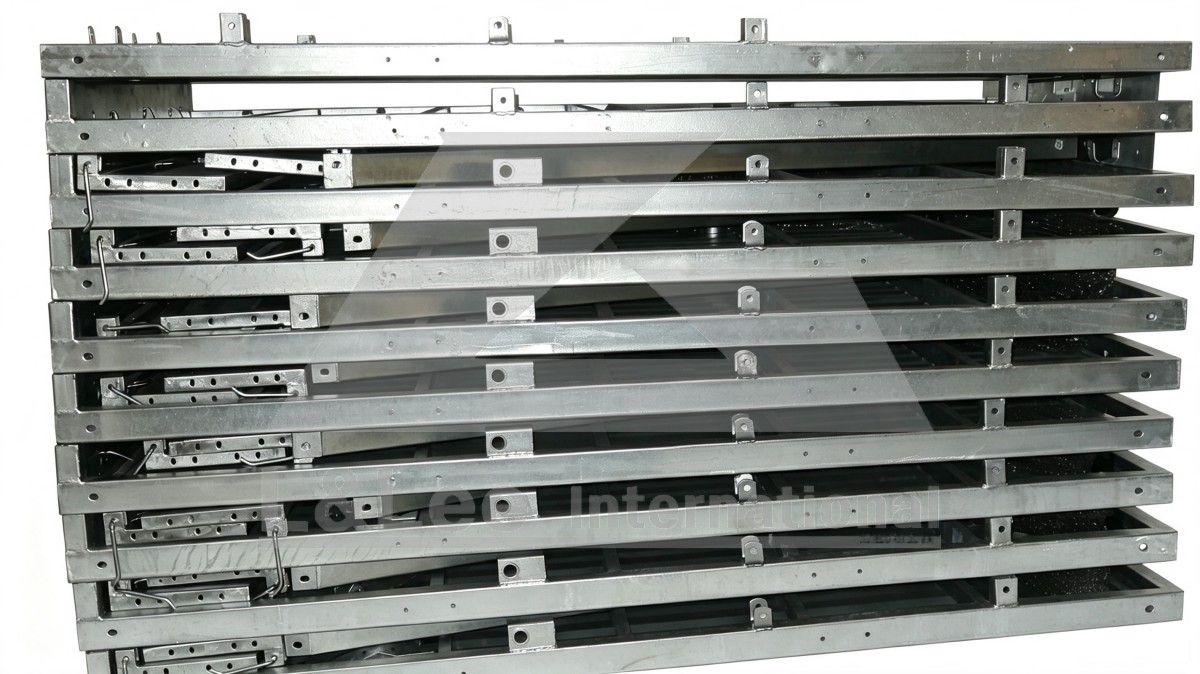

- Trailer Frame

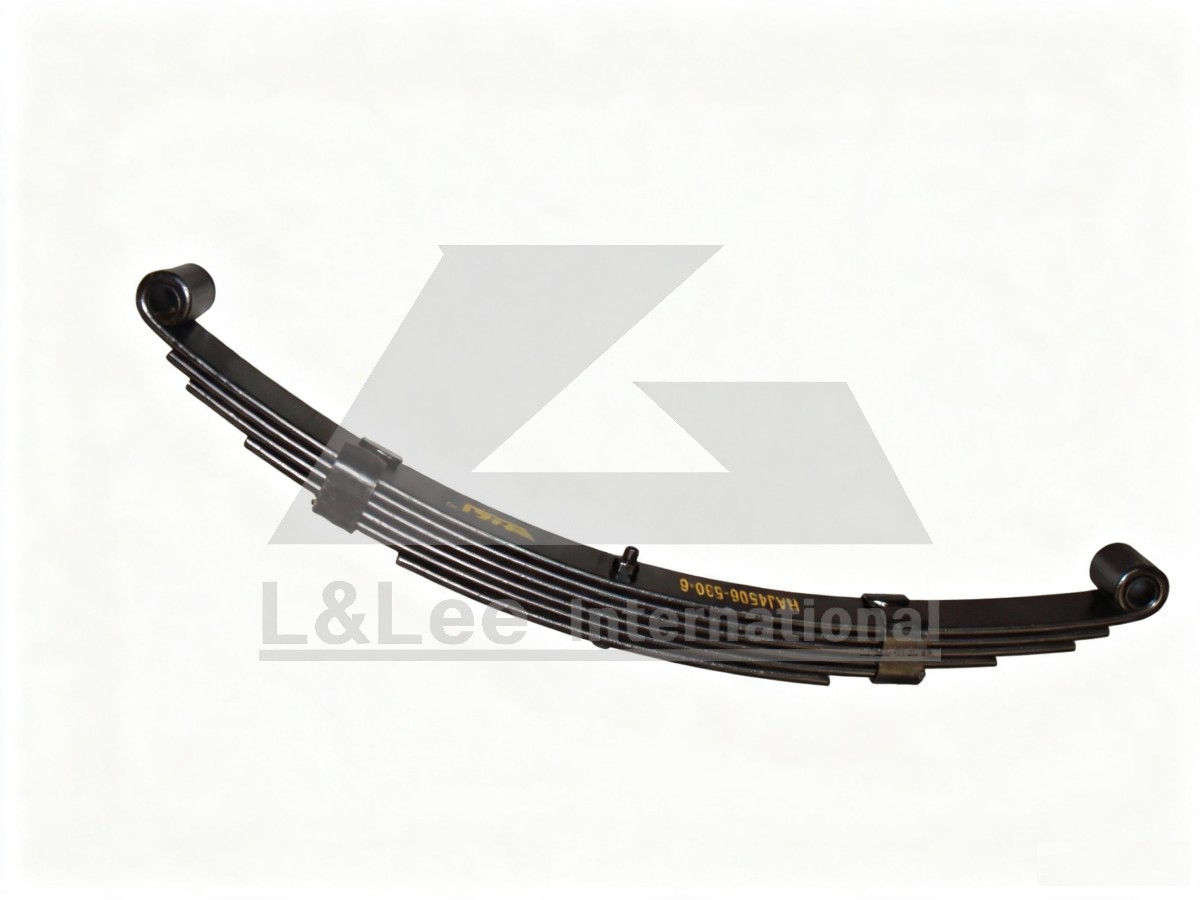

- 6-leaf suspension spring

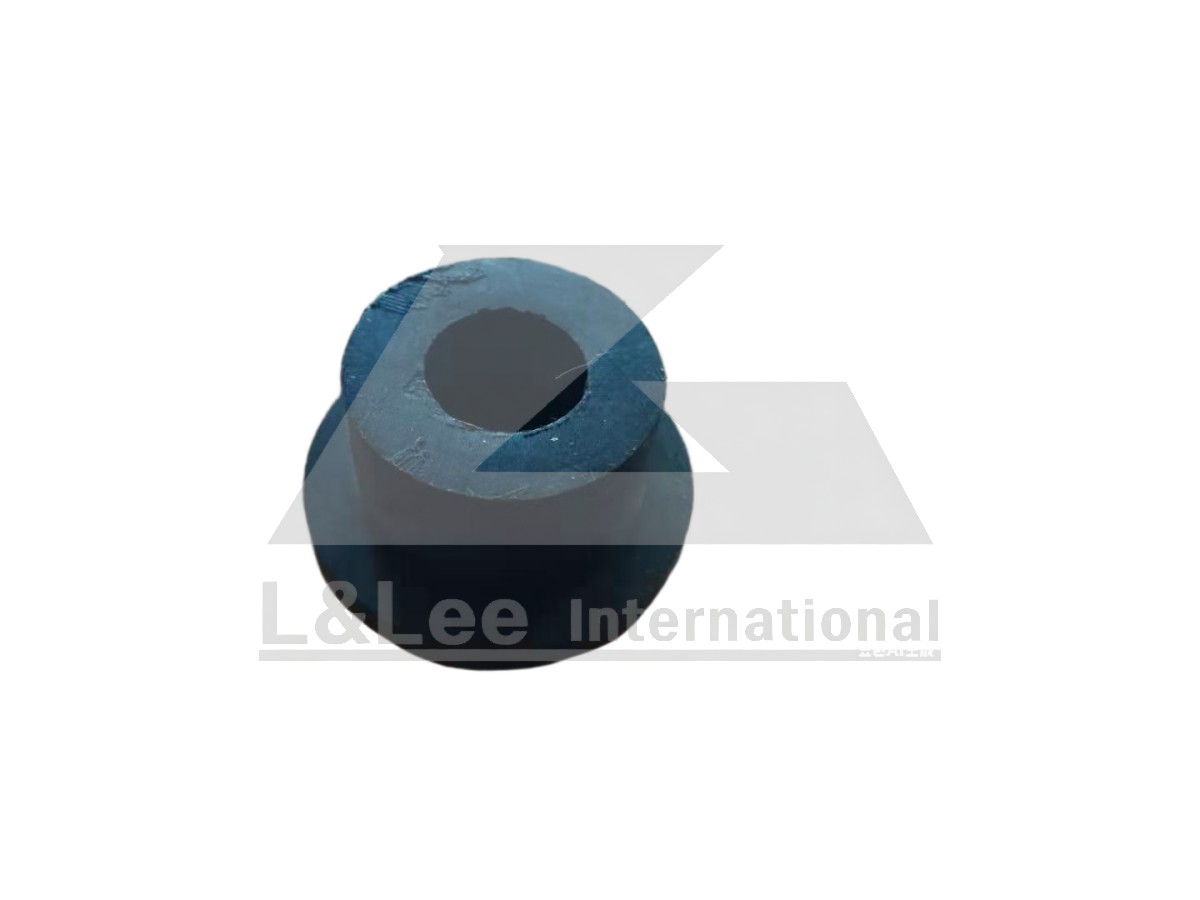

- Nylon Rubber Bushe

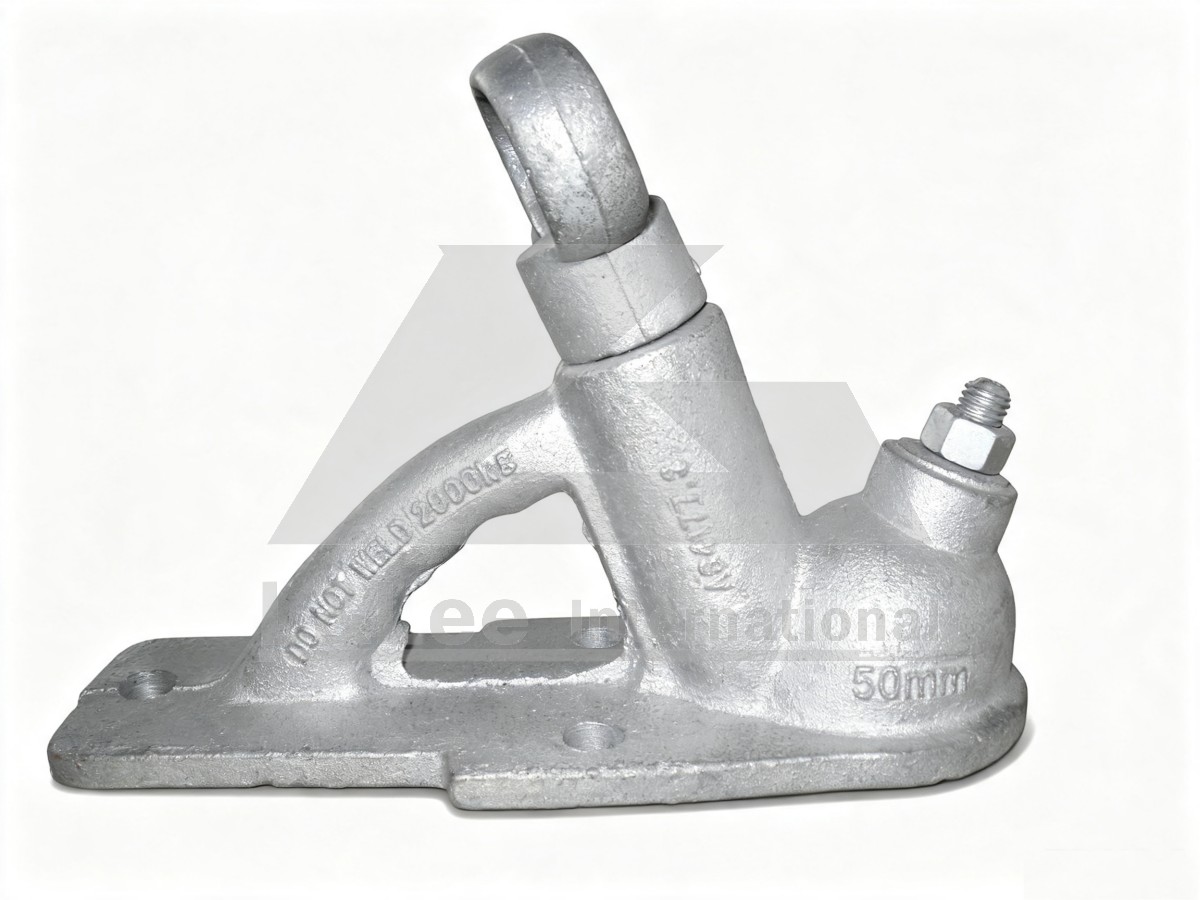

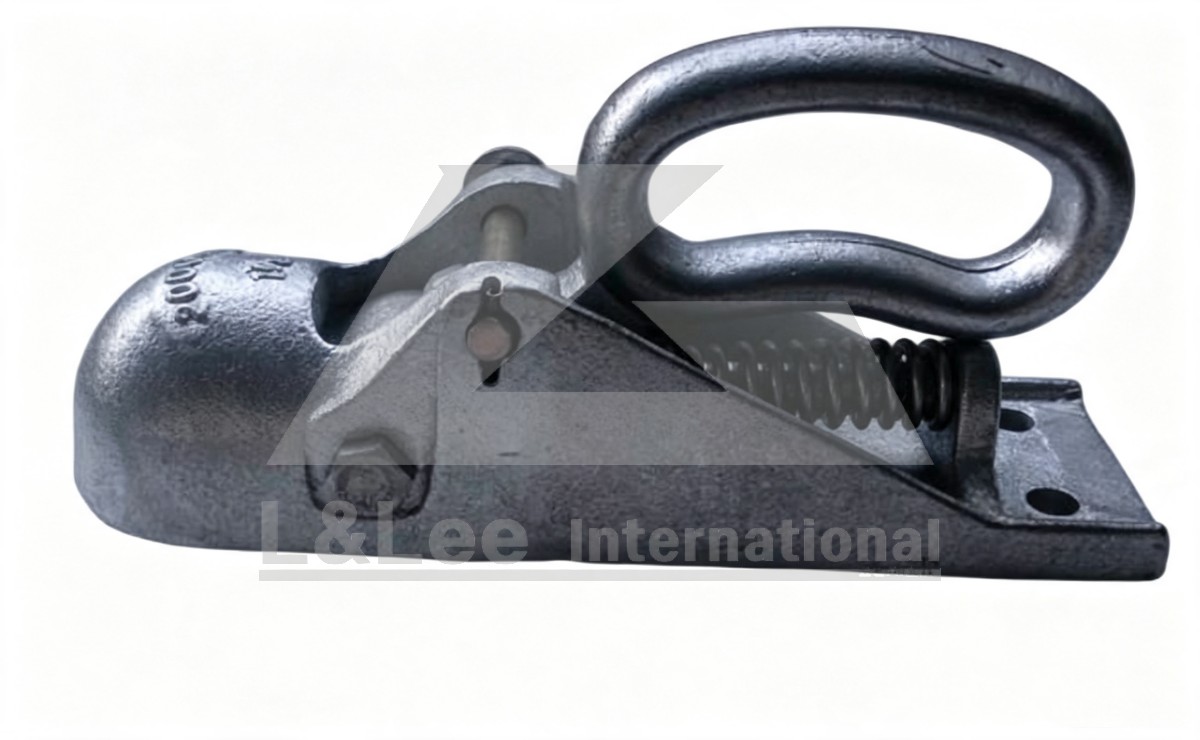

- Coupling 1 7/8" standard or optional 50mm
- 7 Pin Flat Style Plug

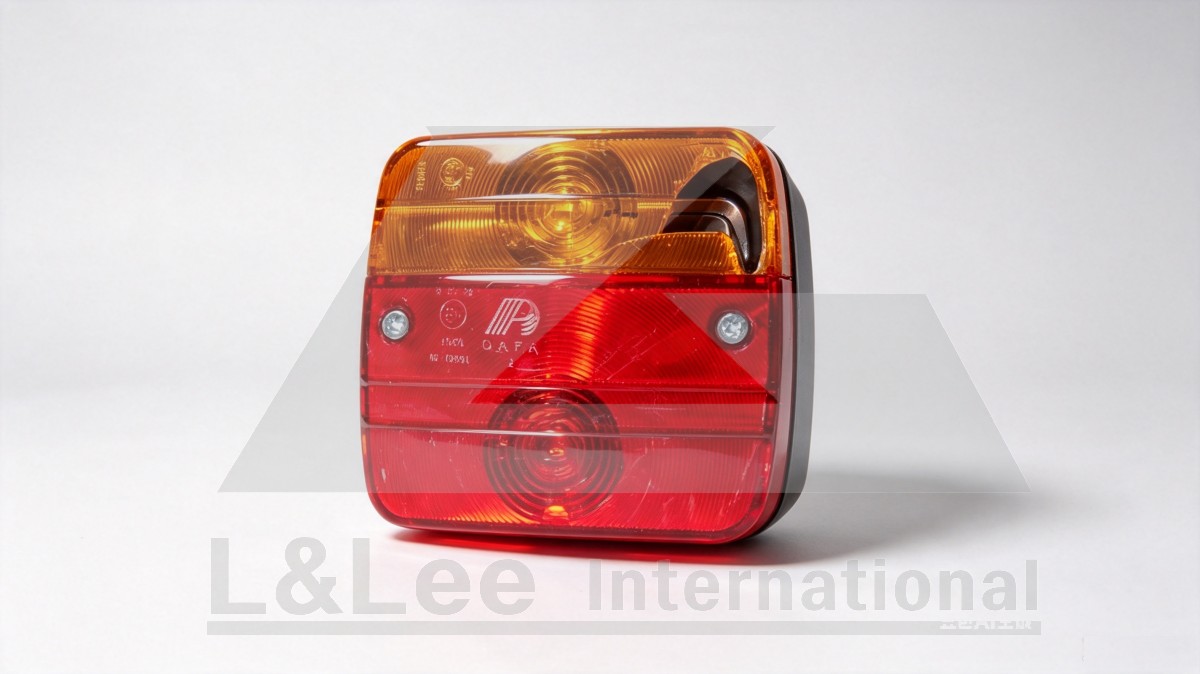

- Halogen Bulb Tail Light

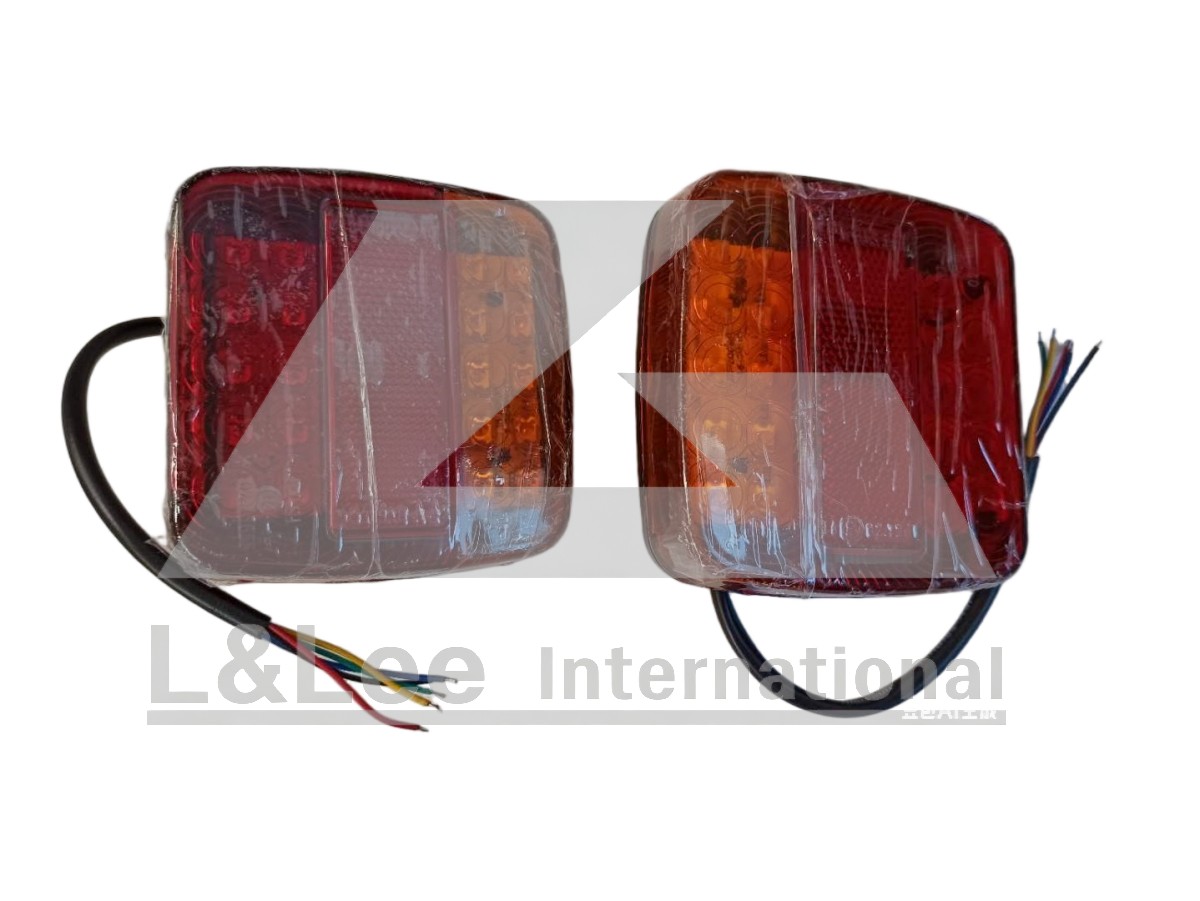

- LED Tail Light
- 5-Core Trailer Cable
- 600mm High Cage
- 900mm High Cage

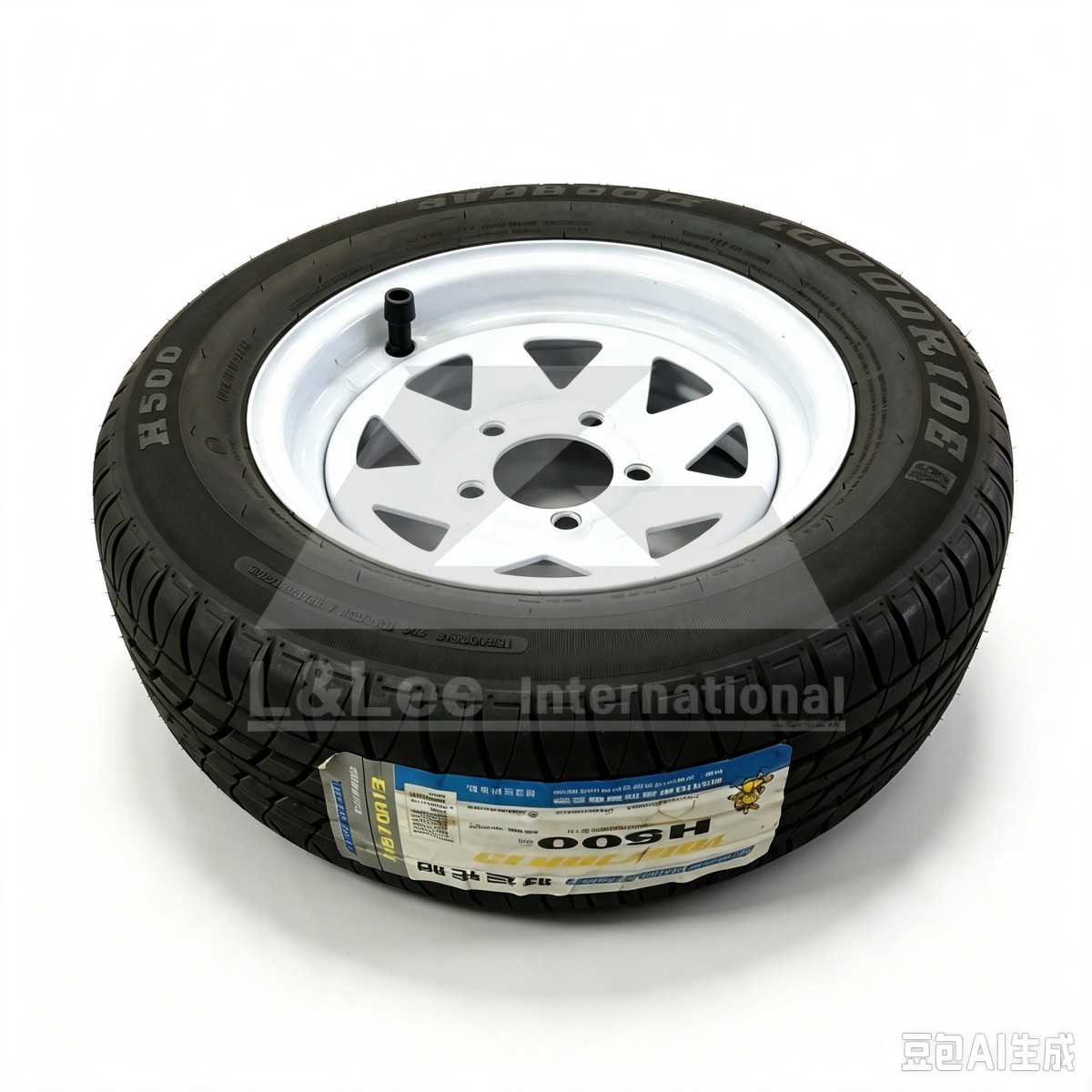

- Spare Wheel

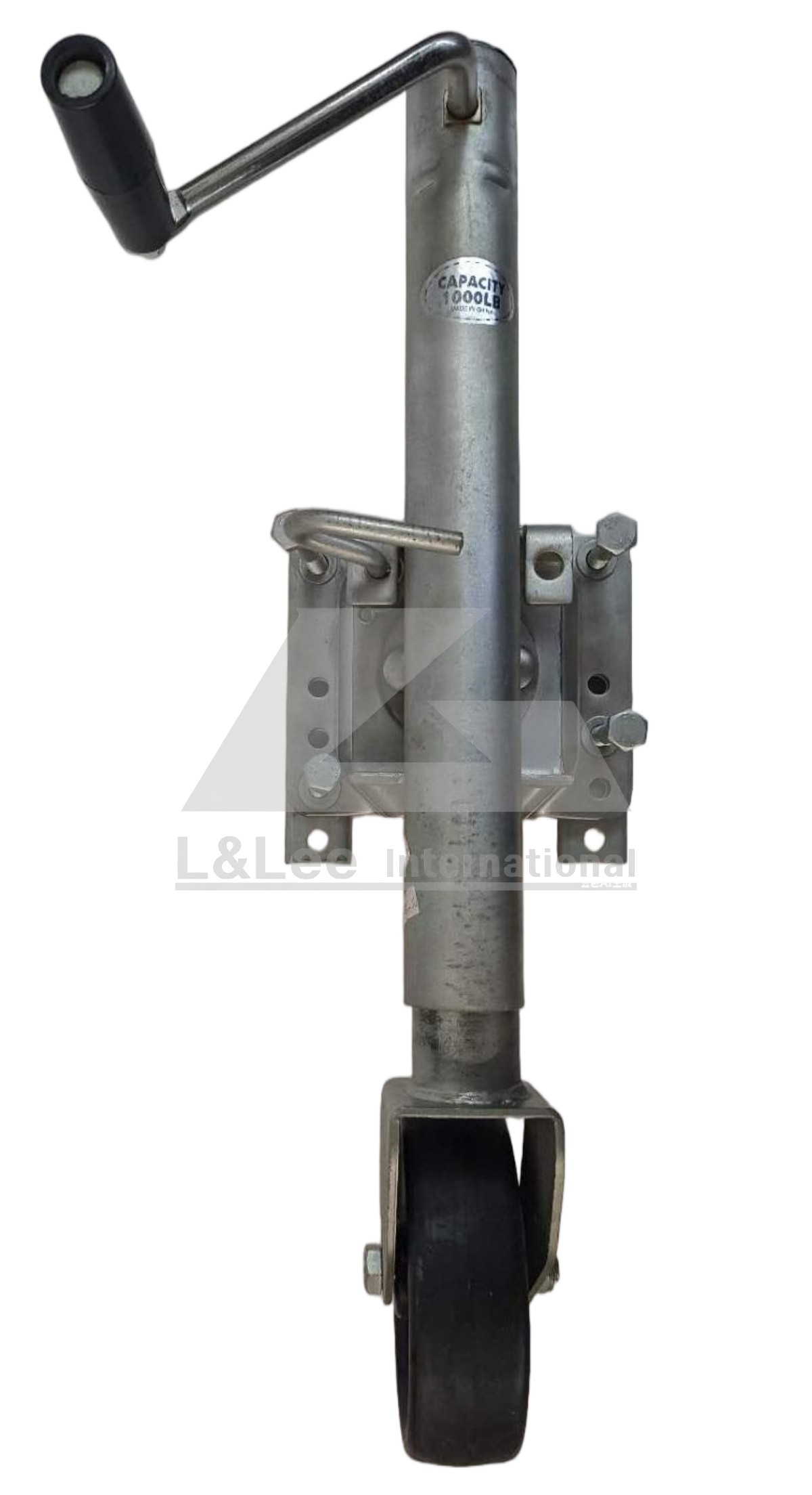

- Jockey Wheel

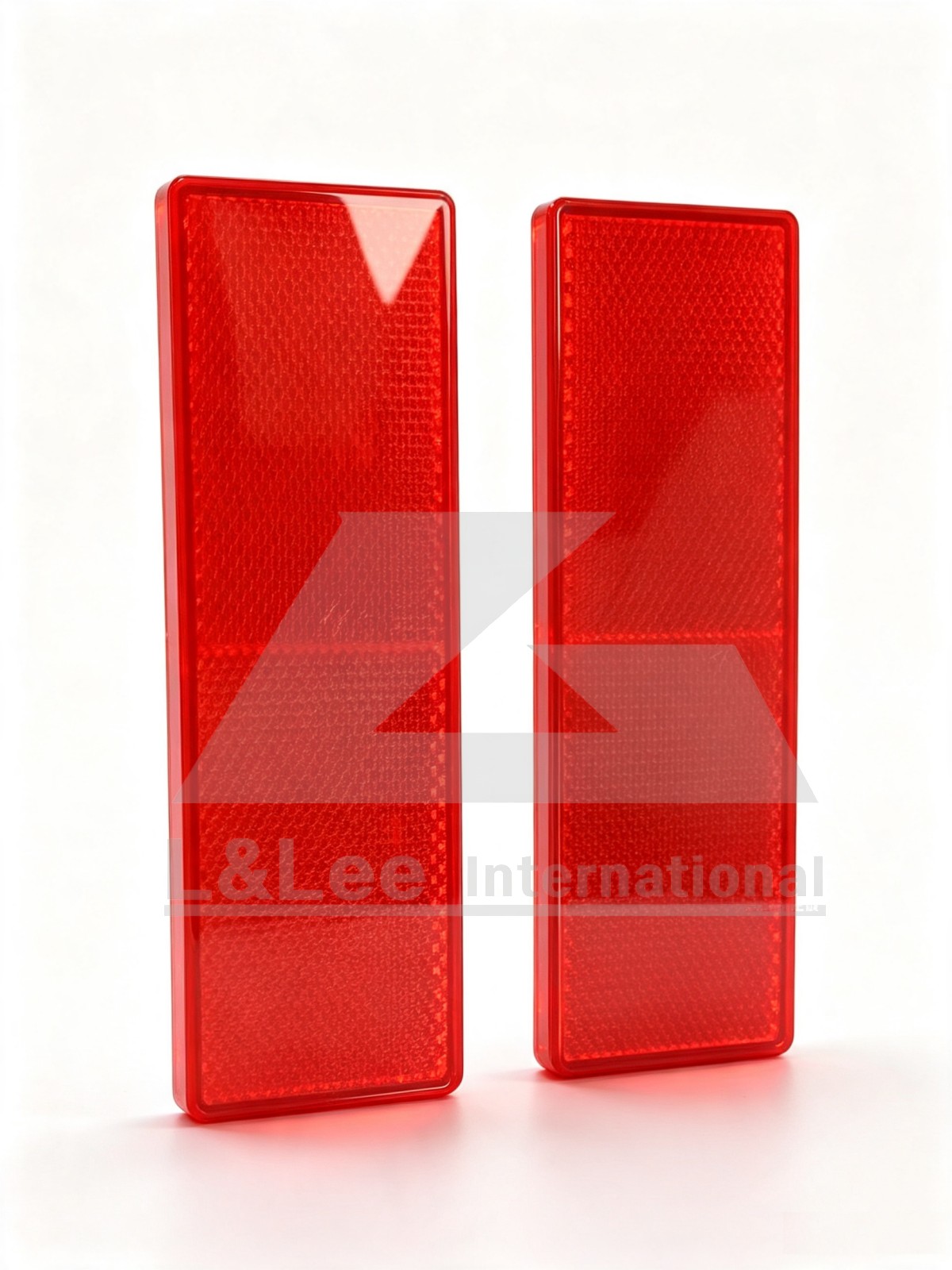

- Rectangular Side Reflector

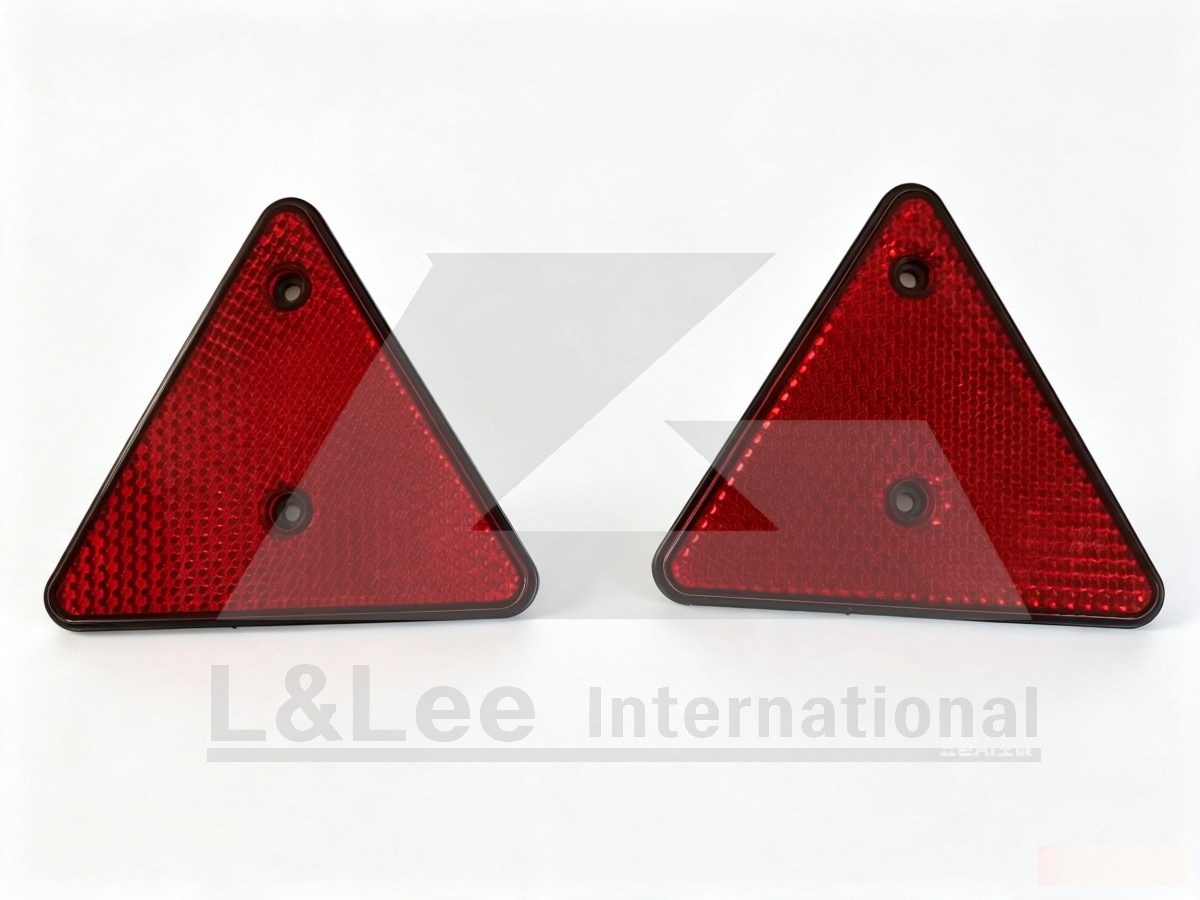

- Triangular Rear Reflector
