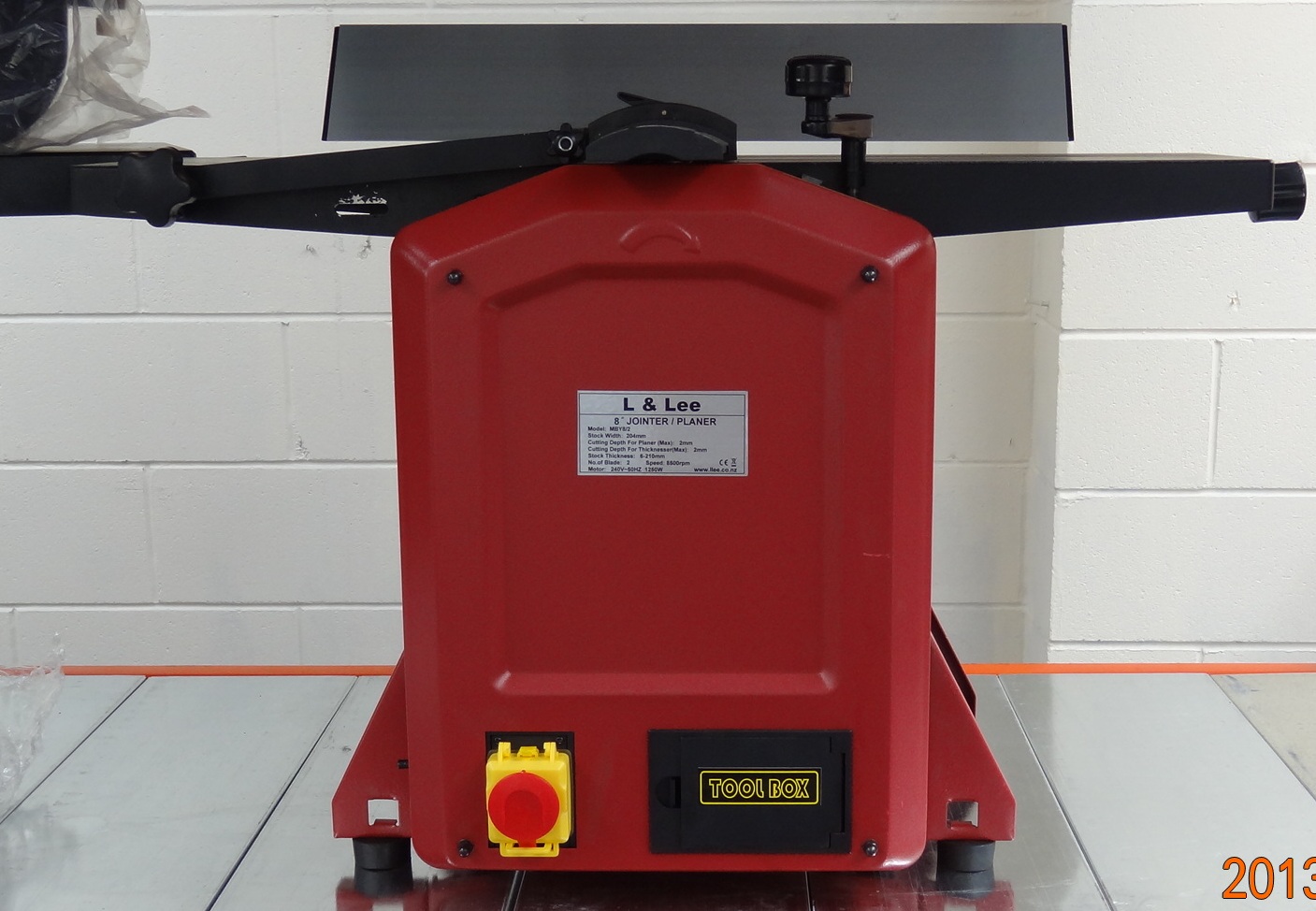

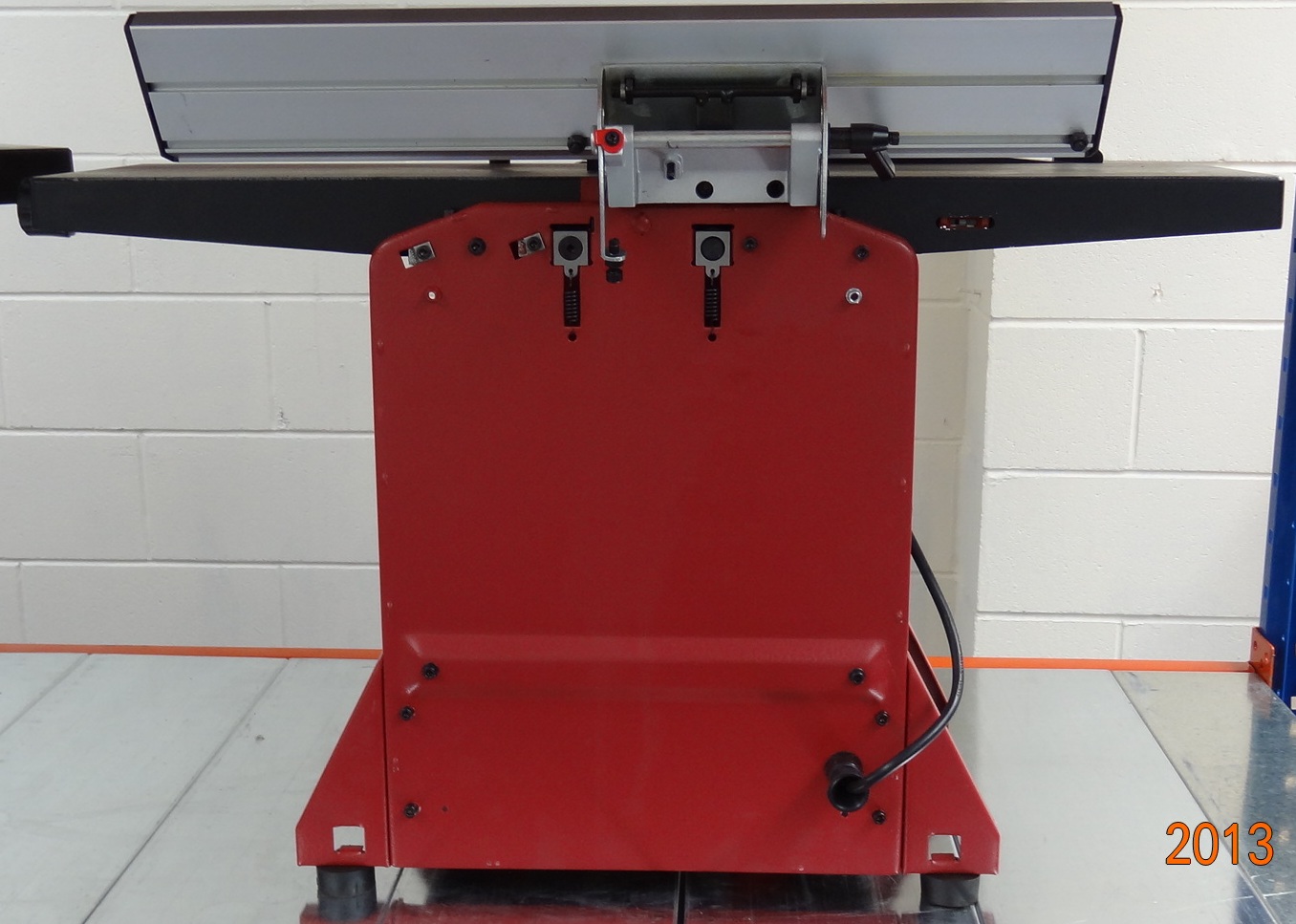

Model: MBY 8/2
Motor: 240V 50HZ 1250W.
No of Blade: 2.
Cutterhead rpm. 8500 RPM

Technical data-Planer.
Cutting Width(max): 204mm(8'')
Cutting Depth(max): 2mm.
Angle fence: 520X102mm.
Fence Angle: 90*-135*.
Dust Chute Diameter:63mm
Working table: 737X210mm.

Technical data-Thicknesser:
Cutting Width(max): 204mm(8'')
Cutting thickness(max): 6-210mm.
Cutting Depth(max): 2mm.
Thicknessing Table: 285X204mm.

Package:830*460*550mm
Weight:32kg

Three months back to base (Auckland) warranty

-----------------------------------------------------------------------------------------------------------------
　

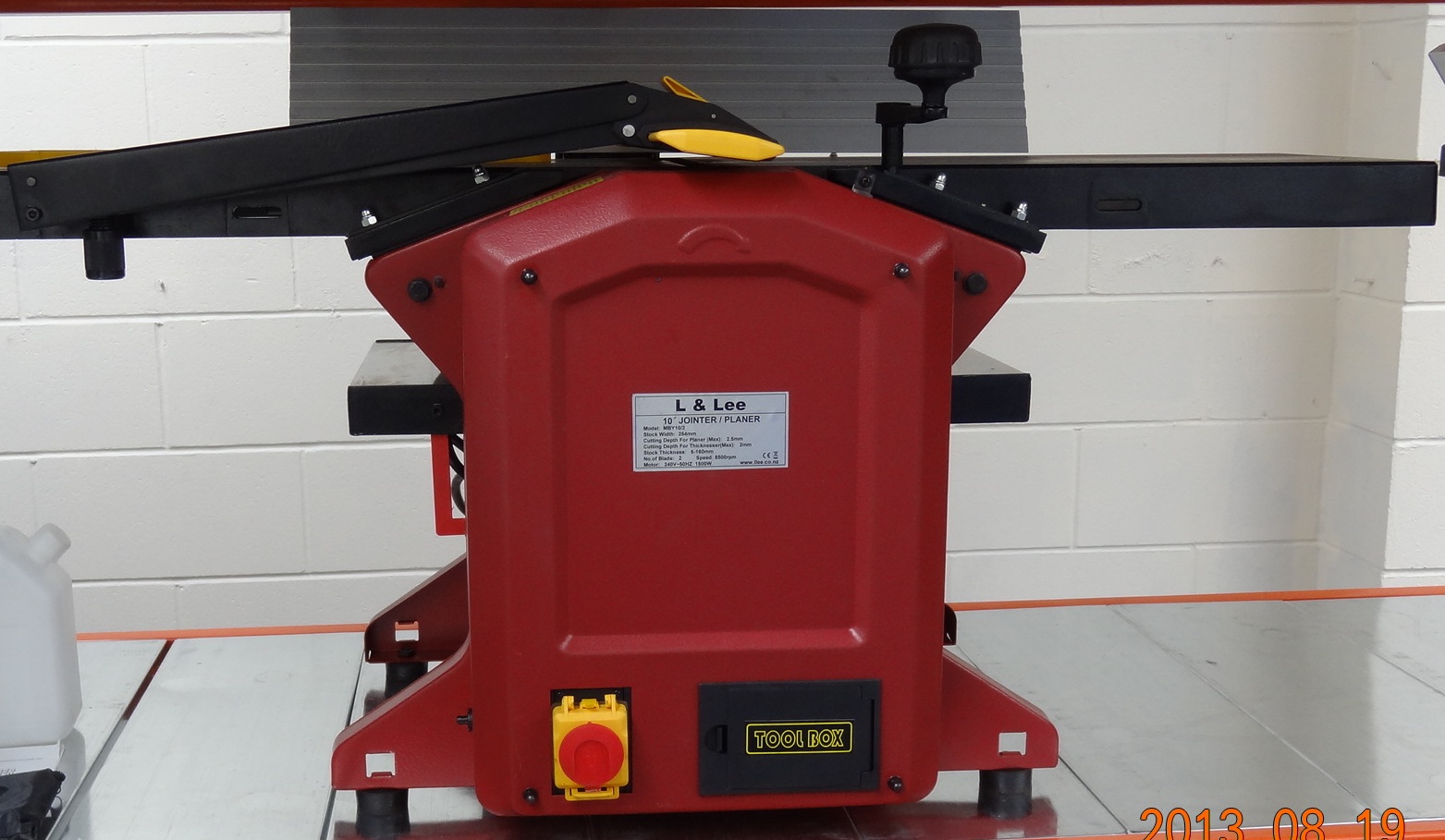

[MBY10/2]10''over underJOINTER PLANER thickneser

Introductions

Model: MBY 10/2.
Motor: 240V-50HZ 1500W.
No of Blade: 2.
Cutterhead rpm. 8500 RPM.

Technical data-Planer.
Cutting Width(max): 254mm(10'')
Cutting Depth for planer(max): 2.5mm.
Cutting Depth for thickness(Max): 2mm.
Angle fence: 610X120mm.
Fence Angle: 90*-135*.
Working table: 1050X260mm.

Technical data-Thicknesser:
Cutting Width(max): 254mm(10'')
Cutting thickness(max): 6-160mm.
Cutting Depth(max): 2mm.
Working Table: 450X254mm.

Package:1150*540*550mm
Weight:46kg

Three months back to base (Auckland) factory warranty on parts and labor, GST invoice is provided

-----------------------------------------------------------------------------------------------------------------

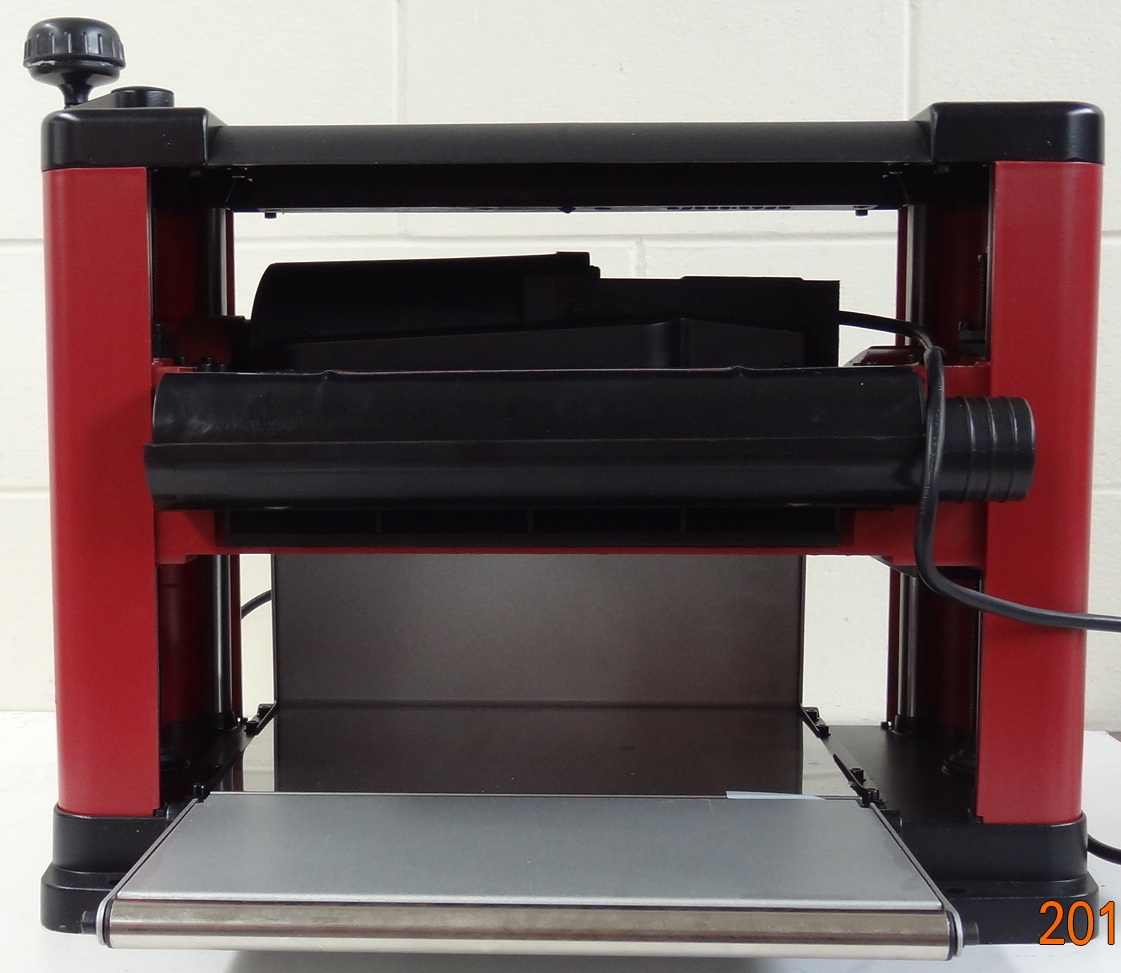

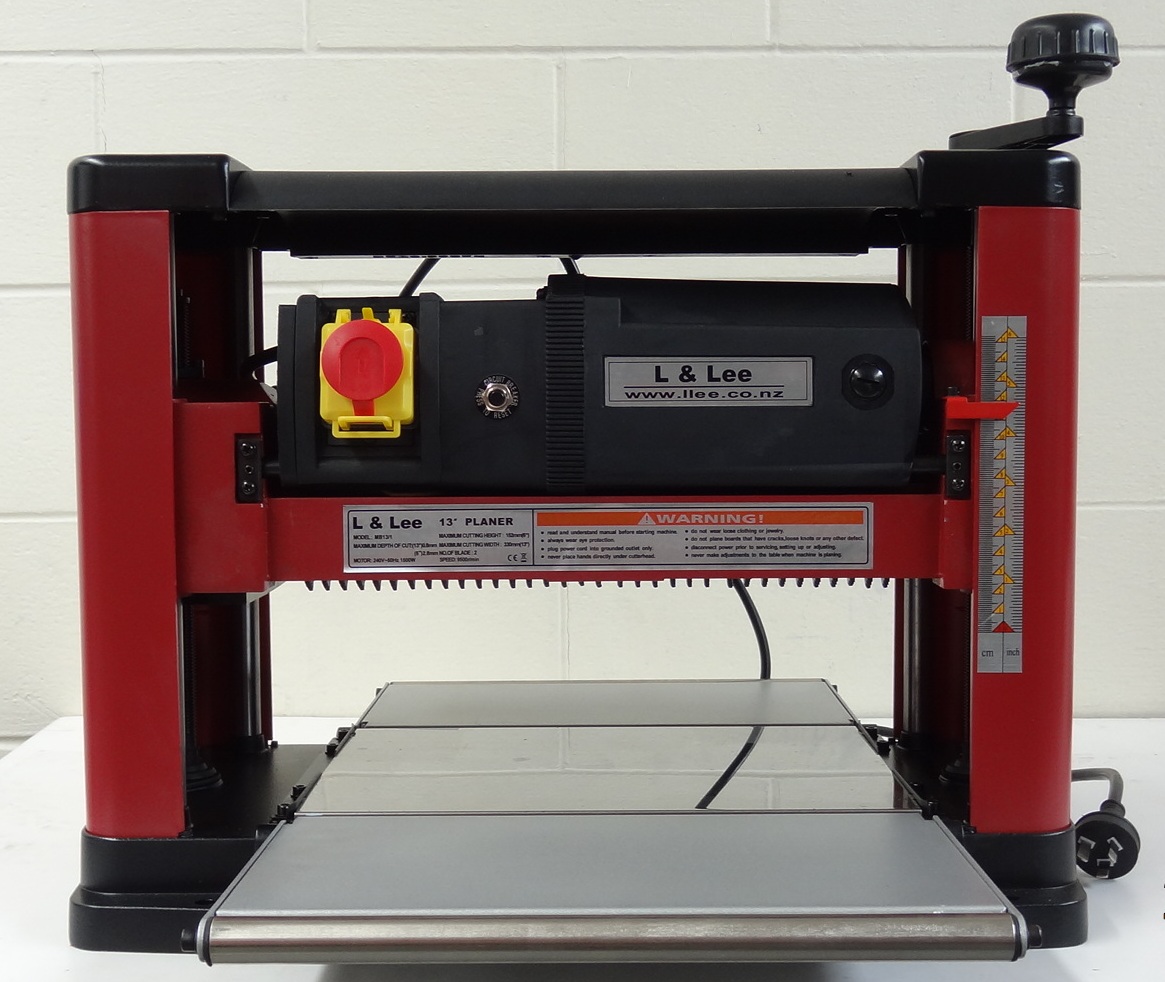

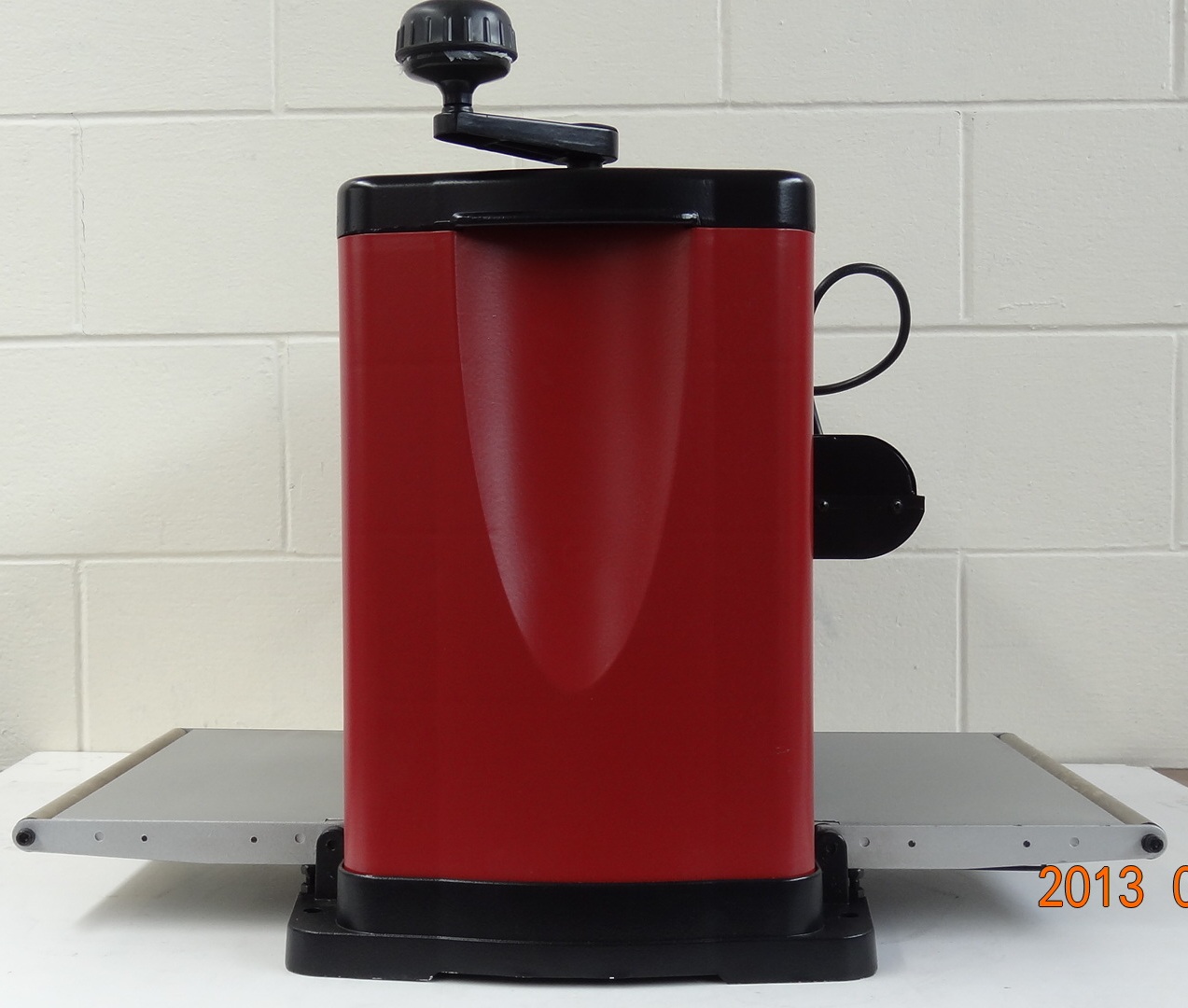

 [MB13/1] 13'' PLANER

Introductions

Model: MB13/1.
Motor: 240V-50HZ 1500W.
No of Blade: 2.
Speed: 9500r/min.

Cutting Width: 330mm(13'')
Cutting thickness(max): 152mm(6'').
Cutting Depth (Max): (13'')0.8mm, (5'')2.8mm
Weight: 35/33kg.
Working Table: 330X235mm(13''X9-1/4'­­').


Three months back to base (Auckland) factory warranty on parts and labour, GST invoice is provided ,

-----------------------------------------------------------------------------------------------------------------
