Bearings

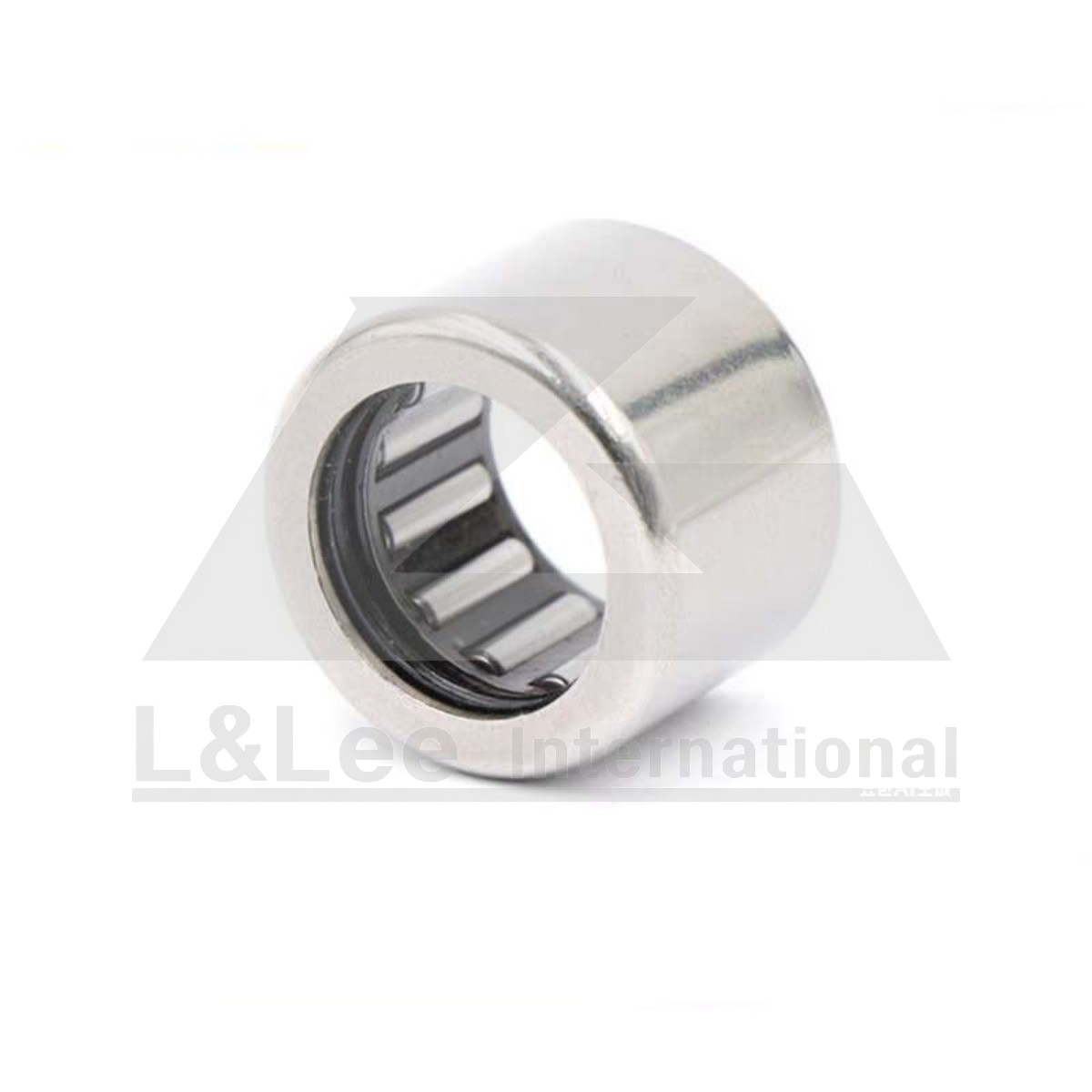

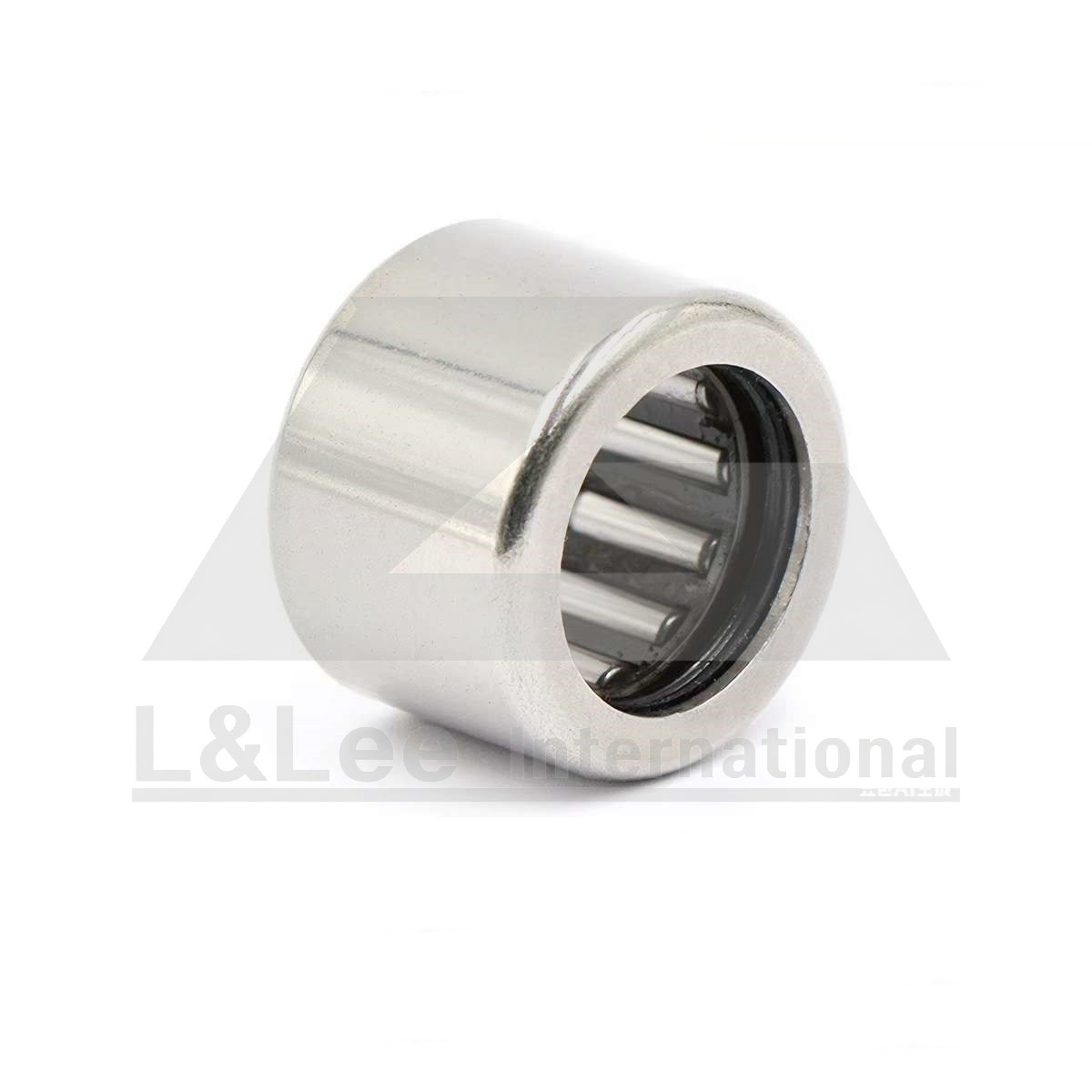

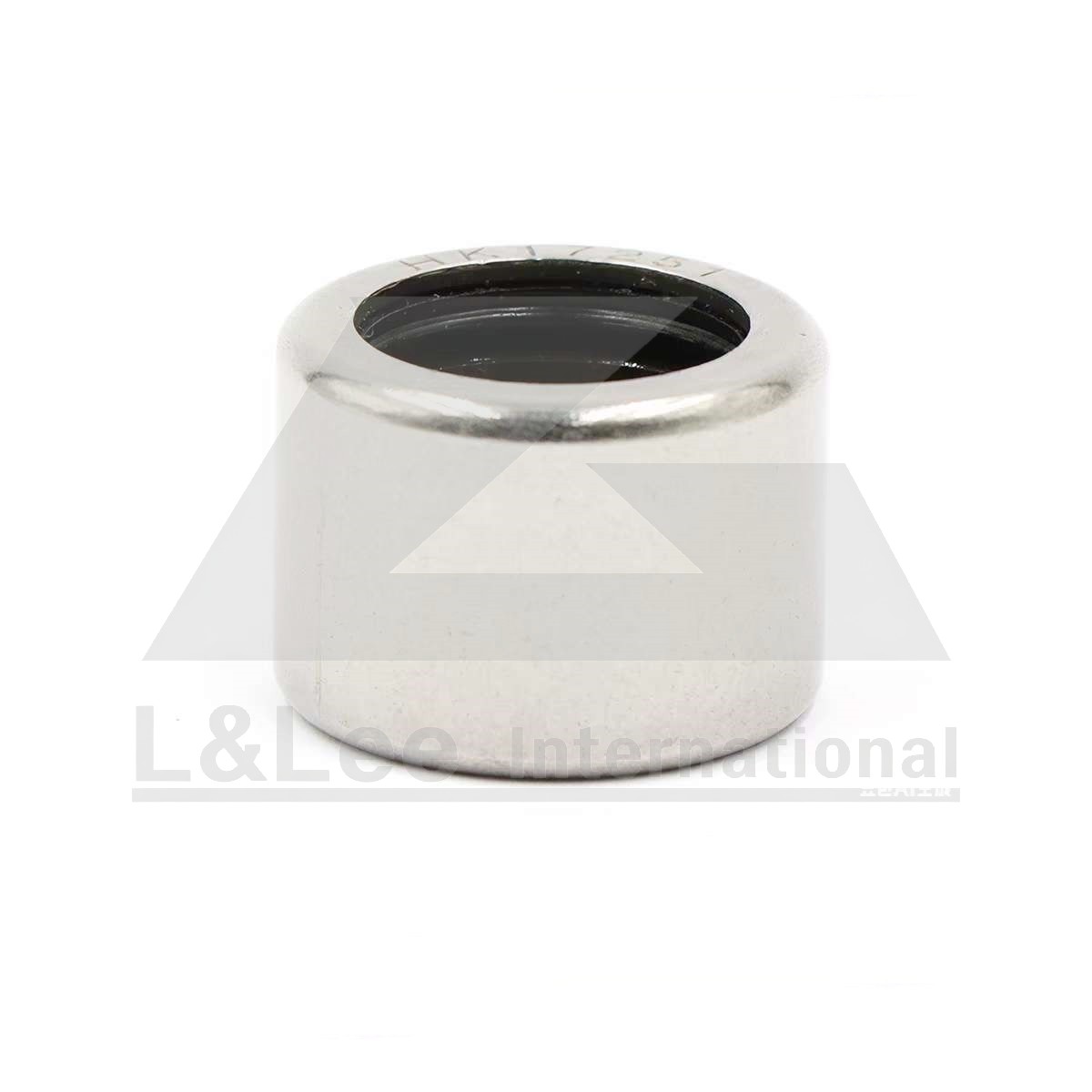

A. HK1010 Drawn Cup Needle Roller Bearing
Introductions
HK1010 drawn‑cup open‑end needle roller bearing with dimensions 10 mm × 14 mm × 10 mm. It provides outstanding radial load capacity within a slim cross‑section. Specially engineered and highly suited for timing‑shaft mounting on single‑cylinder diesel engines. Press‑fit type installation for housing bore, stable operation under engine working conditions. Also widely adopted for general machinery, transmission assemblies and equipment rebuild where mounting space is restricted.
Specifications
| Model | HK1010 |
| Bearing Type | Drawn Cup Open‑End Needle Roller Bearing |
| Dimensions | 10 mm × 14 mm × 10 mm |
| Performance | High radial load capacity |
| Key Application | Timing‑shaft bearing for single‑cylinder diesel engines, compact machinery |
| Installation Method | Press‑fit into housing bore |
Package Includes
- 1 Piece

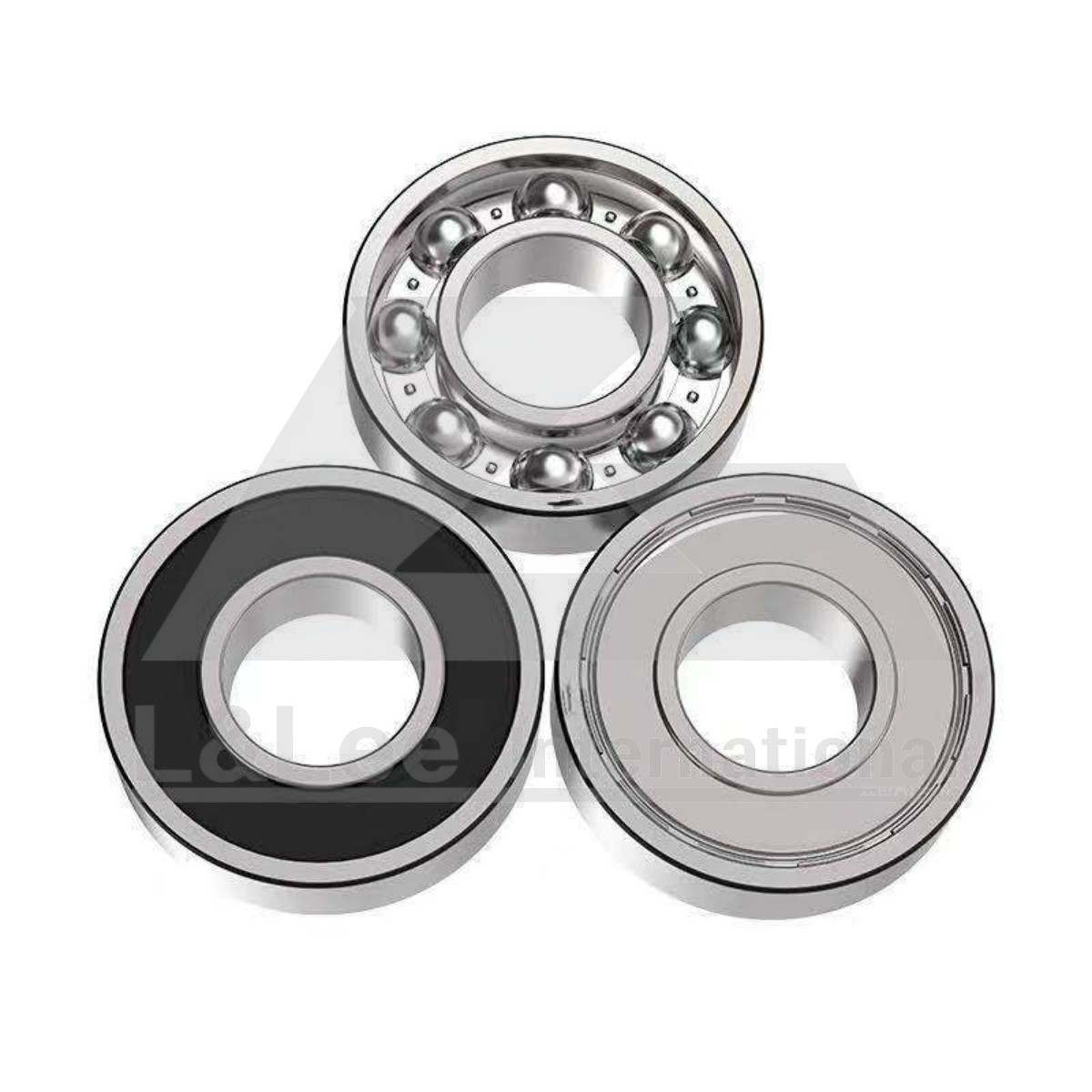

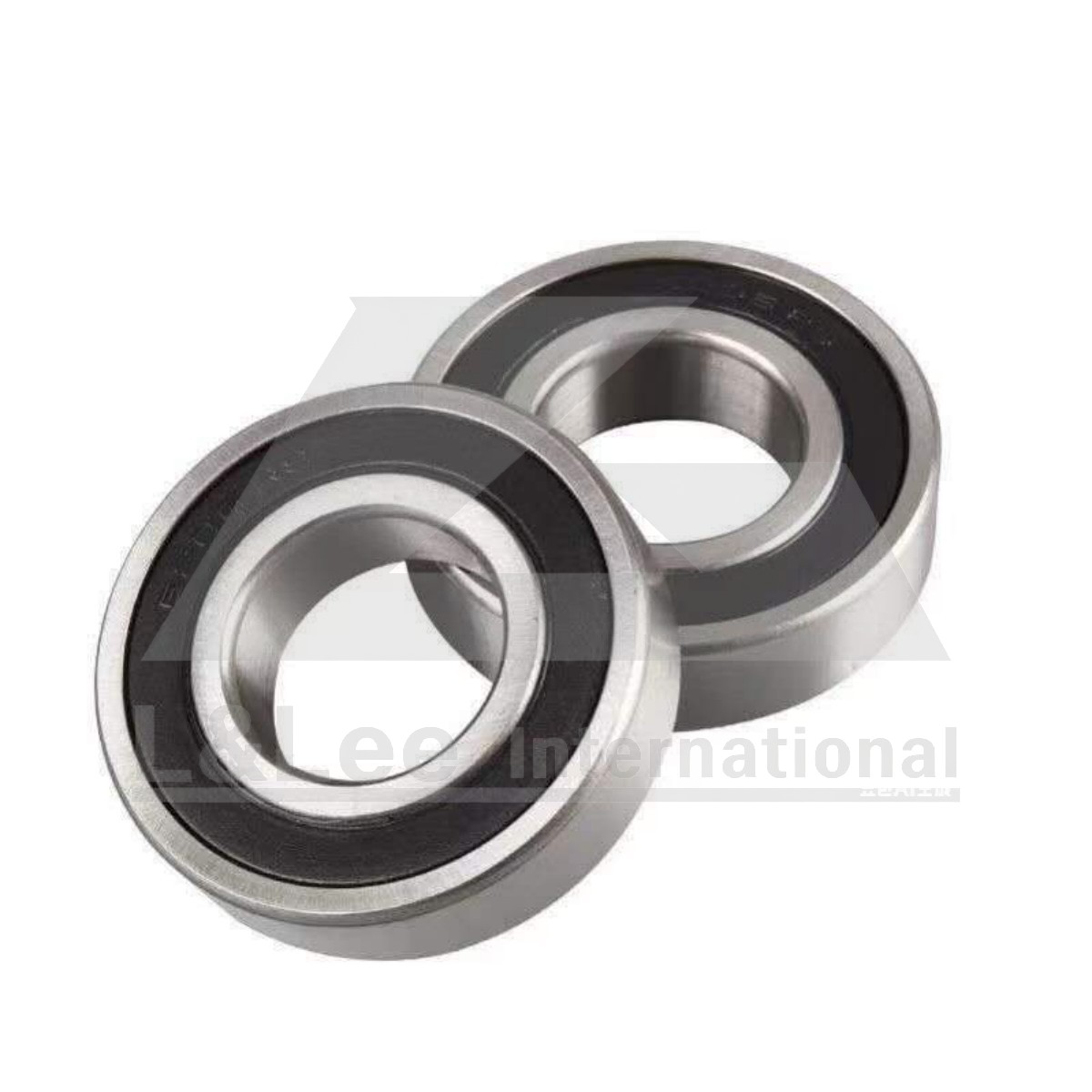

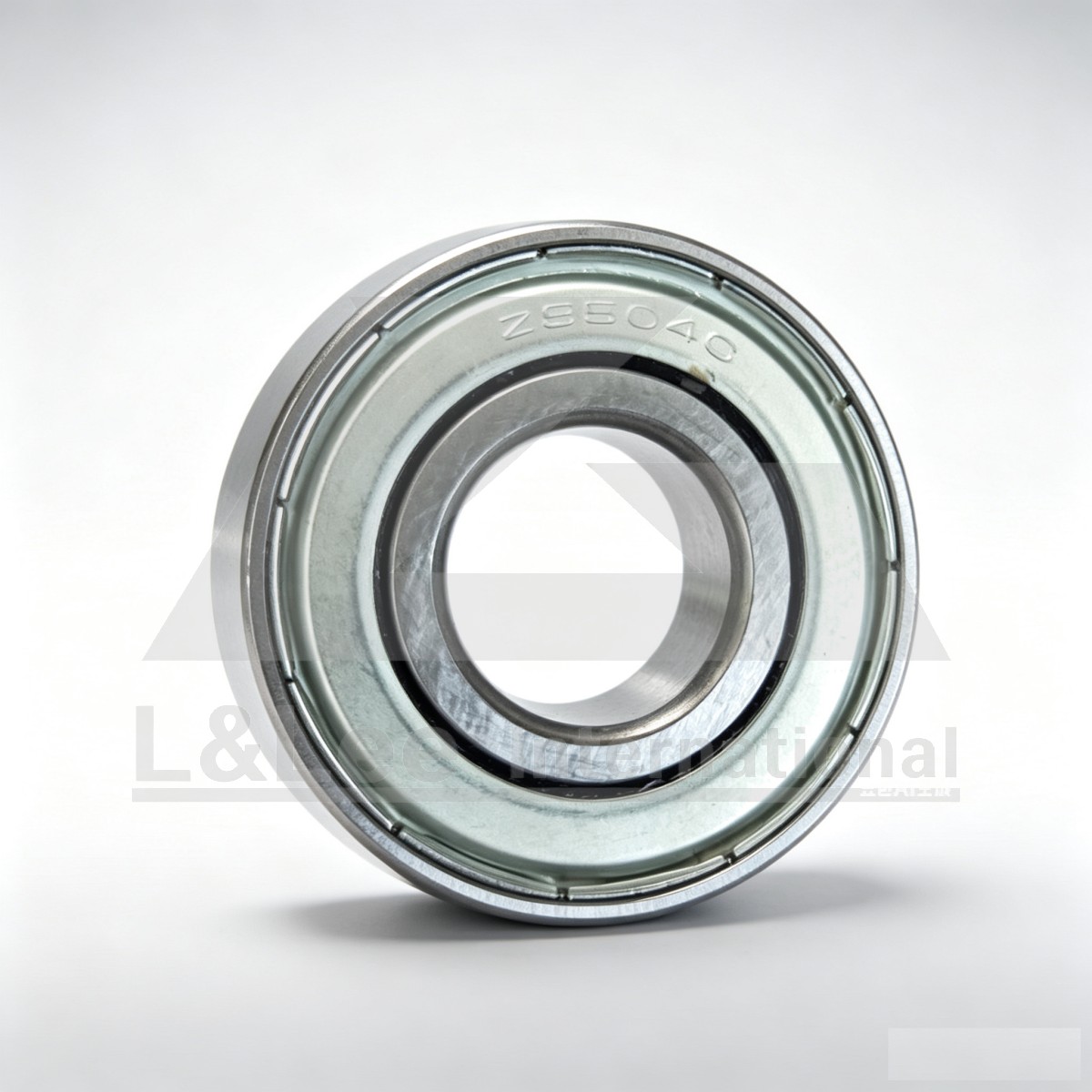

B. 6023E‑RZ/6024E‑RZ Single Row Deep Groove Ball Bearing
Introductions
6023E‑RZ and 6024E‑RZ are reinforced single‑row deep groove ball bearings fitted with single‑sided RZ non‑contact rubber seal to resist grass dust and outdoor debris. The enhanced internal structure delivers improved load capacity for long‑time continuous outdoor operation. These bearing variants are particularly well‑matched for Husqvarna ride‑on lawn mower assemblies. They can also be widely used on other agricultural machinery and general industrial transmission equipment.
Specifications
| Model | 6023E‑RZ / 6024E‑RZ |
| Bearing Type | Single Row Reinforced Deep Groove Ball Bearing |
| Dimensions (6023E‑RZ) | 115 mm × 170 mm × 28 mm |
| Dimensions (6024E‑RZ) | 120 mm × 180 mm × 28 mm |
| Seal Type | RZ Single‑sided non‑contact rubber seal |
| Feature | Enhanced load capacity, dust‑proof for outdoor working environment |
| Key Application | Husqvarna ride‑on lawn mower, agricultural machinery, general industrial equipment |
Package Includes
- 1 Piece

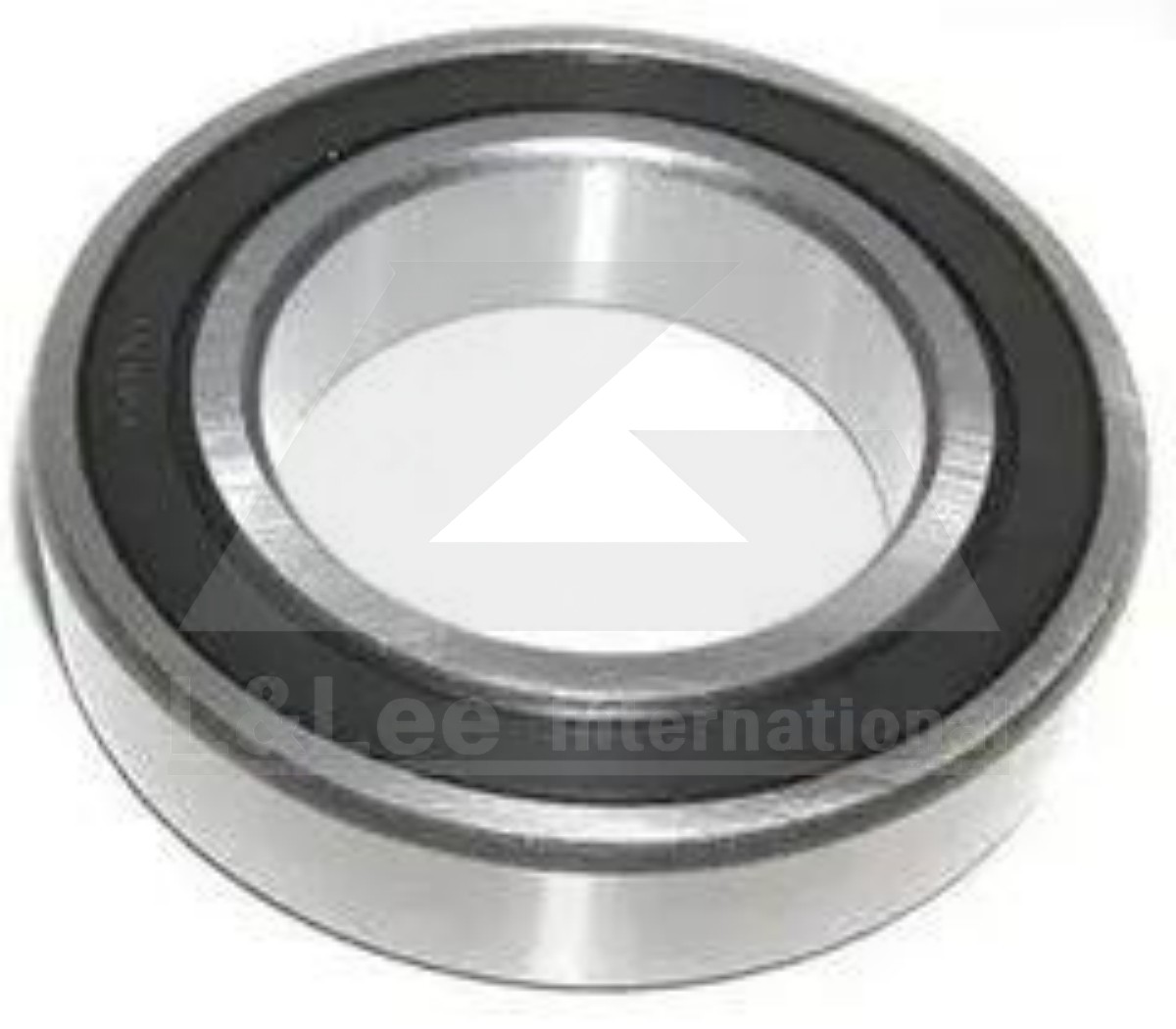

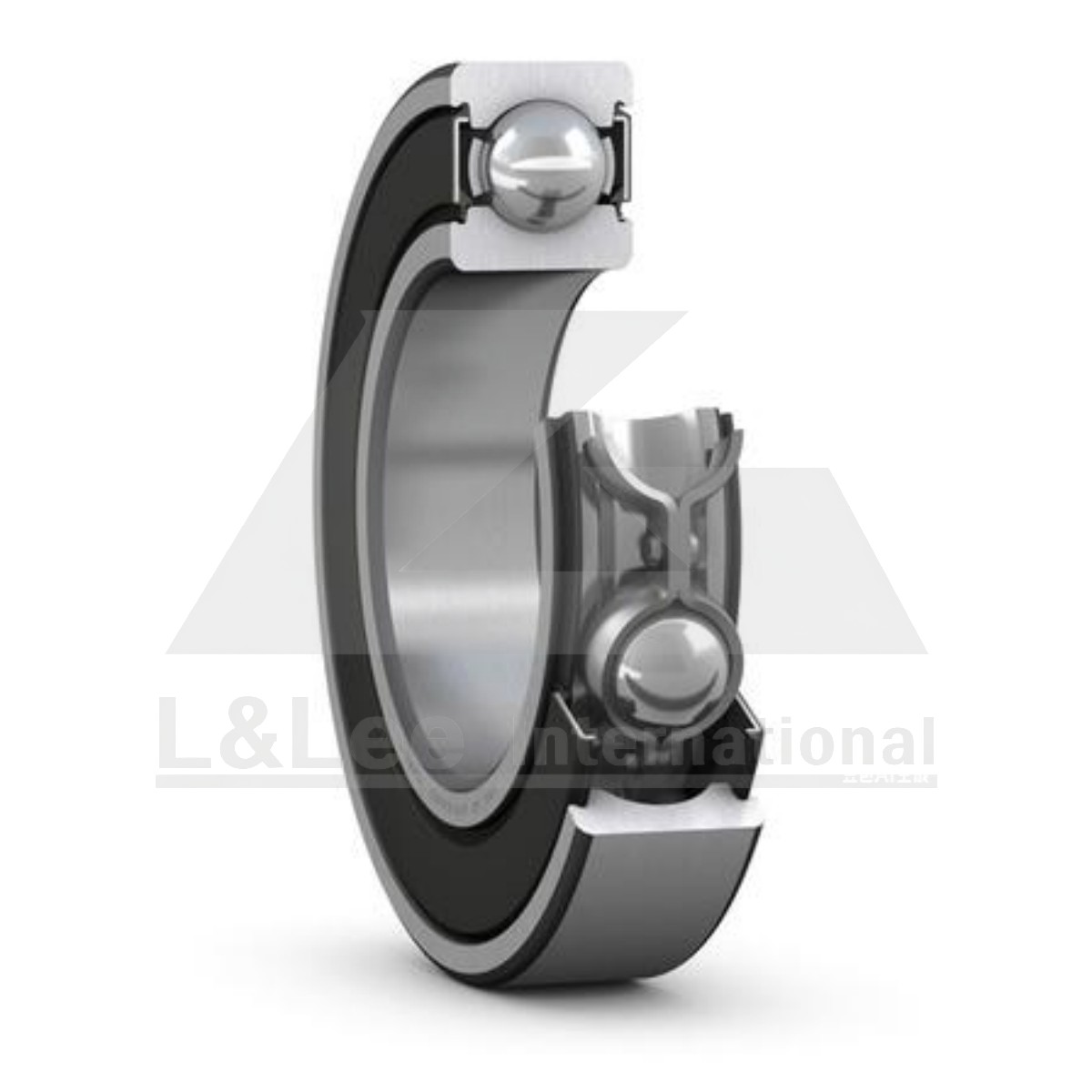

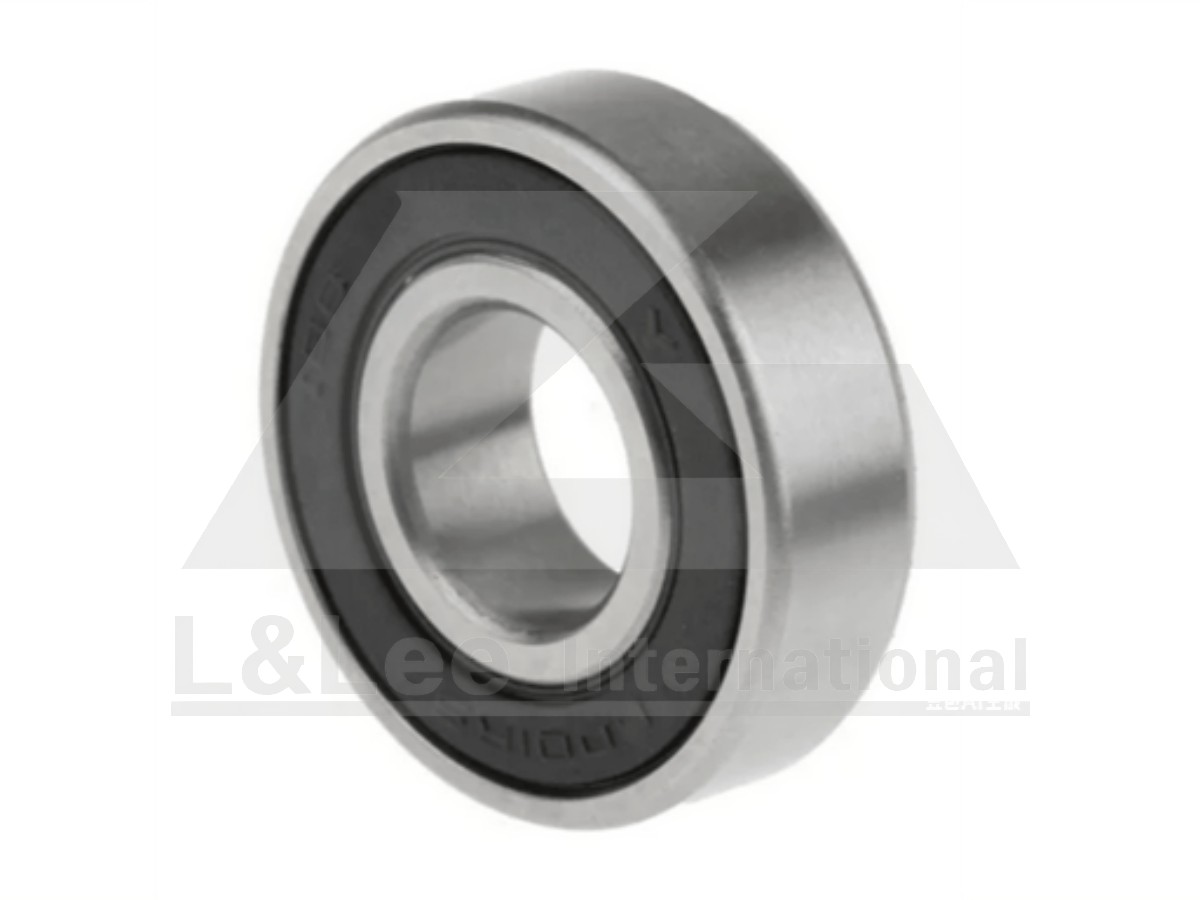

C. 6301‑2RZ Single Row Deep Groove Ball Bearing
Introductions
6301‑2RZ single row deep groove ball bearing features double‑sided 2RZ non‑contact rubber seals to block dust and debris. It delivers stable radial load performance for continuous rolling operation. Specially ideal for track support wheels of sliding gate openers, coping with outdoor dust and weather exposure. Also widely used for general machinery, conveyors and other transmission applications requiring dust protection.
Specifications
| Model | 6301‑2RZ |
| Bearing Type | Single Row Deep Groove Ball Bearing |
| Dimensions | 12 mm × 37 mm × 12 mm |
| Seal Type | 2RZ Double‑sided non‑contact rubber seals |
| Feature | Dust‑proof, stable radial load performance |
| Key Application | Sliding gate opener track support wheels, general machinery, conveyor equipment |
Package Includes
- 1 Piece

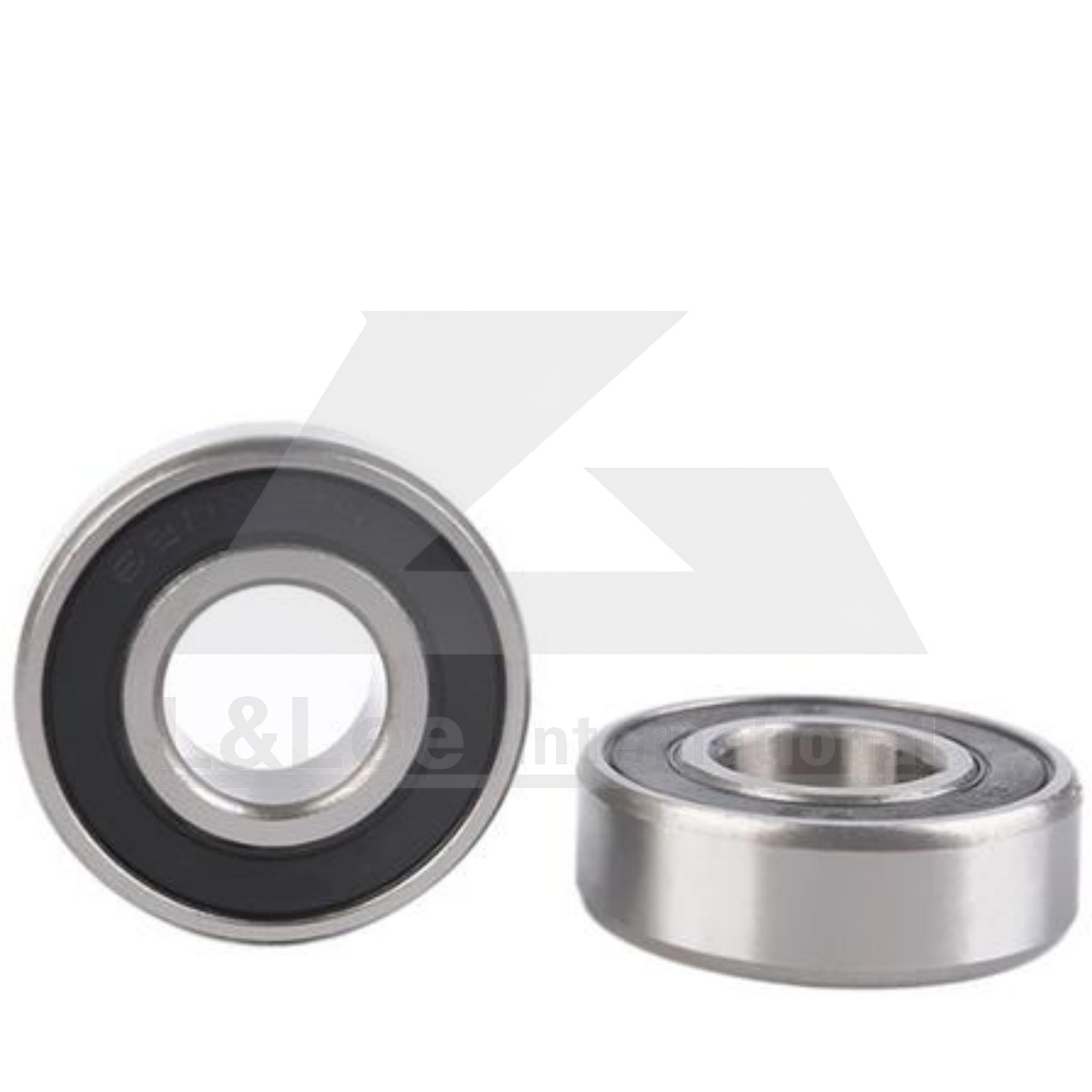

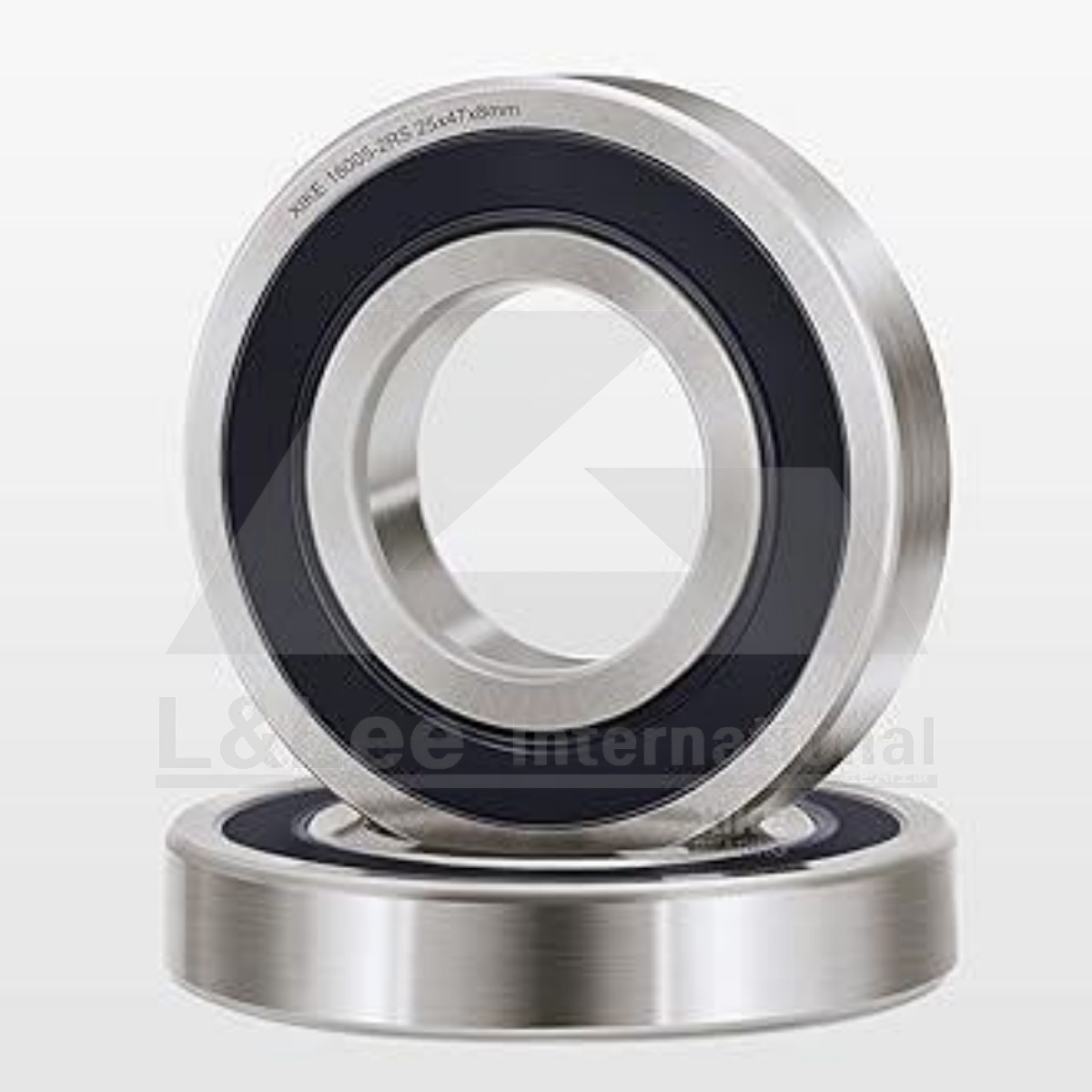

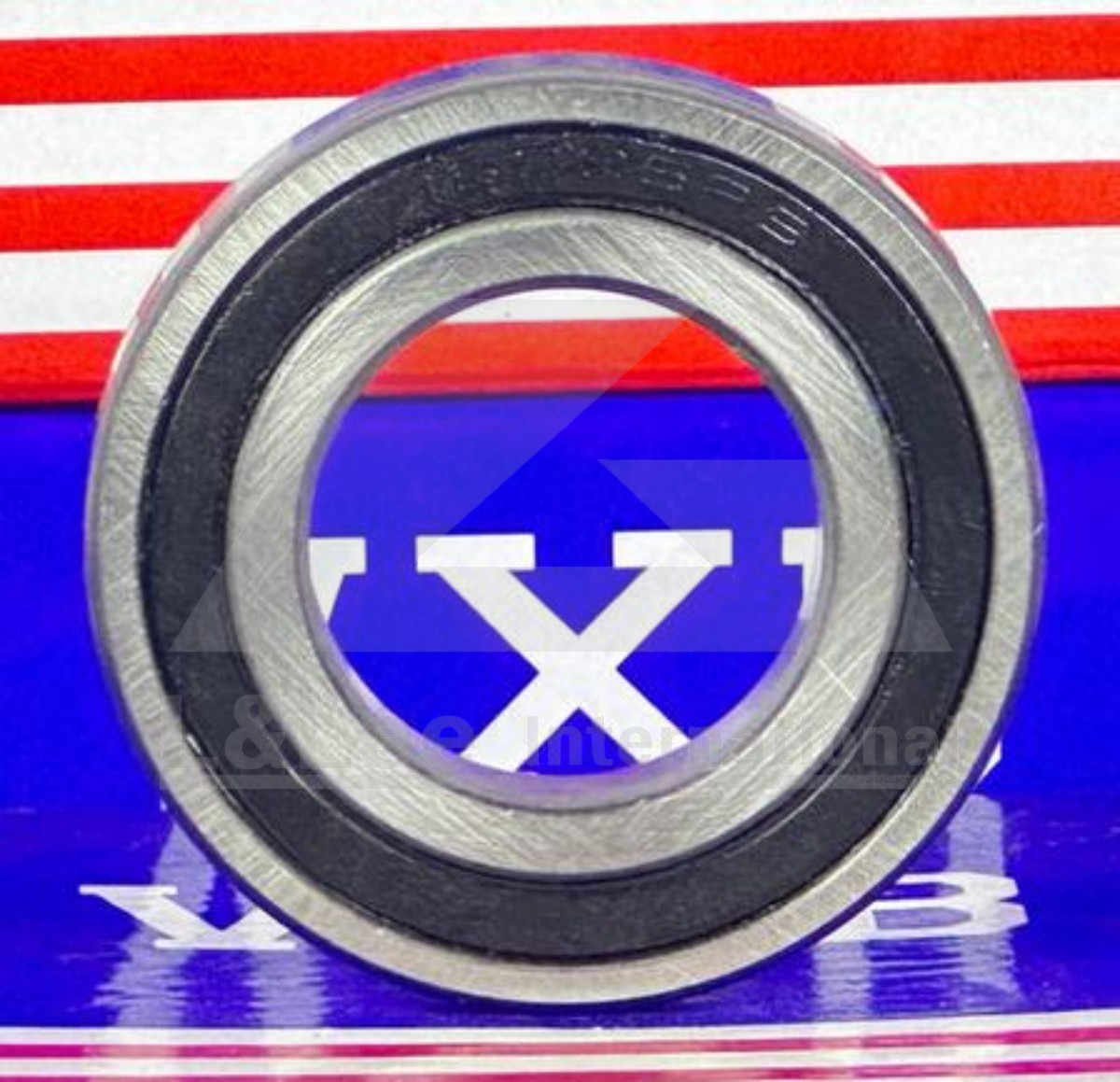

D. 16005‑2RS Single Row Thin‑Section Deep Groove Ball Bearing
Introductions
16005‑2RS is a thin‑section single‑row deep groove ball bearing with dimensions 25 mm × 47 mm × 8 mm. It adopts double‑sided 2RS contact rubber seals to resist grass dust, dirt and outdoor debris. The slim cross‑section fits confined mounting spaces. This bearing is particularly ideal for Husqvarna ride‑on lawn mower assemblies. It can also be used for light‑duty machinery, conveyor rollers and other compact transmission applications requiring dust protection.
Specifications
| Model | 16005‑2RS |
| Bearing Type | Single Row Thin‑Section Deep Groove Ball Bearing |
| Dimensions | 25 mm × 47 mm × 8 mm |
| Seal Type | 2RS Double‑sided contact rubber seals |
| Feature | Slim profile, dust‑proof, stable radial load performance |
| Key Application | Husqvarna ride‑on lawn mower, light‑duty machinery, conveyor rollers |
Package Includes
- 1 Piece

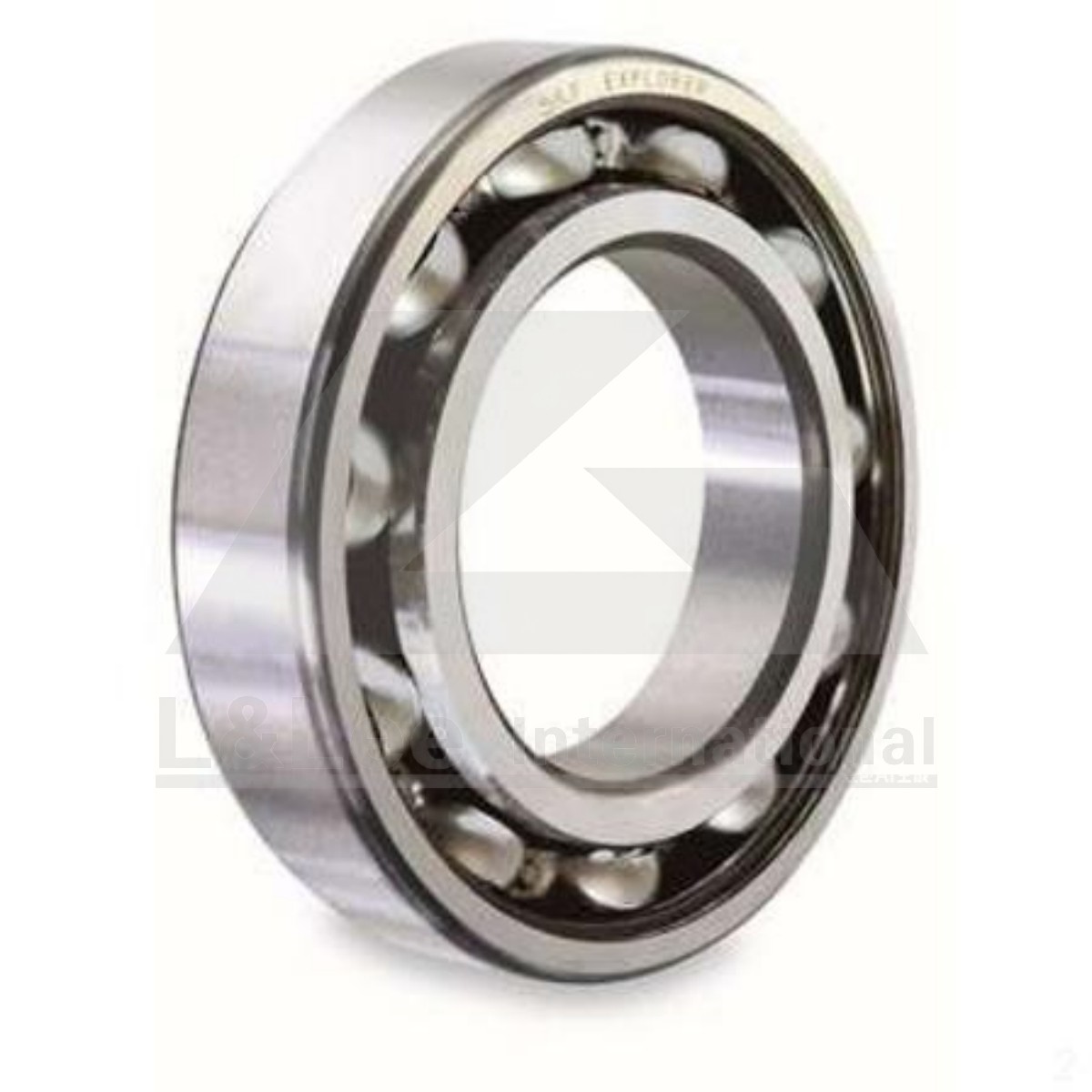

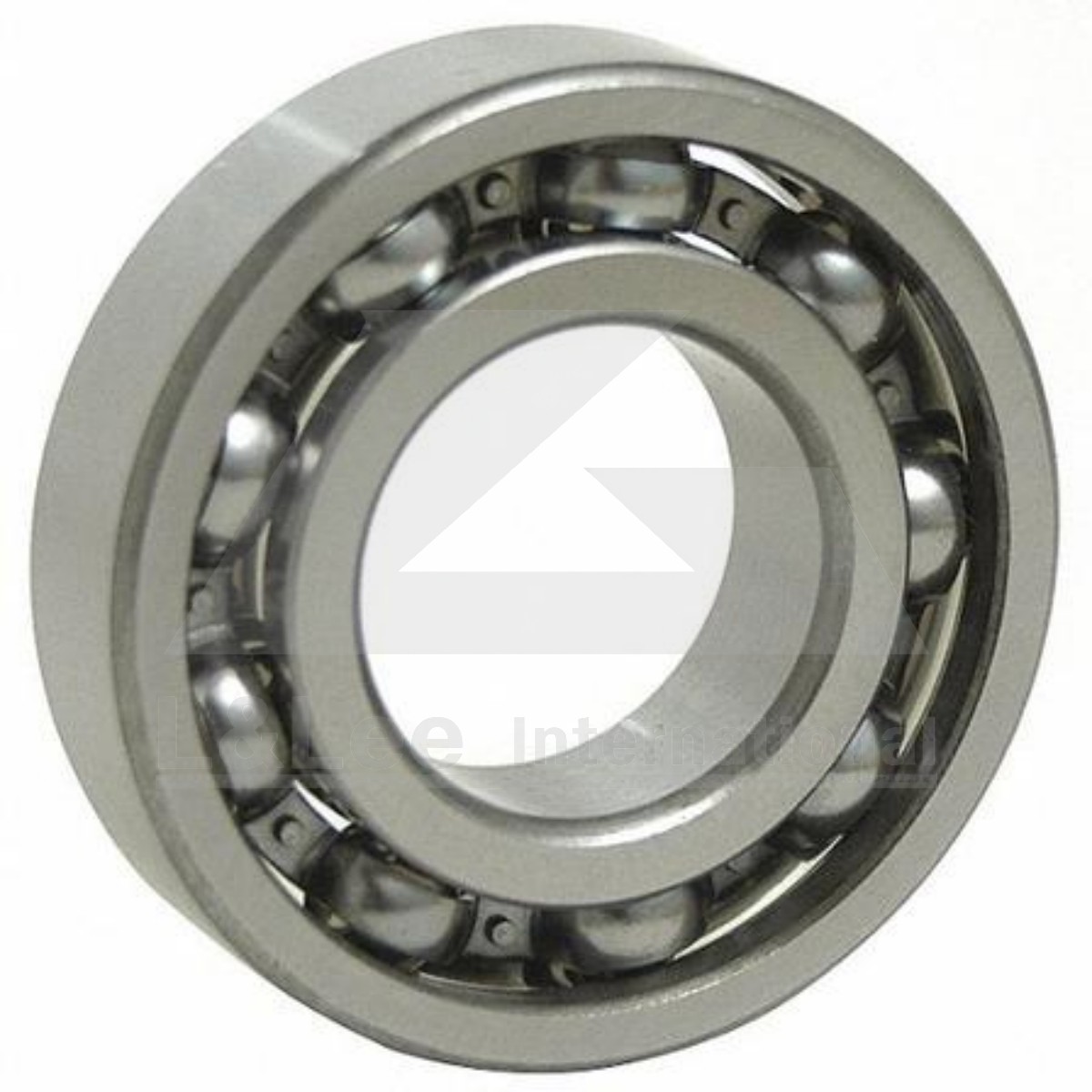

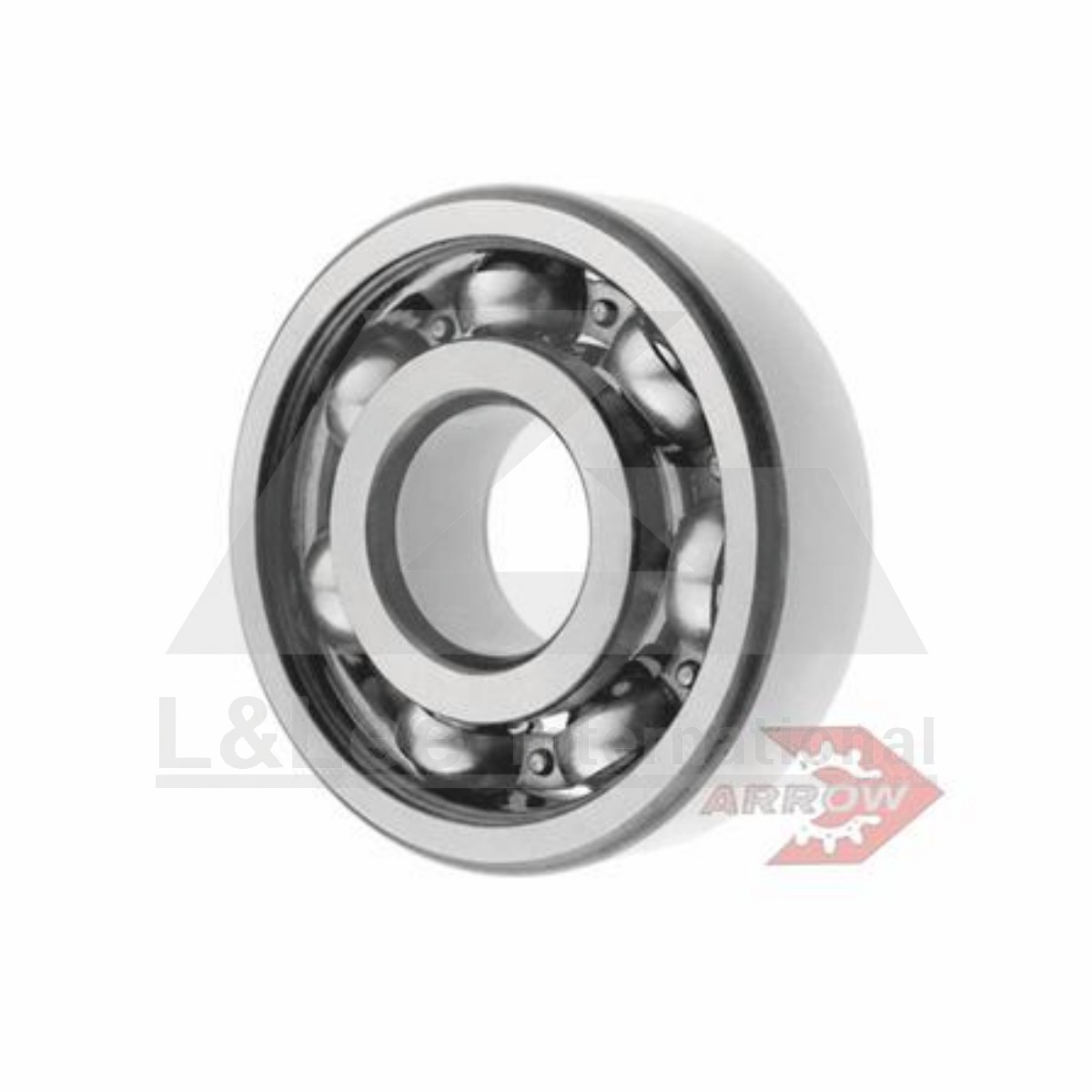

E. 6902 Open‑Type Single Row Deep Groove Ball Bearing
Introductions
6902 open‑type single‑row deep groove ball bearing, open‑frame design without any seals or end‑caps, rolling balls are exposed for easy re‑greasing and maintenance. Compact dimensions 15 mm × 28 mm × 7 mm, provides reliable radial load performance for continuous rotating operation. Specially matched for drive shafts of sliding gate openers. Also applicable to small‑size transmission parts and general light‑duty mechanical equipment where regular lubrication service is required.
Specifications
| Model | 6902 (Open‑Type) |
| Bearing Type | Single Row Miniature Deep Groove Ball Bearing |
| Dimensions | 15 mm × 28 mm × 7 mm |
| Seal Type | Open‑type, no seals, no end‑caps, exposed balls |
| Feature | Easy re‑lubrication, compact size, stable radial load capacity |
| Key Application | Sliding gate opener drive shafts, light‑duty machinery, compact transmission assemblies |
Package Includes
- 1 Piece
Bolts and Screws

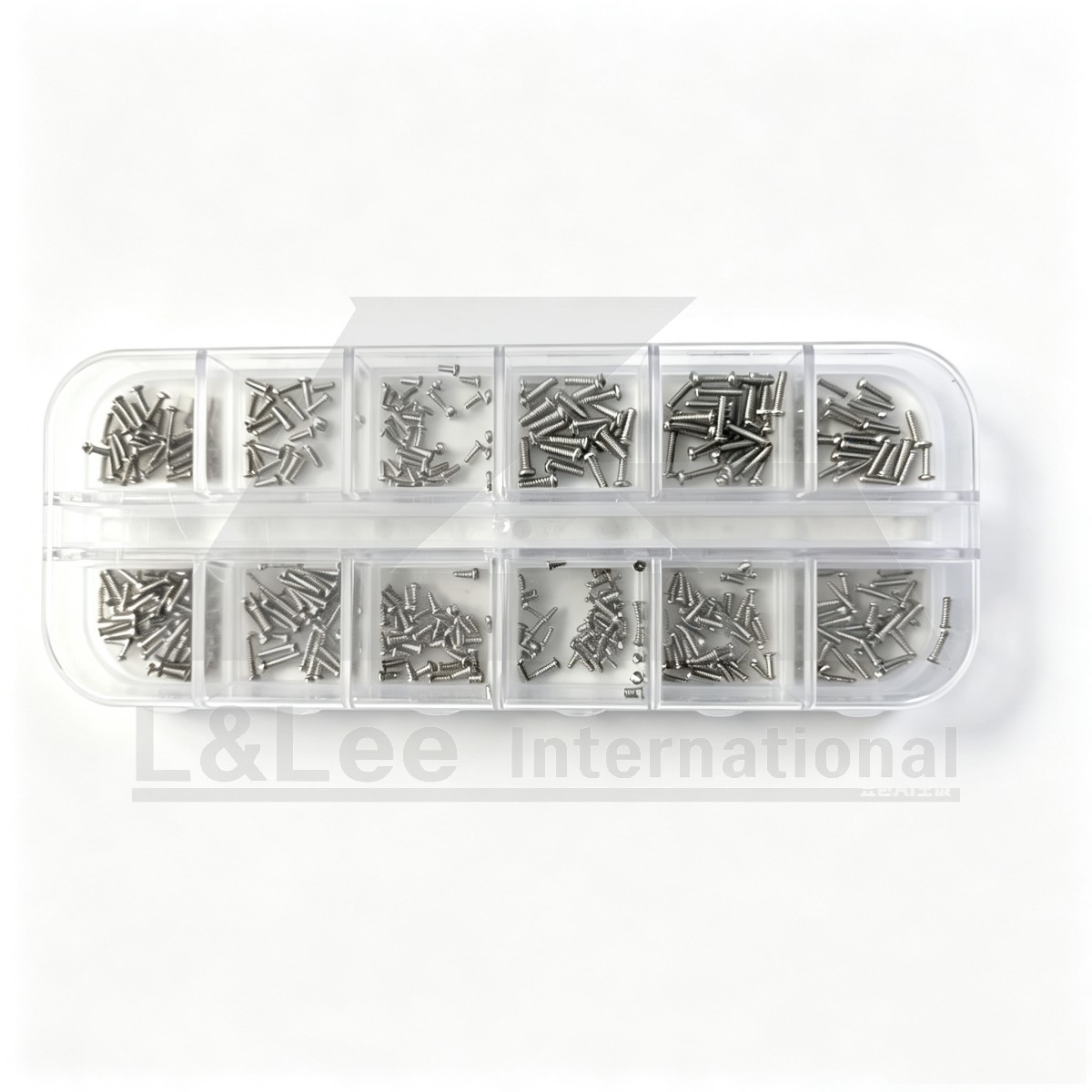

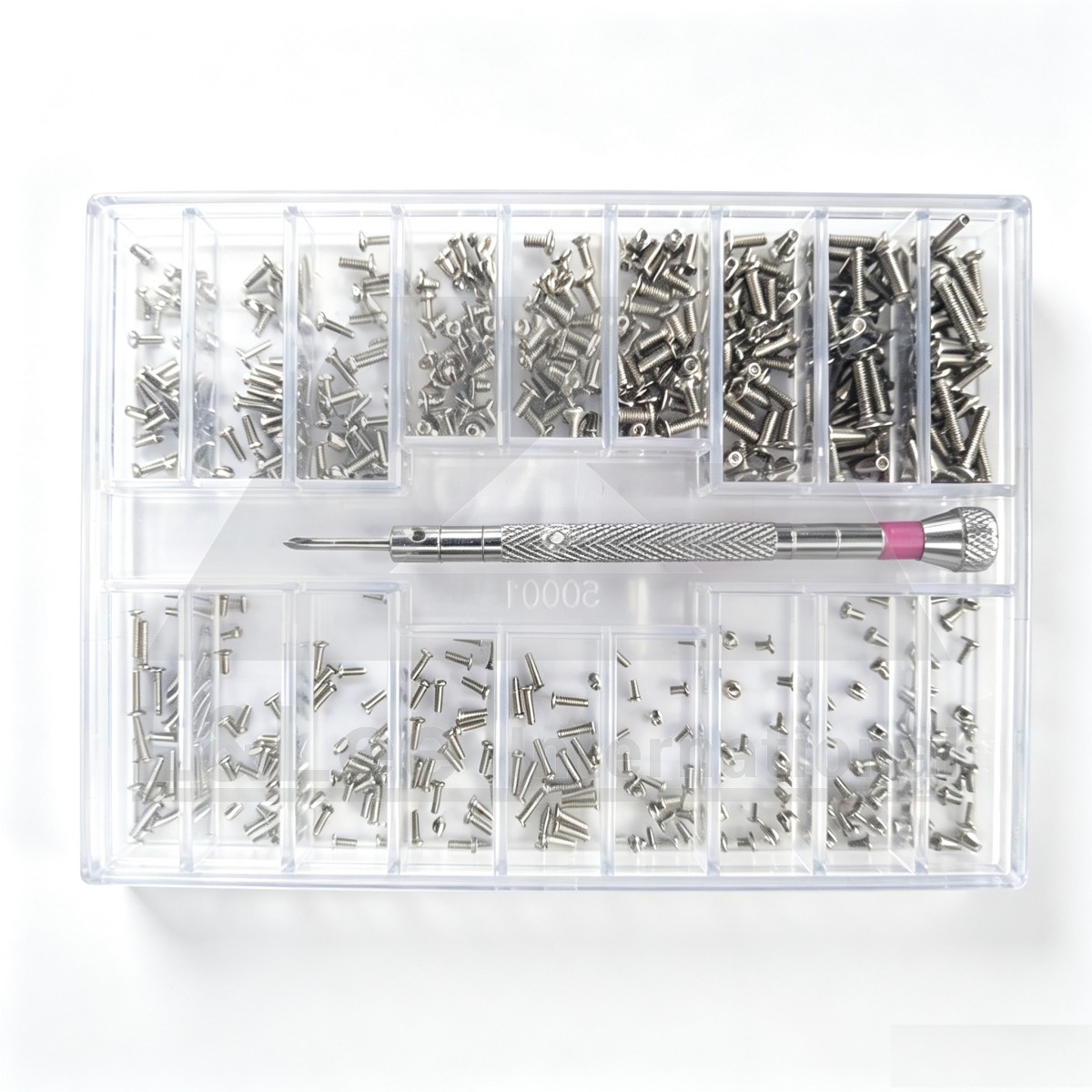

F. Micro Screws Assortment Kit
Introductions
Micro Screws Assortment Kit includes various metric‑size miniature phillips‑head machine screws. Each size is separated inside individual labelled compartments of a durable plastic storage case for quick identification and tidy storage. Made of high‑strength material with anti‑rust performance. These tiny fasteners are widely used for repairing glasses, watches, mobile phones, laptops, RC models, small household appliances and other precision light‑load mechanical assemblies. Suitable for workshop maintenance, household DIY repair and hobby‑building projects.
Specifications
| Product Name | Micro Screws Assortment Kit with Screwdriver |
| Contents | 18 specifications Phillips‑head micro screws + screwdriver |
| Screw Sizes | 1.2 mm×2 mm, 1.2 mm×2.5 mm, 1.2 mm×3 mm, 1.2 mm×4 mm, 1.2 mm×5 mm 1.4 mm×2 mm, 1.4 mm×2.5 mm, 1.4 mm×3 mm, 1.4 mm×3.5 mm, 1.4 mm×4 mm, 1.4 mm×5 mm 2 mm×3 mm, 2 mm×4 mm, 2 mm×5 mm, 2 mm×6 mm, 2 mm×8 mm, 2 mm×10 mm |
| Screw Head Type | Phillips‑head |
| Feature | Complete mini‑size fastener set, convenient for disassembly and repair |
| Application | DIY projects, electronic device repair, equipment maintenance, precision‑assembly work |
Package Includes
- 1 Kit

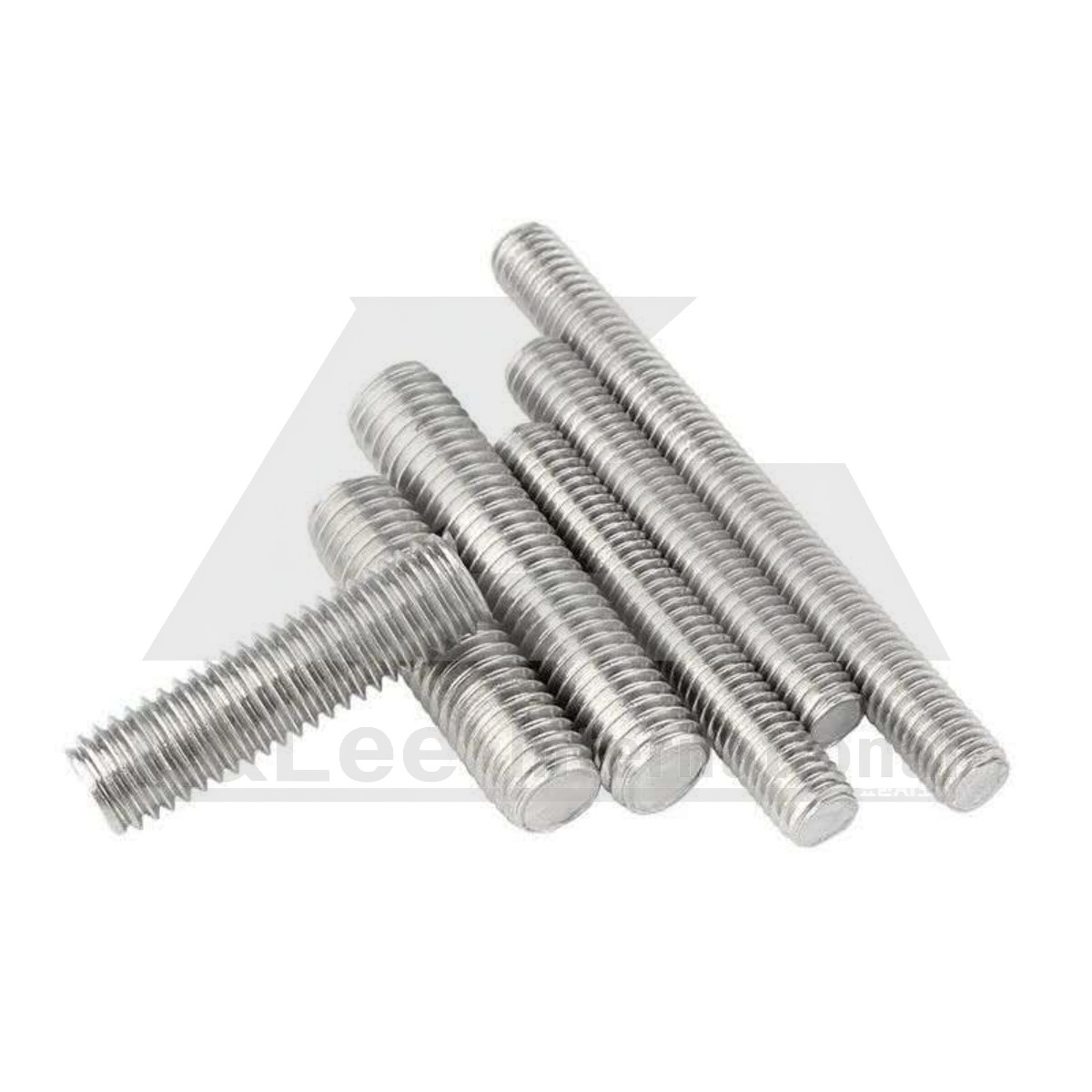

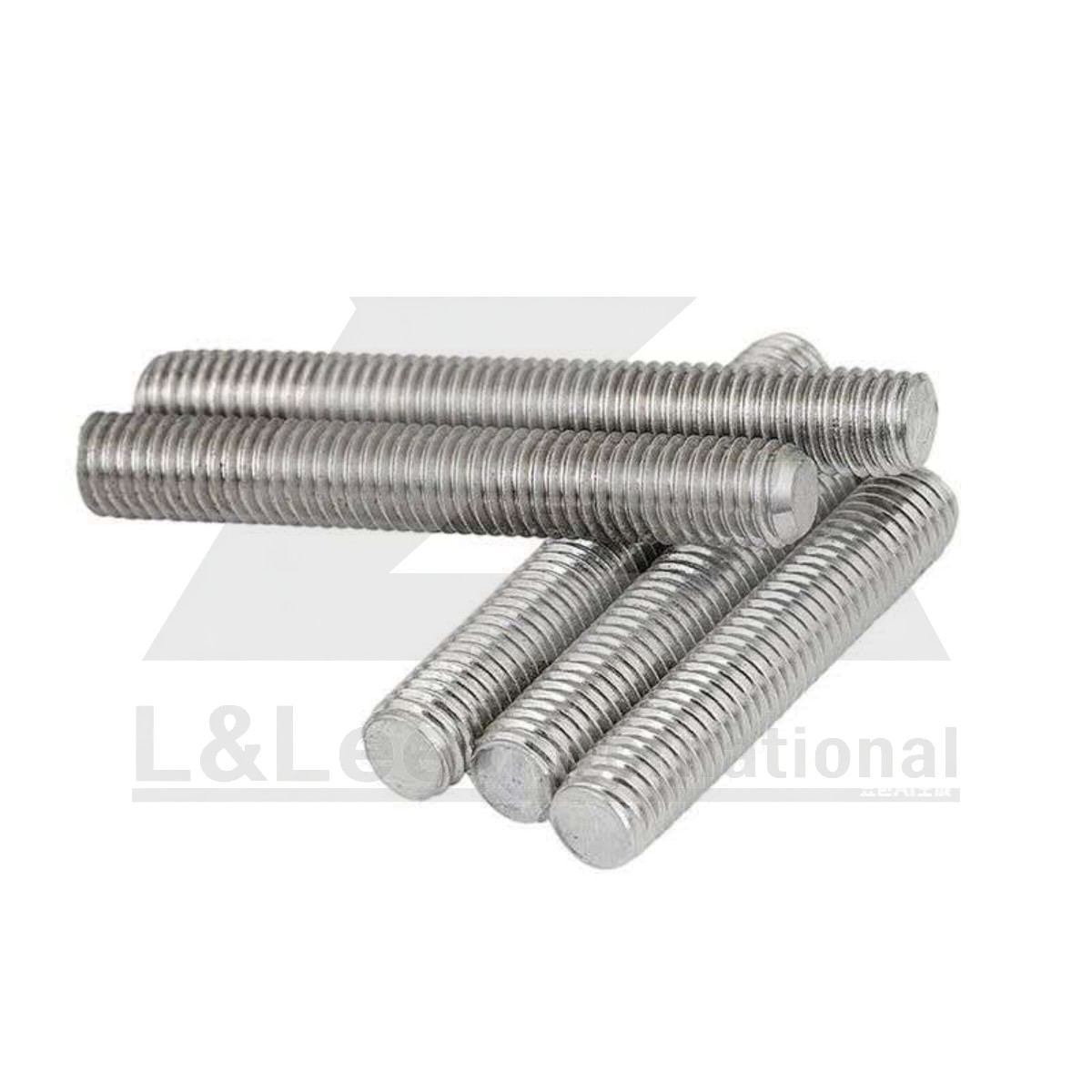

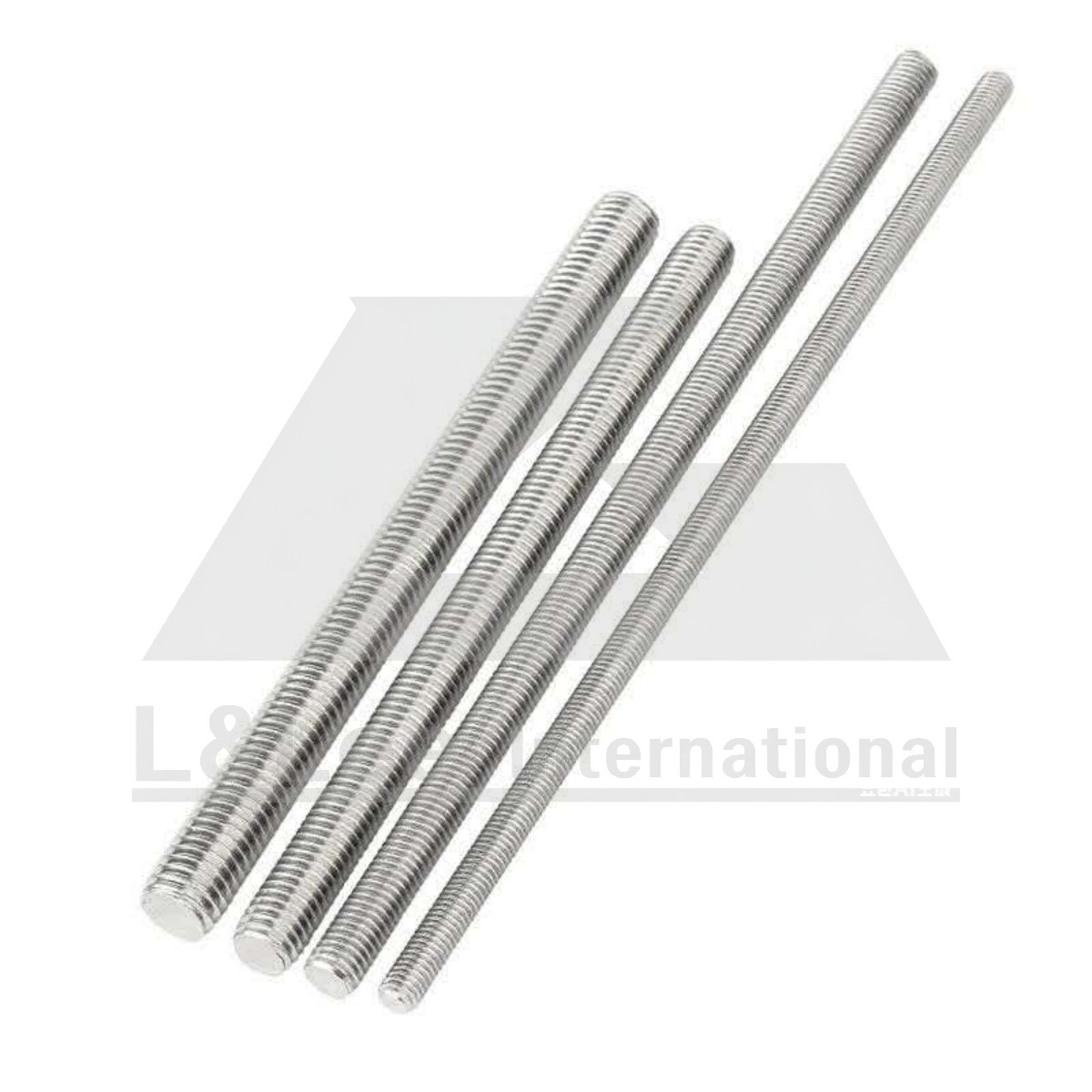

G. Stainless Steel Threaded Rods
Introductions
This M12 stainless‑steel threaded rod is fully threaded along the entire 1 metre length. Manufactured from premium stainless‑steel material, it delivers outstanding corrosion‑resistant and anti‑rust properties, suitable for indoor and outdoor environments. The complete continuous thread allows flexible cutting to required custom lengths. Ideal for suspension installations, bracket fixing, machinery assembly, building construction and general hardware fastening tasks.
Specifications
| Product Name | Stainless Steel Threaded Rods |
| Thread Size | M12 (Metric) |
| Total Length | 1000 mm (1 m) |
| Thread Type | Full‑thread, continuous thread along whole length |
| Material | Stainless Steel |
| Feature | Anti‑corrosion, anti‑rust, can be cut to custom working length |
| Application | Suspension mounting, bracket fixing, machinery assembly, building & general hardware fastening |
Package Includes
- 1 Piece

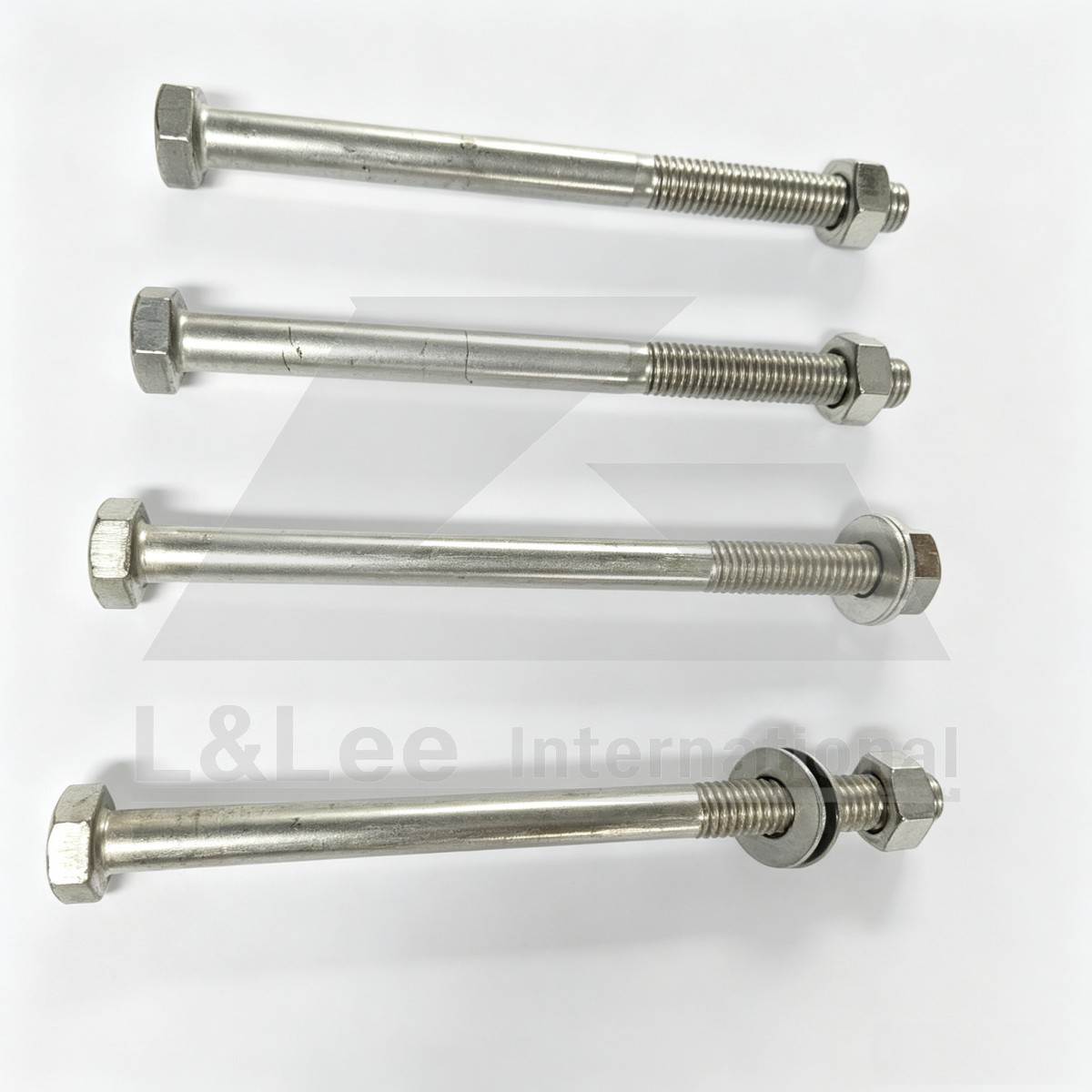

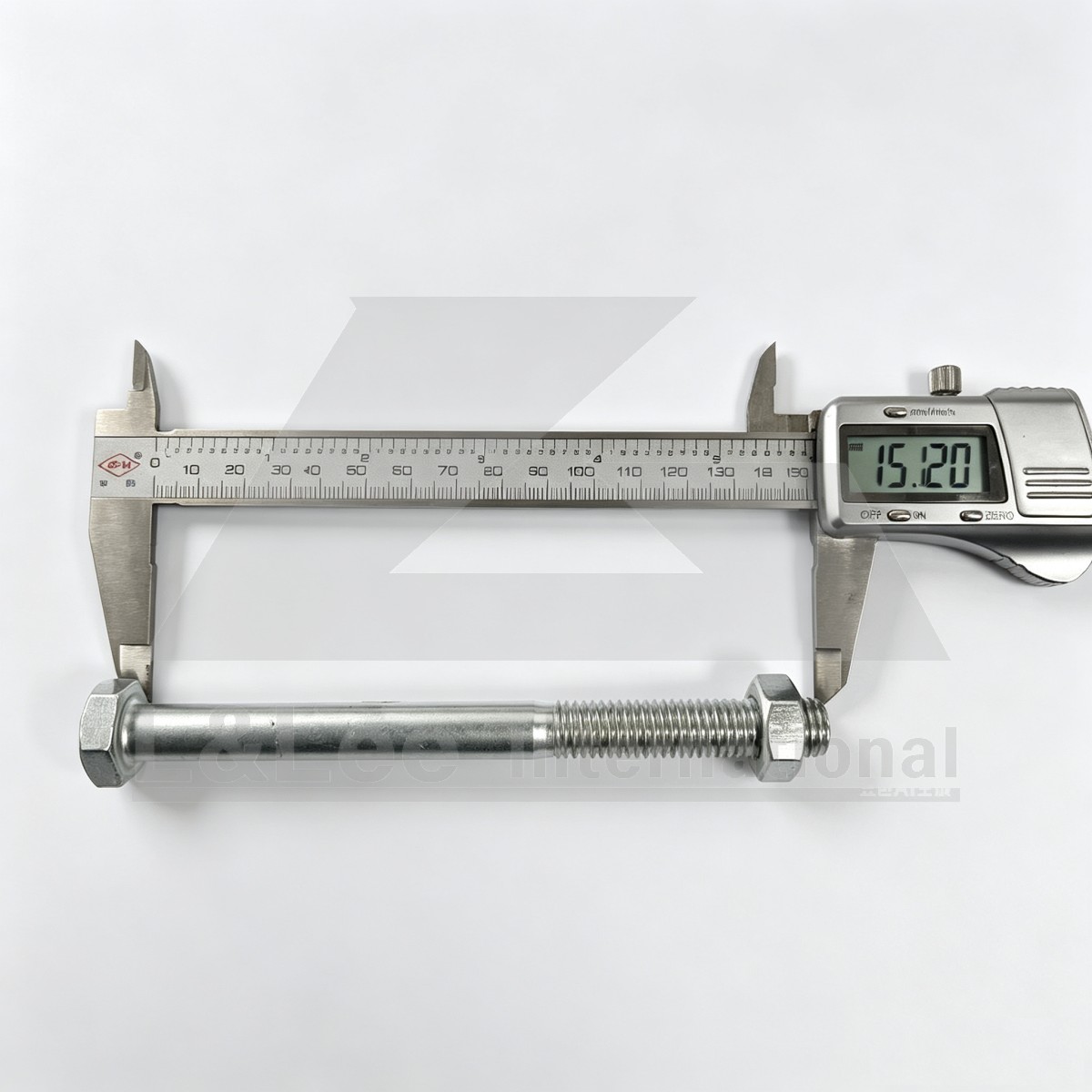

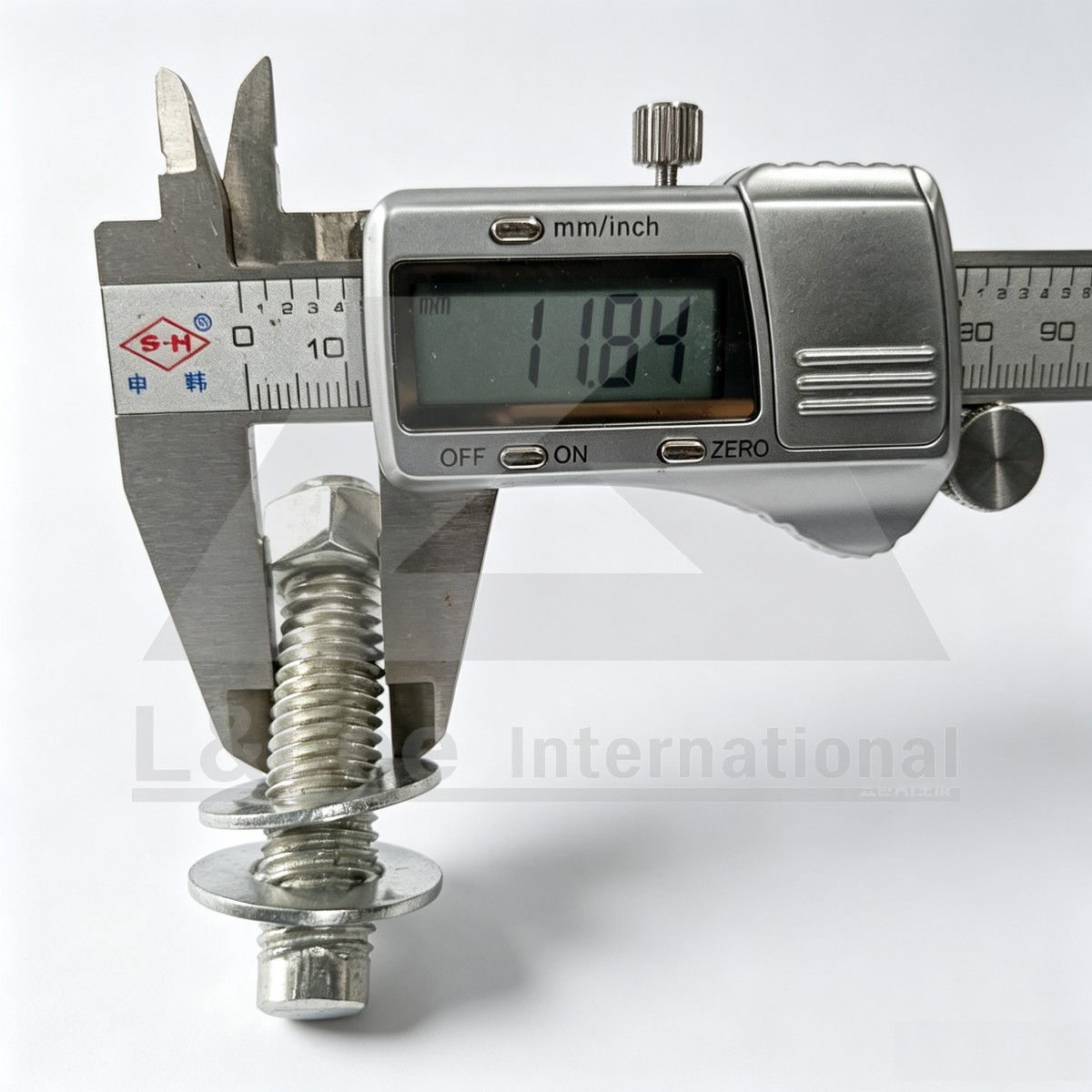

G1. M12 Hex Head Partial‑Thread Bolts with Nuts & Washers
Introductions
M12 partial‑thread hex head bolt kit includes bolts, nuts and flat washers, suitable for machinery assembly, frame construction and general‑purpose structural fastening tasks.
Specifications
| Product Name | M12 Hex‑Head Partial‑Thread Bolts with Nuts & Washers |
| Thread Size | M12 (Metric) |
| Measured Shank Diameter | 11.84 mm |
| Example Bolt Length | 152 mm |
| Thread Type | Partial‑thread (thread only at bolt end) |
| Surface Finish | Galvanised |
| Supplied Contents | Hex‑head bolt, hex nut, flat washer(s) |
| Feature | High tensile strength, galvanised anti‑corrosion coating, complete fastening assembly |
| Application | Metal‑frame fabrication, machinery assembly, structural joints, general site‑fixing work |
Package Includes
- 1 Piece

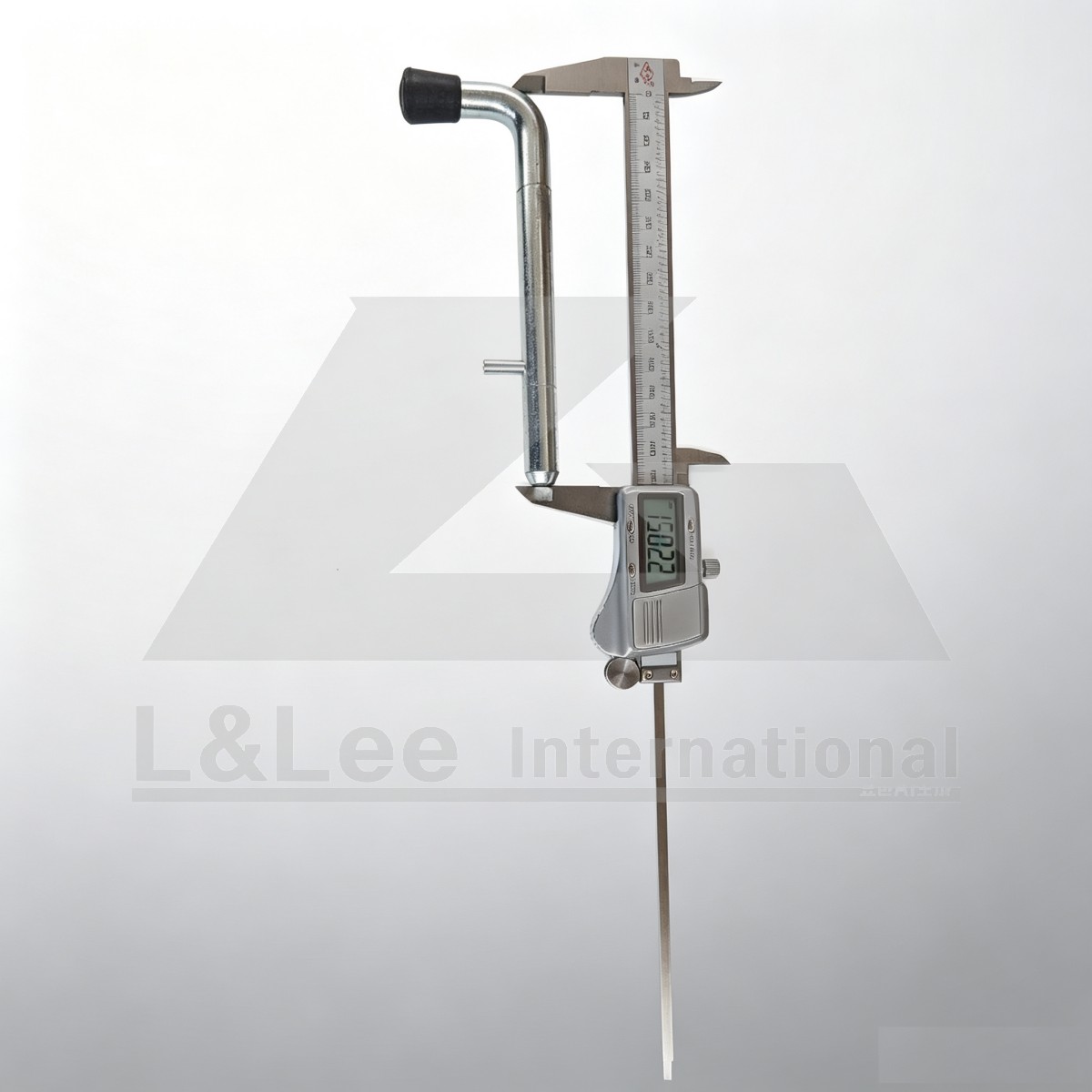

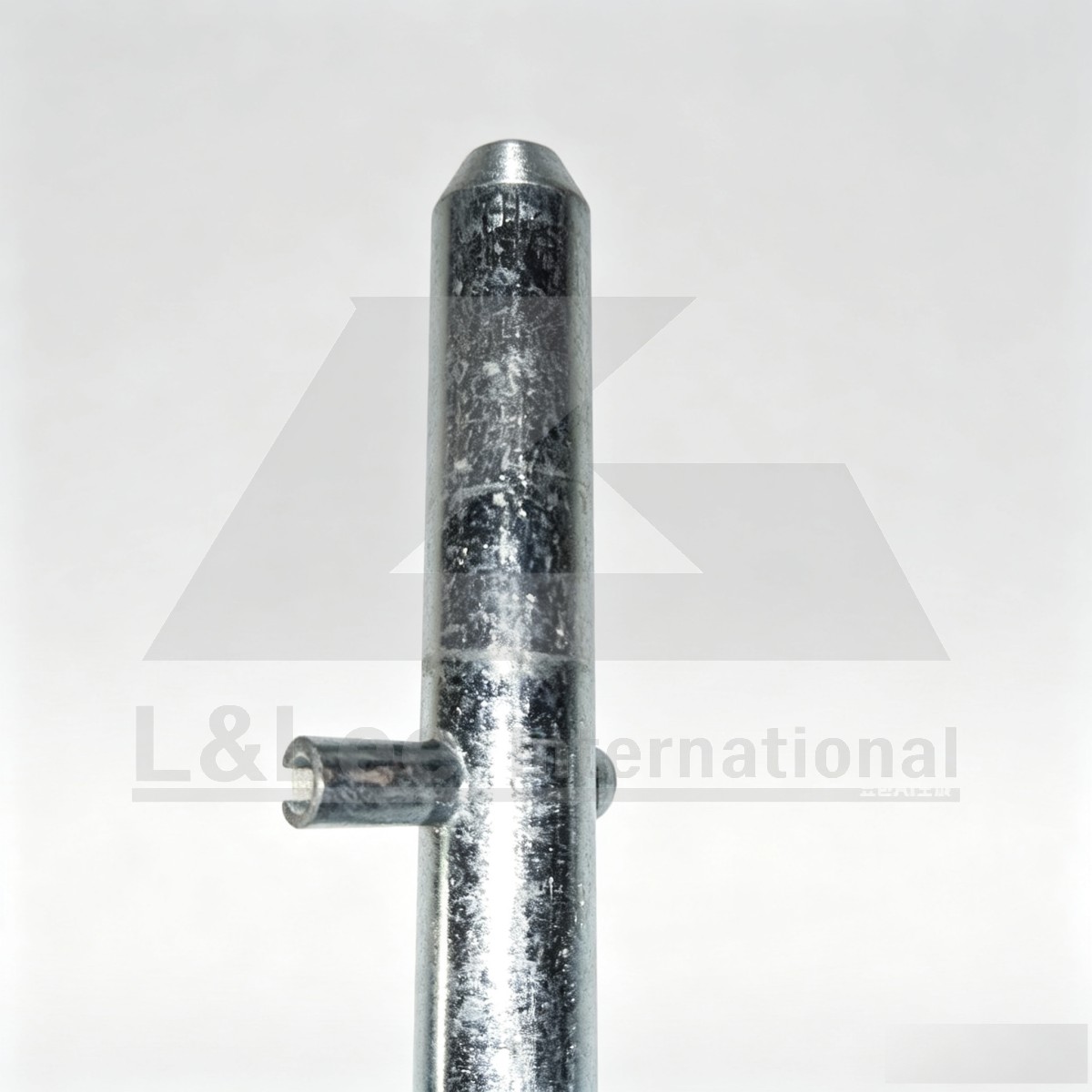

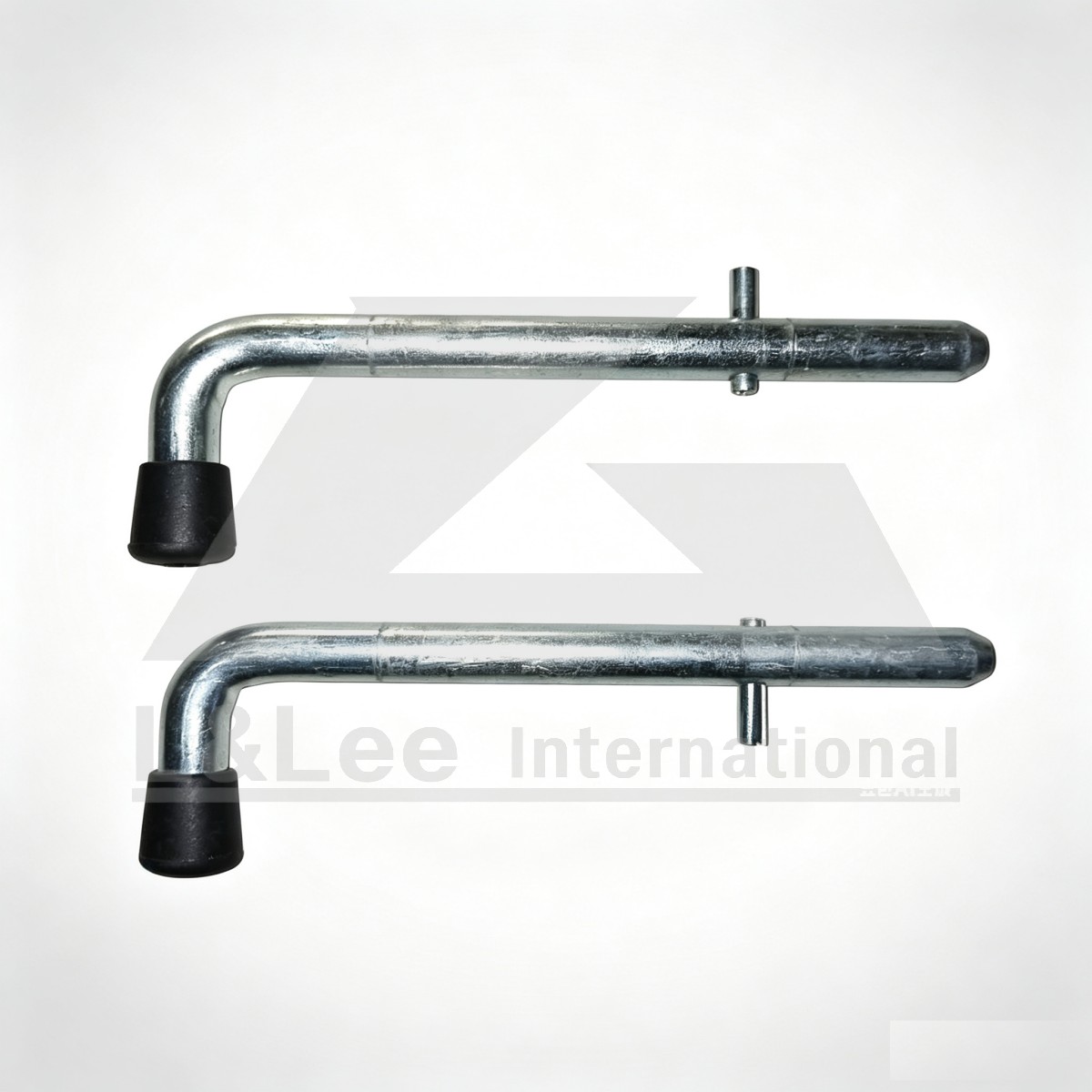

H. L Pins
Introductions
L‑type pins (L‑clevis pins) adopt L‑shaped stop‑head design to prevent axial sliding out during operation. Diameter 12 mm, working length 150 mm. Suitable for rotational pivot joints, linkage connections and hinge assemblies. Commonly fitted on farm machinery, trailer parts, garden equipment and general mechanical units. Simple installation, reliable positioning for repeated pivoting movements.
Specifications
| Product Name | L‑Type Clevis Pin (L‑Pin) |
| Model / Size | D12 × 150 mm |
| Diameter | 12 mm |
| Working Length | 150 mm |
| Head Style | L‑shape stop head, anti‑dislodgement |
| Feature | Easy installation, reliable axial positioning, for pivot‑rotation joints |
| Application | Agricultural machinery, trailer, garden equipment, mechanical linkage & hinge assemblies |
Package Includes
- 1 Piece

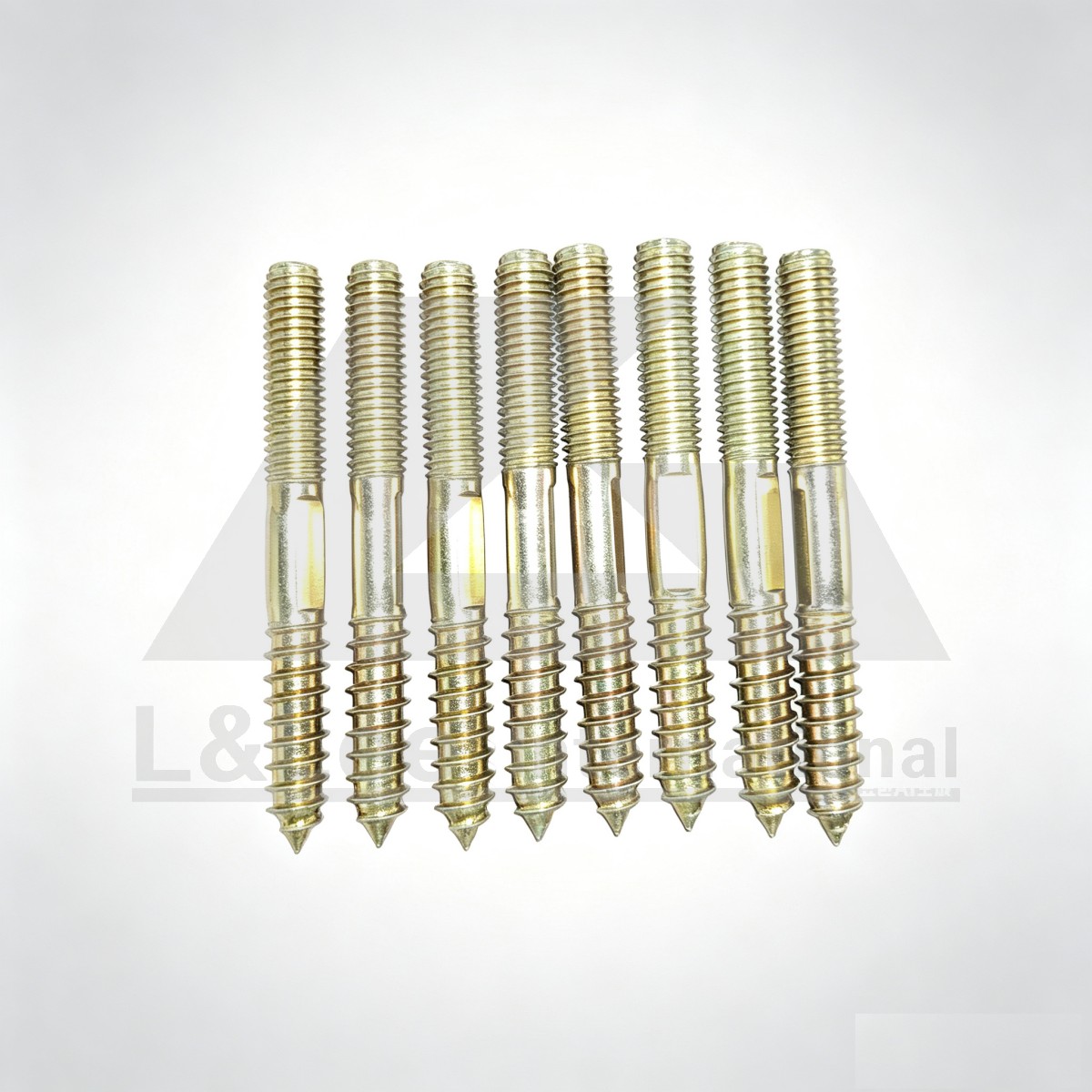

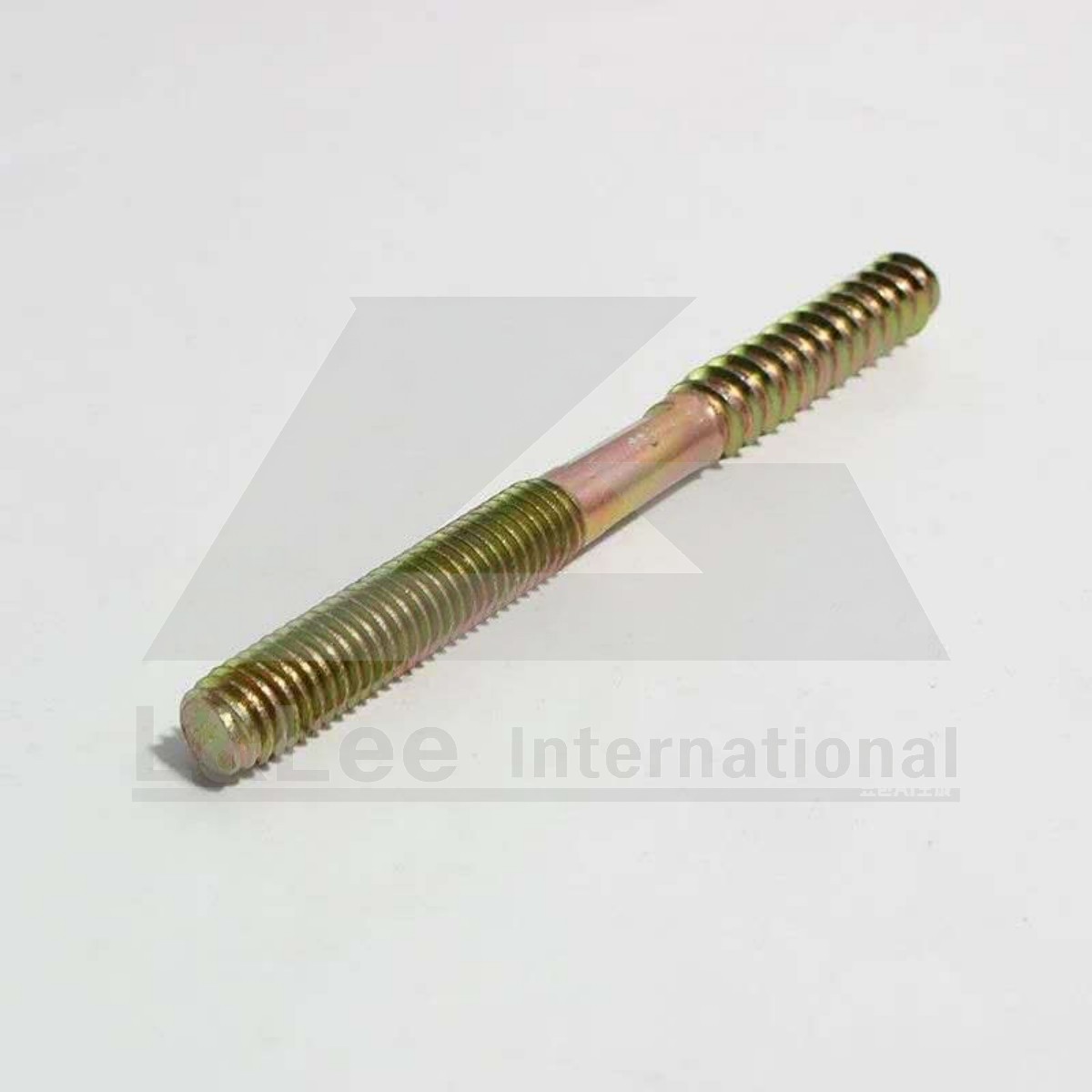

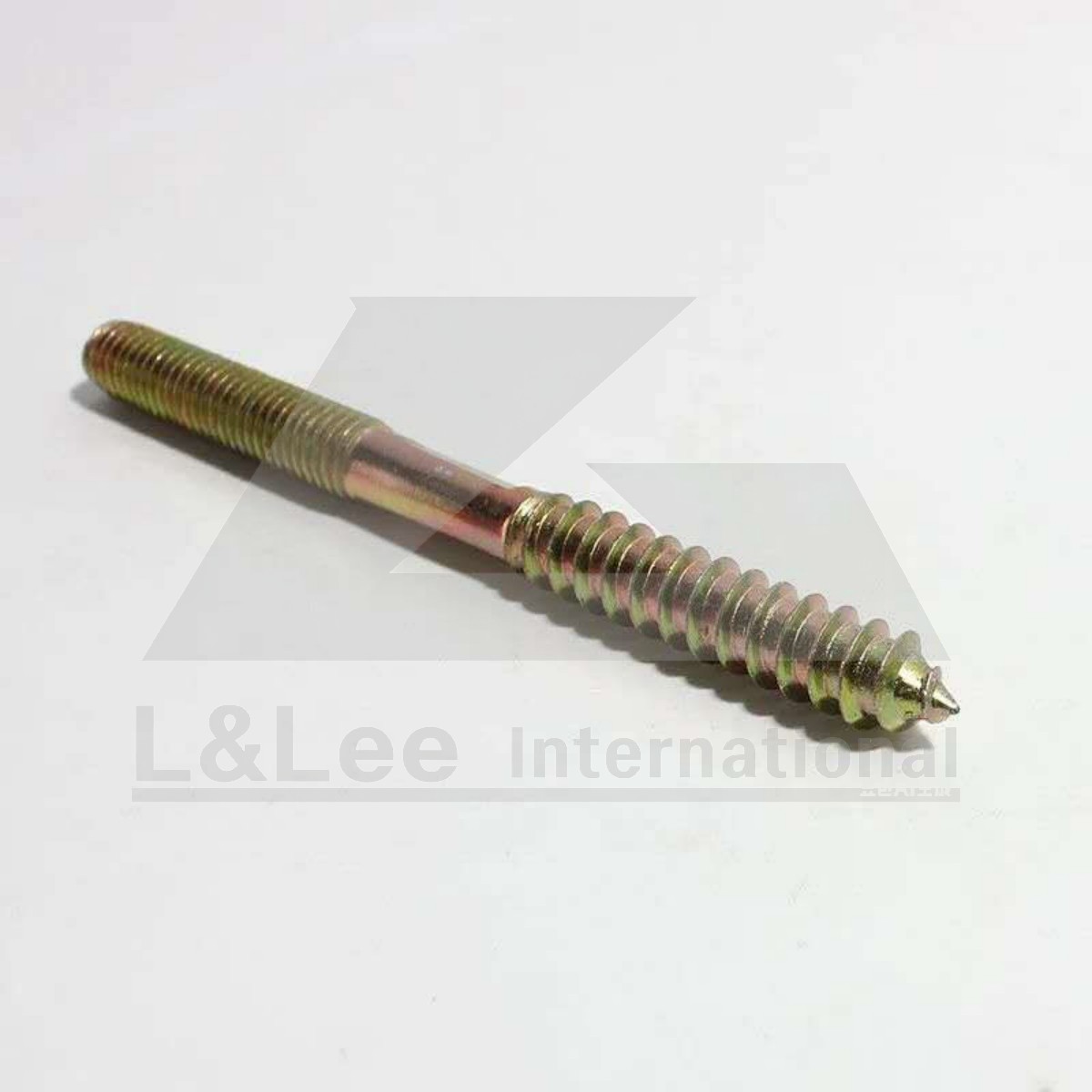

I. Double‑Ended Hanger Bolts
Introductions
M8 double‑ended hanger bolt, total length 75 mm. One end is metric M8 machine thread for mating with metal nuts and metal fittings; the opposite end is sharp wood‑screw thread for direct self‑tapping into timber. No external head design, fully embedded after installation. Perfect for furniture assembly, wooden framework mounting, joinery work and general wood‑to‑metal connection applications.
Specifications
| Product Name | Double‑Ended Hanger Bolts |
| Size | M8 × 75 mm |
| Thread Type | One end: M8 metric machine thread; Other end: wood‑screw self‑tapping thread |
| Head Style | Head‑less double‑ended stud |
| Feature | Connect metal hardware to timber, flush‑mount, strong holding force |
| Application | Furniture assembly, wooden frame mounting, wood‑to‑metal joinery, carpentry projects |
Package Includes
- 1 Piece

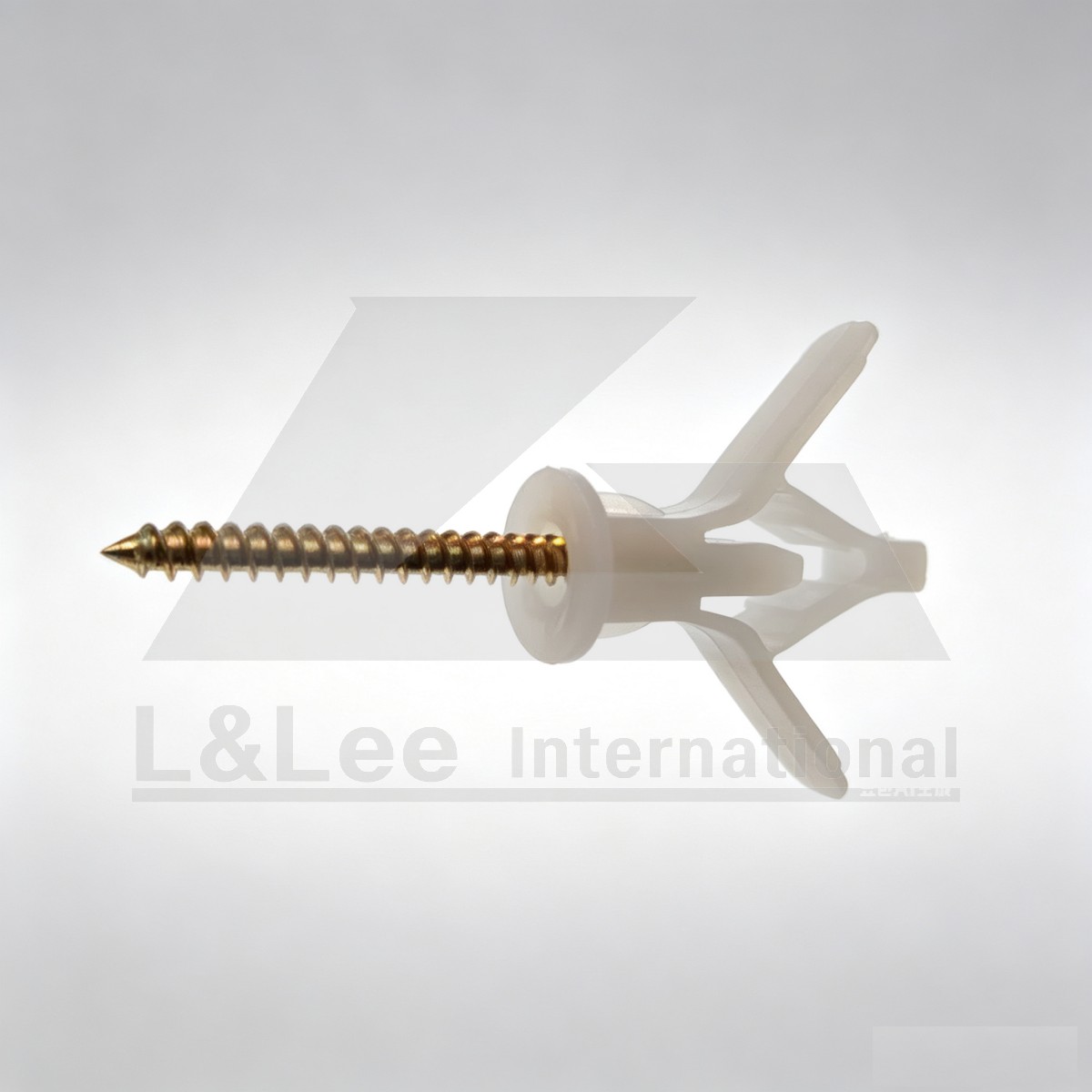

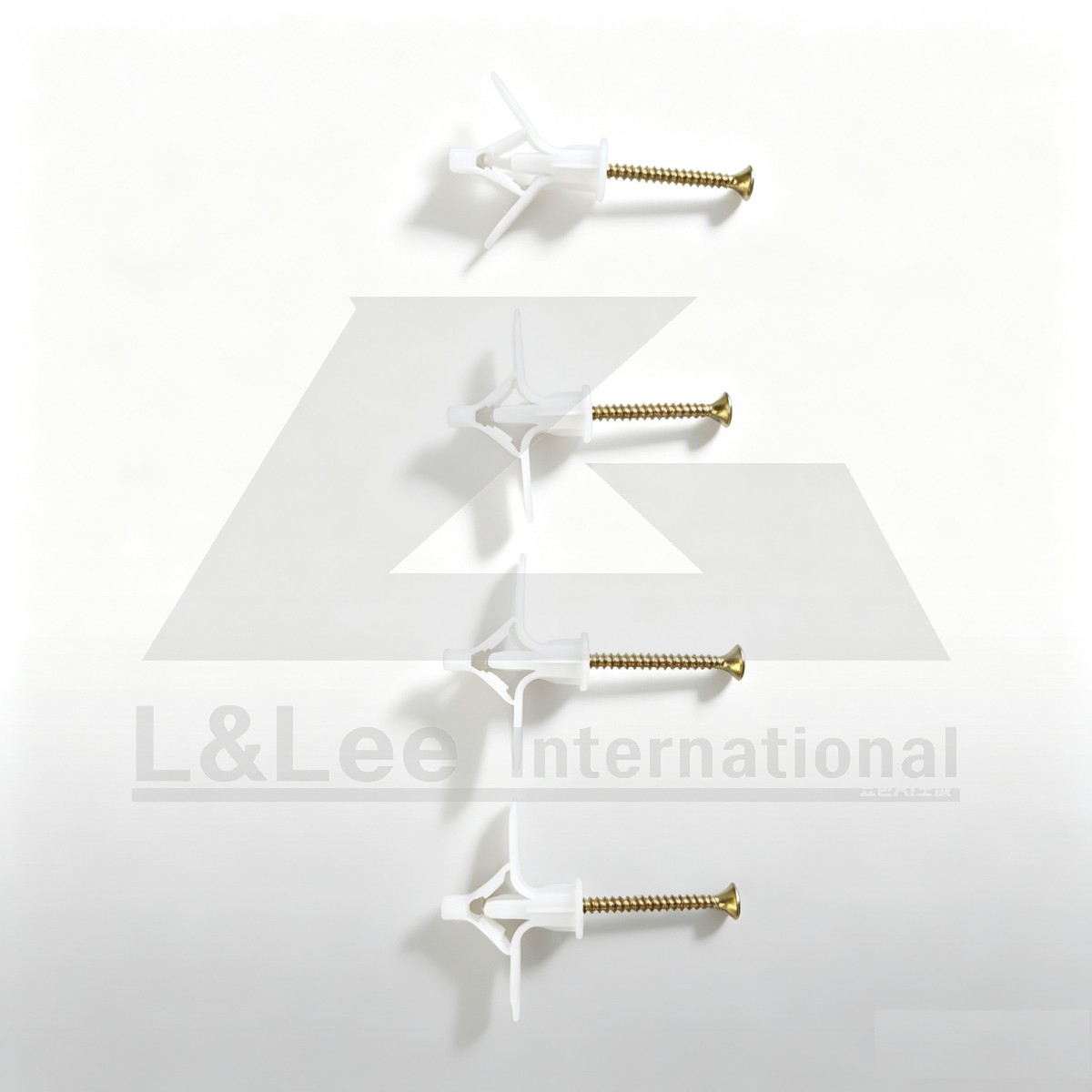

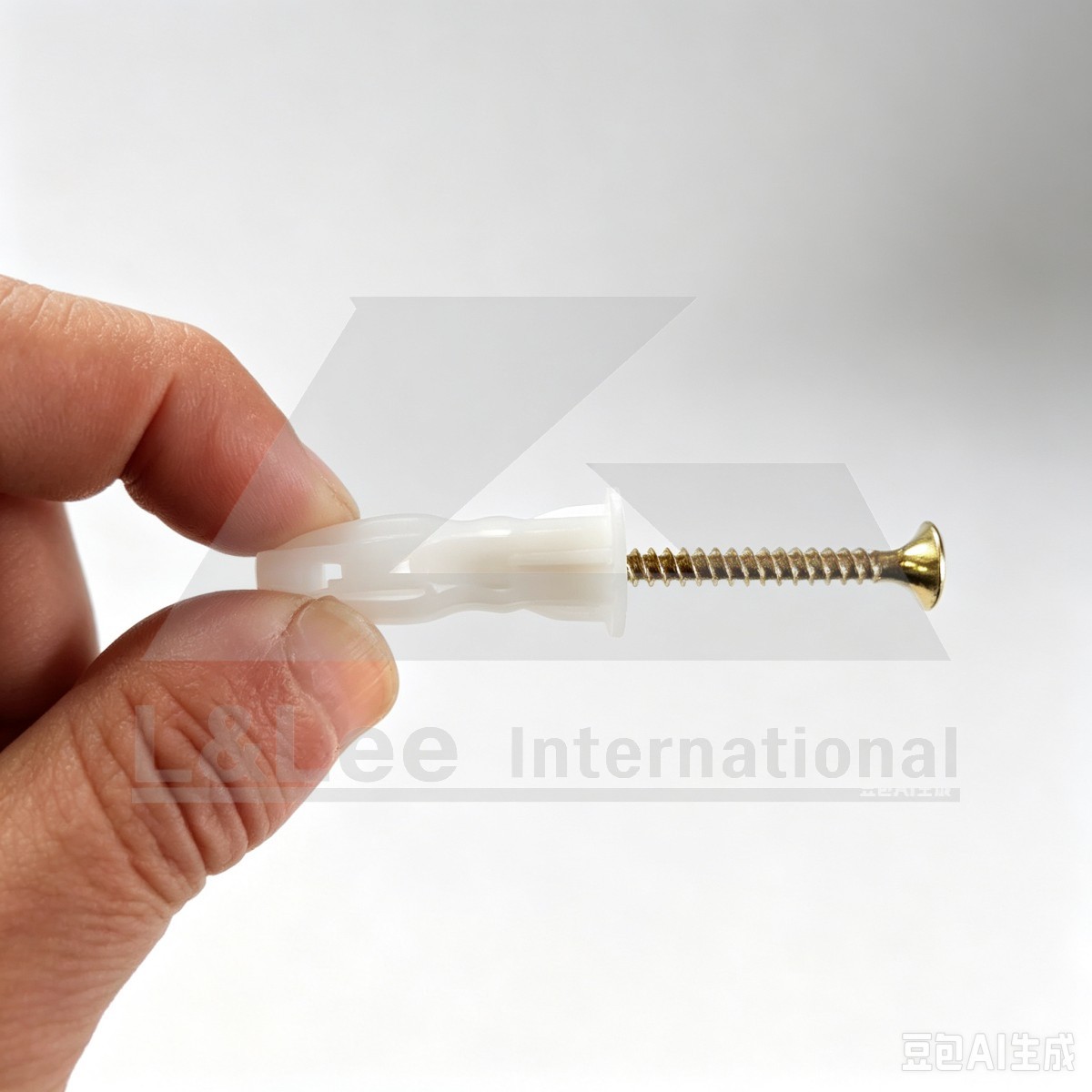

J. Gib‑board /plasterboard toggle anchor
Introductions
Gib‑board / plasterboard toggle anchors are hollow‑wall fasteners made for New Zealand Gib‑board and standard plasterboard dry‑wall. After inserting into the pre‑drilled hole, the toggle wings open behind the board to distribute load over a large rear area, avoiding pull‑out damage to thin plasterboard. Suitable for mounting shelves, cabinet brackets, light fixtures, TV mounts and decorative fittings on hollow interior walls. Not for use on solid concrete or solid timber walls.
Specifications
| Product Name | White Aircraft‑Type Plastic Hollow‑Wall Toggle Anchor |
| Material | Nylon / Plastic |
| Overall Dimension | 50 mm × 30 mm |
| Required Drill Hole | 8‑9 mm |
| Suitable Panel Thickness | 8‑15 mm |
| Matching Screw | 3.5 × 53 mm self‑tapping screw |
| Working Principle | Aircraft‑shape wings expand behind hollow panel, spread load to prevent pull‑out |
| Feature | Easy installation, reliable holding power for hollow dry‑wall substrates |
| Application | NZ Gib‑board, plasterboard, hollow cavity wall; for shelves, brackets, light‑fixture mounting; Not for solid concrete or solid timber |
Package Includes
- 1 Piece

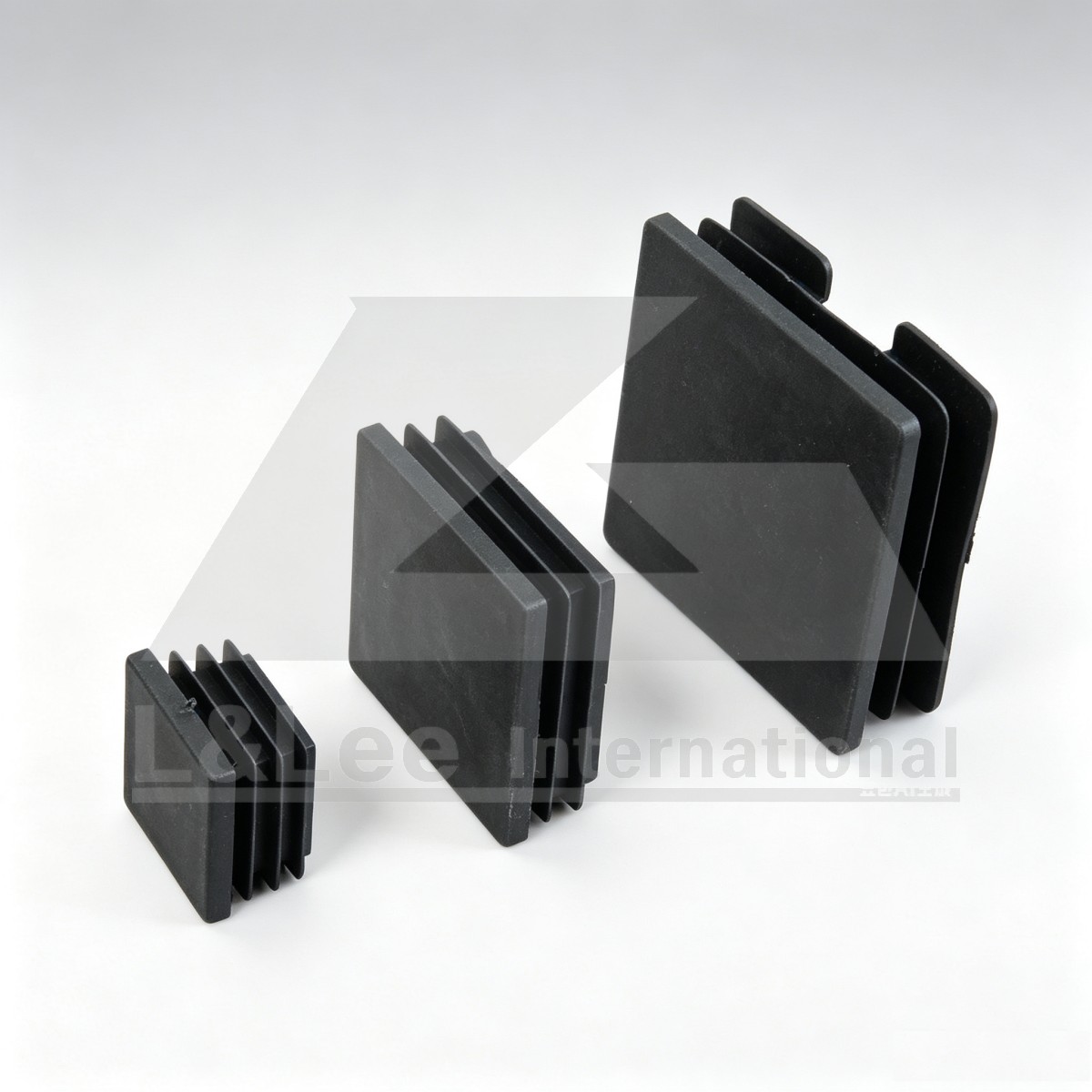

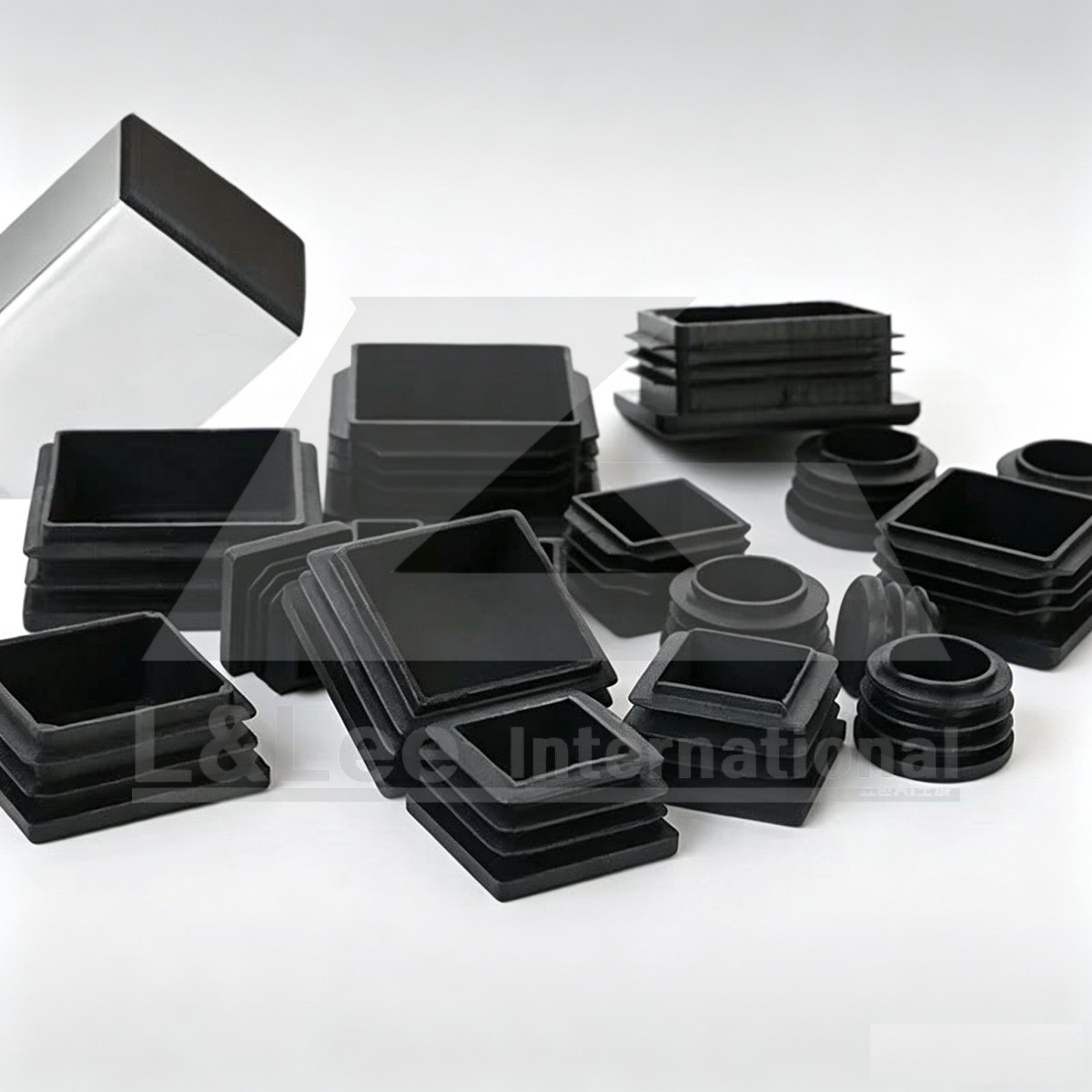

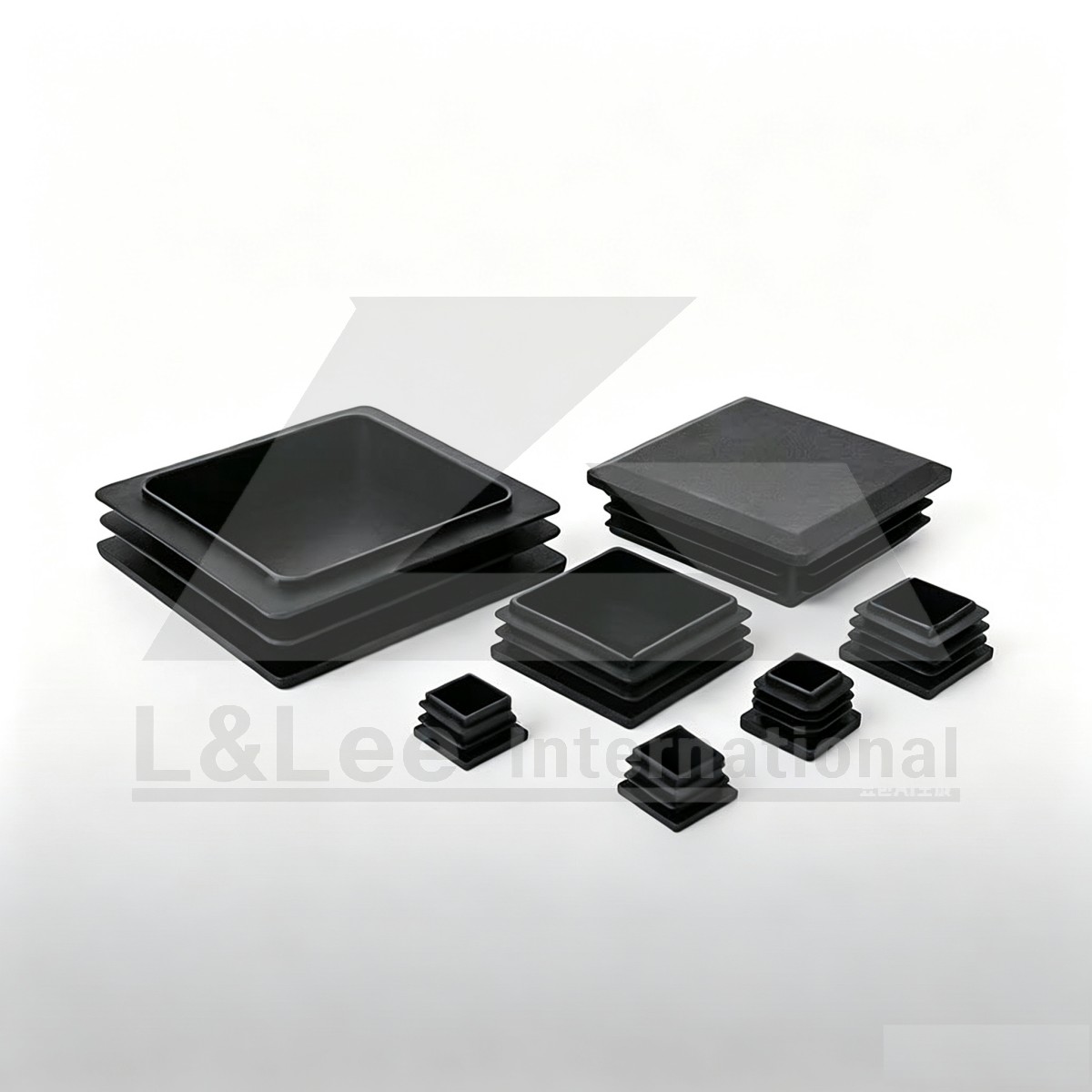

K. Plastic Tube Inserts
Introductions
Plastic square tube inserts are ribbed push‑in end plugs designed for open ends of square steel and aluminium tubing. Available for 30 × 30 mm, 40 × 40 mm and 50 × 50 mm outer square tube dimensions. Multi‑rib structure creates tight friction fit inside square tubing without extra fasteners. They cover sharp cut‑tube edges for safety, block dust and debris from entering tube interior, and deliver neat finished appearance. Widely used for furniture legs, racking, trailer frames, machinery bases and workshop metal‑fabrication jobs.
Specifications
| Product Name | Plastic Square Tube Inserts |
| Compatible Square Tube Sizes | 30 × 30 mm, 40 × 40 mm, 50 × 50 mm (outer dimension of square tubing) |
| Material | Durable hard plastic |
| Installation Type | Ribbed push‑in friction fit, no screws required |
| Feature | Covers sharp cut‑tube edges, blocks dust & debris, tidy finished appearance, quick installation |
| Application | Metal furniture legs, racking, trailer frames, machinery bases, workshop fabrication projects |
Package Includes
- 1 Piece

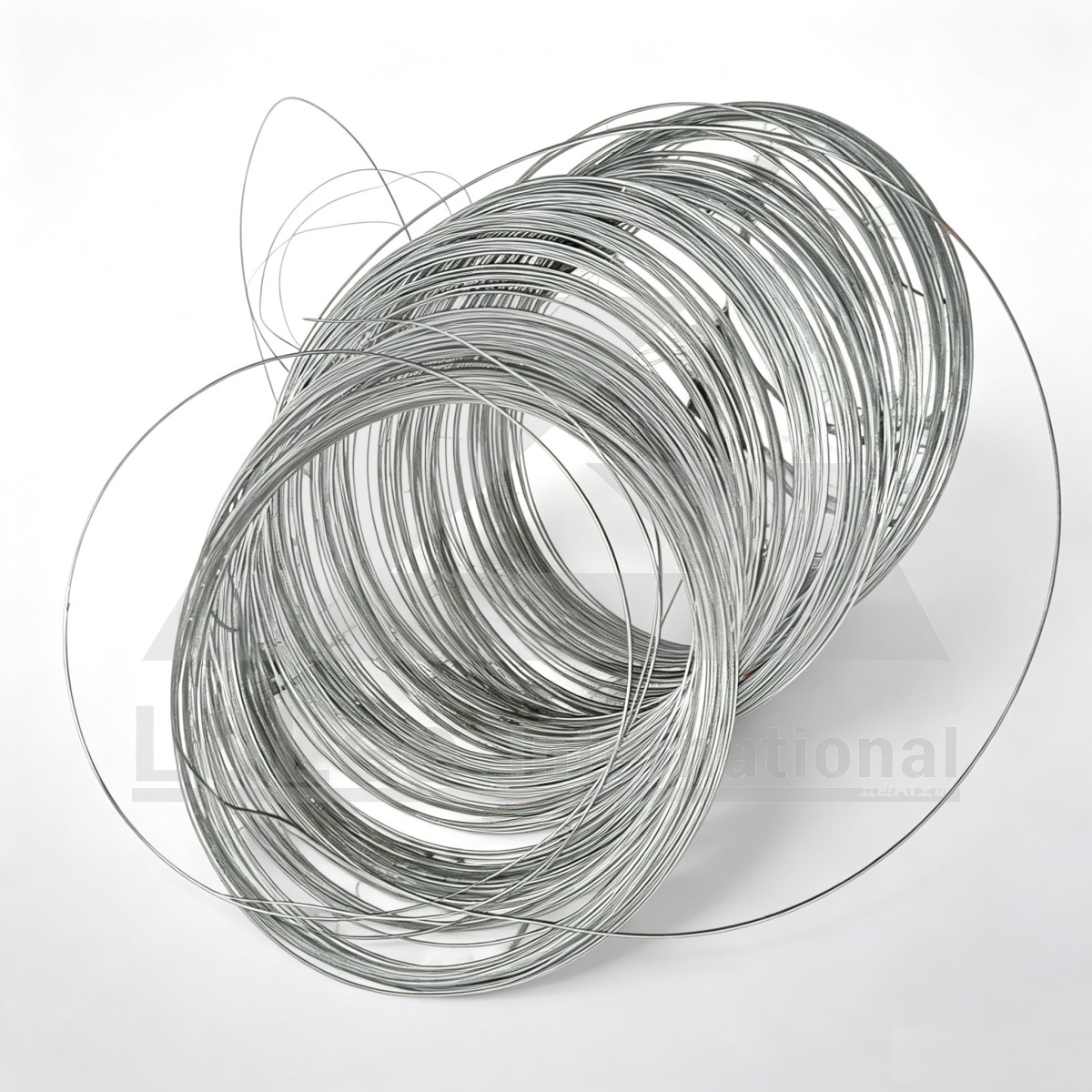

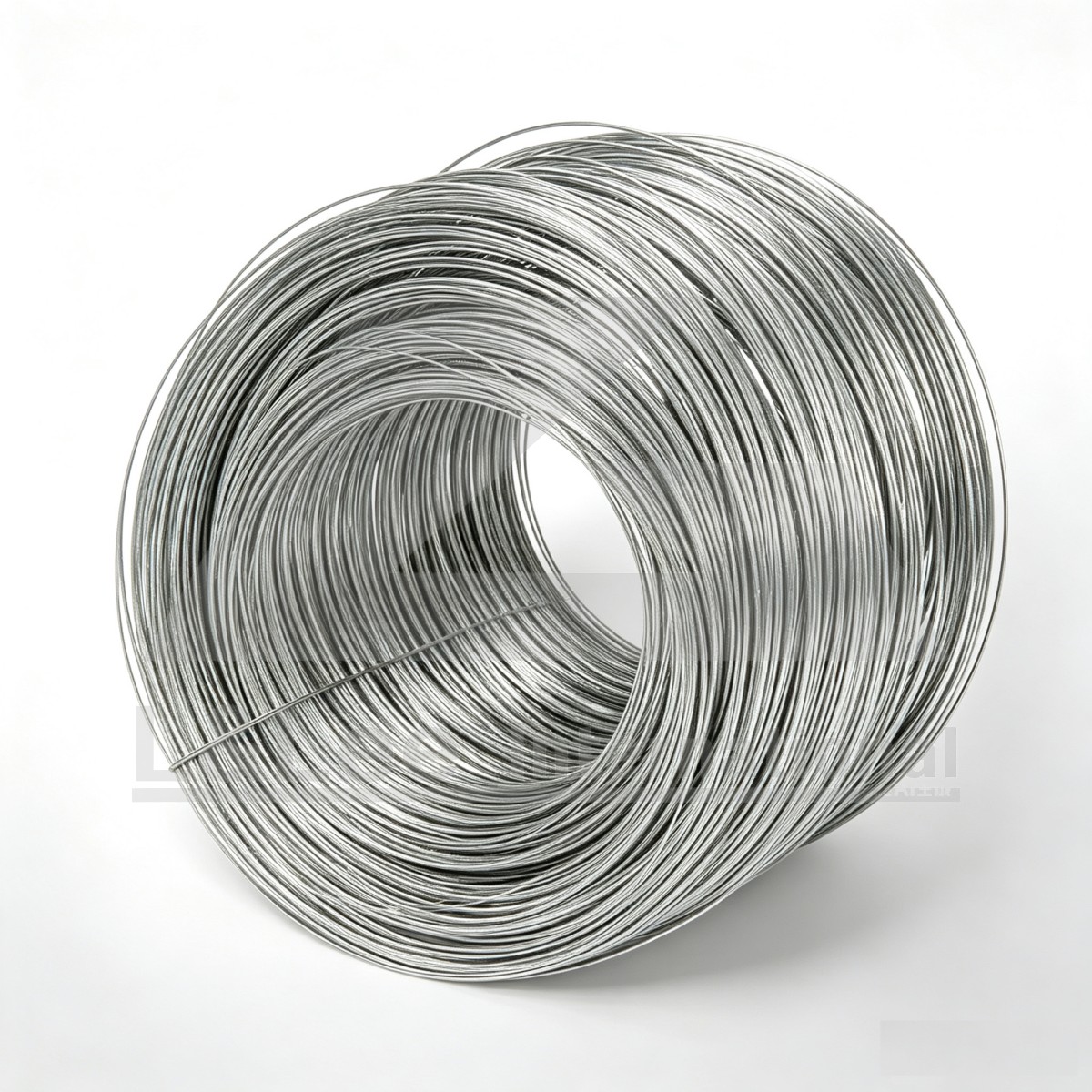

L. SWG‑8 Galvanised Iron Wire
Introductions
SWG‑8 galvanised iron wire with 4.06 mm nominal diameter follows British Standard Wire Gauge, delivers high‑strength anti‑rust performance for outdoor fencing and building‑site binding applications.
Specifications
| Product Name | SWG‑8 Galvanised Iron Wire |
| Wire Gauge | SWG‑8 (British Standard Wire Gauge) |
| Diameter | 4.06 mm |
| Material | Low‑carbon mild steel |
| Surface Finish | Galvanised zinc‑coated for corrosion resistance |
| Feature | High tensile strength, good ductility, suitable for outdoor conditions |
| Application | Fencing, construction binding, farm work, general‑purpose tying & fixing jobs |
Package Includes
- 1 Meter
