Petrol Generator
E. Generator KP3500 3.1 kW
Introductions
The KP3500 is a portable single‑phase petrol generator with rated output 3.1 kW, powered by proven KB168FA 5.5 hp OhV engine. It adopts recoil start, large‑capacity 15 L fuel tank for long continuous operation. Compact frame design with anti‑vibration structure provides steady voltage output. Suitable for household backup, small business and outdoor site power supply.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP3500 |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 2.8 |
| Max. Output (kW) | 3.1 |
| Power Factor | 1.0 |
| Engine Model | KB168FA (5.5 hp) |
| Starting | Recoil start |
| Fuel Tank Capacity (L) | 15 |
| Continuous Running Time (h) | 11 h @ 50% load |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Weight（kg) | 44 |
| Dimensions (mm) | 610 × 450× 460 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
F. Generator KP3500E 3.1 kW（Electric Start）
Introductions
The KP3500E is a portable single‑phase petrol generator with 3.1 kW rated power. Powered by KB168FAE reliable 5.5hp OhV engine, it features convenient electric start with recoil backup for emergency use. The large 15‑litre fuel tank supports long‑hour continuous operation. Anti‑vibration frame ensures stable voltage performance. Ideal for home standBy, small‑scale commercial and outdoor job‑site power requirements.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP3500E |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 2.8 |
| Max. Output (kW) | 3.1 |
| Power Factor | 1.0 |
| Engine Model | KB168FA (5.5 hp) |
| Starting | Electric start with recoil backup |
| Fuel Tank Capacity (L) | 15 |
| Continuous Running Time (h) | 11 h @ 50% load |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Weight（kg) | 44 |
| Dimensions (mm) | 610 × 450× 460 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler

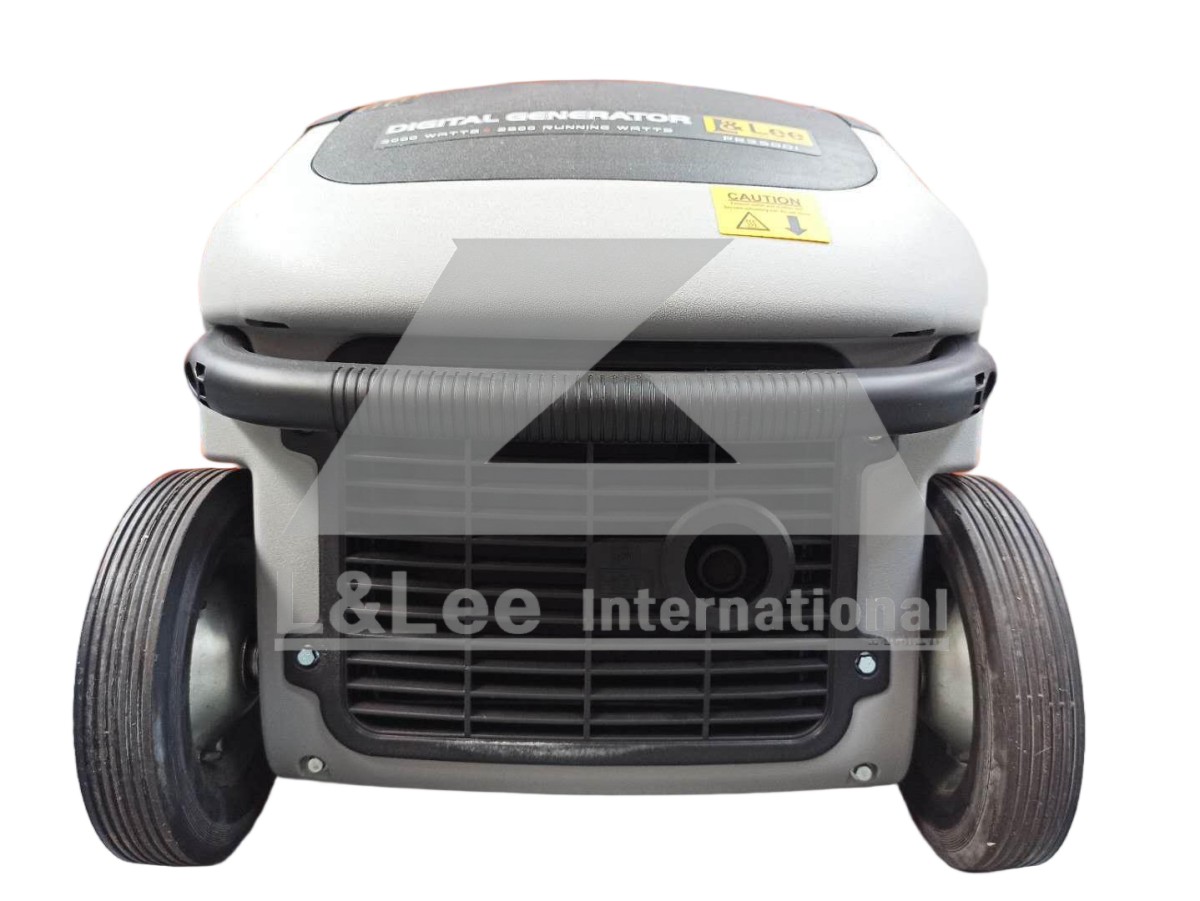

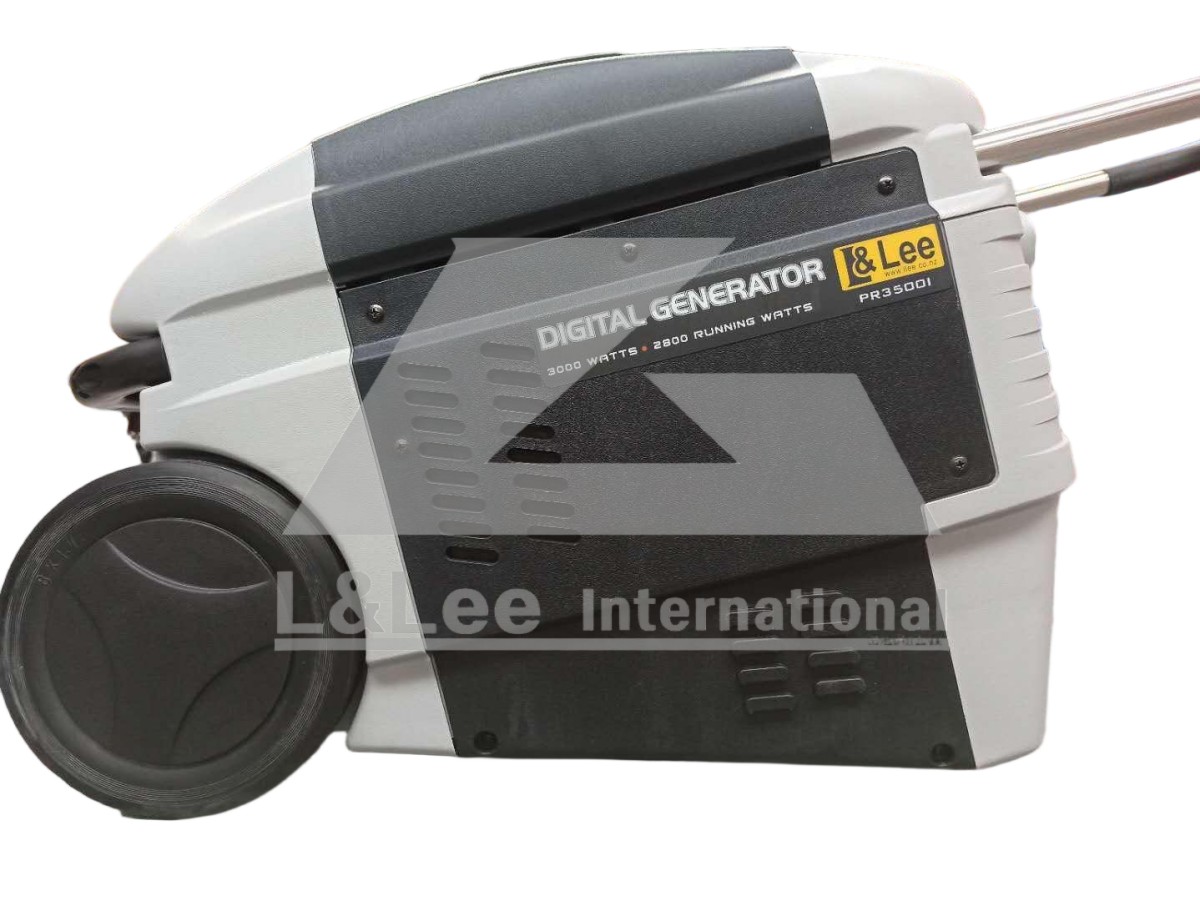

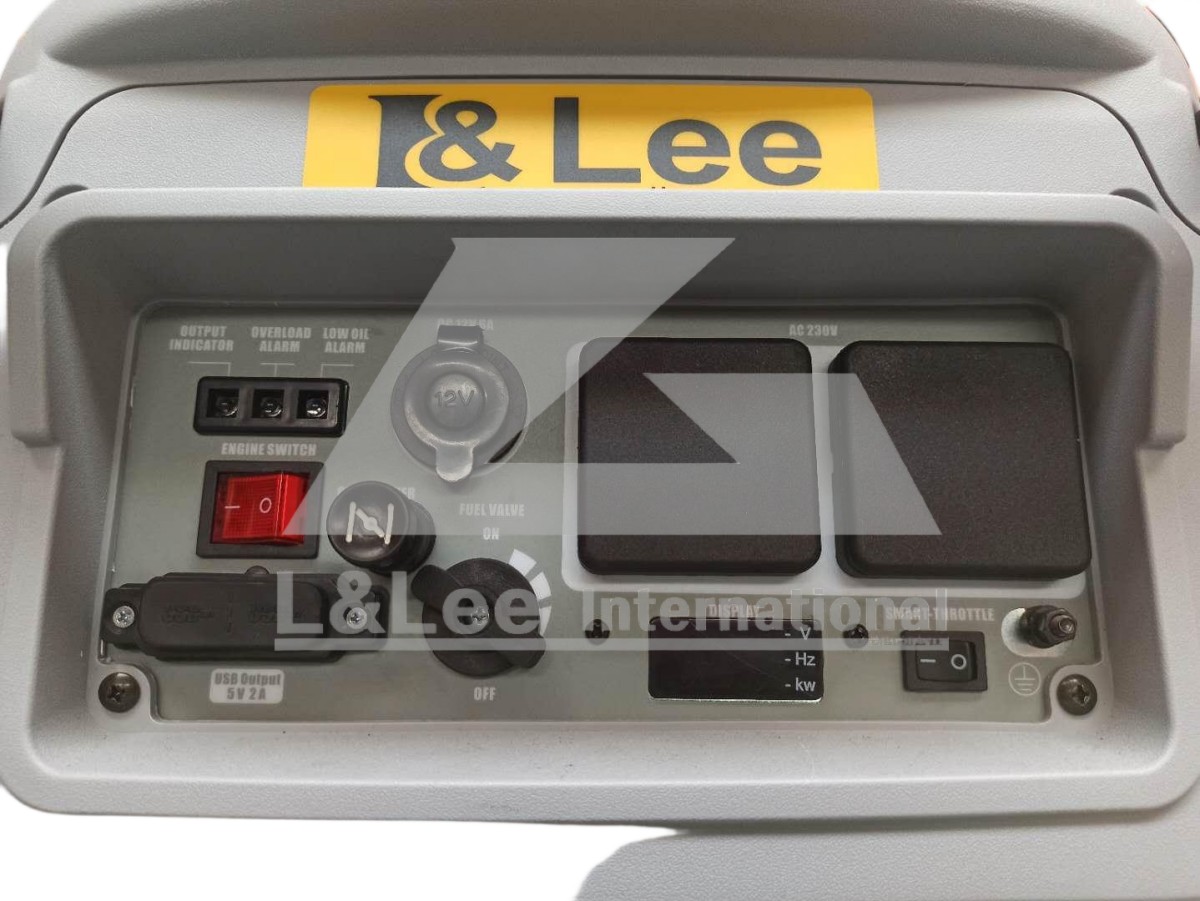

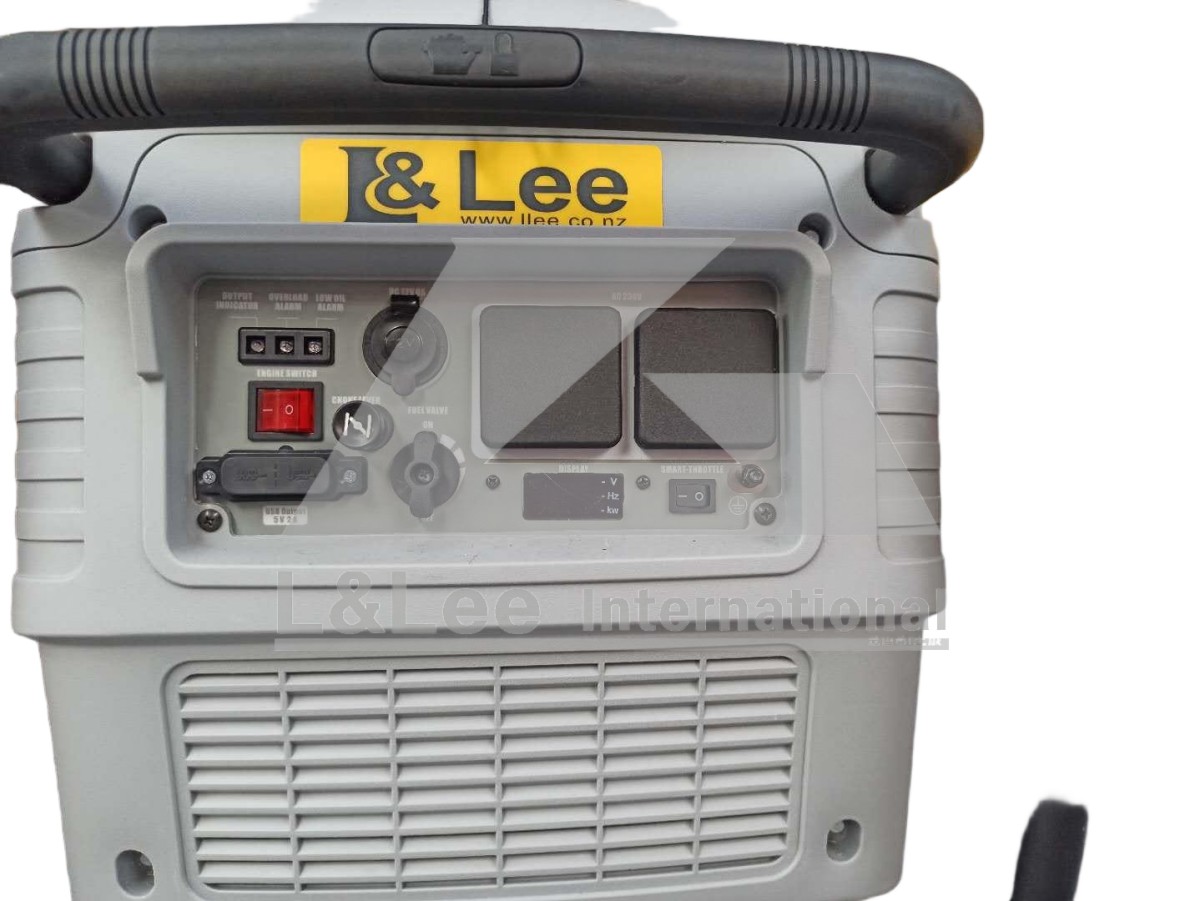

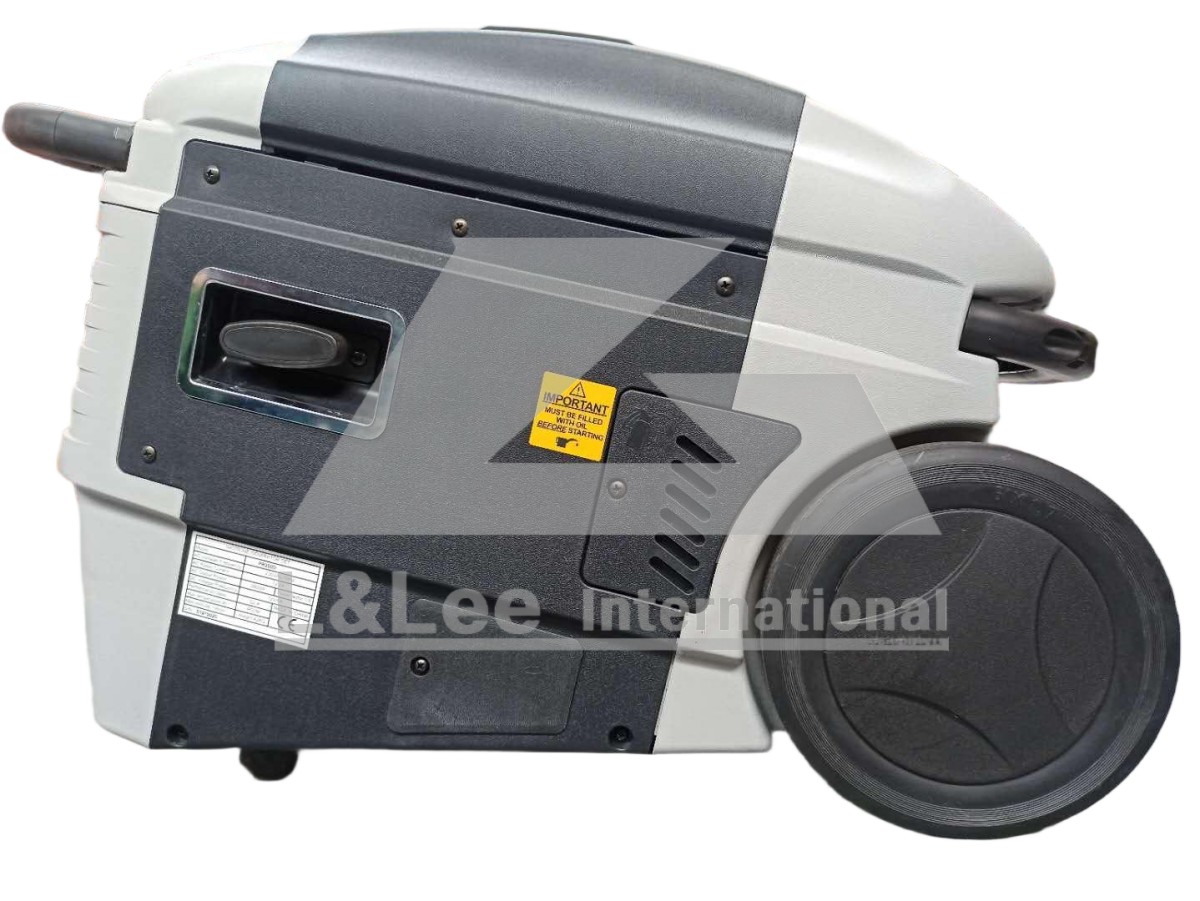

G. Generator PR3500i 3.1kW Inverter with Pure sine wave outputs
Introductions
The PR3500i is a portable closed‑frame inverter petrol generator with 3.1kW Max power. It provides pure sine‑wave output (ThD ≤3%) which safely powers laptops, televisions and other delicate electronic equipment. Powered by reliable 212 cc OhV 4‑stroke engine with recoil starting. Built‑in eco‑mode adjusts engine speed according to load to reduce fuel consumption and noise level A low A 61 dB(A) at 7 metres. Equipped with low‑oil‑level protection, overload protection and digital display for voltage, frequency and running‑hour reading. Ideal for cAing, caravan, household emergency backup and outdoor leisure power supply.
Specifications
| Model | PR3500i Silent type |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 2.8 |
| Max. Output (kW) | 3.1 |
| Power Factor | 1.0 |
| Engine Model | 7hp, 4 stroke |
| Starting | Recoil start |
| Fuel Tank Capacity (L) | 12 |
| Continuous Running Time (h) | 6.5 h @ 50% load |
| Fuel Consumption | Approx:1.5 liters/hour with full loads rated outputs |
| Output wave | Pure sine wave |
| Multi displays | Digital display V/Hz/kW/hour 4-in-1 |
| Noise Level (dB) | 61 dB(A) @7 m |
| Winding | Pure copper |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection |
| Feature | Eco‑mode function |
| Weight（kg) | 42 |
| Dimensions (mm) | 610 × 450× 460 |
Package Includes
- Unit
- 1 15 A plugs
- 1 12V plug+clips
- 1 Screw driver
- 1 Oil filler

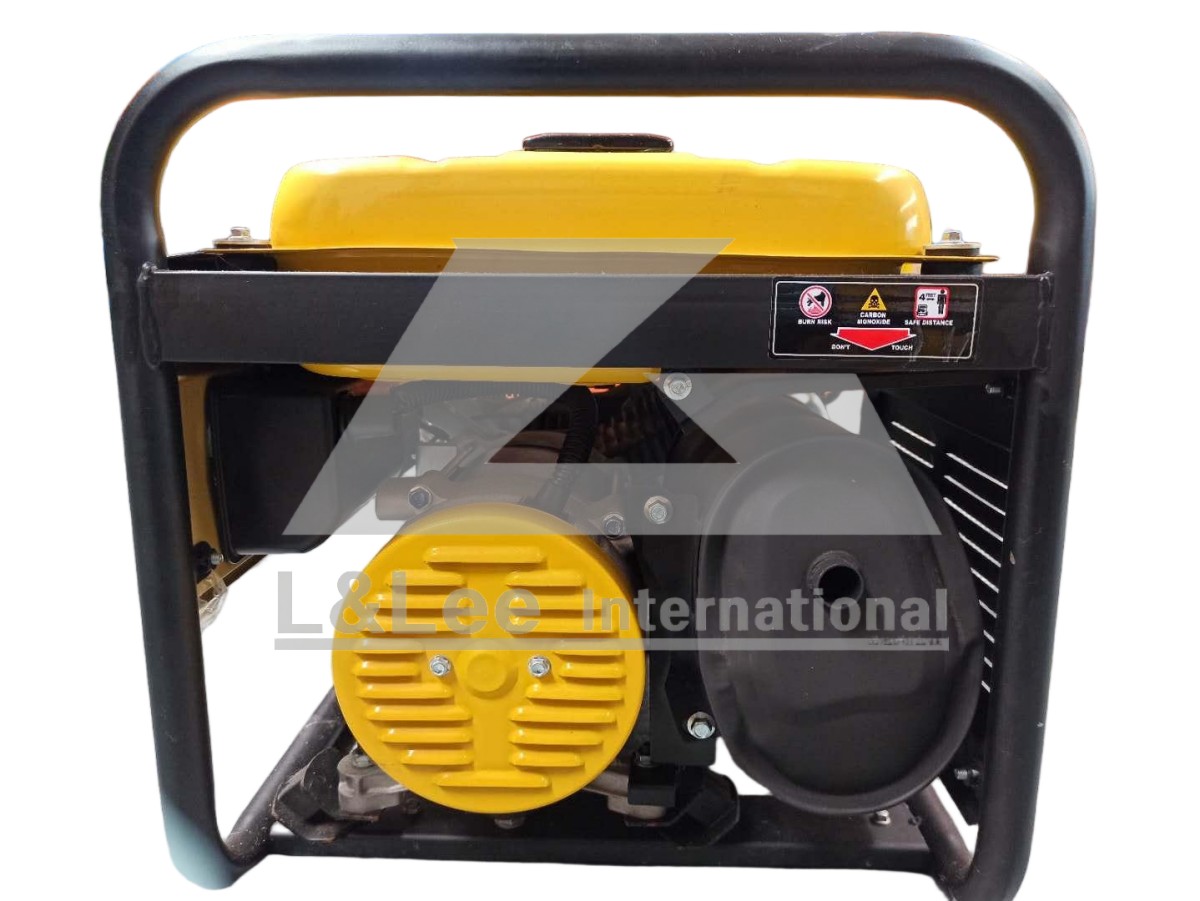

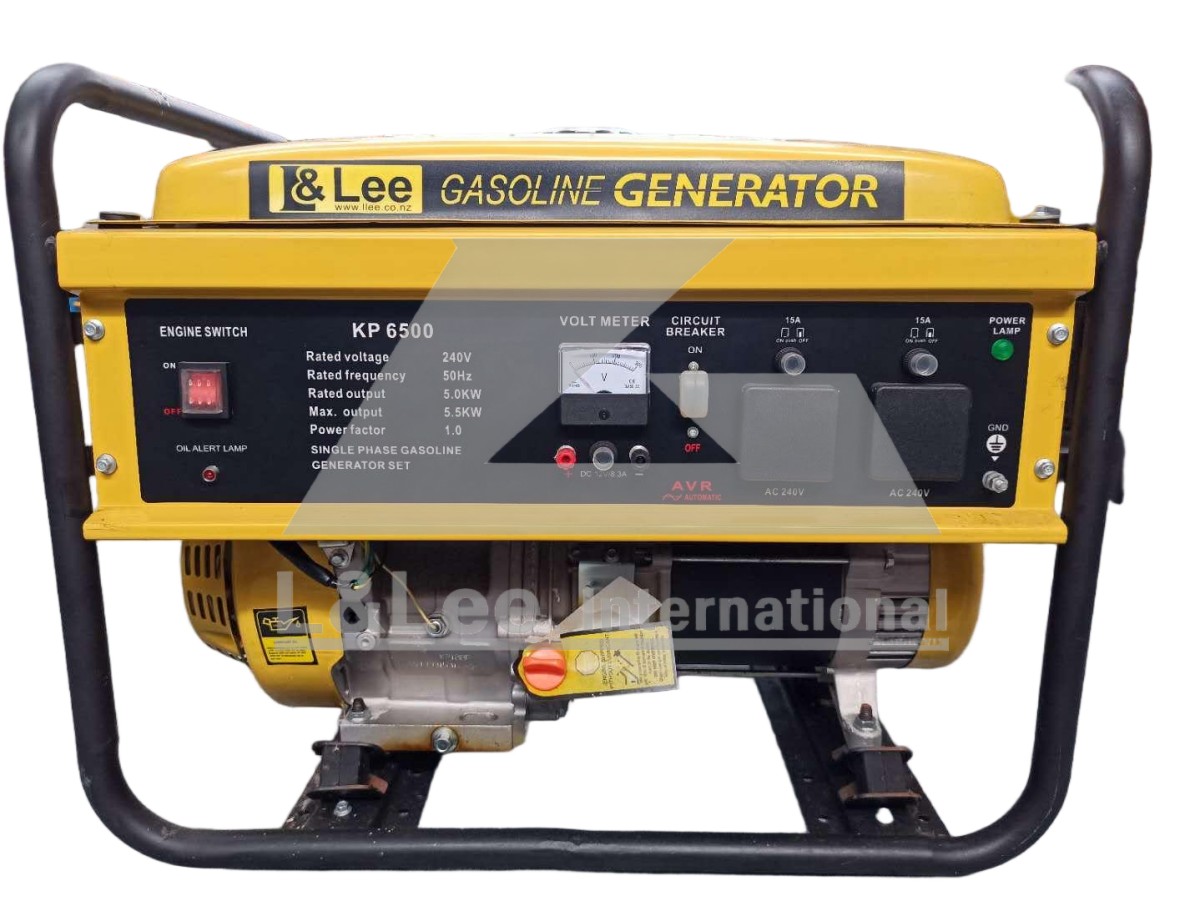

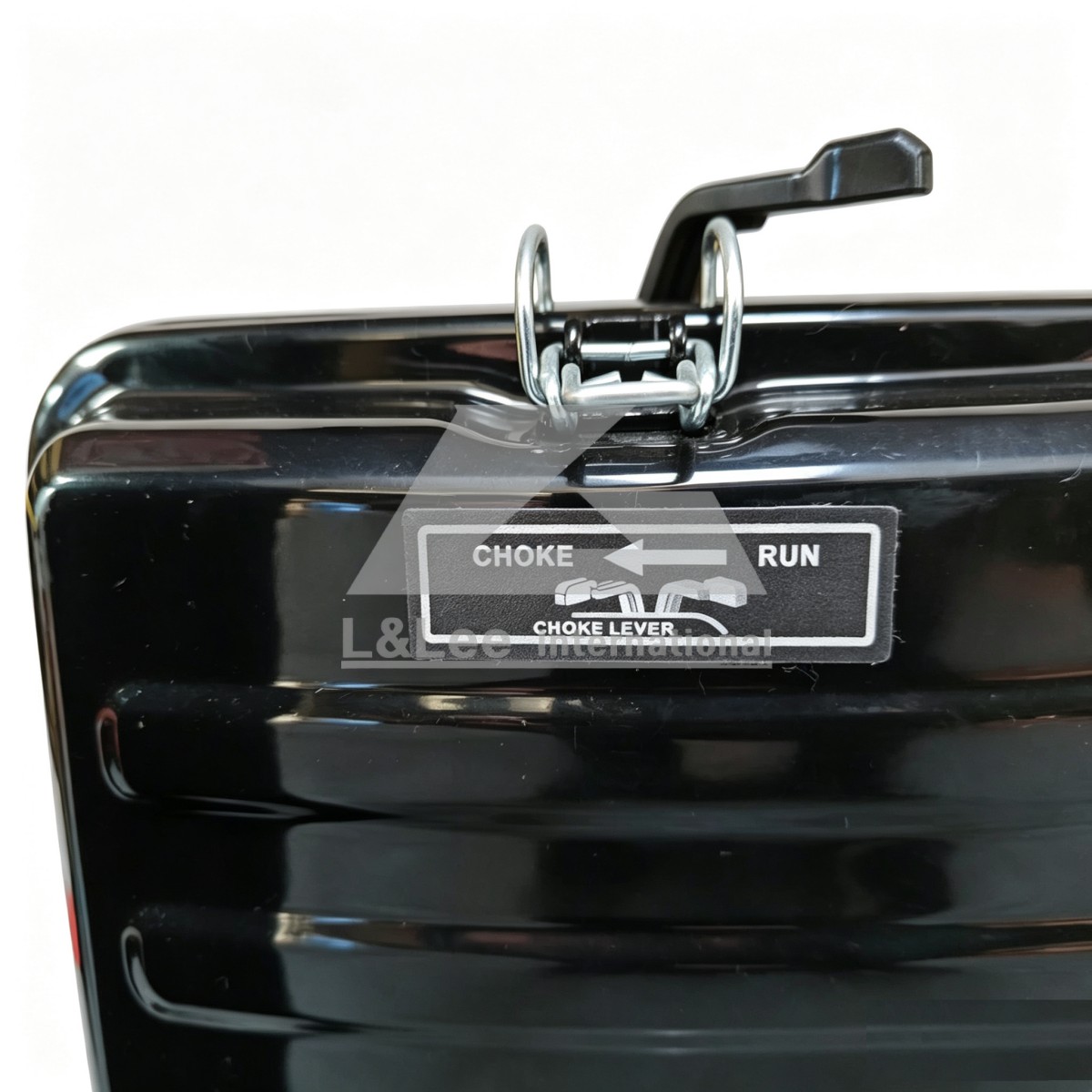

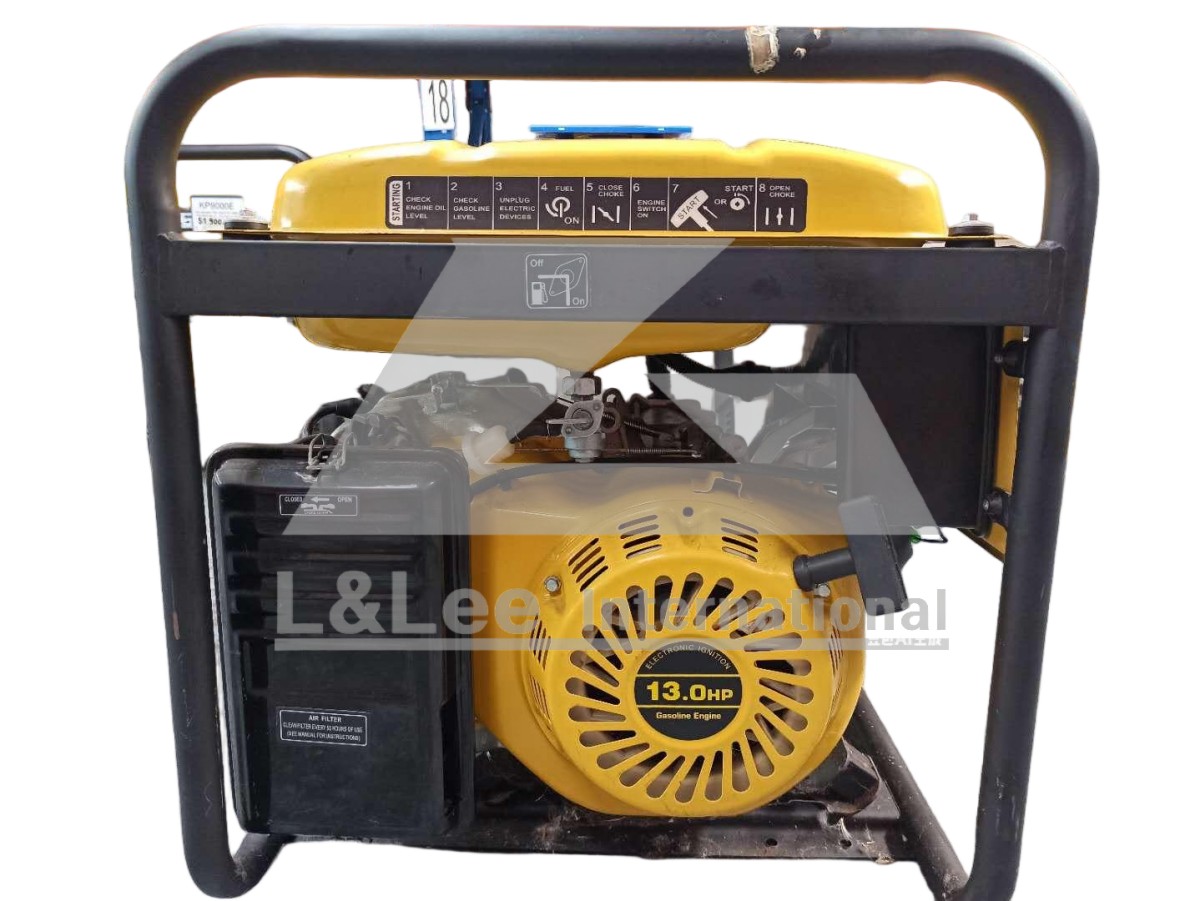

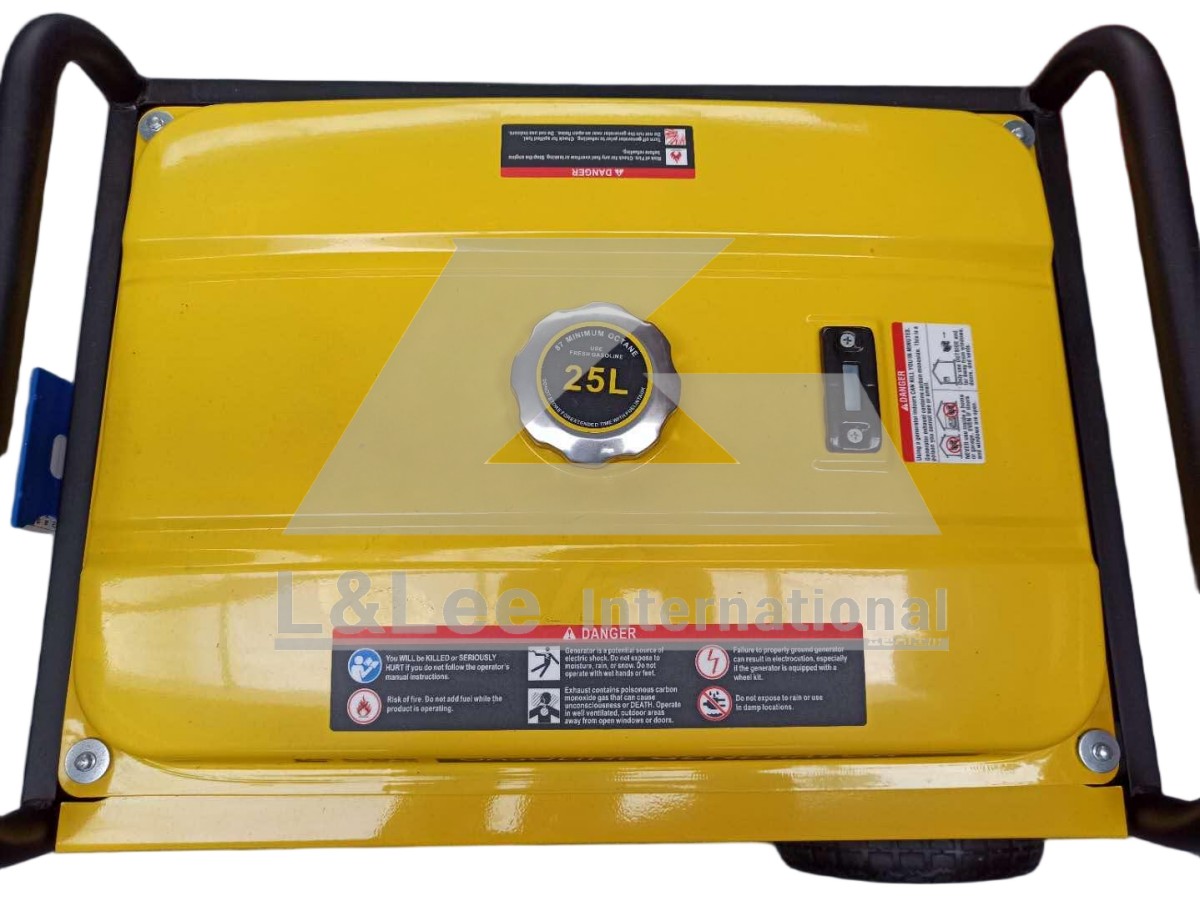

H. Generator KP6500 5.5 kW（Recoil Start）
Introductions
The KP6500 is an open‑frame portable single‑phase petrol generator with maximum 5.5 kW output, powered by robust KB188F 13 hp OhV 4‑stroke engine. It adopts recoil starting system and AVR automatic voltage regulation to deliver steady clean AC power. Large‑capacity 25‑litre fuel tank enables long‑time continuous operation. Built‑in low‑oil‑level shutdown and overload protection enhance operational safety. Solid heavy‑duty frame suits household standBy, farm use and outdoor construction‑site emergency power supply.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP6500 |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 5.0 |
| Max. Output (kW) | 5.5 |
| Power Factor | 1.0 |
| Engine Model | KB188F（13 hp petrol engine） |
| Starting | Recoil start |
| Fuel Tank Capacity (L) | 25 |
| Continuous Running Time (h) | 8.5 h @ 50% load |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection |
| Noise Level (dB) | 76dB(A) @7 m |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Weight（kg) | 84 |
| Dimensions (mm) | 695 × 525× 565 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler

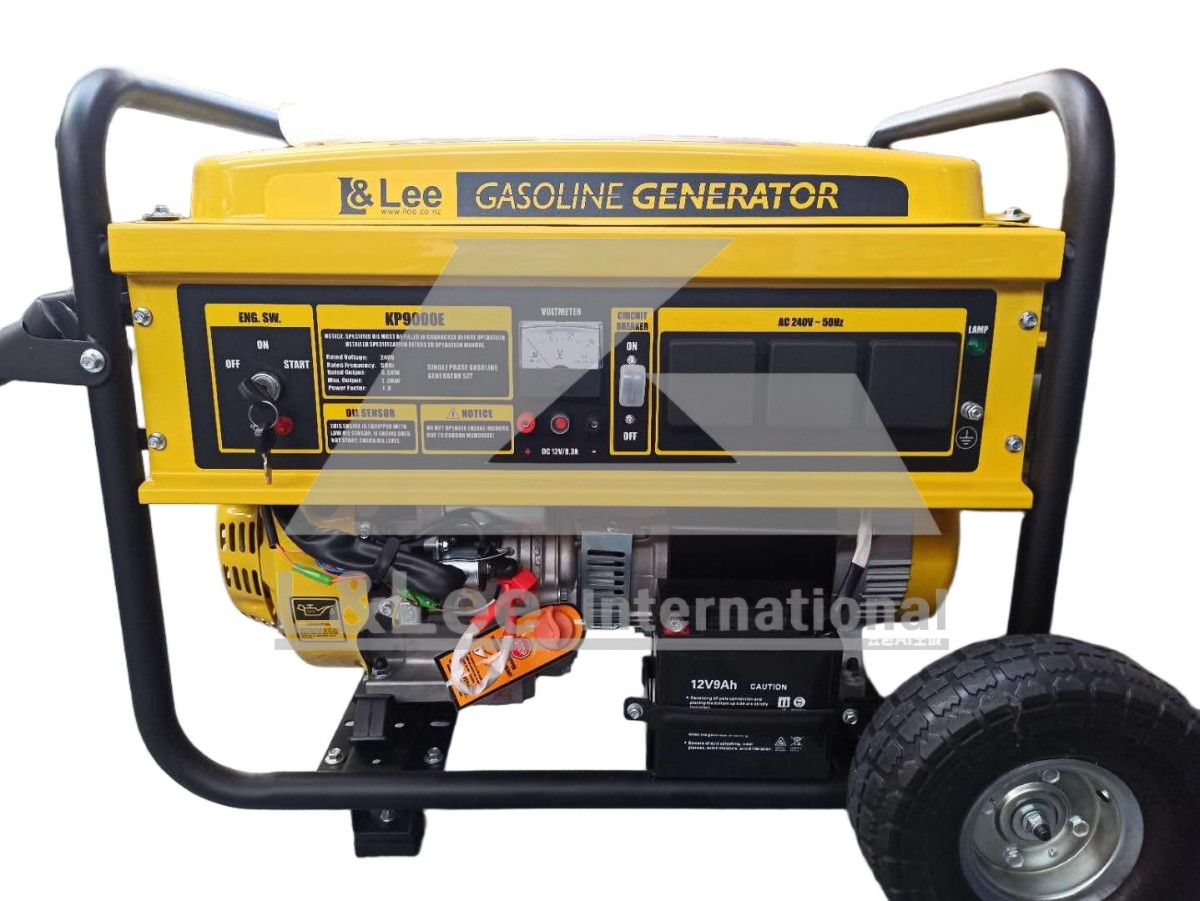

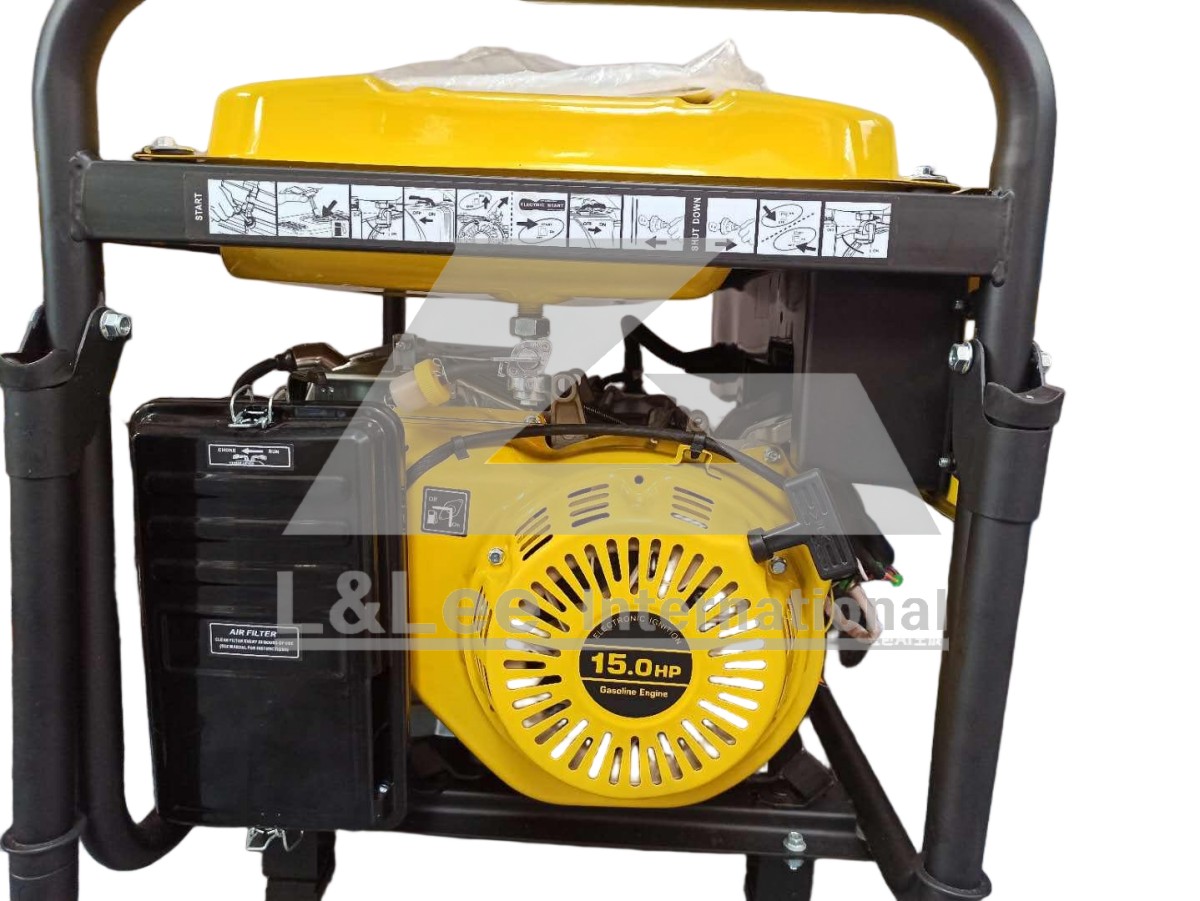

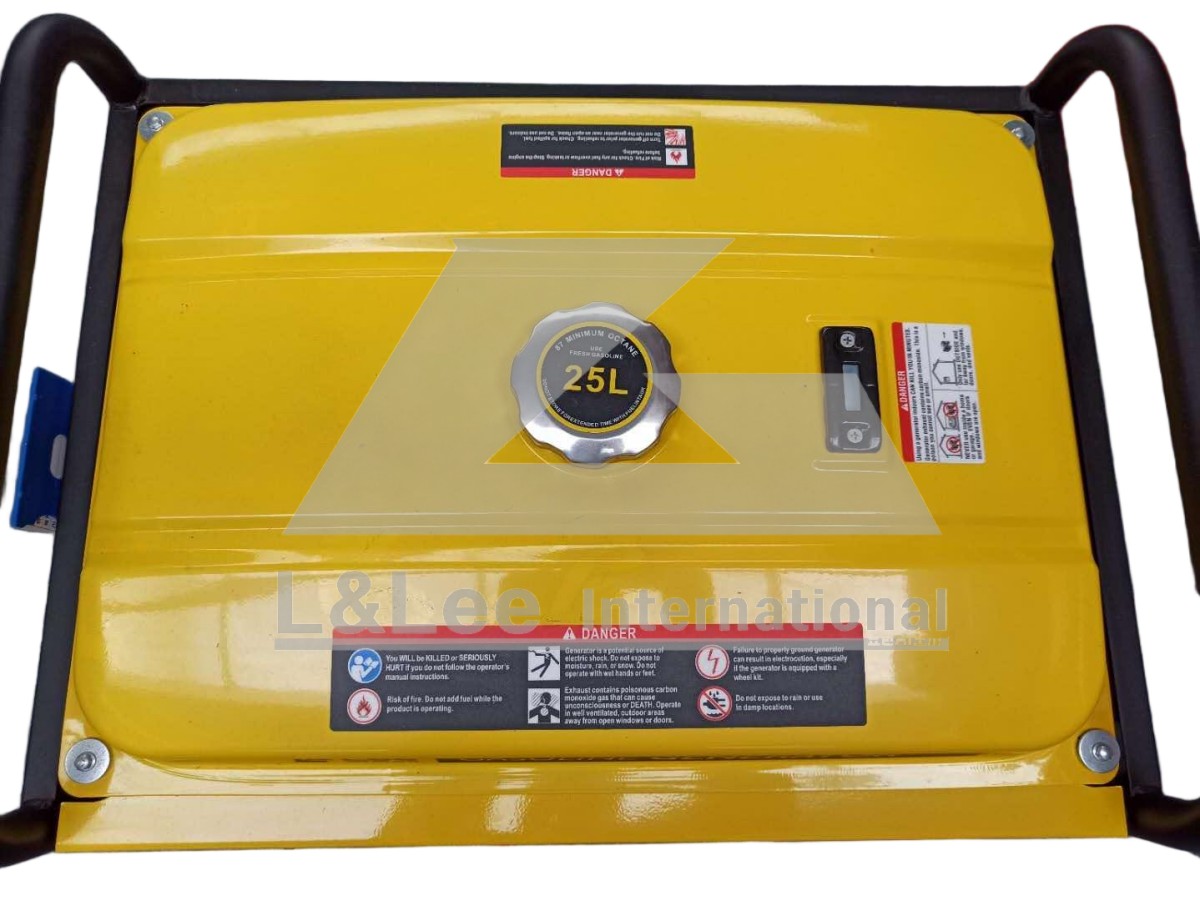

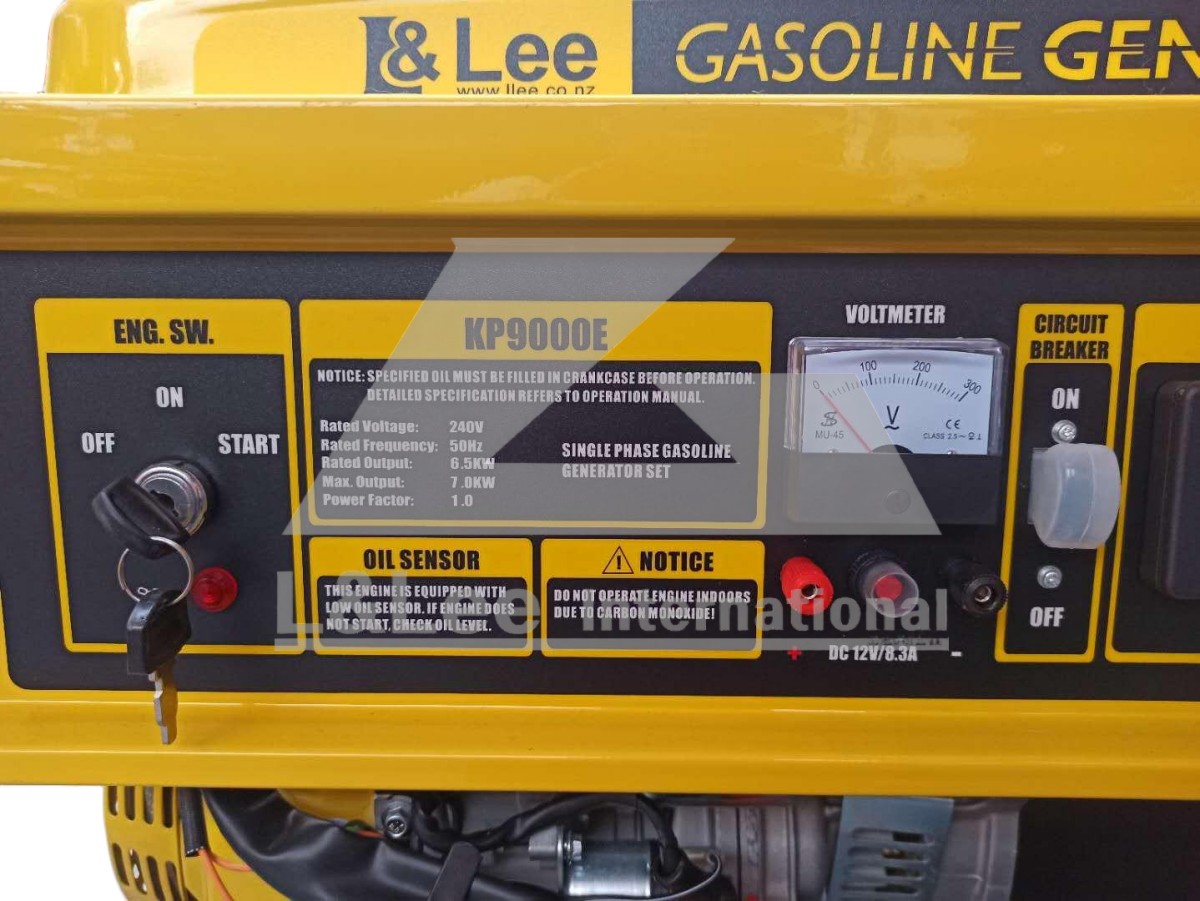

I. Generator KP9000E 7.0 kW（Electric Start）
Introductions
The KP9000E is an open‑frame single‑phase portable petrol generator with 7.0 kW Max power. It is powered by heavy‑duty 15hp OhV engine, equipped with convenient electric start together with backup recoil start. Built‑in AVR automatic voltage regulator provides stable AC output. The large 25‑litre fuel tank supports long continuous working hours. Low‑oil‑pressure shutdown and overload protection safeguard the unit. Robust metal frame makes it well‑suited for residential standBy, workshops, farms and harsh construction‑site power requirements.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP9000E |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 6.5 |
| Max. Output (kW) | 7.0 |
| Power Factor | 1.0 |
| Engine Model | 15hp petrol engine |
| Starting | Electric start + backup recoil start |
| Fuel Tank Capacity (L) | 25 |
| Continuous Running Time (h) | 8.0 h @ 50% load |
| Outputs | 3 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection |
| Noise Level (dB) | 78dB(A) @7 m |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Timer | Yes |

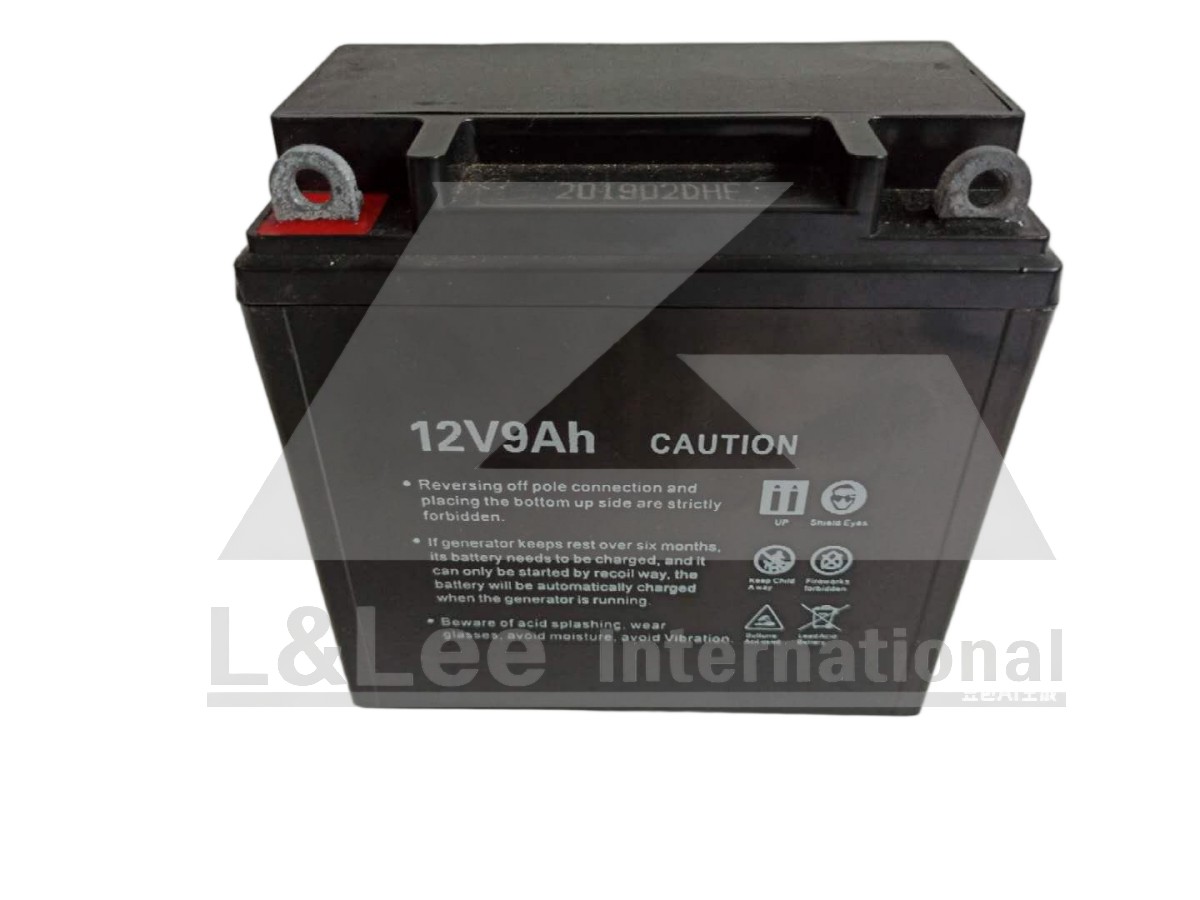

| Battery | 12V 9Ah |
| Tyres | Big solid |
| Weight（kg) | 87 |
| Dimensions (mm) | 820 × 535× 565 |
Package Includes
- Unit
- 3 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler

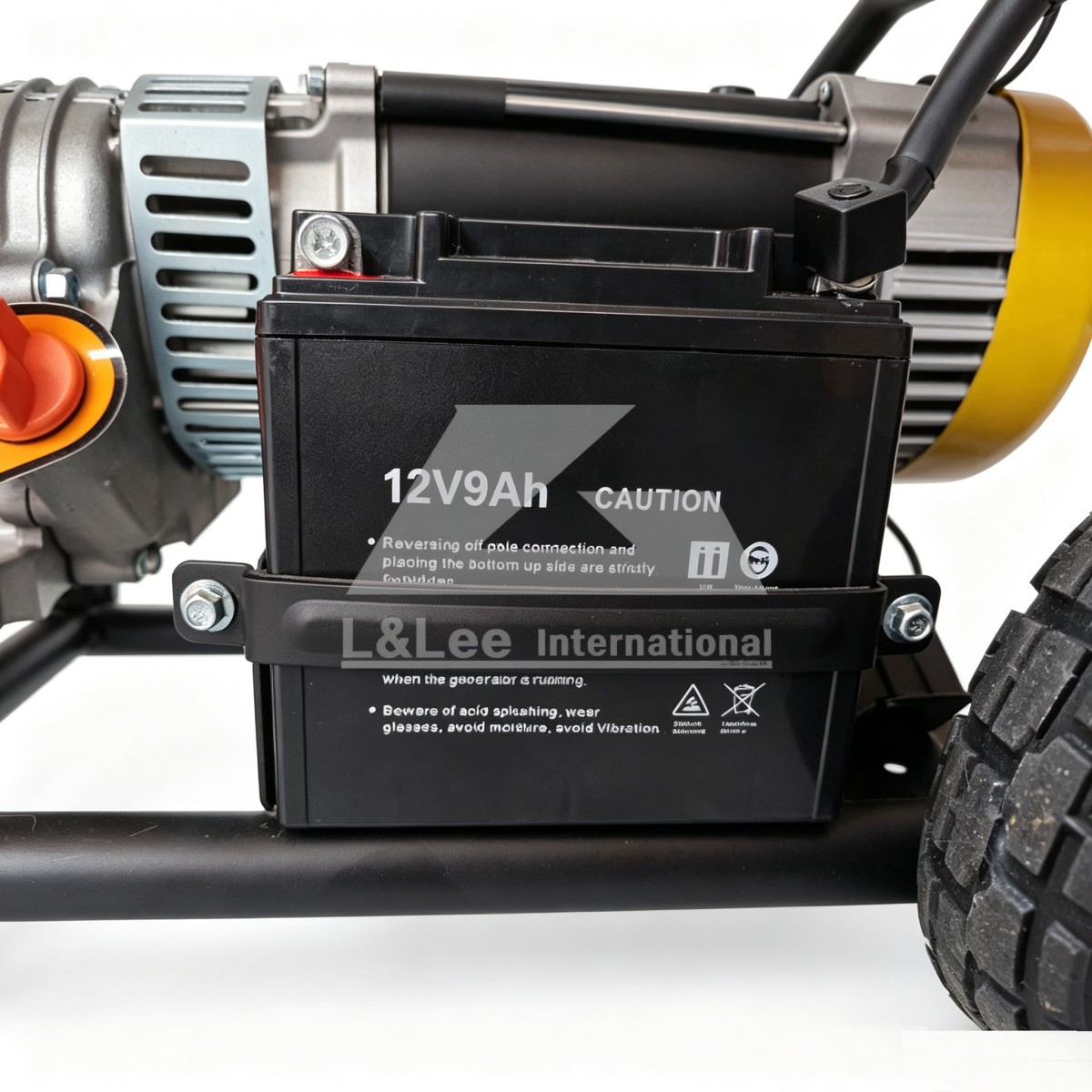

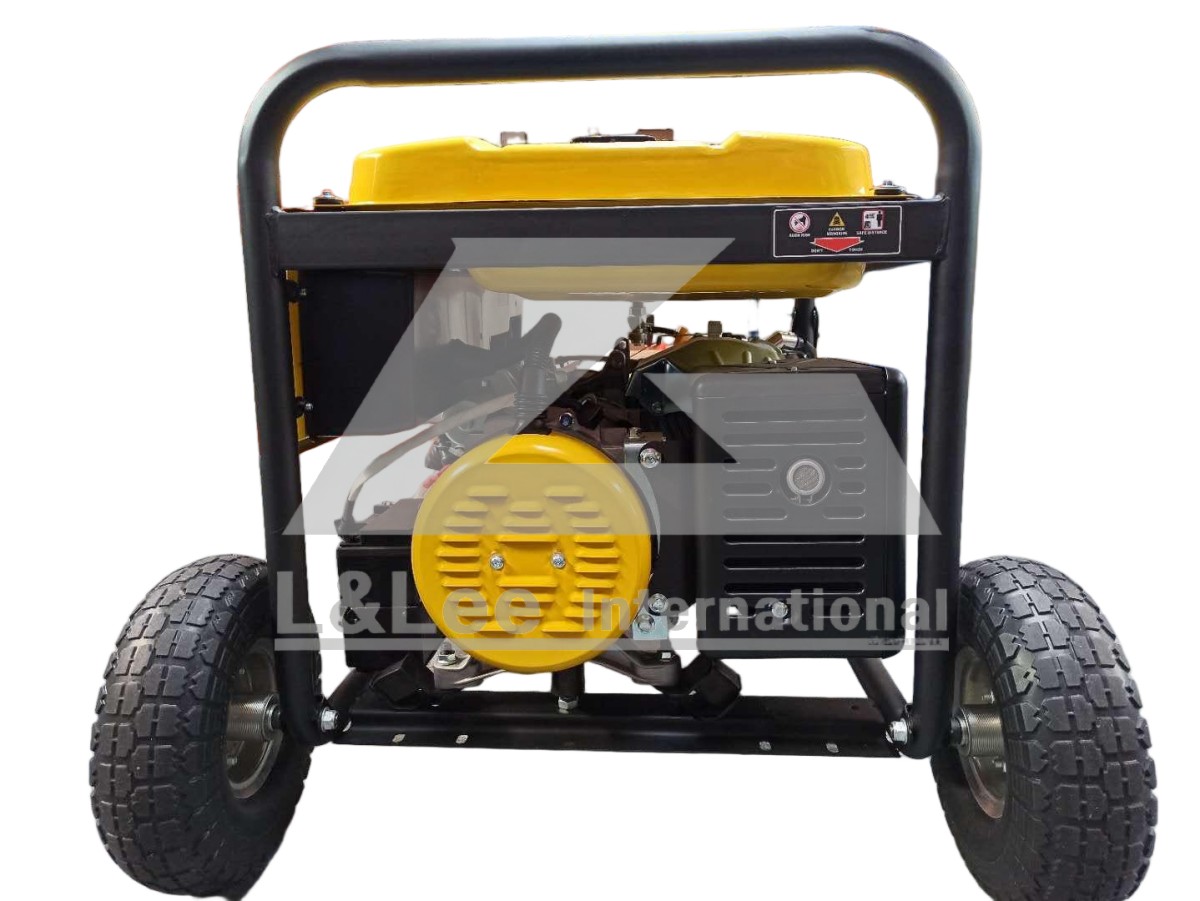

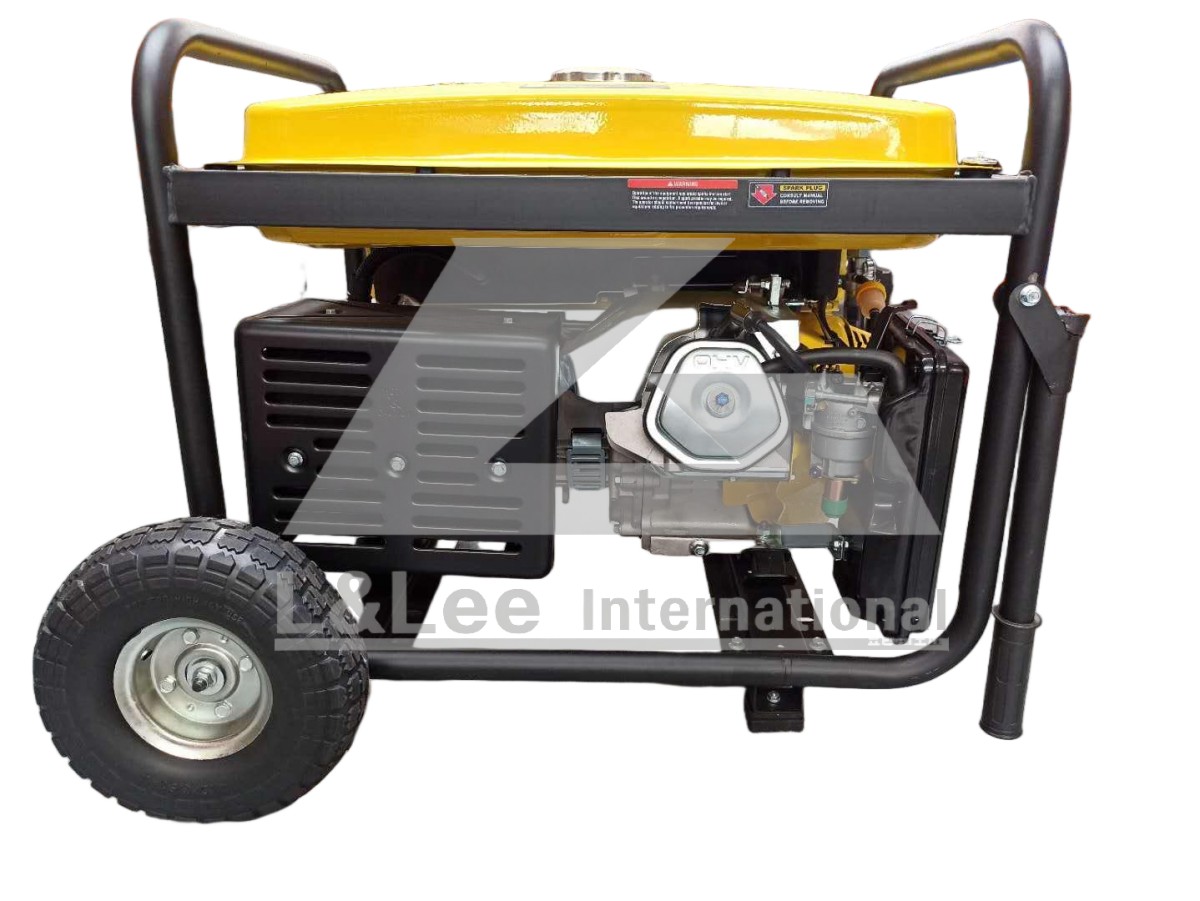

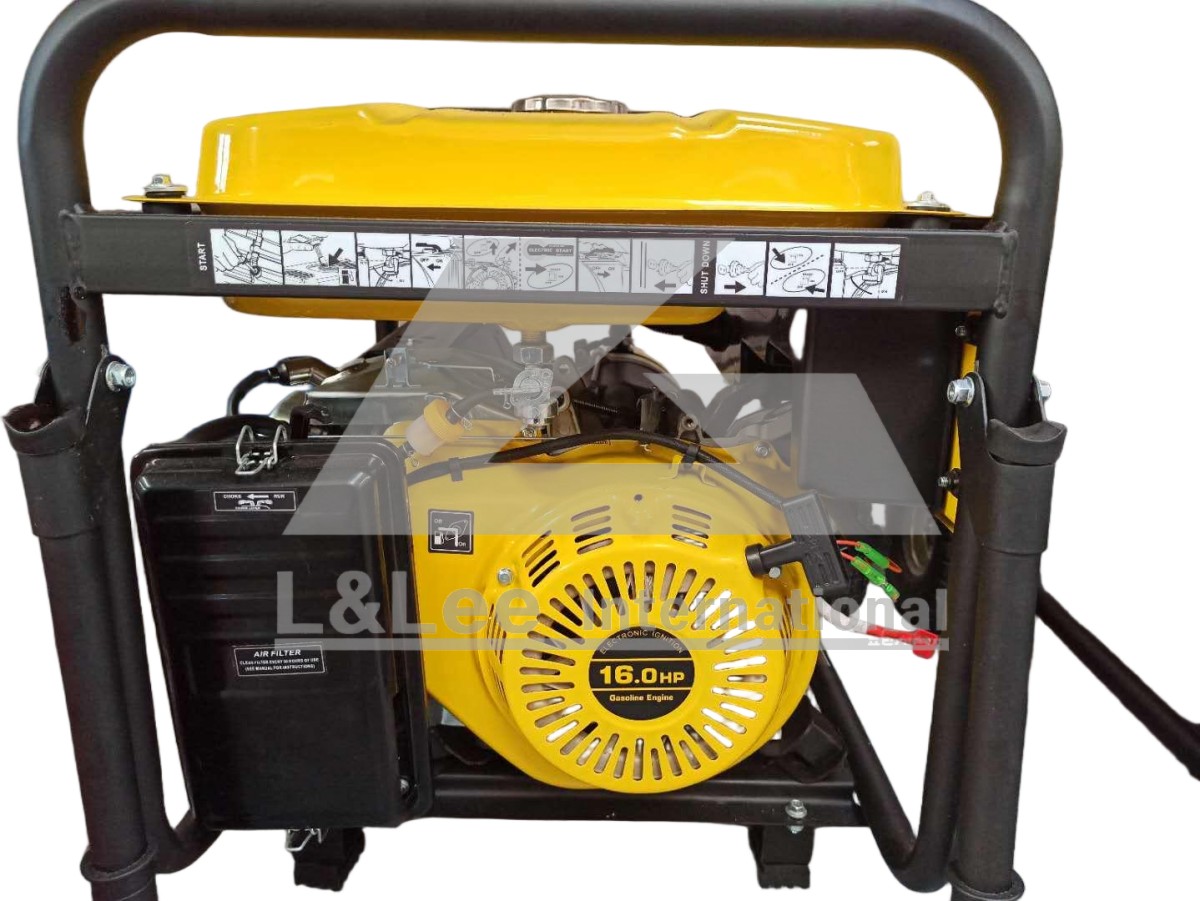

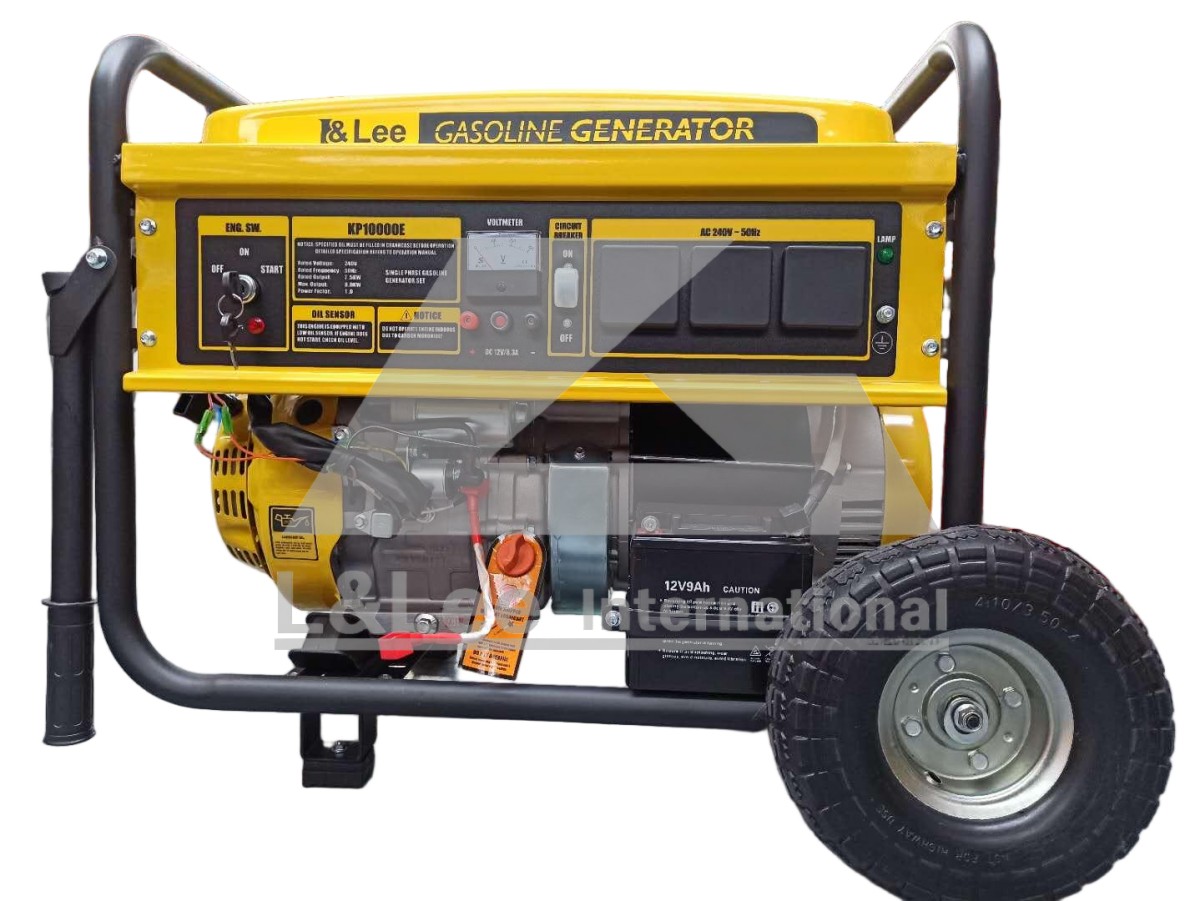

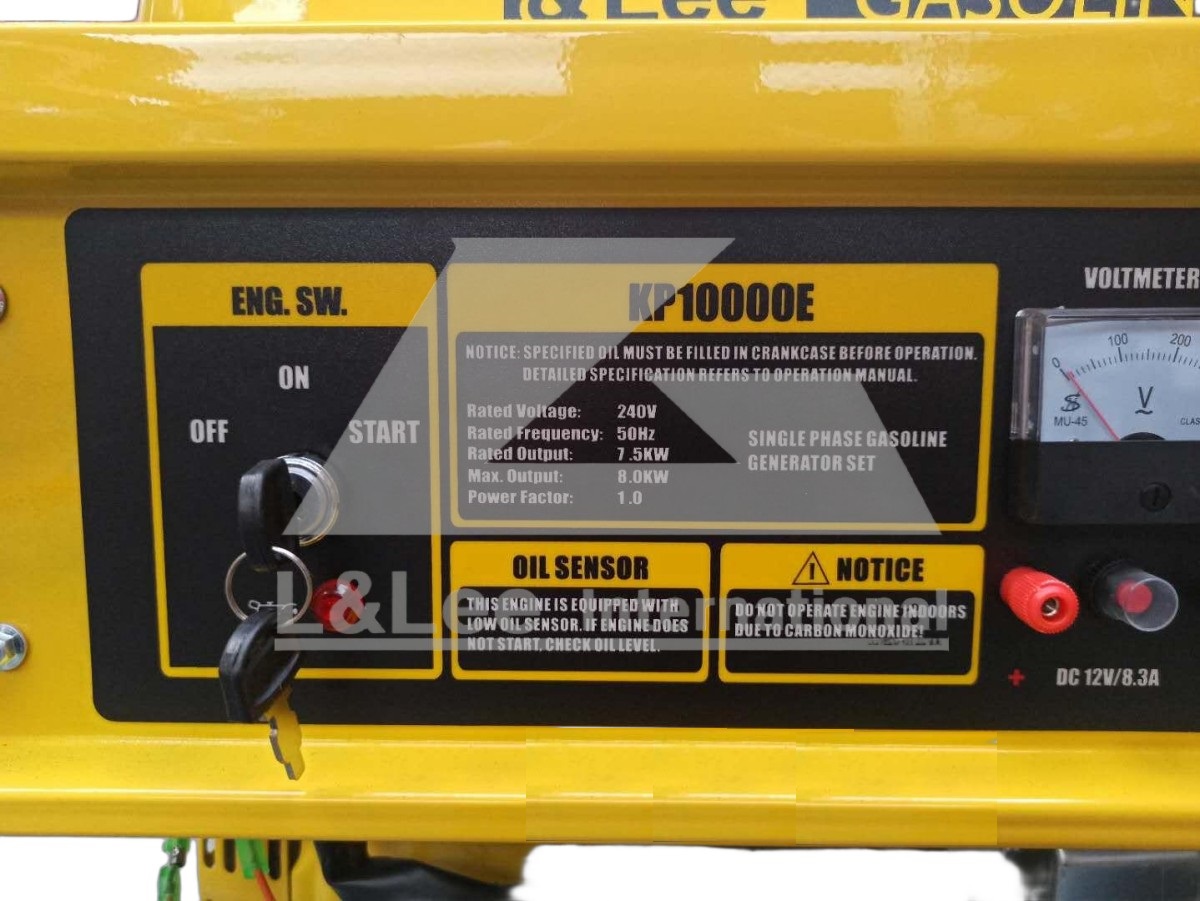

J. Generator KP10000E 8.0 kW（Electric Start）
Introductions
The KP10000E is a heavy‑duty open‑frame single‑phase petrol generator delivering 8.0 kW Max power. It is powered by robust 16hp OhV engine, equipped with convenient electric start plus backup recoil start for reliable ignition under harsh working conditions. Built‑in AVR automatic voltage regulator guarantees stable AC power output. Large‑capacity 25‑litre fuel tank supports long‑time continuous operation. Low‑oil‑pressure shutdown and overload protection improve unit safety and service life. Fitted with wheel kit and folding handle for eAy mobility. Ideal for large household standBy, workshops, farm operations and heavy‑duty construction‑site power supply.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP10000E |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 7.5 |
| Max. Output (kW) | 8.0 |
| Power Factor | 1.0 |
| Engine Model | 16hp petrol engine |
| Starting | Electric start + backup recoil start |
| Fuel Tank Capacity (L) | 25 |
| Continuous Running Time (h) | 7.5 h @ 50% load |
| Outputs | 3 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection |
| Noise Level (dB) | 80dB(A) @7 m |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Timer | Yes |
| Battery | 12V 9Ah |
| Tyres | Big solid |
| Weight（kg) | 87 |
| Dimensions (mm) | 820 × 535× 565 |
Package Includes
- Unit
- 3 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
Diesel Generator

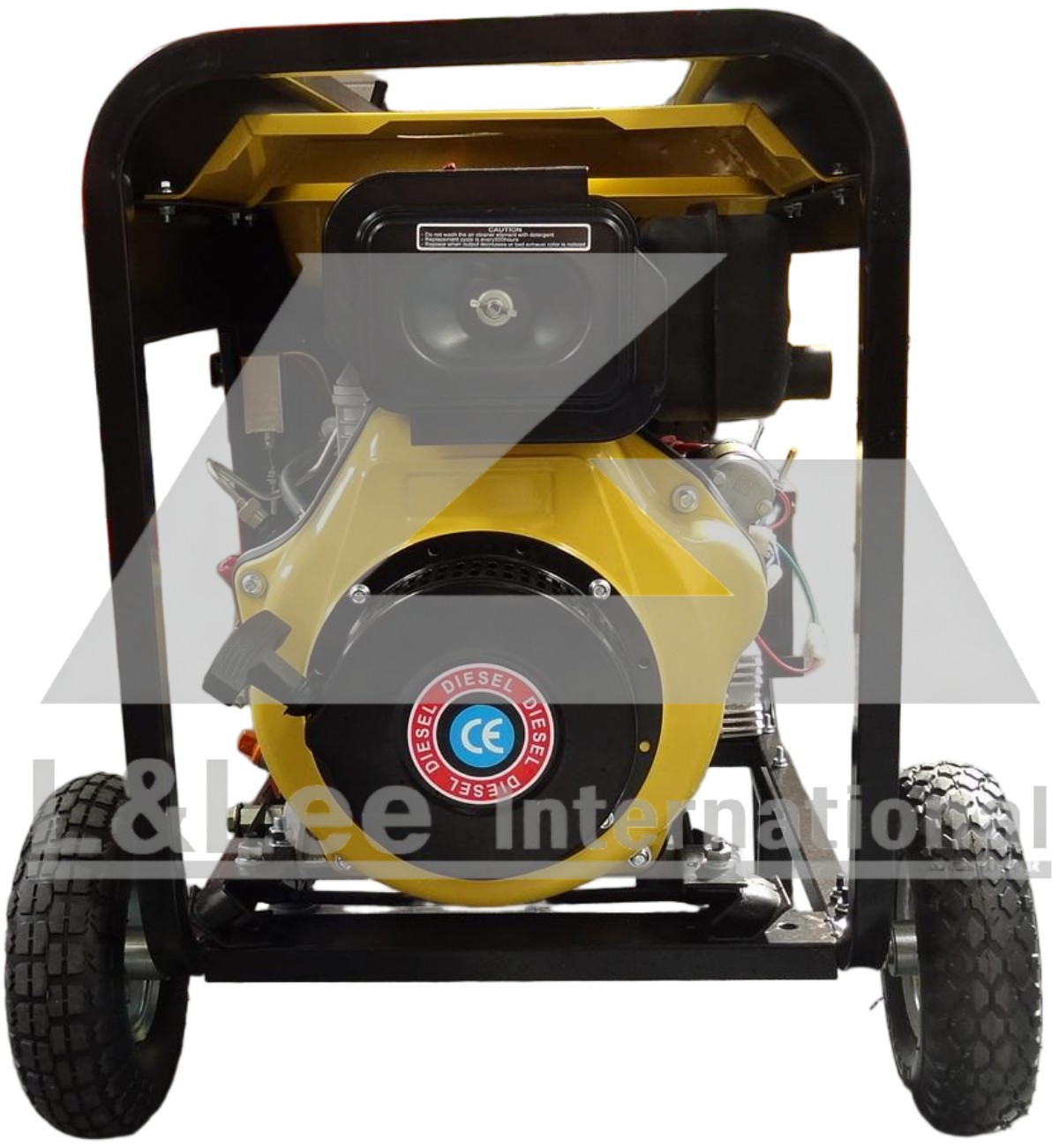

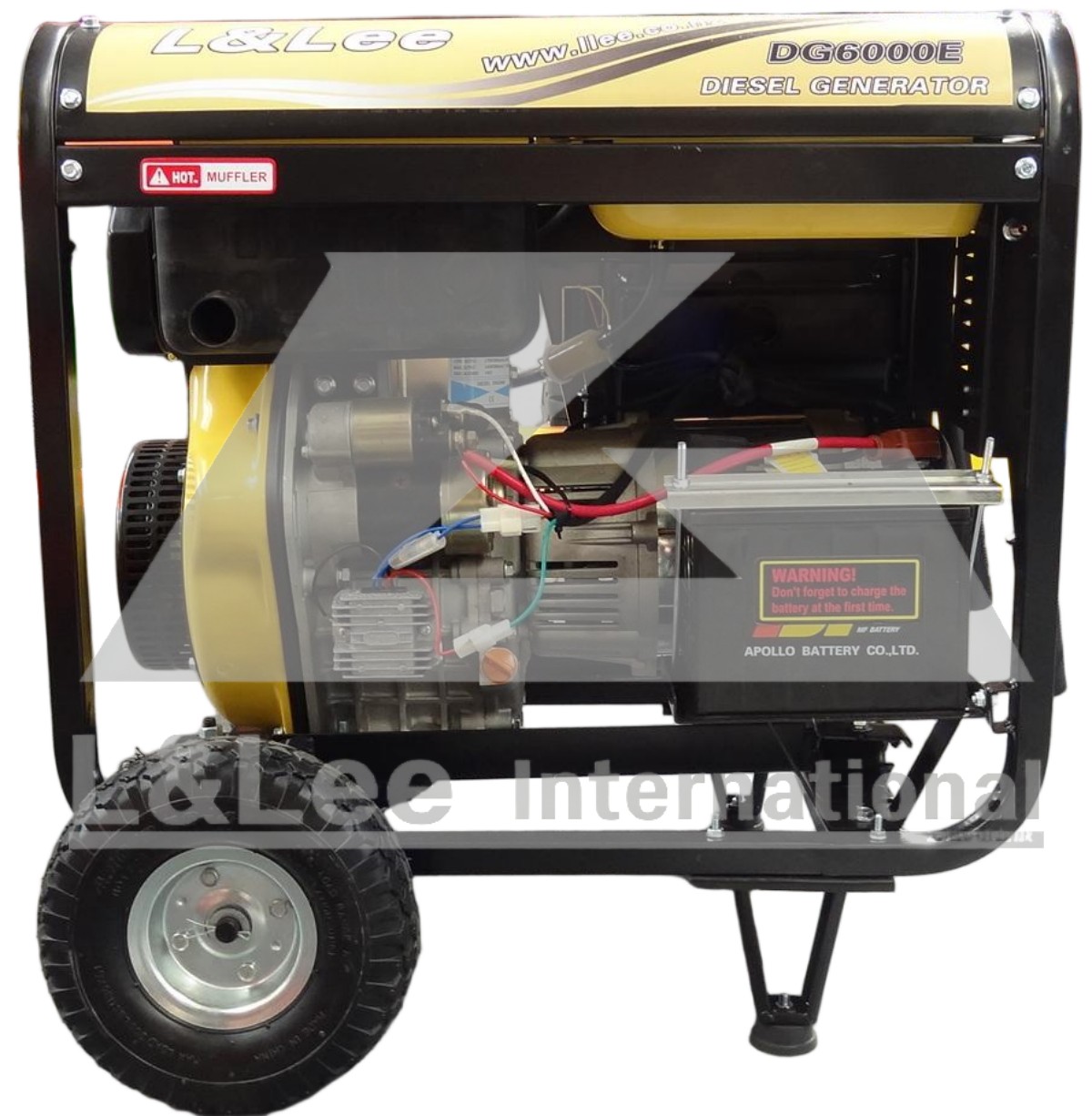

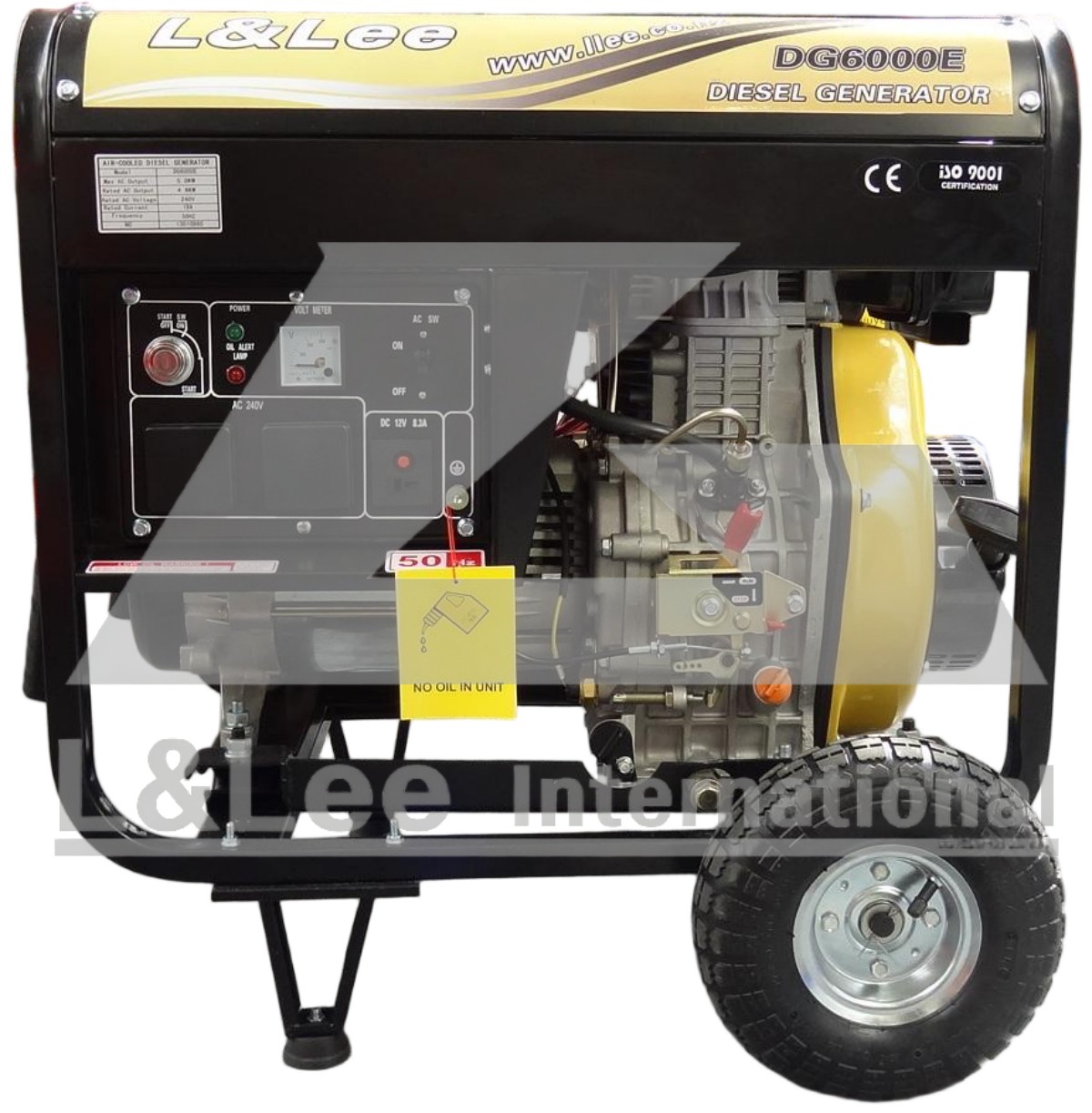

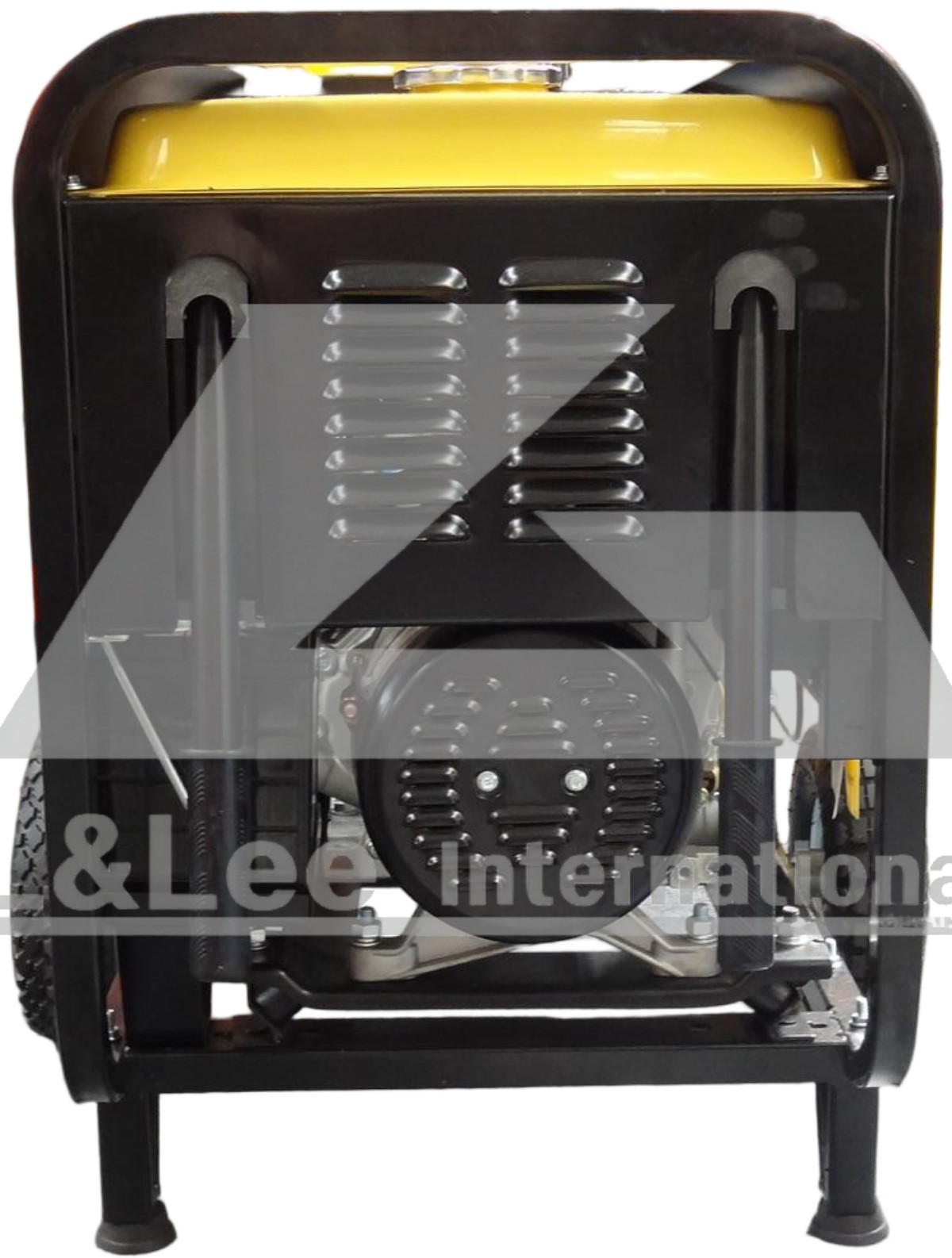

K. Generator DG6000E 5.0 kW Diesel Generator（Electric Start）
Introductions
The DG6000E is an open‑frame portable single‑phase diesel generator with maximum 5.0 kW output, driven by proven HP186FAE 10hp direct‑injection diesel engine. It features convenient electric start with backup recoil start for reliable operation in harsh field environments. Built‑in AVR automatic voltage regulator ensures stable AC output. 16‑litre fuel tank supports long continuous running hours. Low‑oil‑pressure shutdown and overload protection extend unit service life. Equipped with wheel kit and handle for eAy mobility. Perfect for home standBy, farm, workshop and construction‑site emergency power supply.
Specifications
| Model | DG6000E |
| Rated Voltage (V) | 240 Single phase |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 4.6 |
| Max. Output (kW) | 5.0 |
| Rated Current (A) | 18.3A @ 240volts |
| Power Factor | 1.0 |
| Engine Model | HP186FAE 406cc 4-Stroke Air Cooled Single Cylinder Direct Injection Diesel Engine |
| Starting | Electric start + backup recoil start |
| Fuel Tank Capacity (L) | 16L with Visible Fuel Gauge |
| Continuous Running Time (h) | 7.0 h @ full load |
| Engine Oil Capacity (L) | 1.65 |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection,will not start with low oil |
| Noise Level (dB) | 87dB(A) @7 m |
| Alternator | Brush Alternator |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Timer | Yes |
| Battery | 12V 30Ah |
| Tyres | heavy Duty |
| Weight（kg) | 84 |
| Dimensions (mm) | 700×470×600 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler

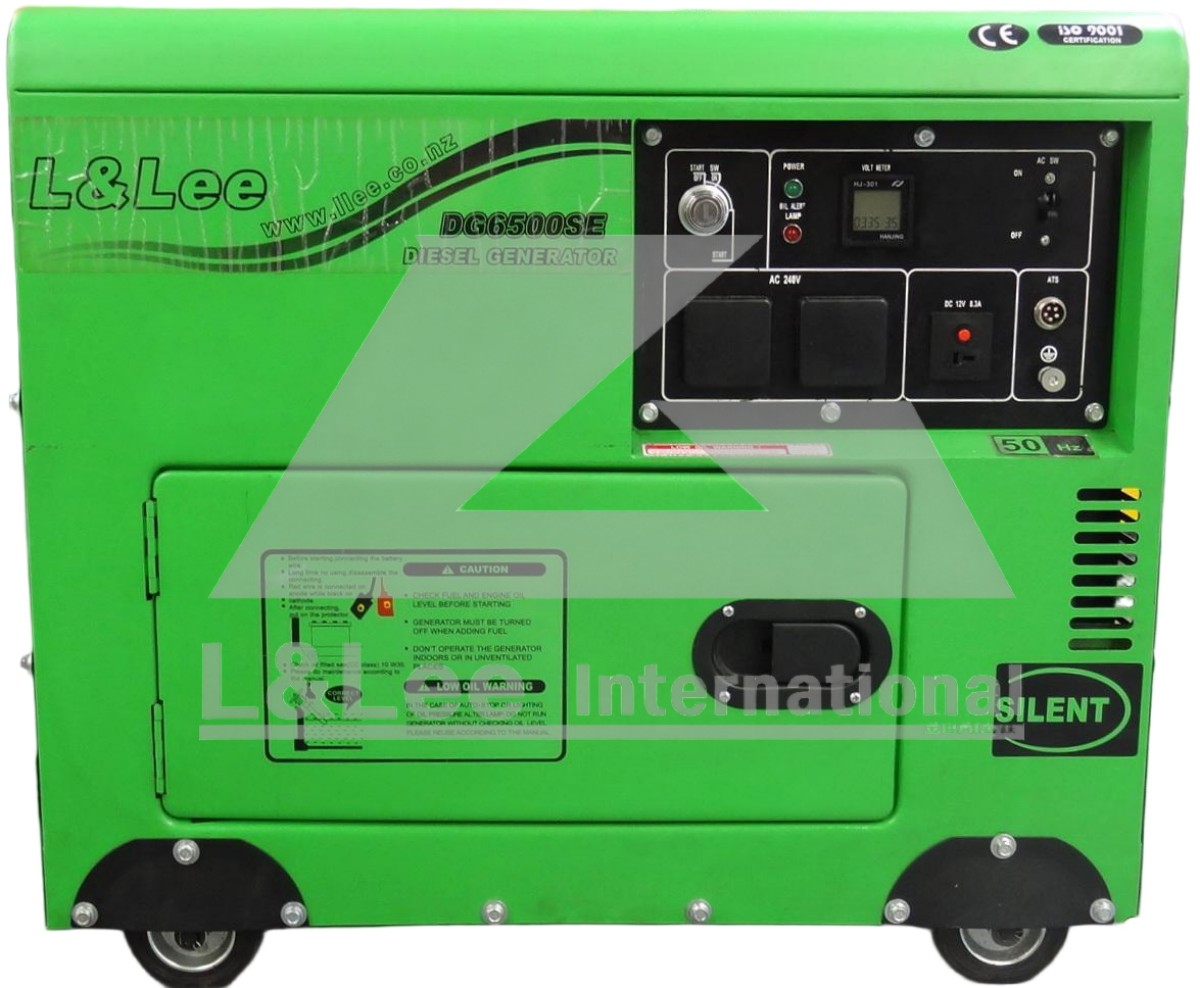

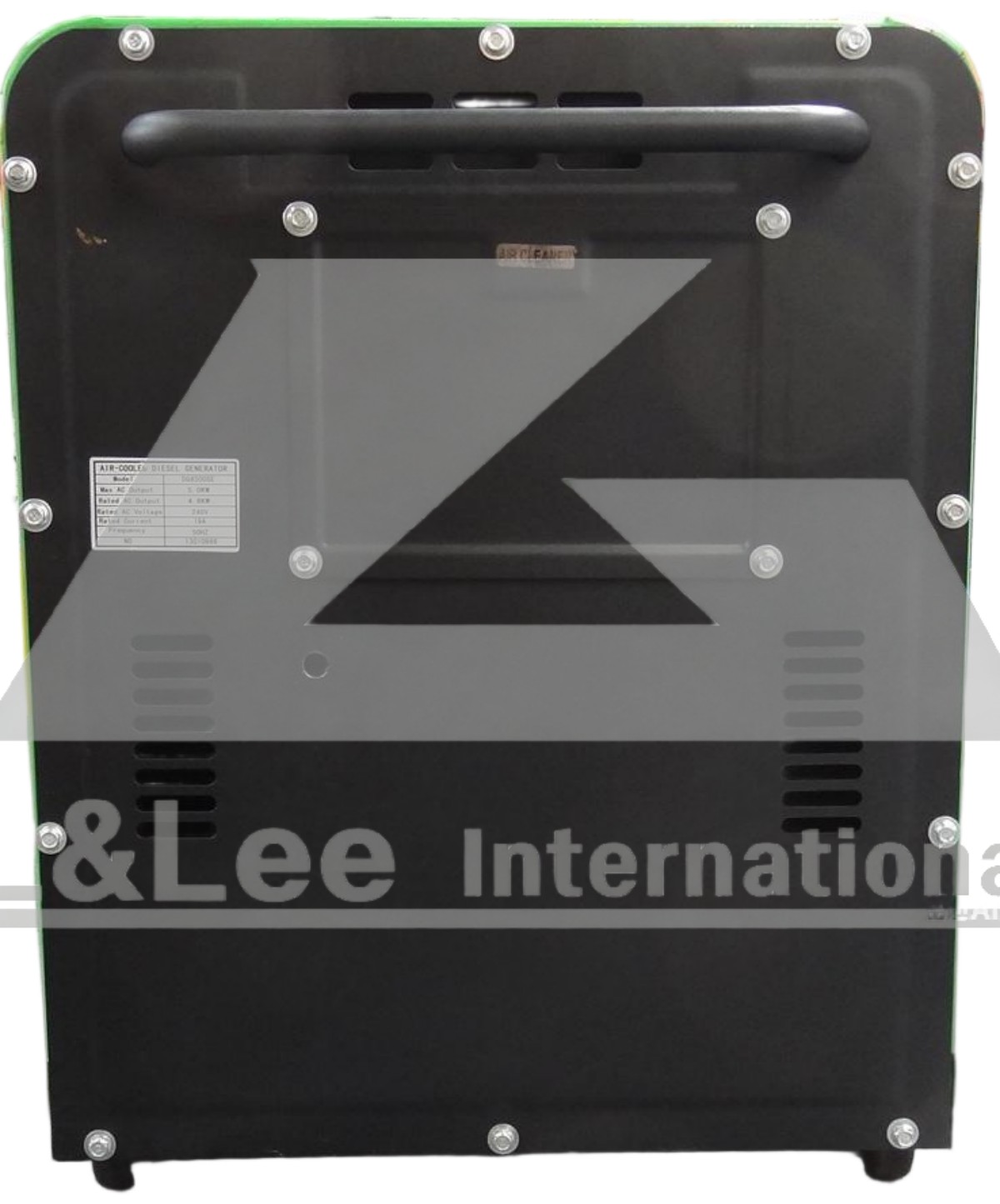

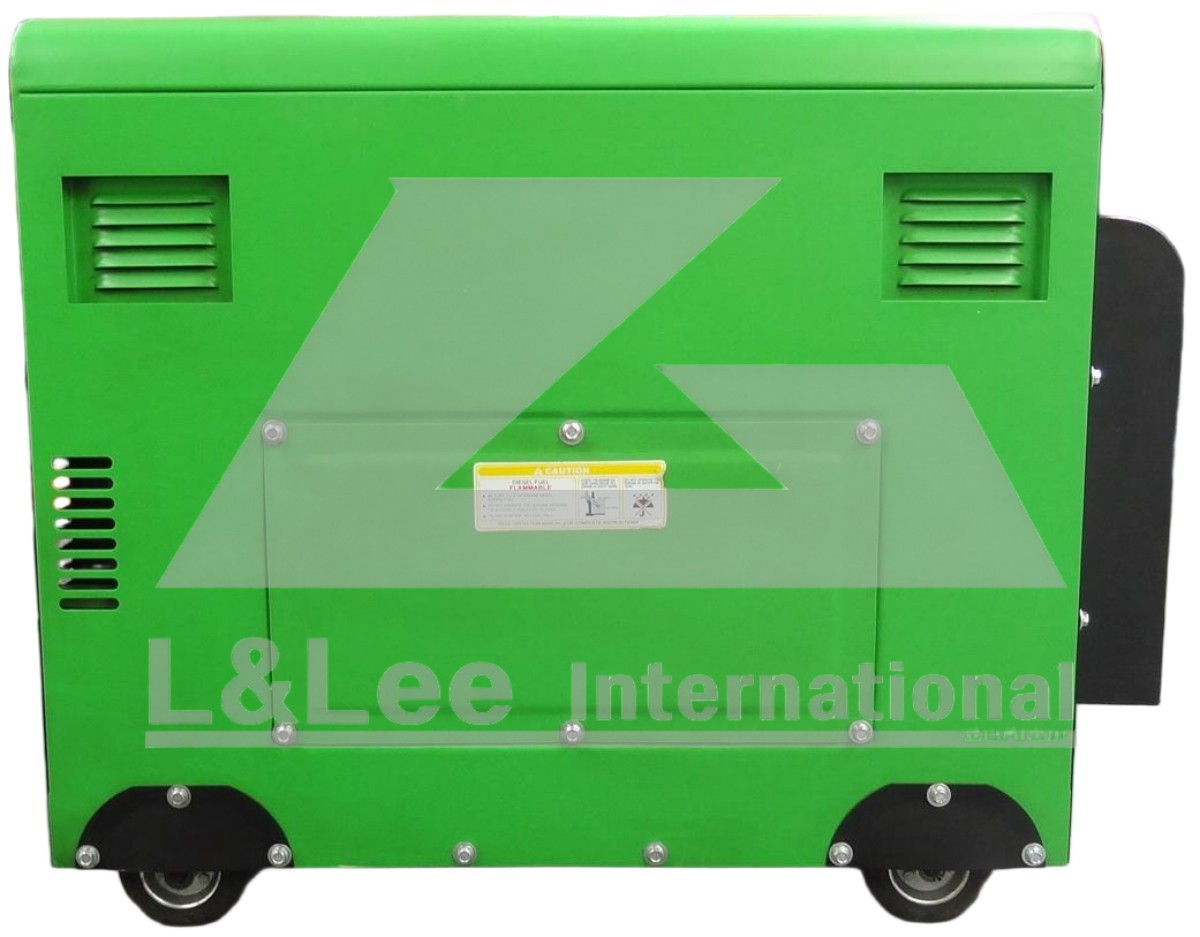

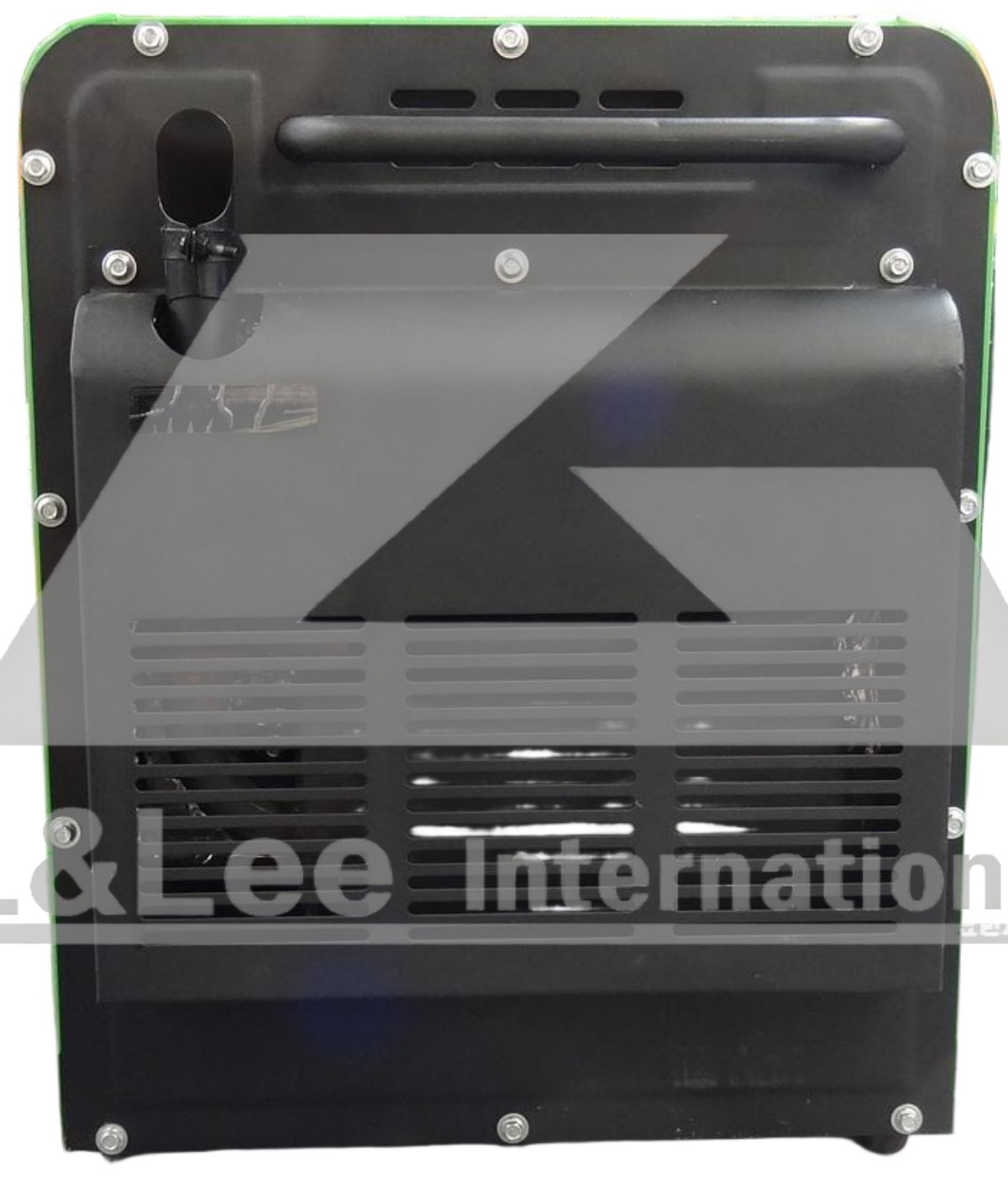

L. Generator DG6500E Silent Diesel Generator with ATS Socket
Introductions
The DG6500E is a fully enclosed silent‑canopy single‑phase diesel generator delivering 5.0 kW Max power. Powered by robust HP186FAE direct‑injection diesel engine with electric starting system. It is pre‑fitted with ATS control socket, ready to connect external automatic transfer switch for unattended home standBy use. Integrated low‑oil safety system: unit will not start with low oil level to protect engine from damage. AVR provides stable clean AC output. Large‑capacity 16‑litre fuel tank supports long continuous runtime, noise reduced down to 82 dB(A) at 7 metres. Complete with wheel kit and lifting points. Ideal for household automatic backup, farm and small‑commercial emergency power supply.
Important Matching Note: Due to different internal wiring designs, the ATS controller box and the built-in remote control function are mutually exclusive. The two functions cannot be installed on one single unit.
Video: ATS Operation for DG6500E / DG7000E Generators (ATS Socket Connection)
Specifications
| Model | DG6500E (Silent Canopy, Built‑in ATS control socket) |
| Rated Voltage (V) | 240 Single Phase |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 4.6 |
| Max. Output (kW) | 5.0 |
| Rated Current (A) | 18.3A @ 240volts |
| Power Factor | 1.0 |
| Engine Model | HP186FAE 406cc 4-Stroke Air Cooled Single Cylinder Direct Injection Diesel Engine |
| Starting | Electric start |
| Engine Cooling System | Air |
| Fuel Tank Capacity (L) | 16L with Visible Fuel Gauge |
| Continuous Running Time (h) | 7.0 h @ full load |
| Engine Oil Capacity (L) | 1.65 |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| ATS | Built‑in ATS control socket for external automatic transfer switch |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection,will not start with low oil |
| Noise Level (dB) | 82dB(A) @7 m |
| Alternator | Brush Alternator |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Multi displays | Digital display V/Hz/hour 3-in-1 |

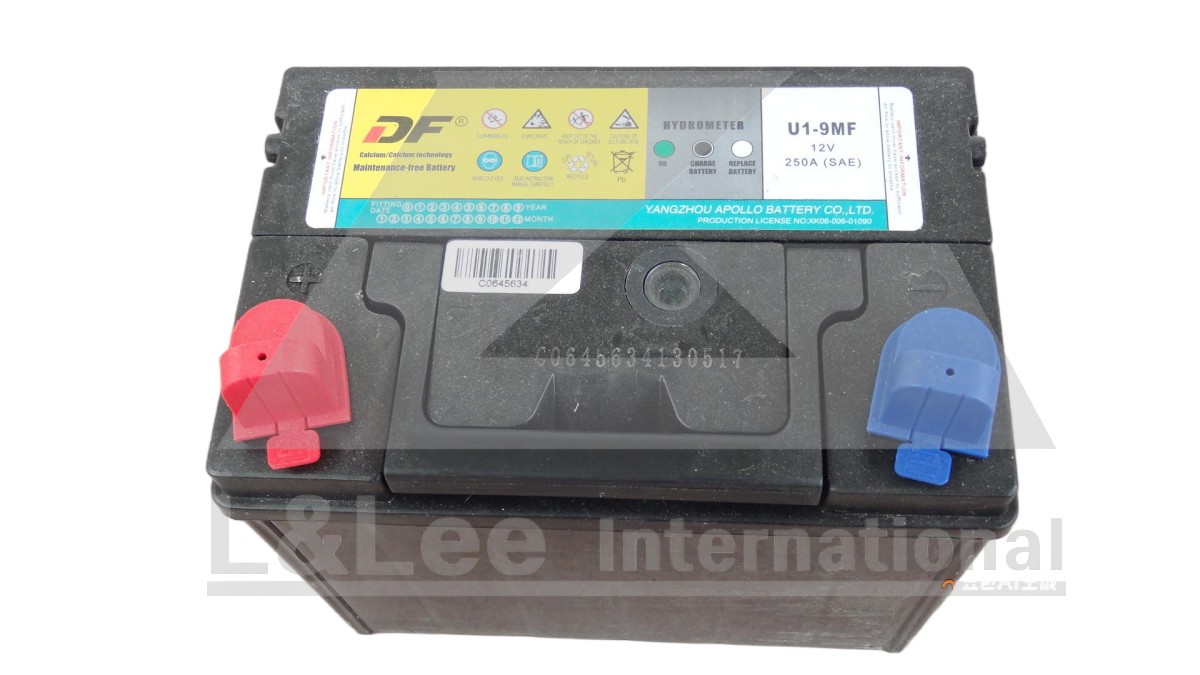

| Battery | 12V 30Ah |
| Tyres | 4 x heavy Duty Wheels |
| Weight（kg) | 155 |
| Dimensions (mm) | 950×560×660 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
Options

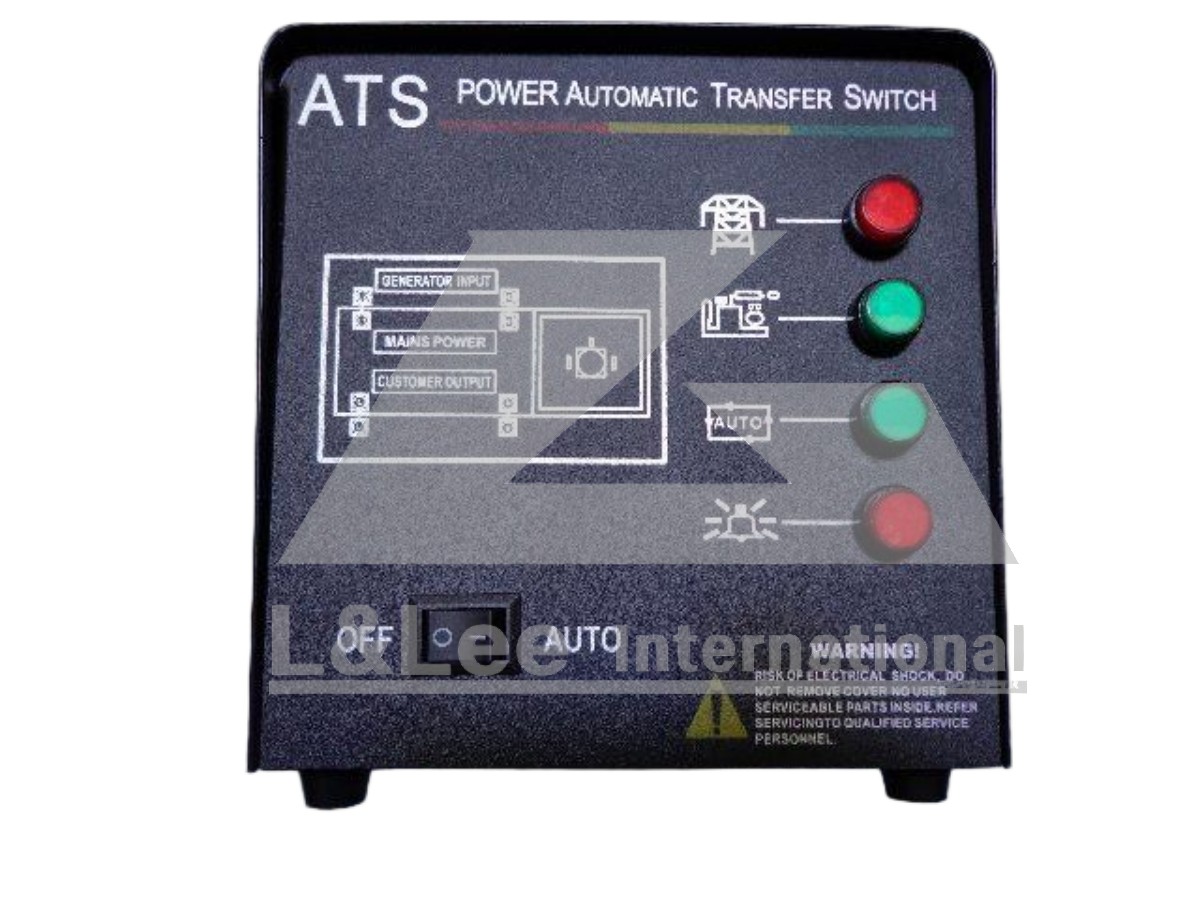

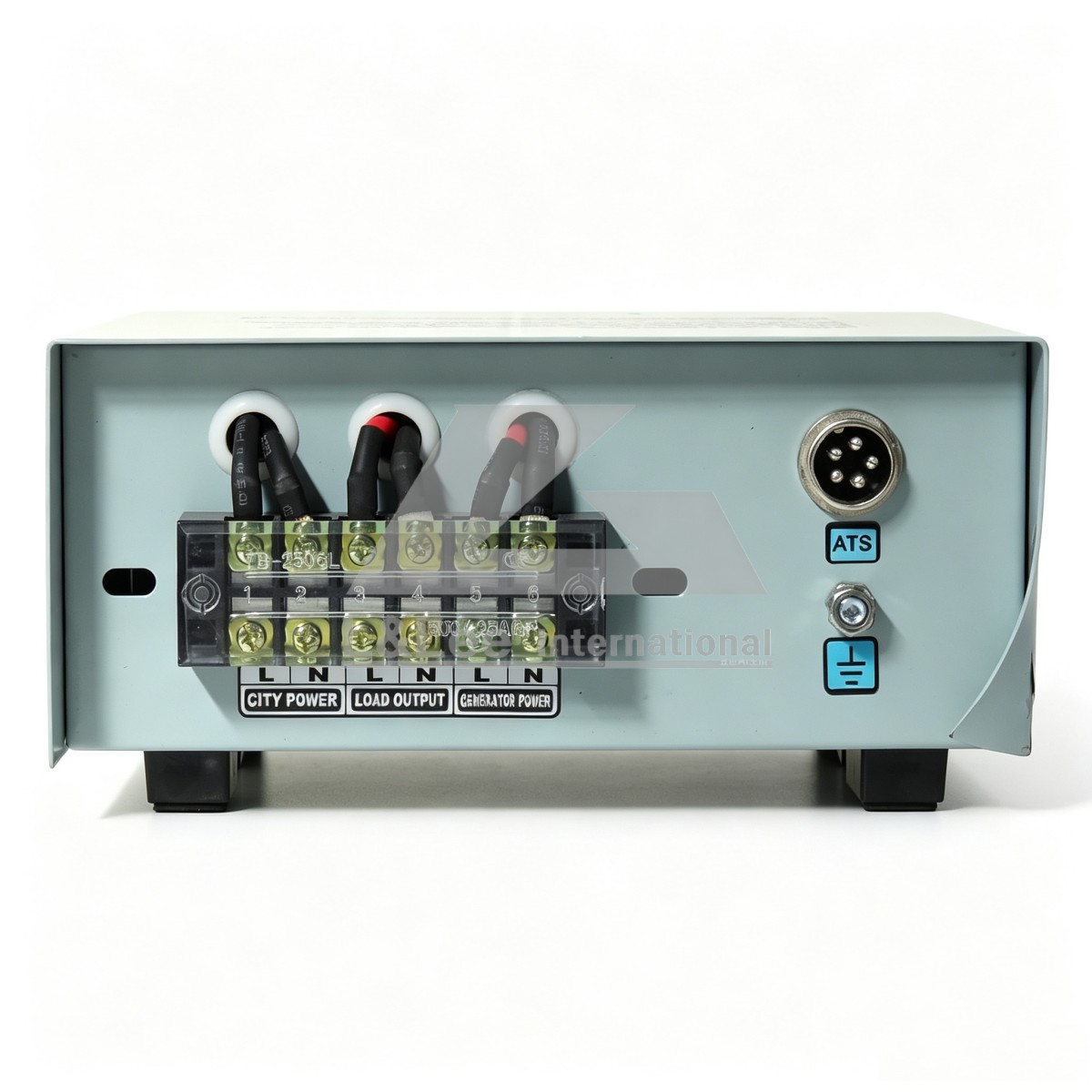

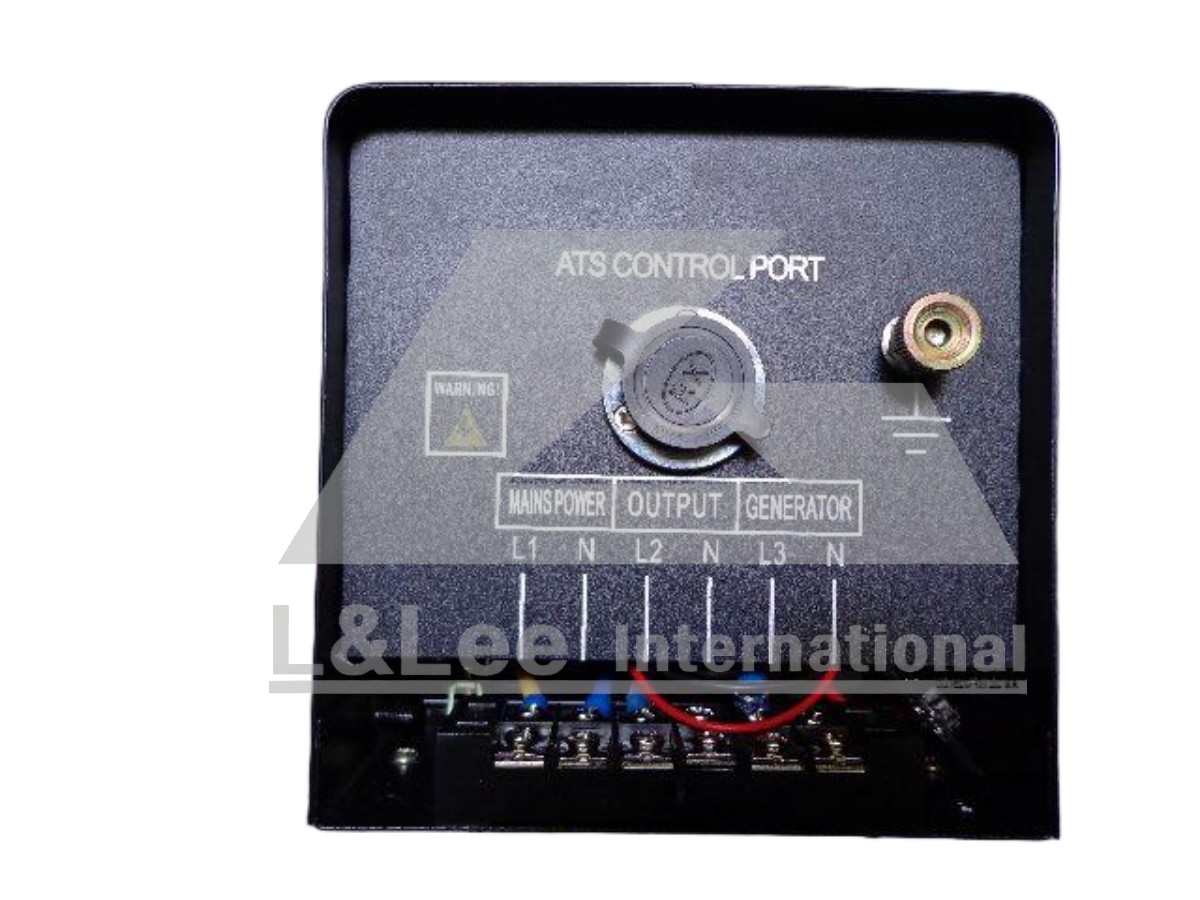

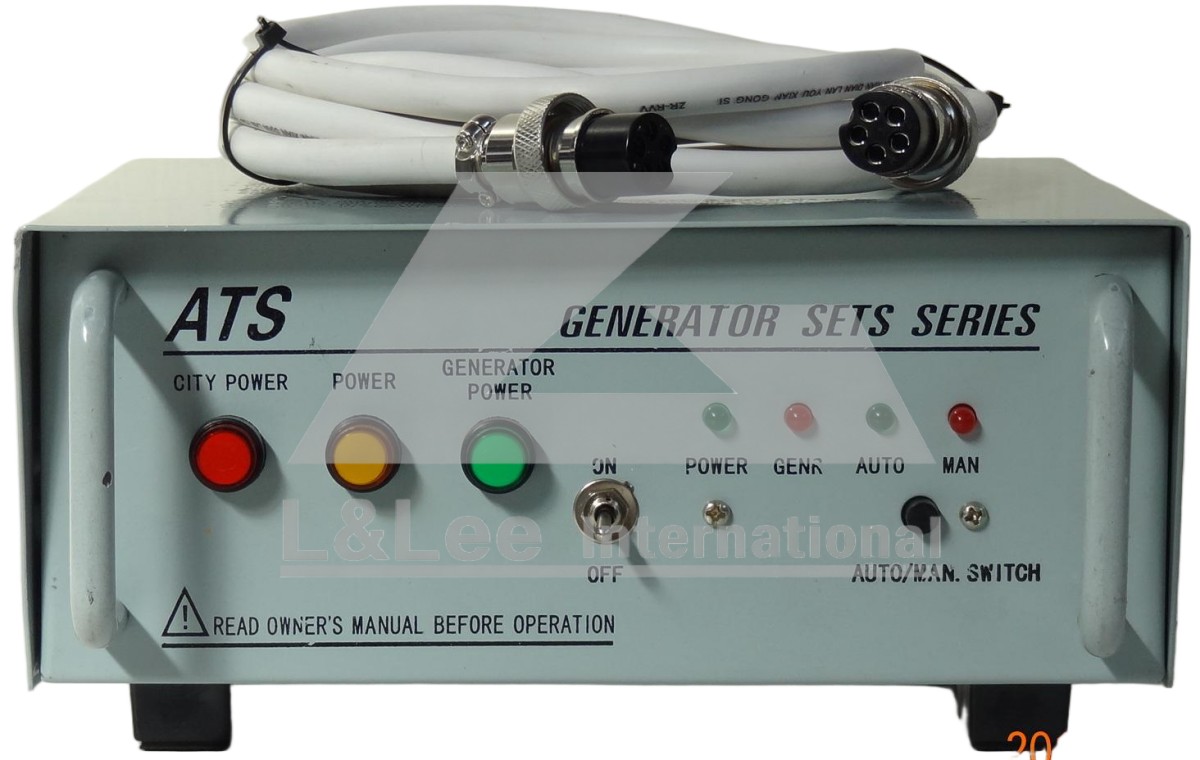

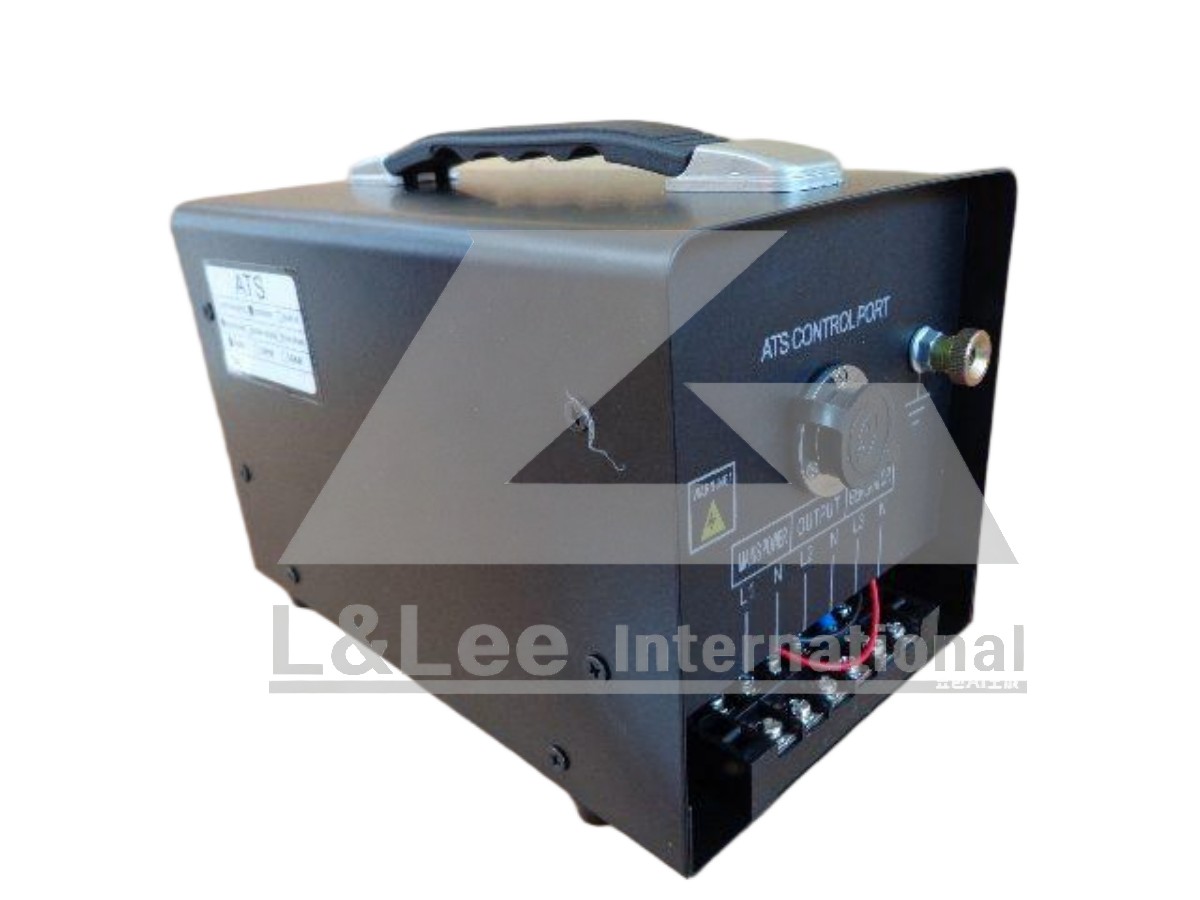

- ATS controller box
- Cable

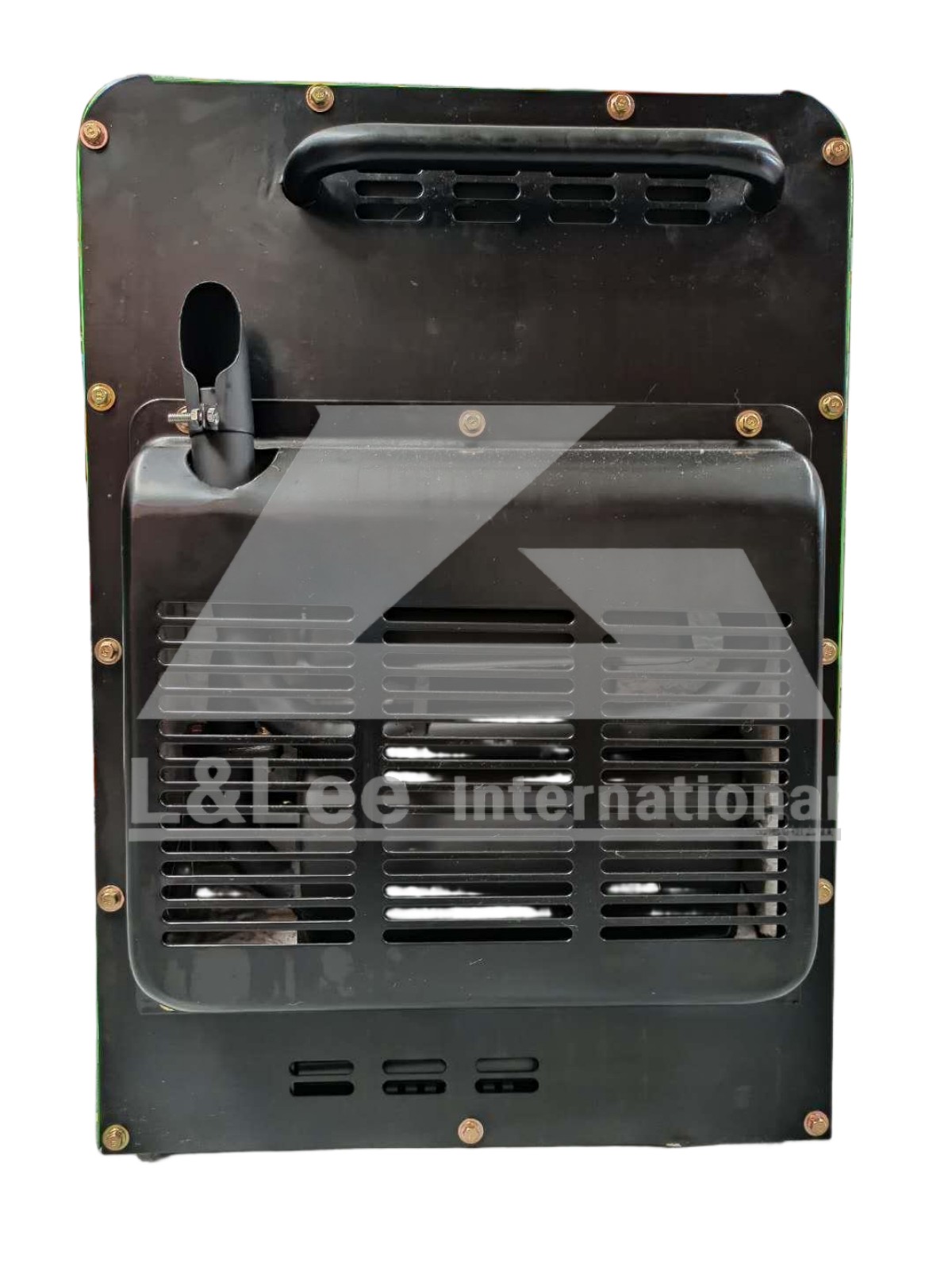

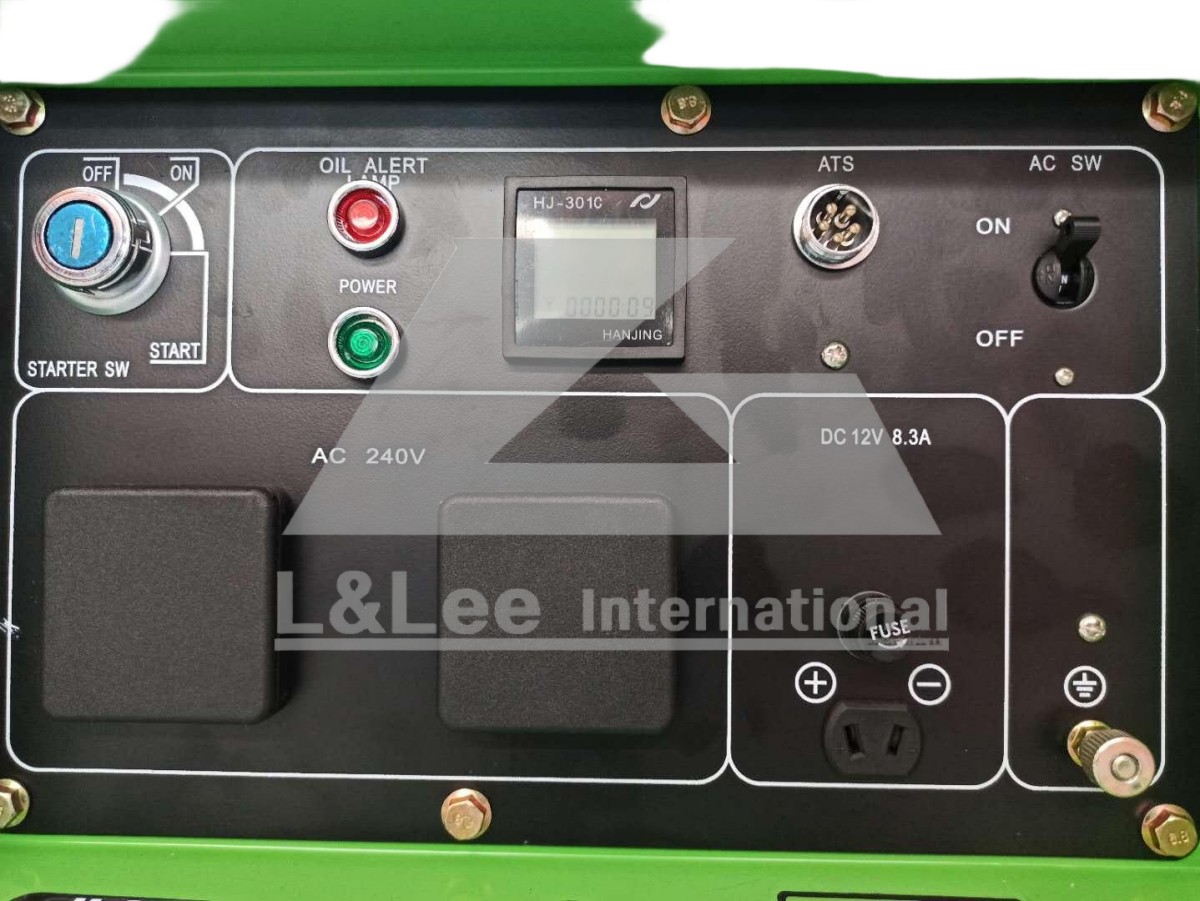

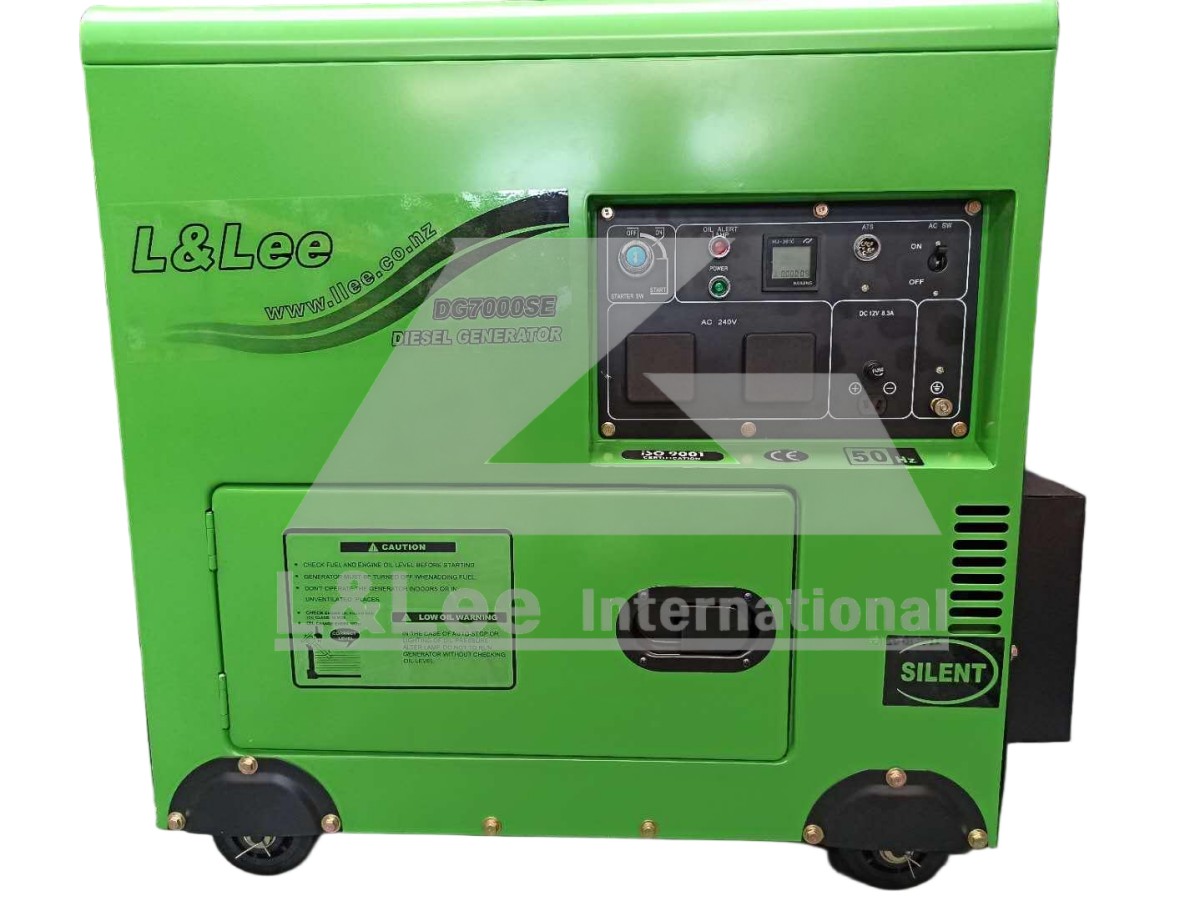

M. Generator DG7000E Silent Diesel Generator with ATS Socket
Introductions
The DG7000E is an upgraded fully enclosed silent‑canopy single‑phase diesel generator delivering 5.0 kW Max power. The canopy height is raised to create enlarged internal cooling chamber, equipped with two boost cooling fans for superior heat dissipation, effectively lowering operating temperature during long‑hour heavy‑load running. It comes with an upgraded 24‑litre large‑capacity fuel tank to extend continuous working time. Powered by heavy‑duty HP186FAE direct‑injection diesel engine with convenient electric start. Pre‑fitted ATS control socket for quick connection with external automatic transfer switch for unattended home standBy use. Integrated low‑oil safety system: unit will not start with low oil level to protect engine against damage. AVR delivers stable clean AC power. Noise level maintained at 80 dB(A) at 7 metres. Complete with wheel kit and lifting points. Well‑suited for residential automatic backup, farm, workshop and small‑commercial emergency power supply.
Important Matching Note: Due to different internal wiring designs, the ATS controller box and the built-in remote control function are mutually exclusive. The two functions cannot be installed on one single unit.
Video: ATS Operation for DG6500E / DG7000E Generators (ATS Socket Connection)
Specifications
| Model | DG7000E (Silent Canopy, Built‑in ATS control socket) |
| Rated Voltage (V) | 240 Single Phase |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 4.6 |
| Max. Output (kW) | 5.0 |
| Rated Current (A) | 18.3A @ 240volts |
| Power Factor | 1.0 |
| Engine Model | HP186FAE 406cc 4-Stroke Air Cooled Single Cylinder Direct Injection Diesel Engine |
| Starting | Electric start |
| Engine Cooling System | Air-cooled with two boost-cooling fans for superior heat dissipation |
| Fuel Tank Capacity (L) | 24L with Visible Fuel Gauge |
| Continuous Running Time (h) | 12.0 h @ full load |
| Engine Oil Capacity (L) | 1.65 |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| ATS | Built‑in ATS control socket for external automatic transfer switch |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection,will not start with low oil |
| Noise Level (dB) | 82dB(A) @7 m |
| Alternator | Brush Alternator |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Multi displays | Digital display V/Hz/hour 3-in-1 |
| Battery | 12V 30Ah |
| Tyres | 4 x heavy Duty Wheels |
| Weight（kg) | 155 |
| Dimensions (mm) | 950×560×760 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
Options
- ATS controller box
- Cable

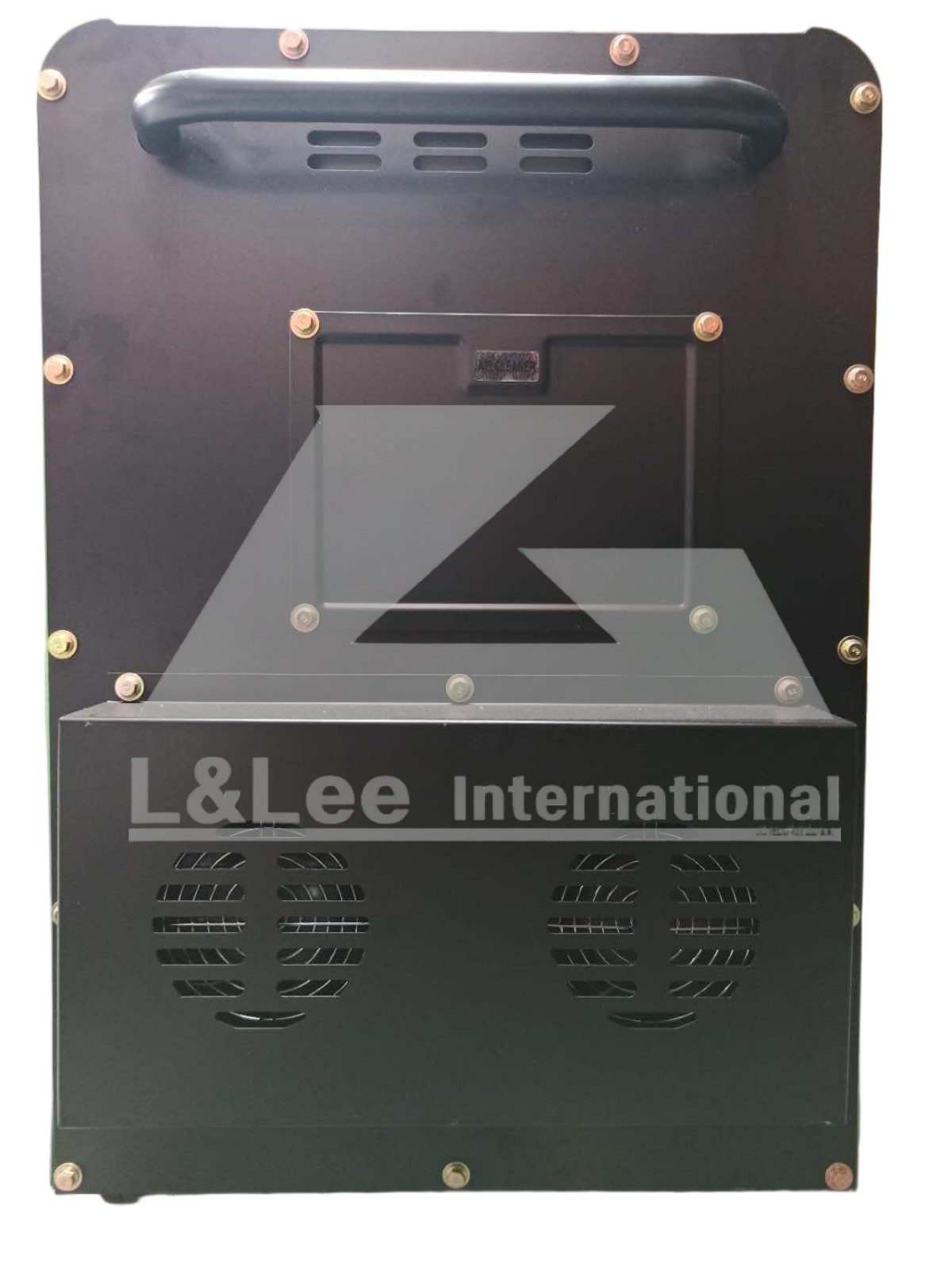

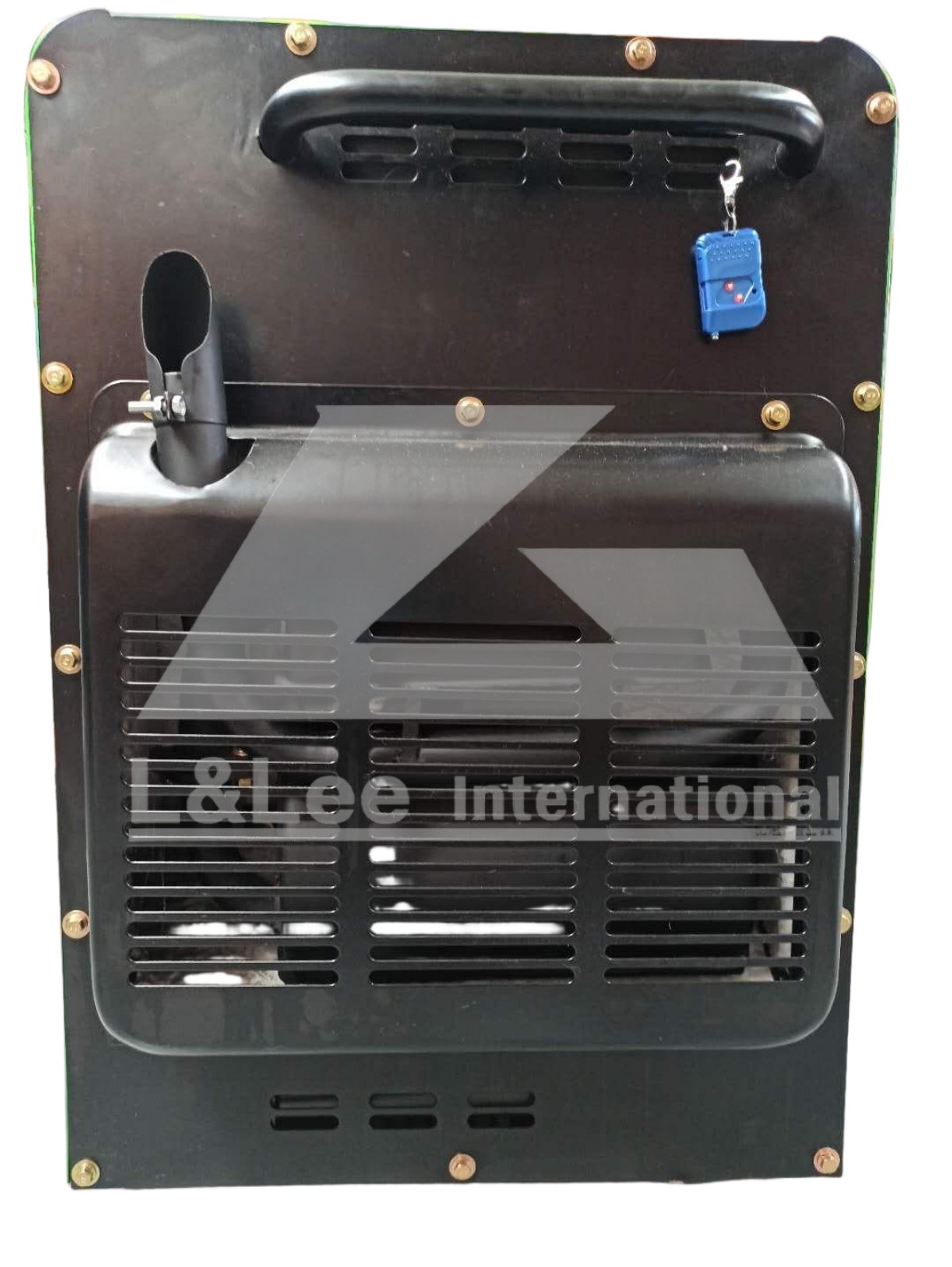

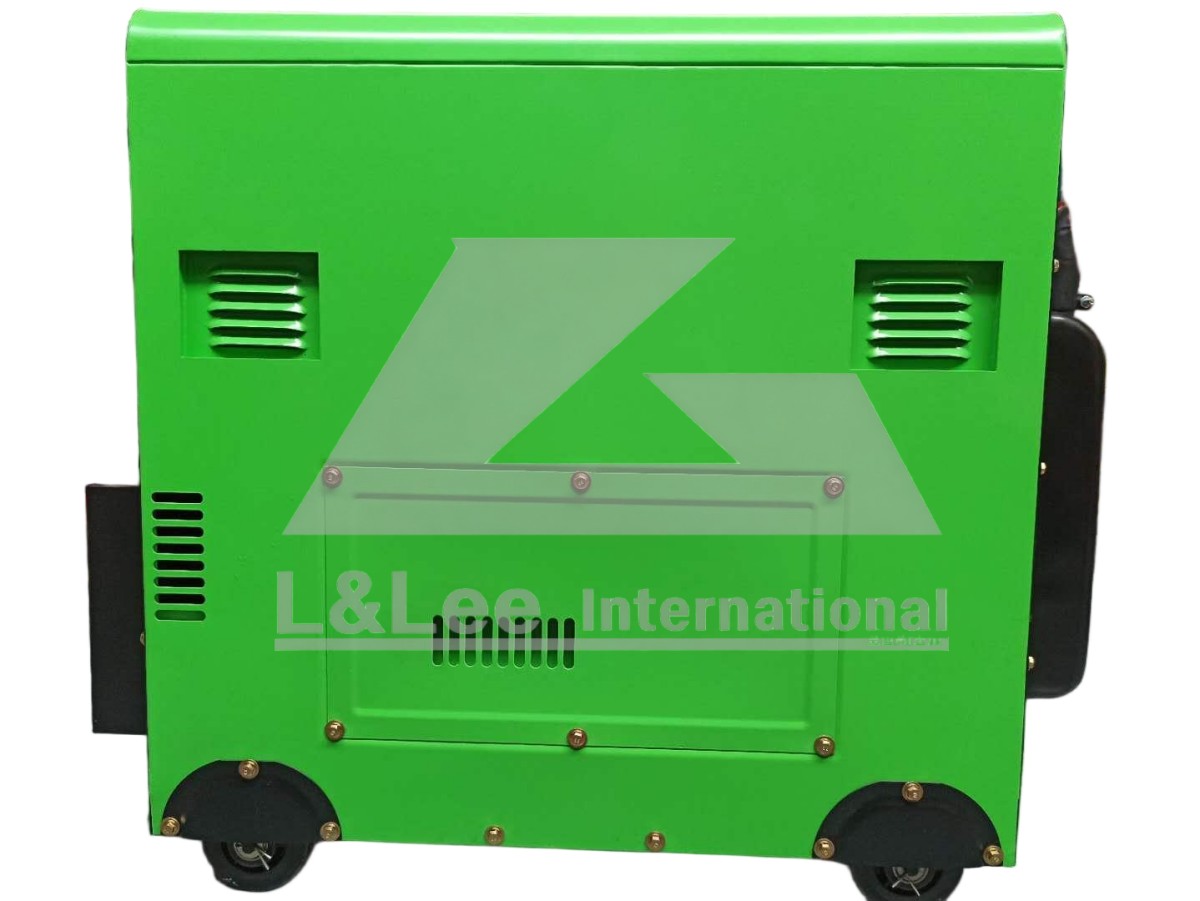

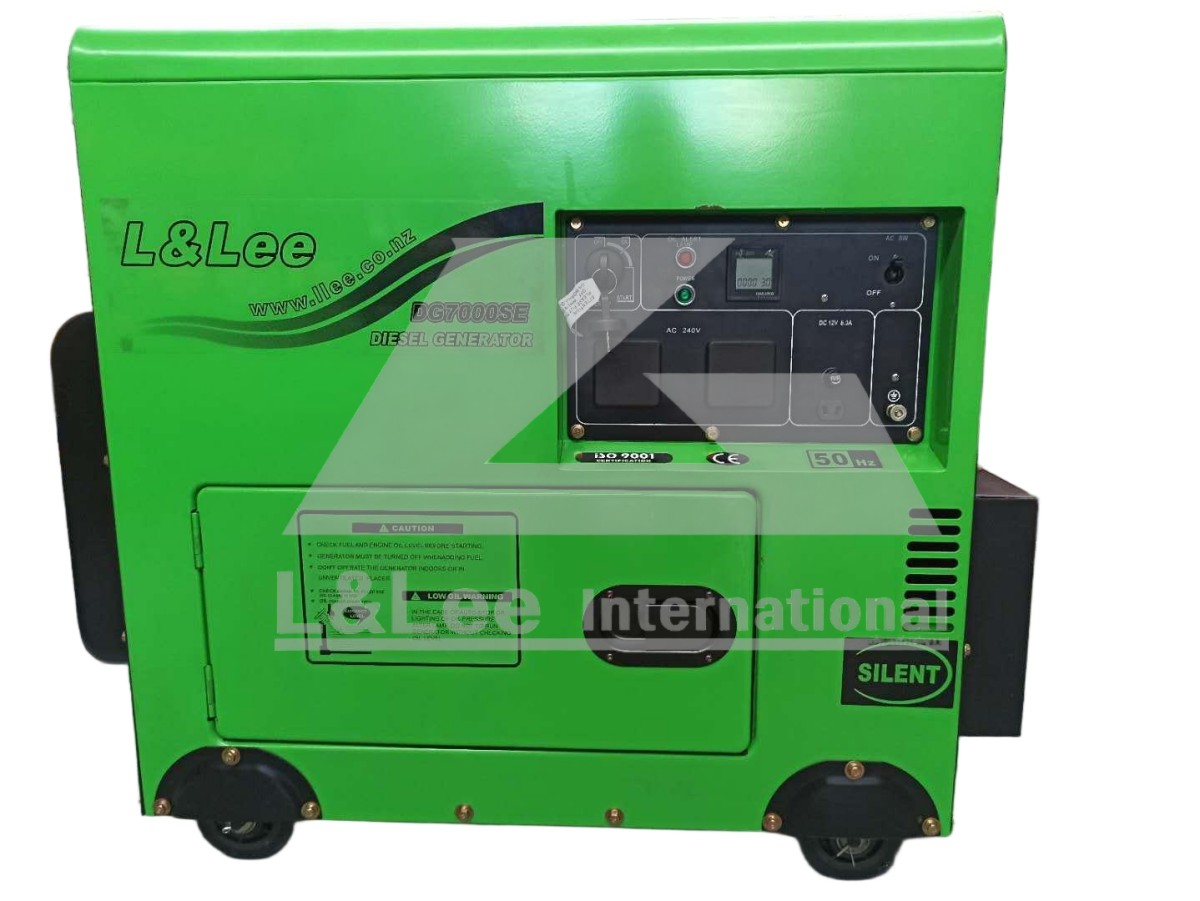

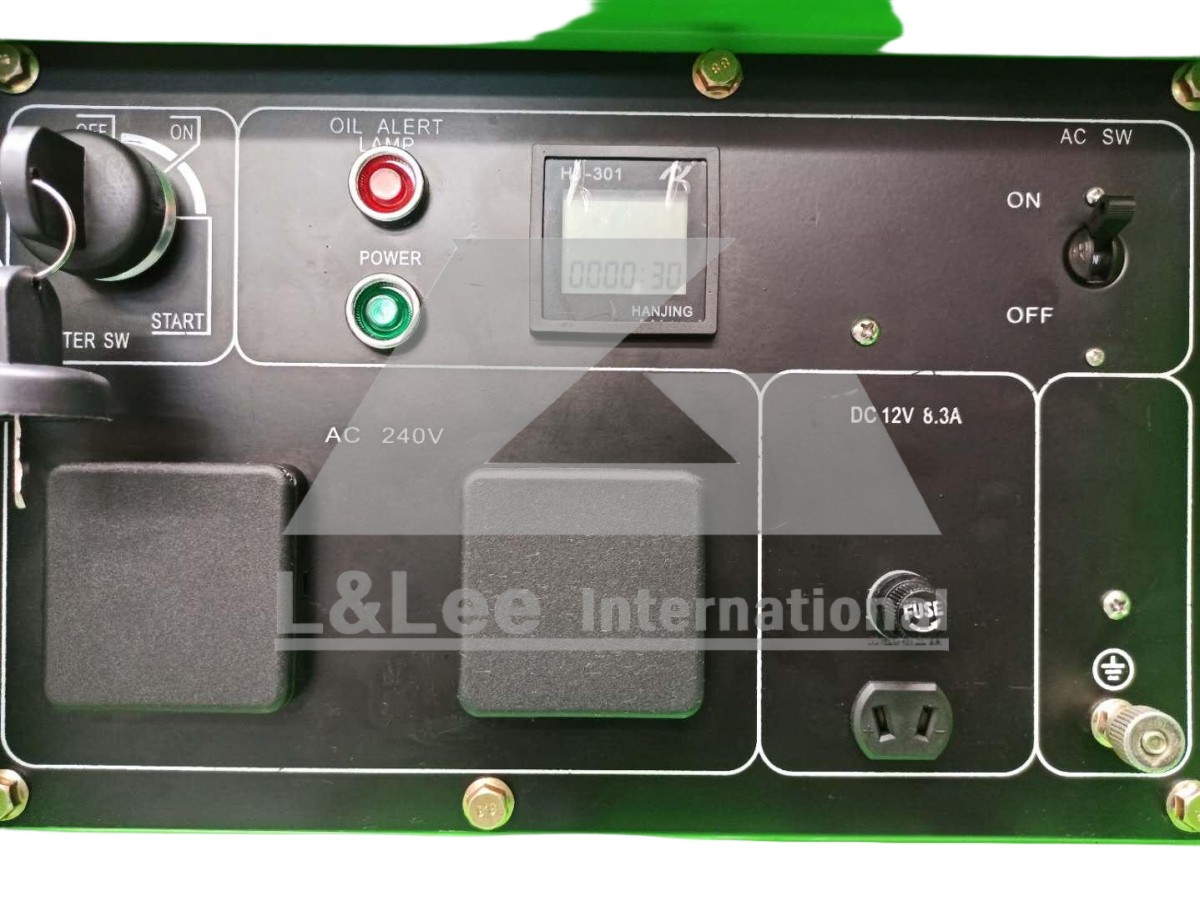

N. Generator DG7000E Silent Diesel Generator with Remote Function
Introductions
Upgraded silent canopy diesel generator with raised body design to expand internal cooling space. Equipped with two boost-cooling fans for superior heat dissipation, ensuring stable performance during long-hour and heavy-load operation. It is equipped with practical remote control function for convenient remote start and stop. The upgraded 24L large fuel tank greatly extends continuous working time. Built-in multiple safety protection including low-oil no-start function effectively protects the engine and prolongs service life. Adopts high-precision AVR to provide stable and pure power output.
Important Matching Note: Due to different internal wiring designs, the ATS controller box and the built-in remote control function are mutually exclusive. The two functions cannot be installed on one single unit.
Specifications
| Model | DG7000E (Silent Canopy, Built-in remote control function) |
| Rated Voltage (V) | 240 Single Phase |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 4.6 |
| Max. Output (kW) | 5.0 |
| Rated Current (A) | 18.3A @ 240volts |
| Power Factor | 1.0 |
| Engine Model | HP186FAE 406cc 4-Stroke Air Cooled Single Cylinder Direct Injection Diesel Engine |
| Starting | Electric start + Remote start/stop function |
| Remote distance | Max approx 50M |
| Engine Cooling System | Air-cooled with two boost-cooling fans for superior heat dissipation |
| Fuel Tank Capacity (L) | 24L with Visible Fuel Gauge |
| Continuous Running Time (h) | 12.0 h @ full load |
| Engine Oil Capacity (L) | 1.65 |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| ATS | Built‑in ATS control socket for external automatic transfer switch |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection,will not start with low oil |
| Noise Level (dB) | 82dB(A) @7 m |
| Alternator | Brush Alternator |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Multi displays | Digital display V/Hz/hour 3-in-1 |
| Battery | 12V 30Ah |
| Tyres | 4 x heavy Duty Wheels |
| Weight（kg) | 155 |
| Dimensions (mm) | 950×560×760 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
Accessories
O. ATS controller box
Introductions
The ATS controller box is an optional external accessory for diesel generator standBy power systems. It serves as an automatic transfer switch controller that intelligently monitors mains power supply. When the utility power fails or drops abnormally, the ATS controller box will automatically trigger the generator to start and switch the load power supply instantly; when mains power is restored, it will automatically switch back to grid power and shut down the generator, realizing fully unattended power supply operation.
Video: ATS Operation for DG6500E / DG7000E Generators (ATS Socket Connection)
Specifications
| Applicable Model | DG6500E,DG7000E (Silent Canopy, Built‑in ATS control socket) |
| Applicable System | Single-phase 240V / 50Hz generator standby power system |
| Switching Response | Instant automatic switch when power outage/grid recovery |
| Control Mode | Automatic mains monitoring & intelligent power switching |
| Core Function | Unattended automatic start/stop & dual power transfer |
| Weight（kg) | 3 |
| Dimensions (mm) | 250×200×150 |
Package Includes
- Unit
- Cable

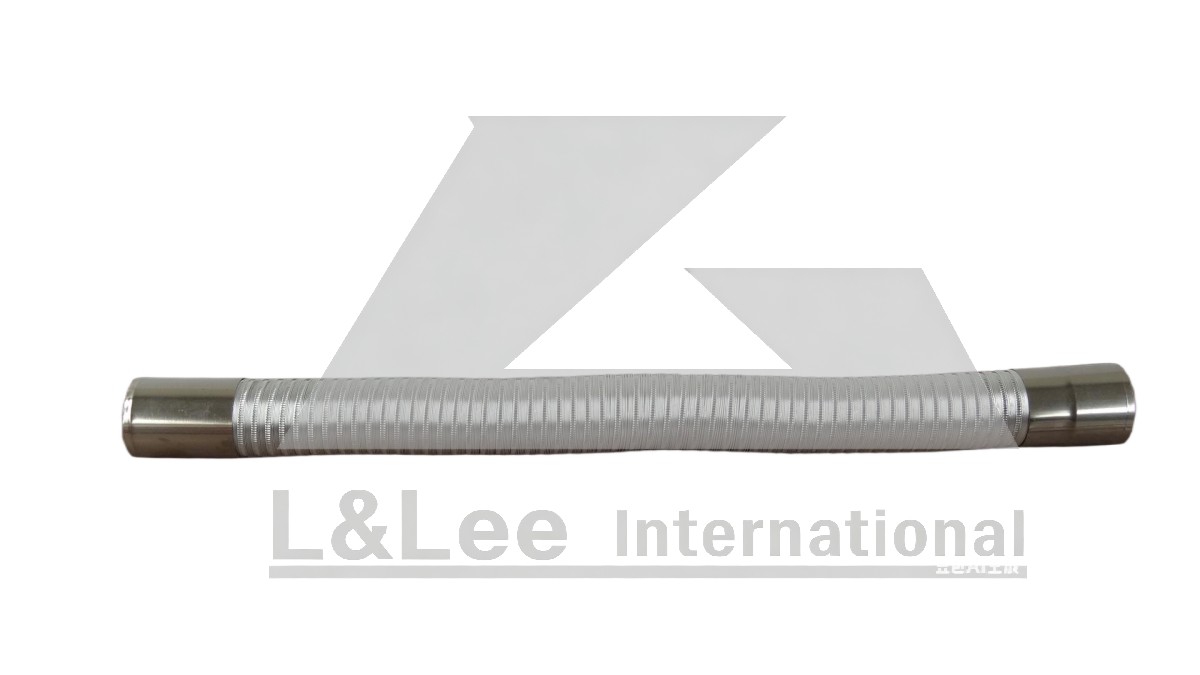

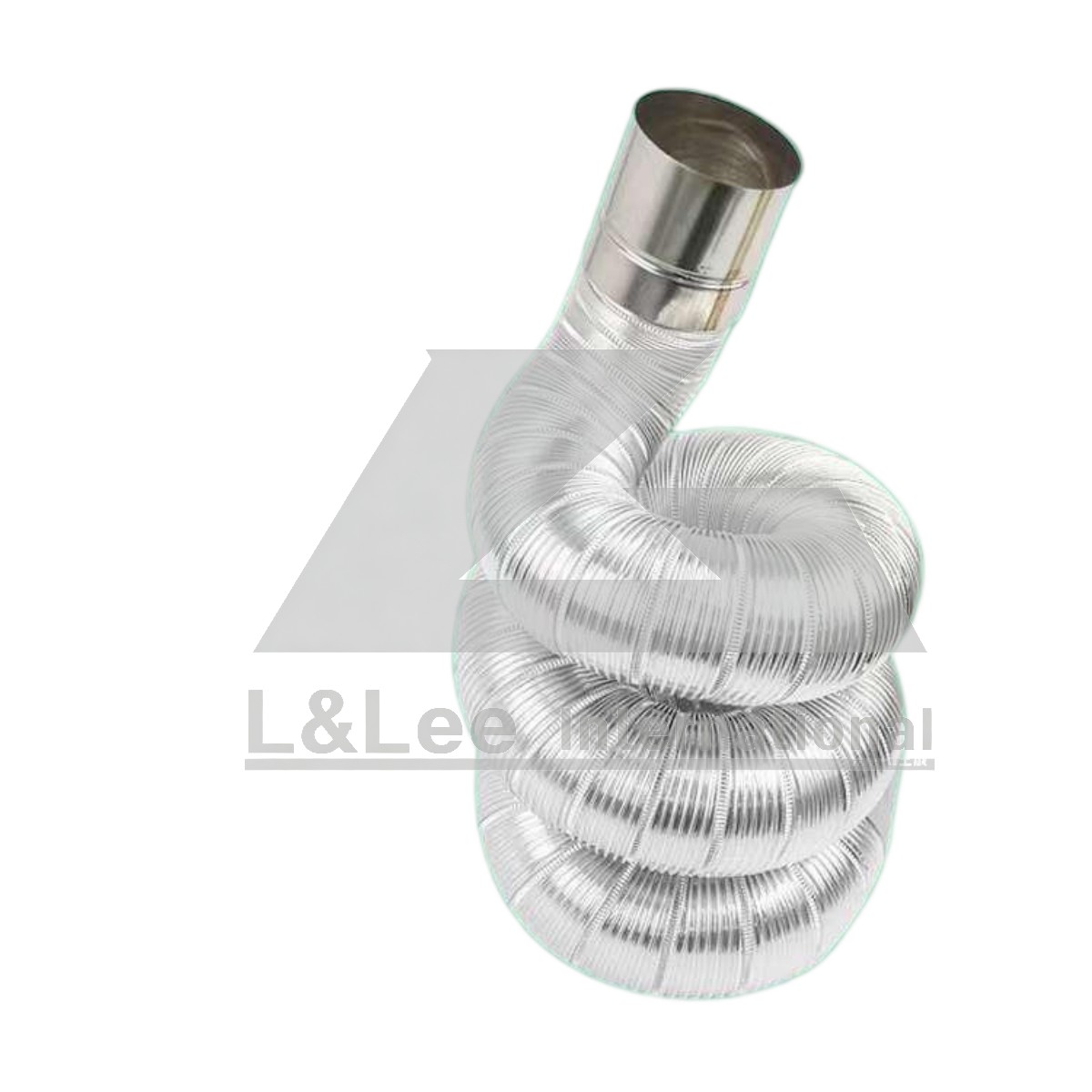

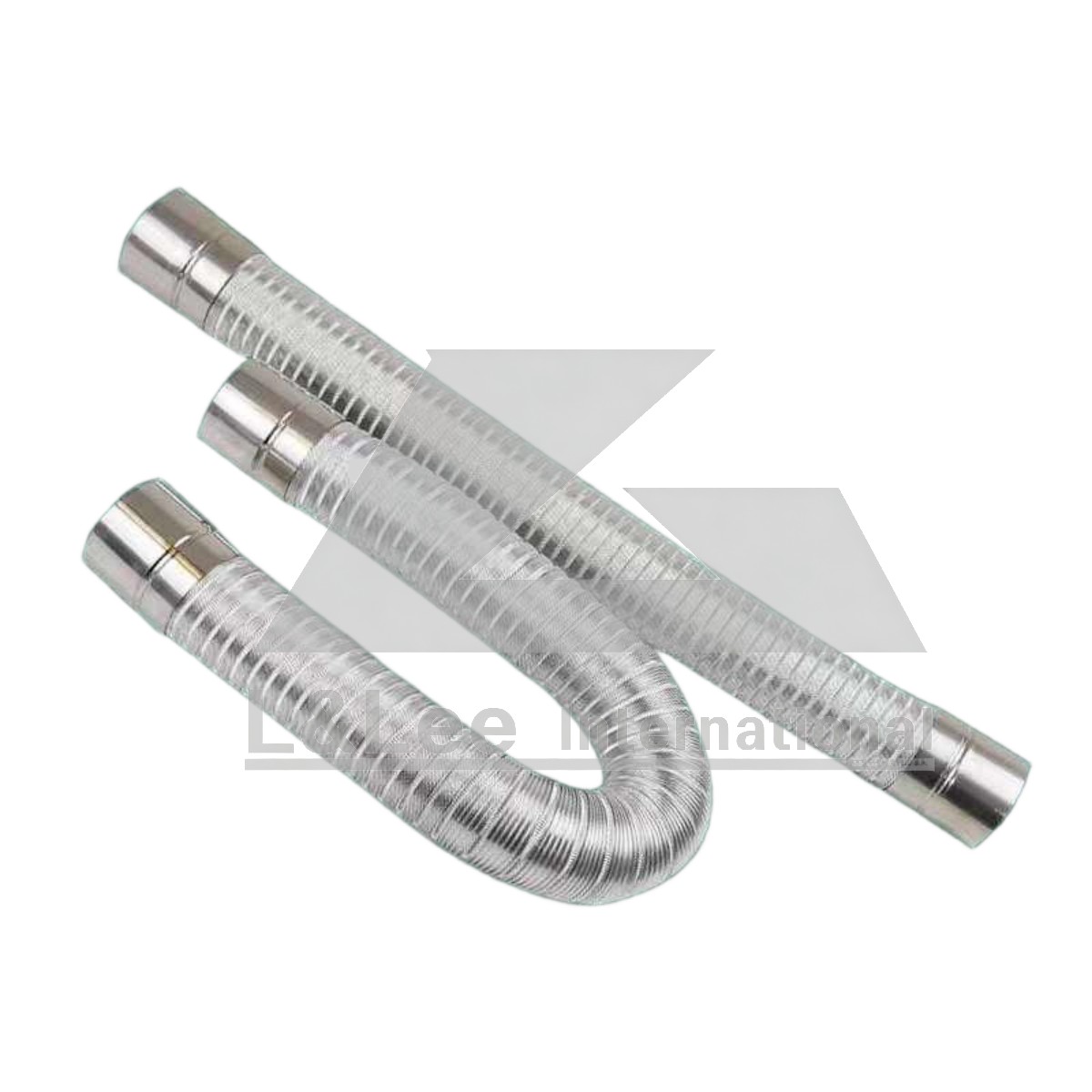

O1.Stainless Steel Telescopic Exhaust Extension Pipe
Introductions
High-temperature resistant telescopic exhaust extension hose for generators, engines and machinery exhaust evacuation. Adjustable length for flexible installation, effectively guiding exhaust fumes away from working areas. Durable construction resists heat and corrosion, easy to connect and store. Ideal for workshops, construction sites and enclosed space operation.
Specifications
| Product Name | Stainless Steel Telescopic Exhaust Extension Pipe |
| Material | Stainless Steel |
| Length | Initial: 500mm, Max Extended: 1500mm |
| Diameter | 50mm, 60mm, 100mm |
| Feature | High Temperature & Corrosion Resistant, Adjustable Length |
Package Includes
- 1 Piece
O2.Battery
Introductions
Specially engineered for electric start diesel and petrol generators. Delivers instant high cranking current to ensure reliable engine ignition, even in low-temperature environments.
Robust internal plate structure offers strong vibration resistance, ideal for continuous standby and frequent startup conditions on construction sites and workshops. Low self-discharge rate maintains stable performance during long idle periods. Multiple capacity options available to match different generator models. Suitable for backup power generators, construction gensets and industrial power equipment.
Specifications
12V 7Ah Sealed Lead Acid Generator Starting Battery
| Model | 12V 7Ah SLA Battery |
| Voltage | 12 Volt |
| Capacity | 7Ah |
| Battery Type | Sealed Lead Acid (SLA) |
| Terminal Type | Metal Lug Terminals |
| Compatible Equipment | KP3500E Electric Start Petrol Generator & similar small portable generators |
| Features | Compact size, low self-discharge, anti-vibration construction |
| Advantage | Cost-effective, space-saving, ideal for light frequent starting duty |
12V 9Ah Sealed Lead Acid Generator Starting Battery
| Model | 12V 9Ah SLA Battery |
| Voltage | 12 Volt |
| Capacity | 9Ah |
| Battery Type | Sealed Lead Acid (SLA) |
| Terminal Type | Metal Lug Terminals |
| Compatible Equipment | KP9000E, KP10000E Electric Start Petrol Generators & similar medium portable generators |
| Features | Stronger cranking power, low self-discharge, anti-vibration sealed housing |
| Advantage | Higher capacity than 7Ah version, longer standby time, reliable for medium-size generator starting |
U1-9MF 12V Maintenance-Free Starting Battery
| Model | U1-9MF Maintenance-Free Battery |
| Voltage | 12 Volt |
| Cold Cranking Current | 250A (SAE) |
| Battery Type | Calcium Maintenance-Free Lead Acid |
| Terminal Type | Standard Automotive Posts |
| Compatible Equipment | DG6000, DG6500E, DG7000E Diesel Generators & heavy-duty power equipment |
| Features | No electrolyte top-up required, high instant cranking power, strong vibration resistance, low self-discharge |
| Advantage | Heavy-duty starting performance, long service life, ideal for frequent start diesel generator applications |
Package Includes
- 1 Piece

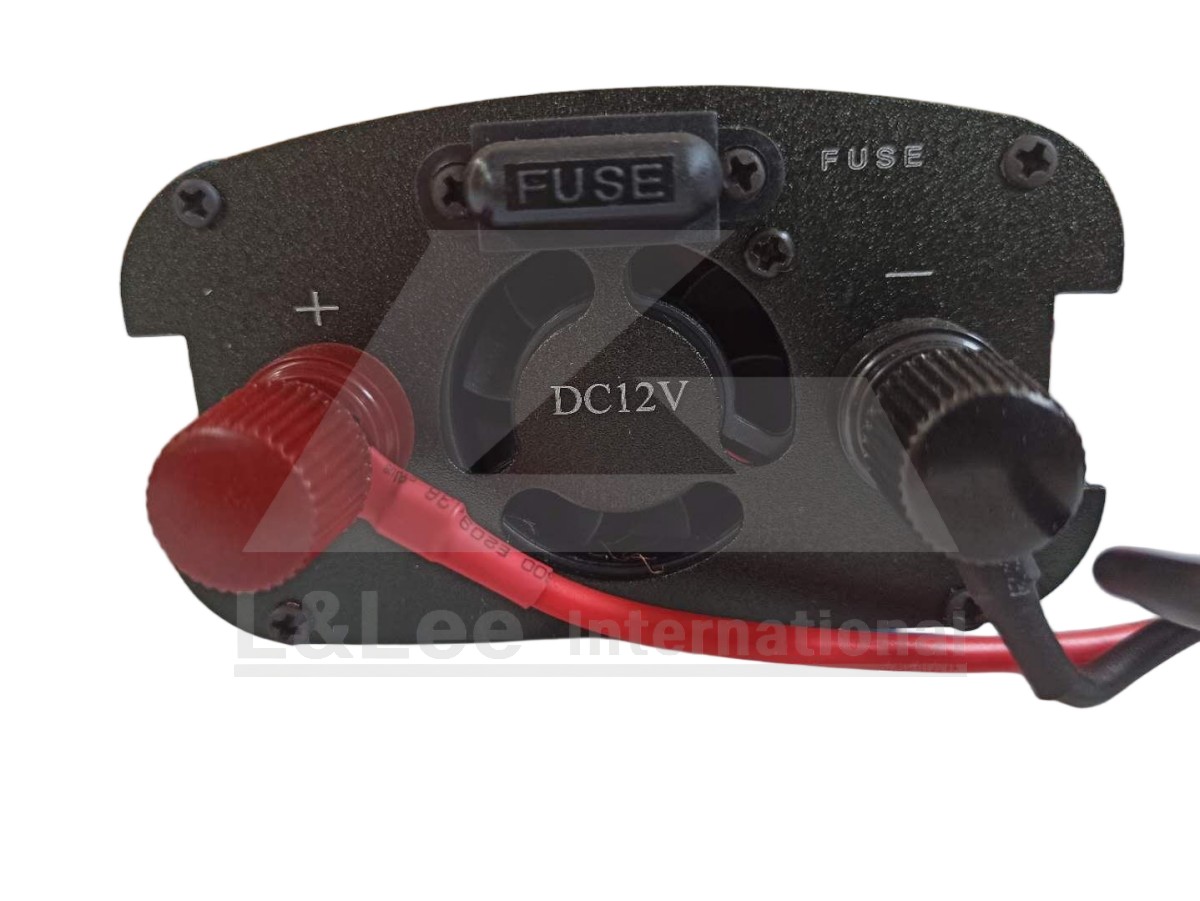

O3.DC/AC Power Inverter
Introductions
This power inverter can deliver pure sine wave output when matched with our DG series generators. It can also be used for signal voltage transmission.
When the voltage of solar batteries drops too low, it works with the ATS control box to automatically start the diesel generator to charge the solar batteries. When the solar battery voltage returns to normal, the diesel generator will shut down automatically.
Specifications

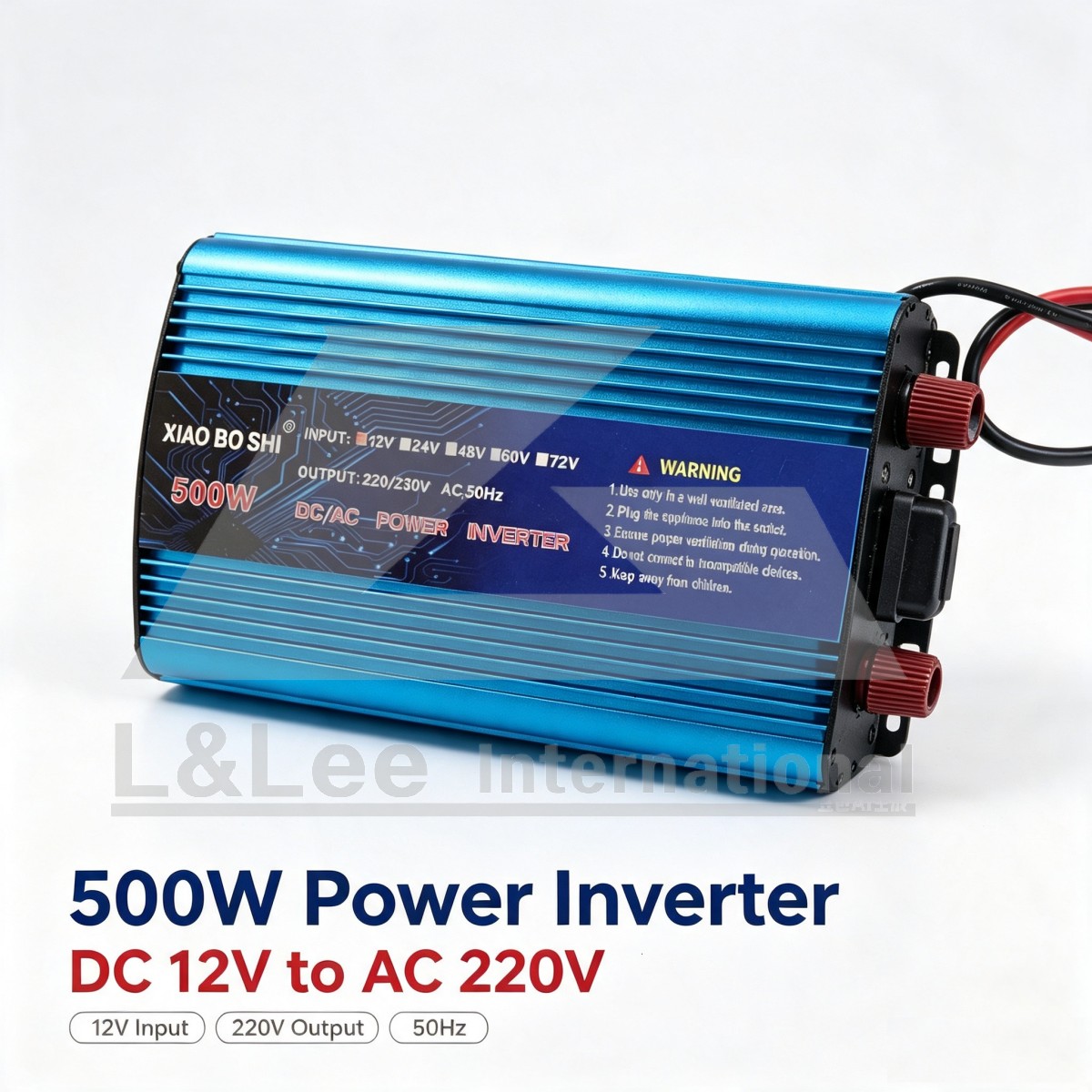

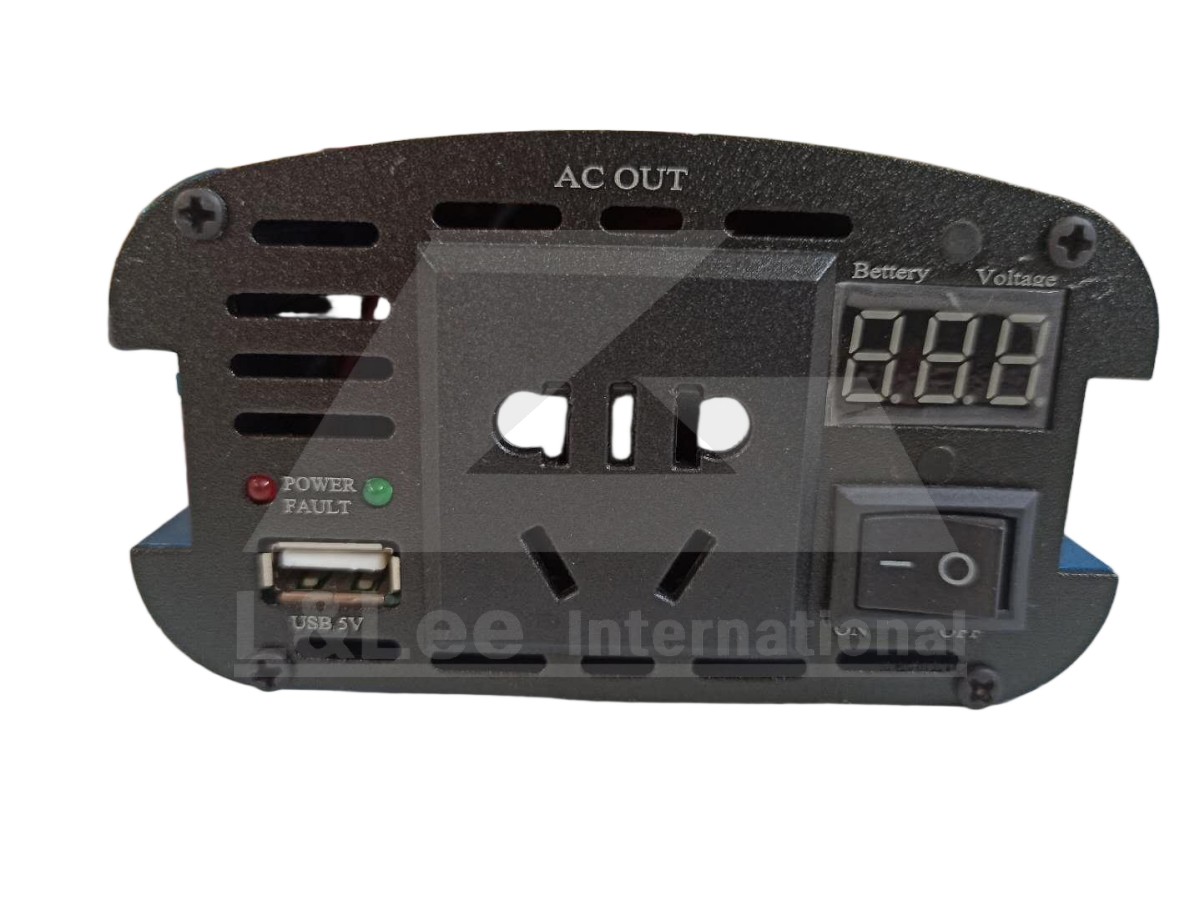

500W DC/AC Modified Sine Wave Power Inverter
| Model | 500W DC/AC Modified Sine Wave Power Inverter |
| Brand | XIAO BO SHI |
| Input Voltage | 12V DC |
| Output Voltage | 220/230V AC |
| Frequency | 50Hz |
| Waveform | Modified Sine Wave |
| Rated Power | 500W |
| Features | Can be matched with DG series generators; usable as signal voltage source. Cooperates with ATS control box to auto start/stop diesel generator for solar battery charging |
| Application | Off-grid solar system, vehicle, outdoor power supply, match with DG series generator |

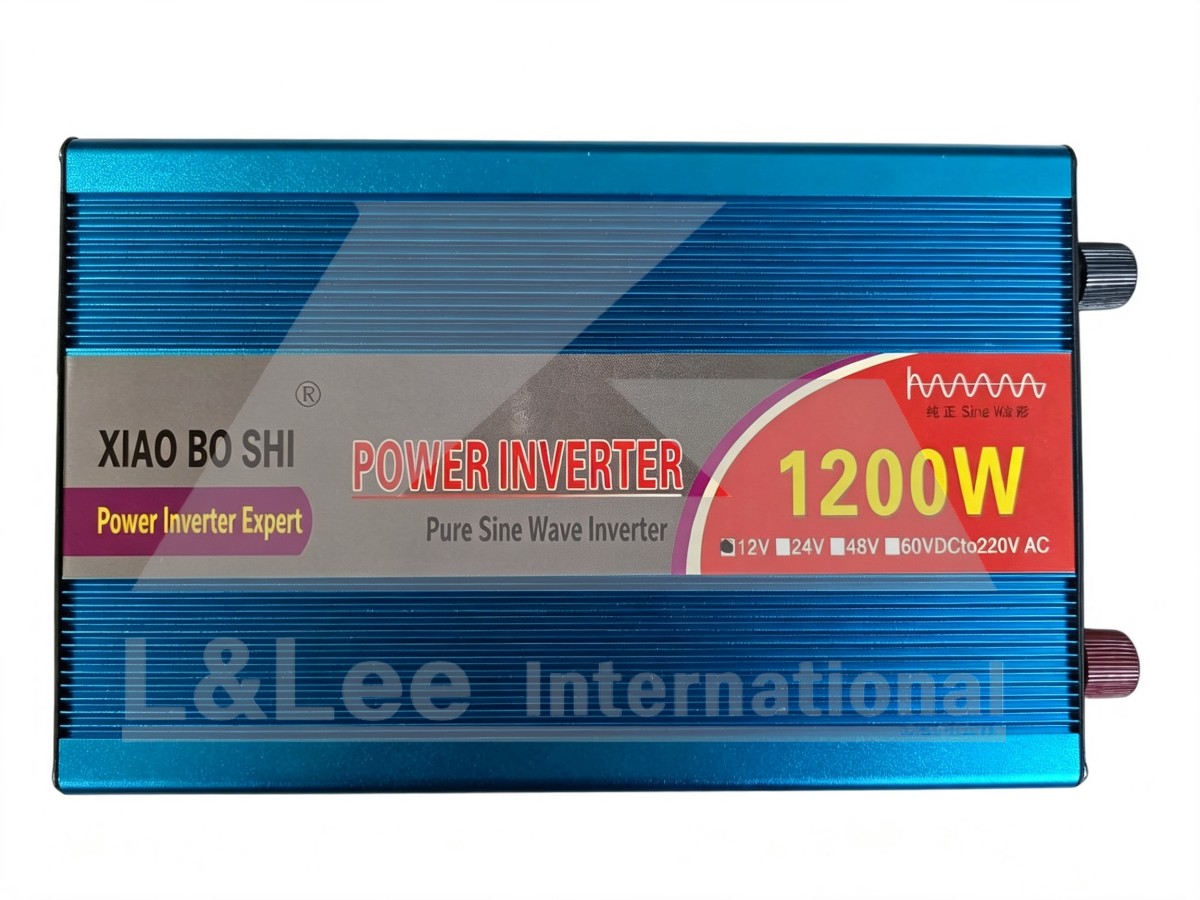

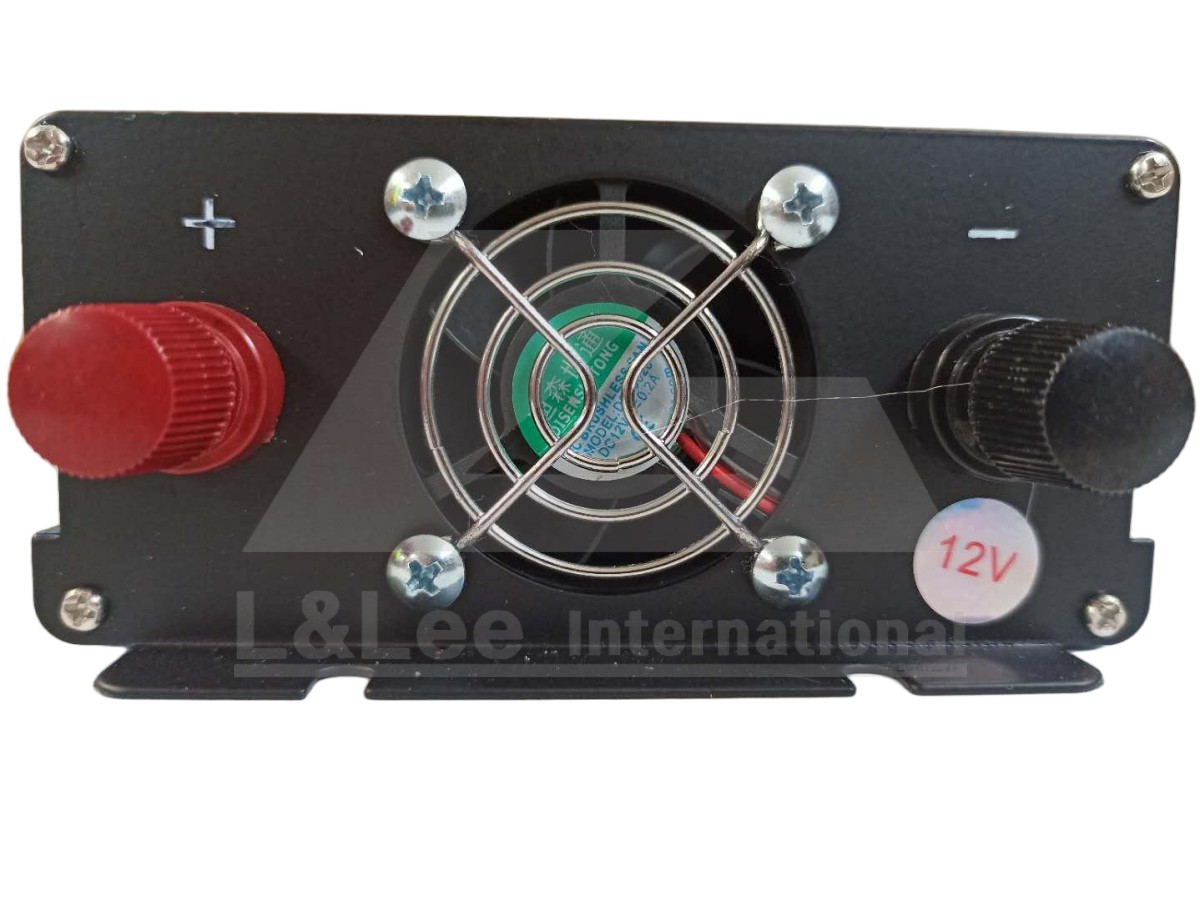

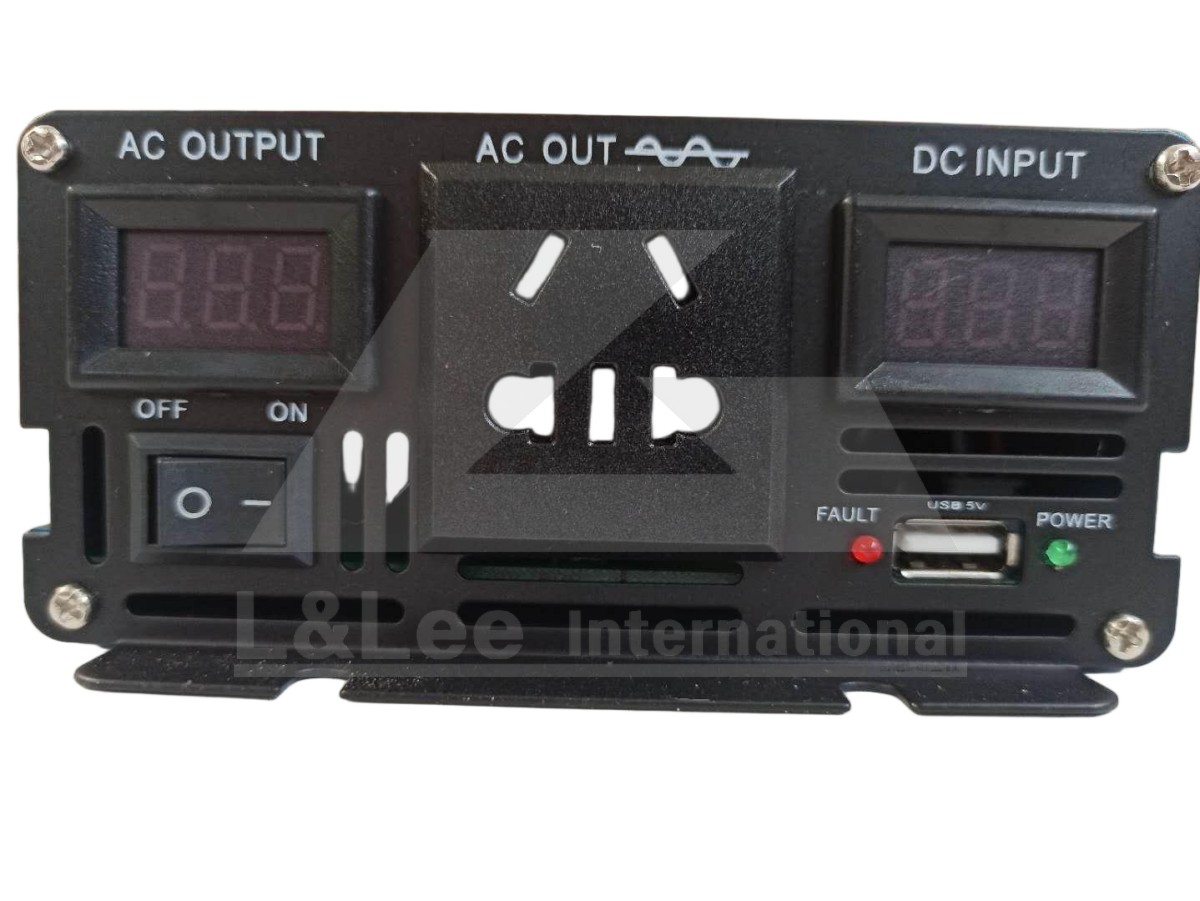

1200W Pure Sine Wave Power Inverter
| Model | 1200W Pure Sine Wave Power Inverter |
| Brand | XIAO BO SHI |
| Input Voltage | 12V DC |
| Output Voltage | 220V AC |
| Waveform | Pure Sine Wave |
| Rated Power | 1200W |
| Features | Can be matched with DG series generators; usable as signal voltage source. Cooperates with ATS control box to auto start/stop diesel generator for solar battery charging |
| Application | Solar off-grid system, home backup power, outdoor power, generator matching system |
Package Includes
- 1 Piece
P. Spare Parts
1. Spare Parts for KB168FE,KB177FE,KB188FE,KP3500,KP6500,KP9000E,KP10000E,PR3500I
| Part No. | Description | Unit | Compatible Model |
| 324 | Pull Starter | each | KP3500 |
| 325 | Gasket for whole engine | each | KP3500 |
| 326 | Gasket for whole engine | each | WP30, KB168 |
| 327 | Cylinder gasket | each | KP3500 |
| 328 | Piston ring | each | KP3500 |
| 329 | Piston ring | each | WP30, KB168 |
| 330 | Crankshaft oil seal | each | KP3500, WP30, KB168F |
| 331 | AVR | each | KP3500 |
| 332 | Carburetor P19 | each | KP3500, WP30, KB168F |
| 333 | Carburetor gasket 1 | each | KP3500, WP30, KB168F |
| 334 | Carburetor gasket 2 | each | KP3500, WP30, KB168F |
| 335 | Water pump seal | each | WP30 |
| 336 | Circuit breaker 12A | each | KP3500 |
| 337 | Carbon brush | each | KP3500, WP30, KB168F |
| 338 | Ignition+cable plug KB168F | each | KP3500, WP30, KB168F |
| 339 | Motor frame | each | KP3500 |
| 340 | Motor cover | each | KP3500 |
| 341 | Gasket for whole engine | each | KP6500 |
| 342 | Gasket for whole engine | each | KB177F |
| 343 | Block side gasket | each | KP6500, KP9000, KB188F |
| 344 | Carburetor gasket 1 | each | KP6500, KP9000, KB188F |
| 345 | Carburetor gasket 2 | each | KP6500, KP9000, KB188F |
| 346 | Muffler gasket | each | KP6500, KP9000, KB188F, KB177F |
| 347 | Air valve room gasket | each | KP6500, KP9000, KB188F, KB177F |
| 348 | Cylinder gasket | each | KP9000 |
| 349 | Piston ring | each | KP9000 |
| 350 | Piston ring | each | KP6500 |
| 351 | Piston ring | each | KB177F |
| 352 | Crankshaft oil seal | each | KP6500, KP9000, KB188F |
| 353 | Crankshaft oil seal | each | KB177F |
| 354 | AVR | each | KP6500 |
| 355 | AVR | each | KP9000 |
| 356 | Carburetor P21 | each | KB177F |
| 357 | Carburetor P27 | each | KP6500, KP9000, KB188F |
| 358 | Carburetor sticker | each | KP6500, KP9000, KB188F, KB177F |
| 359 | Circuit breaker 28A | each | KP6500, KP9000 |
| 360 | Carbon brush | each | KP6500, KP9000, KB188F |
| 361 | Ignition+cable plug KB188F | each | KP6500, KB188F |
| 362 | Ignition+cable plug KB190F | each | KP9000, KB190F |
| 363 | Frame foot | each | KP9000 |
| 364 | Start motor | each | KP6500, KP9000 |
| 365 | Spark plug | each | all petrol engine |
| 366 | Fuel filter | each | all petrol engine |
| 367 | Fuel stop switch | each | all petrol engine |
| 368 | Oil level sensor | each | all petrol engine |
| 369 | Key switch | each | KP9000 generator |
2. Spare Parts for HP186FAE,DG6000.DG6500E,DG7000E
| Part No. | Description | Unit | Compatible Model |
| 232 | Cable for ATS (2.5m) | each | DG7000, DG6500 generator |
| 233 | Cable for ATS (15m) | each | DG7000, DG6500 generator |
| 234 | Engine | each | DG7000, DG6500 generator |
| 235 | Air Filter Housing | each | DG6000, 6500, 6700, 7000E generator |
| 236 | Air Filter | each | DG7000, DG6500 generator |
| 237 | Fuel Filter | each | DG7000, DG6500 generator |
| 238 | Oil Filter | each | DG7000, DG6500 generator |
| 239 | Oil Pressure Sensor | each | DG7000, DG6500 generator |
| 240 | Oil Pressure Sensor Upgrade | each | DG7000E 2014 |
| 241 | Rectifier Board | each | DG6500, DG6000 generator |
| 242 | Fuel Injection Pump | each | DG6500, DG6000 generator |
| 243 | Fuel Nozzle | each | DG6500, DG6000 generator |
| 244 | Fuel Stop Valve | each | DG6500, DG6000 generator |
| 245 | Valve Lifter | each | DG7000, DG6500 generator |
| 246 | Valve Lifter Guide Bracket | each | DG7000, DG6500 generator |
| 247 | Intake Valve | each | DG7000, DG6500 generator |
| 248 | Exhaust Valve | each | DG7000, DG6500 generator |
| 249 | Start Motor | each | DG7000, DG6500 generator |
| 250 | Piston Ring | each | DG7000, DG6500 generator |
| 251 | Exhaust Muffler Gasket | each | DG7000, DG6500 generator |
| 252 | Connection Rod Bearing | each | DG6000, 6500, 6700, 7000E generator |
| 253 | Cylinder Head Gasket | each | DG6000, 6500, 6700, 7000E generator |
| 254 | Air Filter Housing Gasket | each | DG6000, 6500, 6700, 7000E generator |
| 255 | Cylinder Body Side Gasket | each | DG6000, 6500, 6700, 7000E generator |
| 256 | Air Inlet Pipe Gasket | each | DG6000, 6500, 6700, 7000E generator |
| 257 | Fuel Nozzle Adjusting Washer (0.1-0.5mm) | each | DG6000, 6500, 6700, 7000E generator |
| 258 | Oil Drain Plug Washer | each | DG6000, 6500, 6700, 7000E generator |
| 259 | Fuel Pump Adjusting Washer | each | DG6000, 6500, 6700, 7000E generator |
| 260 | Speed Folk Adjusting Washer | each | DG6000, 6500, 6700, 7000E generator |
| 261 | Intake & Exhaust Valve Seal | each | DG6000, 6500, 6700, 7000E generator |
| 262 | Timing Gear 1 (Small) | each | DG6000, 6500, 6700, 7000E generator |
| 263 | Timing Gear 2 (Small) | each | DG6000, 6500, 6700, 7000E generator |
| 264 | Timing Gear 3 (Small) | each | DG6000, 6500, 6700, 7000E generator |
| 265 | Rocker Arm Adjust Bolt and Nut | each | DG6000, 6500, 6700, 7000E generator |
| 266 | Balance Shaft Bearing | each | DG6000, 6500, 6700, 7000E generator |
| 267 | Rocker Arm Socket | each | DG6000, 6500, 6700, 7000E generator |
| 268 | Balance Shaft with Gear | each | DG6000, 6500, 6700, 7000E generator |
| 269 | Crankshaft with Bearing & Gear | each | DG6000, 6500, 6700, 7000E generator |
| 270 | Camshaft with Gear | each | DG6000, 6500, 6700, 7000E generator |
| 271 | Gear for Camshaft | each | DG6000, 6500, 6700, 7000E generator |
| 272 | Camshaft | each | DG6000, 6500, 6700, 7000E generator |
| 273 | Cylinder Body Side Cover | each | DG6000, 6500, 6700, 7000E generator |
| 274 | Speed Controller | each | DG6000, 6500, 6700, 7000E generator |
| 275 | Connecting Rod Bolt | each | DG6000, 6500, 6700, 7000E generator |
| 276 | Cylinder Head Bolt | each | DG6000, 6500, 6700, 7000E generator |
| 277 | Crankshaft Seal | each | DG6000, 6500, 6700, 7000E generator |
| 278 | Stator for DC12V Charging | each | DG6000, 6500, 6700, 7000E generator |
| 279 | Engine Block | each | DG6000, 6500, 6700, 7000E generator |
| 280 | Cylinder Body Head | each | DG6000, 6500, 6700, 7000E generator |
| 281 | Cylinder Gasket | each | DG7000, DG6500 generator |
| 282 | AVR or Capacitor | each | DG7000, DG6500 generator |
| 283 | Battery‑Charging Regulator | each | DG7000, DG6500 generator |
| 284 | Key Switch | each | DG7000, DG6500 generator |
| 285 | Rotor | each | DG7000, DG6500 generator |
| 286 | Stator | each | DG7000, DG6500 generator |
| 287 | Rotor Head Bearing | each | DG6000, 6500, 6700, 7000E generator |
| 288 | Carbon brush | each | DG7000, DG6500 generator |
| 289 | Push Switch for Auto / Manual (ATS Box) | each | DG7000, DG6500 generator |
| 290 | Display Meter 3-in-1 | each | DG7000, DG6500 generator |
| 291 | Remote Module with Remote | each | DG7000E generator |
| 292 | Remote | each | DG7000E generator |
| 293 | Power Outlet Socket | each | DG6000, 6500, 6700, 7000E generator |
| 294 | Battery Cable | each | DG6000, 6500, 6700, 7000E generator |
| 295 | Fuse for Battery Charger | each | DG6000, 6500, 6700, 7000E generator |
| 296 | Fuse for DC12V Outlet | each | DG6000, 6500, 6700, 7000E generator |
| 297 | Relay | each | DG6700, 7000E generator |
| 298 | Diode | each | DG6700, 7000E generator |
| 299 | Rectifier Element | each | DG6700, 7000E generator |
| 300 | Circuit Breaker | each | DG6000, 6500, 6700, 7000E generator |
| 301 | Fuel Filter for Oil Tank | each | DG6000, 6500, 6700, 7000E generator |
| 302 | Cooler Fan | each | DG6700, 7000E generator |
| 303 | Fuel Tank Lip | each | DG6000, 6500, 6700, 7000E generator |
| 304 | Square Top Cover | each | DG6700, 7000E generator |
| 305 | Panel Indicator Light | each | DG6000, 6500, 6700, 7000E generator |
| 306 | Rotor Capacitor (Made 2014) | each | DG6700, 7000E generator |
| 307 | Rotor Capacitor (Made 2013) | each | DG6700, 7000E generator |
| 308 | Wiring Harness | each | DG6700, 7000E generator |
| 309 | Wire Terminal Insert Plug | each | DG6000, 6500, 6700, 7000E generator |
| 310 | Harness Rubber Holding | each | DG6000, 6500, 6700, 7000E generator |
| 311 | Fuel Indicator Glass Cover | each | DG6000, 6500, 6700, 7000E generator |
| 312 | Stator Head | each | DG6000, 6500, 6700, 7000E generator |
| 313 | Stator Head Fitting Bolt | each | DG6000, 6500, 6700, 7000E generator |
| 314 | Rotor Fitting Bolt | each | DG6000, 6500, 6700, 7000E generator |
| 315 | Battery | each | DG7000, DG6500 generator |
| 316 | Battery | each | Petrol generator |
