Petrol Engine

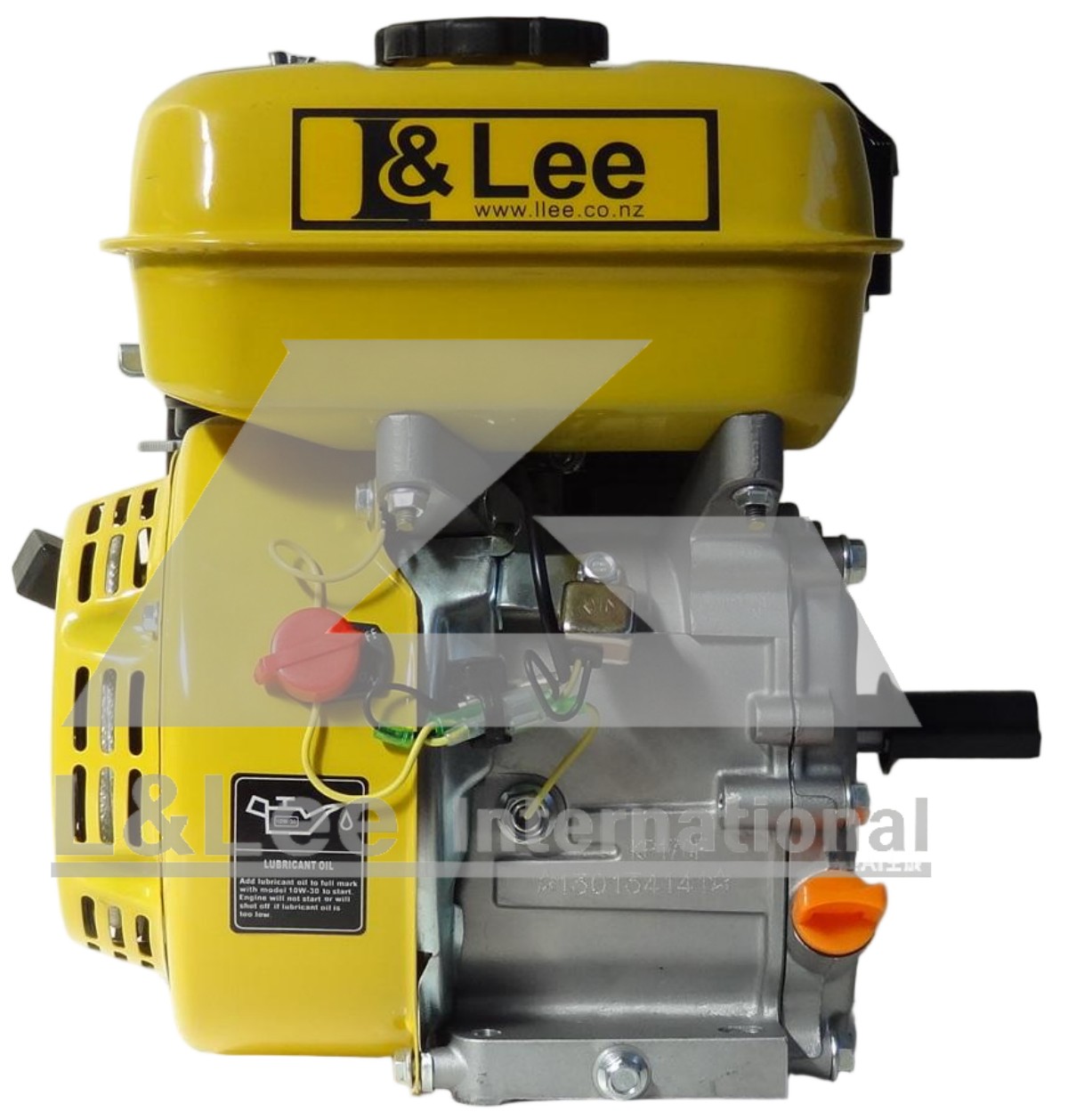

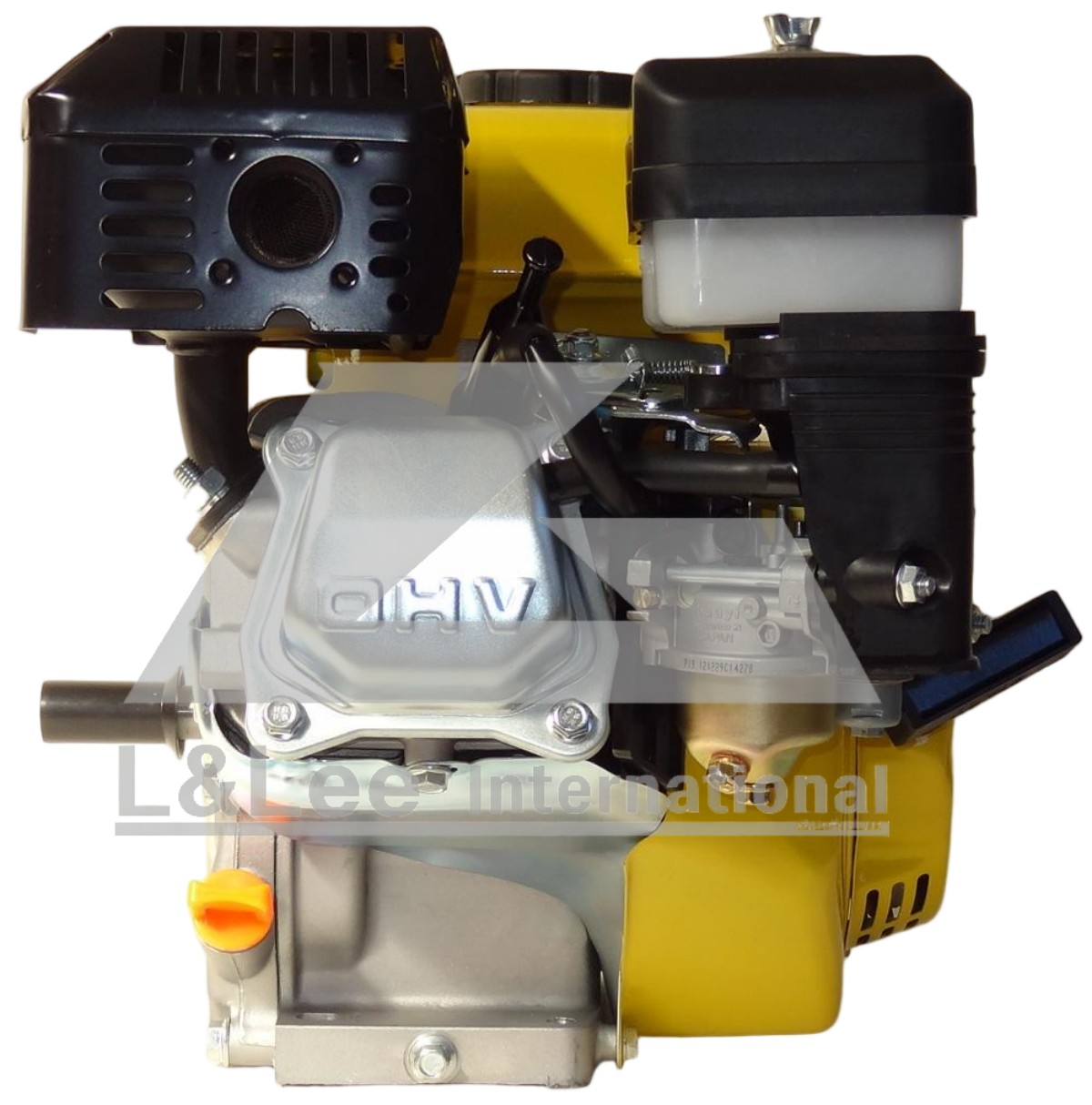

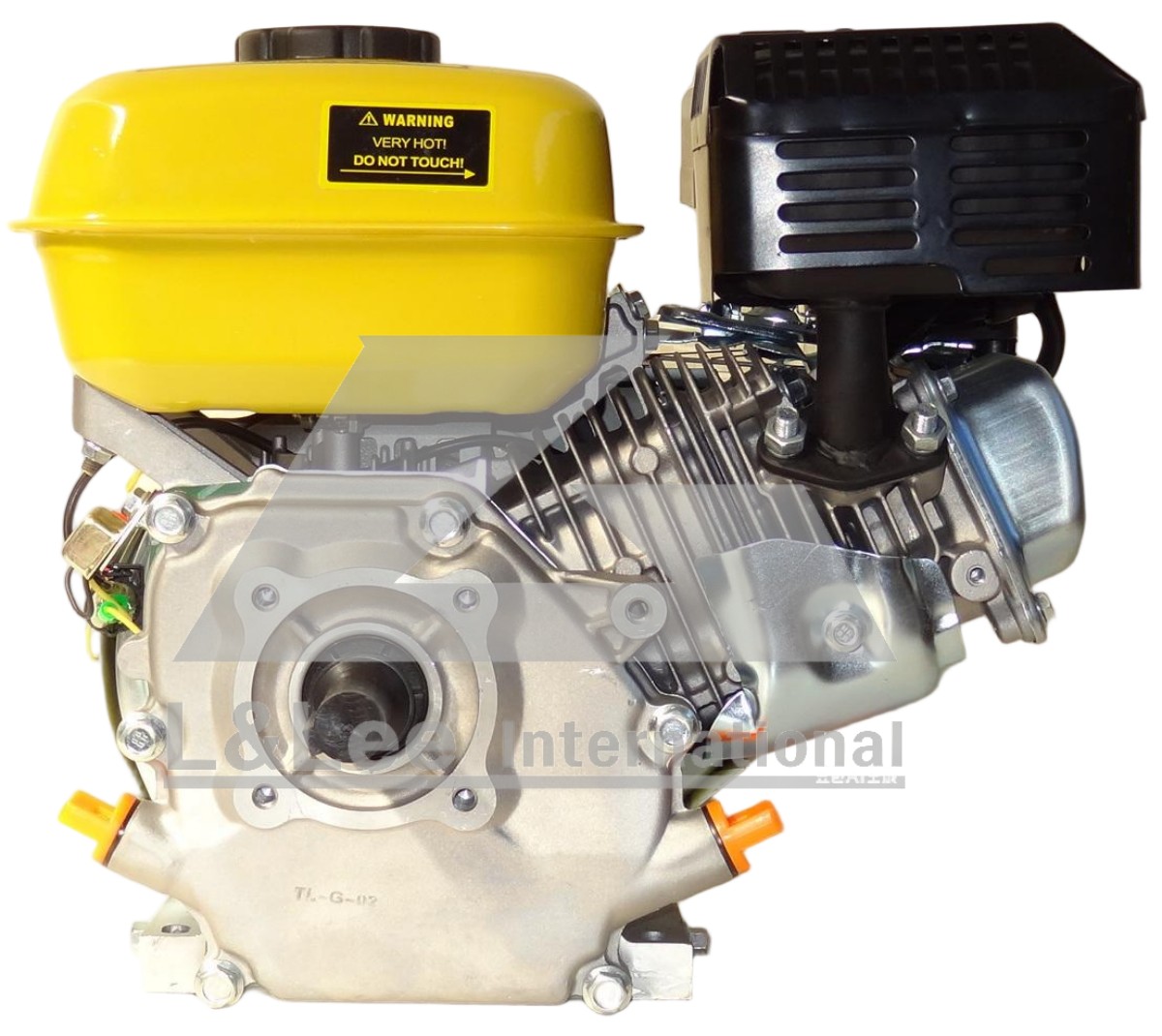

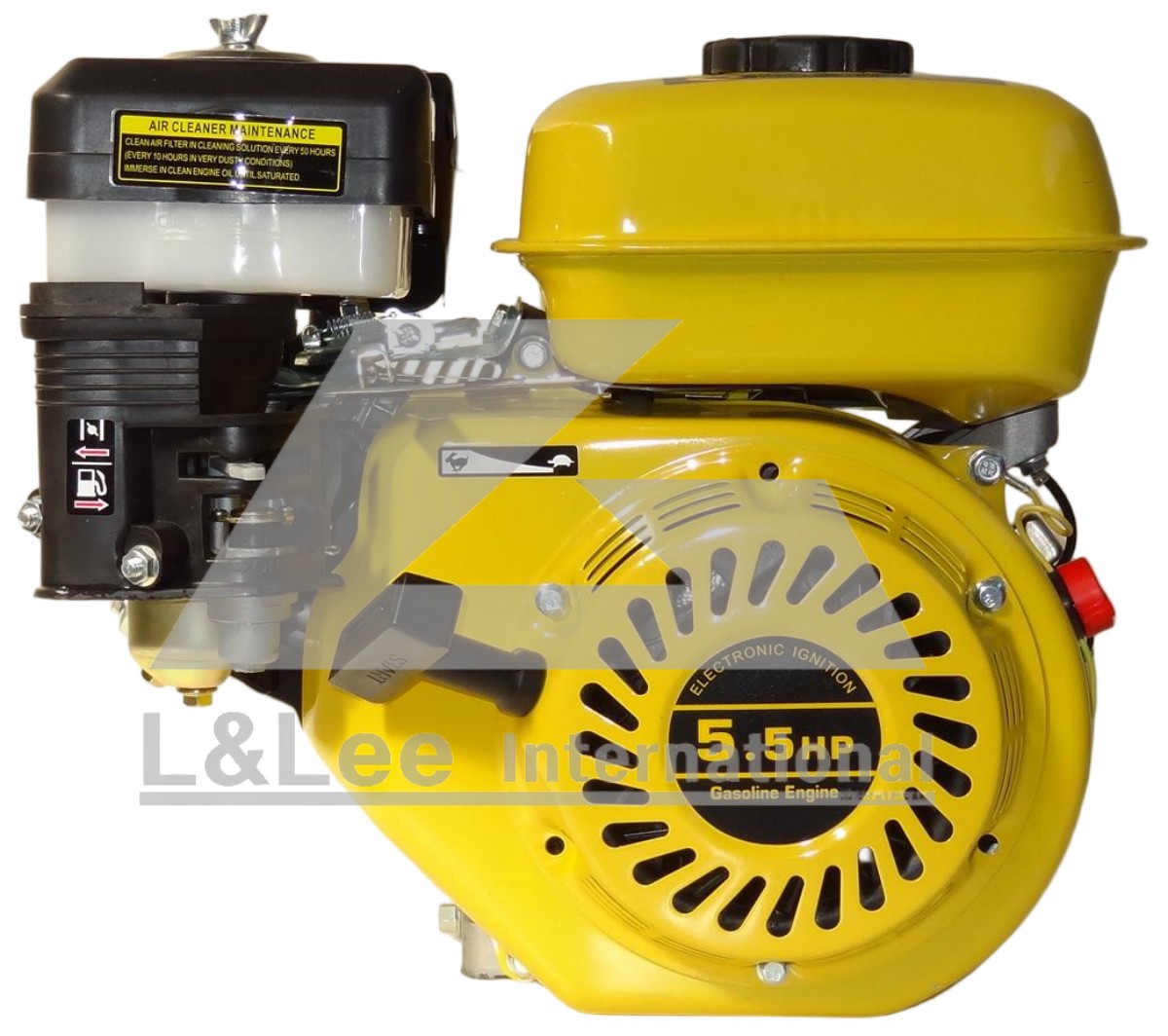

A. KB168FA 5.5 hp PETROL ENGINE
Introductions
Compact 5.5hp OhV petrol engine with reliable performance for various small‑power machinery.
Typical Applications: generator sets, pressure wAhers, water pumps, small tillers, agricultural machinery, construction power equipment.
Specifications
| Model | KB168FA |
| Engine Type | 4‑stroke,air‑cooled, single‑cylinder,OhV |
| Bore x Stroke (mm) | 68 x 45 |
| Displacement | 163 cc |
| Compression Ratio | 8.5:1 |
| Max Output | 5.5 hp (4.1 kW) / 3600 r/min |
| Max Torque | 10.8 N·m/ 2500 r/min |
| Ignition | T.C.I transistor magneto |
| Starting | Recoil start |
| Fuel Tank Capacity (L) | 3.6 |
| Fuel Consumption | ≤395 g/kW·h |
| Output shaft diameter （mm） | 19.02 |
| Net Weight / Gross Weight（kg) | 16/17 |
| Dimensions (mm) | 395 × 335× 380 |
Package Includes
- Unit
- 2 Spanners
- 1 Screw driver
- 1 Socket for spark plug
- 1 Oil filler

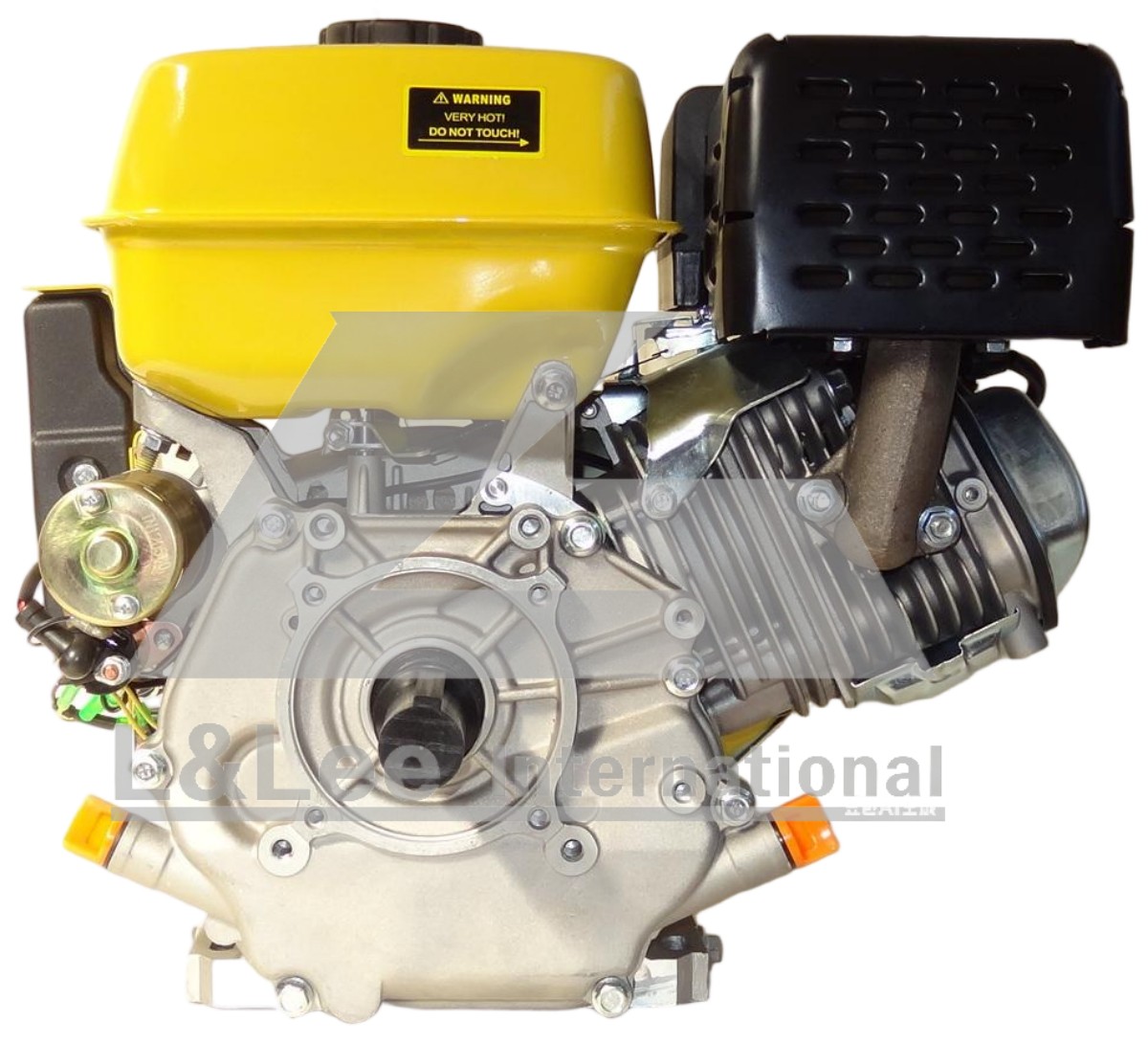

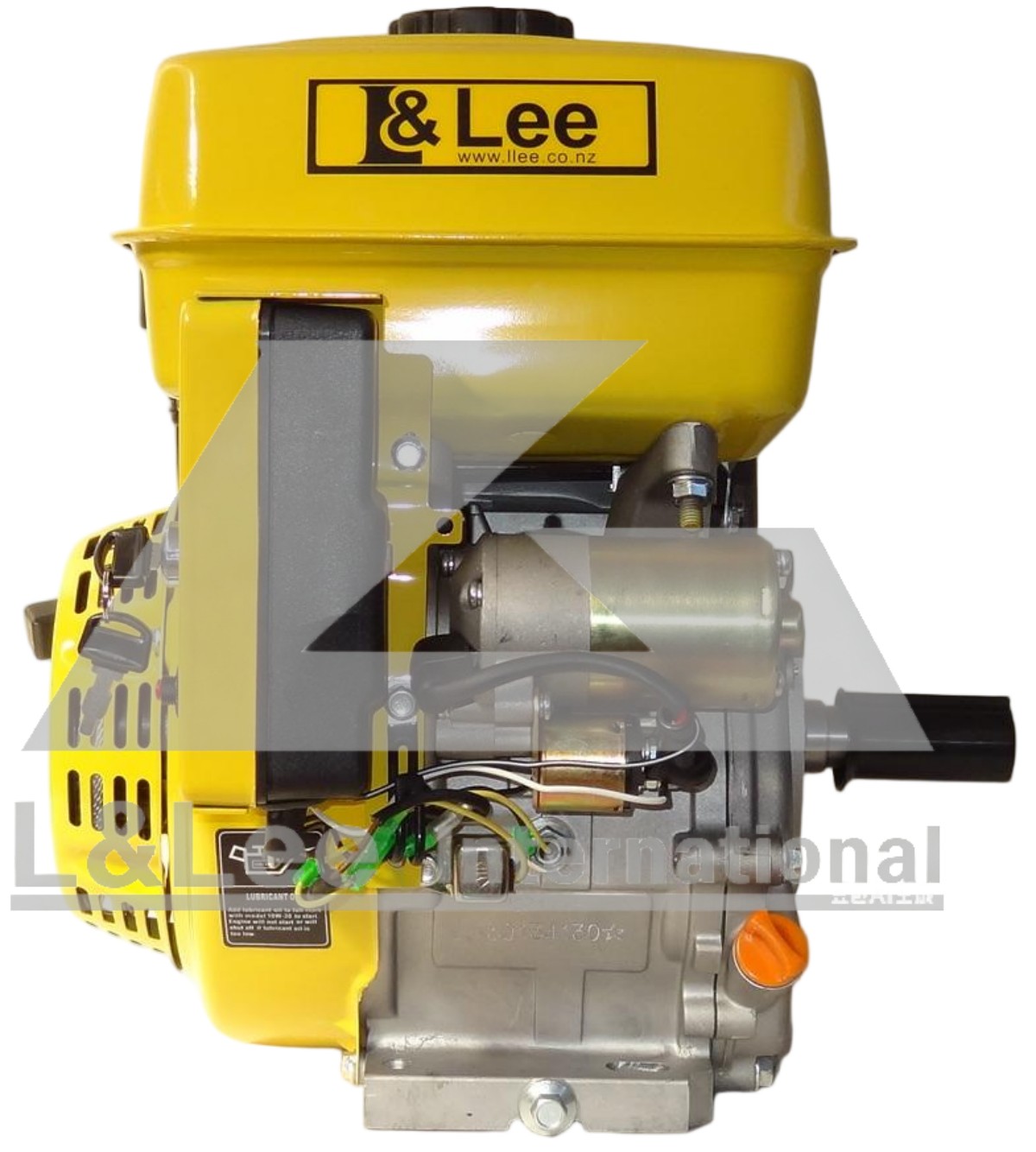

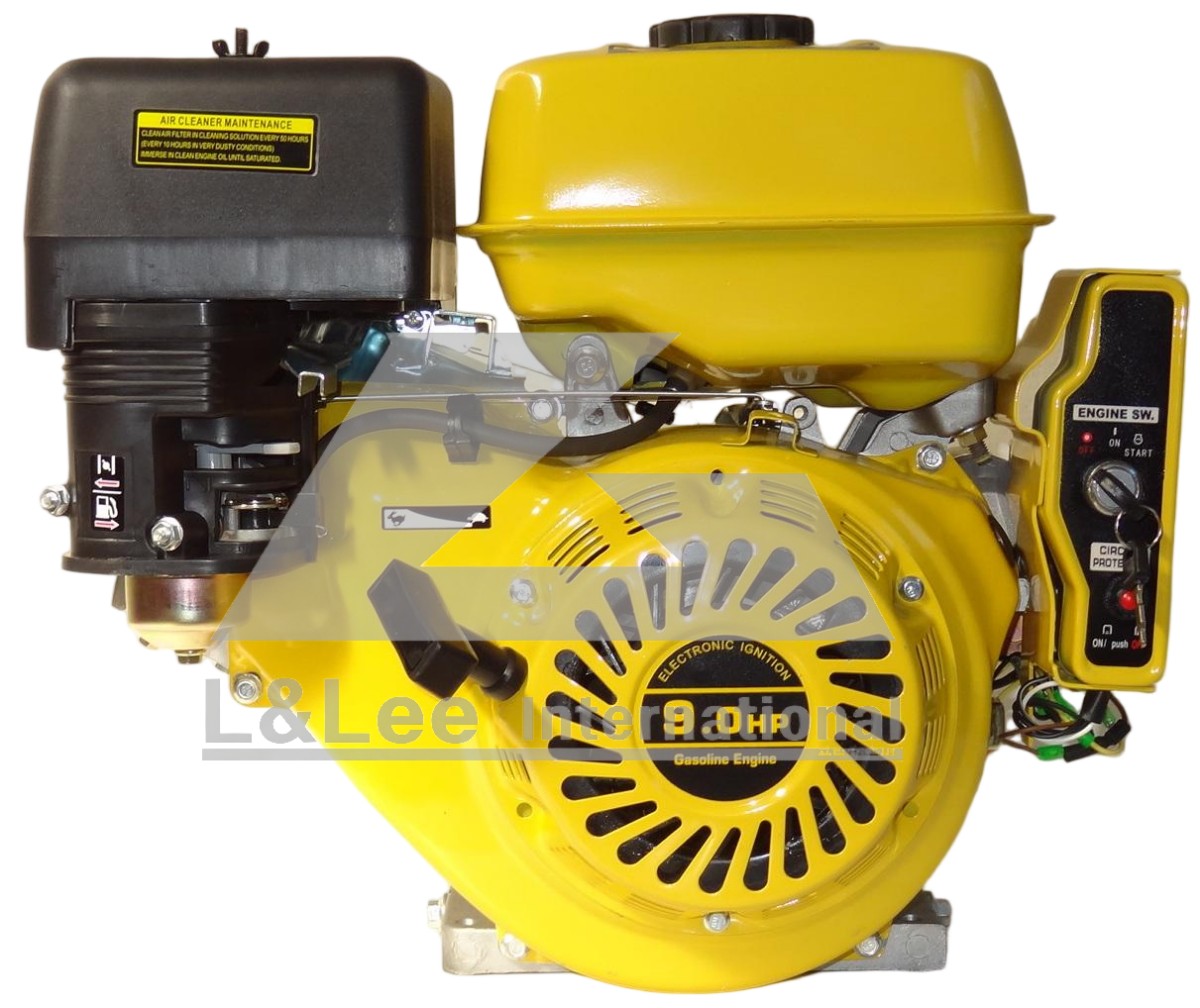

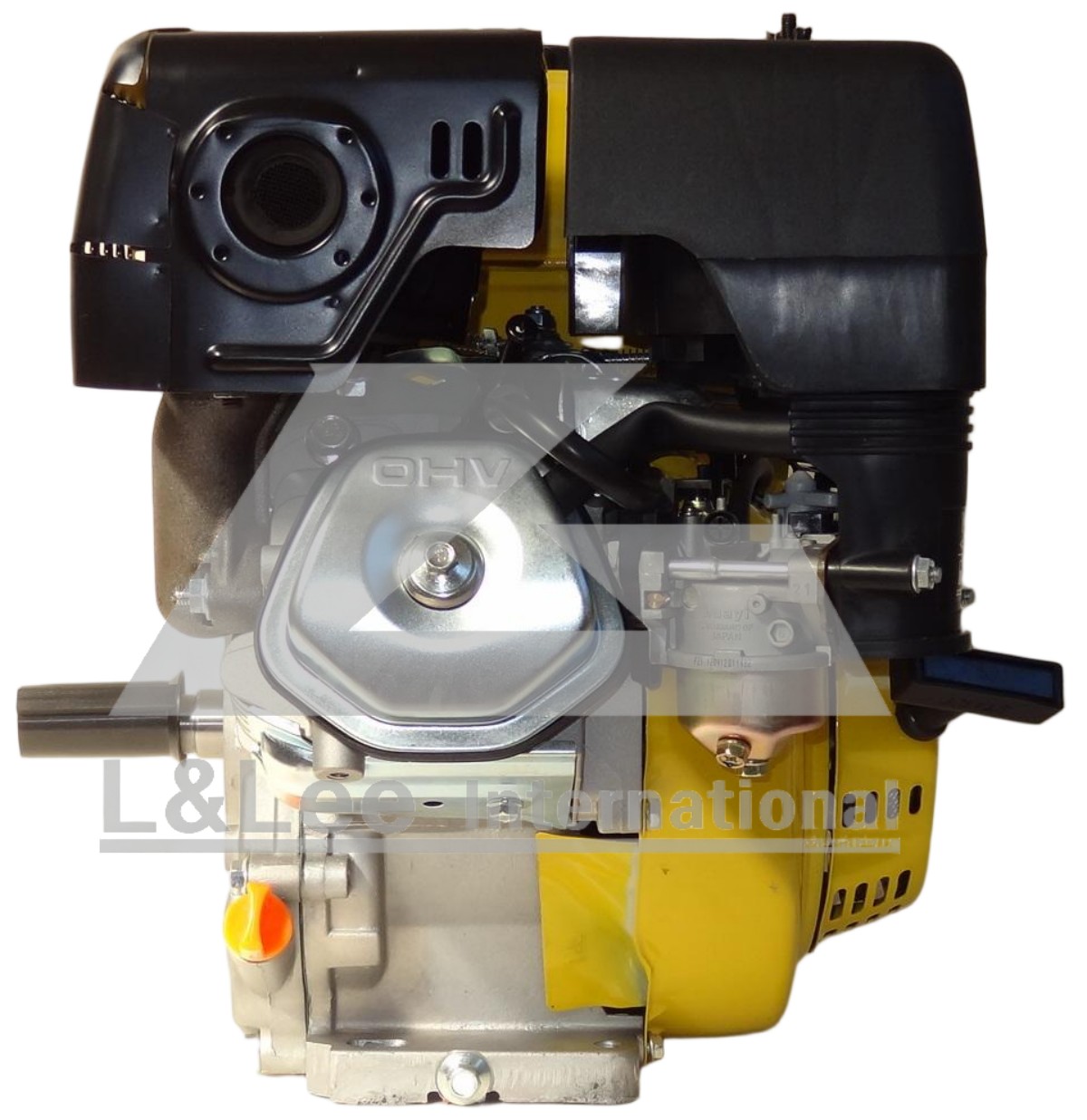

B. KB177FE 9.0 hp PETROL ENGINE
Introductions
The KB177FE is a single‑cylinder, air‑cooled 4‑stroke OhV petrol engine delivering maximum 9.0 hp (6.7 kW) at 3600 r/min. It features combined electric start and backup recoil start for eAy operation. With 270 cc displacement and strong low‑speed torque, this durable power unit suits generators, pressure wAhers, water pumps, rotary tillers and various agricultural and construction small machinery. Compact structure, stable output and low fuel consumption make it a dependable power solution for outdoor‑working equipment.
Specifications
| Model | KB177FE |
| Engine Type | 4‑stroke,air‑cooled, single‑cylinder,OhV |
| Bore x Stroke (mm) | 77 x 58 |
| Displacement | 270 cc |
| Compression Ratio | 8.2:1 |
| Max Output | 9.0 hp (6.7kW) / 3600 r/min |
| Max Torque | 15.5 N·m/ 2500 r/min |
| Ignition | T.C.I transistor magneto |
| Starting | Electric start + backup recoil start |
| Fuel Tank Capacity (L) | 6.0 |
| Fuel Consumption | ≤374 g/kW·h |
| Engine Oil Capacity (L) | 1.1 |
| Output shaft diameter （mm） | 25.4 |
| Net Weight / Gross Weight（kg) | 25/26 |
| Dimensions (mm) | 485 × 465× 500 |
Package Includes
- Unit
- 2 Spanners
- 1 Screw driver
- 1 Socket for spark plug
- 1 Oil filler

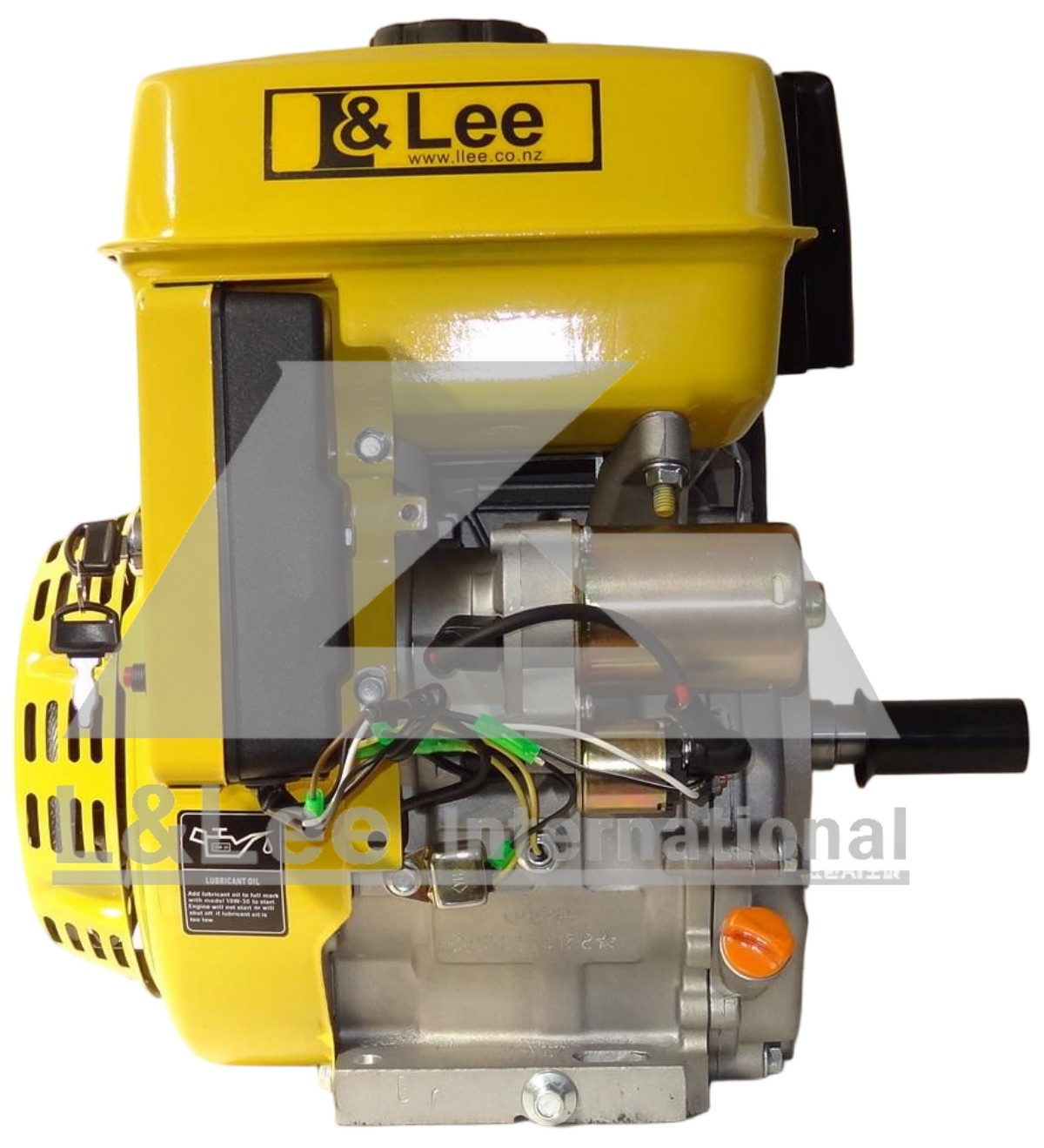

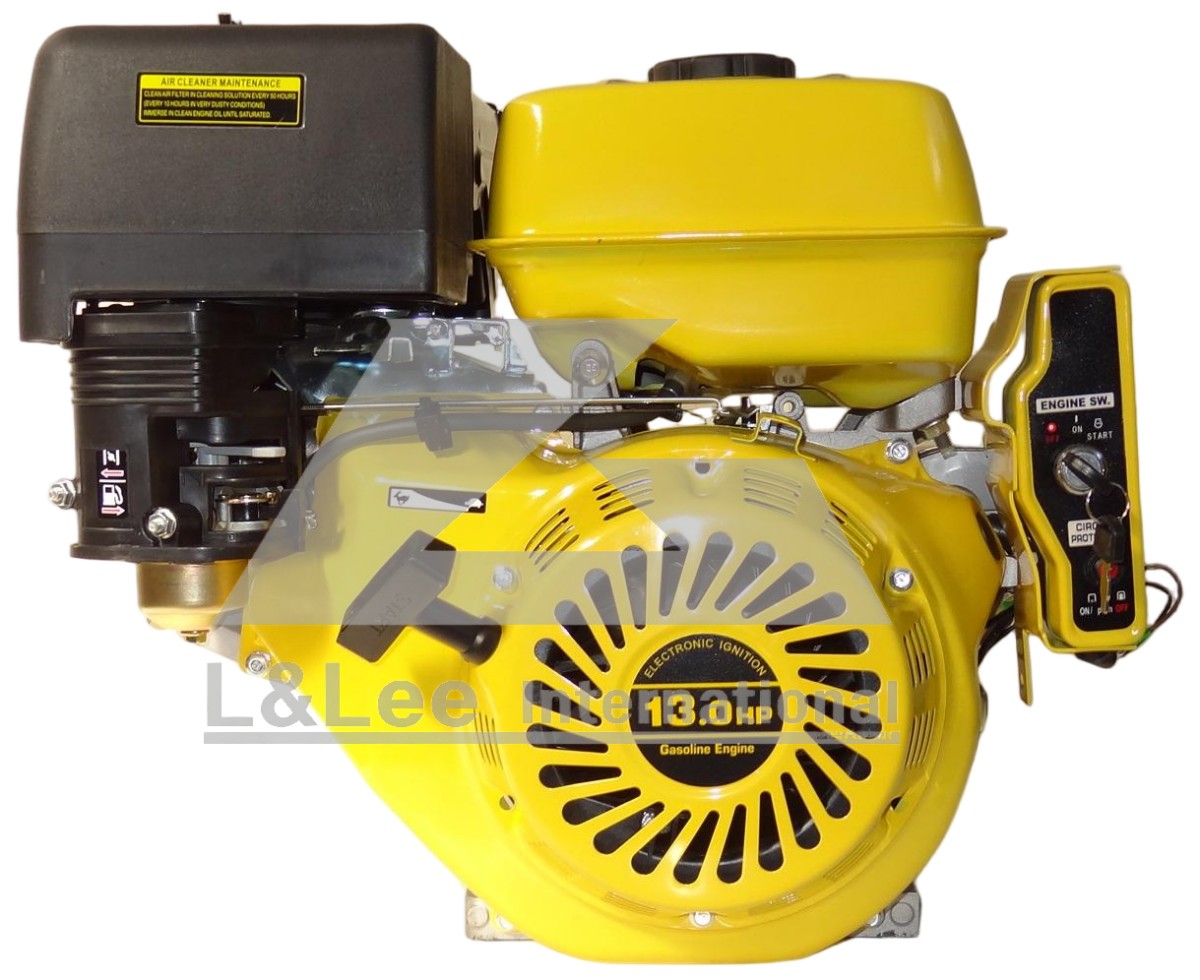

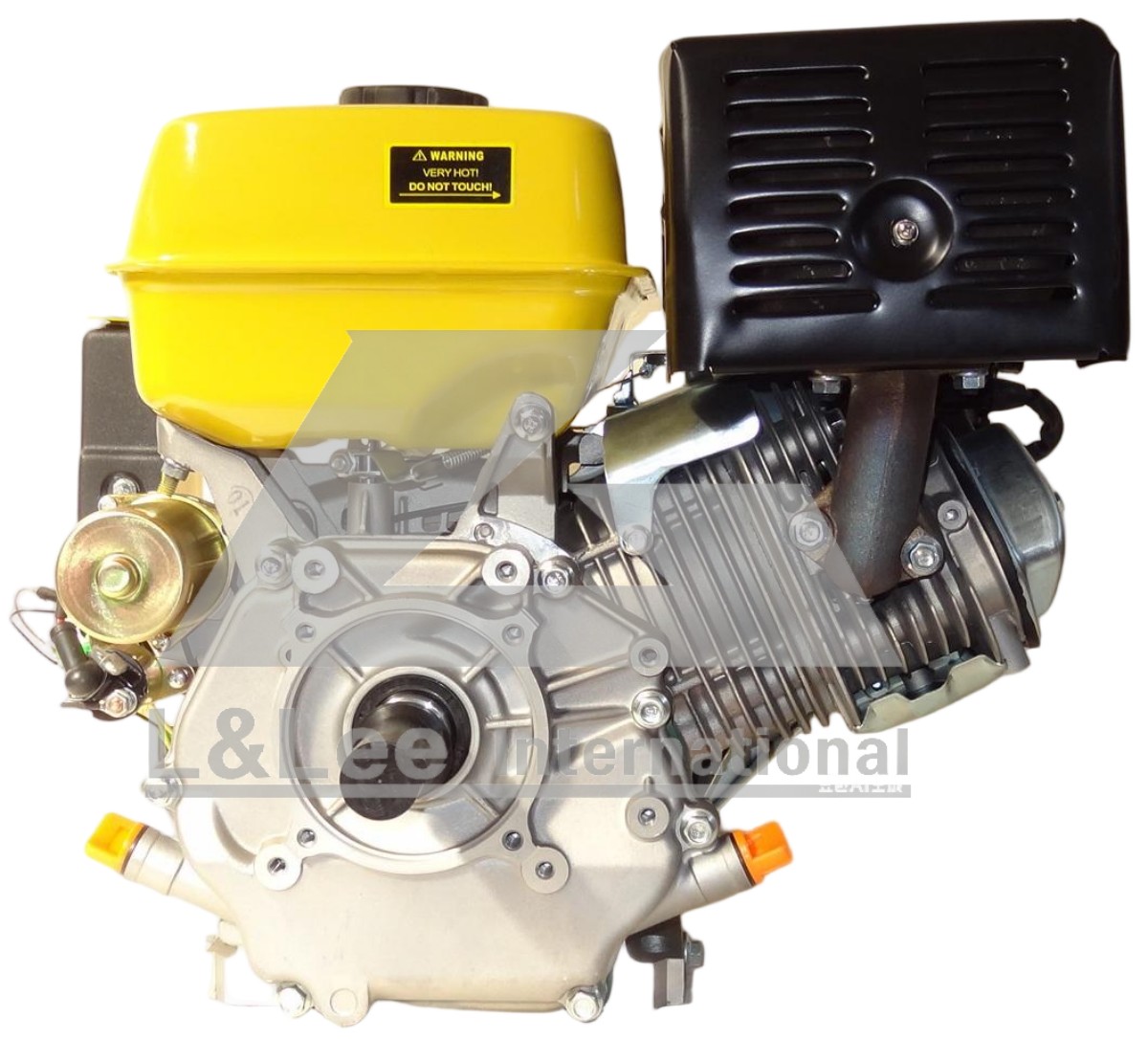

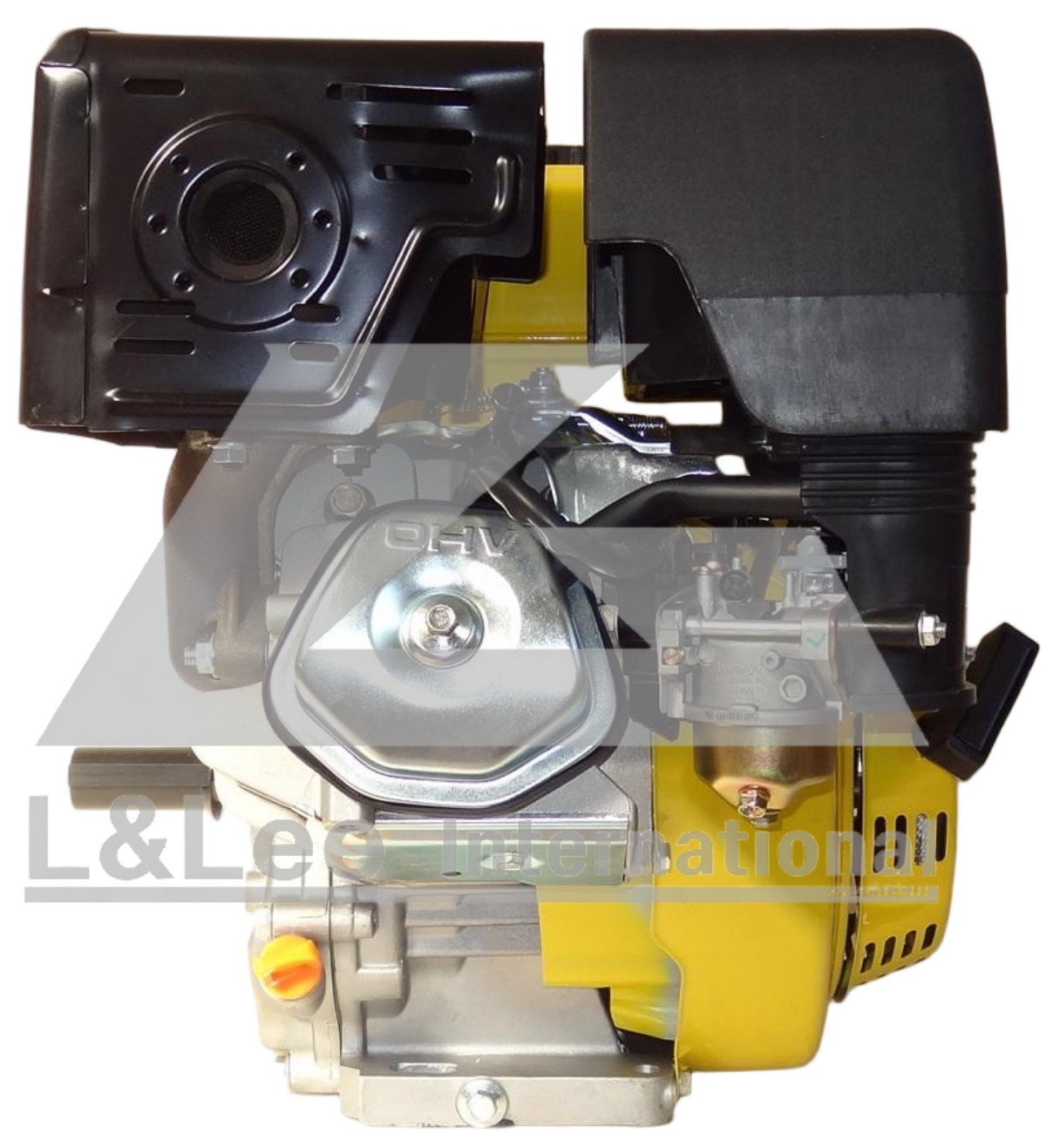

C. KB188FE 13.0 hp PETROL ENGINE
Introductions
The KB188FE is a heavy‑duty single‑cylinder, air‑cooled 4‑stroke OhV petrol engine producing peak 13.0 hp (9.6 kW) at 3600 r/min. Equipped with electric start plus backup recoil start for reliable ignition under tough site conditions. Its 389 cc displacement generates powerful low‑end torque, delivering stable output for continuous‑work applications. Low fuel consumption, robust build and eAy maintenance make it an ideal power unit for generators, water pumps, rotary tillers, concrete cutters and a wide range of farm and construction machinery.
Specifications
| Model | KB188FE |
| Engine Type | 4‑stroke,air‑cooled, single‑cylinder,OhV |
| Bore x Stroke (mm) | 88 x 64 |
| Displacement | 389 cc |
| Compression Ratio | 8.6:1 |
| Max Output | 13.0 hp (9.6kW) / 3600 r/min |
| Max Torque | 23N·m/ 2500 r/min |
| Ignition | T.C.I transistor magneto |
| Starting | Electric start + backup recoil start |
| Fuel Tank Capacity (L) | 6.0 |
| Fuel Consumption | ≤374 g/kW·h |
| Engine Oil Capacity (L) | 1.1 |
| Output shaft diameter （mm） | 25.4 |
| Net Weight / Gross Weight（kg) | 31/32 |
| Dimensions (mm) | 480 × 465× 500 |
Package Includes
- Unit
- 2 Spanners
- 1 Screw driver
- 1 Socket for spark plug
- 1 Oil filler

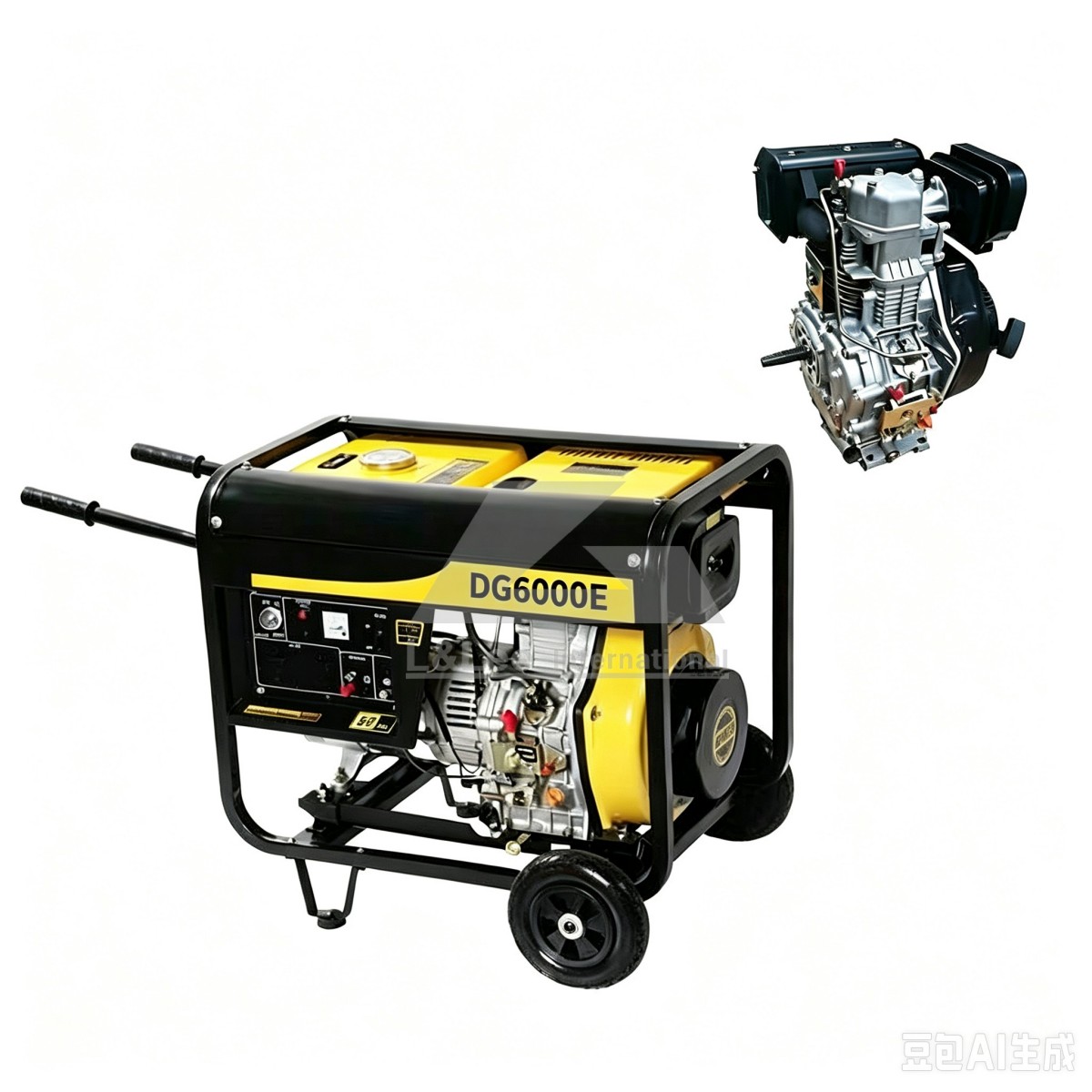

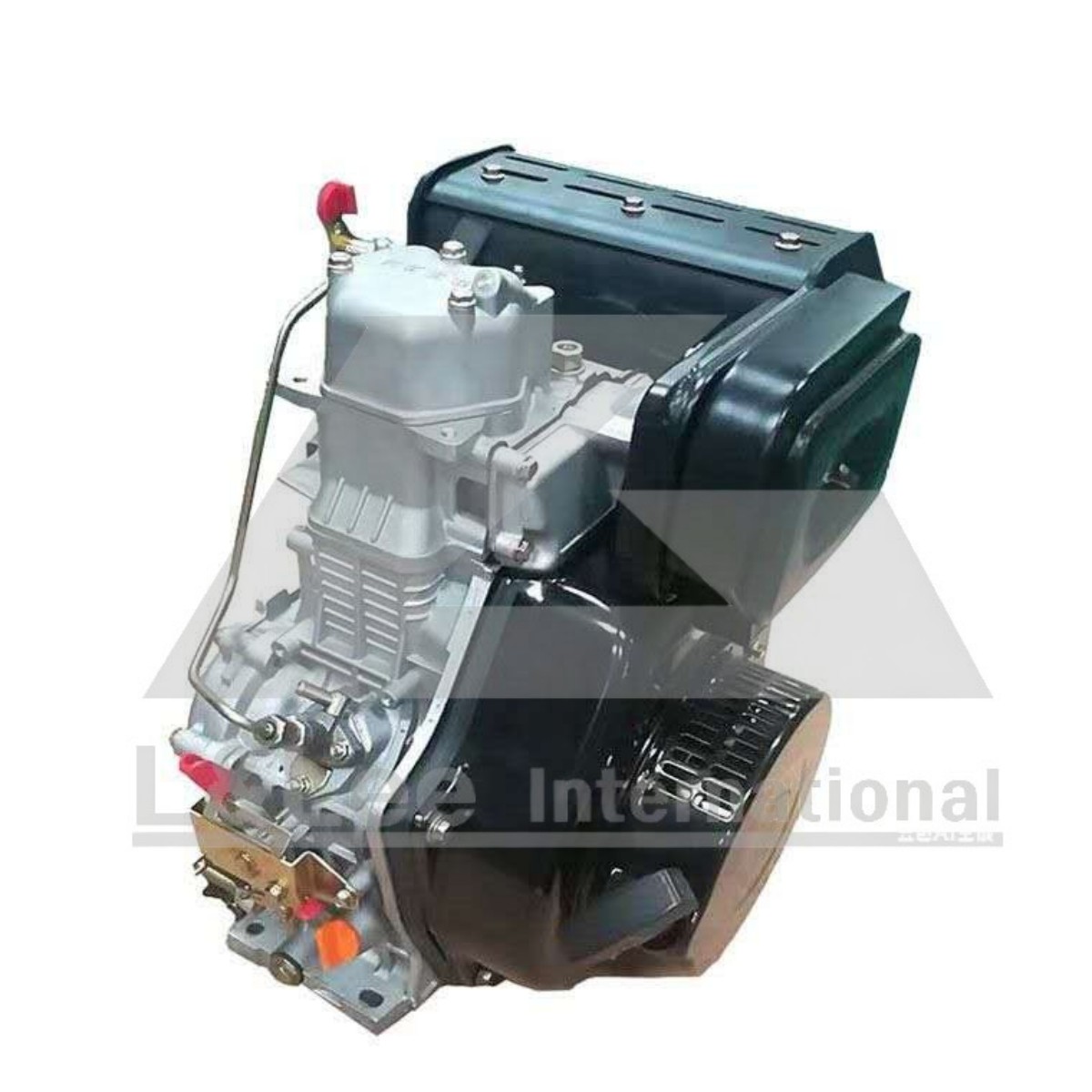

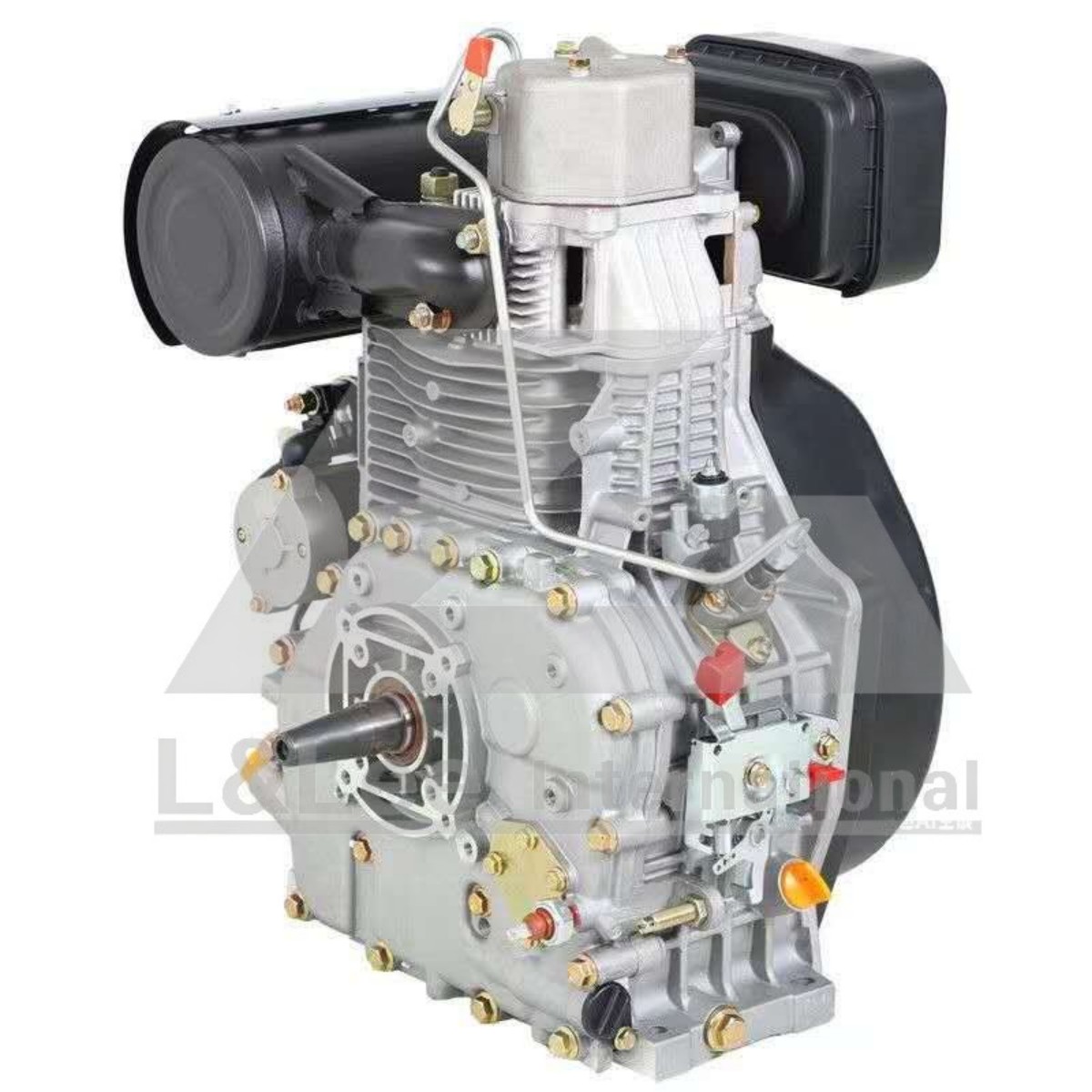

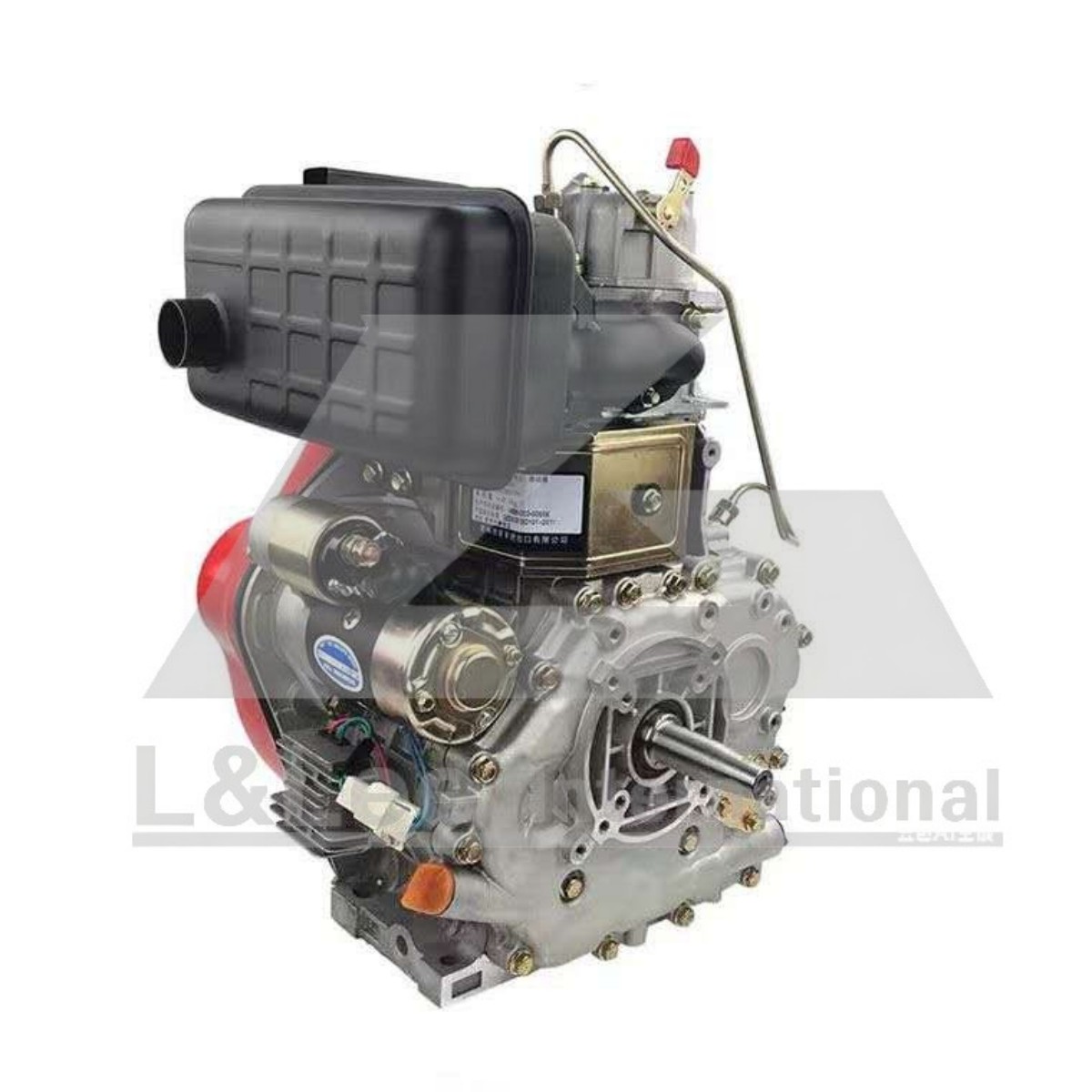

D. HP186FAE 10.0 hp DIESEL ENGINE
Introductions
The HP186FAE is a vertical single‑cylinder 4‑stroke air‑cooled direct‑injection diesel engine delivering peak 10.0 hp (7.3 kW) at 3600 r/min. Built with electric start plus backup recoil start for reliable ignition in harsh working environments. Its 418 cc displacement provides strong low‑speed torque, outstanding fuel economy and long service life. Equipped with low‑oil‑pressure protection. Widely used for diesel generators, water pumps, rotary tillers, concrete cutters and various farm‑and‑construction power equipment.
Specifications
| Model | HP186FAE |
| Engine Type | 4‑stroke, air‑cooled, single‑cylinder, vertical, direct‑injection diesel |
| Bore x Stroke (mm) | 86 x 72 |
| Displacement | 419 cc |
| Compression Ratio | 19:1 |
| Max Output | 10.0 hp (7.3kW) / 3600 r/min,9.0 hp (6.6 kW) / 3000 r/min |
| Max Torque | 24.5N·m/ 2200 r/min |
| Starting | Electric start + backup recoil start |
| Fuel Tank Capacity (L) | 5.5 |
| Fuel Consumption | ≤275 g/kW·h |
| Engine Oil Capacity (L) | 1.1 |
| Shaft Type | Taper shaft |
| Output shaft diameter （mm） | Large‑end diameter 26 mm, Small‑end diameter 18 mm |
| Effective taper length (mm) | 40 |
| Taper ratio | 1:10 |
| Keyway (mm) | 8 mm flat key |
| Total shaft sticking‑out length (mm) | 52 |
| Rotation direction (view from output end) | Counter‑clockwise |
| Net Weight / Gross Weight（kg) | 48/52 |
| Dimensions (mm) | 515 × 490× 570 |
Package Includes
- Unit
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
Petrol Generator

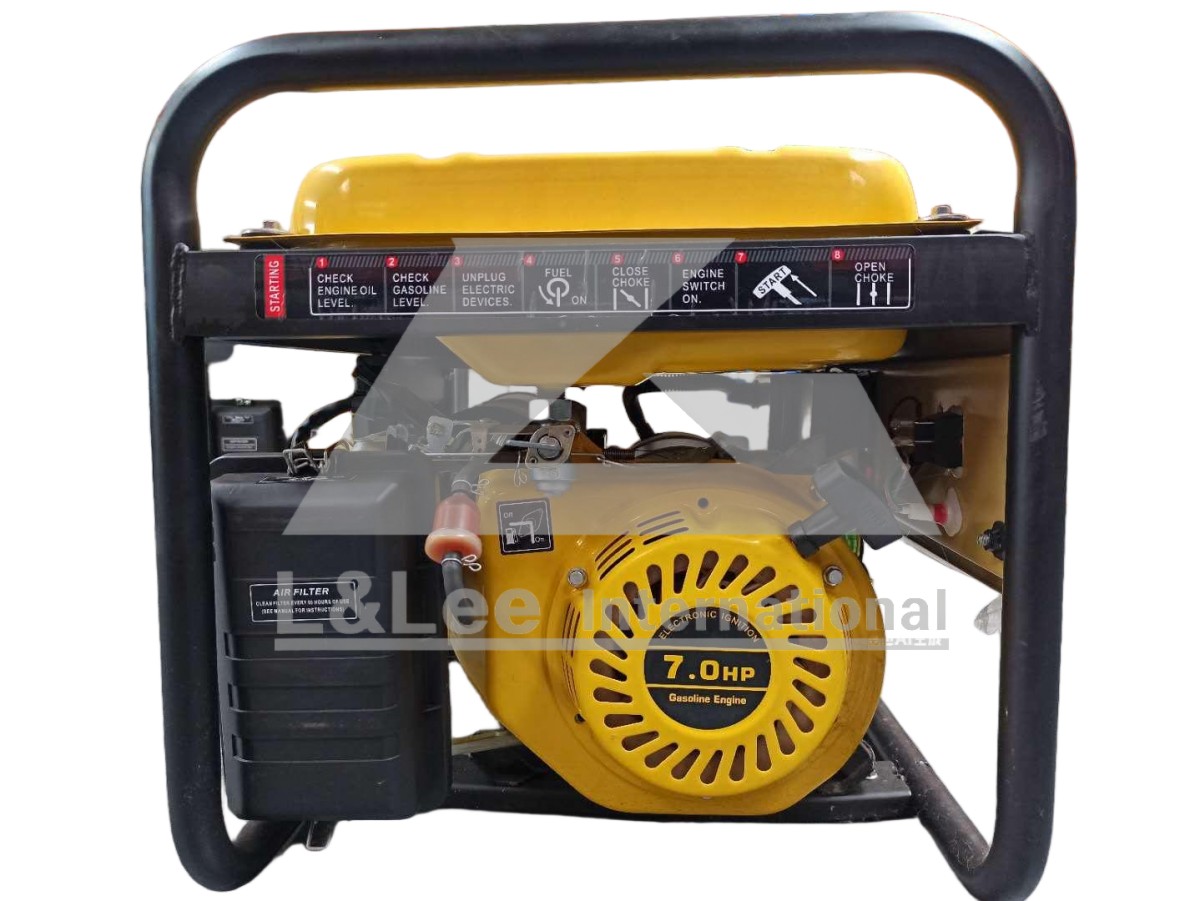

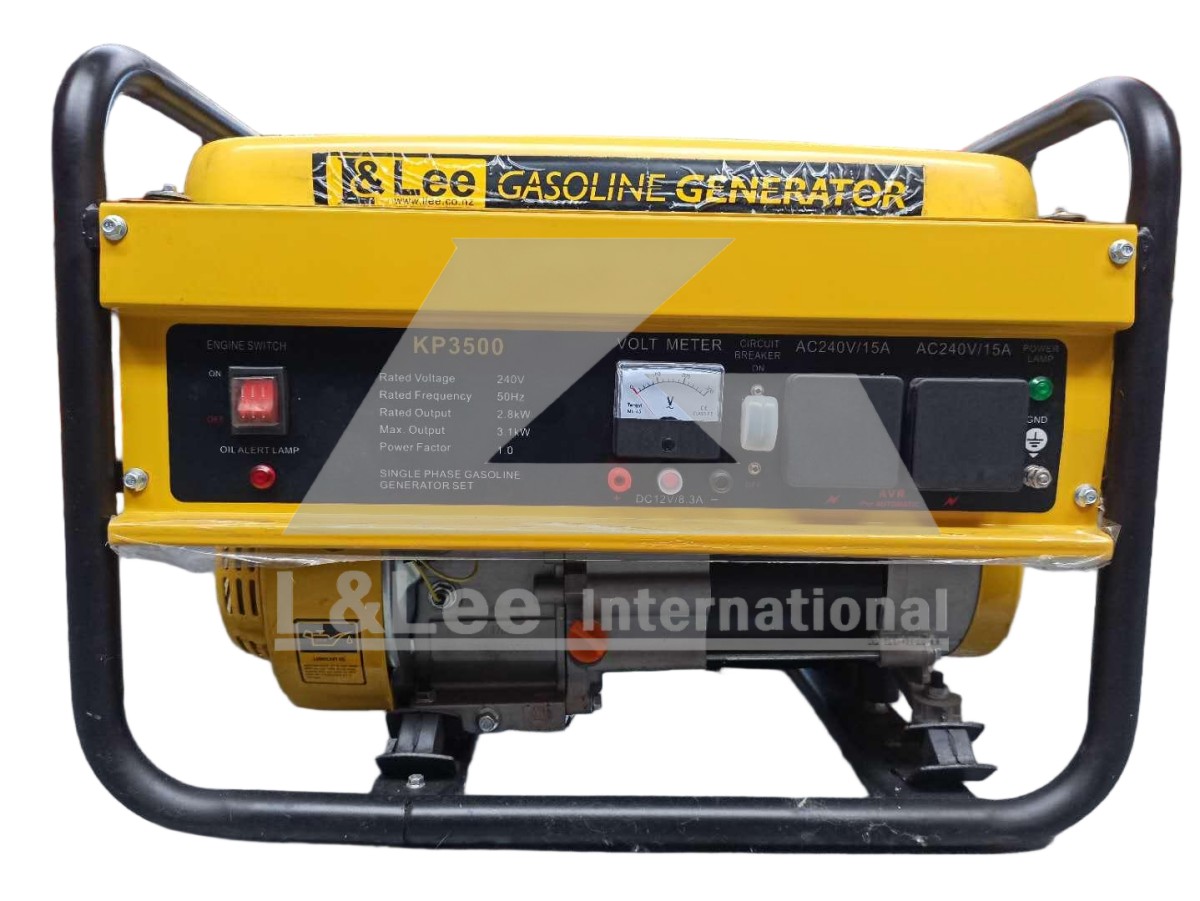

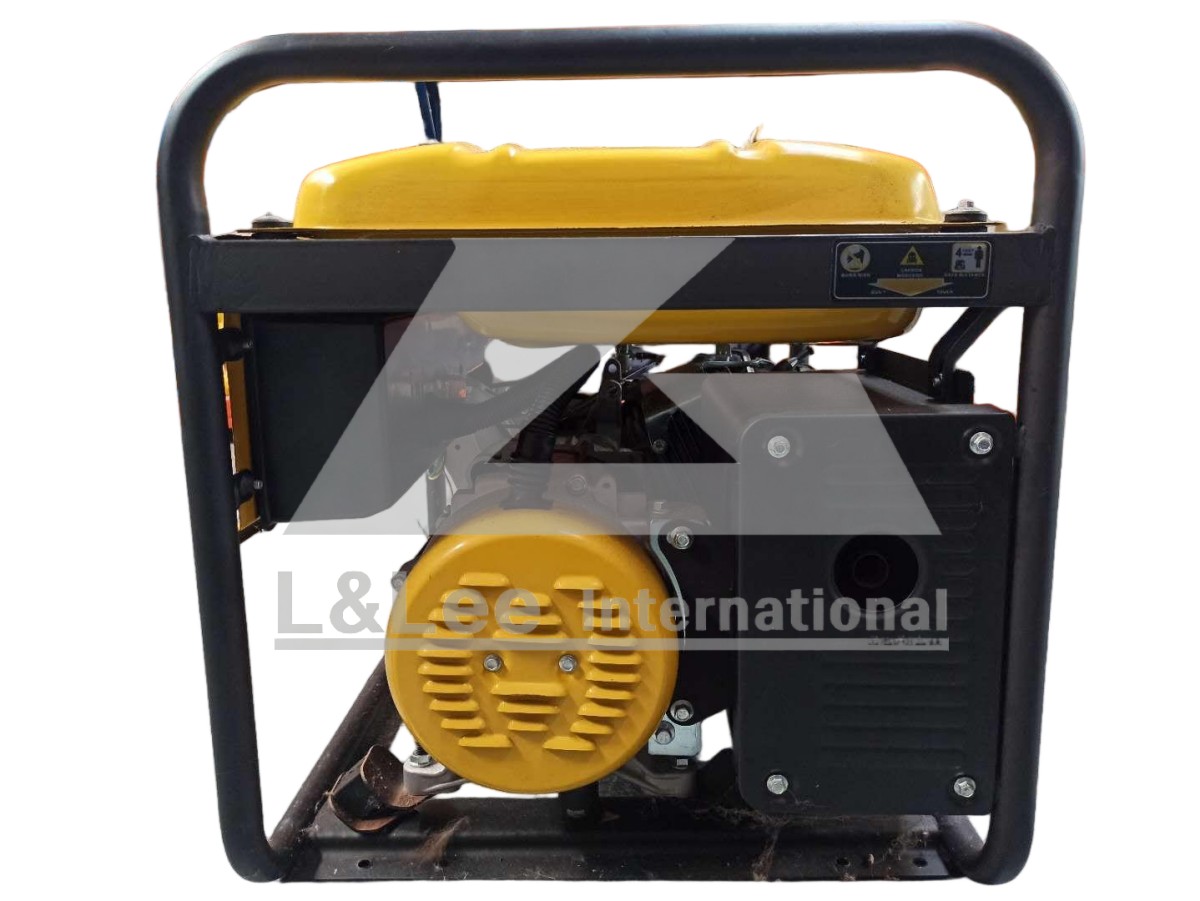

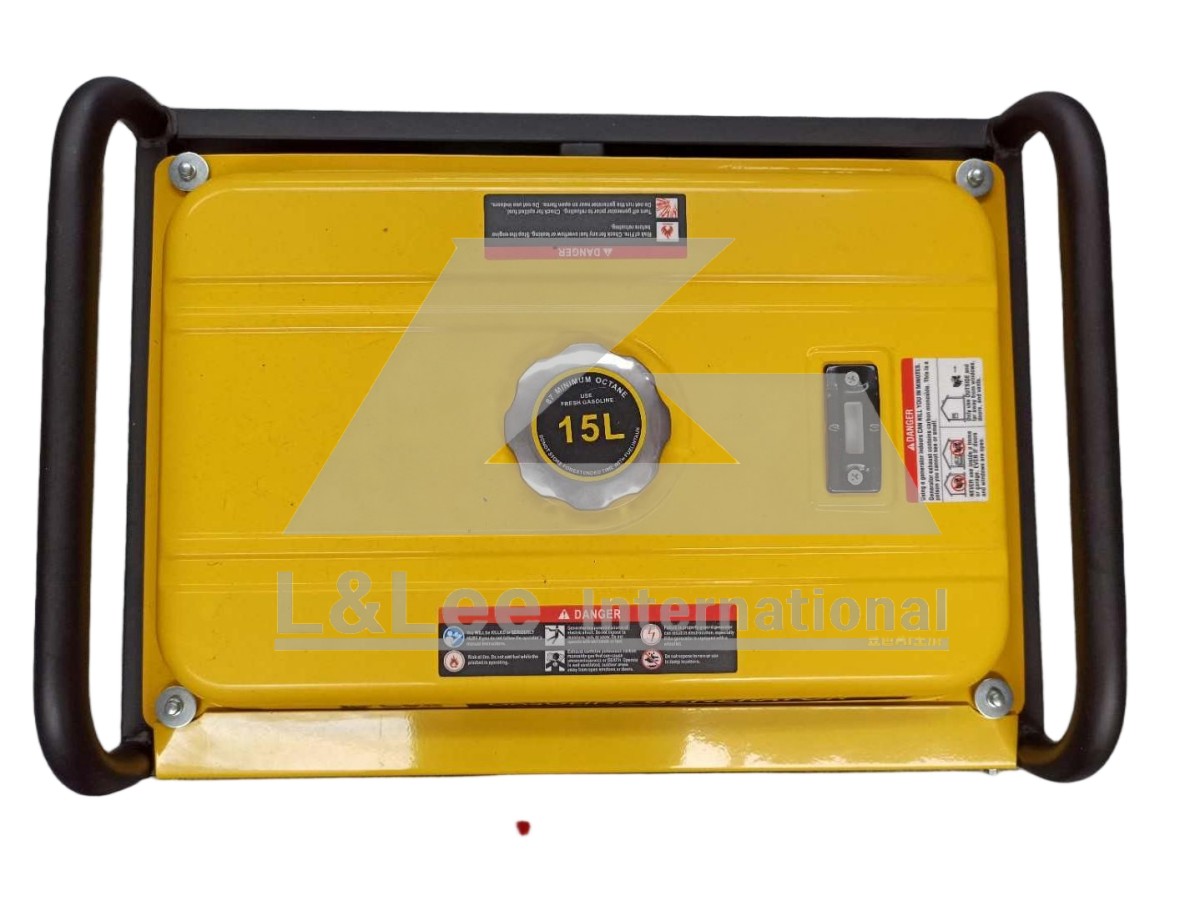

E. Generator KP3500 3.1 kW
Introductions
The KP3500 is a portable single‑phase petrol generator with rated output 3.1 kW, powered by proven KB168FA 5.5 hp OhV engine. It adopts recoil start, large‑capacity 15 L fuel tank for long continuous operation. Compact frame design with anti‑vibration structure provides steady voltage output. Suitable for household backup, small business and outdoor site power supply.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP3500 |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 2.8 |
| Max. Output (kW) | 3.1 |
| Power Factor | 1.0 |
| Engine Model | KB168FA (5.5 hp) |
| Starting | Recoil start |
| Fuel Tank Capacity (L) | 15 |
| Continuous Running Time (h) | 11 h @ 50% load |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Weight（kg) | 44 |
| Dimensions (mm) | 610 × 450× 460 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler

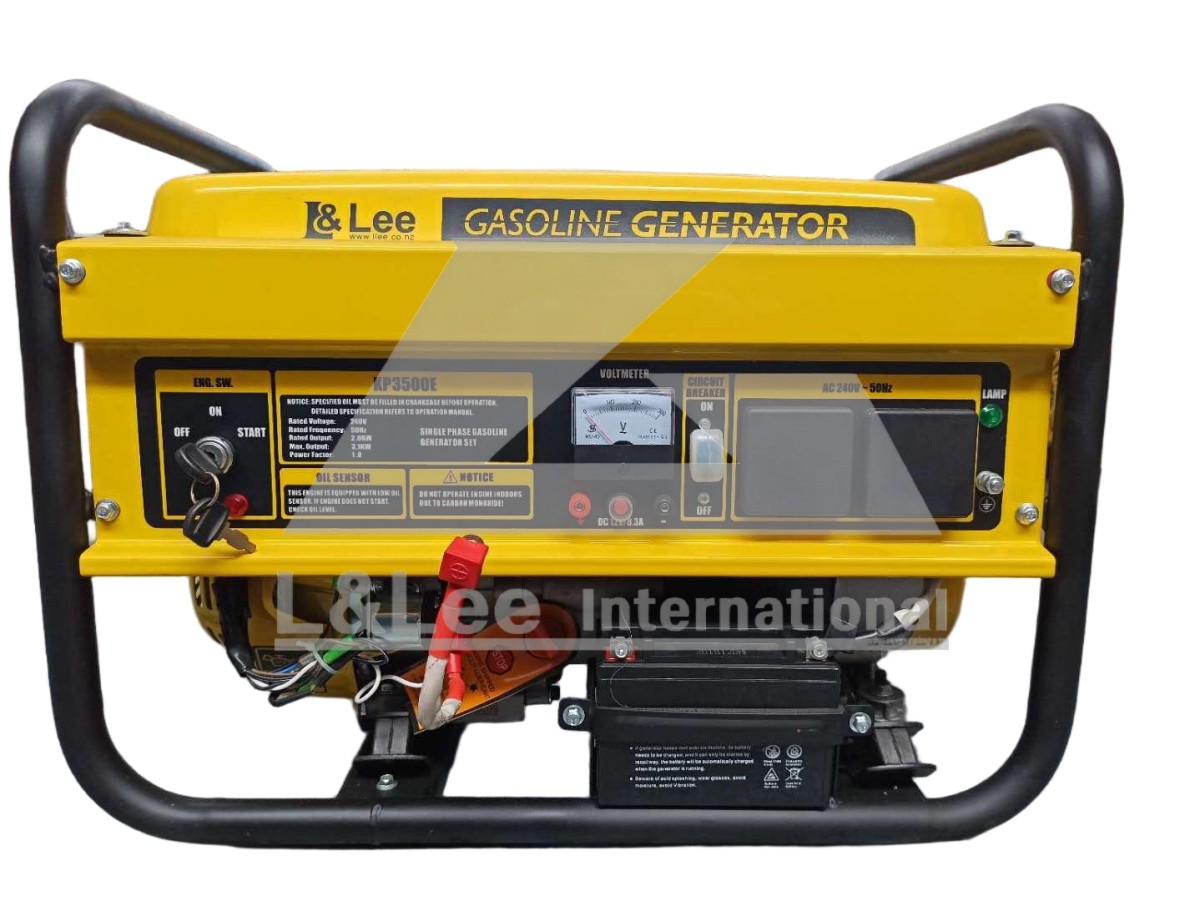

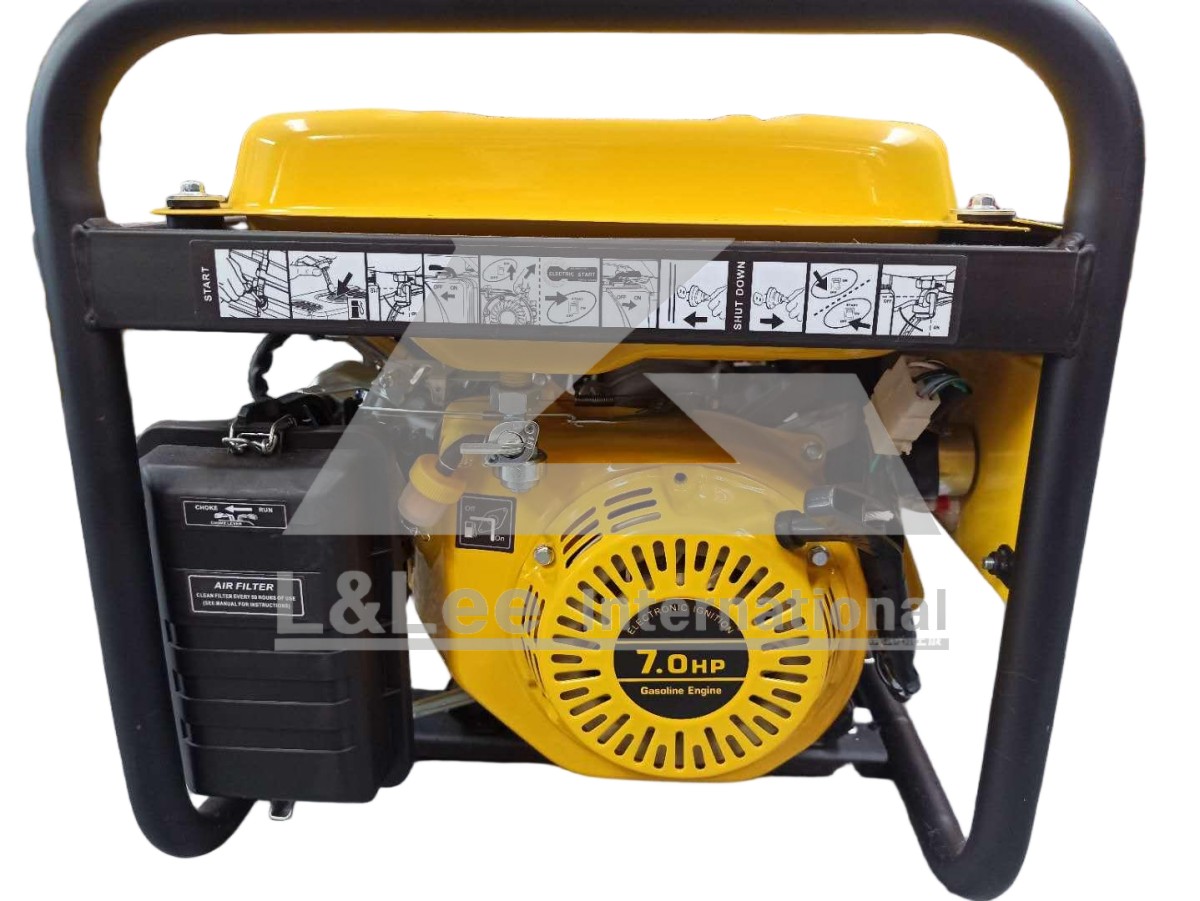

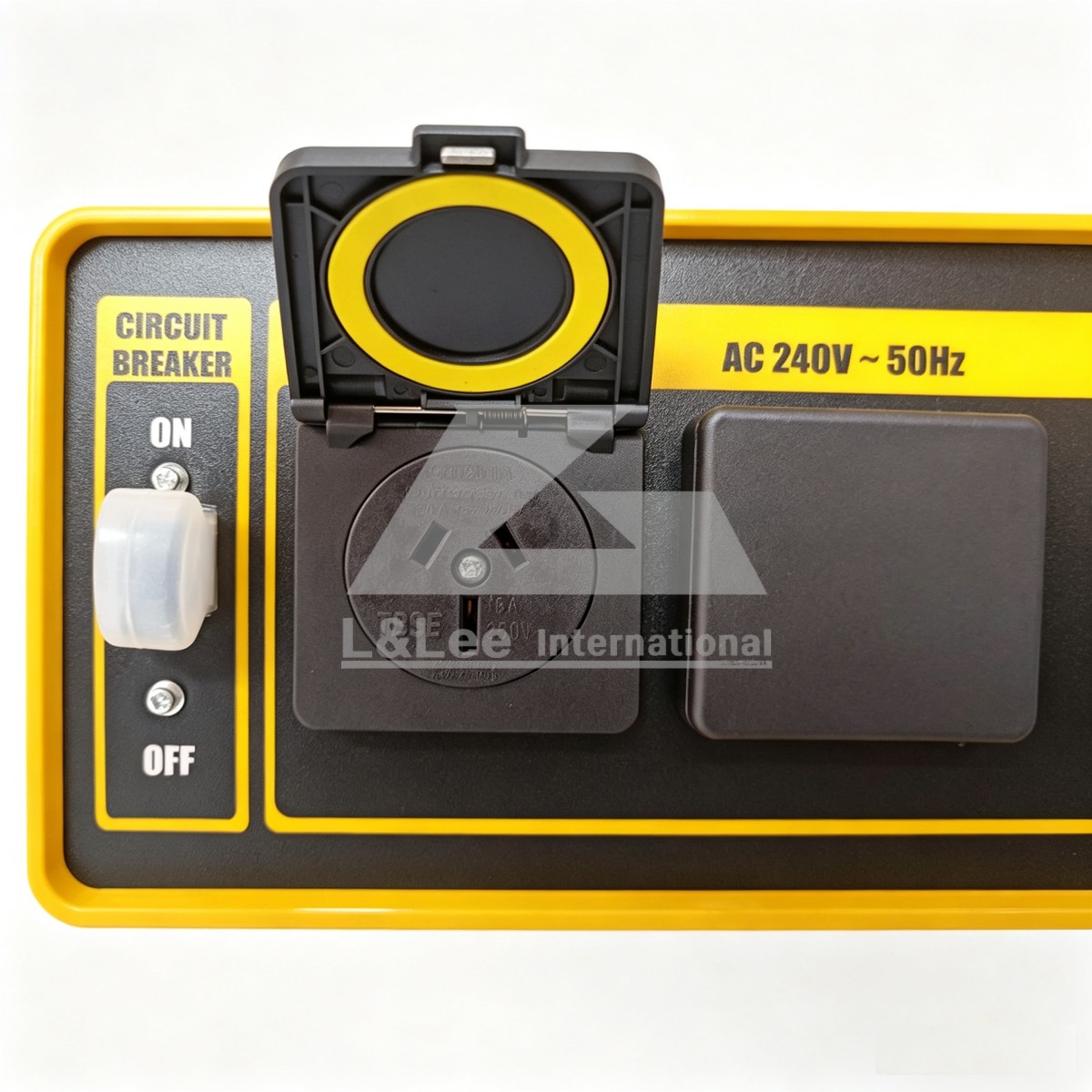

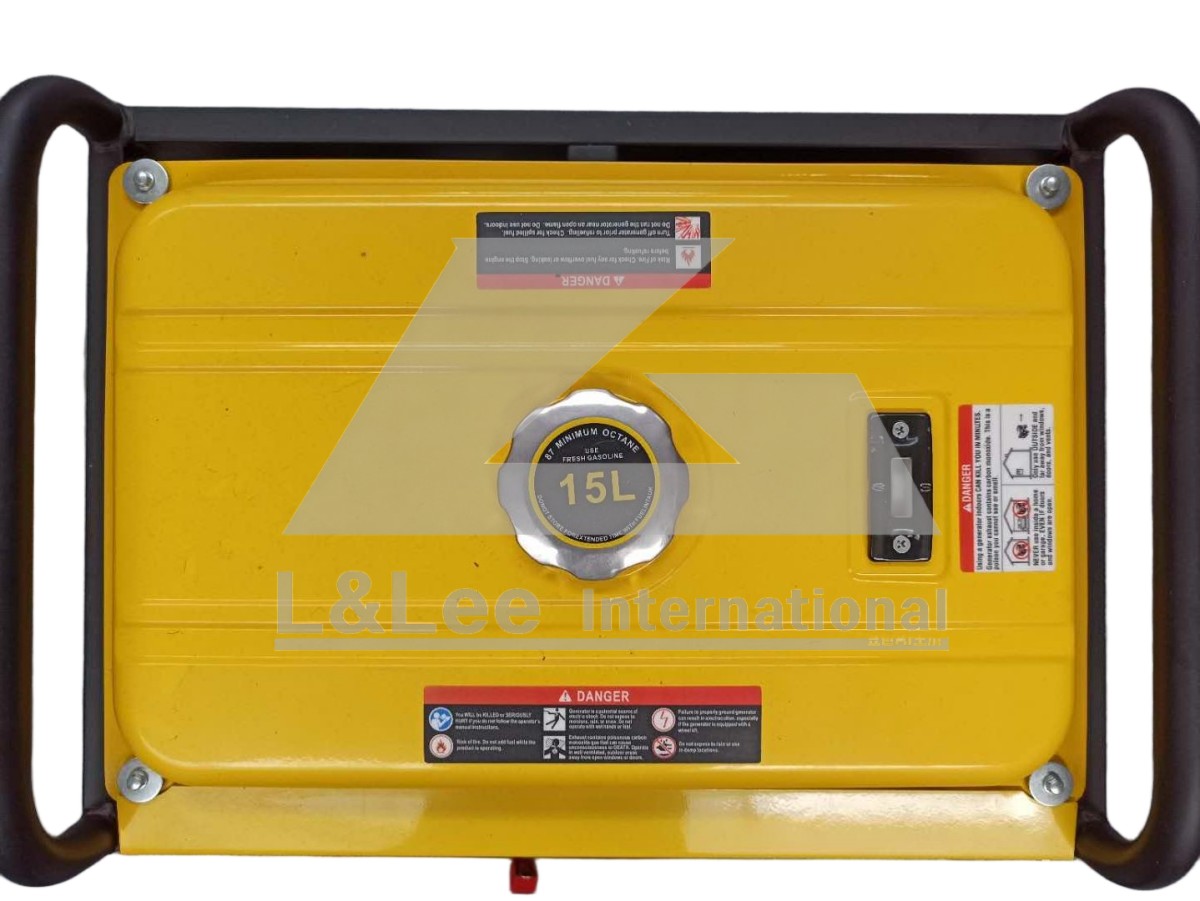

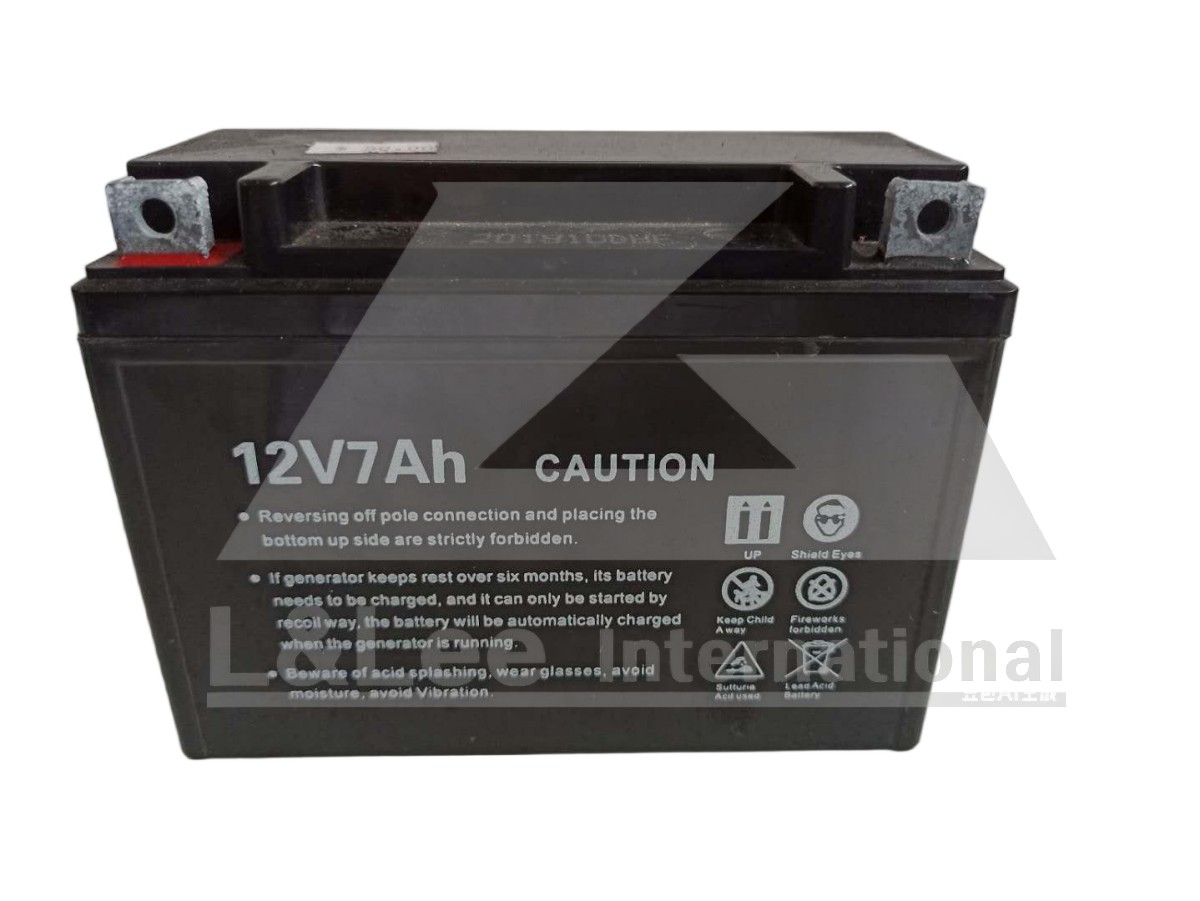

F. Generator KP3500E 3.1 kW（Electric Start）
Introductions
The KP3500E is a portable single‑phase petrol generator with 3.1 kW rated power. Powered by KB168FAE reliable 5.5hp OhV engine, it features convenient electric start with recoil backup for emergency use. The large 15‑litre fuel tank supports long‑hour continuous operation. Anti‑vibration frame ensures stable voltage performance. Ideal for home standBy, small‑scale commercial and outdoor job‑site power requirements.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP3500E |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 2.8 |
| Max. Output (kW) | 3.1 |
| Power Factor | 1.0 |
| Engine Model | KB168FA (5.5 hp) |
| Starting | Electric start with recoil backup |
| Fuel Tank Capacity (L) | 15 |
| Continuous Running Time (h) | 11 h @ 50% load |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Weight（kg) | 44 |
| Dimensions (mm) | 610 × 450× 460 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler

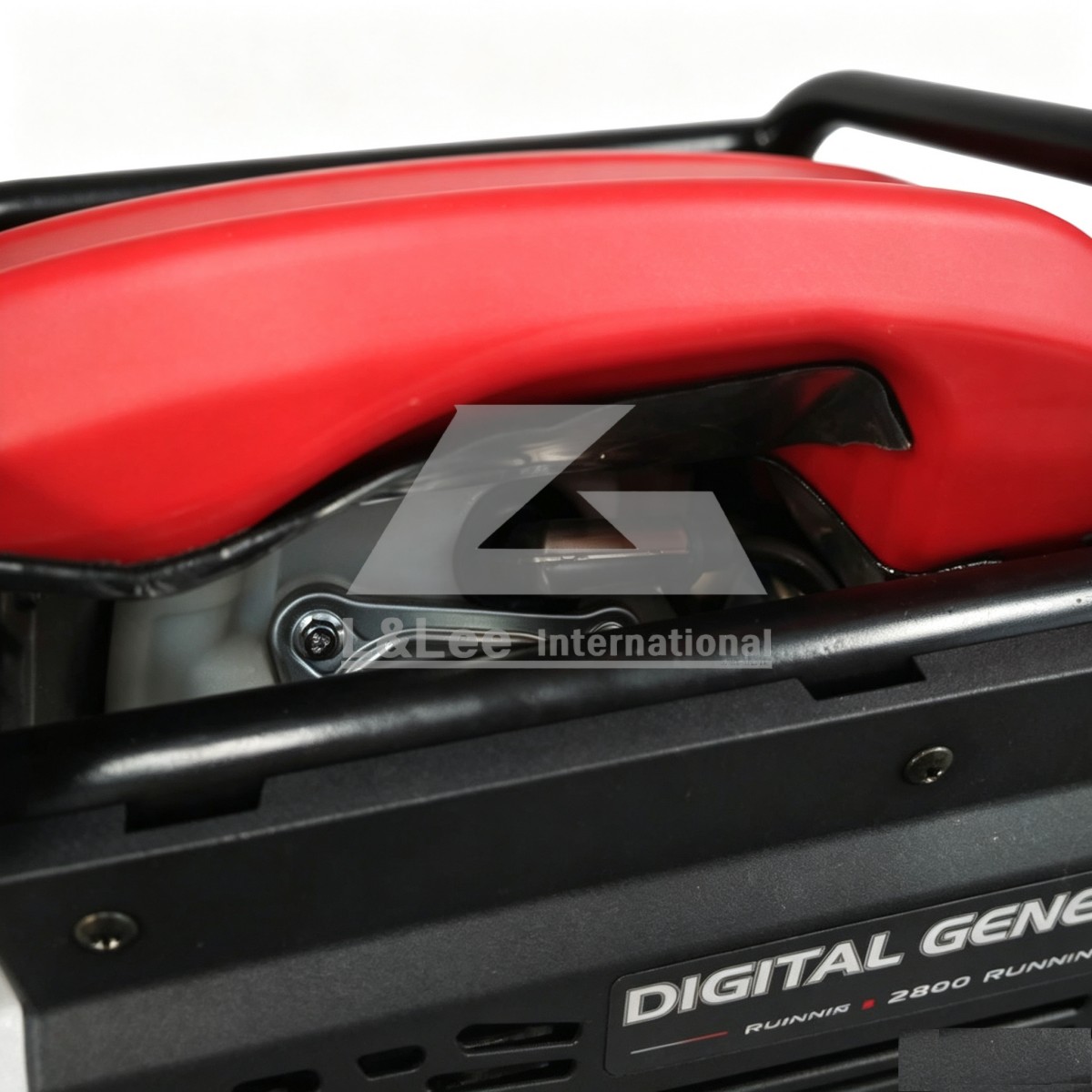

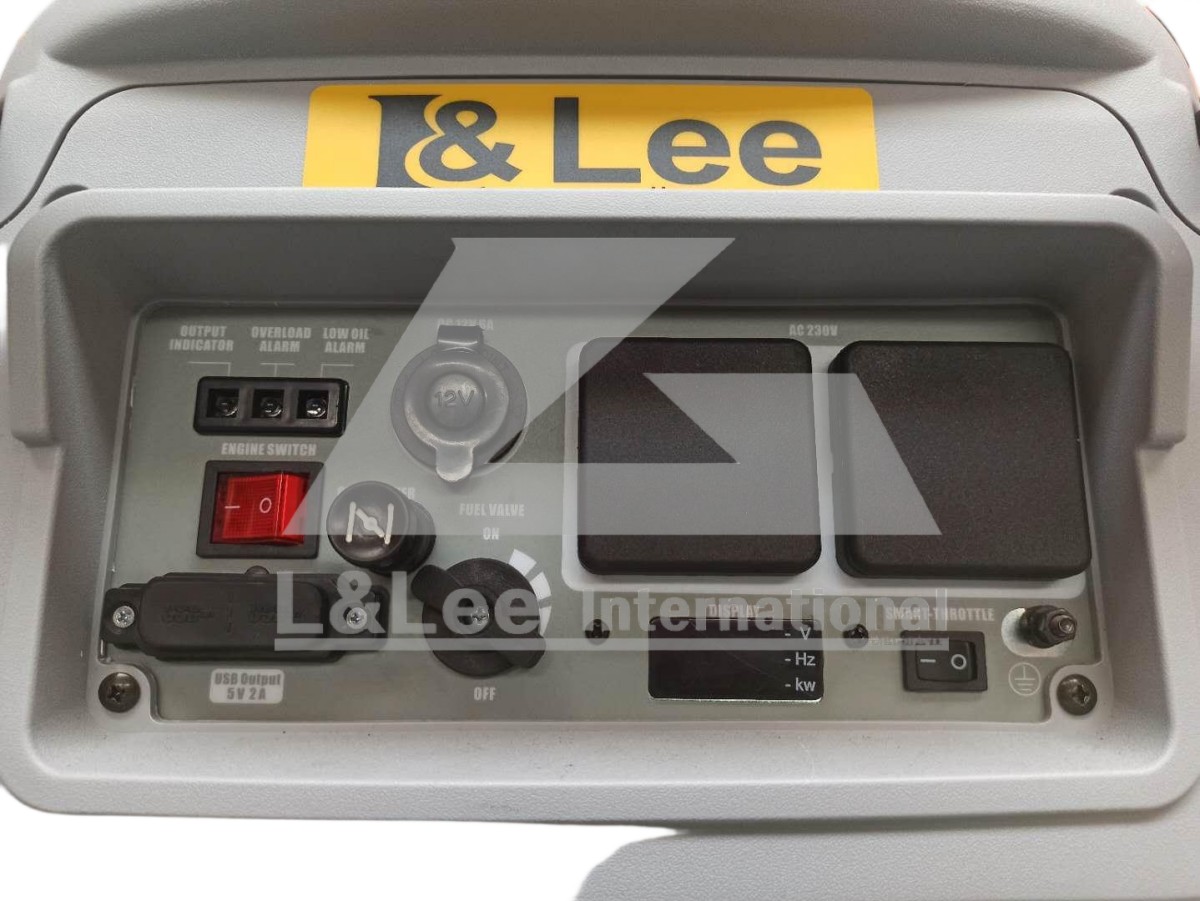

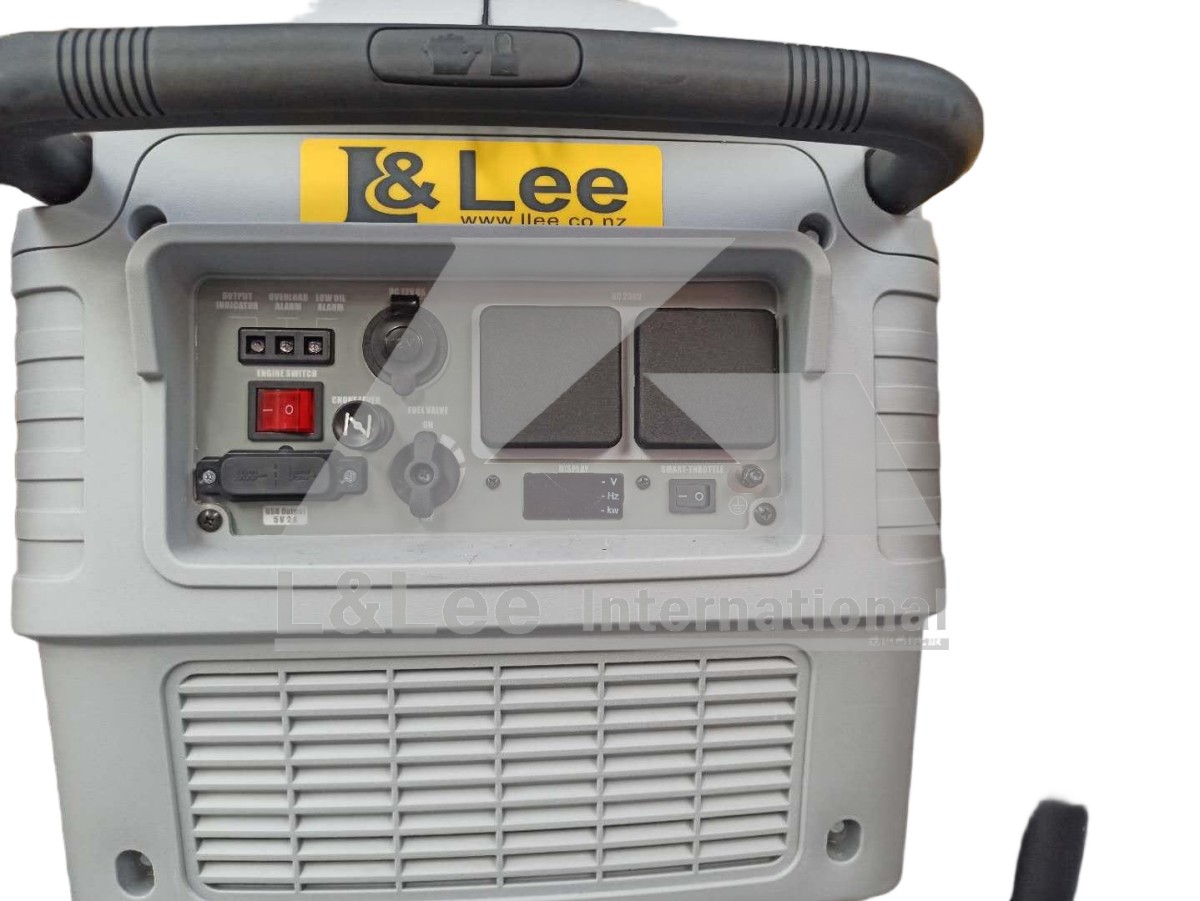

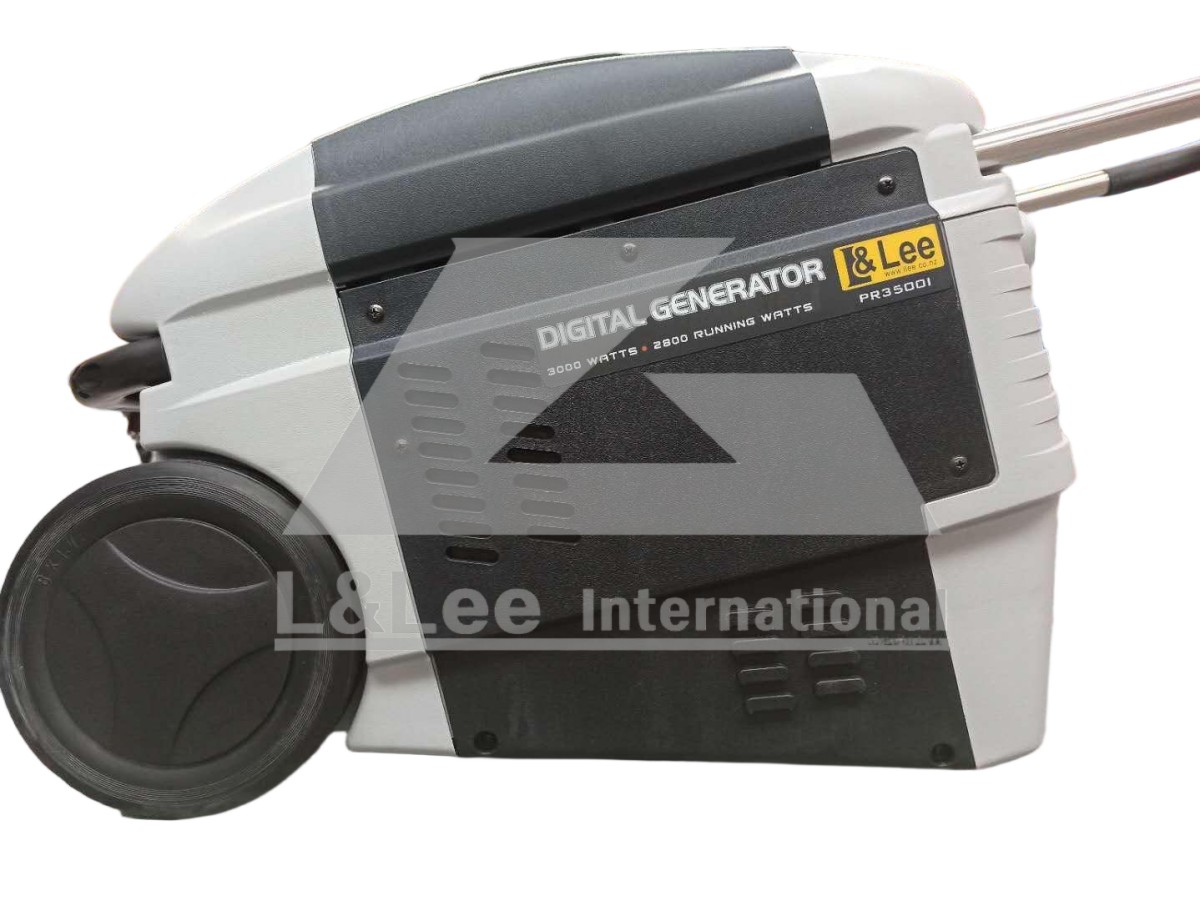

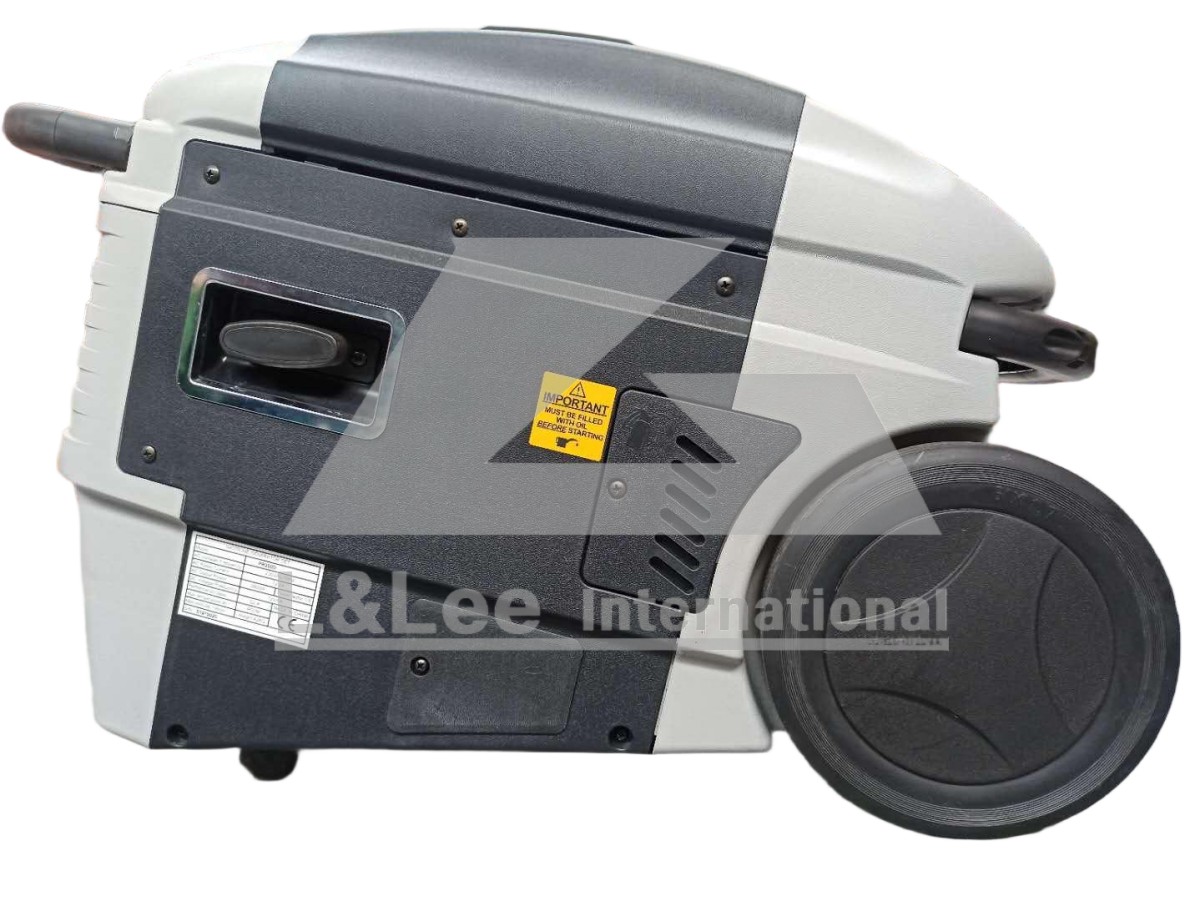

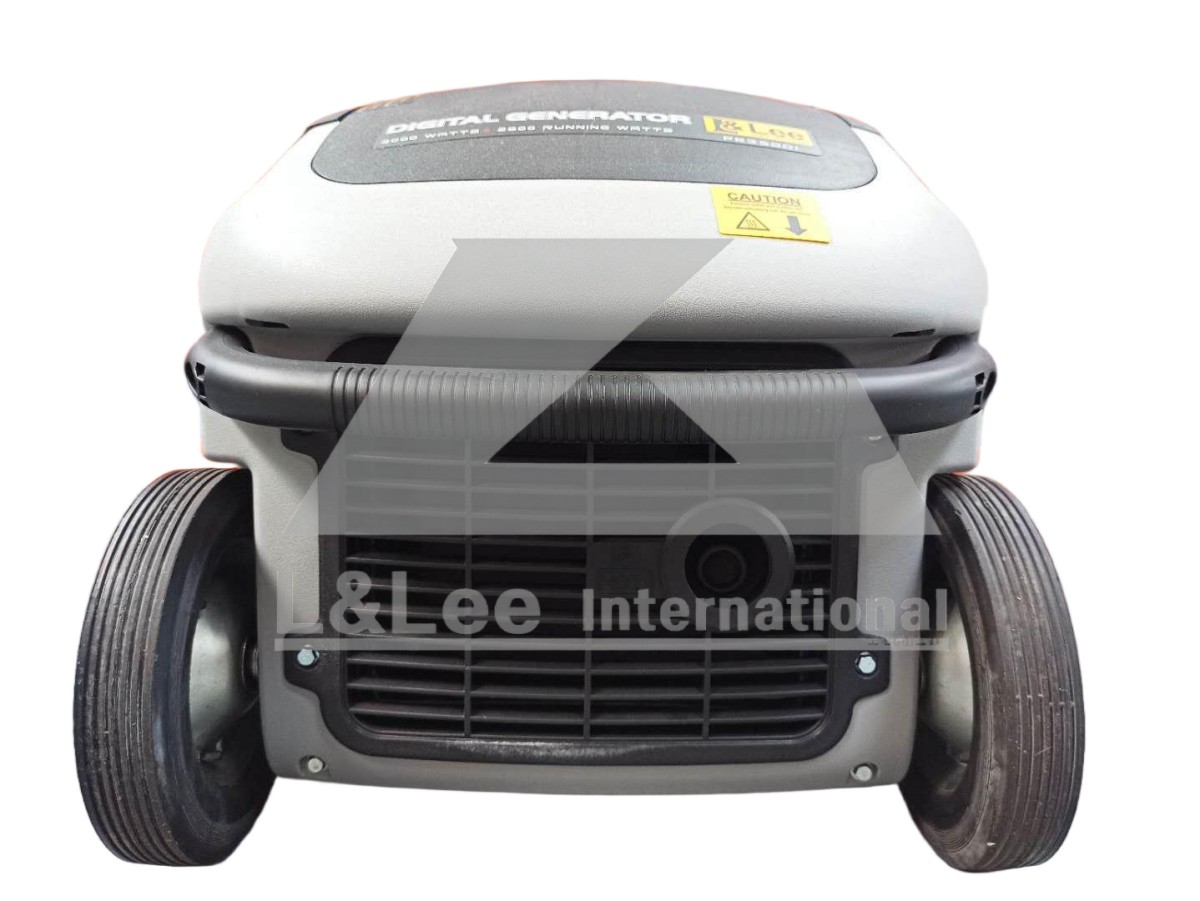

G. Generator PR3500i 3.1kW Inverter with Pure sine wave outputs
Introductions
The PR3500i is a portable closed‑frame inverter petrol generator with 3.1kW Max power. It provides pure sine‑wave output (ThD ≤3%) which safely powers laptops, televisions and other delicate electronic equipment. Powered by reliable 212 cc OhV 4‑stroke engine with recoil starting. Built‑in eco‑mode adjusts engine speed according to load to reduce fuel consumption and noise level A low A 61 dB(A) at 7 metres. Equipped with low‑oil‑level protection, overload protection and digital display for voltage, frequency and running‑hour reading. Ideal for cAing, caravan, household emergency backup and outdoor leisure power supply.
Specifications
| Model | PR3500i Silent type |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 2.8 |
| Max. Output (kW) | 3.1 |
| Power Factor | 1.0 |
| Engine Model | 7hp, 4 stroke |
| Starting | Recoil start |
| Fuel Tank Capacity (L) | 12 |
| Continuous Running Time (h) | 6.5 h @ 50% load |
| Fuel Consumption | Approx:1.5 liters/hour with full loads rated outputs |
| Output wave | Pure sine wave |
| Multi displays | Digital display V/Hz/kW/hour 4-in-1 |
| Noise Level (dB) | 61 dB(A) @7 m |
| Winding | Pure copper |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection |
| Feature | Eco‑mode function |
| Weight（kg) | 42 |
| Dimensions (mm) | 610 × 450× 460 |
Package Includes
- Unit
- 1 15 A plugs
- 1 12V plug+clips
- 1 Screw driver
- 1 Oil filler

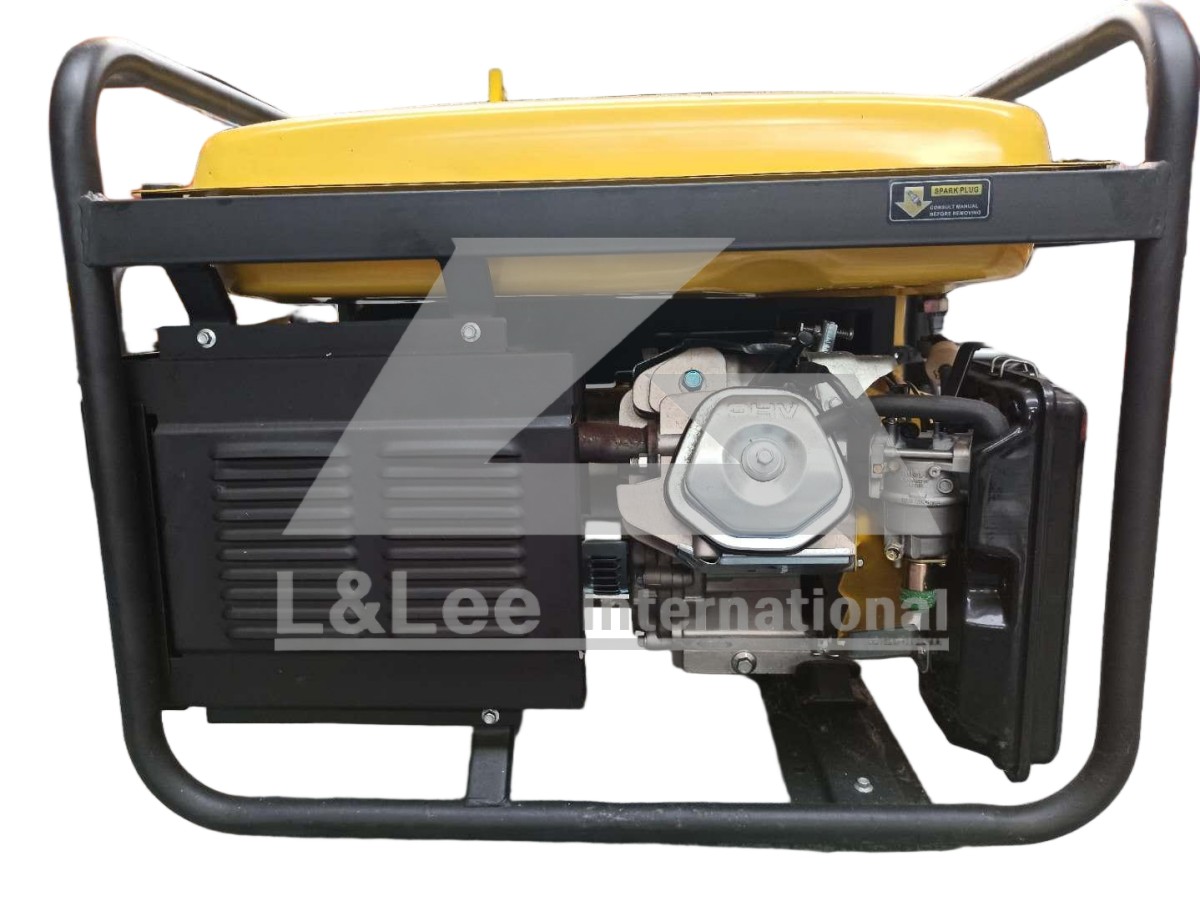

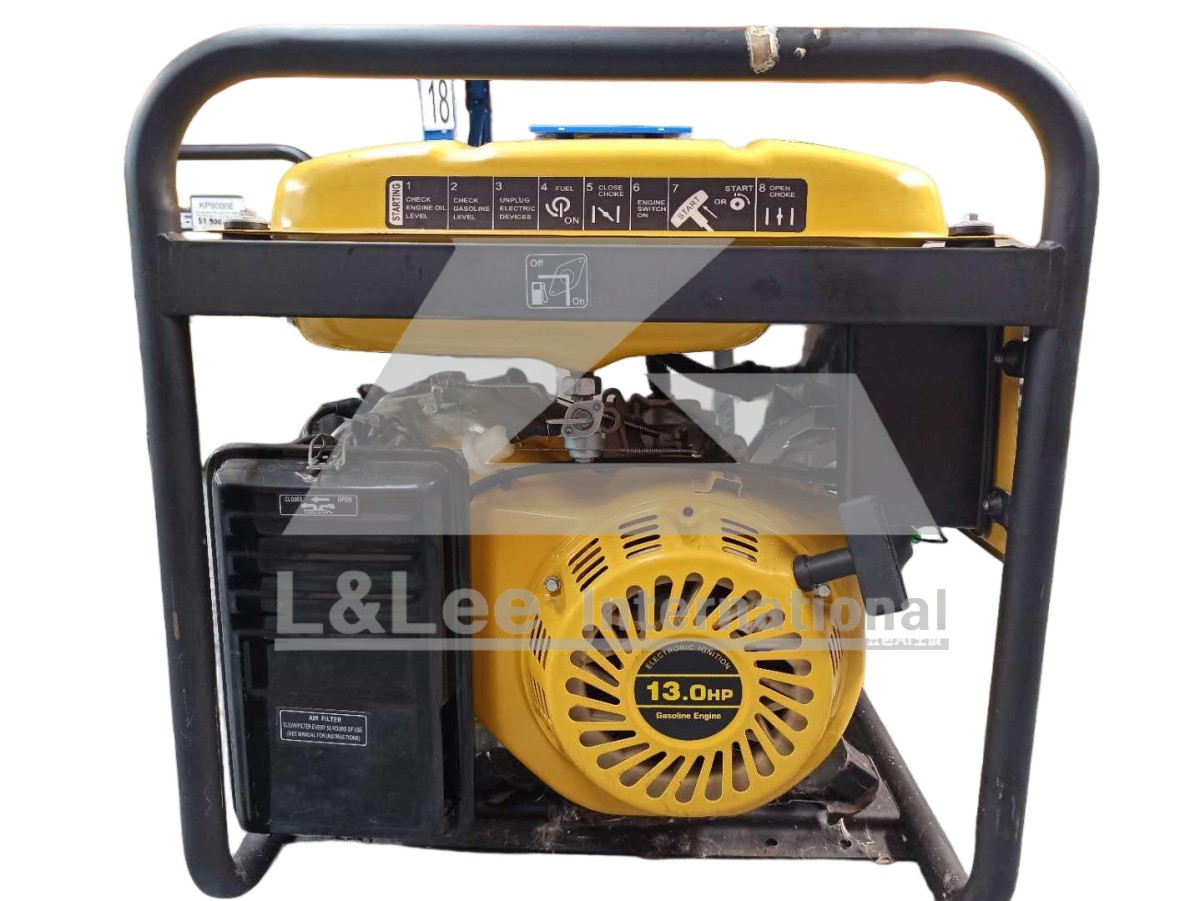

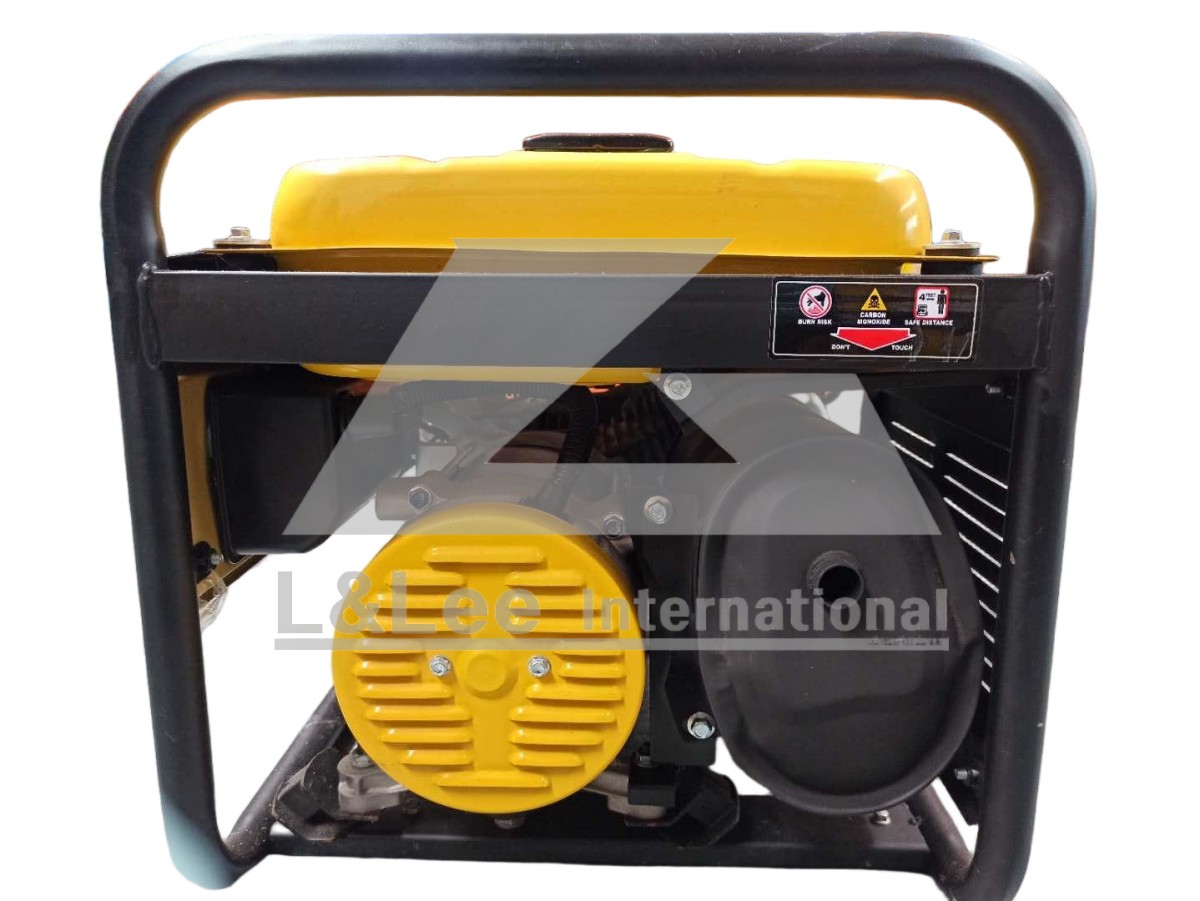

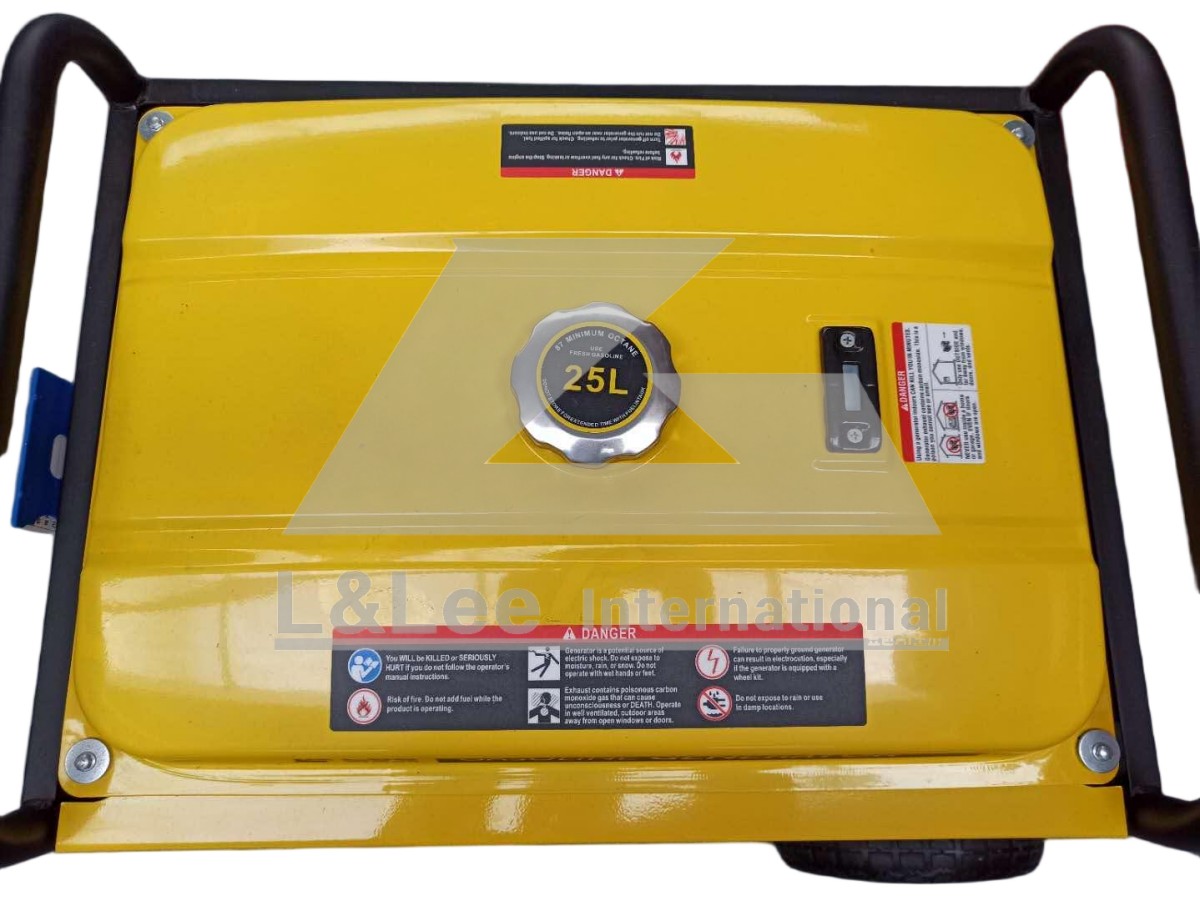

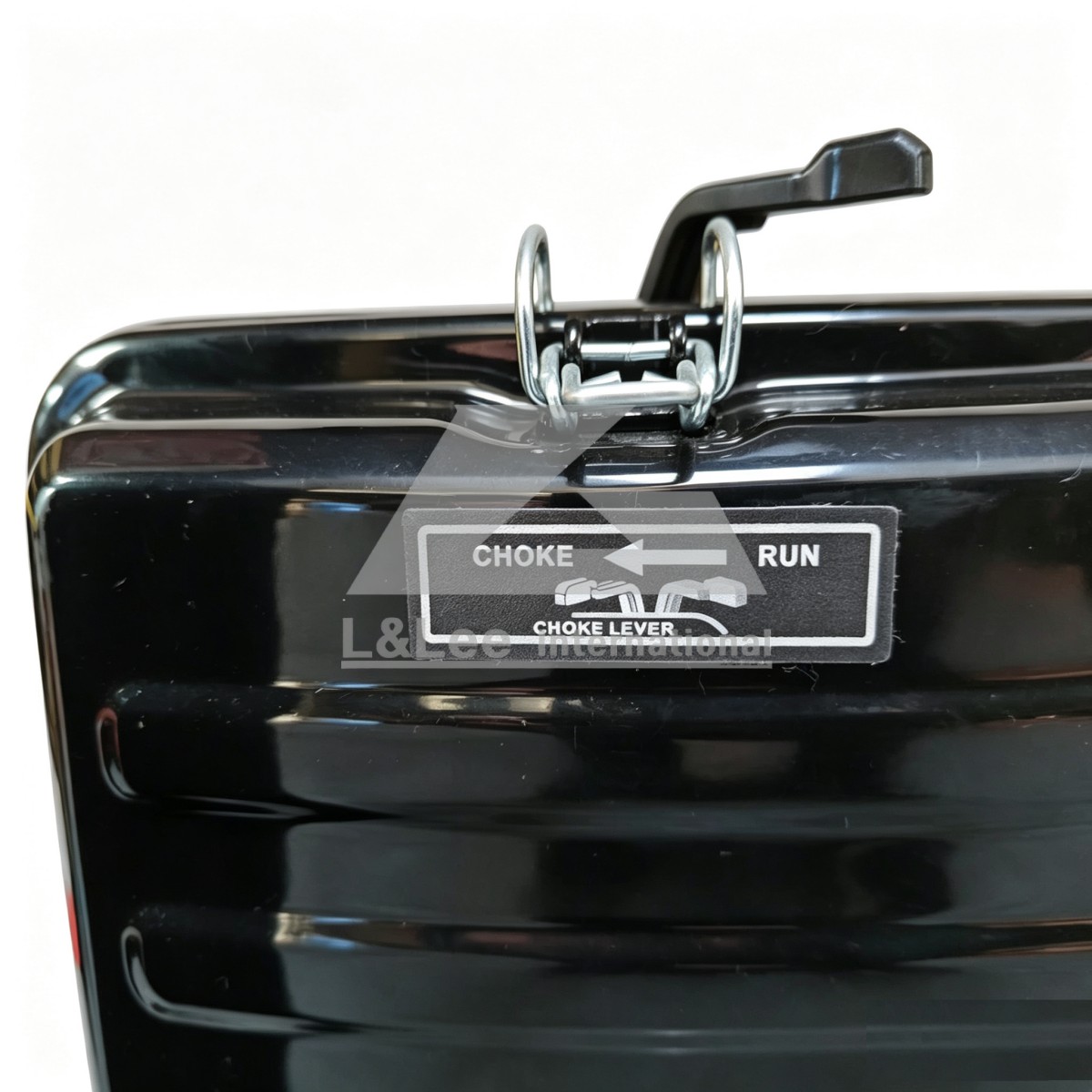

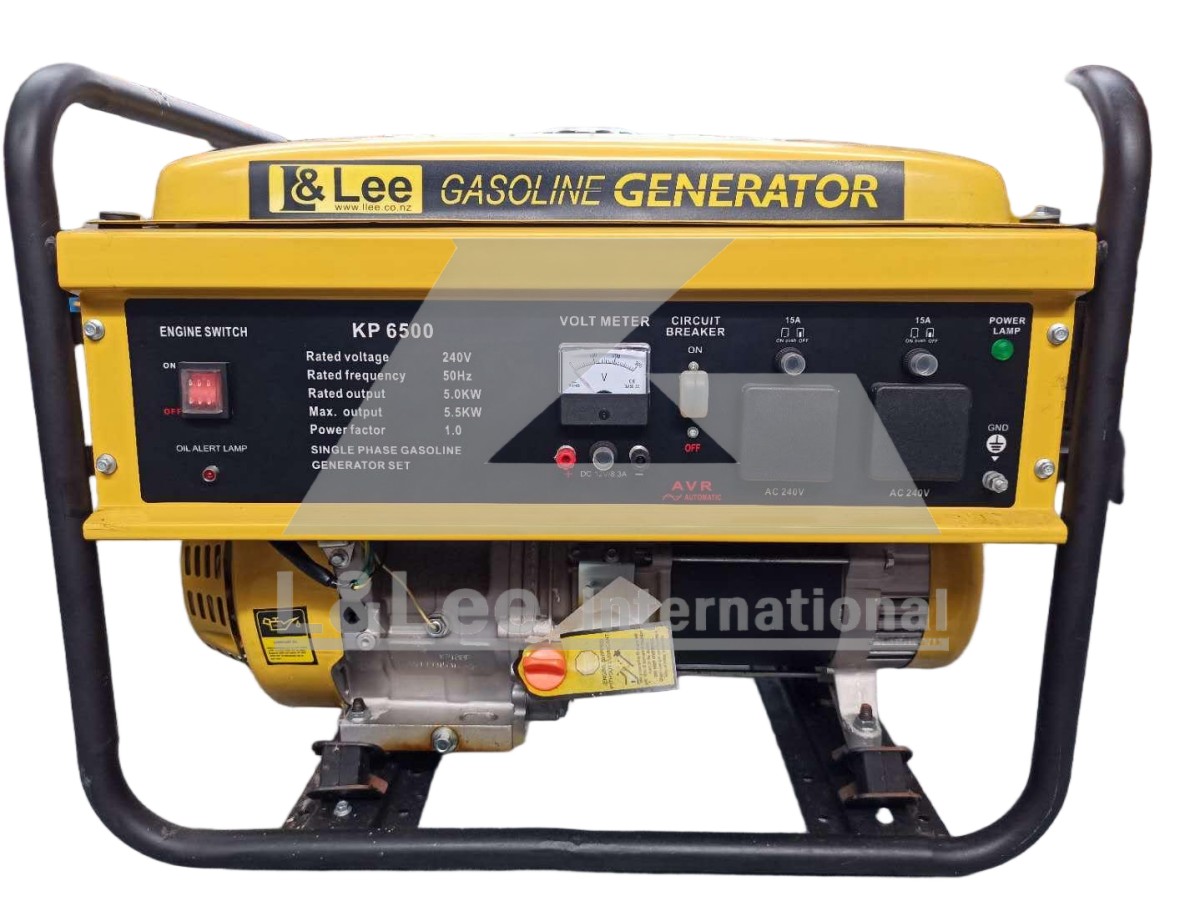

h. Generator KP6500 5.5 kW（Recoil Start）
Introductions
The KP6500 is an open‑frame portable single‑phase petrol generator with maximum 5.5 kW output, powered by robust KB188F 13 hp OhV 4‑stroke engine. It adopts recoil starting system and AVR automatic voltage regulation to deliver steady clean AC power. Large‑capacity 25‑litre fuel tank enables long‑time continuous operation. Built‑in low‑oil‑level shutdown and overload protection enhance operational safety. Solid heavy‑duty frame suits household standBy, farm use and outdoor construction‑site emergency power supply.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP6500 |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 5.0 |
| Max. Output (kW) | 5.5 |
| Power Factor | 1.0 |
| Engine Model | KB188F（13 hp petrol engine） |
| Starting | Recoil start |
| Fuel Tank Capacity (L) | 25 |
| Continuous Running Time (h) | 8.5 h @ 50% load |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection |
| Noise Level (dB) | 76dB(A) @7 m |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Weight（kg) | 84 |
| Dimensions (mm) | 695 × 525× 565 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler

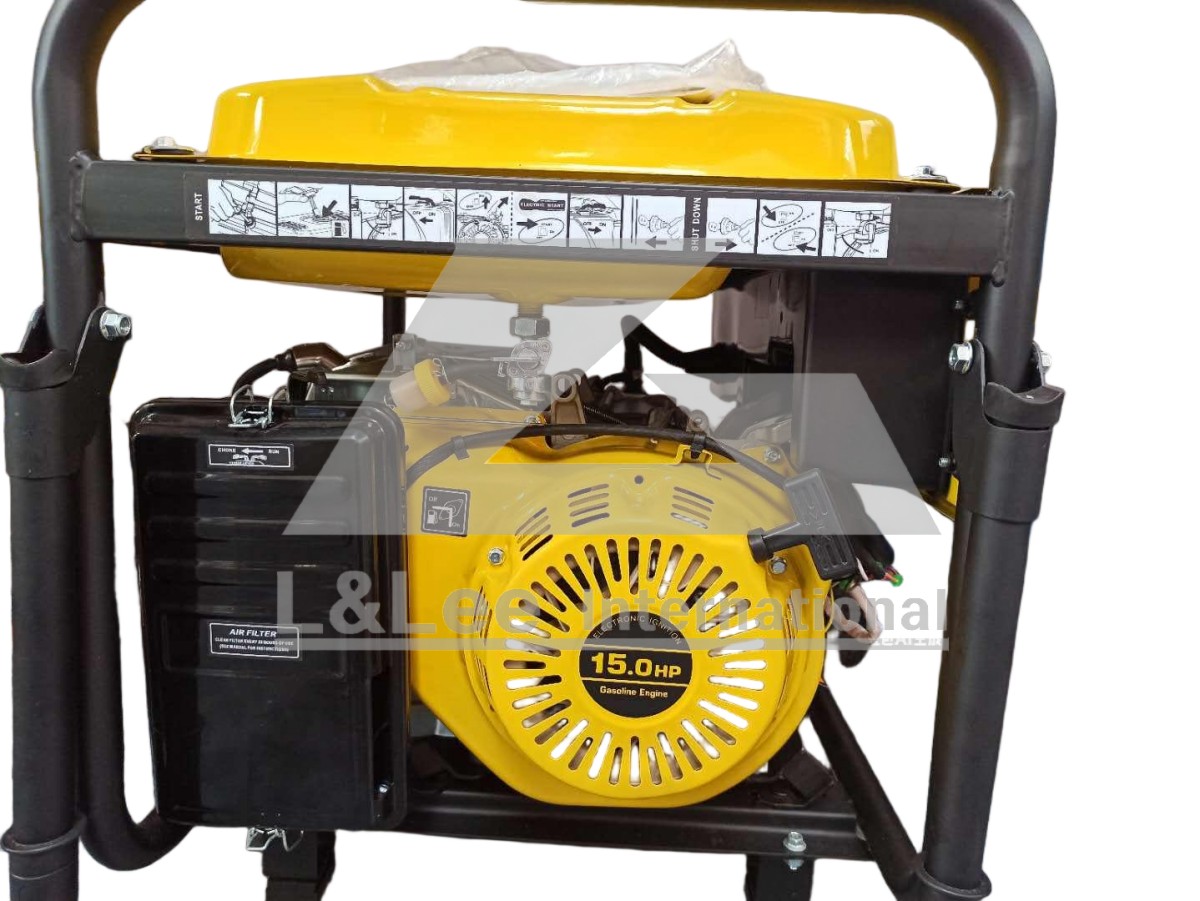

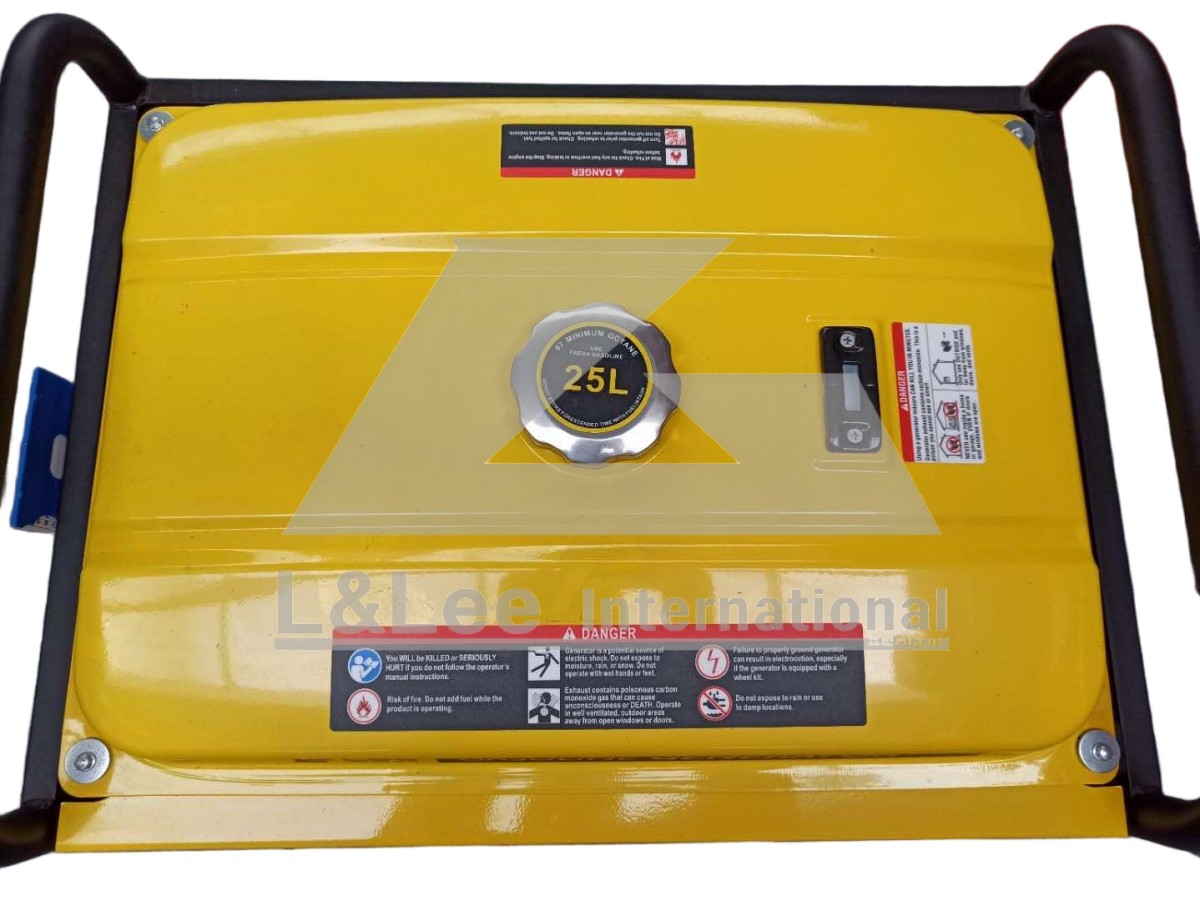

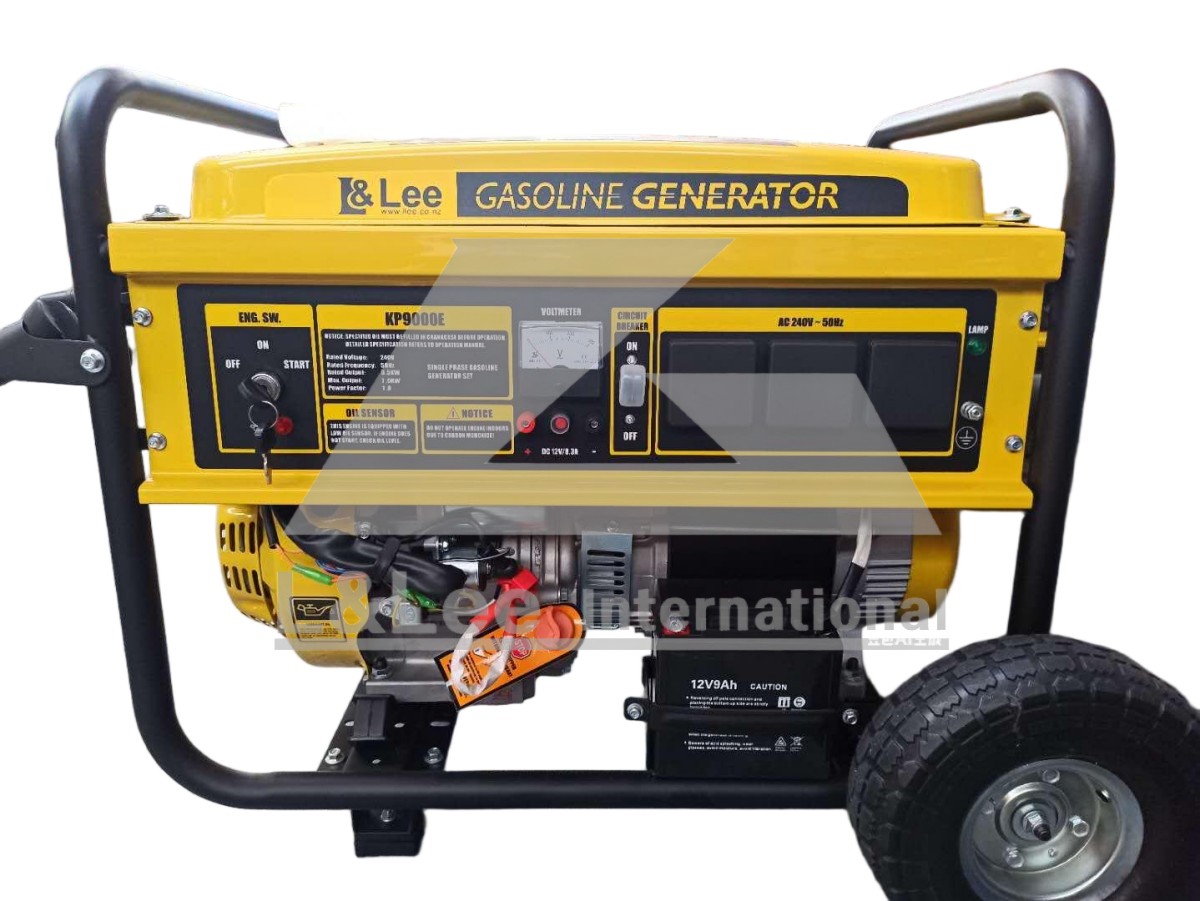

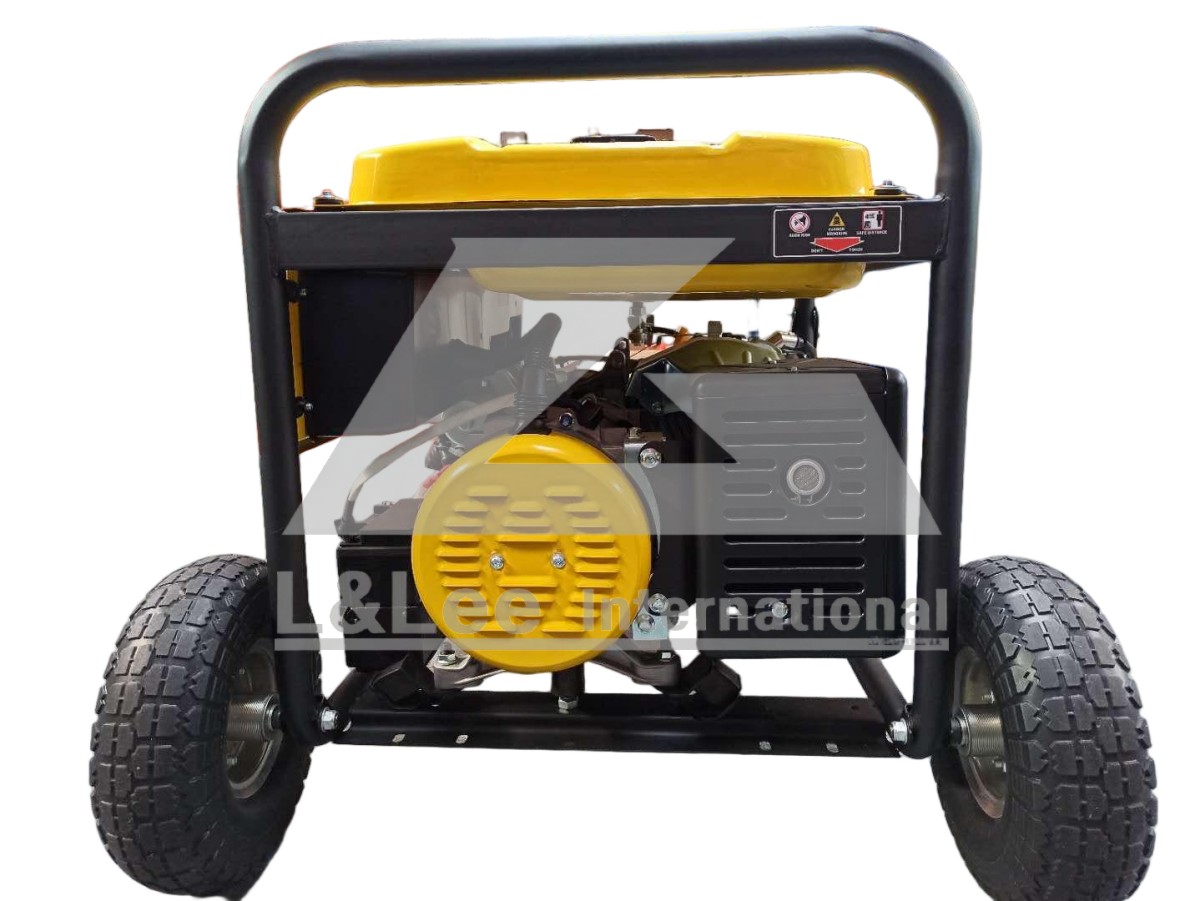

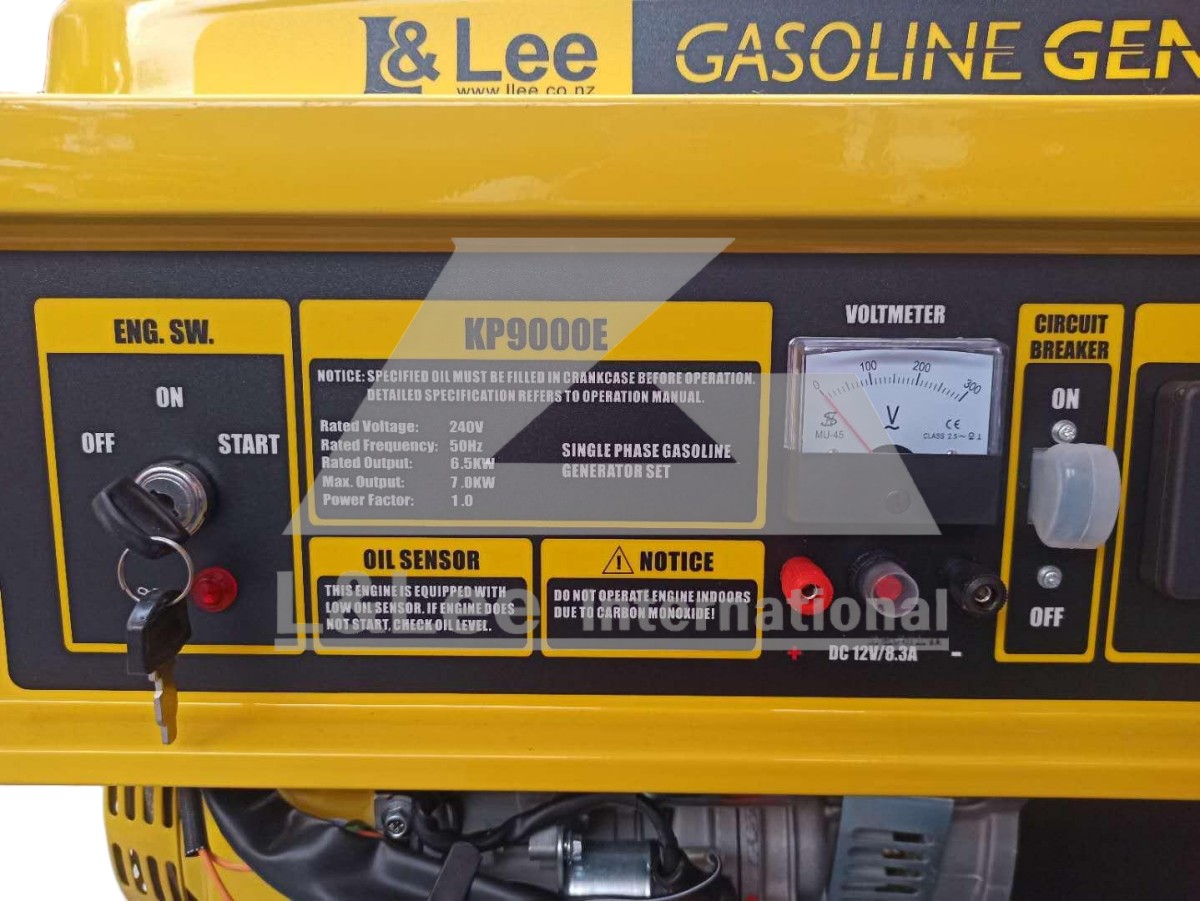

I. Generator KP9000E 7.0 kW（Electric Start）
Introductions
The KP9000E is an open‑frame single‑phase portable petrol generator with 7.0 kW Max power. It is powered by heavy‑duty 15hp OhV engine, equipped with convenient electric start together with backup recoil start. Built‑in AVR automatic voltage regulator provides stable AC output. The large 25‑litre fuel tank supports long continuous working hours. Low‑oil‑pressure shutdown and overload protection safeguard the unit. Robust metal frame makes it well‑suited for residential standBy, workshops, farms and harsh construction‑site power requirements.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP9000E |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 6.5 |
| Max. Output (kW) | 7.0 |
| Power Factor | 1.0 |
| Engine Model | 15hp petrol engine |
| Starting | Electric start + backup recoil start |
| Fuel Tank Capacity (L) | 25 |
| Continuous Running Time (h) | 8.0 h @ 50% load |
| Outputs | 3 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection |
| Noise Level (dB) | 78dB(A) @7 m |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Timer | Yes |

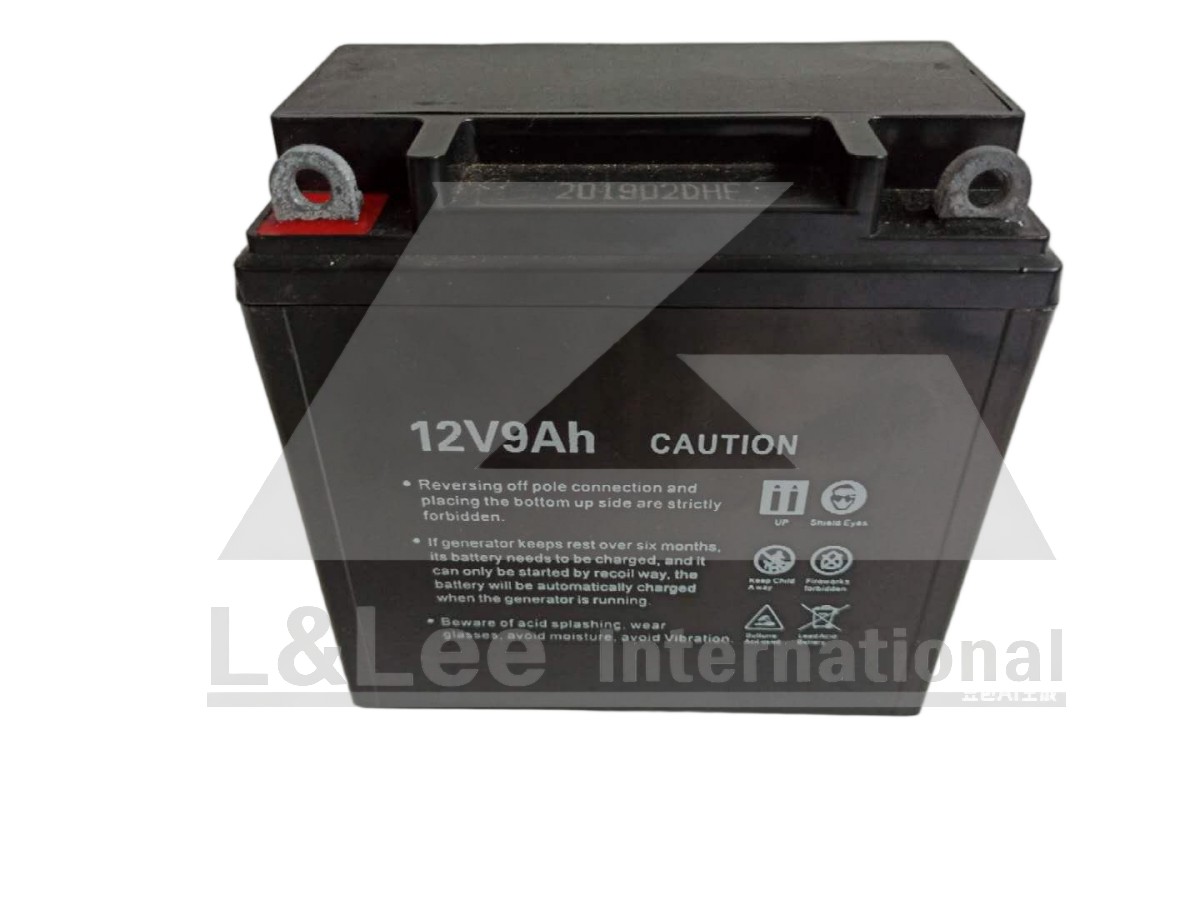

| Battery | 12V 9Ah |
| Tyres | Big solid |
| Weight（kg) | 87 |
| Dimensions (mm) | 820 × 535× 565 |
Package Includes
- Unit
- 3 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler

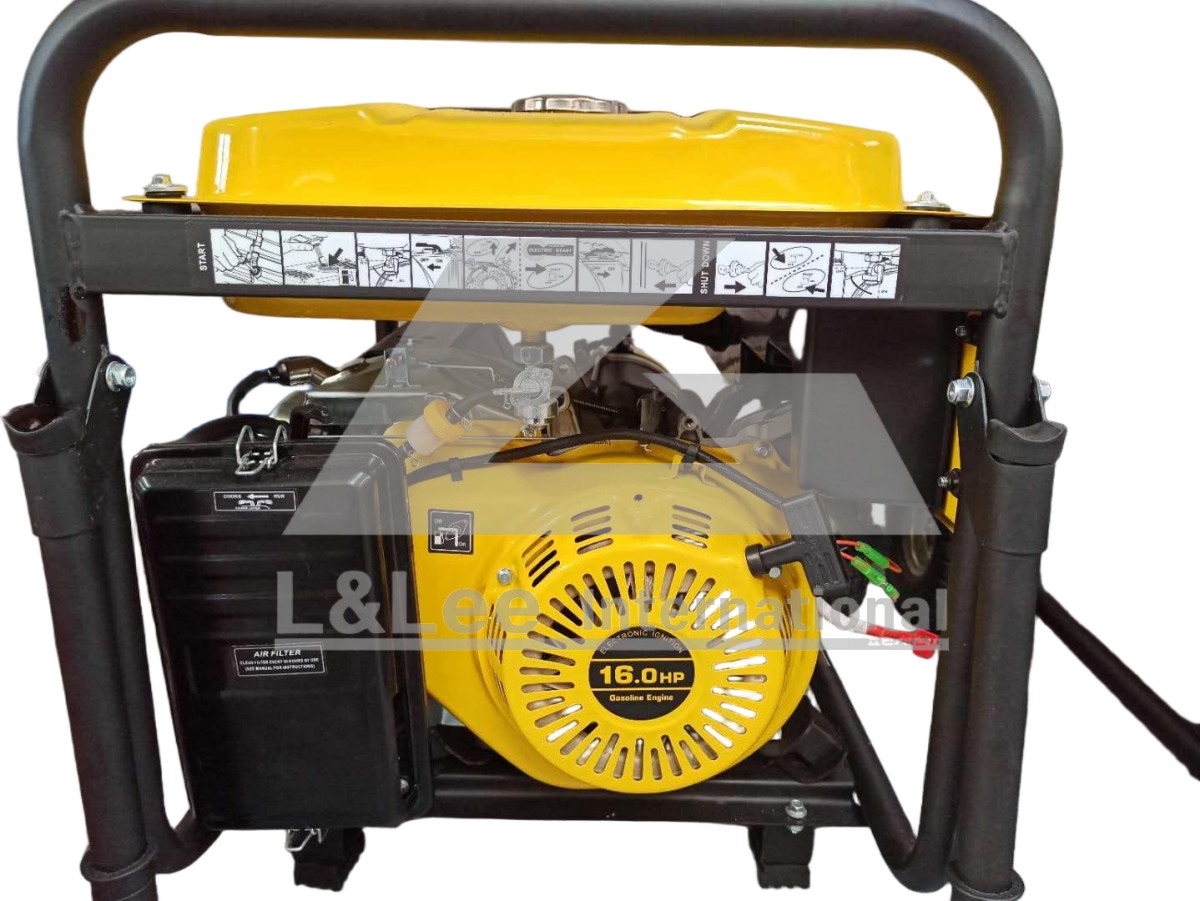

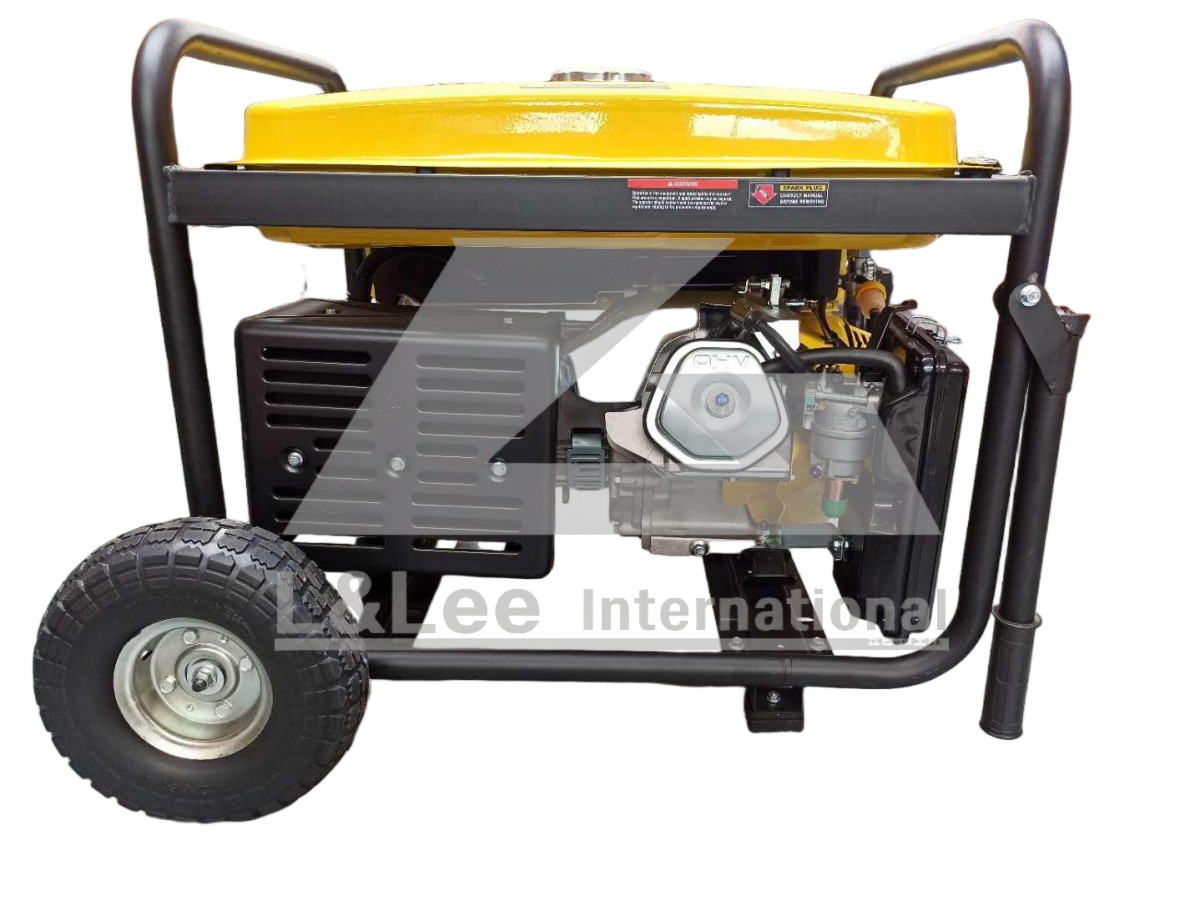

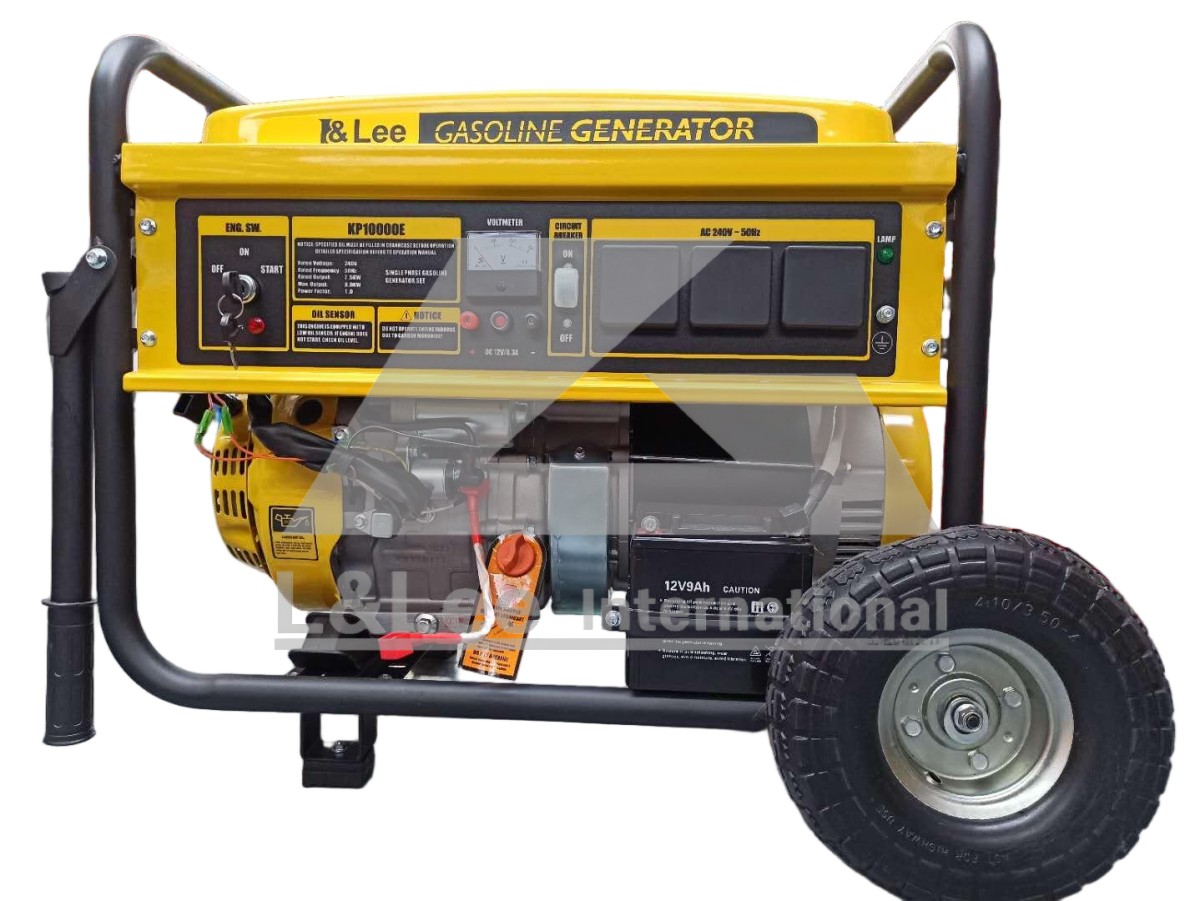

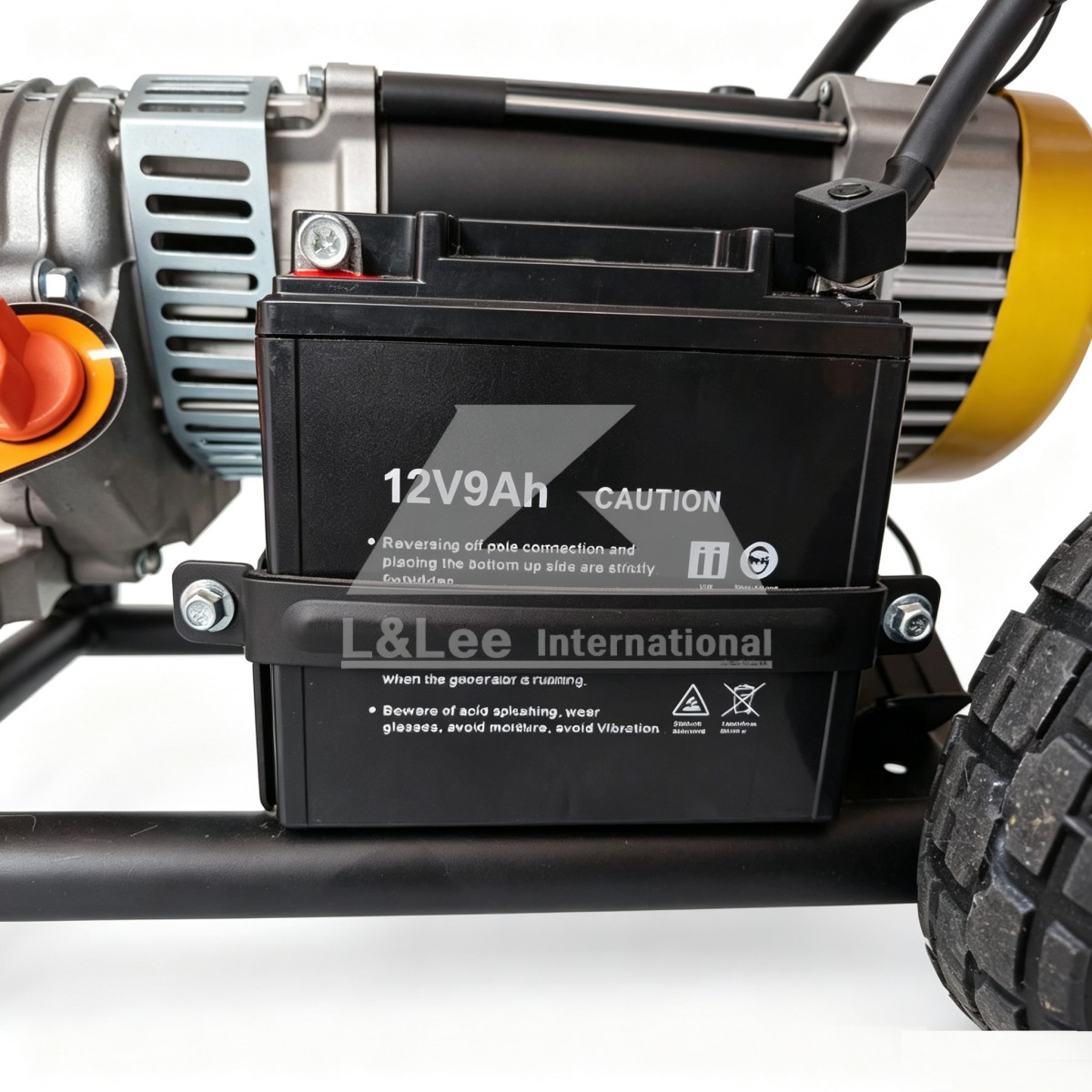

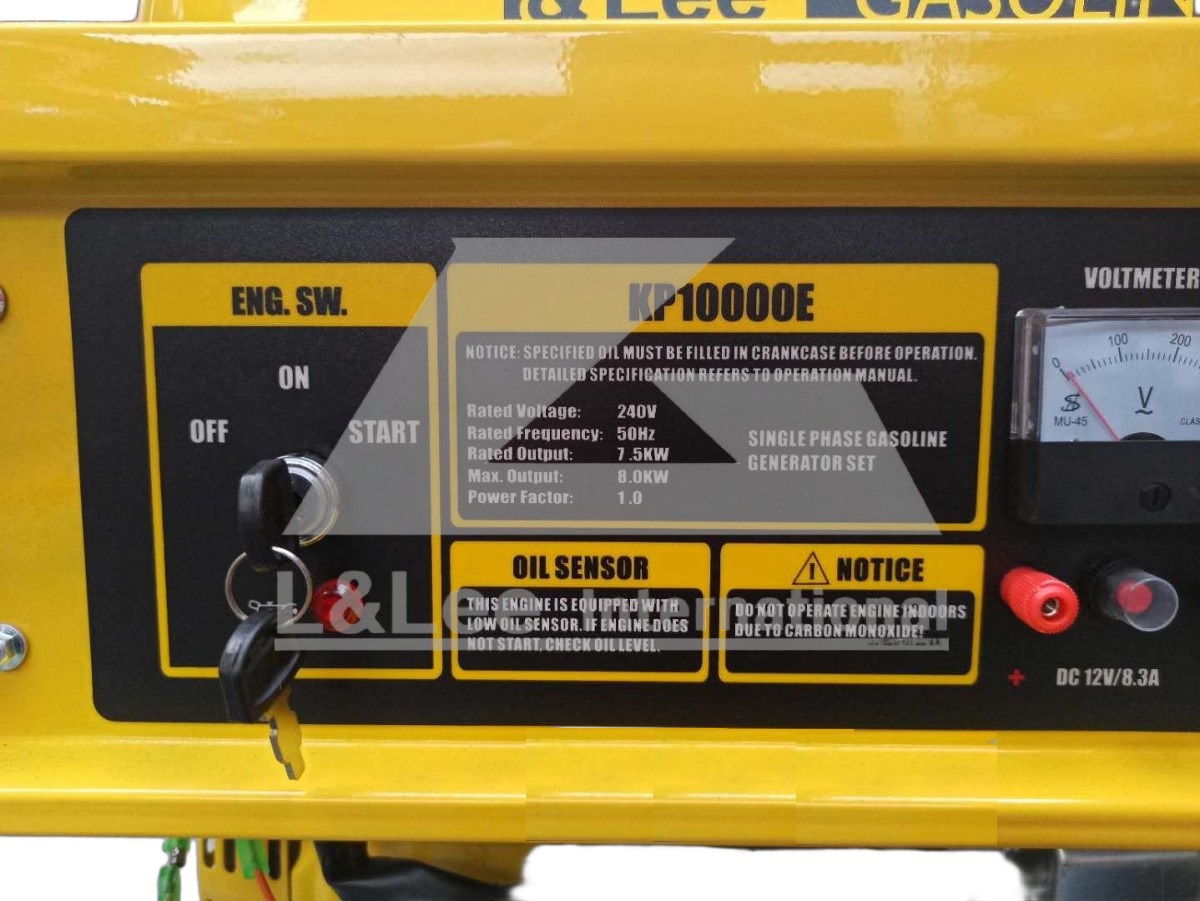

J. Generator KP10000E 8.0 kW（Electric Start）
Introductions
The KP10000E is a heavy‑duty open‑frame single‑phase petrol generator delivering 8.0 kW Max power. It is powered by robust 16hp OhV engine, equipped with convenient electric start plus backup recoil start for reliable ignition under harsh working conditions. Built‑in AVR automatic voltage regulator guarantees stable AC power output. Large‑capacity 25‑litre fuel tank supports long‑time continuous operation. Low‑oil‑pressure shutdown and overload protection improve unit safety and service life. Fitted with wheel kit and folding handle for eAy mobility. Ideal for large household standBy, workshops, farm operations and heavy‑duty construction‑site power supply.
Video: Generator KP3500,KP6500,KP9000 and KP10000
Specifications
| Model | KP10000E |
| Rated Voltage (V) | 240 |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 7.5 |
| Max. Output (kW) | 8.0 |
| Power Factor | 1.0 |
| Engine Model | 16hp petrol engine |
| Starting | Electric start + backup recoil start |
| Fuel Tank Capacity (L) | 25 |
| Continuous Running Time (h) | 7.5 h @ 50% load |
| Outputs | 3 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection |
| Noise Level (dB) | 80dB(A) @7 m |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Timer | Yes |
| Battery | 12V 9Ah |
| Tyres | Big solid |
| Weight（kg) | 87 |
| Dimensions (mm) | 820 × 535× 565 |
Package Includes
- Unit
- 3 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
Diesel Generator

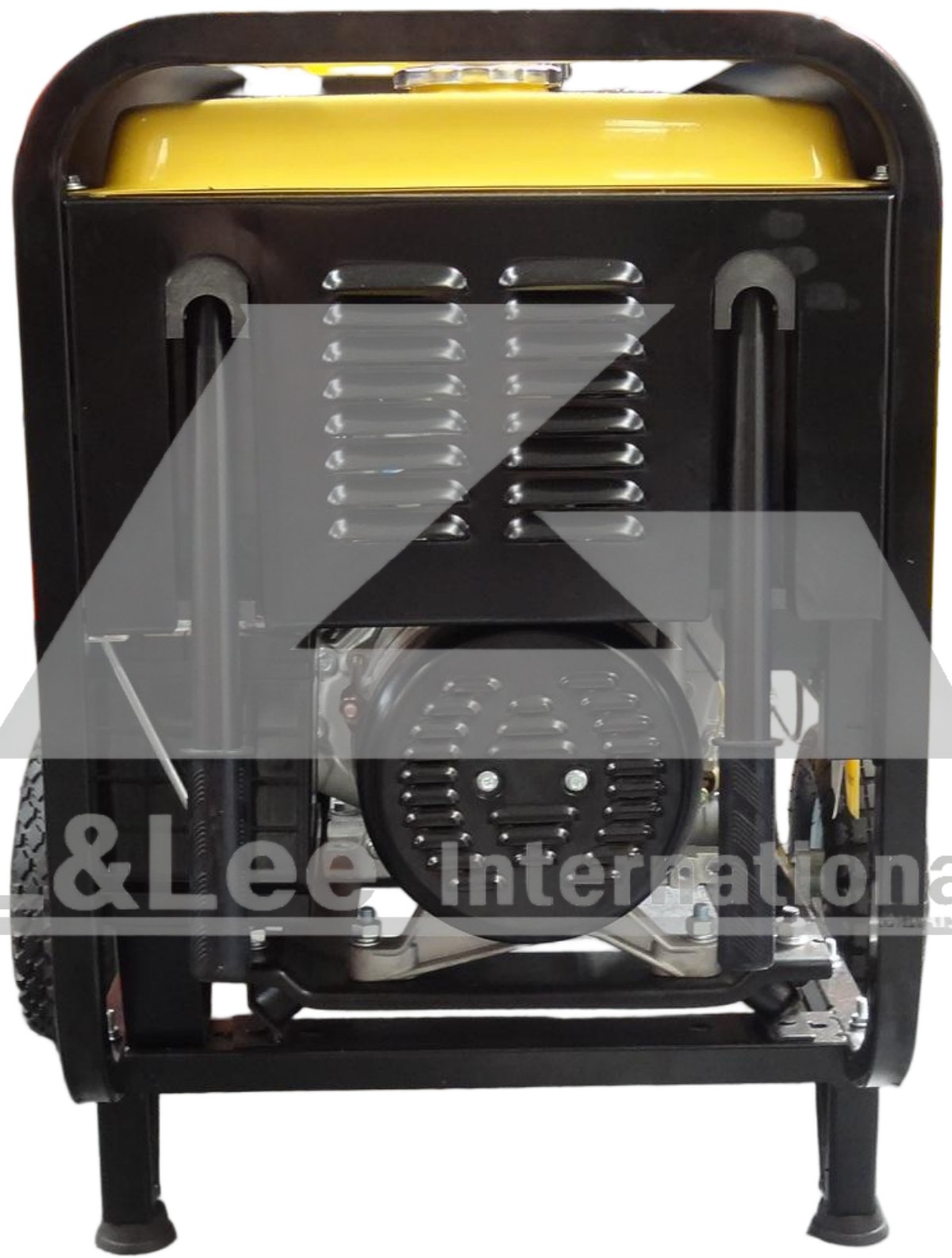

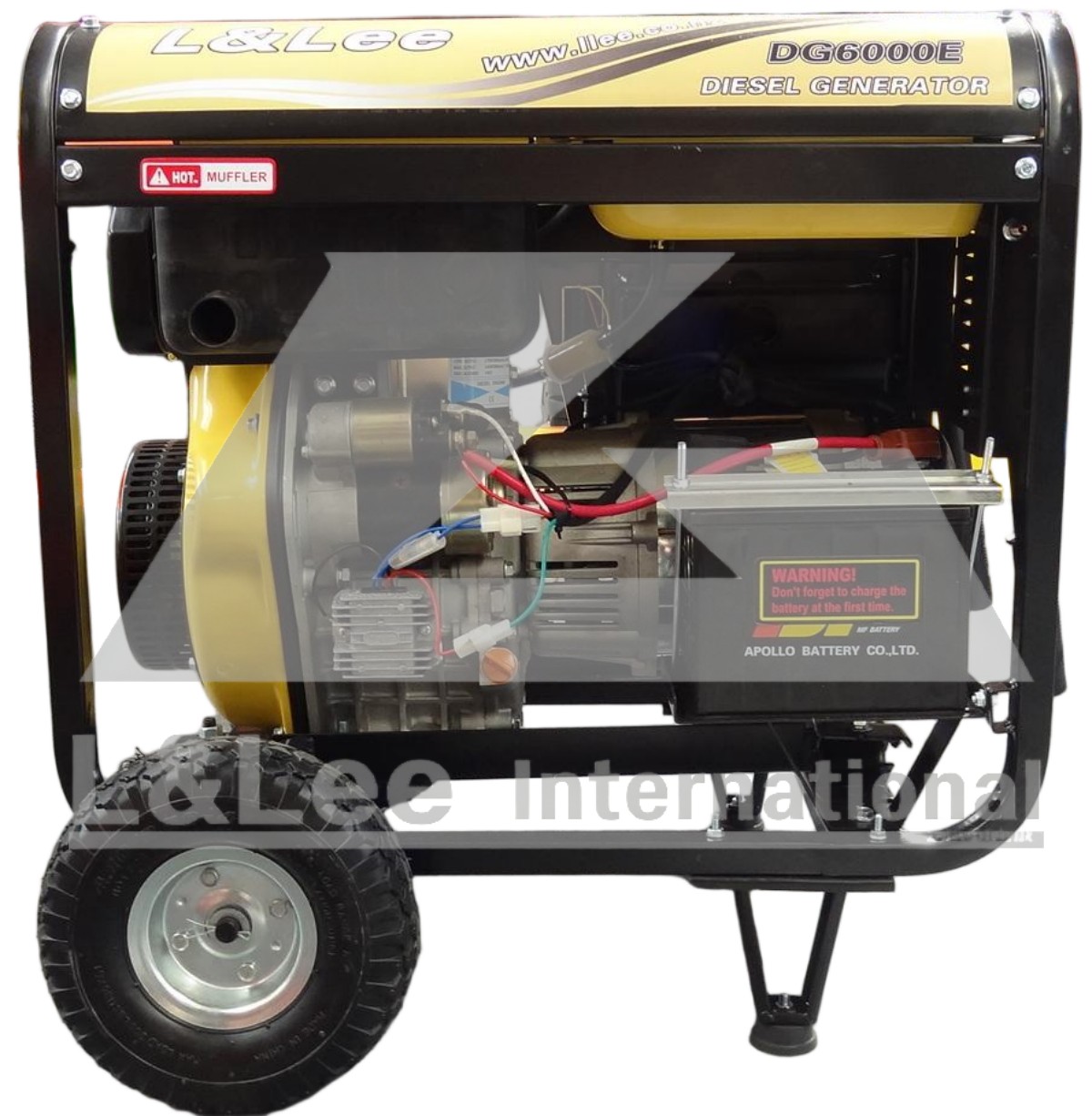

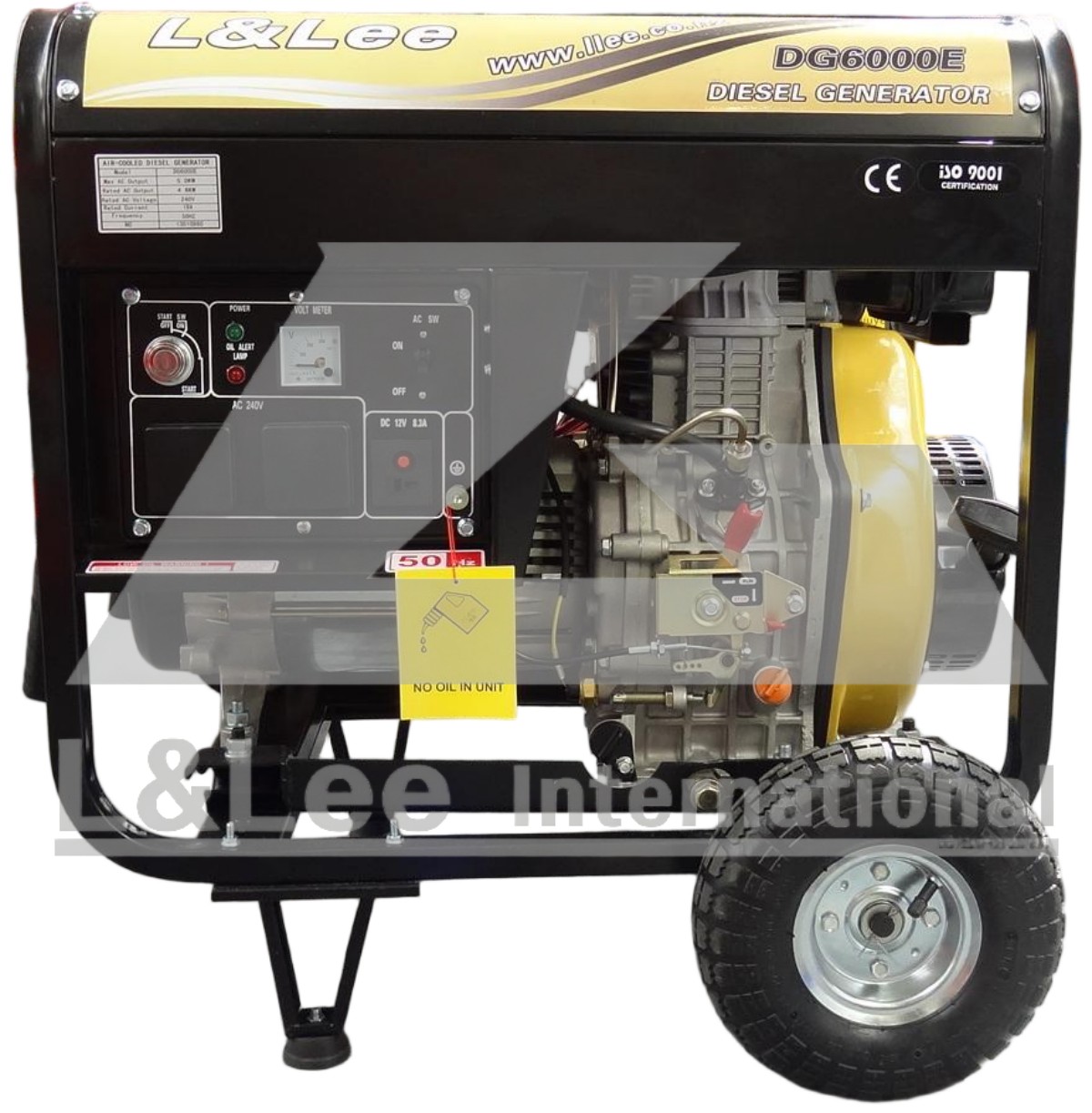

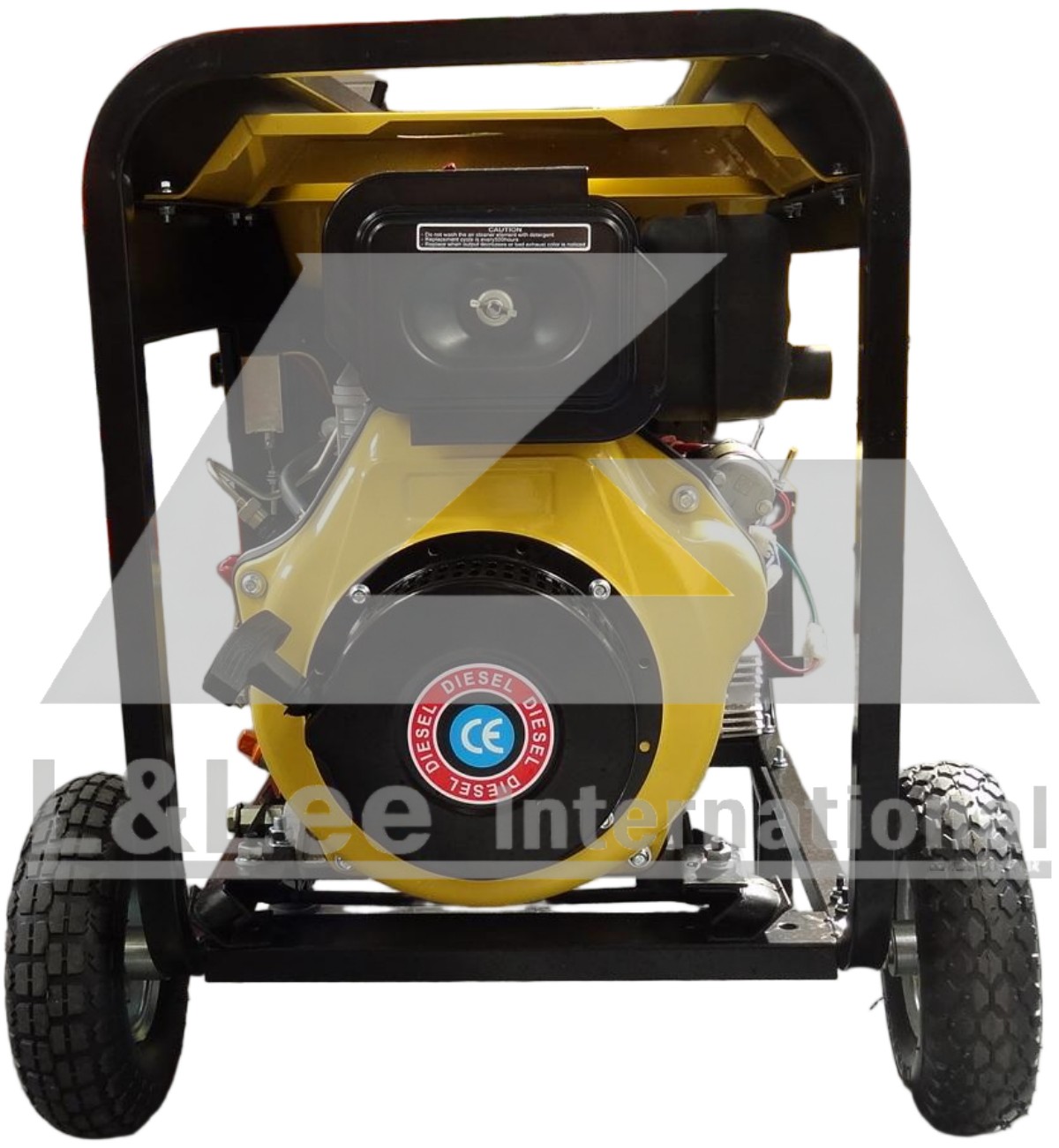

K. Generator DG6000E 5.0 kW Diesel Generator（Electric Start）
Introductions
The DG6000E is an open‑frame portable single‑phase diesel generator with maximum 5.0 kW output, driven by proven HP186FAE 10hp direct‑injection diesel engine. It features convenient electric start with backup recoil start for reliable operation in harsh field environments. Built‑in AVR automatic voltage regulator ensures stable AC output. 16‑litre fuel tank supports long continuous running hours. Low‑oil‑pressure shutdown and overload protection extend unit service life. Equipped with wheel kit and handle for eAy mobility. Perfect for home standBy, farm, workshop and construction‑site emergency power supply.
Specifications
| Model | DG6000E |
| Rated Voltage (V) | 240 Single phase |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 4.6 |
| Max. Output (kW) | 5.0 |
| Rated Current (A) | 18.3A @ 240volts |
| Power Factor | 1.0 |
| Engine Model | HP186FAE 406cc 4-Stroke Air Cooled Single Cylinder Direct Injection Diesel Engine |
| Starting | Electric start + backup recoil start |
| Fuel Tank Capacity (L) | 16L with Visible Fuel Gauge |
| Continuous Running Time (h) | 7.0 h @ full load |
| Engine Oil Capacity (L) | 1.65 |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection,will not start with low oil |
| Noise Level (dB) | 87dB(A) @7 m |
| Alternator | Brush Alternator |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Timer | Yes |
| Battery | 12V 30Ah |
| Tyres | heavy Duty |
| Weight（kg) | 84 |
| Dimensions (mm) | 700×470×600 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler

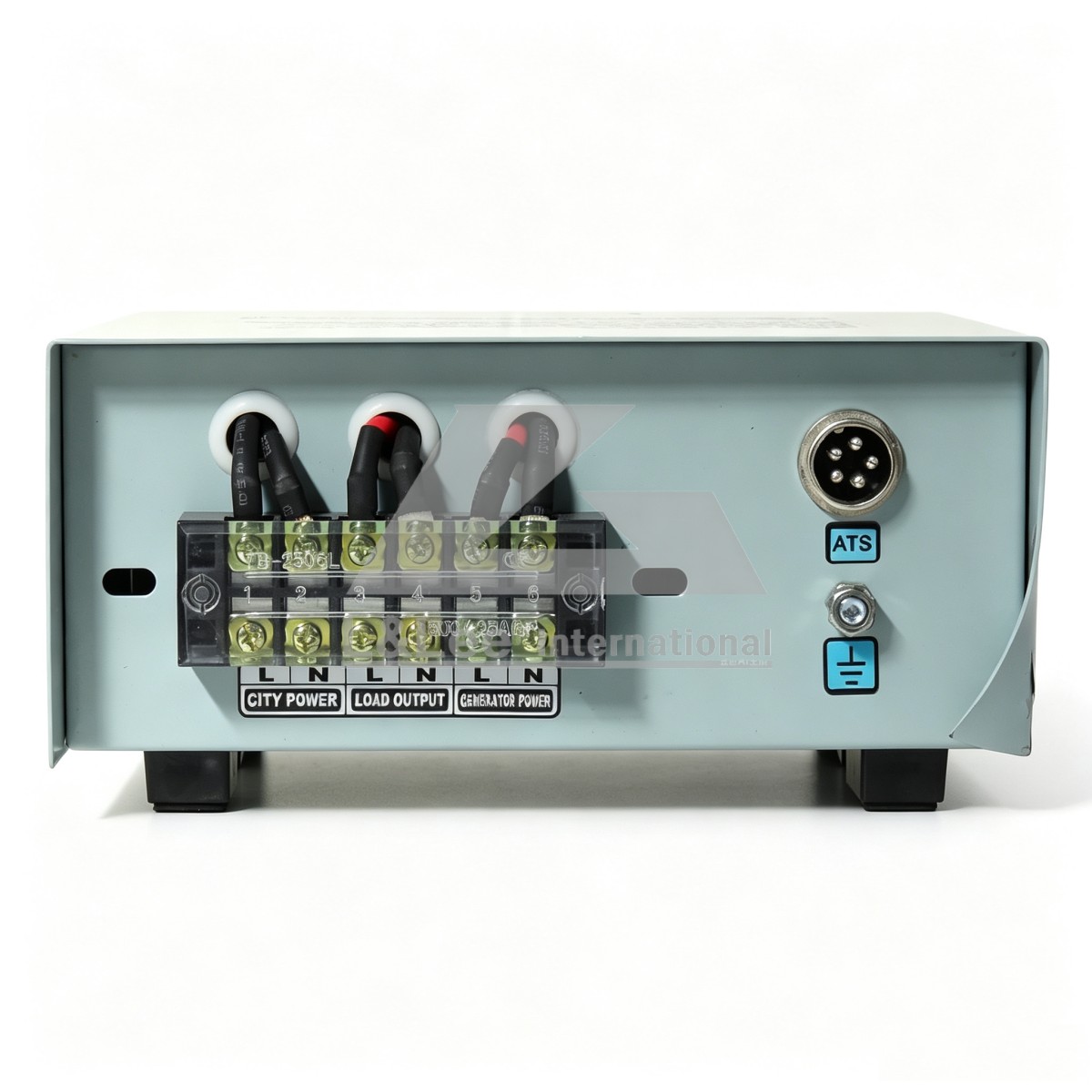

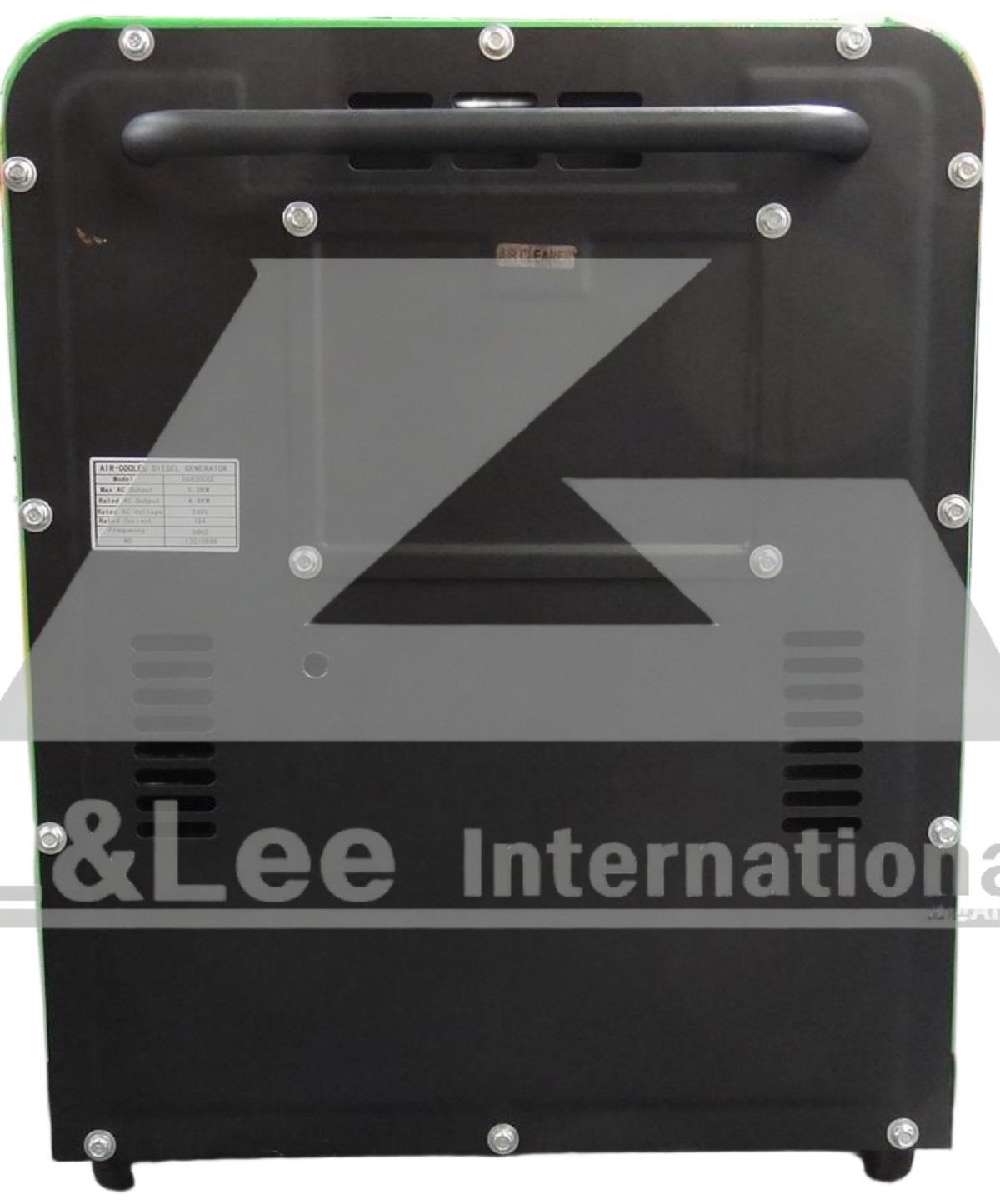

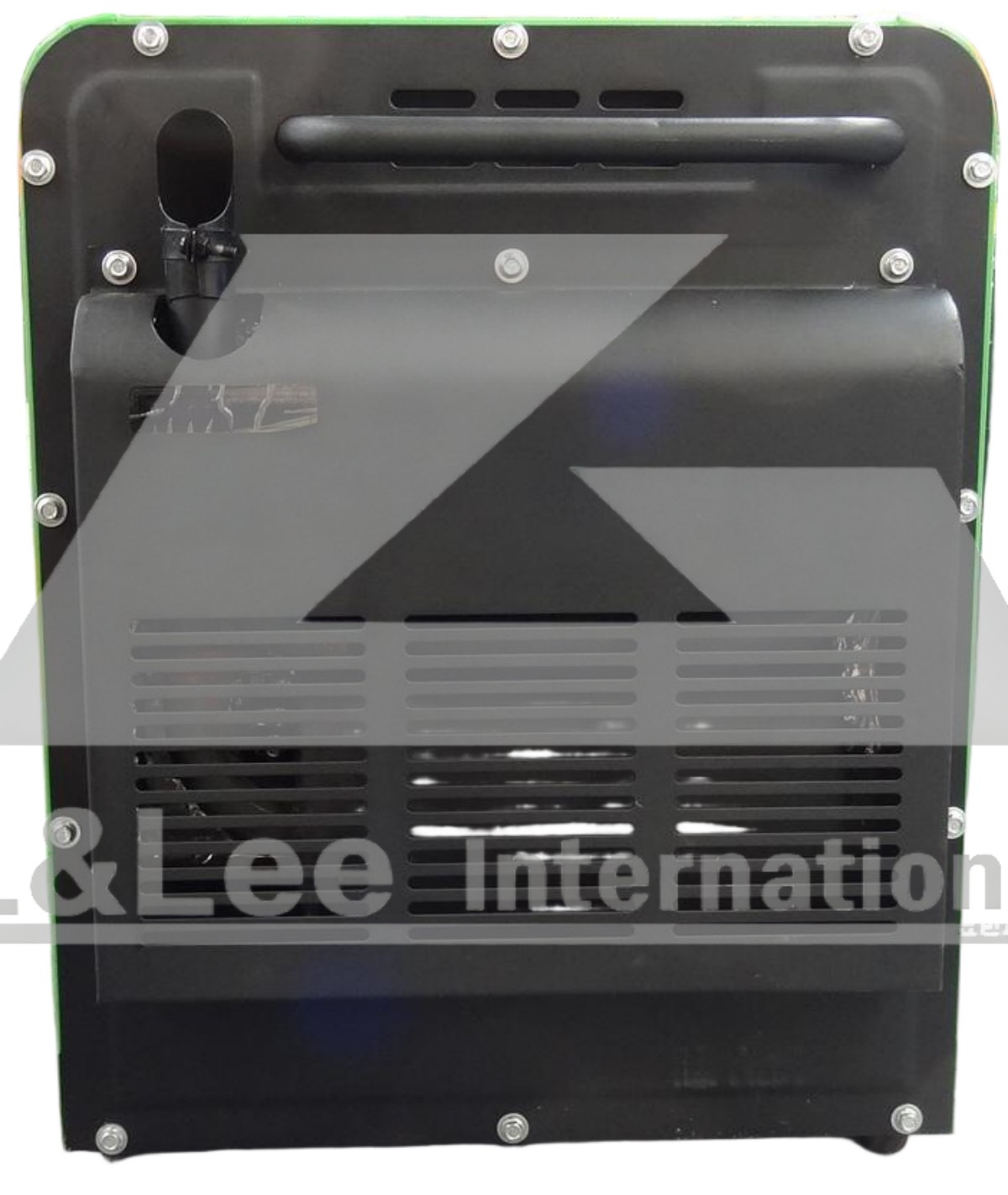

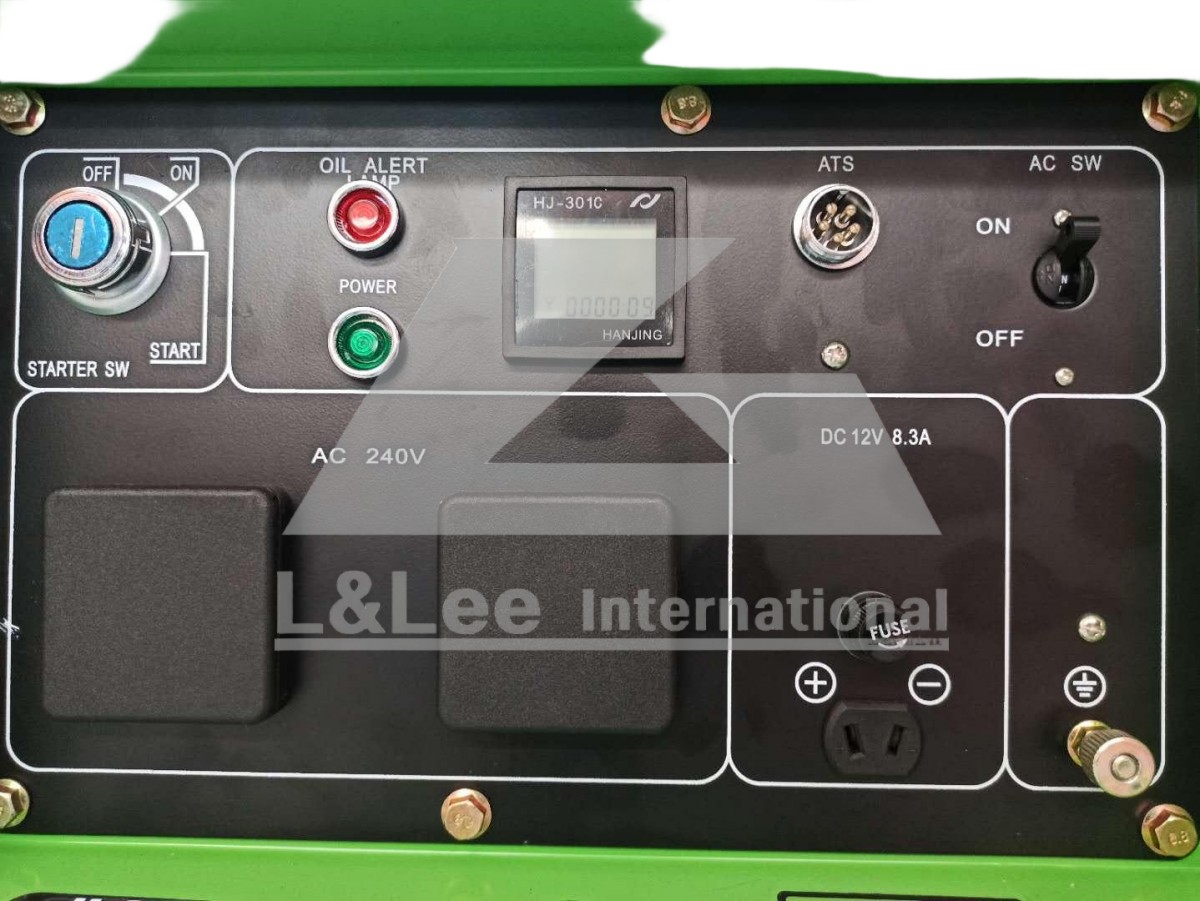

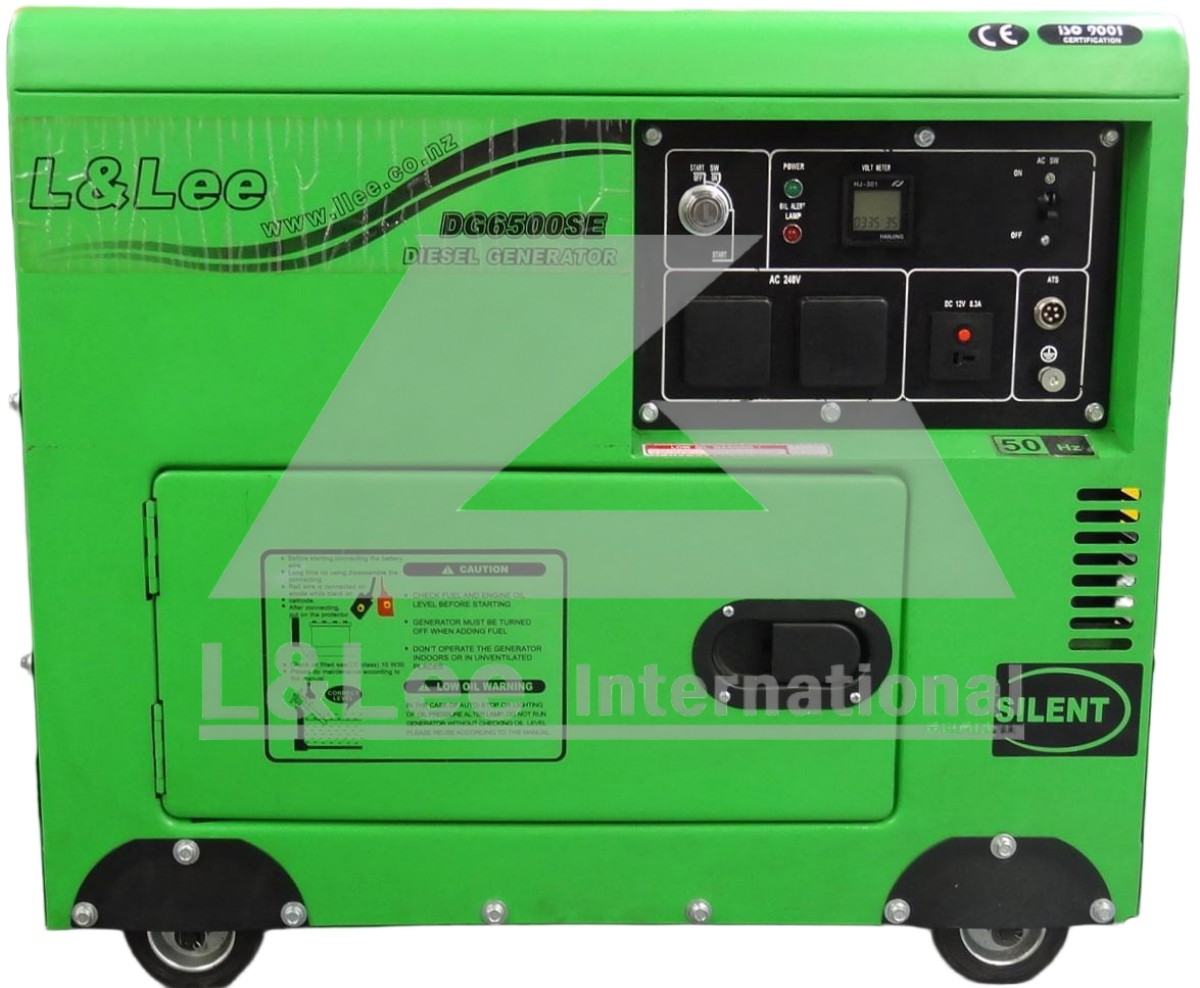

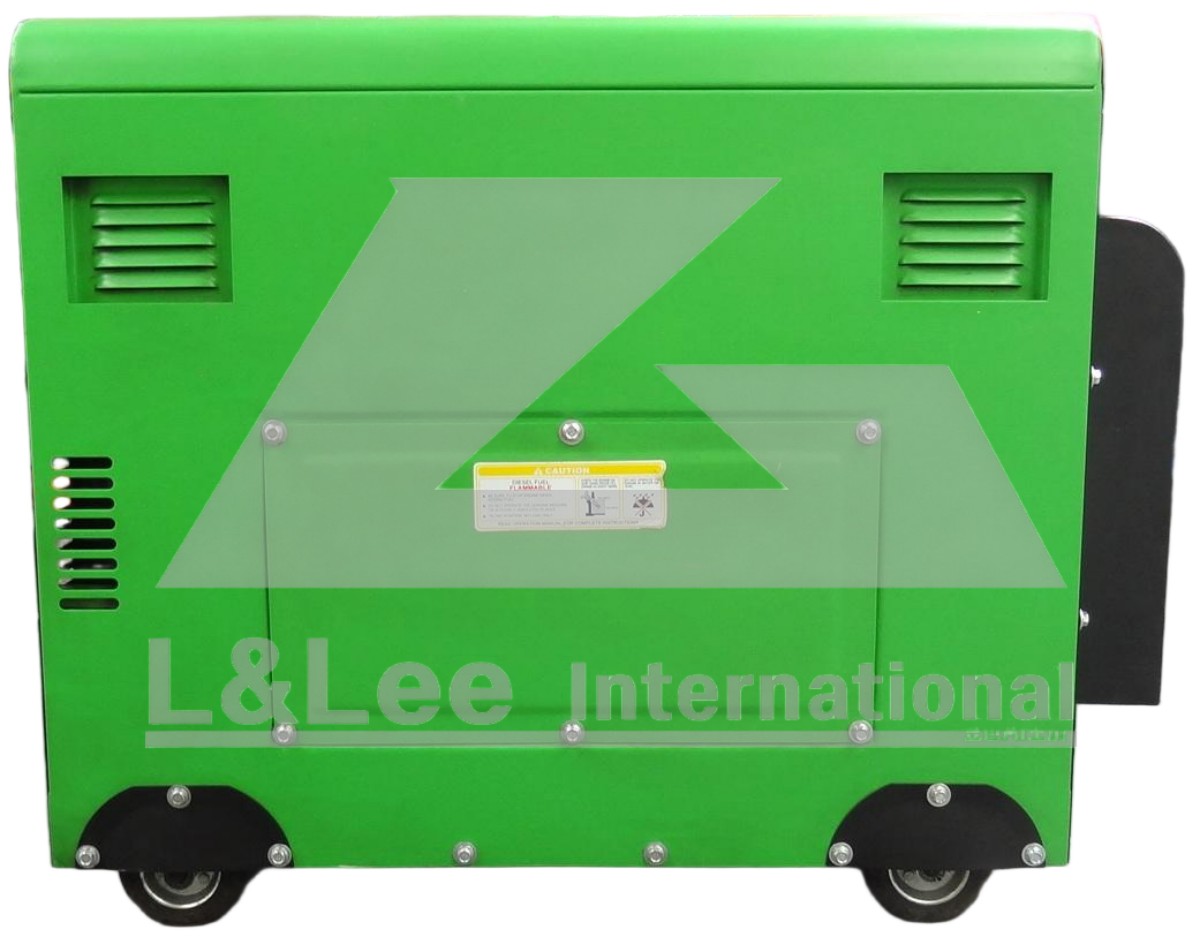

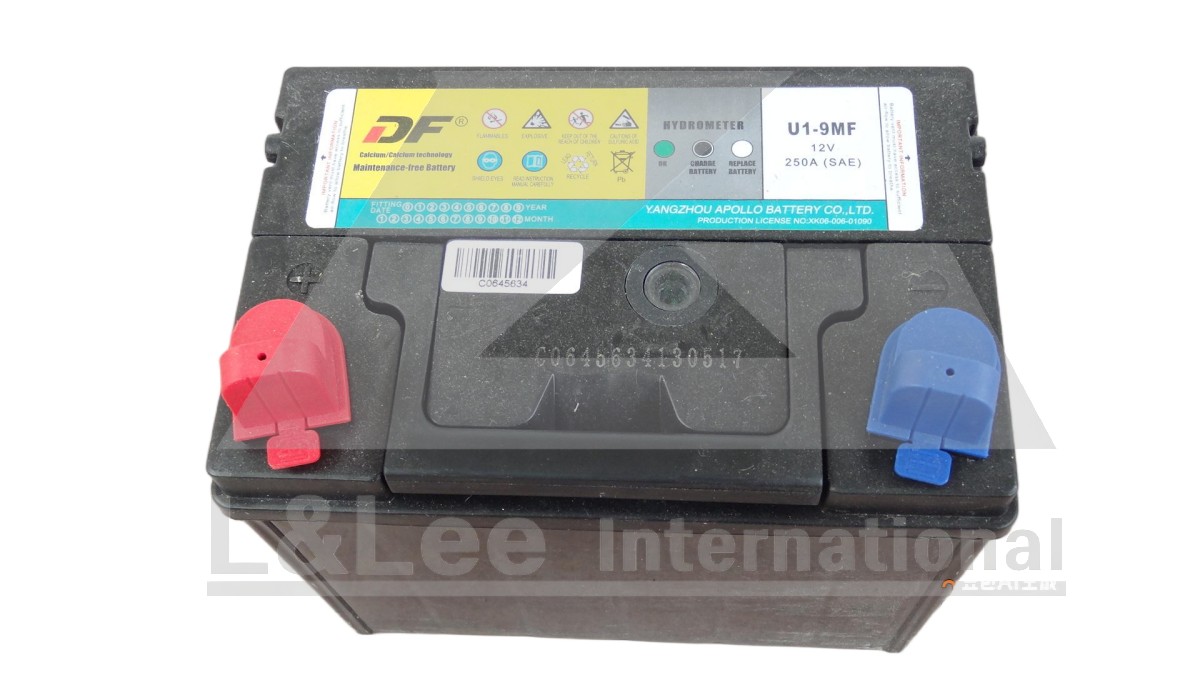

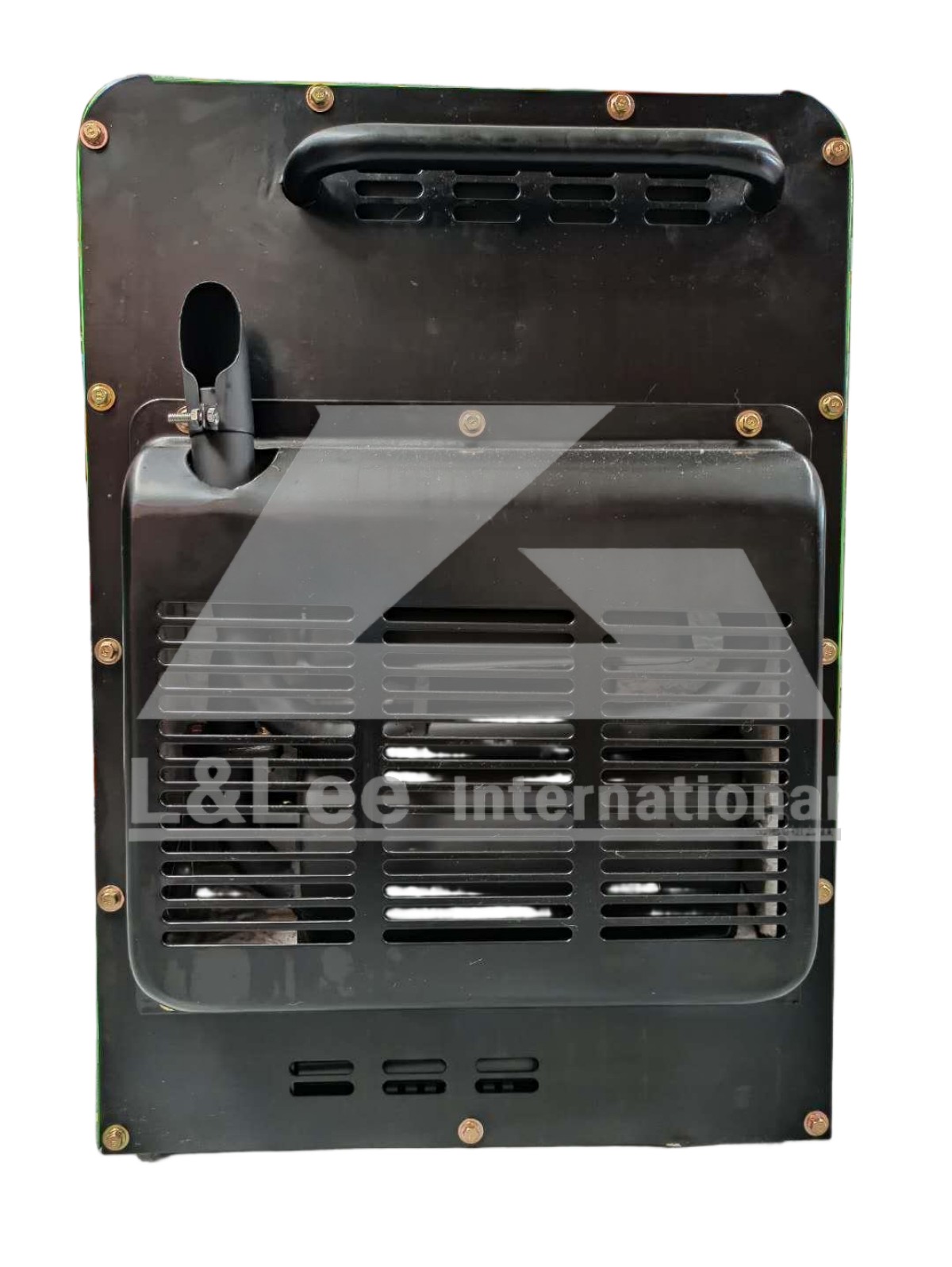

L. Generator DG6500E Silent Diesel Generator with ATS Socket
Introductions
The DG6500E is a fully enclosed silent‑canopy single‑phase diesel generator delivering 5.0 kW Max power. Powered by robust HP186FAE direct‑injection diesel engine with electric starting system. It is pre‑fitted with ATS control socket, ready to connect external automatic transfer switch for unattended home standBy use. Integrated low‑oil safety system: unit will not start with low oil level to protect engine from damage. AVR provides stable clean AC output. Large‑capacity 16‑litre fuel tank supports long continuous runtime, noise reduced down to 82 dB(A) at 7 metres. Complete with wheel kit and lifting points. Ideal for household automatic backup, farm and small‑commercial emergency power supply.
Important Matching Note: Due to different internal wiring designs, the ATS controller box and the built-in remote control function are mutually exclusive. The two functions cannot be installed on one single unit.

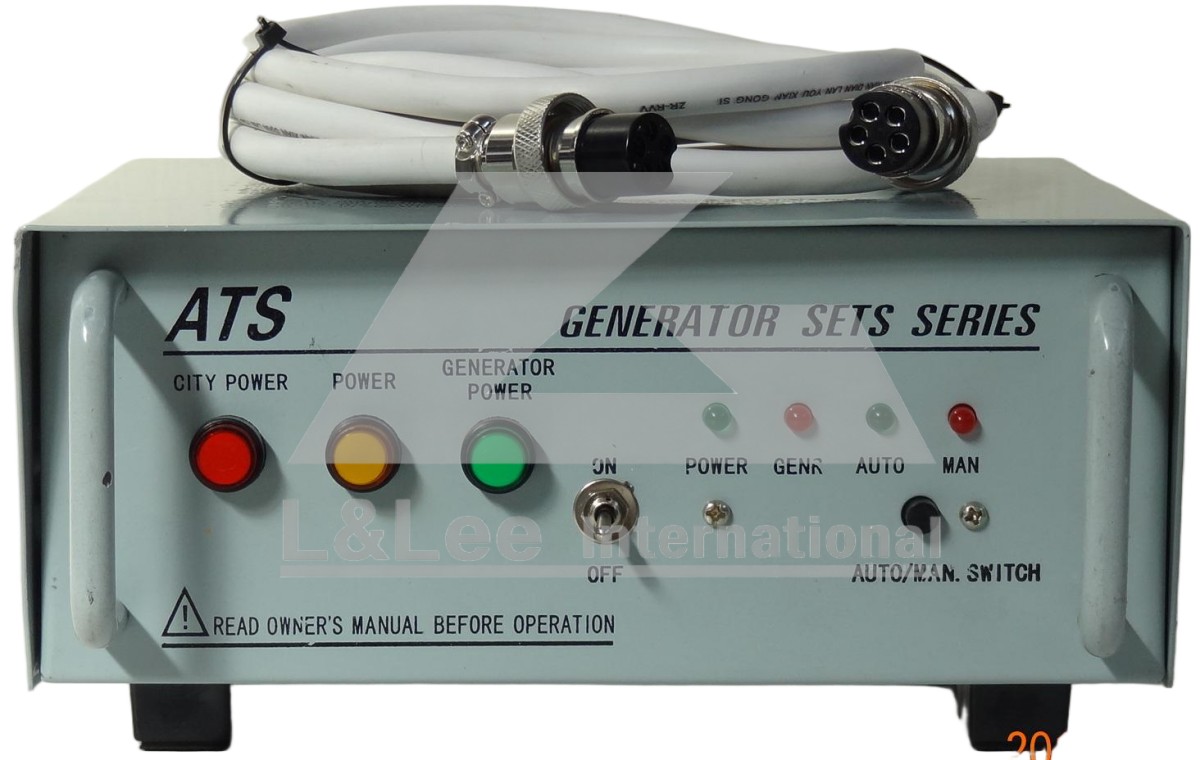

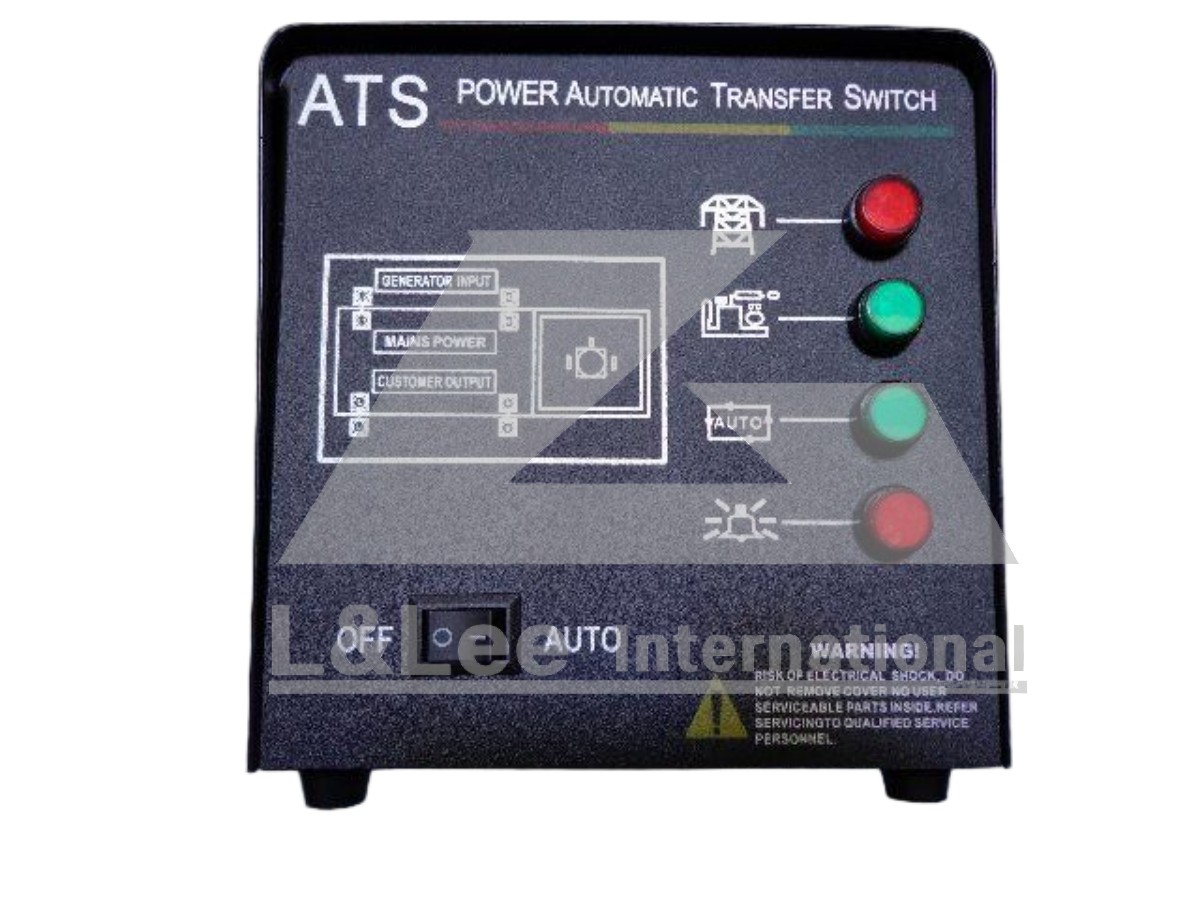

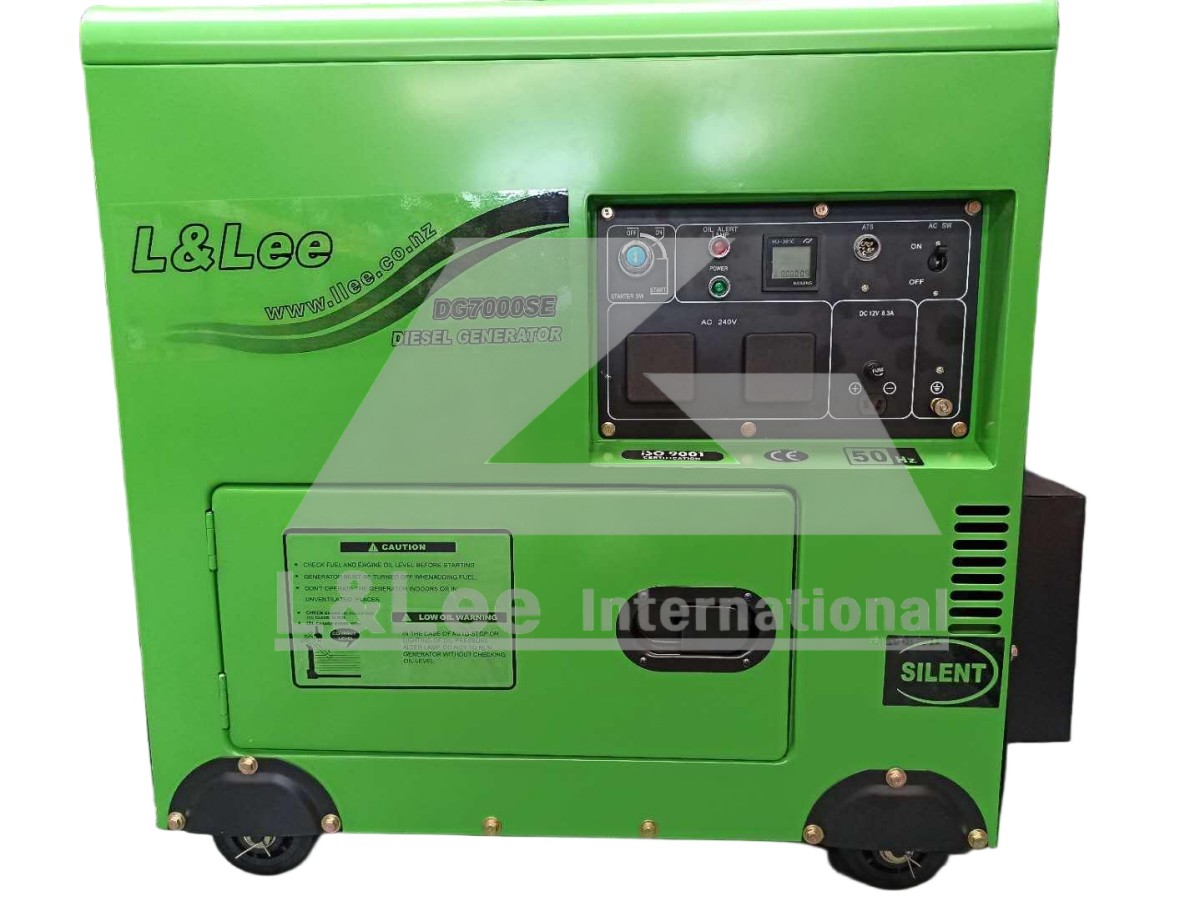

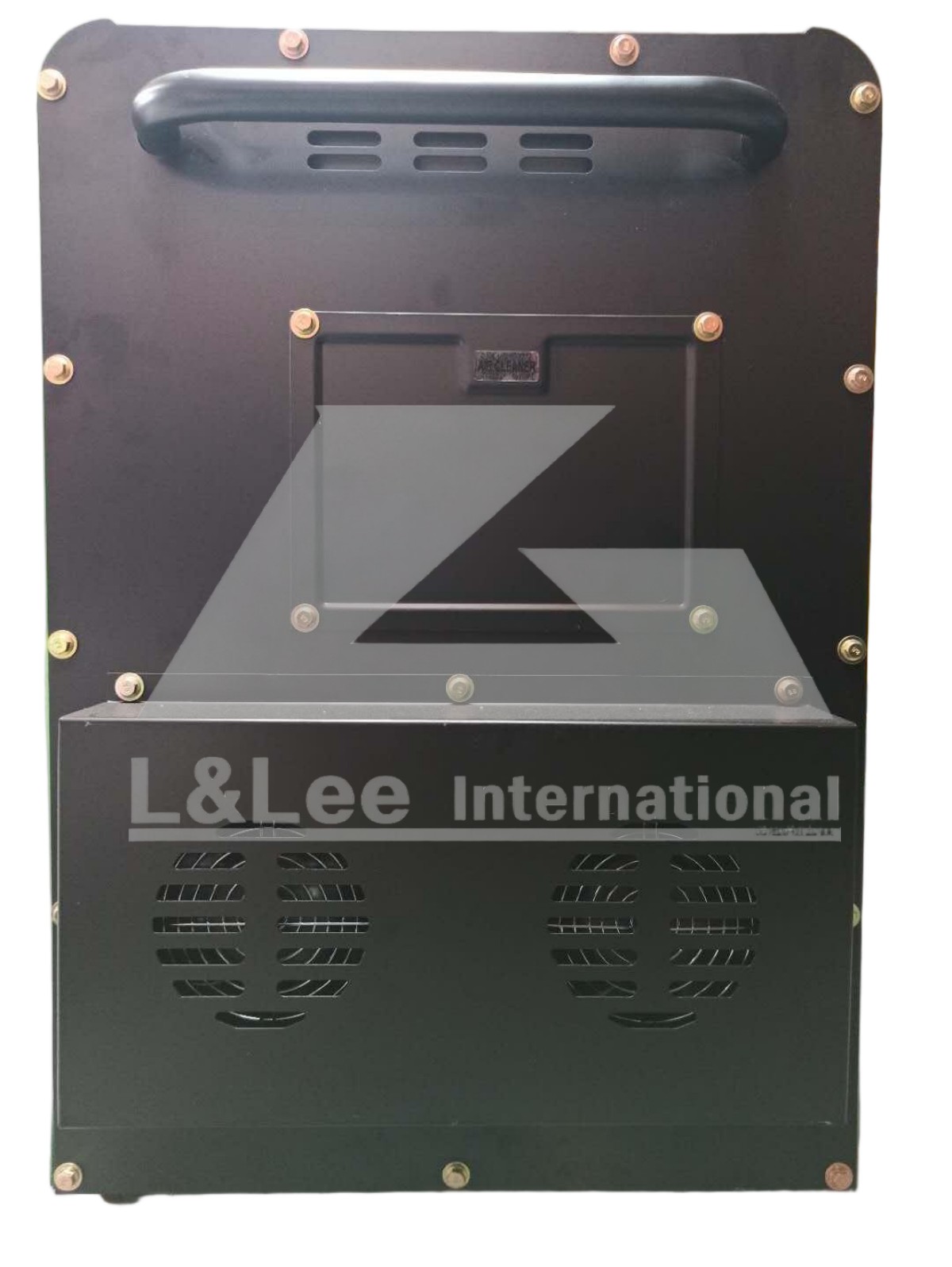

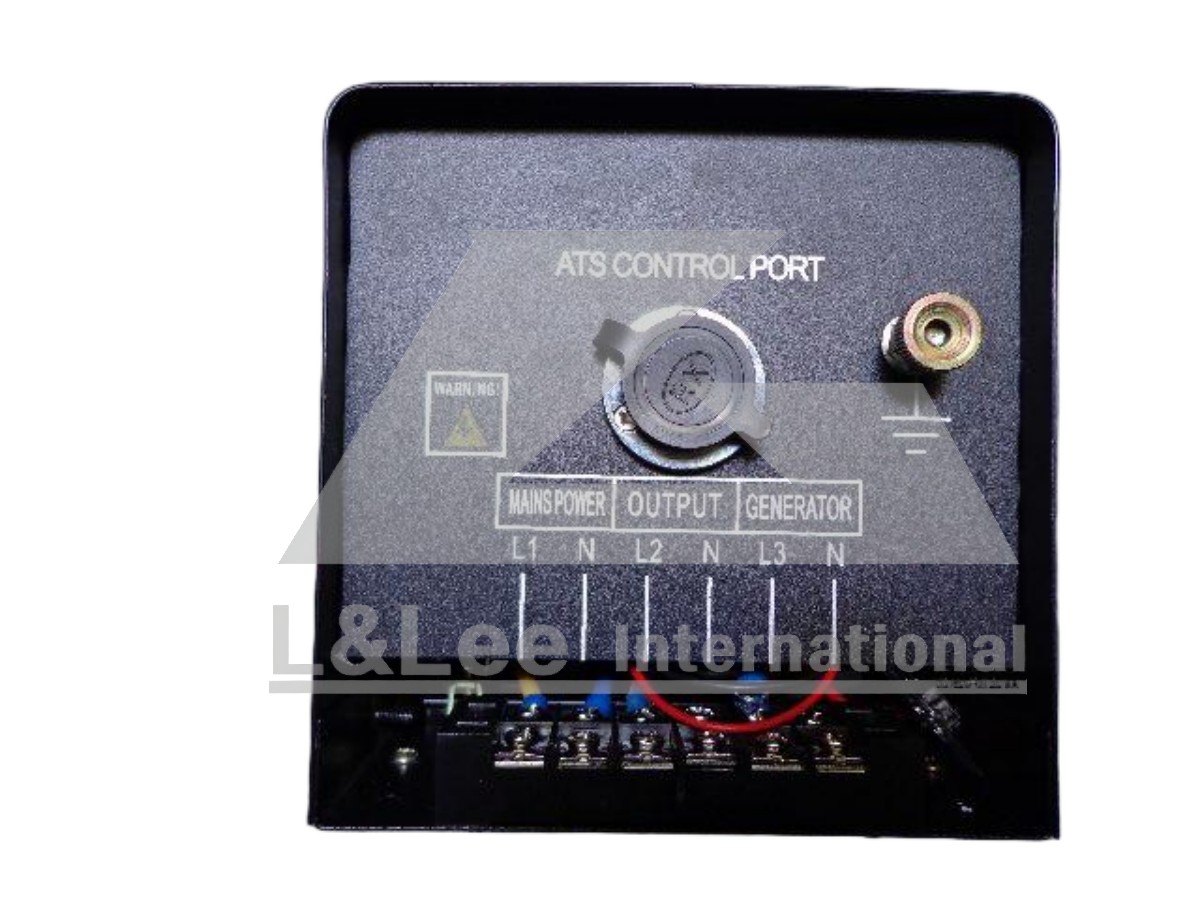

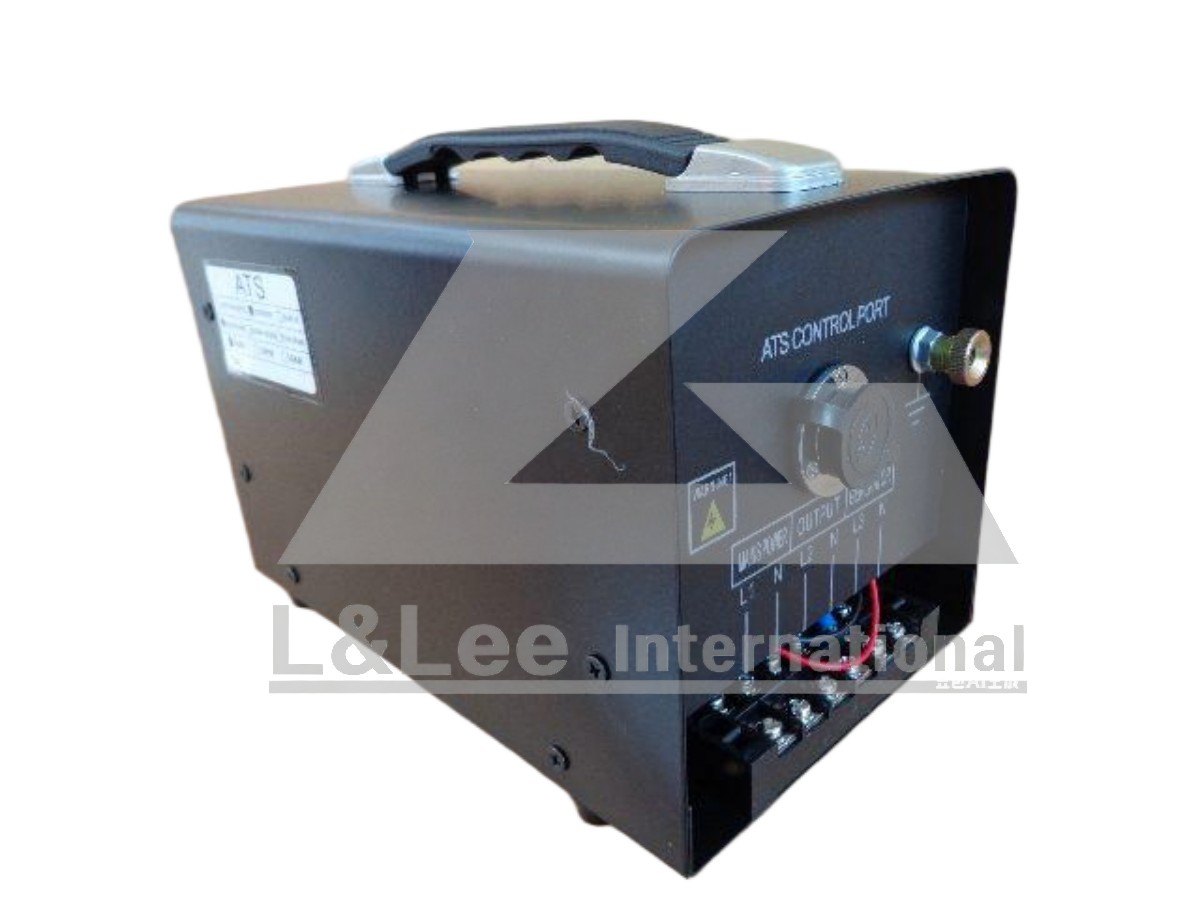

Video: ATS Operation for DG6500E / DG7000E Generators (ATS Socket Connection)
Specifications
| Model | DG6500E (Silent Canopy, Built‑in ATS control socket) |
| Rated Voltage (V) | 240 Single Phase |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 4.6 |
| Max. Output (kW) | 5.0 |
| Rated Current (A) | 18.3A @ 240volts |
| Power Factor | 1.0 |
| Engine Model | HP186FAE 406cc 4-Stroke Air Cooled Single Cylinder Direct Injection Diesel Engine |
| Starting | Electric start |
| Engine Cooling System | Air |
| Fuel Tank Capacity (L) | 16L with Visible Fuel Gauge |
| Continuous Running Time (h) | 7.0 h @ full load |
| Engine Oil Capacity (L) | 1.65 |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| ATS | Built‑in ATS control socket for external automatic transfer switch |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection,will not start with low oil |
| Noise Level (dB) | 82dB(A) @7 m |
| Alternator | Brush Alternator |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Multi displays | Digital display V/Hz/hour 3-in-1 |
| Battery | 12V 30Ah |
| Tyres | 4 x heavy Duty Wheels |
| Weight（kg) | 155 |
| Dimensions (mm) | 950×560×660 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
Options
- ATS controller box
- Cable
M. Generator DG7000E Silent Diesel Generator with ATS Socket
Introductions
The DG7000E is an upgraded fully enclosed silent‑canopy single‑phase diesel generator delivering 5.0 kW Max power. The canopy height is raised to create enlarged internal cooling chamber, equipped with two boost cooling fans for superior heat dissipation, effectively lowering operating temperature during long‑hour heavy‑load running. It comes with an upgraded 24‑litre large‑capacity fuel tank to extend continuous working time. Powered by heavy‑duty HP186FAE direct‑injection diesel engine with convenient electric start. Pre‑fitted ATS control socket for quick connection with external automatic transfer switch for unattended home standBy use. Integrated low‑oil safety system: unit will not start with low oil level to protect engine against damage. AVR delivers stable clean AC power. Noise level maintained at 80 dB(A) at 7 metres. Complete with wheel kit and lifting points. Well‑suited for residential automatic backup, farm, workshop and small‑commercial emergency power supply.
Important Matching Note: Due to different internal wiring designs, the ATS controller box and the built-in remote control function are mutually exclusive. The two functions cannot be installed on one single unit.
Video: ATS Operation for DG6500E / DG7000E Generators (ATS Socket Connection)
Specifications
| Model | DG7000E (Silent Canopy, Built‑in ATS control socket) |
| Rated Voltage (V) | 240 Single Phase |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 4.6 |
| Max. Output (kW) | 5.0 |
| Rated Current (A) | 18.3A @ 240volts |
| Power Factor | 1.0 |
| Engine Model | HP186FAE 406cc 4-Stroke Air Cooled Single Cylinder Direct Injection Diesel Engine |
| Starting | Electric start |
| Engine Cooling System | Air-cooled with two boost-cooling fans for superior heat dissipation |
| Fuel Tank Capacity (L) | 24L with Visible Fuel Gauge |
| Continuous Running Time (h) | 12.0 h @ full load |
| Engine Oil Capacity (L) | 1.65 |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| ATS | Built‑in ATS control socket for external automatic transfer switch |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection,will not start with low oil |
| Noise Level (dB) | 82dB(A) @7 m |
| Alternator | Brush Alternator |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Multi displays | Digital display V/Hz/hour 3-in-1 |
| Battery | 12V 30Ah |
| Tyres | 4 x heavy Duty Wheels |
| Weight（kg) | 155 |
| Dimensions (mm) | 950×560×760 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
Options
- ATS controller box
- Cable

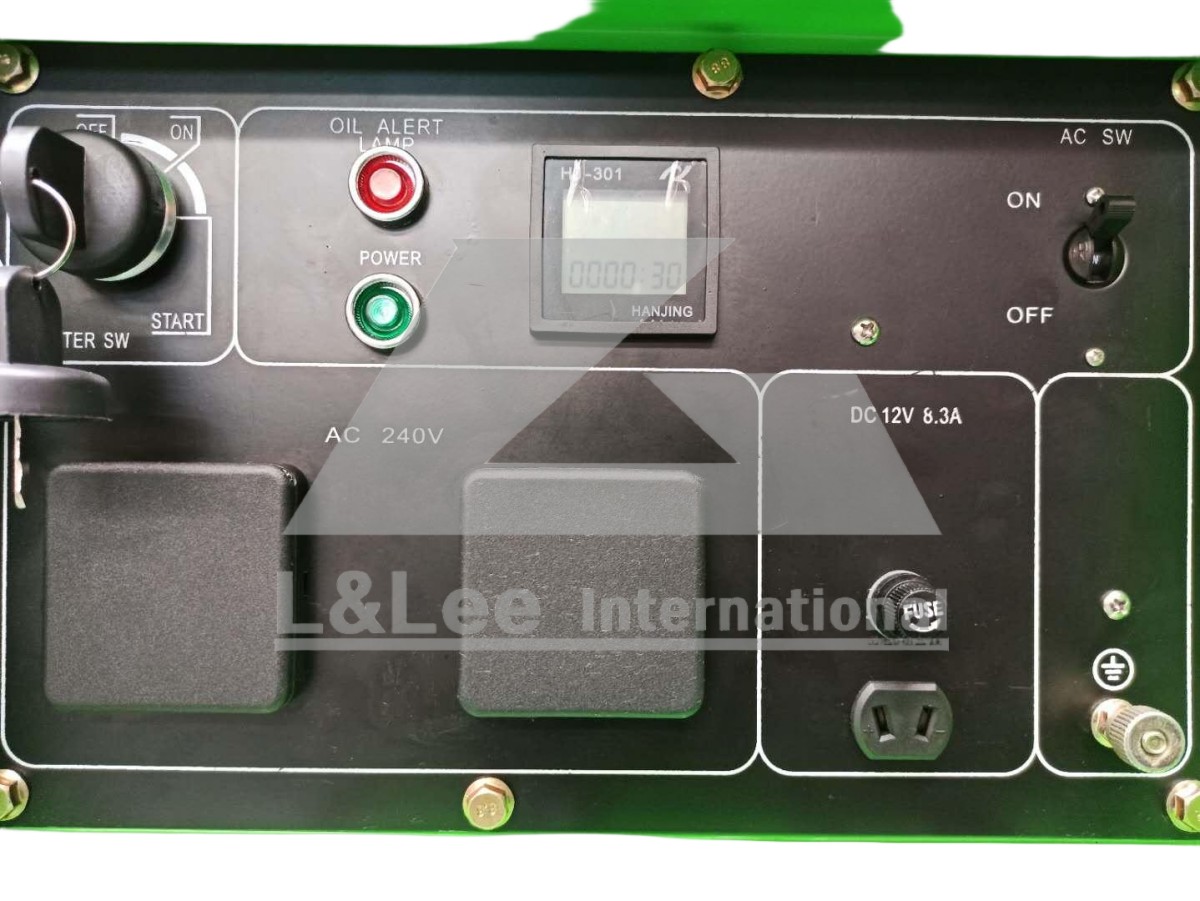

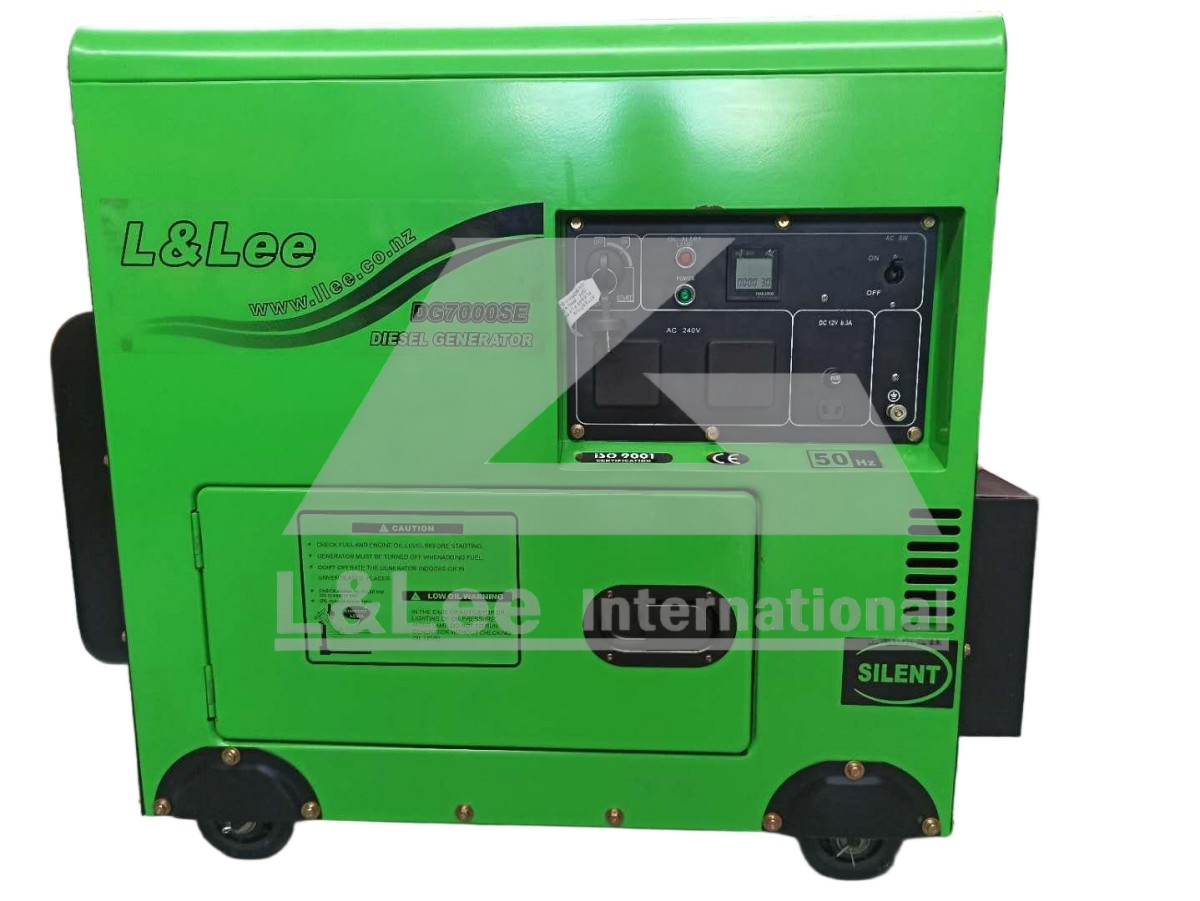

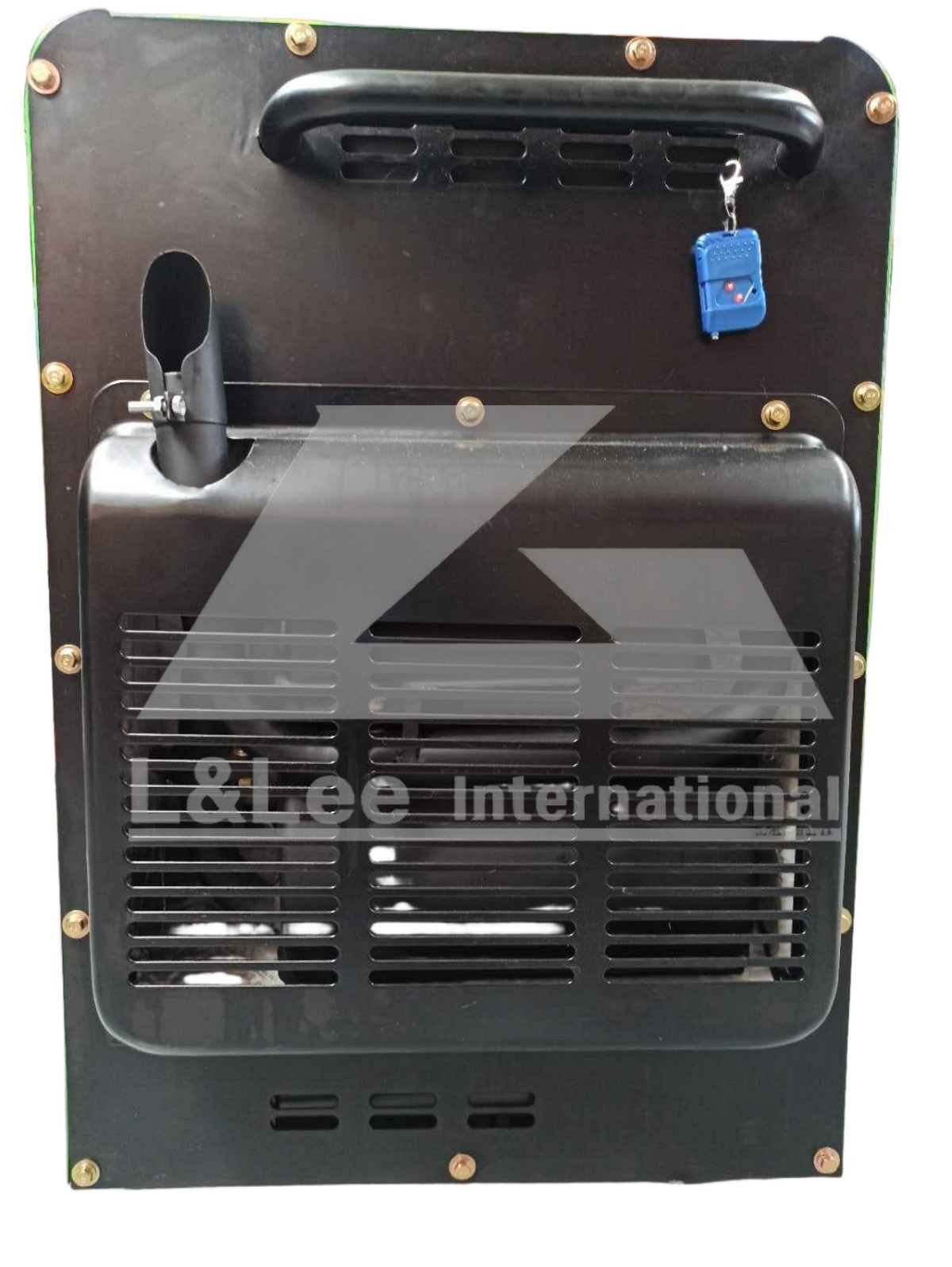

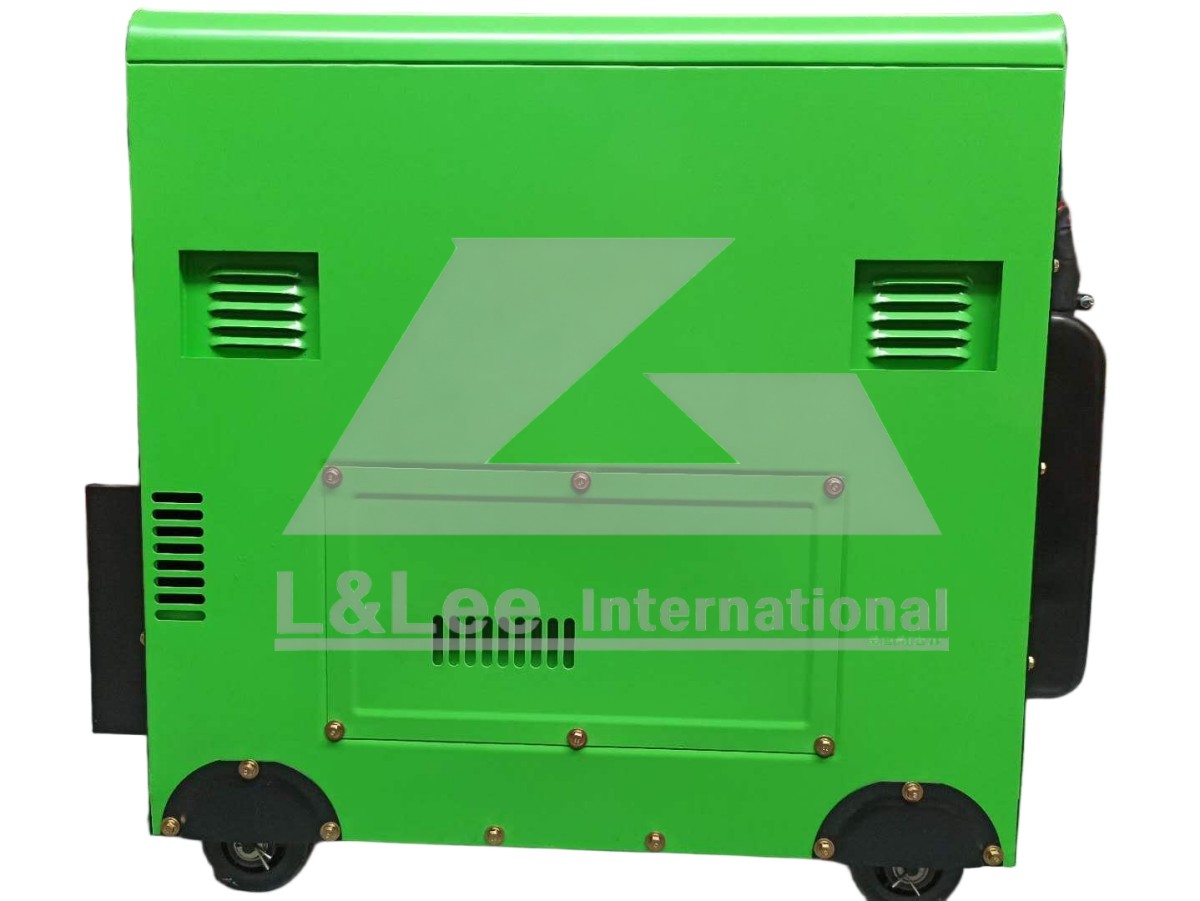

N. Generator DG7000E Silent Diesel Generator with Remote Function
Introductions
Upgraded silent canopy diesel generator with raised body design to expand internal cooling space. Equipped with two boost-cooling fans for superior heat dissipation, ensuring stable performance during long-hour and heavy-load operation. It is equipped with practical remote control function for convenient remote start and stop. The upgraded 24L large fuel tank greatly extends continuous working time. Built-in multiple safety protection including low-oil no-start function effectively protects the engine and prolongs service life. Adopts high-precision AVR to provide stable and pure power output.
Important Matching Note: Due to different internal wiring designs, the ATS controller box and the built-in remote control function are mutually exclusive. The two functions cannot be installed on one single unit.
Specifications
| Model | DG7000E (Silent Canopy, Built-in remote control function) |
| Rated Voltage (V) | 240 Single Phase |
| Rated Frequency (Hz) | 50 |
| Rated Output (kW) | 4.6 |
| Max. Output (kW) | 5.0 |
| Rated Current (A) | 18.3A @ 240volts |
| Power Factor | 1.0 |
| Engine Model | HP186FAE 406cc 4-Stroke Air Cooled Single Cylinder Direct Injection Diesel Engine |
| Starting | Electric start + Remote start/stop function |
| Remote distance | Max approx 50M |
| Engine Cooling System | Air-cooled with two boost-cooling fans for superior heat dissipation |
| Fuel Tank Capacity (L) | 24L with Visible Fuel Gauge |
| Continuous Running Time (h) | 12.0 h @ full load |
| Engine Oil Capacity (L) | 1.65 |
| Outputs | 2 x 240V 15A AC Single phase,1 x 12V 8.3A DC |
| ATS | Built‑in ATS control socket for external automatic transfer switch |
| Waterproof design | Yes |
| Anti dropping design | Yes |
| Protection | Low‑oil shutdown and overload protection,will not start with low oil |
| Noise Level (dB) | 82dB(A) @7 m |
| Alternator | Brush Alternator |
| Regulation | AVR automatic voltage regulator |
| Winding | Pure copper |
| Circuit breaker for power socket | Yes |
| Multi displays | Digital display V/Hz/hour 3-in-1 |
| Battery | 12V 30Ah |
| Tyres | 4 x heavy Duty Wheels |
| Weight（kg) | 155 |
| Dimensions (mm) | 950×560×760 |
Package Includes
- Unit
- 2 15 A plugs
- 1 12V plug+clips
- 2 Spanners
- 1 Screw driver
- 1 Oil filler
Accessories
O. ATS controller box
Introductions
The ATS controller box is an optional external accessory for diesel generator standBy power systems. It serves as an automatic transfer switch controller that intelligently monitors mains power supply. When the utility power fails or drops abnormally, the ATS controller box will automatically trigger the generator to start and switch the load power supply instantly; when mains power is restored, it will automatically switch back to grid power and shut down the generator, realizing fully unattended power supply operation.
Video: ATS Operation for DG6500E / DG7000E Generators (ATS Socket Connection)
Specifications
| Applicable Model | DG6500E,DG7000E (Silent Canopy, Built‑in ATS control socket) |
| Applicable System | Single-phase 240V / 50Hz generator standby power system |
| Switching Response | Instant automatic switch when power outage/grid recovery |
| Control Mode | Automatic mains monitoring & intelligent power switching |
| Core Function | Unattended automatic start/stop & dual power transfer |
| Weight（kg) | 3 |
| Dimensions (mm) | 250×200×150 |
Package Includes
- Unit
- Cable

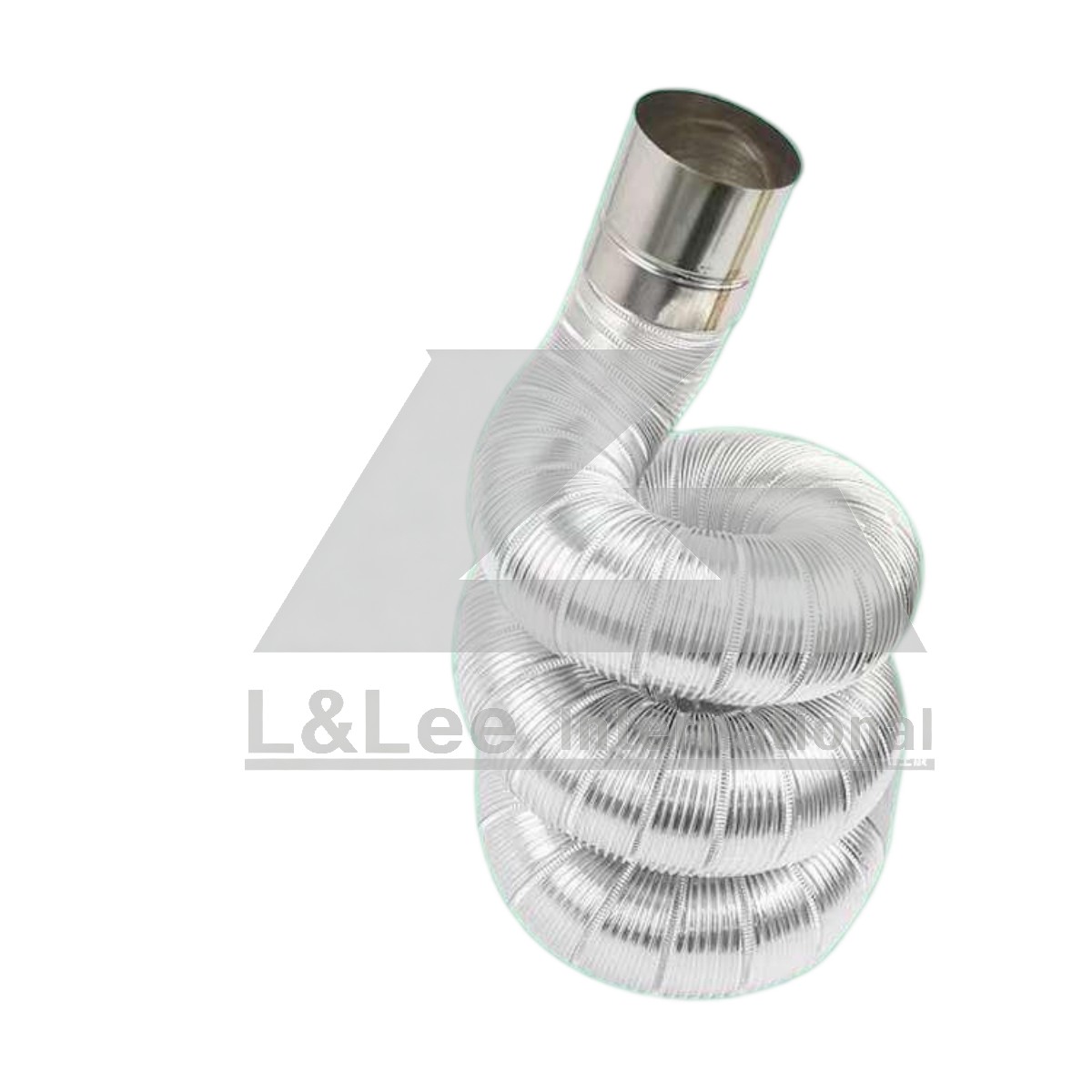

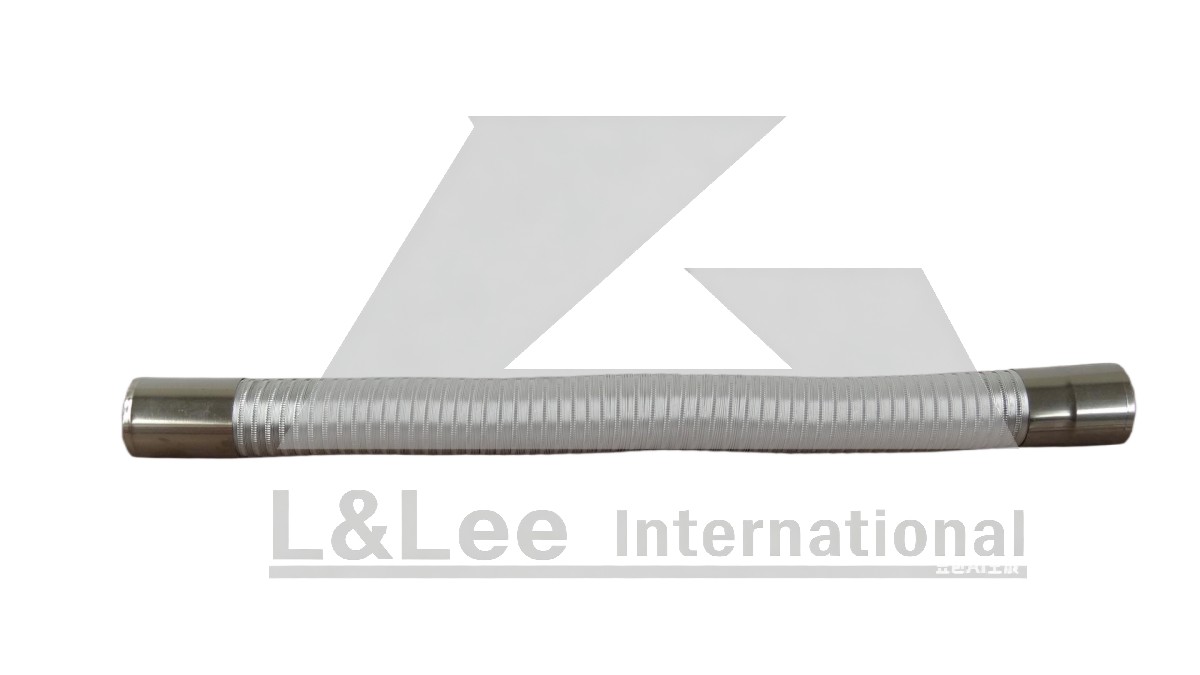

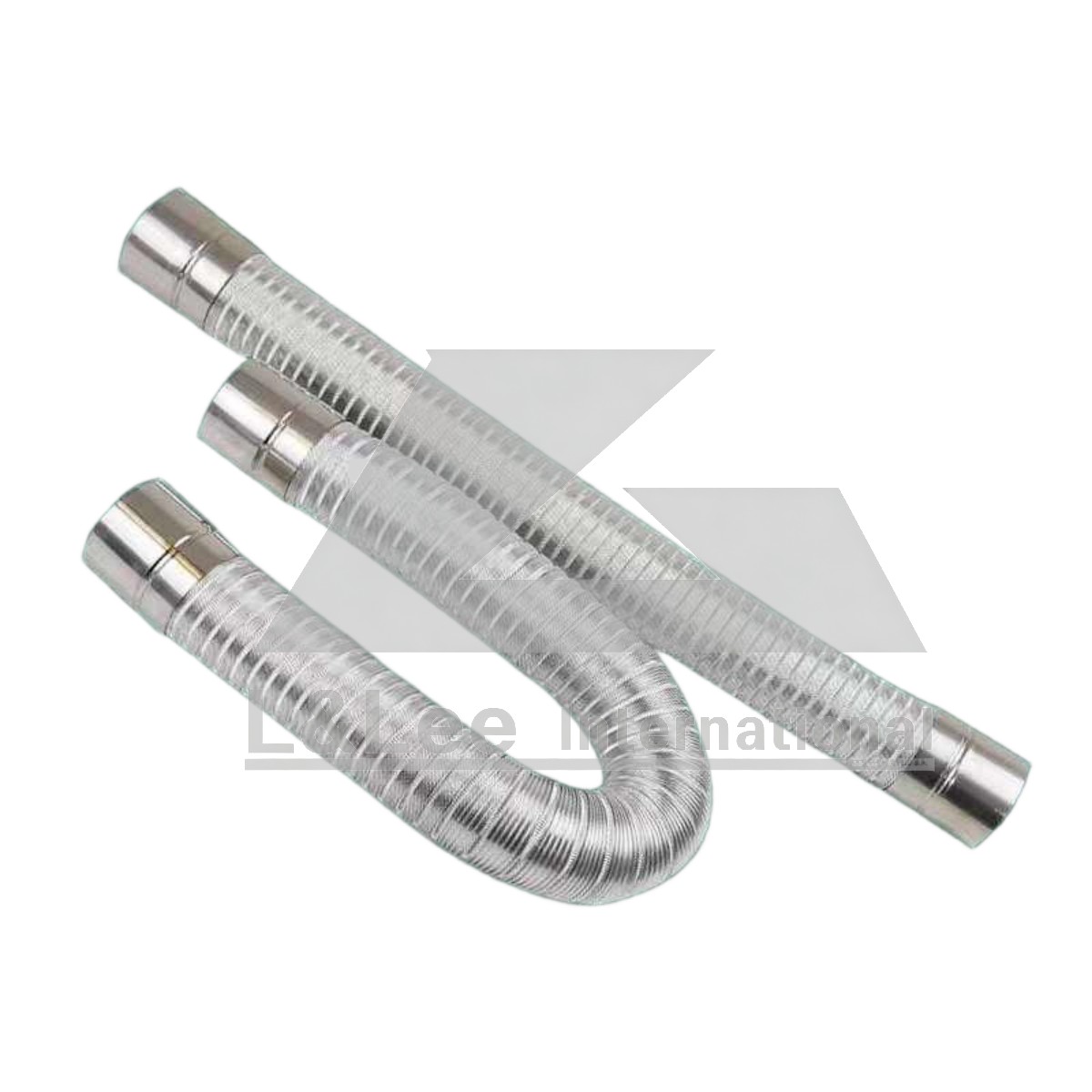

O1.Stainless Steel Telescopic Exhaust Extension Pipe O1
Introductions
High-temperature resistant telescopic exhaust extension hose for generators, engines and machinery exhaust evacuation. Adjustable length for flexible installation, effectively guiding exhaust fumes away from working areas. Durable construction resists heat and corrosion, easy to connect and store. Ideal for workshops, construction sites and enclosed space operation.
Specifications
| Product Name | Stainless Steel Telescopic Exhaust Extension Pipe |
| Material | Stainless Steel |
| Length | Initial: 500mm, Max Extended: 1500mm |
| Diameter | 50mm, 60mm, 100mm |
| Feature | High Temperature & Corrosion Resistant, Adjustable Length |
Package Includes
- 1 Piece
O2.Battery
Introductions
Specially engineered for electric start diesel and petrol generators. Delivers instant high cranking current to ensure reliable engine ignition, even in low-temperature environments.
Robust internal plate structure offers strong vibration resistance, ideal for continuous standby and frequent startup conditions on construction sites and workshops. Low self-discharge rate maintains stable performance during long idle periods. Multiple capacity options available to match different generator models. Suitable for backup power generators, construction gensets and industrial power equipment.
Specifications
12V 7Ah Sealed Lead Acid Generator Starting Battery
| Model | 12V 7Ah SLA Battery |
| Voltage | 12 Volt |
| Capacity | 7Ah |
| Battery Type | Sealed Lead Acid (SLA) |
| Terminal Type | Metal Lug Terminals |
| Compatible Equipment | KP3500E Electric Start Petrol Generator & similar small portable generators |
| Features | Compact size, low self-discharge, anti-vibration construction |
| Advantage | Cost-effective, space-saving, ideal for light frequent starting duty |
12V 9Ah Sealed Lead Acid Generator Starting Battery
| Model | 12V 9Ah SLA Battery |
| Voltage | 12 Volt |
| Capacity | 9Ah |
| Battery Type | Sealed Lead Acid (SLA) |
| Terminal Type | Metal Lug Terminals |
| Compatible Equipment | KP9000E, KP10000E Electric Start Petrol Generators & similar medium portable generators |
| Features | Stronger cranking power, low self-discharge, anti-vibration sealed housing |
| Advantage | Higher capacity than 7Ah version, longer standby time, reliable for medium-size generator starting |
U1-9MF 12V Maintenance-Free Starting Battery
| Model | U1-9MF Maintenance-Free Battery |
| Voltage | 12 Volt |
| Cold Cranking Current | 250A (SAE) |
| Battery Type | Calcium Maintenance-Free Lead Acid |
| Terminal Type | Standard Automotive Posts |
| Compatible Equipment | DG6000, DG6500E, DG7000E Diesel Generators & heavy-duty power equipment |
| Features | No electrolyte top-up required, high instant cranking power, strong vibration resistance, low self-discharge |
| Advantage | Heavy-duty starting performance, long service life, ideal for frequent start diesel generator applications |
Package Includes
- 1 Piece

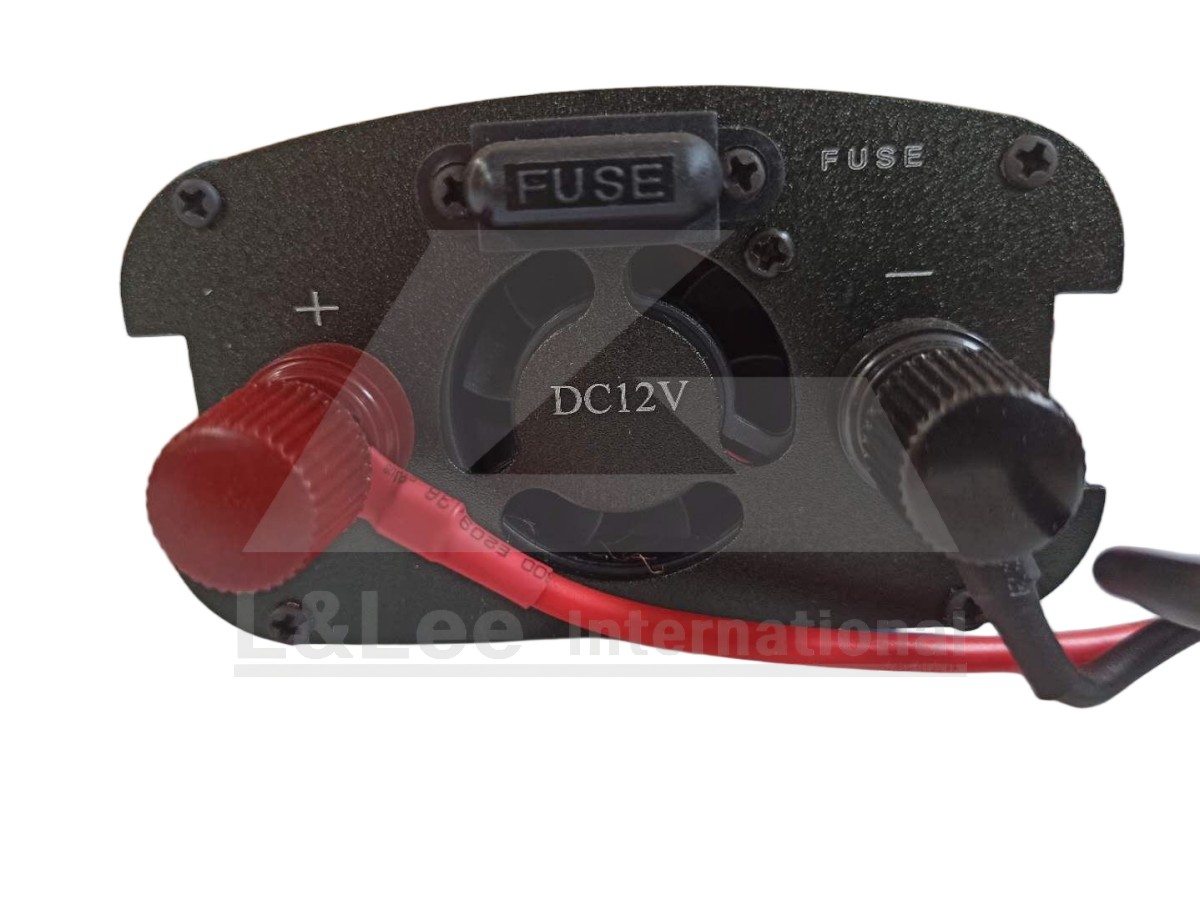

O3.DC/AC Power Inverter
Introductions
This power inverter can deliver pure sine wave output when matched with our DG series generators. It can also be used for signal voltage transmission.
When the voltage of solar batteries drops too low, it works with the ATS control box to automatically start the diesel generator to charge the solar batteries. When the solar battery voltage returns to normal, the diesel generator will shut down automatically.
Specifications

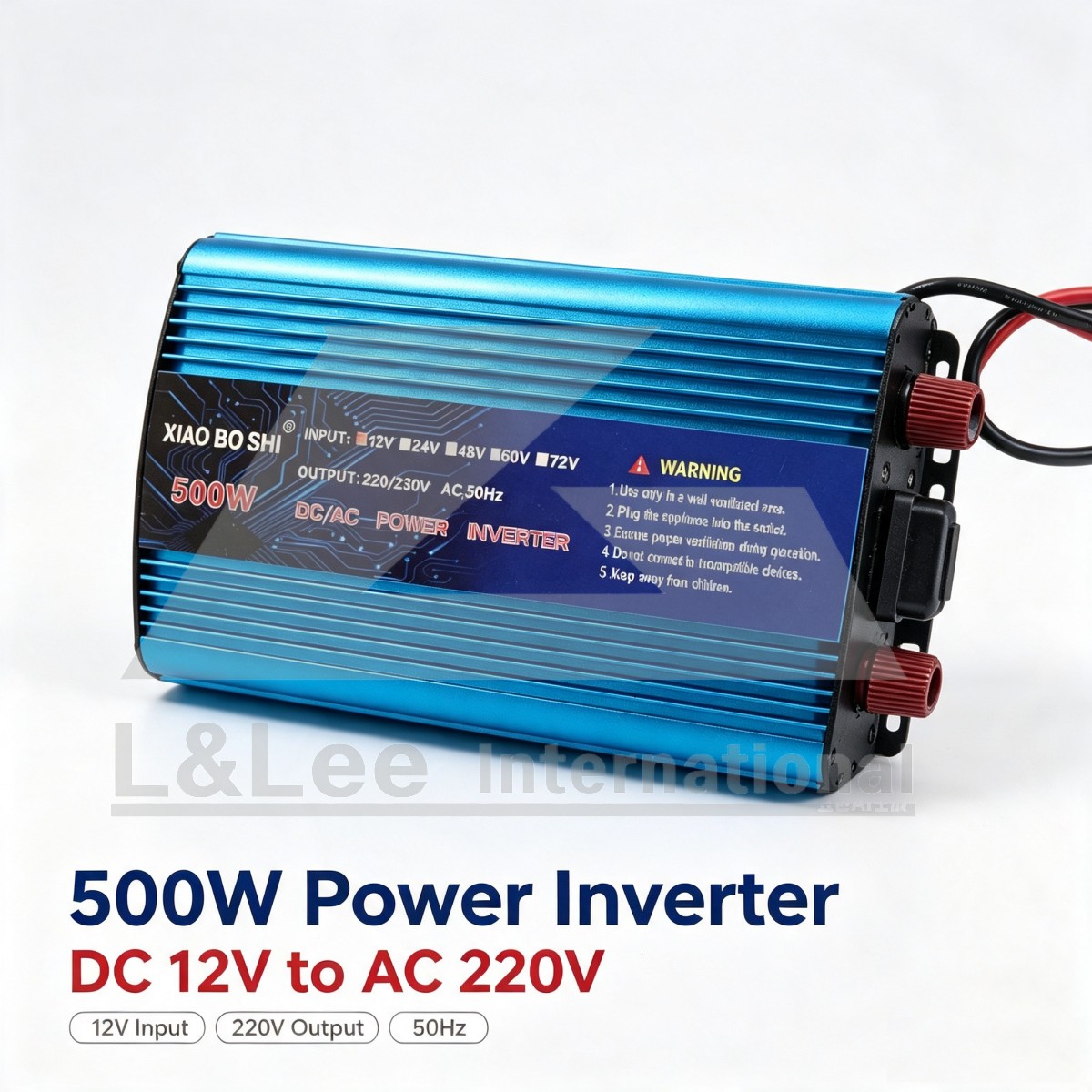

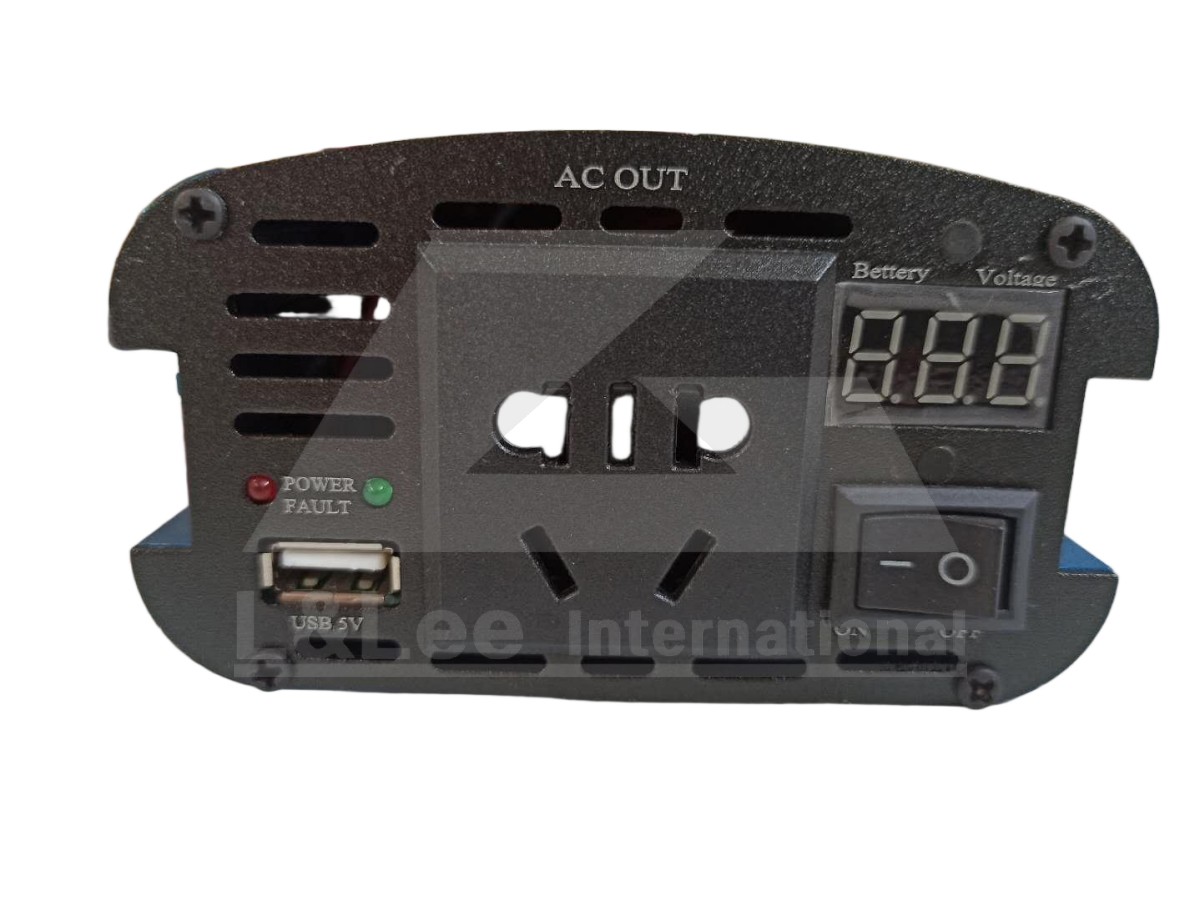

500W DC/AC Modified Sine Wave Power Inverter
| Model | 500W DC/AC Modified Sine Wave Power Inverter |
| Brand | XIAO BO SHI |
| Input Voltage | 12V DC |
| Output Voltage | 220/230V AC |
| Frequency | 50Hz |
| Waveform | Modified Sine Wave |
| Rated Power | 500W |
| Features | Can be matched with DG series generators; usable as signal voltage source. Cooperates with ATS control box to auto start/stop diesel generator for solar battery charging |
| Application | Off-grid solar system, vehicle, outdoor power supply, match with DG series generator |

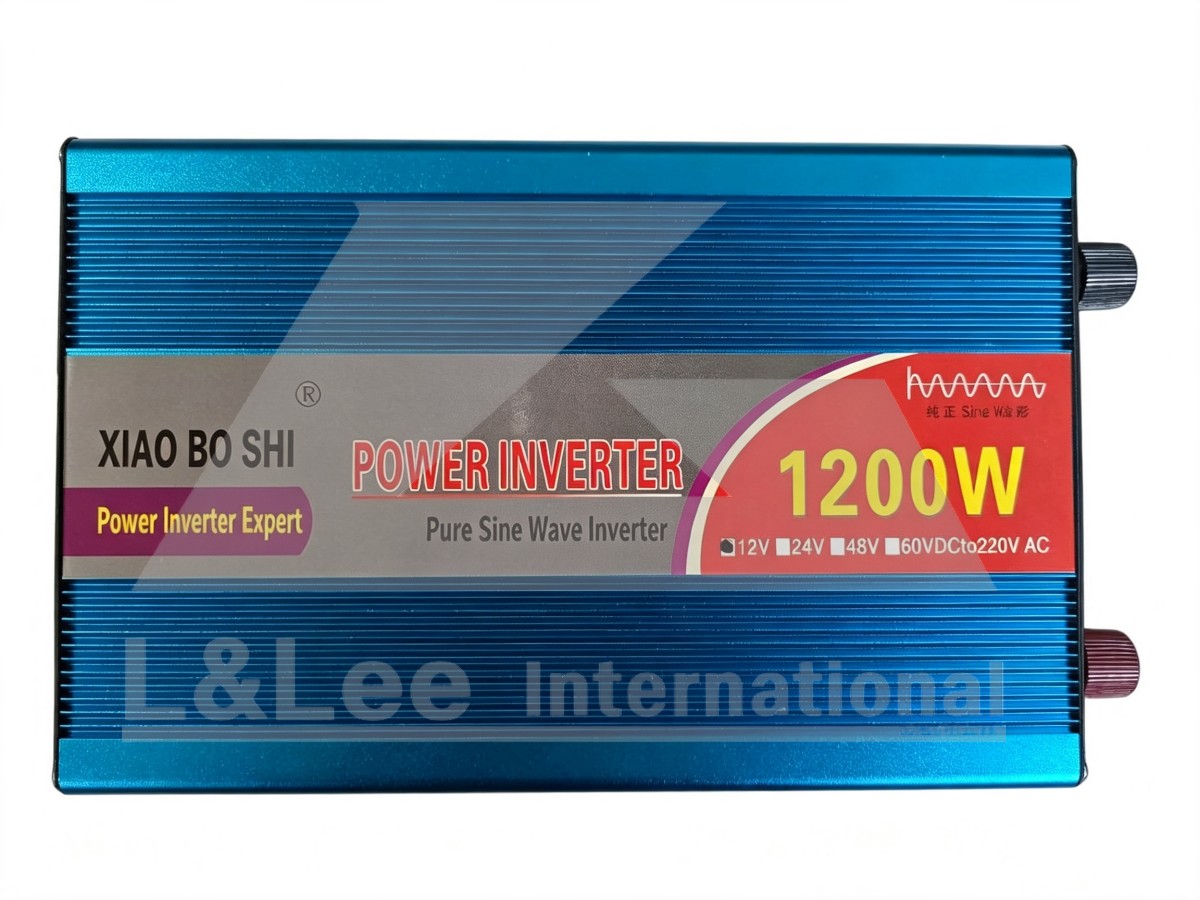

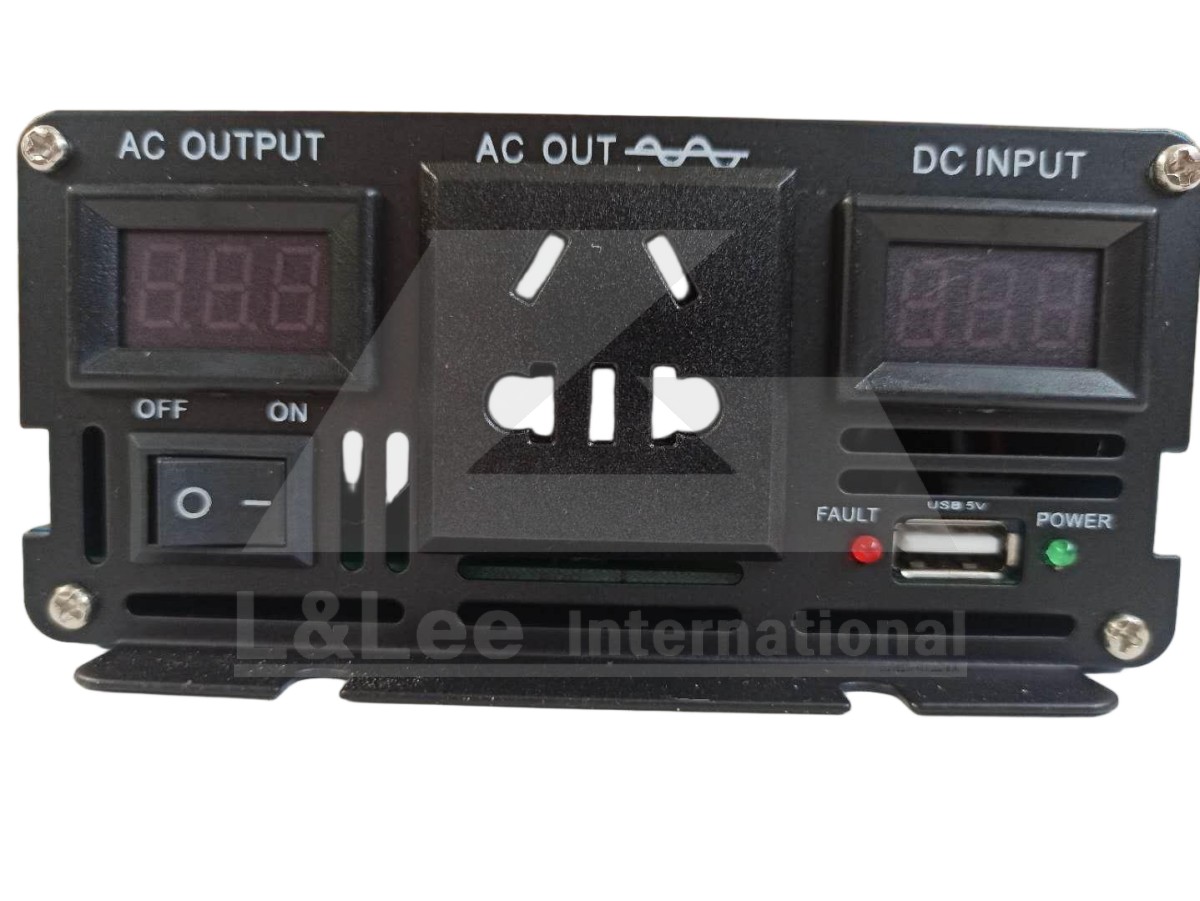

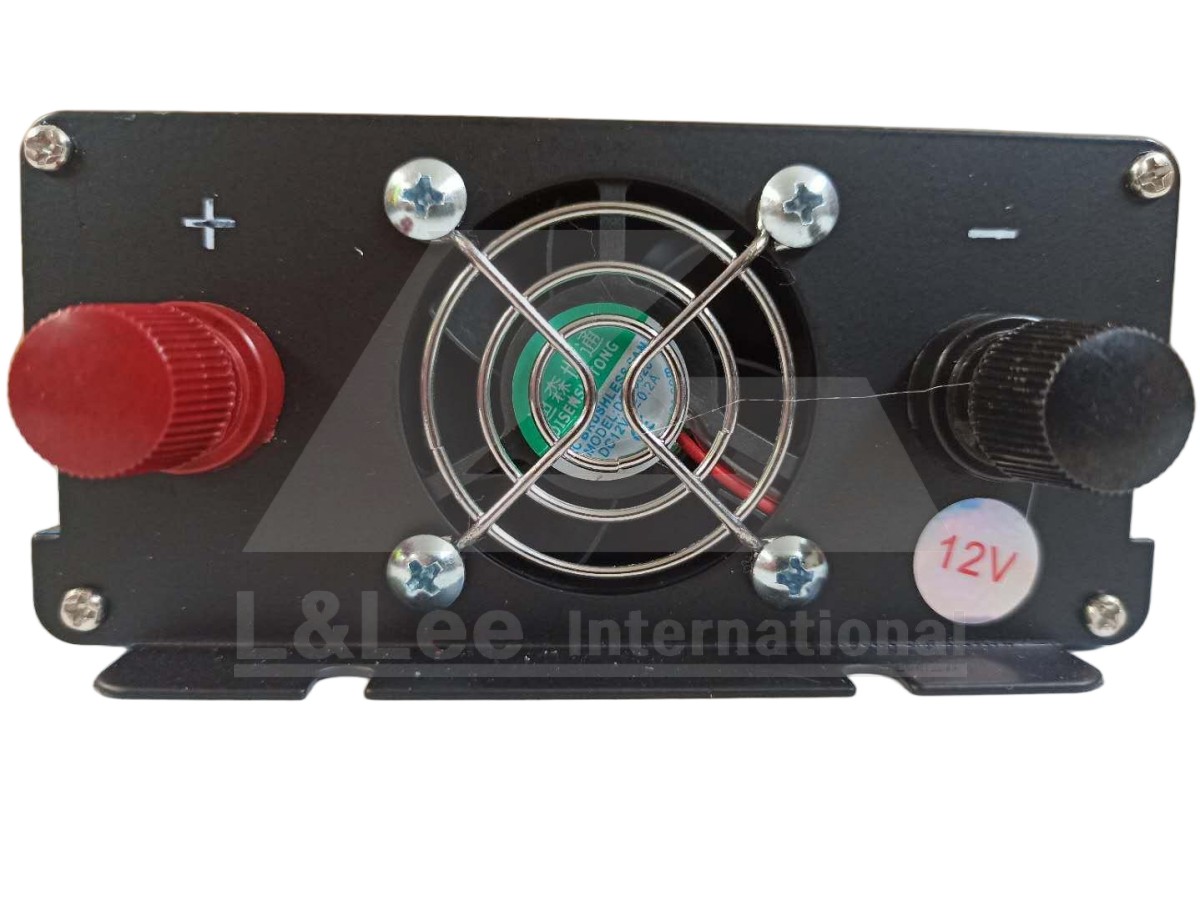

1200W Pure Sine Wave Power Inverter
| Model | 1200W Pure Sine Wave Power Inverter |
| Brand | XIAO BO SHI |
| Input Voltage | 12V DC |
| Output Voltage | 220V AC |
| Waveform | Pure Sine Wave |
| Rated Power | 1200W |
| Features | Can be matched with DG series generators; usable as signal voltage source. Cooperates with ATS control box to auto start/stop diesel generator for solar battery charging |
| Application | Solar off-grid system, home backup power, outdoor power, generator matching system |
Package Includes
- 1 Piece
P. Spare Parts
1. Spare Parts for KB168FE,KB177FE,KB188FE,KP3500,KP6500,KP9000E,KP10000E,PR3500I
2. Spare Parts for HP186FAE,DG6000.DG6500E,DG7000E
*These items are available from our Auckland stock.
P. Spare Parts
1. Spare Parts for KB168FE,KB177FE,KB188FE,KP3500,KP6500,KP9000E,KP10000E,PR3500I
2. Spare Parts for HP186FAE,DG6000.DG6500E,DG7000E
