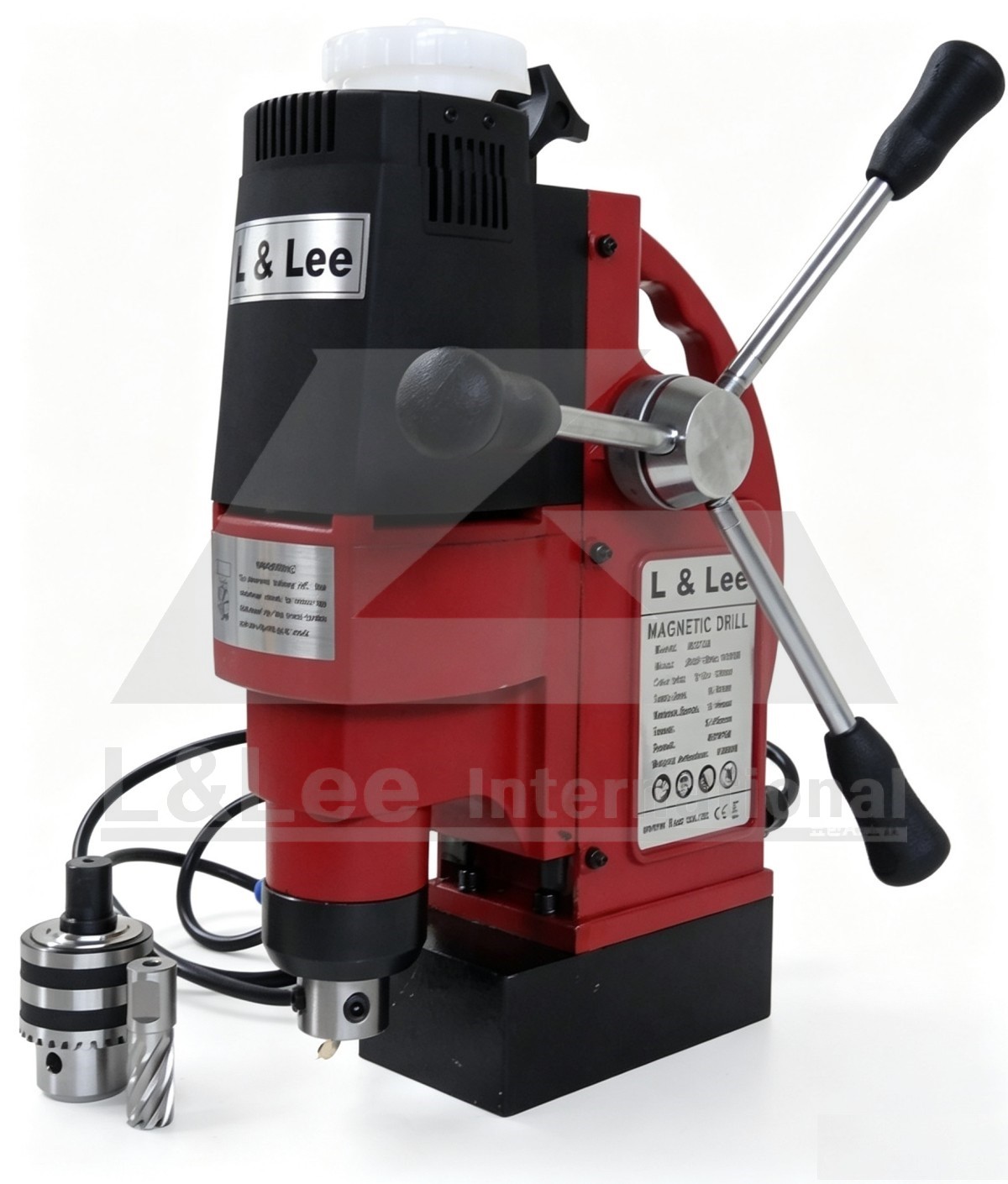

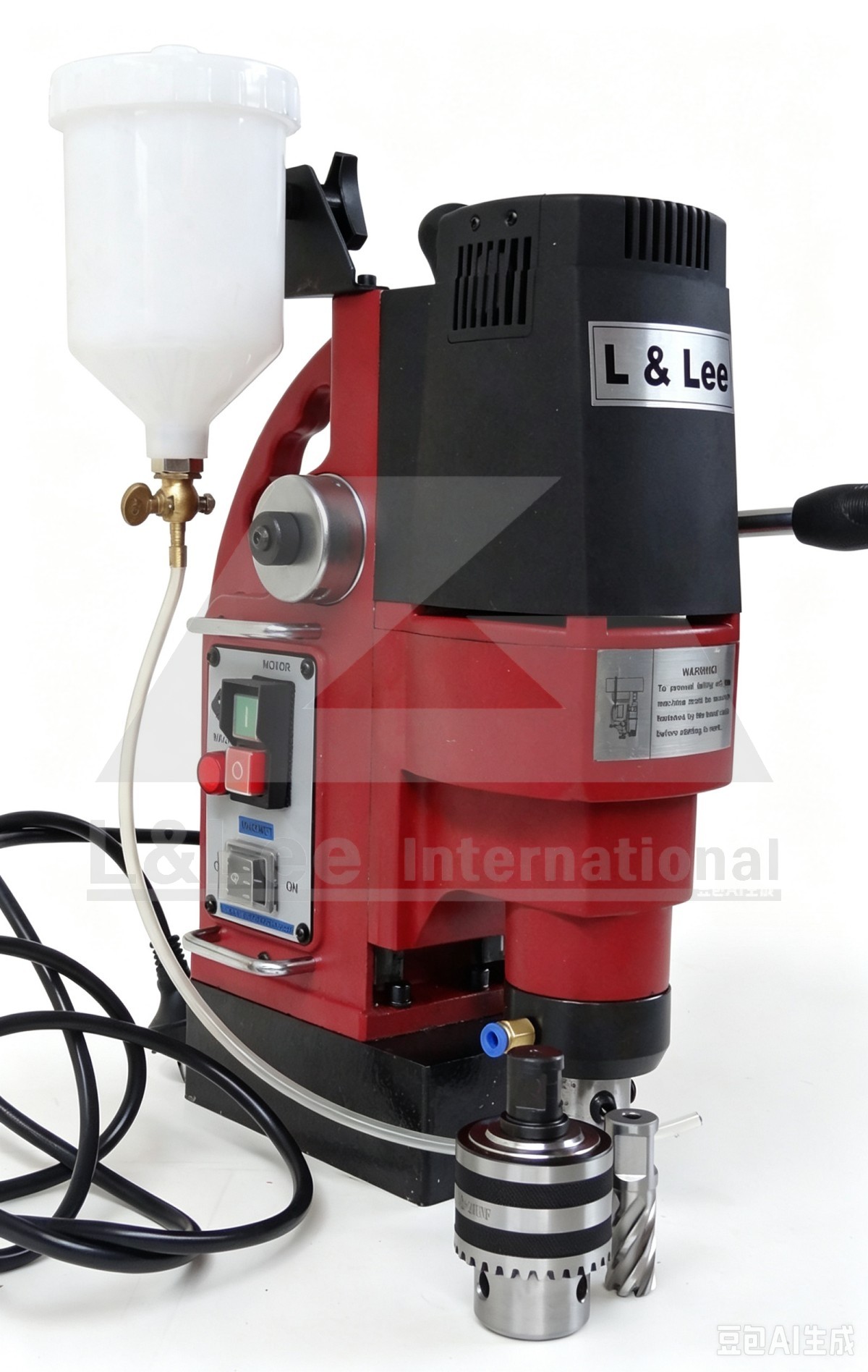

A. Magnetic Drill Press | Model MCD30
Introductions
Model MCD30 magnetic drill equipped with strong magnetic base delivers stable drilling on steel structures for workshop and on-site fabrication.
MCD30 Portable design with high holding force magnet base
Ideal for steel plate, beam and structural steel drilling
Suitable for engineering installation and metal fabrication.
Specifications
| Power Voltage | AC230V 50/60Hz |
| Motor Power (W) | 1100W, S6 40% |
| Magnetic Adhesion (N) | 11000 |
| Core drill (mm) | 12-30 |
| Core drill toll holder (mm) | 19mm Weldon shank |
| Twist drill (mm) | 16 |
| Speed (r/min) | 450 |
| Stroke (mm) | 125 |
| Weight（kg) | 19 |
| Dimensions (mm) | 510 × 440 × 225 |
Package Includes
- Unit
- Twist Drill Holder
- Chuck Key
- Magnetic Drill Coolant Pot
- Safety Rope
Options
- Core Drill Bits ⌀18mm – ⌀30mm
One-year back to base warranty (Auckland)

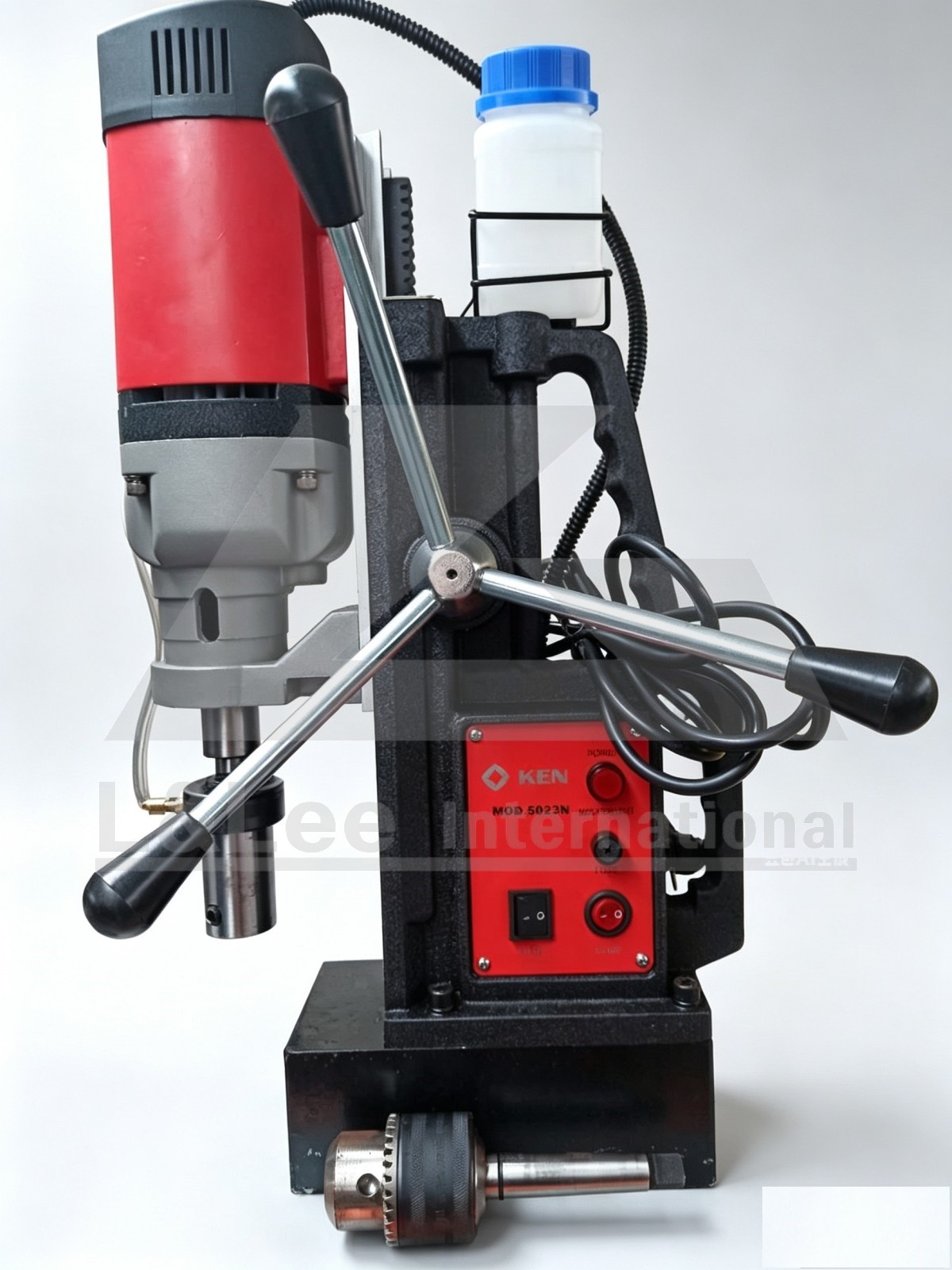

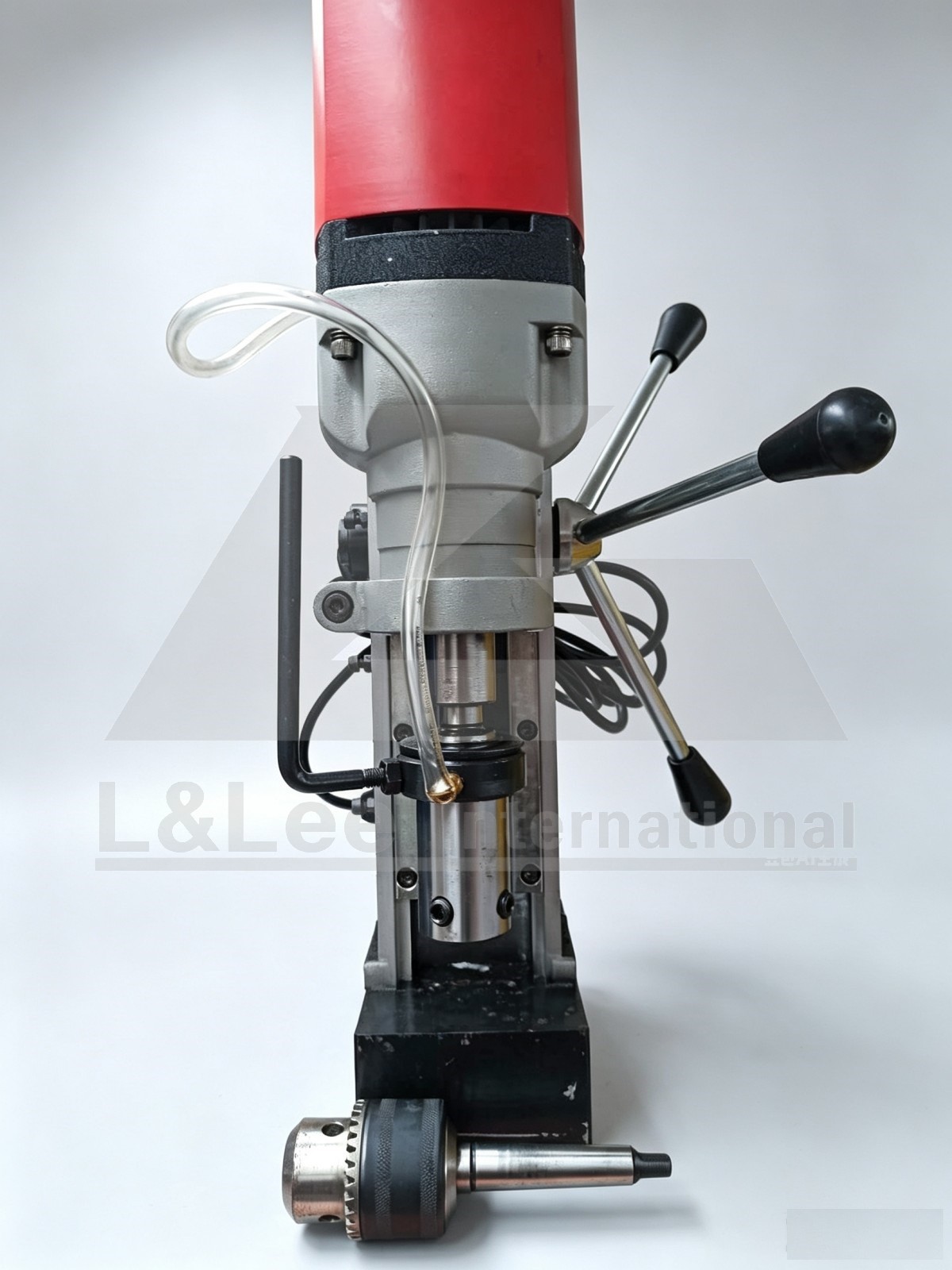

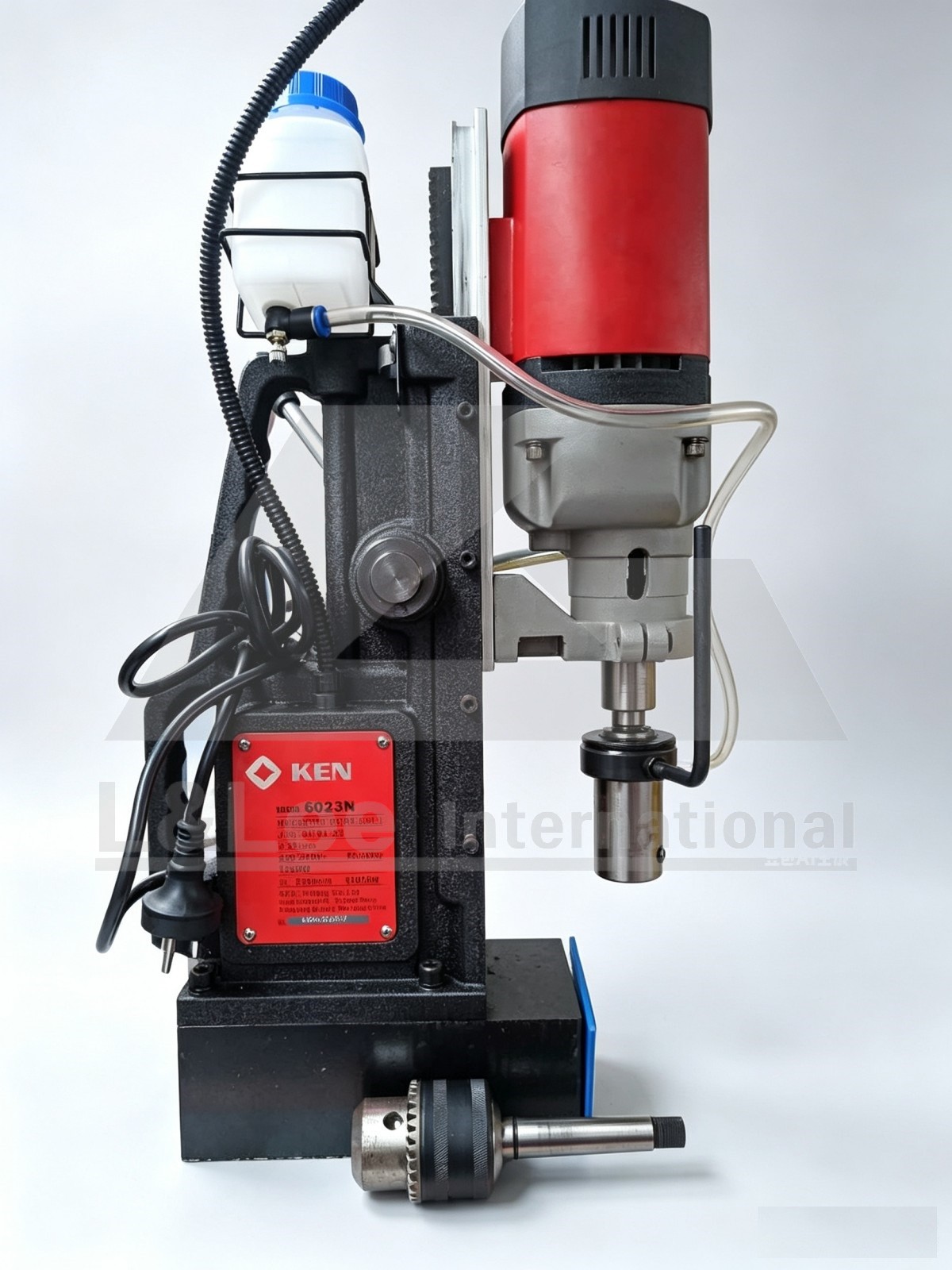

B. Magnetic Drill Press | Model 6023N
Introductions
Model 6023N magnetic drill press equipped with powerful electromagnetic base delivers stable 23mm max drilling capacity for on-site steel structure fabrication and engineering installation.
Specifications
| Power Voltage | AC230V 50/60Hz |
| Motor Power (W) | 1200W.S6 40% |
| Magnetic Adhesion (N) | 13000 |
| Core drill (mm) | 12-23 |
| Core drill toll holder (mm) | 19mm Weldon shank |
| Twist drill (mm) | 23 |
| Speed (r/min) | 330 |
| Stroke (mm) | 125 |
| Weight（kg) | 19 |
| Dimensions (mm) | 510 × 440 × 225 |
Package Includes
- Unit
- Twist Drill Holder
- Chuck Key
- Magnetic Drill Coolant Pot
- Safety Rope
Options
- Core Drill Bits ⌀18mm – ⌀30mm
One-year back to base warranty (Auckland)

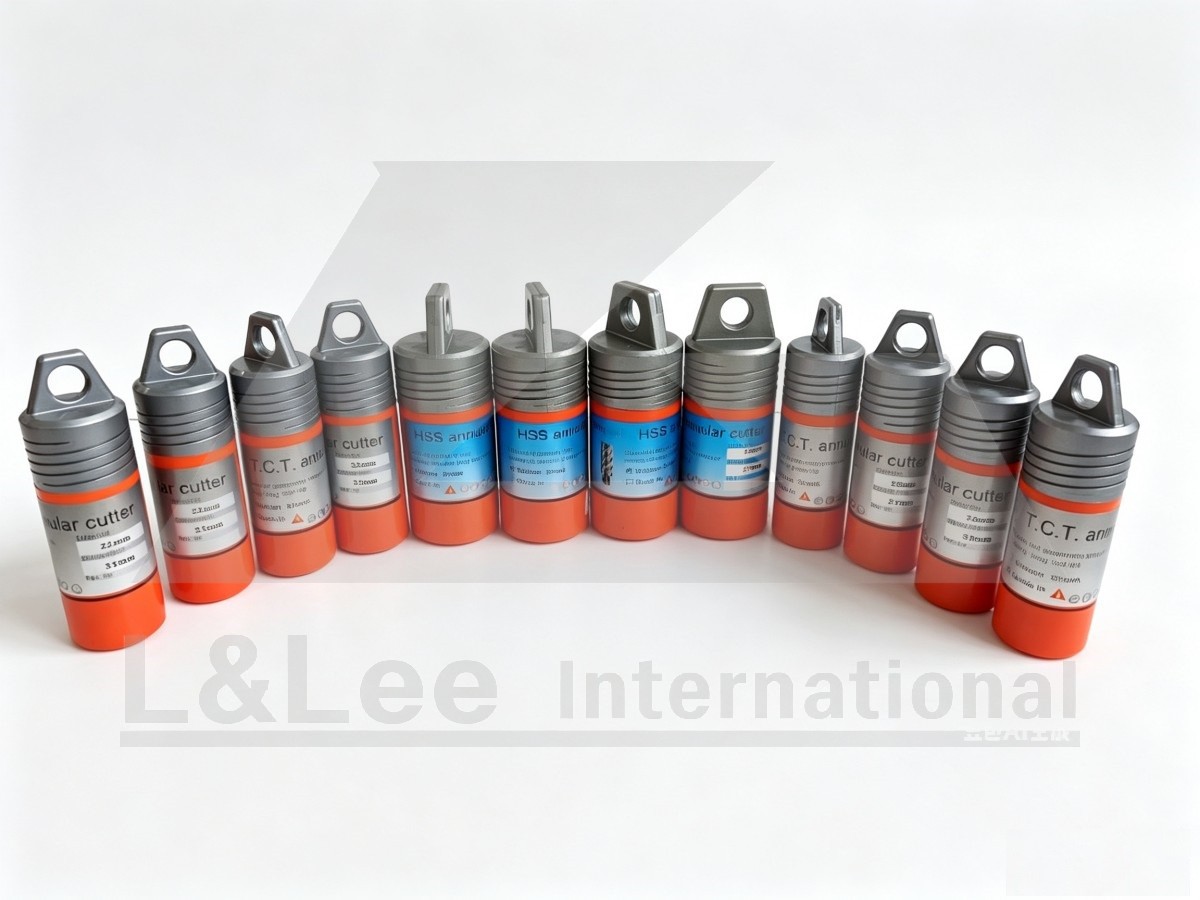

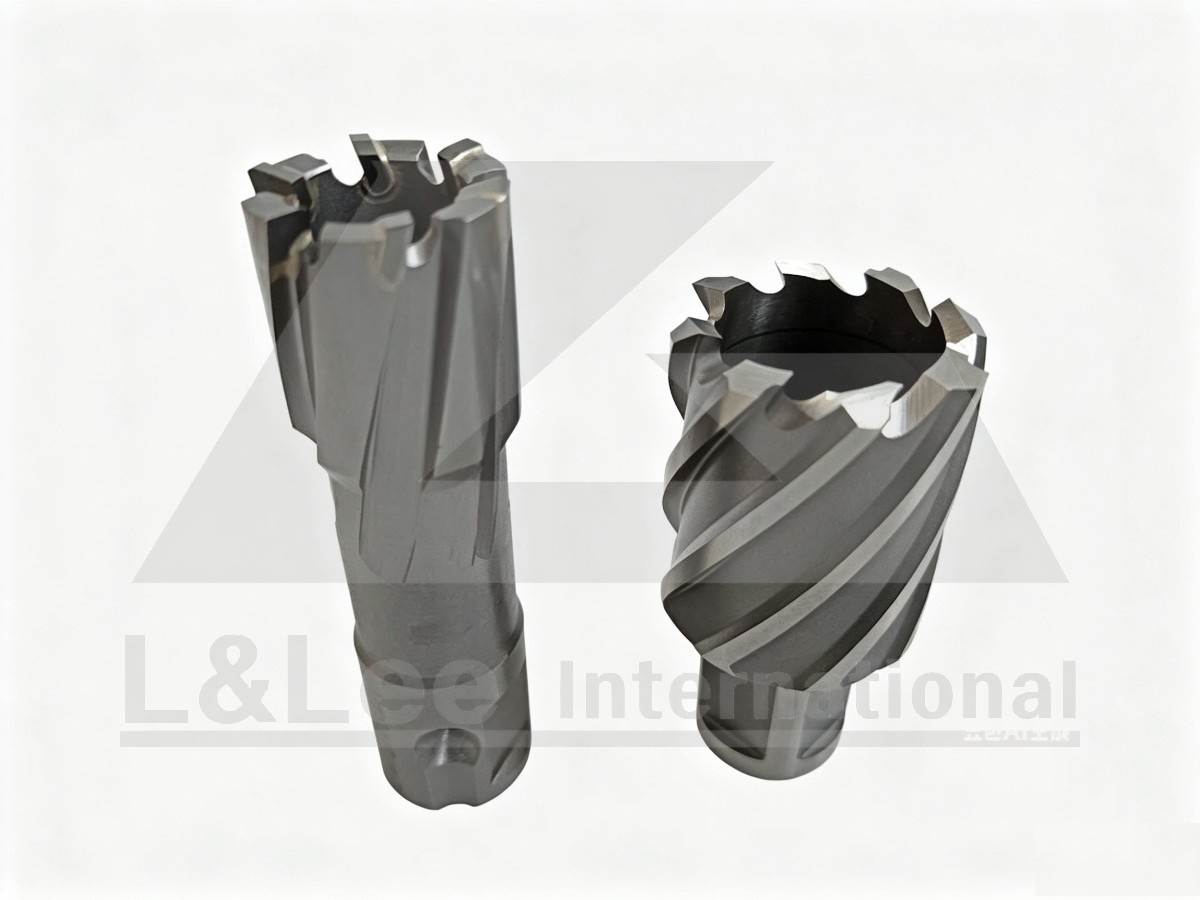

C. Core Drill Bits
Introductions
We supply professional industrial straight shank twist drills and HSS annular cutters (Weldon shank). Sizes: 3,4,5,6,8,10,12,14,15,16,17,18,19,20mm Annular cutters range: 18mm to 30mm
Specifications
| Shank Twist Drill (mm) | ⌀3,⌀4,⌀5,⌀6,⌀8,⌀10,⌀12,⌀14,⌀15,⌀16,⌀17,⌀18,⌀19,⌀20 |
| Core Drill (mm) | ⌀18,⌀20,⌀22,⌀24,⌀26,⌀28,⌀30 |
Package Includes
- 1 Piece
