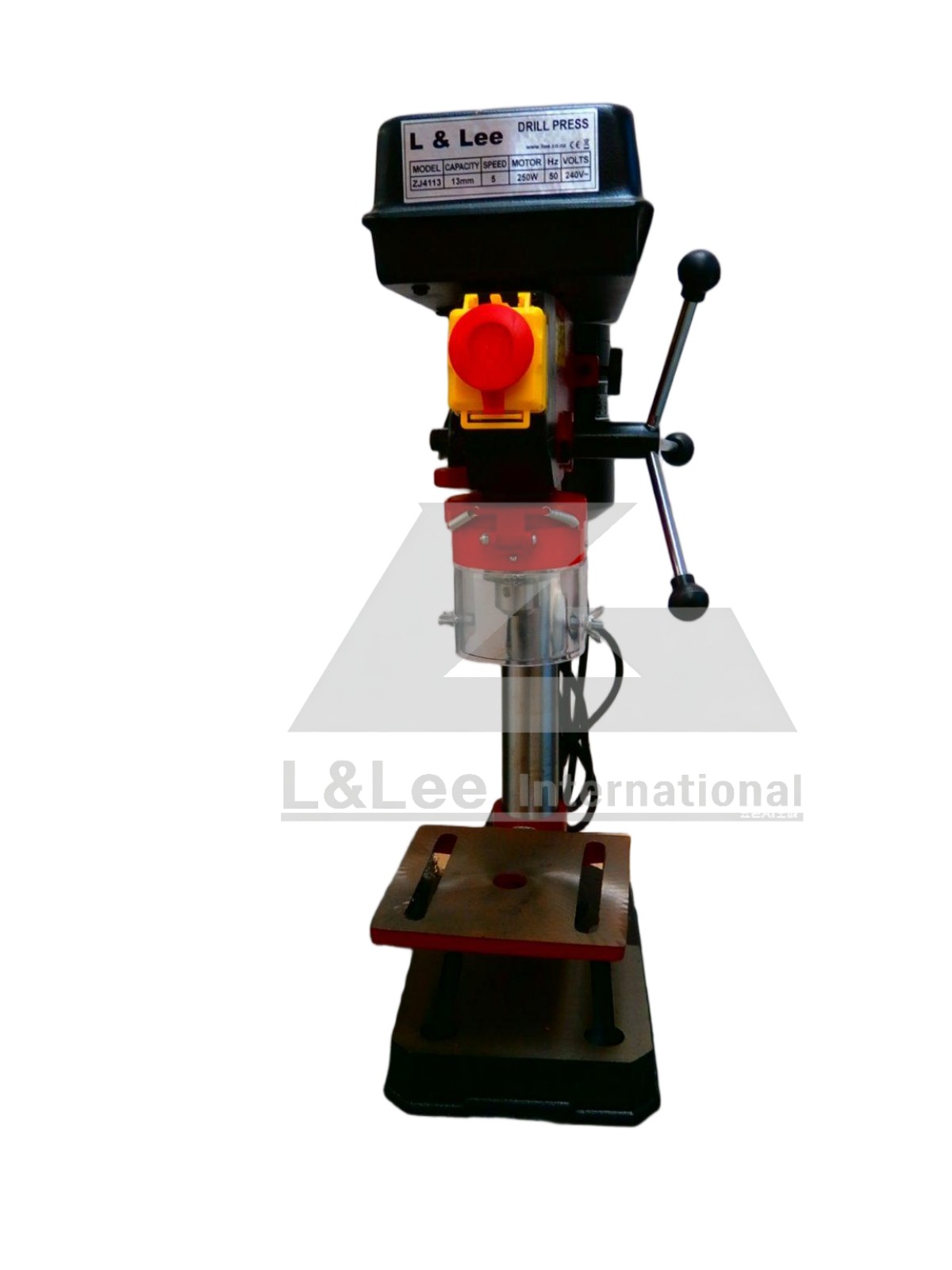

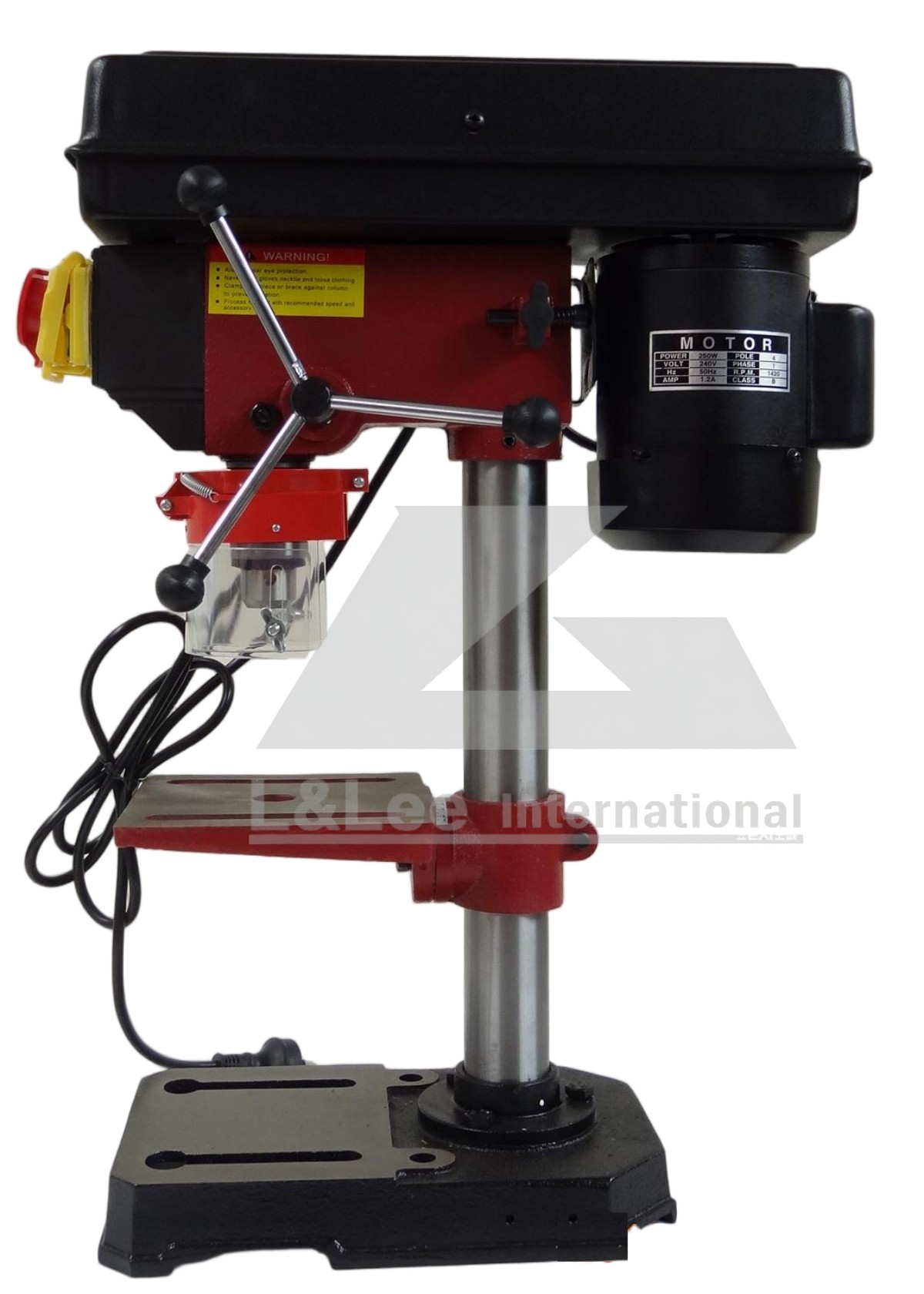

A. Drill Press 13mm | Model ZJ4113
Introductions
Model ZJ4113 bench drill press features a maximum 13mm drilling capacity ideal for light metal and woodworking tasks.
Specifications
| Power Voltage | AC230V 50/60Hz |
| Capacity (mm) | 13 |
| Max Output Power (W) | 250 |
| Speed Change (STEP) | 5 |
| Chuck (mm) | 13 |
| Spindle Travel (mm) | 50 |
| Speed (r/min) | 620-2620 |
| Swing (mm) | 210 |
| Working Table (mm) | 160 x 160 |
| Base Size (mm) | 290 x 190 |
| Column (mm) | 46 |
| Total Height (mm) | 590 |
| Weight（kg) | 17 |
| Package Dimensions (mm) | 440 × 350 × 230 |
Package Includes
- Unit
- Chuck Key
- Protection Cover
Options
- Drill bits from ⌀4.0mm - ⌀22mm

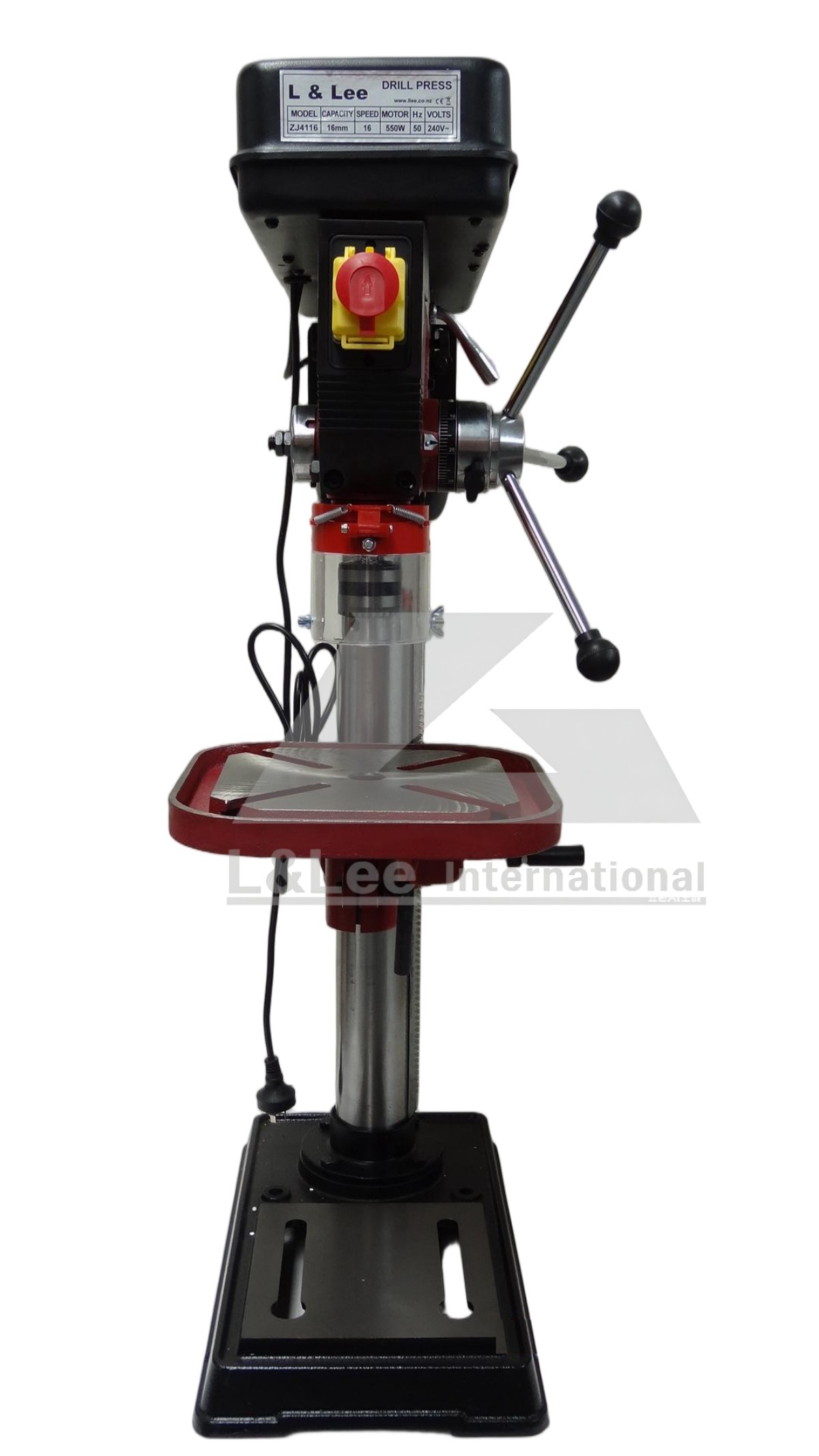

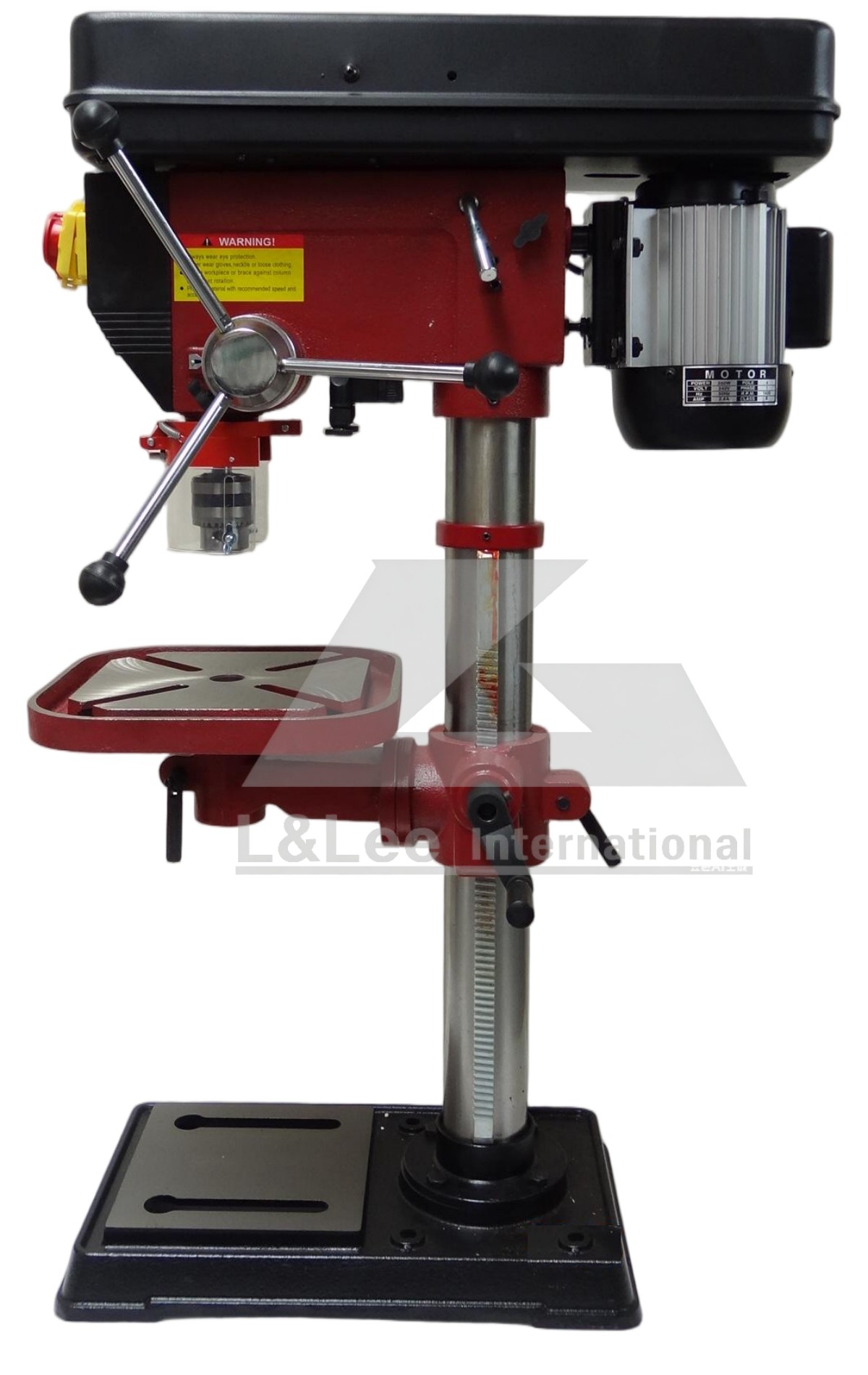

B. Drill Press 16mm | Model ZJ4116
Introductions
Model ZJ4116 bench drill press with 16mm maximum drilling capacity suits general wood and light metal drilling work.
Specifications
| Power Voltage | AC230V 50/60Hz |
| Capacity (mm) | 16 |
| Laser device for target | Yes |
| Max Output Power (W) | 550 |

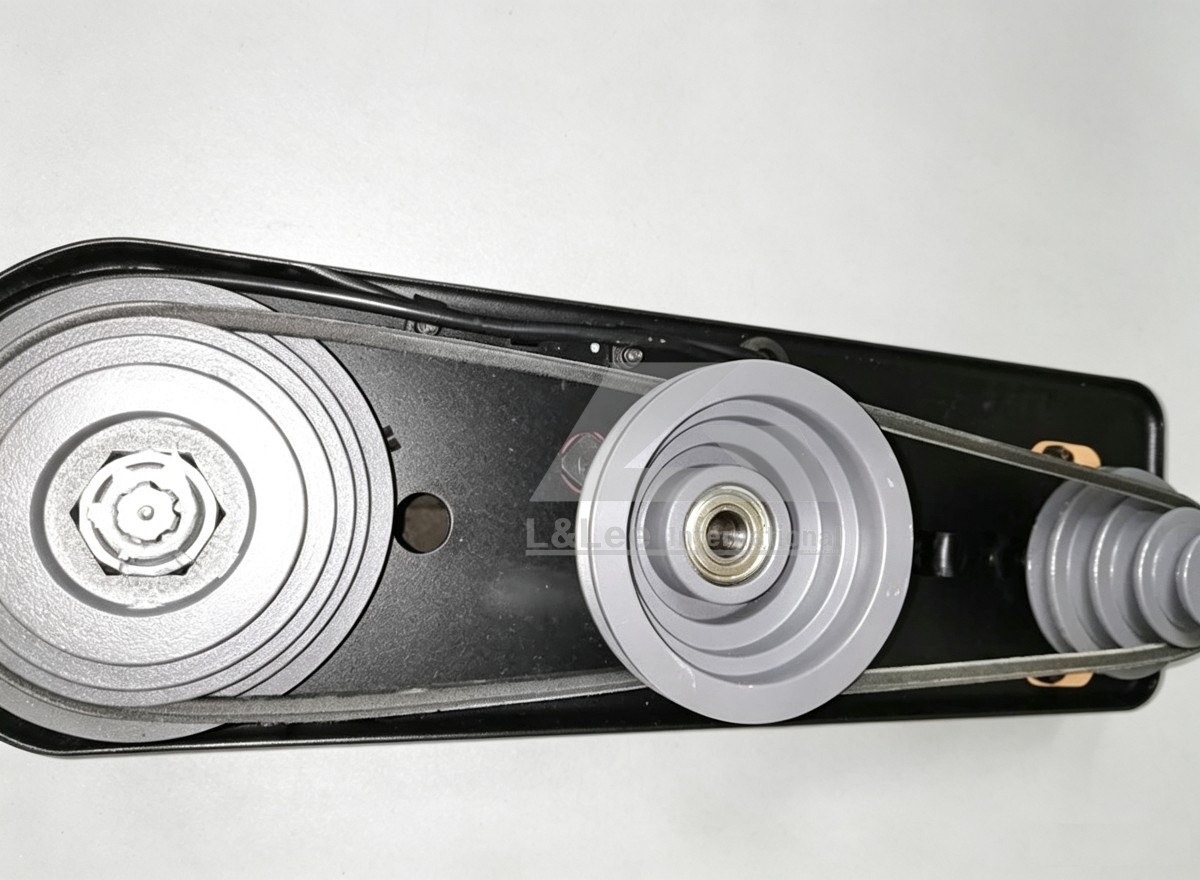

| Speed Change (STEP) | 16 |
| Chuck (mm) | 16 |
| Spindle Taper | MT3 |
| Spindle Travel (mm) | 82 |
| Speed (r/min) | 220-2840 |
| Swing (mm) | 360 |
| Working Table (mm) | 290 x 290 |
| Base Size (mm) | 460 x 280 |
| Column (mm) | 72 |
| Total Height (mm) | 990 |
| Weight（kg) | 57 |
| Package Dimensions (mm) | 820 × 500 × 290 |
Package Includes
- Unit
- Chuck Key
- Protection Cover
Options
- Drill bits from ⌀4.0mm - ⌀22mm

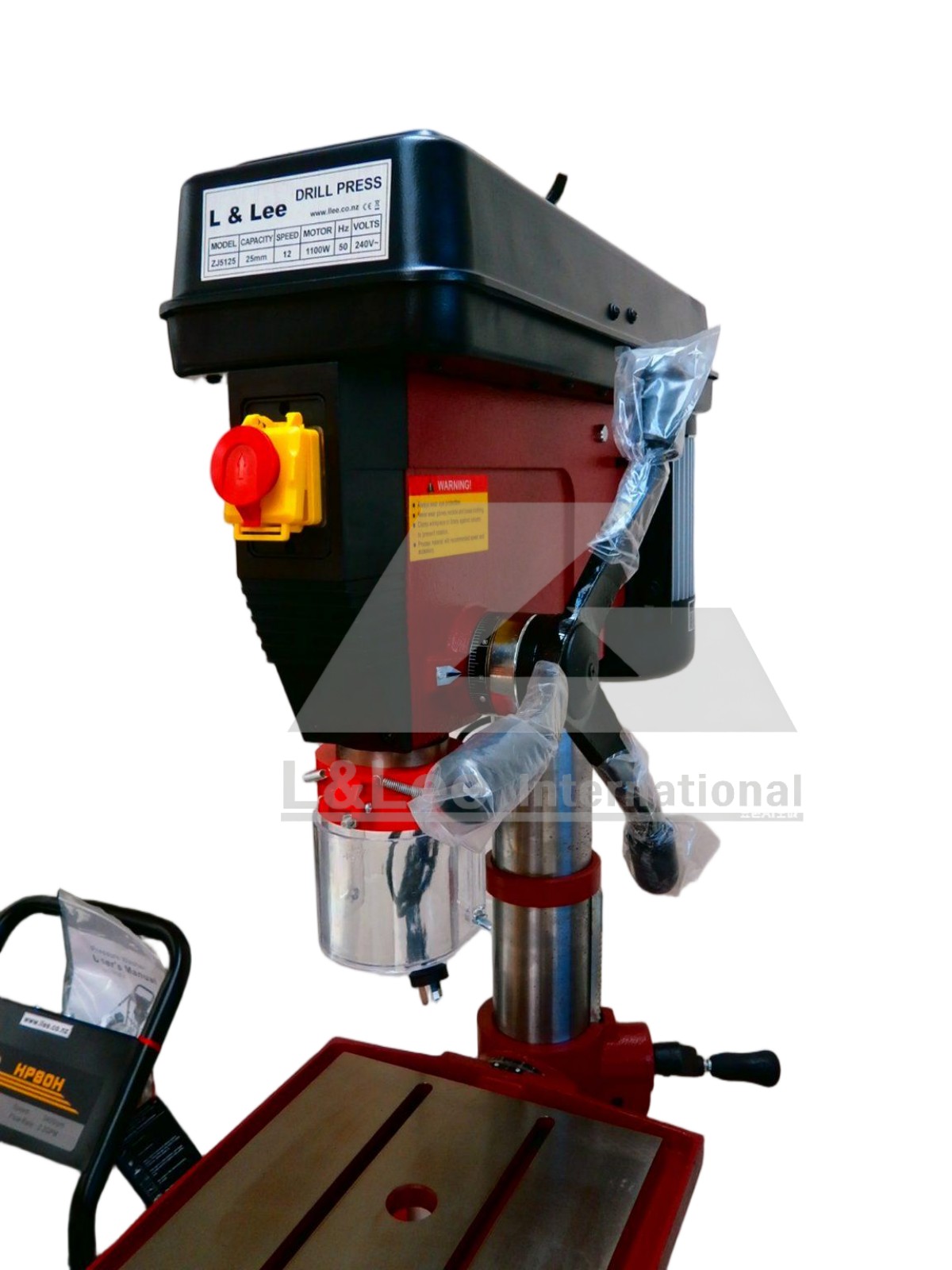

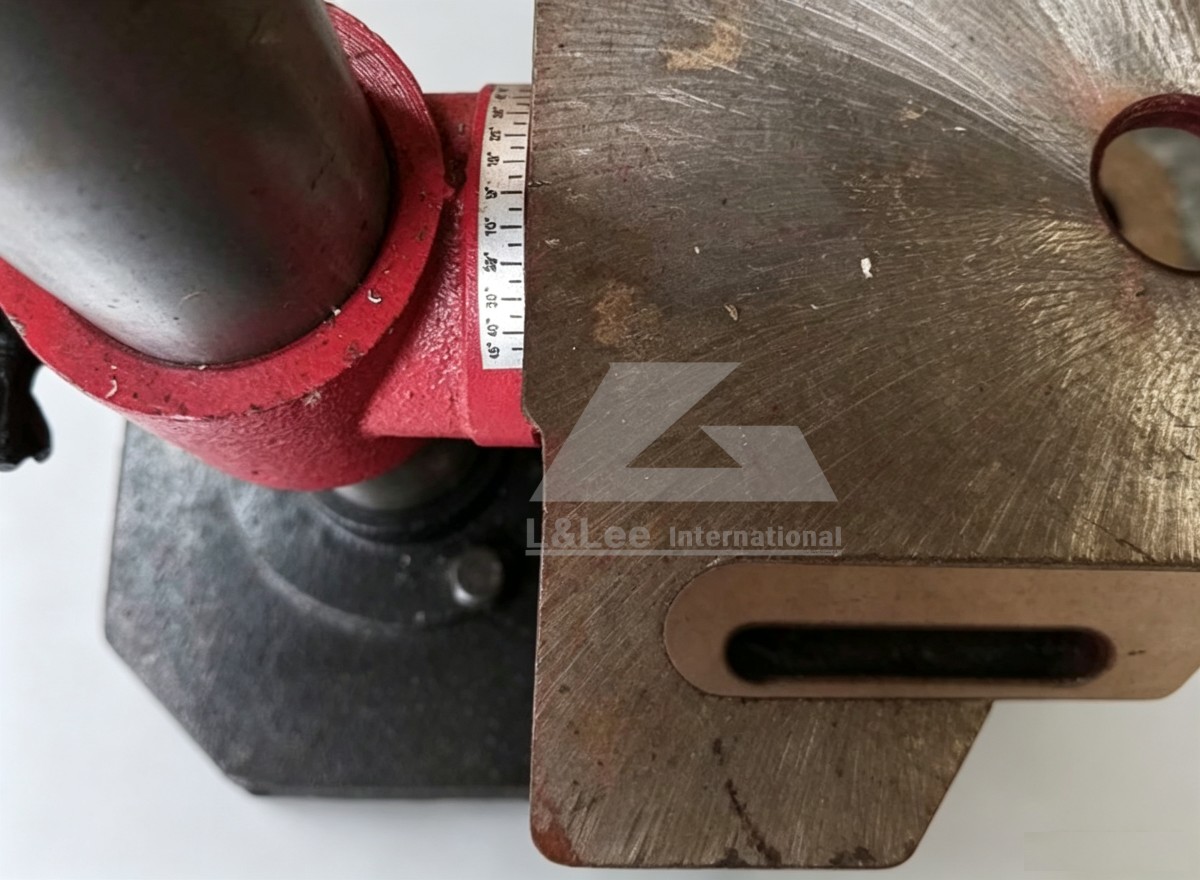

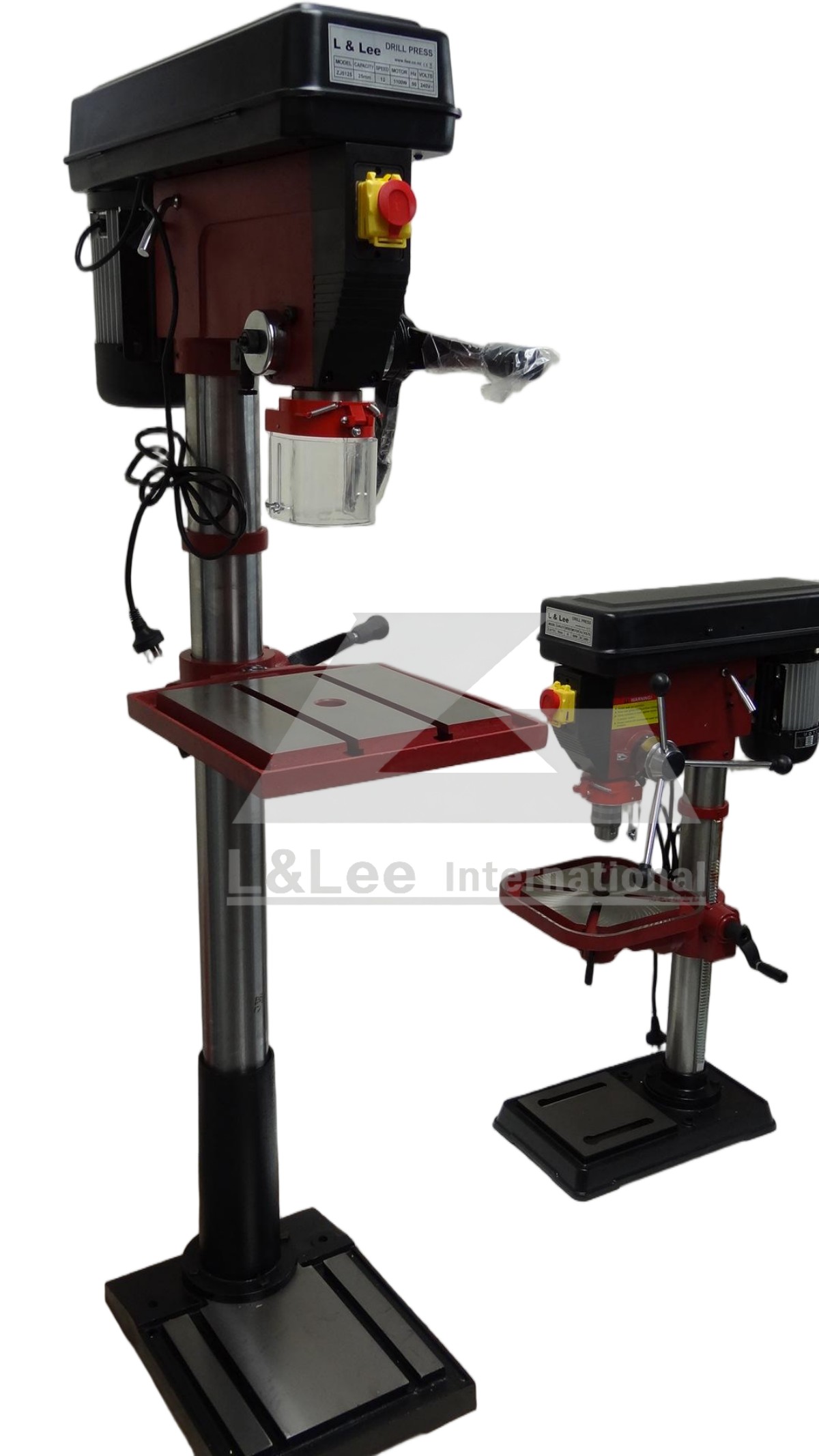

C. Drill Press 25mm | Model ZJ5125
Introductions
Model: ZJ5125
Max. drilling capacity: 25mm
Type: Vertical drill press Heavy-duty cast iron frame for excellent rigidity & vibration reduction
Multi-speed adjustment for diverse workpiece materials
Precise depth stop for repeat drilling
Suitable for metal, wood and plastic processing
Specifications
| Power Voltage | AC230V 50/60Hz |
| Capacity (mm) | 25 |
| Laser device for target | Yes |
| Max Output Power (W) | 550 |
| Speed Change (STEP) | 12 |
| Chuck (mm) | 16 |
| Spindle Taper | MT3 |
| Spindle Travel (mm) | 120 |
| Speed (r/min) | 150-2450 |
| Swing (mm) | 452 |
| Working Table (mm) | 350 x 350 |
| Base Size (mm) | 400 x 360 |
| Column (mm) | 92 |
| Total Height (mm) | 1700 |
| Weight（kg) | 110 |
| Package Dimensions (mm) | 1430 × 660 × 330 |
Package Includes
- Unit
- Chuck Key
- Protection Cover
Options
- Drill bits from ⌀4.0mm - ⌀22mm

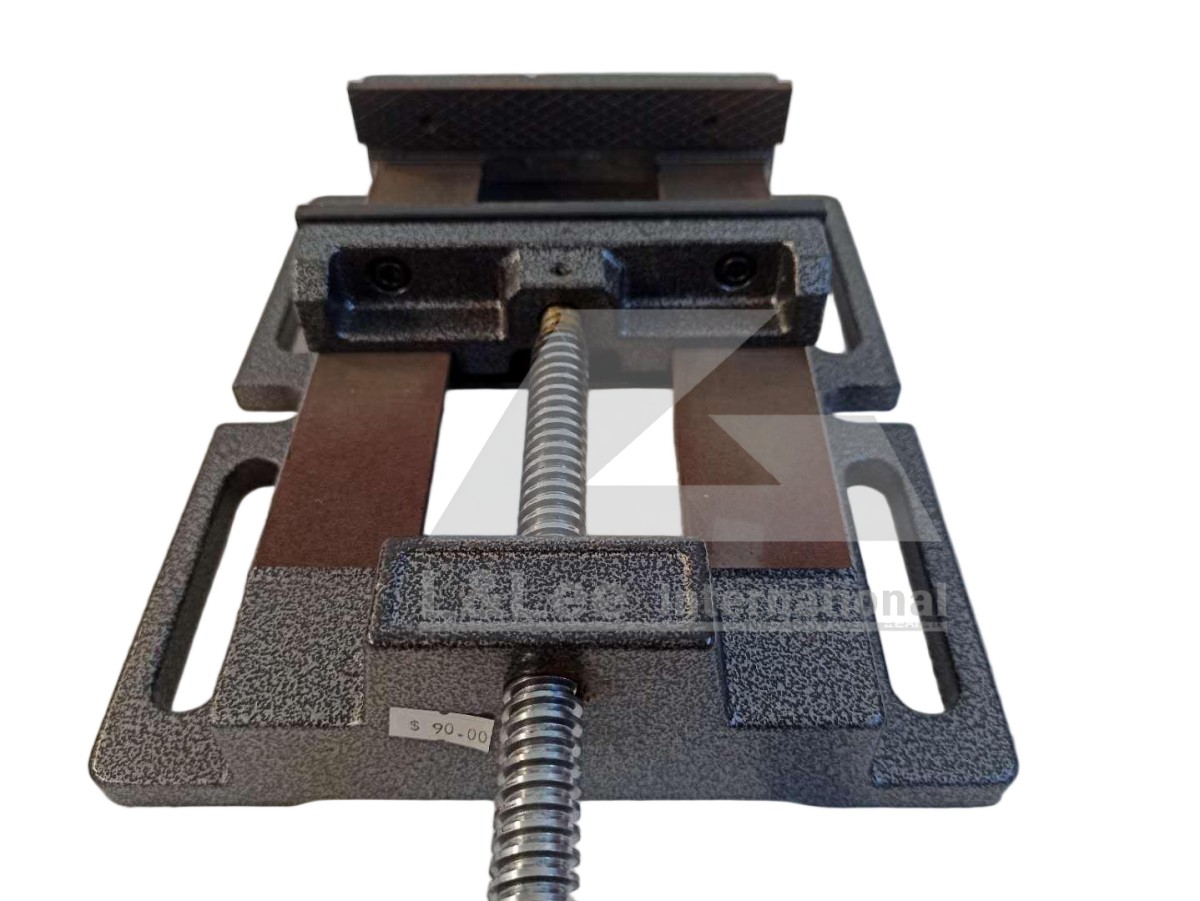

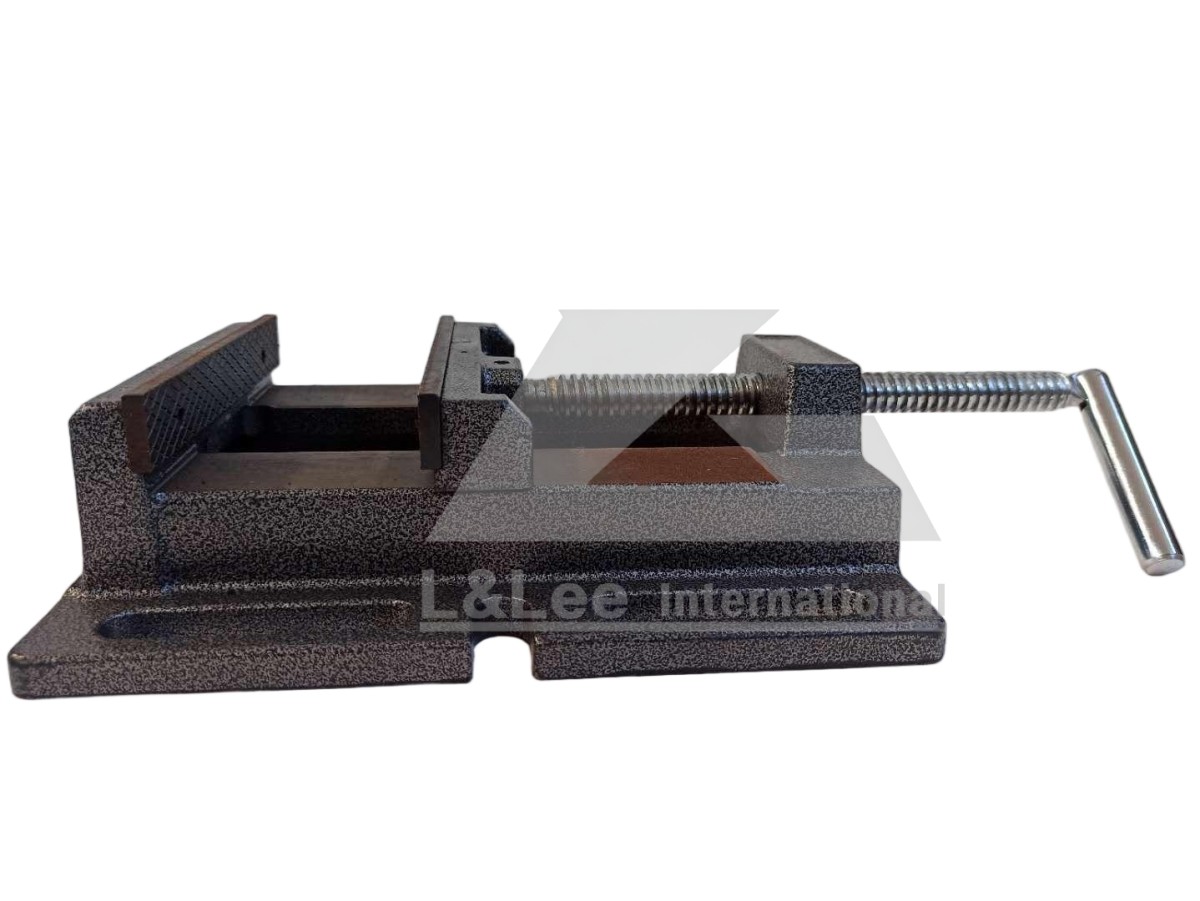

D. Heavy Duty Drill Vice
Introductions
Heavy-duty 4-inch and 6-inch drill vices firmly secure workpieces to guarantee precise drilling on drill presses.
Solid cast iron body
Available in 4" and 6" sizes
Suitable for mounting on drill press tables
Reliable clamping for metal, wood and plastic parts
Suitable for ZJ4113, ZJ4116, ZJ5125 and larger drill presses.
Specifications
| Size | 4-inch and 6-inch |
| Material | Solid cast |
Package Includes
- Unit

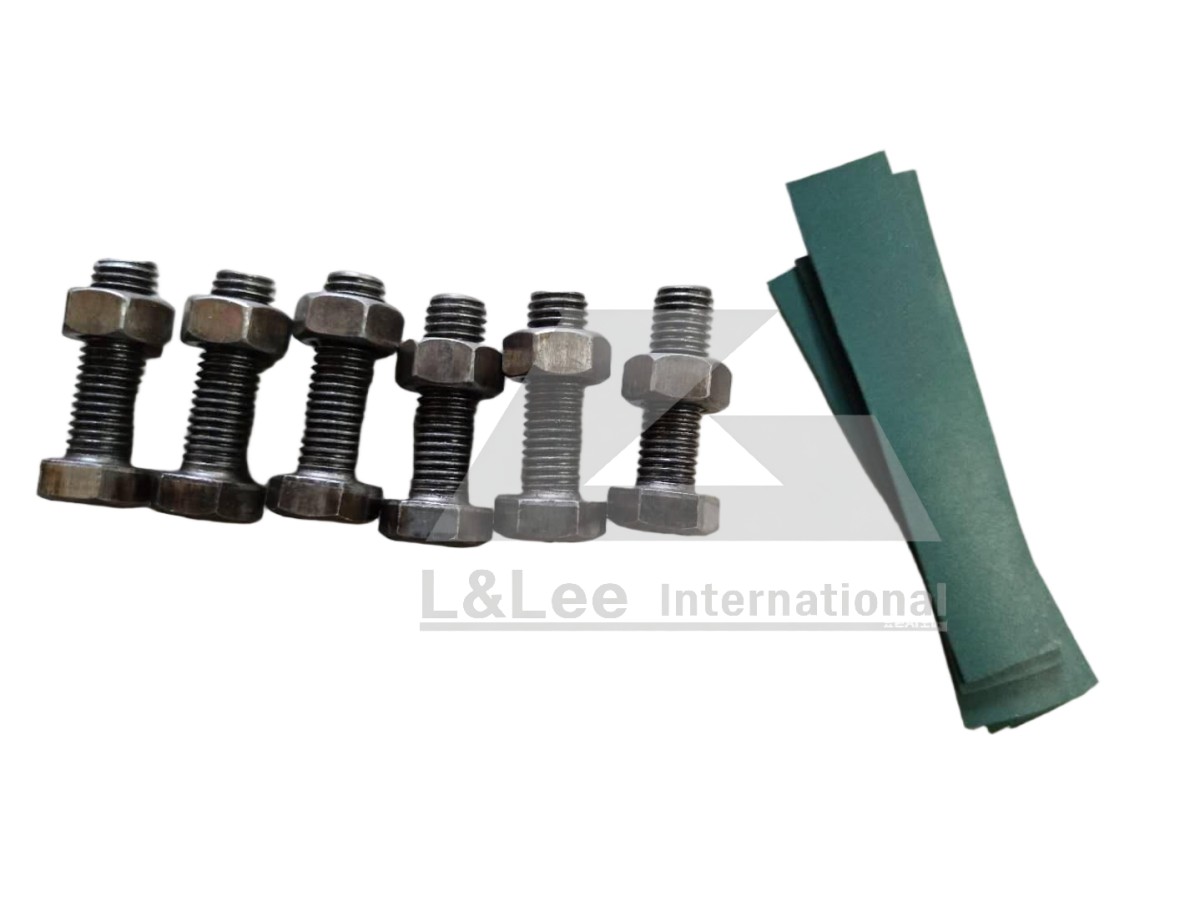

- Mount Bolt
Options
- Drill bits from ⌀4.0mm - ⌀22mm

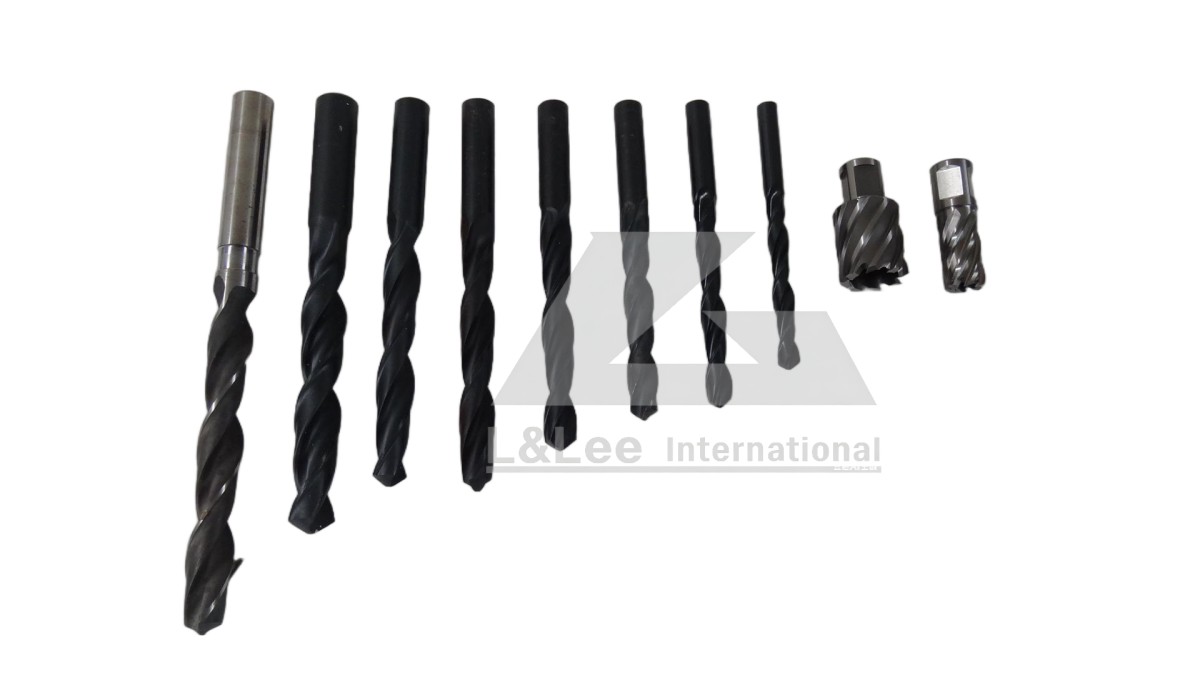

E. Drill Bits
Introductions
We supply professional industrial straight shank twist drills and HSS annular cutters (Weldon shank). Sizes: 3,4,5,6,8,10,12,14,15,16,17,18,19,20mm Annular cutters range: 18mm to 30mm
Specifications
| Shank Twist Drill (mm) | ⌀3,⌀4,⌀5,⌀6,⌀8,⌀10,⌀12,⌀14,⌀15,⌀16,⌀17,⌀18,⌀19,⌀20 |
| Core Drill (mm) | ⌀18,⌀20,⌀22,⌀24,⌀26,⌀28,⌀30 |
Package Includes
- 1 Piece
