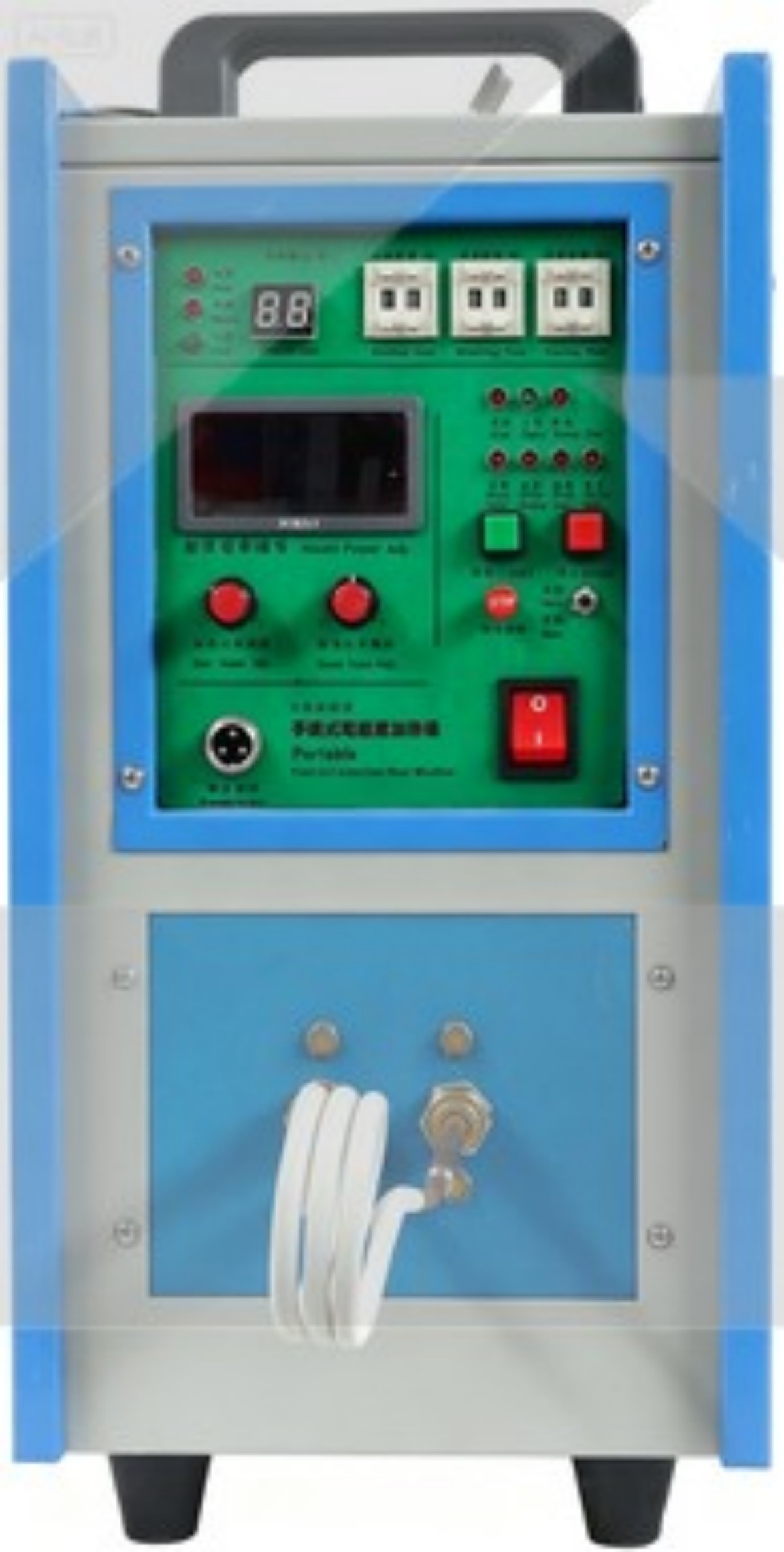

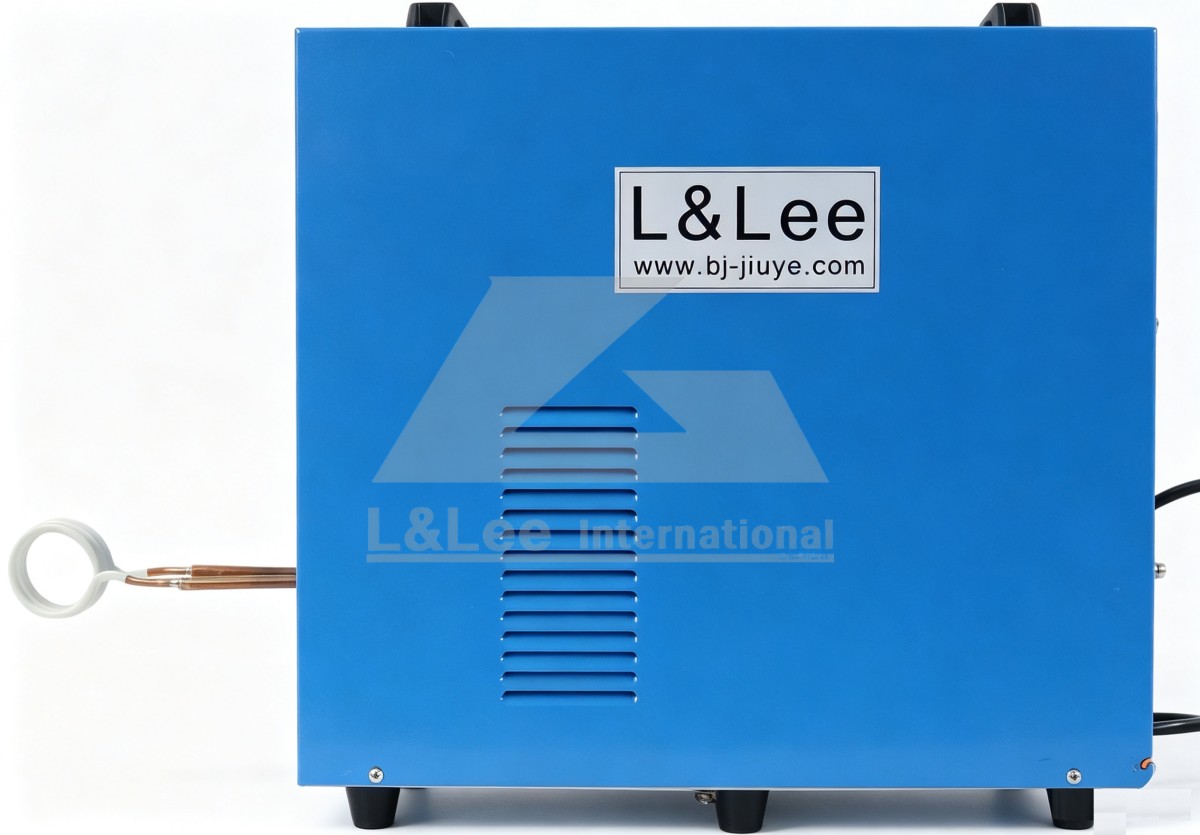

A. High Frequency Induction Heating Machine (15KW)
Introductions
XJH15KW single-phase transistor HF induction heating machine adopts the latest inverter technology for higher reliability and longer service life.
The XJH15KW transistor HF induction heating machine is ideal for heating, brazing and forging hardware workpieces.
It features a lightweight and coMPact design.
It rapidly heats all metals (diameter ＜40 mm) within just 1–5 seconds.
Video 15KW High Frequency Induction Heating Machine
Video Test on ⌀73 mm Metal Tube – Auto Operation, Timing & Temperature Control
Video Test on ⌀73 mm Metal Tube – Manual Operation, Timing & Temperature Control
Video Test on ⌀20 mm Metal bar – Manual Operation, Timing & Temperature Control
Specifications
| Power Voltage | AC230V 50/60Hz |
| Output Control Mode | Unaltered current |
| Max Output Power (kVA) | 15 |
| Output Vibration Frequency (kHz) | 30-100 |
| Temperature of Cooling Water (℃） | <40 |
| Water Flow (MPa) | >0.2 |
| Stimulant Heating Current (A) | 200-600 |
| Time control function (sec) | Auto control(1-99sec) and Manual control. |
| Protection | Over heating/Over time/Less cooling water flow/Over cooling water Temperature. |
| Weight（kg) | 25 |
| Dimensions (mm) | 490 × 240 × 460 |
Package Includes
- Unit
- 1 Standard Induction Coil (diameter=30mm)
- Foot Controller
Options

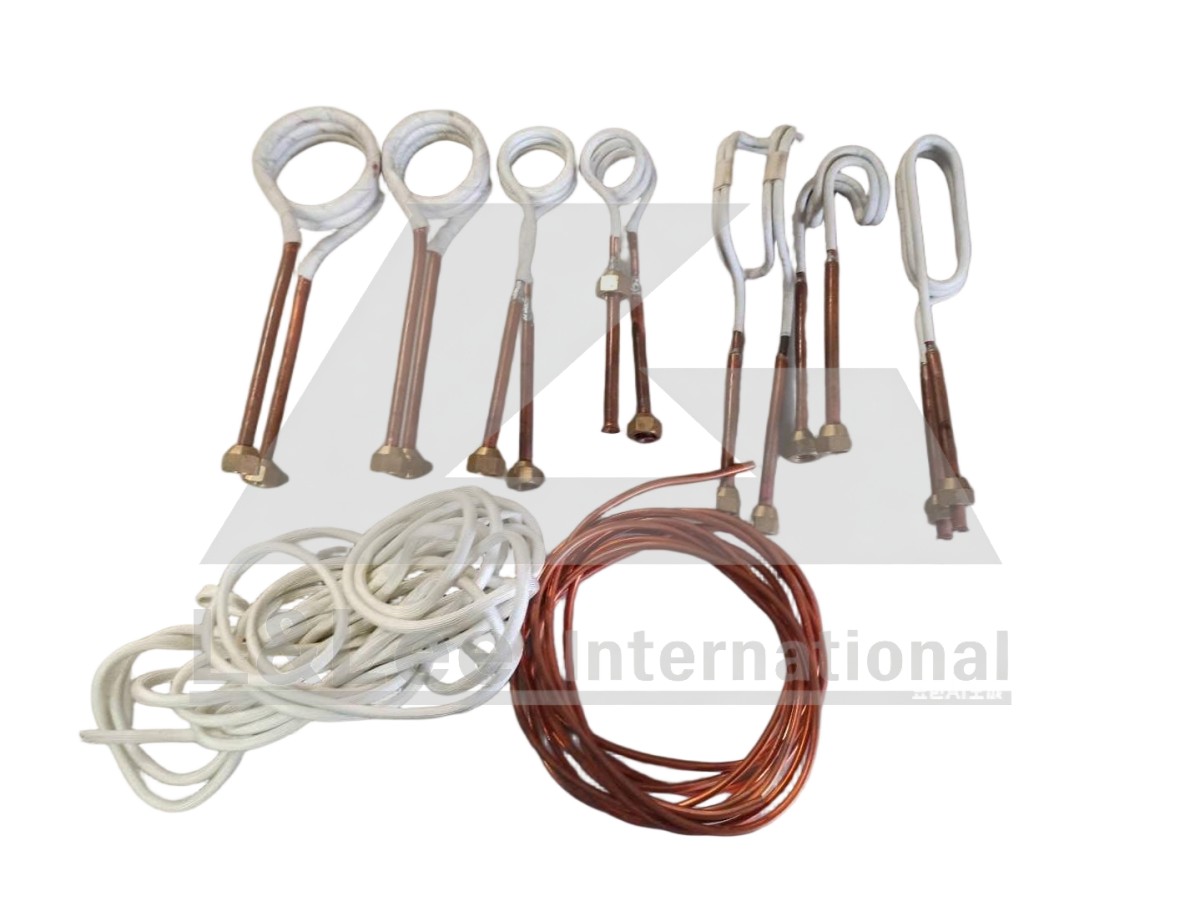

- Coils ranging from ⌀30, ⌀40, ⌀50, ⌀60 up to ⌀80
- Custom-make special-shaped coils as required
- Heat-resistant tube sleeve fabric
- Coil fitting nut
- Copper tube

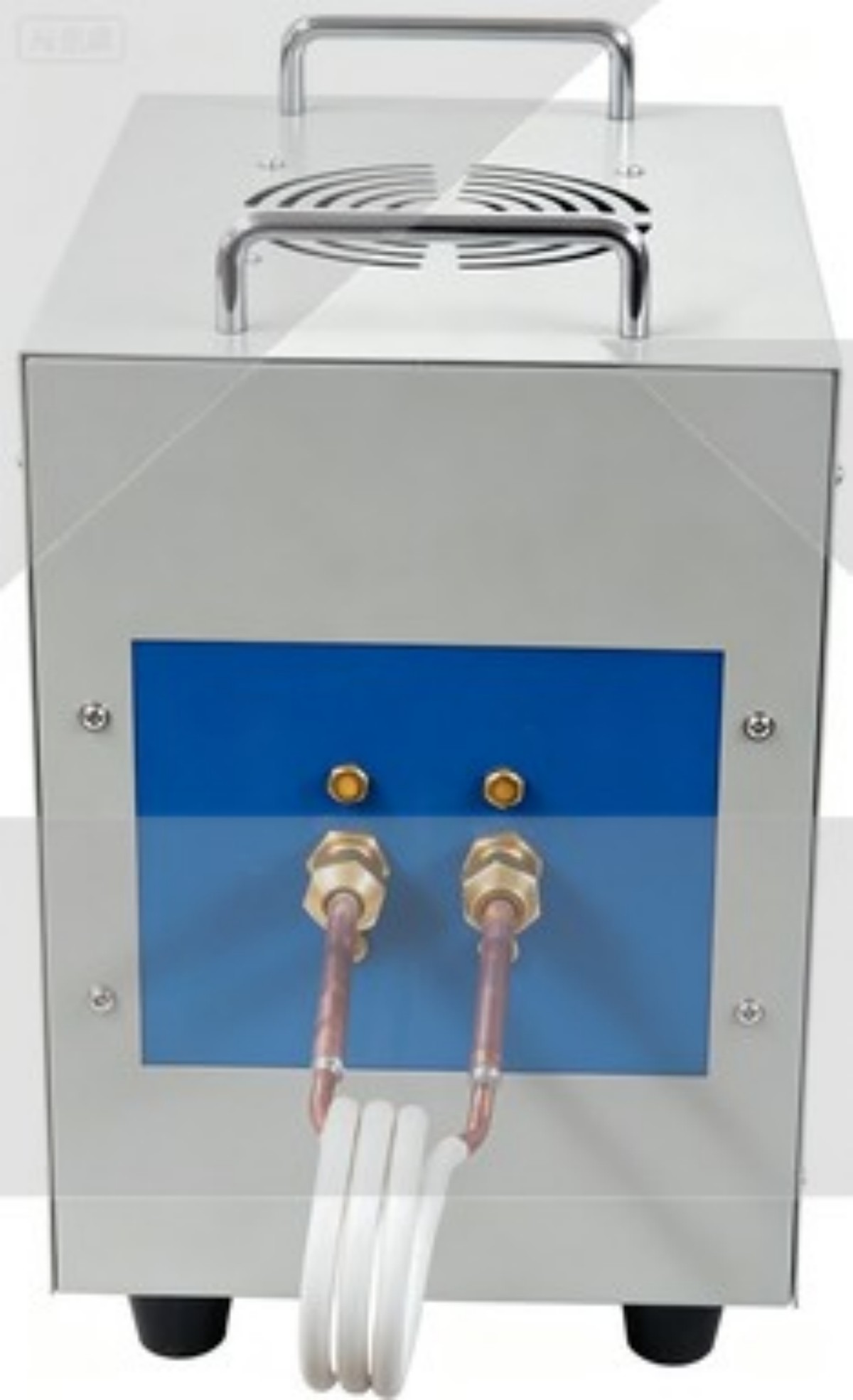

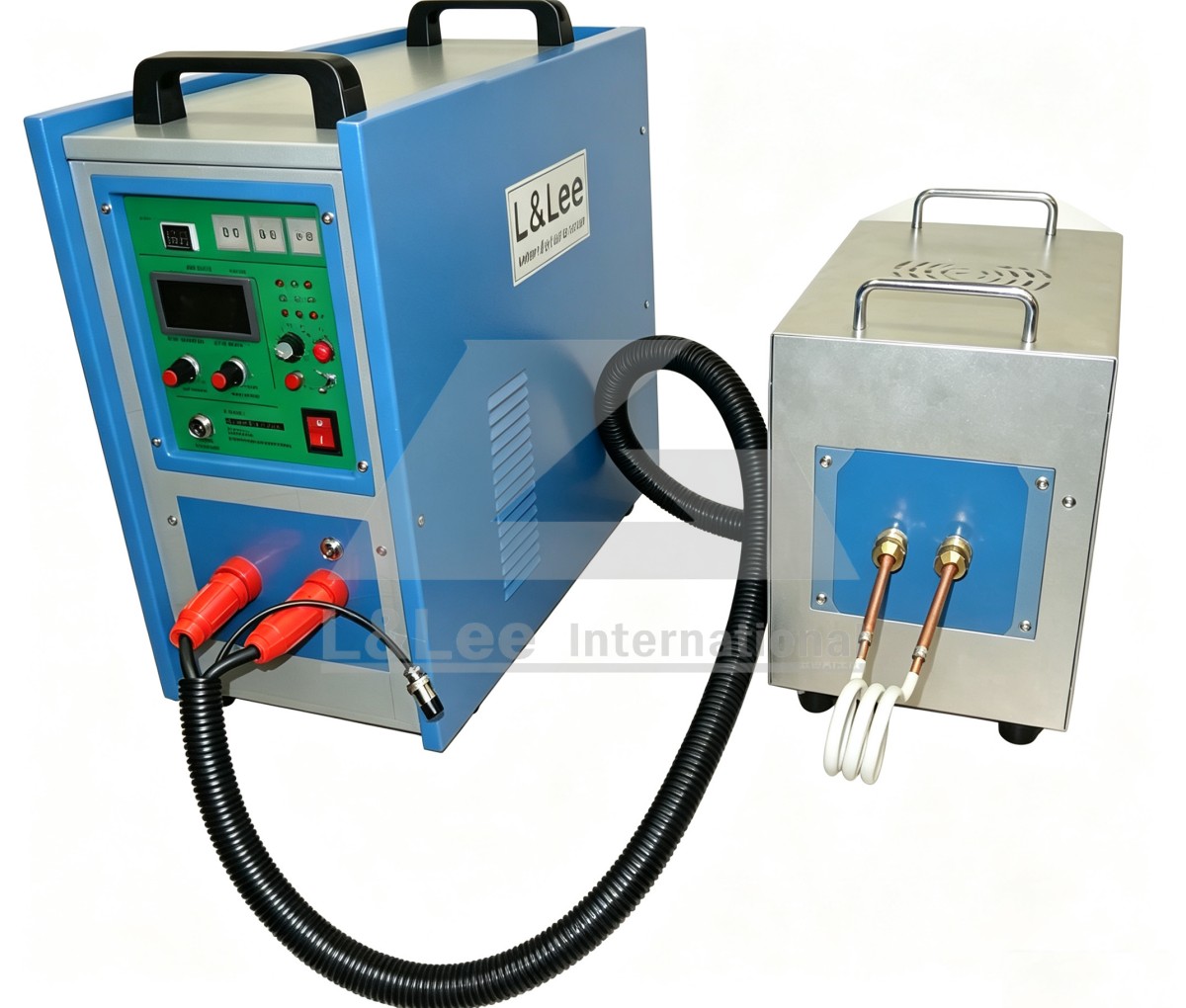

B. High-Frequency Induction Heating Machine (15KW),Separate Type
Introductions
XJH15KW single-phase transistor HF induction heating machine adopts the latest inverter technology for higher reliability and longer service life.
The XJH15KW transistor HF induction heating machine is ideal for heating, brazing and forging hardware workpieces.
It features a lightweight and coMPact design.
This 15 kW high-frequency induction heating machine is a separate-type unit with independent host and coil structure for flexible installation and stable heating performance.
It rapidly heats all metals (diameter ＜40 mm) within just 1–5 seconds.
Video 15KW High Frequency Induction Heating Machine
Video Test on ⌀73 mm Metal Tube – Auto Operation, Timing & Temperature Control
Video Test on ⌀73 mm Metal Tube – Manual Operation, Timing & Temperature Control
Video Test on ⌀20 mm Metal bar – Manual Operation, Timing & Temperature Control
Specifications
| Power Voltage | AC230V 50/60Hz |
| Output Control Mode | Unaltered current |
| Max Output Power (kVA) | 15 |
| Output Vibration Frequency (kHz) | 30-100 |
| Temperature of Cooling Water (℃） | <40 |
| Water Flow (MPa) | >0.2 |
| Stimulant Heating Current (A) | 200-600 |
| Time control function (sec) | Auto control(1-99sec) and Manual control. |
| Protection | Over heating/Over time/Less cooling water flow/Over cooling water Temperature. |
| Weight（kg) | 25 |
| Dimensions (mm) | 490 × 240 × 460 |
Package Includes
- Power Unit
- Heating Unit
- Connection Cable
- 1 Standard Induction Coil (diameter=30mm)
- Foot Controller
Options
- Coils ranging from ⌀30, ⌀40, ⌀50, ⌀60 up to ⌀80mm
- Custom-make special-shaped coils as required
- Heat-resistant tube sleeve fabric
- Coil fitting nut
- Copper tube

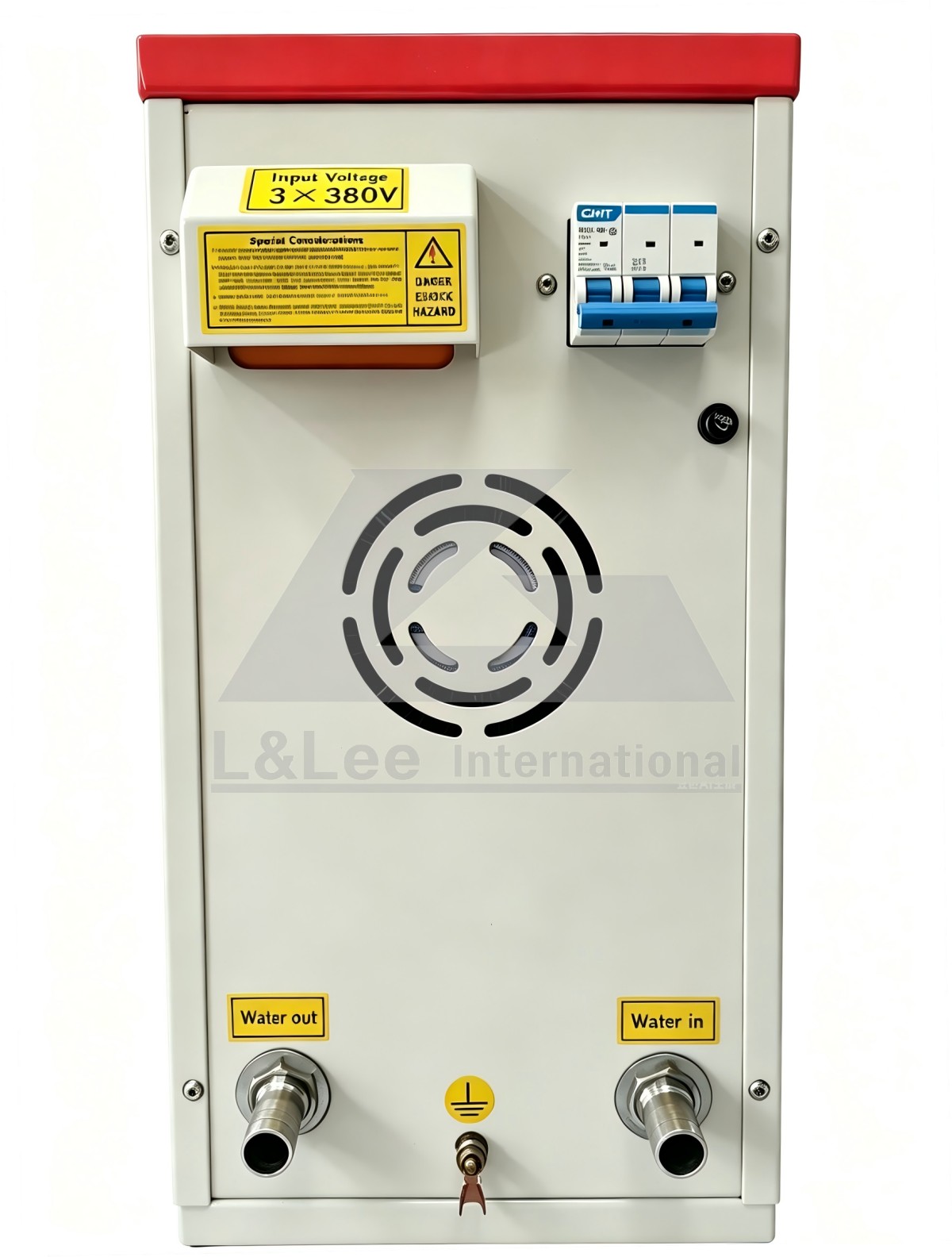

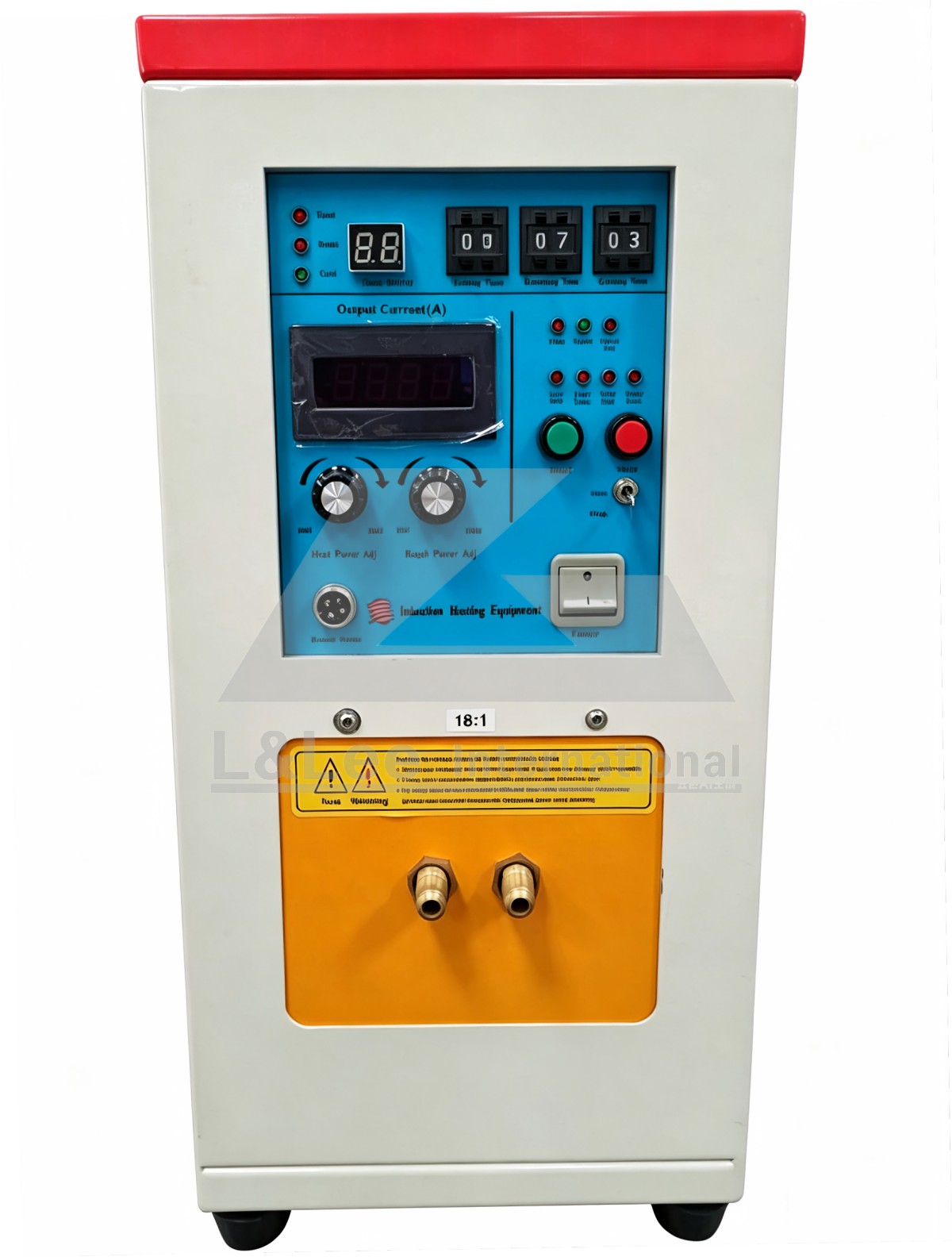

C. High-Frequency Induction Heating Machine (25KW) 3-phase
Introductions
The XJH25KW 3-phase transistor HF induction heating machine utilises the latest IGBT inverter technology for enhanced reliability and longer service life.
The XJH25KW transistor HF induction heating machine is ideal for heating, brazing and forging hardware workpieces.
It features a lightweight and coMPact design.
It rapidly heats all metals with diameters below 50 mm in just 1–5 seconds.
Video 25KW HF Induction Heating Machine ⌀73 mm Metal Tube – Manual Operation, Timing & Temperature
Specifications
| Power Voltage | AC380V 50/60Hz 3-Phase |
| Output Control Mode | Unaltered current |
| Max Output Power (kVA) | 25 |
| Output Vibration Frequency (kHz) | 20-80 |
| Temperature of Cooling Water (℃） | <40 |
| Water Flow (MPa) | >0.2 |
| Stimulant Heating Current (A) | 200-900 |
| Time control function (sec) | Auto control(1-99sec) and Manual control. |
| Protection | Over heating/Over time/Less cooling water flow/Over cooling water Temperature. |
| Weight（kg) | 29 |
| Dimensions (mm) | 550 × 240 × 460 |
Package Includes
- Unit
- 1 Standard Induction Coil (diameter=40mm)
- Foot Controller
Options
- Coils ranging from ⌀30, ⌀40, ⌀50, ⌀60 up to ⌀80mm
- Custom-make special-shaped coils as required
- Heat-resistant tube sleeve fabric
- Coil fitting nut
- Copper tube

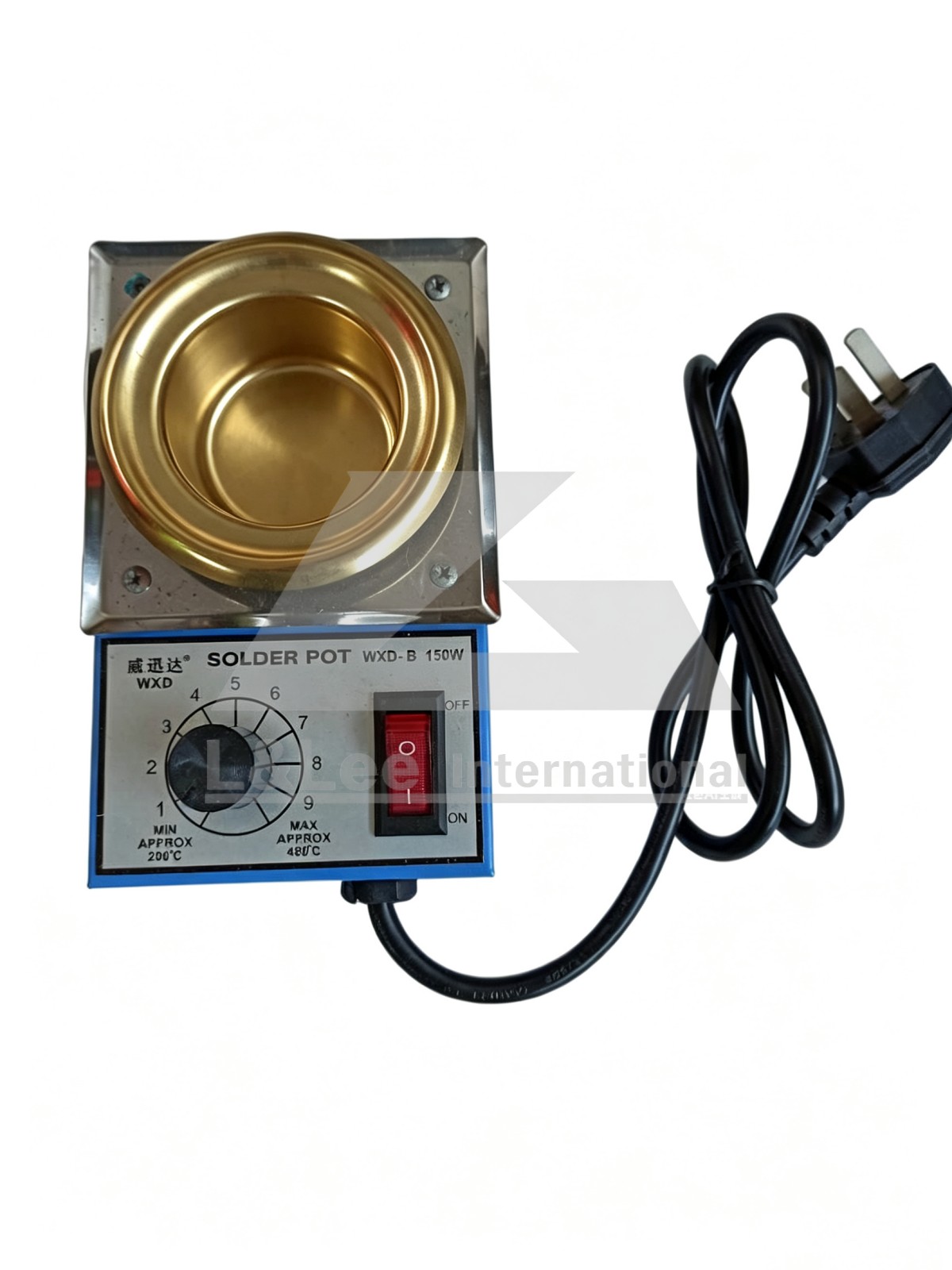

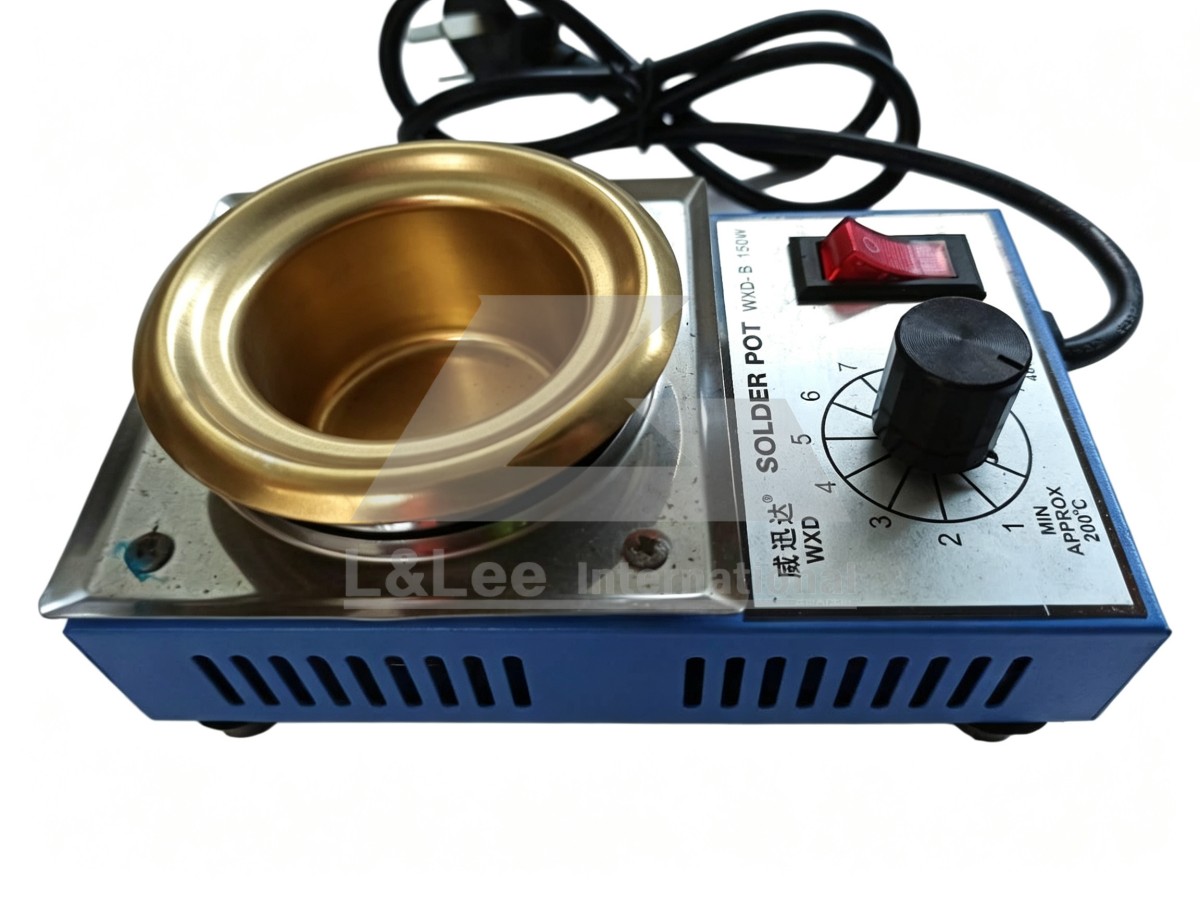

D. Solder Pot Heating
Introductions
Temperature can be freely set within a range of approximately 200–480°C. Constructed from corrosion-resistant stainless steel, it is easy to operate with outstanding thermal performance and rapid melting. The unit allows simple maintenance and quick replacement of accessories.
Specifications (WXD-A100W POT)
| Power Voltage | AC230V 50/60Hz |
| Max Output Power (W) | 100 |
| Maximum Temperature (℃) | 480 |
| Melting Time (min) | 3-7 |
| Maximum Solder Weight(g) | 300 |
| Internal Bath Dimension (mm) | D38 x H30, Volume 30ml |
Specifications (WXD-B150W POT)
| Power Voltage | AC230V 50/60Hz |
| Max Output Power (W) | 150 |
| Maximum Temperature (℃) | 480 |
| Melting Time (min) | 3-7 |
| Maximum Solder Weight(g) | 500 |
| Internal Bath Dimension (mm) | D50 x H31, Volume 60ml |
Package Includes
- Unit
Options

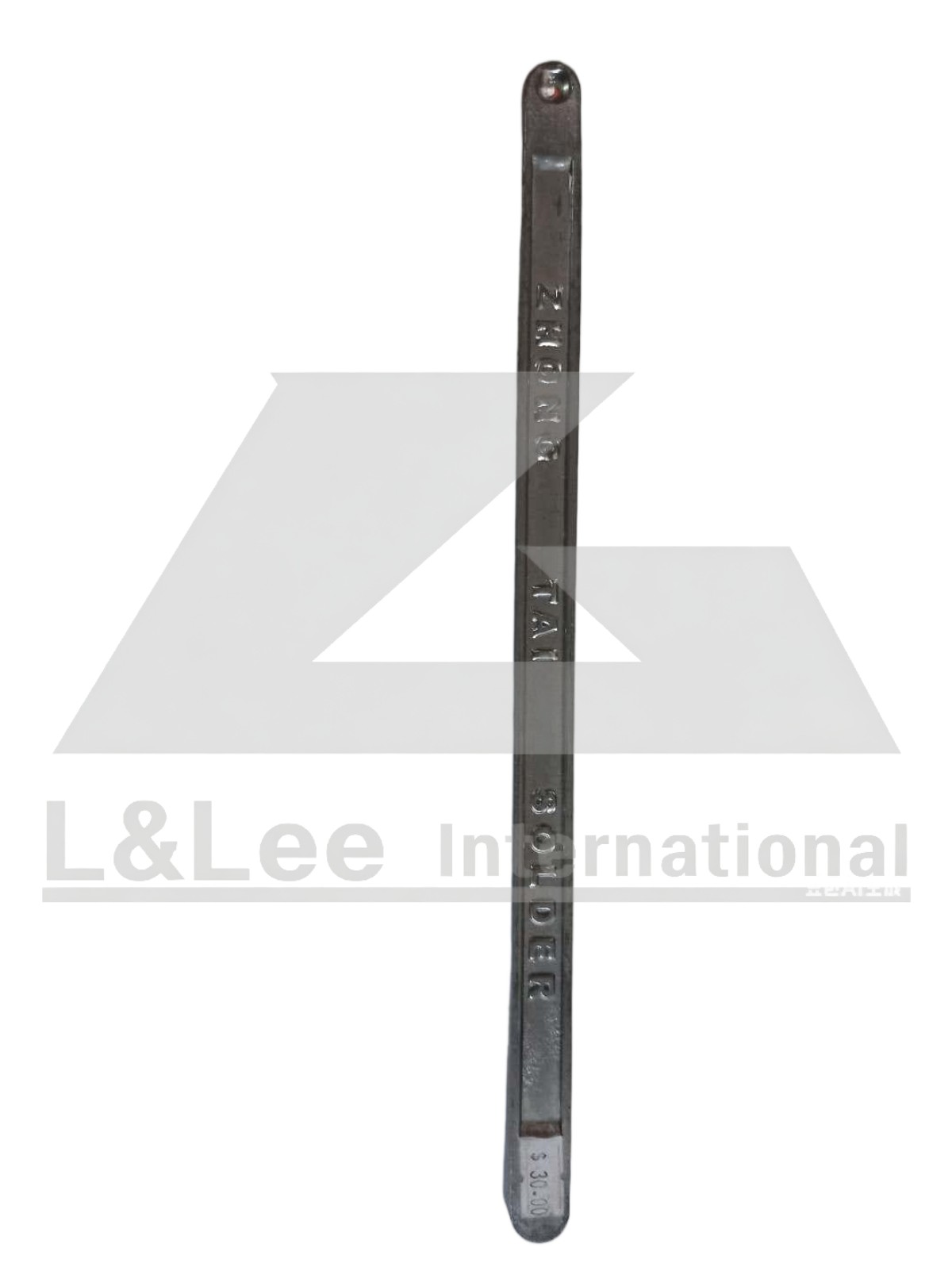

- solder bar (Content: 37% sn and 63% pb. Weight :750g)
